Technical Data Sheet
0%
20%
40%
60%
80%
100%
120%
5 min 10 min 30 min 2 hr 4 hr 8 hr 24 hr
Cur e Time
% of Ful l
St ren gth

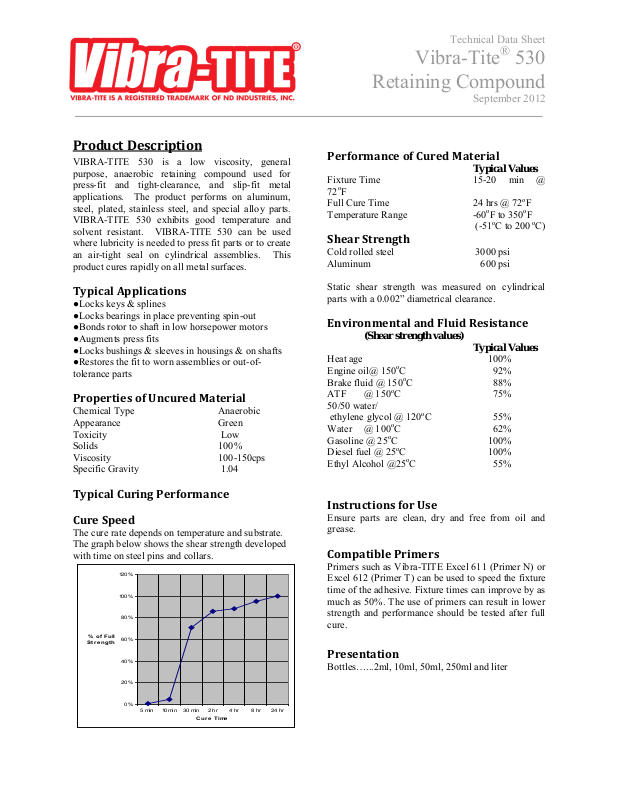

Vibra-Tite® 530
Retaining Compound
September 2012
Product Description
VIBRA-TITE 530 is a low viscosity, general
purpose, anaerobic retaining compound used for
press-fit and tight-clearance, and slip-fit metal
applications. The product performs on aluminum,
steel, plated, stainless steel, and special alloy parts.
VIBRA-TITE 530 exhibits good temperature and
solvent resistant. VIBRA-TITE 530 can be used
where lubricity is needed to press fit parts or to create
an air-tight seal on cylindrical assemblies. This
product cures rapidly on all metal surfaces.
Typical Applications
●Locks keys & splines
●Locks bearings in place preventing spin-out
●Bonds rotor to shaft in low horsepower motors
●Augments press fits
●Locks bushings & sleeves in housings & on shafts
●Restores the fit to worn assemblies or out-oftolerance parts
Properties of Uncured Material
Chemical Type Anaerobic
Appearance Green
Toxicity Low
Solids 100%
Viscosity 100-150cps
Specific Gravity 1.04
Typical Curing Performance
Cure Speed
The cure rate depends on temperature and substrate.
The graph below shows the shear strength developed
with time on steel pins and collars.
Performance of Cured Material
Typical Values
Fixture Time 15-20 min @
72oF
Full Cure Time 24 hrs @ 72oF
Temperature Range -60oF to 350oF
(-51oC to 200 oC)
Shear Strength
Cold rolled steel 3000 psi
Aluminum 600 psi
Static shear strength was measured on cylindrical
parts with a 0.002” diametrical clearance.
Environmental and Fluid Resistance
(Shear strength values)
Typical Values
Heat age 100%
Engine oil@ 150oC 92%
Brake fluid @ 150oC 88%
ATF @ 150oC 75%
50/50 water/
ethylene glycol @ 120oC 55%
Water @ 100oC 62%
Gasoline @ 25oC 100%
Diesel fuel @ 25oC 100%
Ethyl Alcohol @25oC 55%
Instructions for Use
Ensure parts are clean, dry and free from oil and
grease.
Compatible Primers
Primers such as Vibra-TITE Excel 611 (Primer N) or
Excel 612 (Primer T) can be used to speed the fixture
time of the adhesive. Fixture times can improve by as
much as 50%. The use of primers can result in lower
strength and performance should be tested after full
cure.
Presentation
Bottles…...2ml, 10ml, 50ml, 250ml and liter
Page 2
General Information
Storage
Product should be stored in a cool and dry location at
temperatures between 14°F (-10°C) to 86°F (30°C).
Shelf life is 2 years from date of manufacture when
stored at 72±8°F (22±4°C).
Note
Vibra-TITE 530 is a low viscosity rapid curing liquid
which augments press fit and slip fit applications.
Product conforms to MIL-R-46082, ASTM D-5363,
GM-1183024.
Health & Safety in use
IRRITANT: Contains Methacrylate Esters which
may irritate eyes, respiratory organs and skin. In
case of contact with the skin, wash immediately
with plenty of water.
