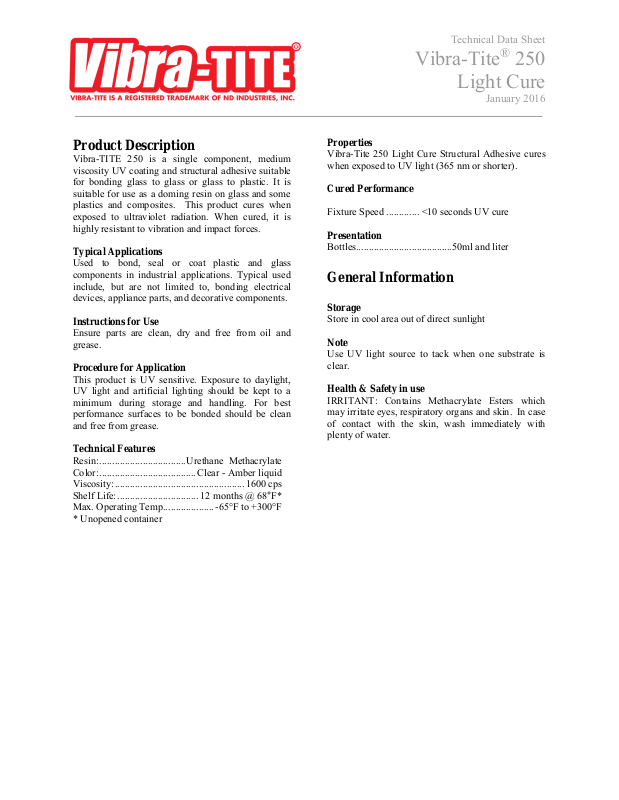

Vibra-Tite 250 Technical Data

Technical Data Sheet

Vibra-Tite® 250

Light Cure

January 2016

Product Description

Vibra-TITE 250 is a single component, medium
viscosity UV coating and structural adhesive suitable
for bonding glass to glass or glass to plastic. It is
suitable for use as a doming resin on glass and some
plastics and composites. This product cures when
exposed to ultraviolet radiation. When cured, it is
highly resistant to vibration and impact forces.

Typical Applications

Used to bond, seal or coat plastic and glass
components in industrial applications. Typical used
include, but are not limited to, bonding electrical
devices, appliance parts, and decorative components.

Instructions for Use

Ensure parts are clean, dry and free from oil and
grease.

Procedure for Application

This product is UV sensitive. Exposure to daylight,
UV light and artificial lighting should be kept to a
minimum during storage and handling. For best
performance surfaces to be bonded should be clean
and free from grease.

Technical Features

Resin: .................................. Urethane Methacrylate

Color: ...................................... Clear - Amber liquid

Viscosity: ................................................... 1600 cps

Shelf Life: ................................ 12 months @ 68°F*

Max. Operating Temp .................... -65°F to +300°F

* Unopened container

Properties

Vibra-Tite 250 Light Cure Structural Adhesive cures
when exposed to UV light (365 nm or shorter).

Cured Performance

Fixture Speed ............. <10 seconds UV cure

Presentation

Bottles......................................50ml and liter

General Information

Storage
Store in cool area out of direct sunlight

Note

Use UV light source to tack when one substrate is
clear.

Health & Safety in use

IRRITANT: Contains Methacrylate Esters which
may irritate eyes, respiratory organs and skin. In case
of contact with the skin, wash immediately with
plenty of water.
