Mercedes Replacement Speakers
OPTISOUND MERCEDES 4 COAXIAL
• OPTISOUNDMERC4-V2
OPTISOUND MERCEDES 4 COMPONENT
• OPTISOUNDMERC4C-V2
OPTISOUND MERCEDES 8 SUBWOOFER
• OPTISOUNDMERC8WR-V2 (RHD)
• OPTISOUNDMERC8WL-V2 (LHD)
Page 2
Owners Manual
Congratulations on purchasing your VIBE speakers. Please read this manual in order
to fully understand how to get the best results from this product and ensure that all
advice on how to look after the product is followed.
Thank you for buying VIBE, we hope you enjoy listening to your product as much as
we enjoyed creating it.
WARNING
DO NOT EXPOSE THIS PRODUCT TO DAMP OR MOISTURE - doing so may result in
re, shock or damage to the product.
BEFORE WIRING DISCONNECT THE CABLE FROM THE POSITIVE BATTERY
TERMINAL - failure to do so may result in electric shock or injury.
ENSURE GOOD AND CORRECT CONNECTIONS - failure to make the correct connec-
tions may result in re or damage to the product.
DO NOT USE ANY FUNCTIONS OF THIS EQUIPMENT THAT MAY TAKE YOUR
CONCENTRATION AWAY FROM DRIVING YOUR VEHICLE - do not set up your
amplier whilst driving, doing so may result in an accident. For prolonged setting up,
make sure that your vehicle is stationary and in a safe location.
KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE - failure
to do this may result in an accident. VIBE equipment is capable of producing sound
levels that can permanently damage your hearing. VIBE recommends caution when
listening at high volume. For safe and enjoyable listening the sound should be
comfortable and clear without distortion.
2
CAUTION
Never connect any speaker lead to the car chassis. This can cause severe damage to
your speaker /car radio /amplier.
Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
Use caution when working near the fuel / hydraulic lines and electrical wiring.
Observe the correct polarity when wiring, improper phasing may cause a loss of bass
response.
Ensure that no moving parts catch on the speaker or grill (e.g. window or door
handles, or window glass inside the door)
Page 3
Limited Warranty
All VIBE products carry a full 12 month warranty, valid from the date of the original receipt and proof of purchase (UK only). The online warranty card should be
completed within seven days of the original purchase date. The original receipt and
packaging should be retained for this twelve month period. If the product develops
a problem any stage during the warranty period, it should be returned to the point of
purchase in it’s original packaging, and complete with no items missing.
A full description of VIBE’s warranty information can be found on our website:
www.vibeaudio.co.uk
What Is Not Covered
• Damage to product due to improper installation.
• Subsequent damage to other components.
• Damage caused by exposure to moisture, excessive heat, chemical cleaners and / or UV
radiation.
• Damage through negligence, misuse, accident or abuse. Repeated returns for the same fault
may be considered abuse.
• Any cost or expense related to the removal and / or re-installation of the product.
• Damage caused by amplier clipping or distortion.
• Items repaired or modied by any unauthorised repair facility.
• Return shipping on non defective items.
• Products returned without a returns authorisation number.
• Damage to product due to use of sealant.
International Warranty
Contact your international VIBE dealer or distributor concerning specic procedure for your
country’s warranty policies. www.vibeaudio.co.uk
3
Warning
VIBE equipment is capable of sound pressure levels that can cause permanent damage to your
hearing and those around you. Please use common sense when listening to your audio system
and practice safe sound.
Copyright
All content included in this manual such as text, graphics, logos, icons, images and data, are the property of Midbass Distribution Limited t/a VIBE
Technologies Limited (herein referred to as “VIBE”, “us” or “we”) and its afliate or their content and technology providers, and are protected by United
Kingdom and International copyright laws. All rights reserved. VIBE TV, VIBE Arcade, Bass Box, Optisound, Cinesound, BlackAir, BlackBox, Space,
LiteAir, SLICK, BlackDeath, Bubonic, Reaper, Anti-VIBE, FastPlug, BlackHole, QB69, VIBE Turbo Port, Vibe TurboVent, Pressure Board, Super Driver,
VIBE Pulse, VIBE Power, VIBE Digital, VIBE MAG Plugs, Ferrite Loaded, VIBE Solid Core, VIBE OCC, VIBE FLAT, ICC, Bass Enhance, Bass Enhance+,
QBass, SpeedBass, PowerBass, N-Wedge, Box Grip, ARBSS, Supercar Series and all stylised representations of product names, or the abbreviations
of product names, as logos are all trademarks of VIBE. Graphics and logos are trademarks or trade dress of VIBE Technologies Ltd or its subsidiaries.
VIBE’s trademarks and trade dress may not be used in connection with any product or service that is not VIBE’s, in any manner that is likely to cause
confusion among customers or in any manner that disparages or discredits VIBE. All other trademarks not owned by VIBE or its subsidiaries that
appear in this manual are the property of their respective owners, who may or may not be afliated with, connected to, or sponsored by VIBE or its
subsidiaries.
TO THE FULLEST EXTENT PERMITTED AT LAW, VIBE IS PROVIDING THIS MANUAL AND ITS CONTENT ON AN “AS IS” BASIS AND MAKES
NO (AND EXPRESSLY DISCLAIMS ALL) REPRESENTATIONS OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THIS
MANUAL OR THE INFORMATION, CONTENT, MATERIALS OR PRODUCTS INCLUDED IN THIS MANUAL INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN ADDITION, VIBE DOES NOT REPRESENT OR WARRANT
THAT THE INFORMATION CONTAINED IN THIS MANUAL IS COMPLETE OR CURRENT, AND THAT ALL SPECIFICATIONS AND INFORMATION
CONTAINED WITHIN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. VIBE RECOMMEND CAUTION WHEN LISTENING TO MUSIC
REPRODUCED THROUGH VIBE EQUIPMENT. VIBE EQUIPMENT IS CAPABLE OF PRODUCING SOUND AND SOUND PRESSURE LEVELS THAT
CAN PERMANENTLY DAMAGE HEARING OF YOU AND THAT OF OTHERS. FOR SAFE AND ENJOYABLE LISTENING, THE SOUND SHOULD BE
CLEAR WITHOUT DISTORTION AT A COMFORTABLE VOLUME. BY USING ANY VIBE EQUIPMENT, YOU AGREE TO TAKE FULL RESPONSIBILITY
FOR YOUR OWN SAFETY AND THE SAFETY OF OTHERS WHEN LISTENING TO MUSIC AT HIGH VOLUMES THROUGH EQUIPMENT YOU HAVE
PURCHASED. USE OF ANY VIBE EQUIPMENT CONSTITUTES AGREEMENT TO THIS DISCLAIMER. Except as specically stated in this manual, to the
fullest extent permitted at law, neither VIBE nor any of its afliates, directors, employees or other representatives will be liable for damages arising out
of or in connection with the use of this manual or the information, content, materials or products included. This is a comprehensive limitation of liability
that applies to all damages of any kind, including (without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or
prot, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to
the extent only that it arises as a result of negligence of VIBE, its afliates, directors, employees or other representatives.
Page 4
Speaker Installation

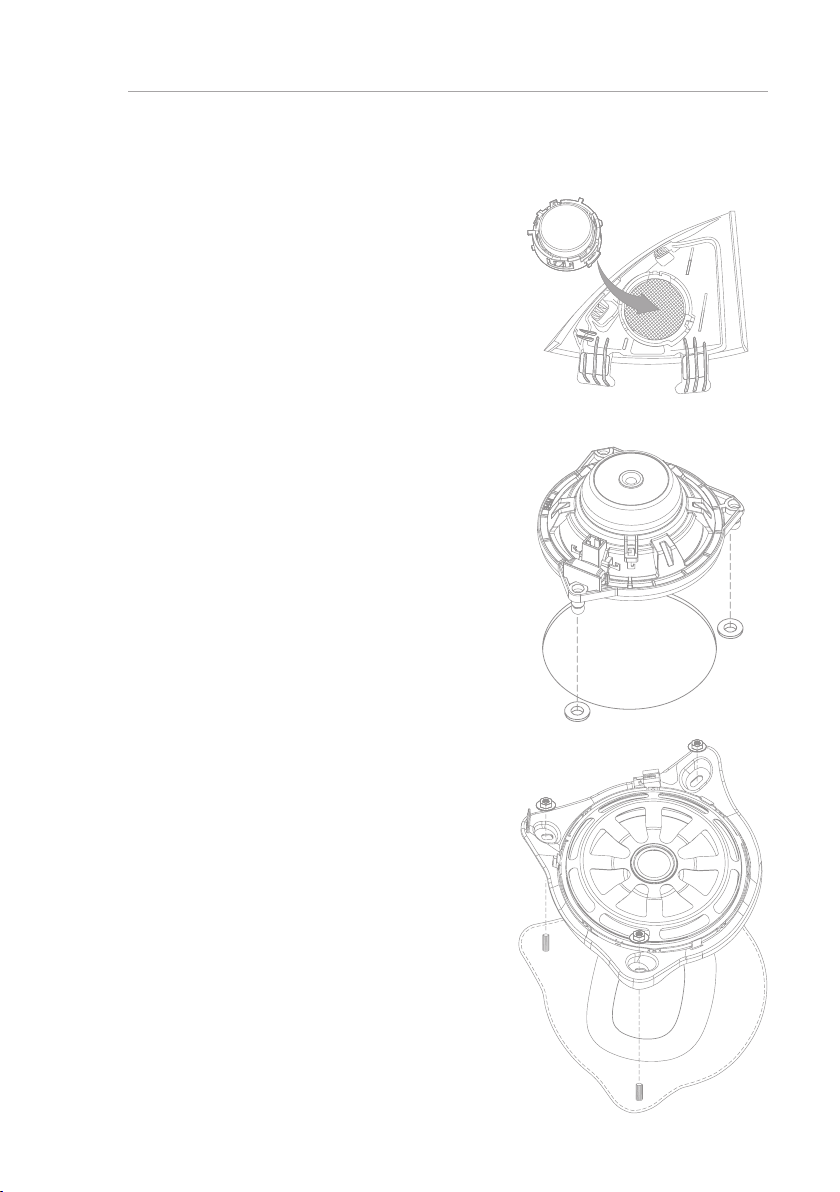

The OPTISOUNDMERC4C-V2 tweeter is a direct
replacement for the factory tted tweeter, To Install,
simply snap into the mirror pod after removing the
factory tweeter.
NOTE:
If you have a vehicle without any factory installed
tweeters, you will need to purchase the correct mirror
pods from your local Mercedes dealer.
See next page for wiring connections.
The OPTISOUNDMERC4C-V2 midrange is a direct
replacement for the factory tted midrange driver, To
Install, locate into the three mounting sockets after
removing the factory midrange.
See next page for wiring connections.
The OPTISOUNDMERC4-V2 coaxial speaker installs
in exactly the same way as the
OPTISOUNDMERC4C-V2.
4
The only difference is that the speaker and plugs
directly into the same connector used by the factory
midrange speaker.
The OPTISOUNDMERC8WR/L-V2 subwoofer is a
direct replacement for the factory tted subwoofer.
To Install, it will be necessary to remove the
splashback cover in the front footwell. Once the
factory subwoofer has been removed you can mount
the OPTISOUNDMERC8WR/L-V2 subwoofer into the
same location using the factory screw nuts.
The speaker connection socket is located on the front
of the OPTISOUNDMERC8WR/L-V2 subwoofer and
plugs directly into the same connector used by the
factory subwoofer.
Page 5
OPTISOUNDMERC4C-V2
IN+ IN -
-6dB -3dB 0dB
Mercedes Replacement Speakers
OPTISOUND MERCEDES 4 COAXIAL
• OPTISOUNDMERC4-V2
OPTISOUND MERCEDES 4 COMPONENT
• OPTISOUNDMERC4C-V2
OPTISOUND MERCEDES 8 SUBWOOFER
• OPTISOUNDMERC8WR-V2 (RHD)
• OPTISOUNDMERC8WL-V2 (LHD)

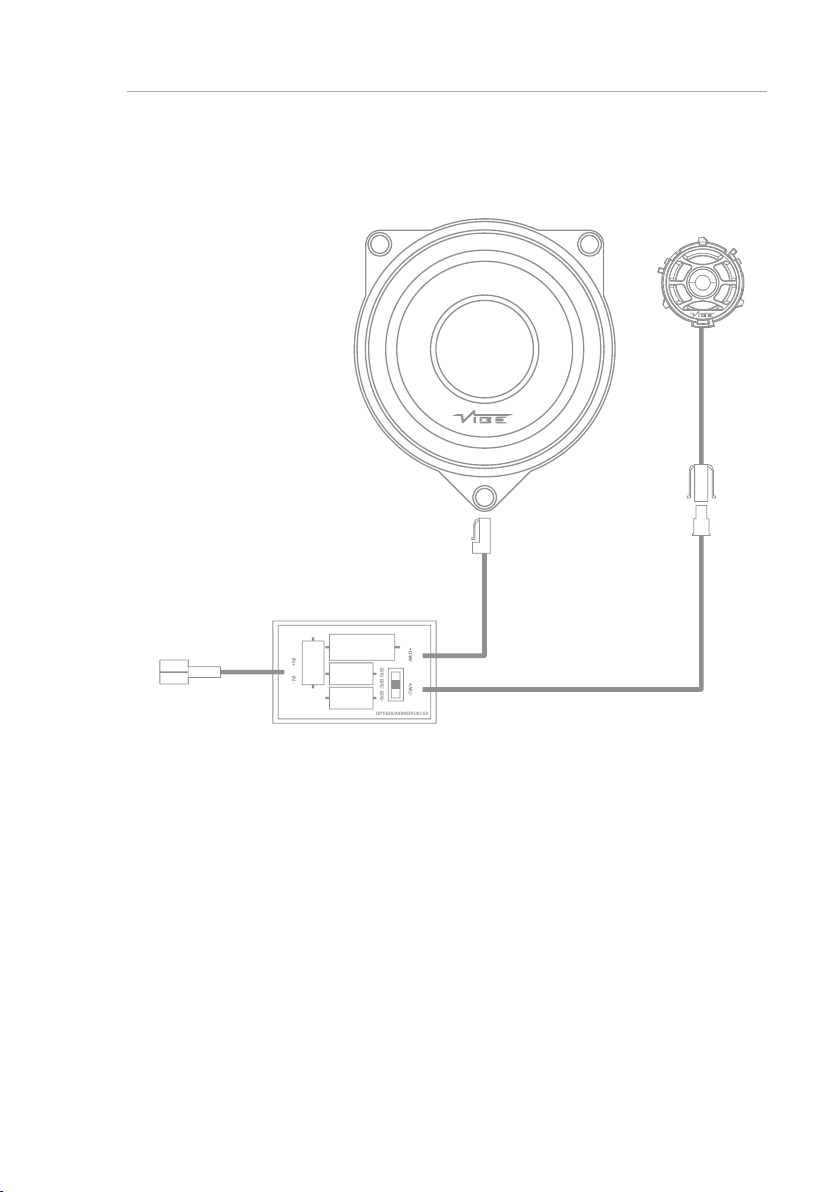

OPTISOUNDMERC4C-V2 Wiring Connections
5
Connect crossover input to
factory midrange connector.
The OPTISOUNDMERC4C-V2 has been designed for easy plug and play installation in
mind.
Firstly connect the factory midrange speaker connector to the “IN” connector on the
crossover. The midrange should be connected tothe “MID” output connector from the
crossover and the tweeter should be connected to the “TW” output connector from the
crossover.
After connections are made, you can tune the level of the tweeter to your desired
preference using the attenuation selection switch which has 0dB, -3dB and -6dB settings.
Connect midrange input
to “MID” connector from
the crossover.
Connect tweeter input
to “TW” connector from
the crossover.
Page 6
Specication
Model OPTISOUNDMERC8WR-V2 OPTISOUNDMERC8WL-V2 OPTISOUNDMERC4C-V2 OPTISOUNDMERC4-V2
Type Subwoofer RHD Subwoofer LHD Component Coaxial
Configuration 1-way 1-way 2-way 2-way
Speaker Size 8” (200mm) 8” (200mm) 4” (100mm) 4” (100mm)
Peak/RMS Power 300W/100W 300W/100W 180W/60W 180W/60W
Sensitivity 88dB 88dB 89dB 89dB
Frequency Response 25Hz - 250Hz 25Hz - 250Hz 90Hz - 25kHz 90Hz - 25kHz
Impedance 3.6Ω 3.6Ω 4Ω 4Ω
Vehicle Manufacturer Mercedes Benz Mercedes Benz Mercedes Benz Mercedes Benz
Grille Included Yes Yes No No
Recommended Amp
POWERBOX100.4M-V0 POWERBOX100.4M-V0 POWERBOX65.4M-V7 POWERBOX65.4M-V7
Vehicle Application
6
Model Type Series Year OPTISOUNDMERC8WR-V2 OPTISOUNDMERC4-V2 OPTISOUNDMERC4-V2
Convertible A025 From 2016 Front subwoofer Front / Rear door Front / Rear door
Coupe C205 From 2015 Front subwoofer Front / Rear door Front / Rear door
C Class
Sedan W205 From 2014 Front subwoofer Front / Rear door Front / Rear door
T-Model S205 From 2014 Front subwoofer Front / Rear door Front / Rear door
Convertible A238 From 2017 Front subwoofer Front / Rear door Front / Rear door
Coupe C238 From 2017 Front subwoofer Front / Rear door Front / Rear door
E Class
Sedan W213 From 2016 Front subwoofer Front / Rear door Front / Rear door
T-Model S213 From 2016 Front subwoofer Front / Rear door Front / Rear door
SUV X253 From 2015 Front subwoofer Front / Rear door Front / Rear door
GLC
SUV Coupe C253 From 2015 Front subwoofer Front / Rear door Front / Rear door
S Class Sedan W222 From 2013 Front subwoofer Front / Rear door Front / Rear door
OPTISOUNDMERC8WL-V2 OPTISOUNDMERC4C-V2
Page 7

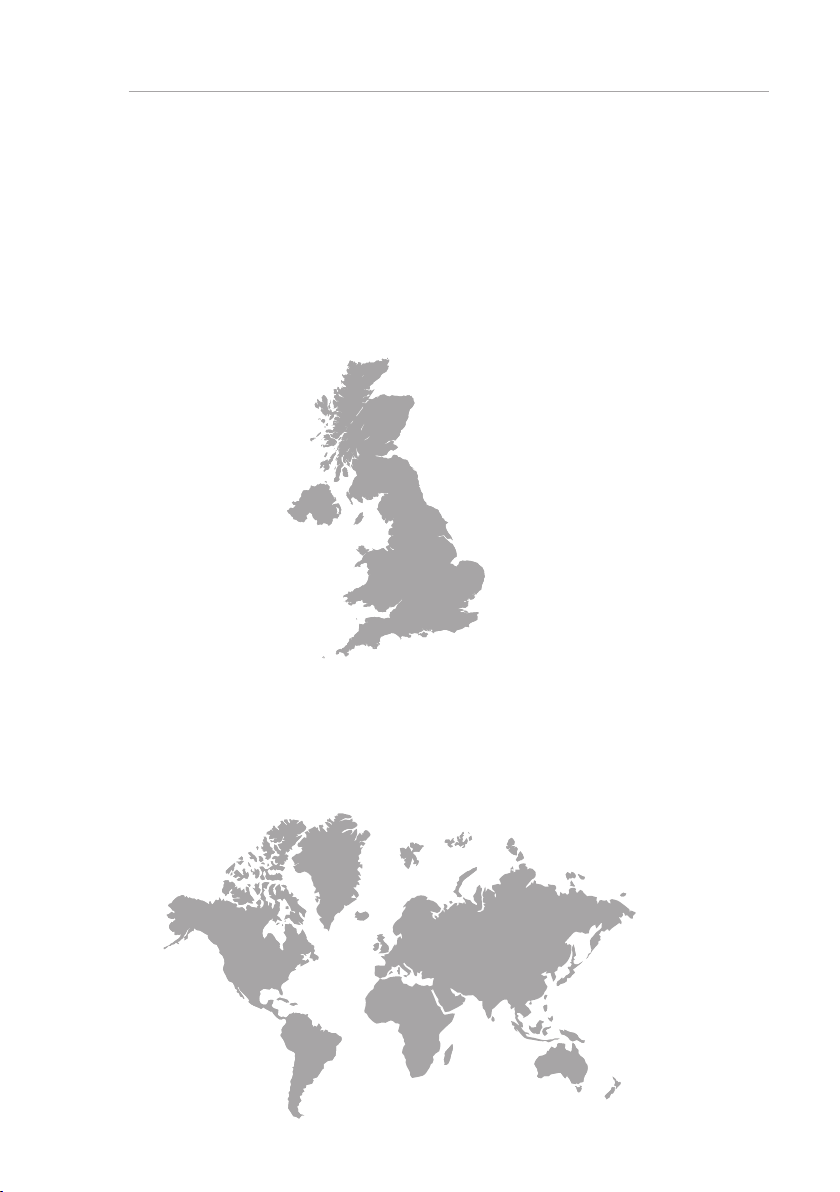

UK Technical Enquiries
Call 09067031420
Calls cost 50p per minute. Call costs correct at date of publication (01/02/12)
Hours of business 9.00am - 5.30pm GMT Monday - Friday.
All calls are recorded for training purposes.
MIDBASS Distribution
PO Box 11000
B75 7WG
7
International Technical Enquiries
For international technical support please contact the distribution agent for your country.
Please visit www.vibeaudio.co.uk for more details.
