Selection Guide – November 
Fiber Inspection Tips and Adapters
VIAVI Solutions offers a wide variety of fiber inspection tips and
adapters to help you Inspect Before You Connect™ and work clean.
Browse through this comprehensive guide of inspection tips and
adapters, then order what you need via www.viavisolutions.com
Table of Contents
Barrel Assemblies (BAP) ....................................................................................................................................................2
FBPT Probe Tips ...................................................................................................................................................................3
FCPT Probe Tips ................................................................................................................................................................. 13
VIAVI Solutions
FMA Adapters ..................................................................................................................................................................... 16
FMAX Adapters ................................................................................................................................................................. 20
FMAG Adapters ..................................................................................................................................................................27
Tip Cases .............................................................................................................................................................................. 28
Key Terms
Tip/Adapter Series Description Supported Devices
FBPP
FBPT Inspection Probe Tips
FCPP FiberChek parts, including Optical Lens Assembly FiberChek Sidewinder
FCPT Inspection Probe Tips FiberChek Sidewinder
FMA Inspection Adapter FVDi Series Benchtop
FMAX Inspection Adapter
Probe parts, including Barrel Assembly with Integrated Optical Lens
y Pi y FiberChekTM Probe
y Pi y FiberChek Probe y FiberChek SidewinderTM*
y FVAi Series Benchtop y SmartClass Fiber PCM**
FMAG Inspection Adapter FVAm Series Benchtop
* Requires FCPT-UFBPT to enable functionality for some FBPT tips on FiberChek Sidewinder
** PCM = Patch Cord Microscope
Page 2

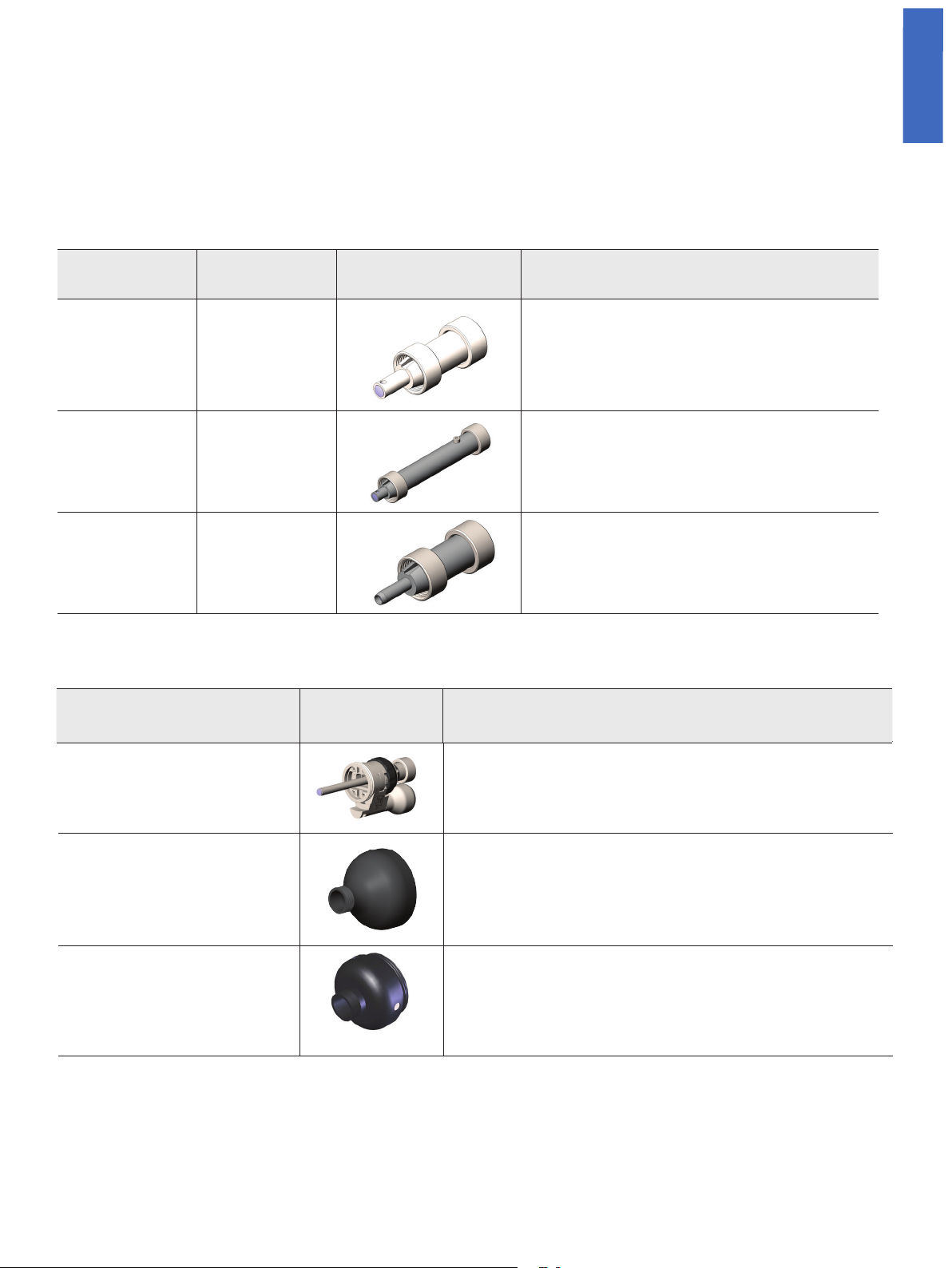

Barrel Assemblies
C
D
1
2
3
Barrel Assemblies (BAP)
Some of our FBPT Series tips require a BAP, or barrel assembly. A BAP contains a common set of optics that can be used with multiple hollow tips. This approach makes many common tips more economical. Some tips contain their own optics and do not require a BAP. Typical examples of tips containing optics are long-reach tips and tips with a 60-degree angle for hard-to-reach areas; RibbonDrive™ tips, such as those used for MPO connectors, are another example. The following pages indicate which tips require a BAP and which do not.
Catalog Part Number
FBPP-BAP1 Barrel Assemblies
FBPP-BAP2 Barrel Assemblies
Segment Product Image Description
Standard Barrel Assembly for FBP Series and FiberChek Probes
Long Reach Barrel Assembly for FBP Series and FiberChek Probes
(BAP)
FBPP-BAP3 Barrel Assemblies
Narrow Barrel Assembly for FBP Series and FiberChek Probes
FBPT Series Accessories
Catalog Part Number
FBPT-UFCPT FBP probe adapter for FCPT ribbon tips.
FBPT-UFMA
FBPT-UFMAE
Product Image
NEW
NEW
Description
FBP probe adapter for FVDi FMA adapters. Requires FBPP-BAP1.
Allows FMA adapters to be used with P5000i and FiberChek probe microscopes.
FBP probe adapter for FVAi and patch cord microscope (PCM) FMAE and FMAX adapters. Requires FBPP-BAP1.
Allows FMAE adapters to be used with P5000i and FiberChek probe microscopes.
 Fiber Inspection Tip and Adapter Selection Guide
Page 3
FBPT Probe Tips
The FBPT Series probe tips attach to the FiberChek and FBP-P5000i Inspection Probes. Some of them can also be connected to the FiberChek Sidewinder with an adapter for use with simplex inspection. FBPT tips are primarily used for bulkhead inspection, but patch cord tips are also available for certain connectors.
Catalog Part Number
Segment
Product Image
Description
Connector Image
Barrel Assembly Required
FBPT Probe Tips
FBPT-E2000 E2000
FBPT-E2000-N E2000
FBPT-E2A-A6 E2000
E2000 Bulkhead Tip for PC and APC, 4 Degree Mechanical Offset
E2000 Bulkhead Tip for PC and APC, Narrow
E2000 Bulkhead Tip for PC and APC, 60 Degree Mechanical Offset
No
No
No
FBPT-FC FC FC/PC Bulkhead Tip Yes
FBPT-FC-P FC
FC/PC Bulkhead Tip, Threaded Interface
Yes
FBPT-FC-A6 FC
FBPT-SCFC-A6 FC
FC/PC Bulkhead Tip, 60 Degree Mechanical Offset
SC/PC and FC/PC Bulkhead Tip, 60 Degree Mechanical Offset
FBPT-FC-APC FC FC/APC Bulkhead Tip Yes
FBPT-FCAPC-L FC
FBPT-FCA-1 FC
 Fiber Inspection Tip and Adapter Selection Guide
FC/APC Bulkhead Tip, Long Reach (3.6 cm)
FC/APC Bulkhead Tip, No Front Mounting Collar
No
No
No
Yes
Page 4

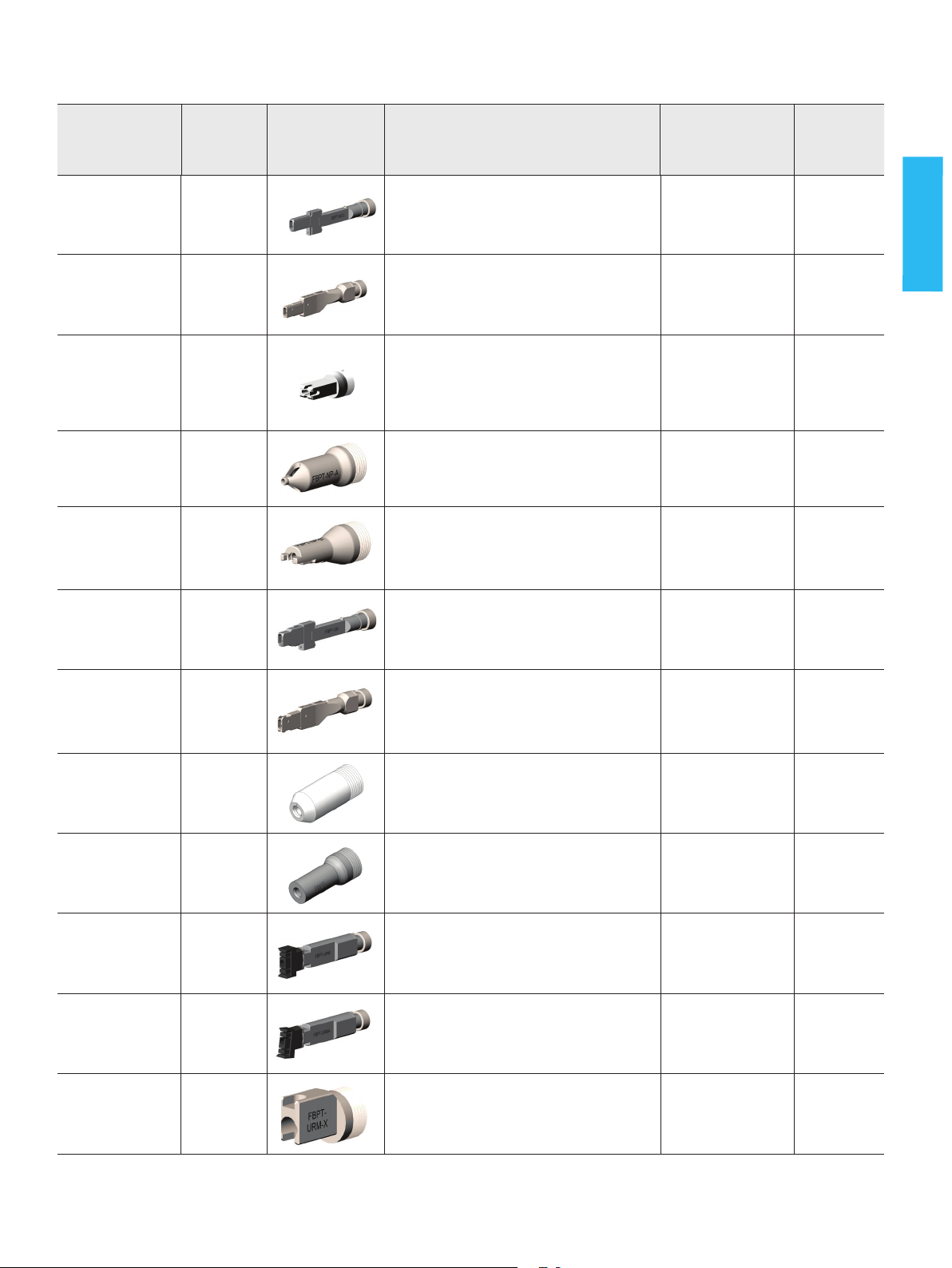

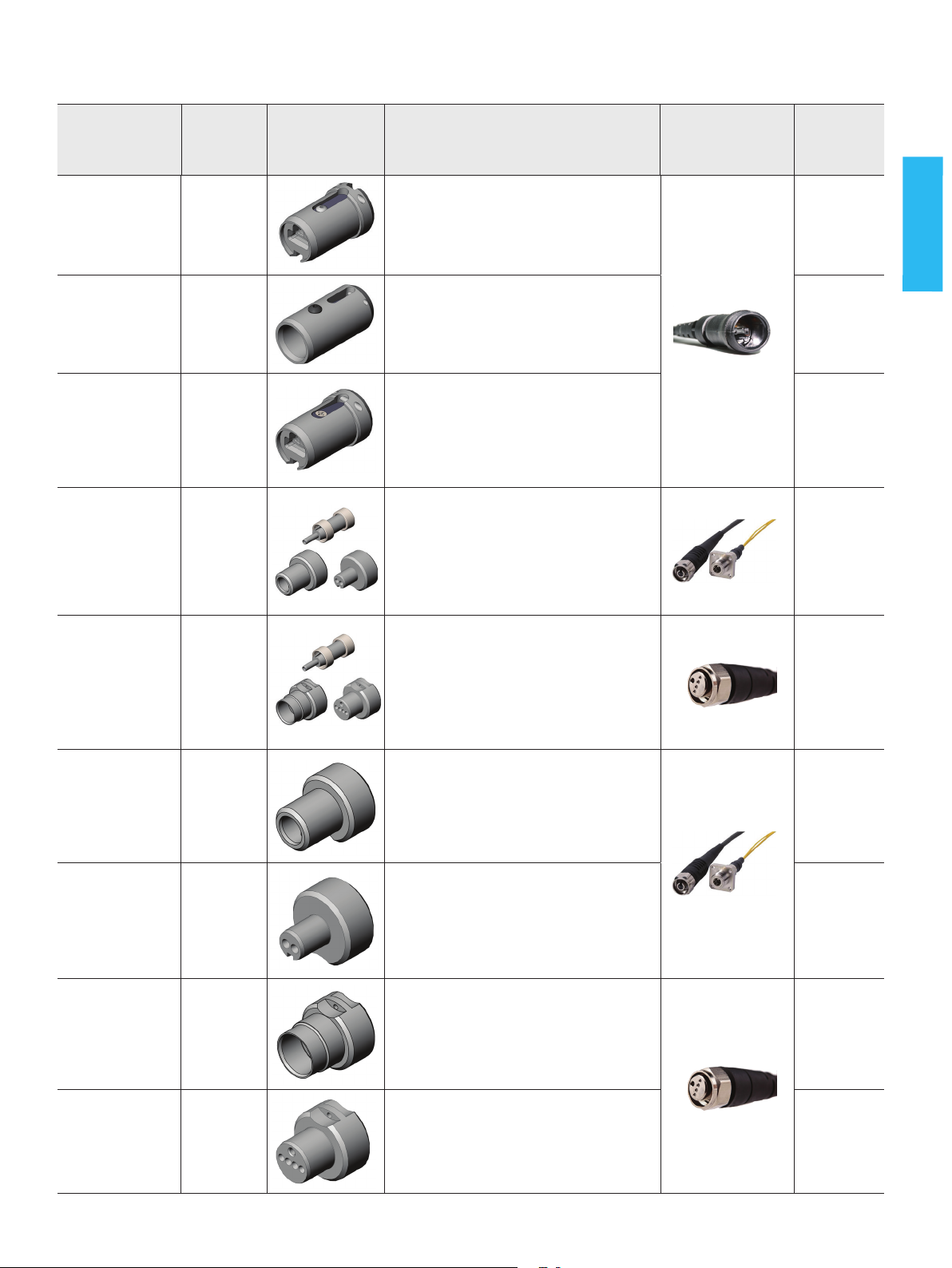

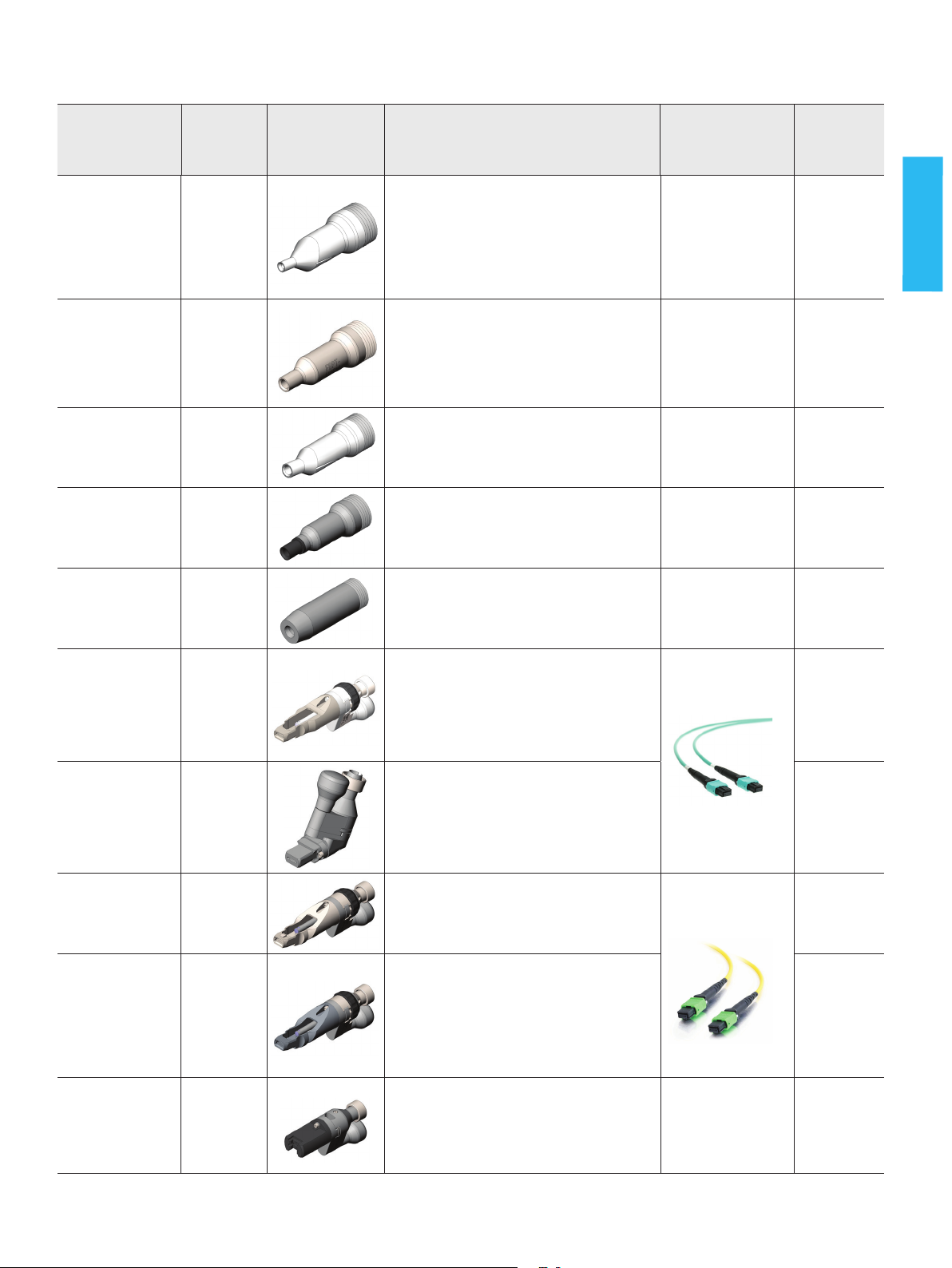

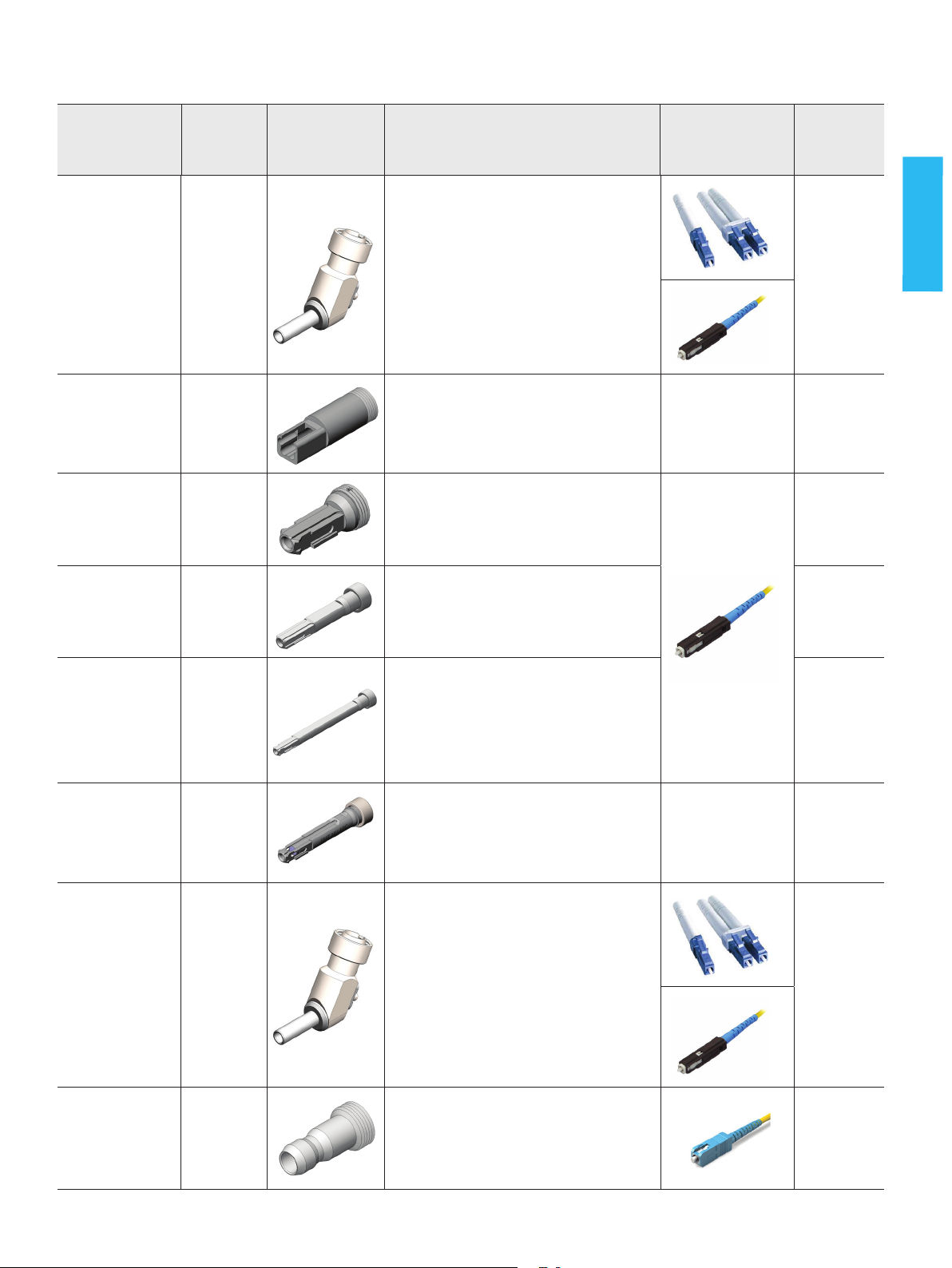

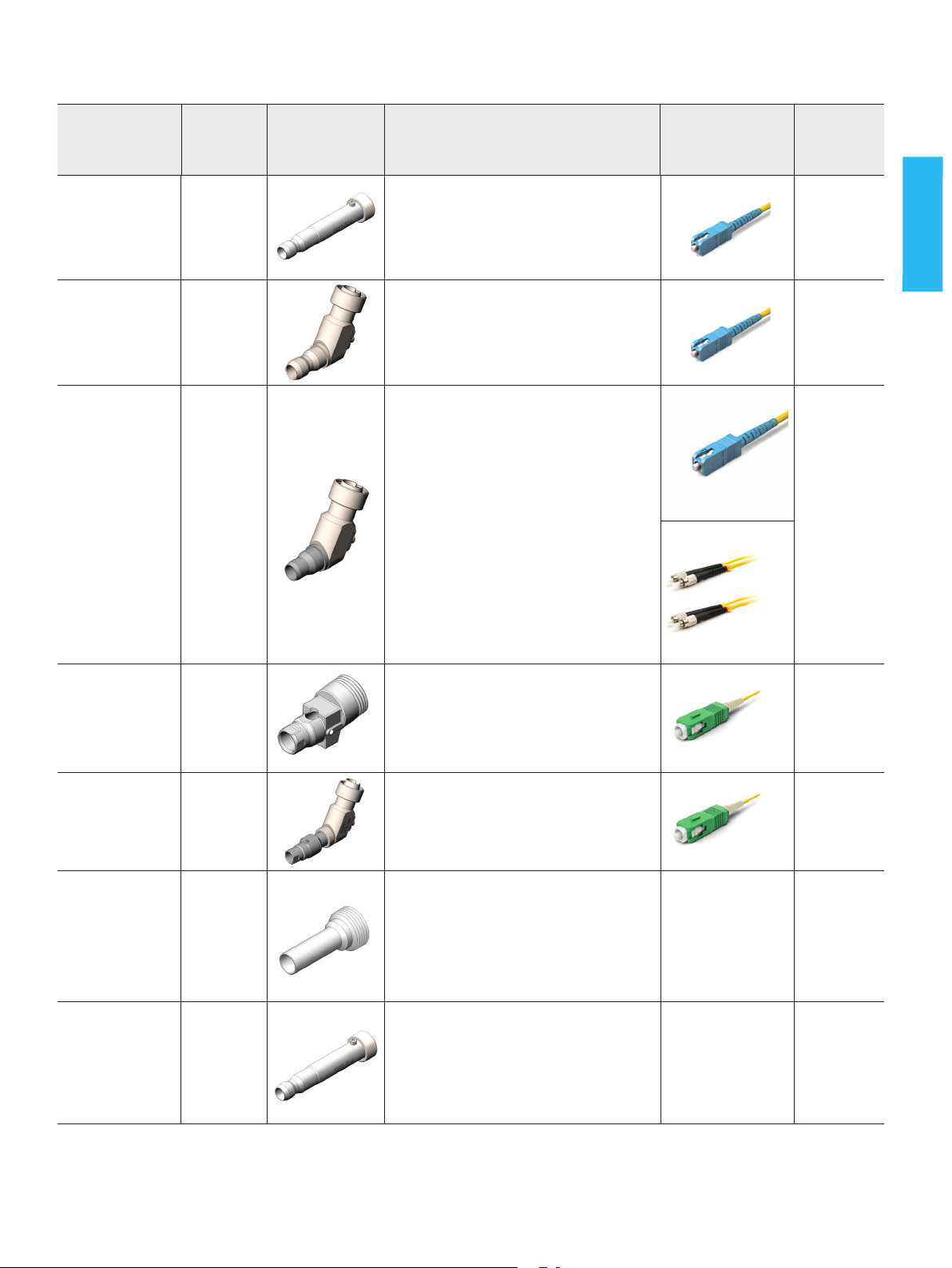

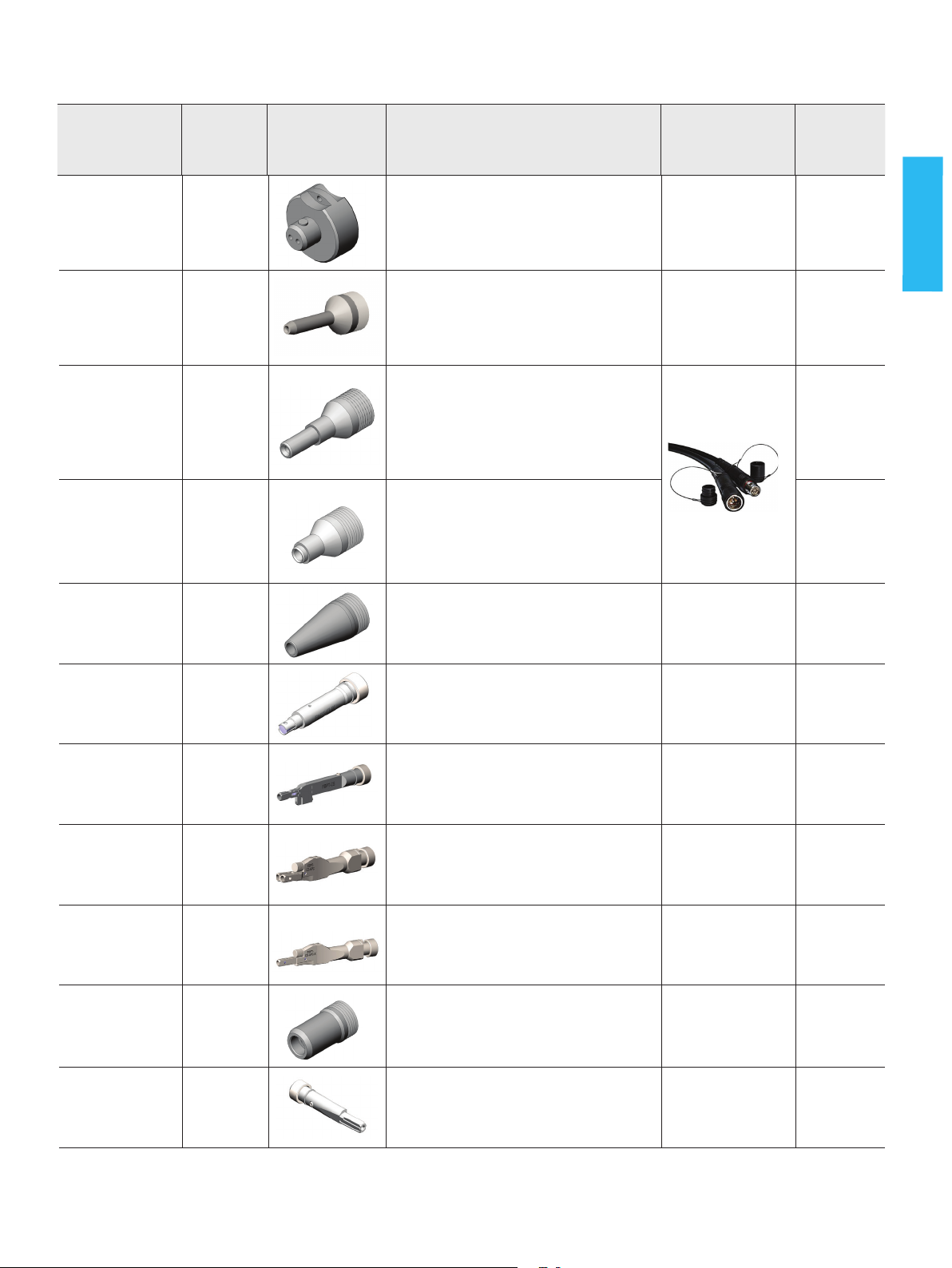

FBPT Probe Tips continued
Catalog Part Number
Segment
Product Image
Description
Connector Image
Barrel Assembly Required
FC/PC Bulkhead Tip, 60 Degree
FBPT-FC-A6P FC
Mechanical Offset, Threaded
No
Interface

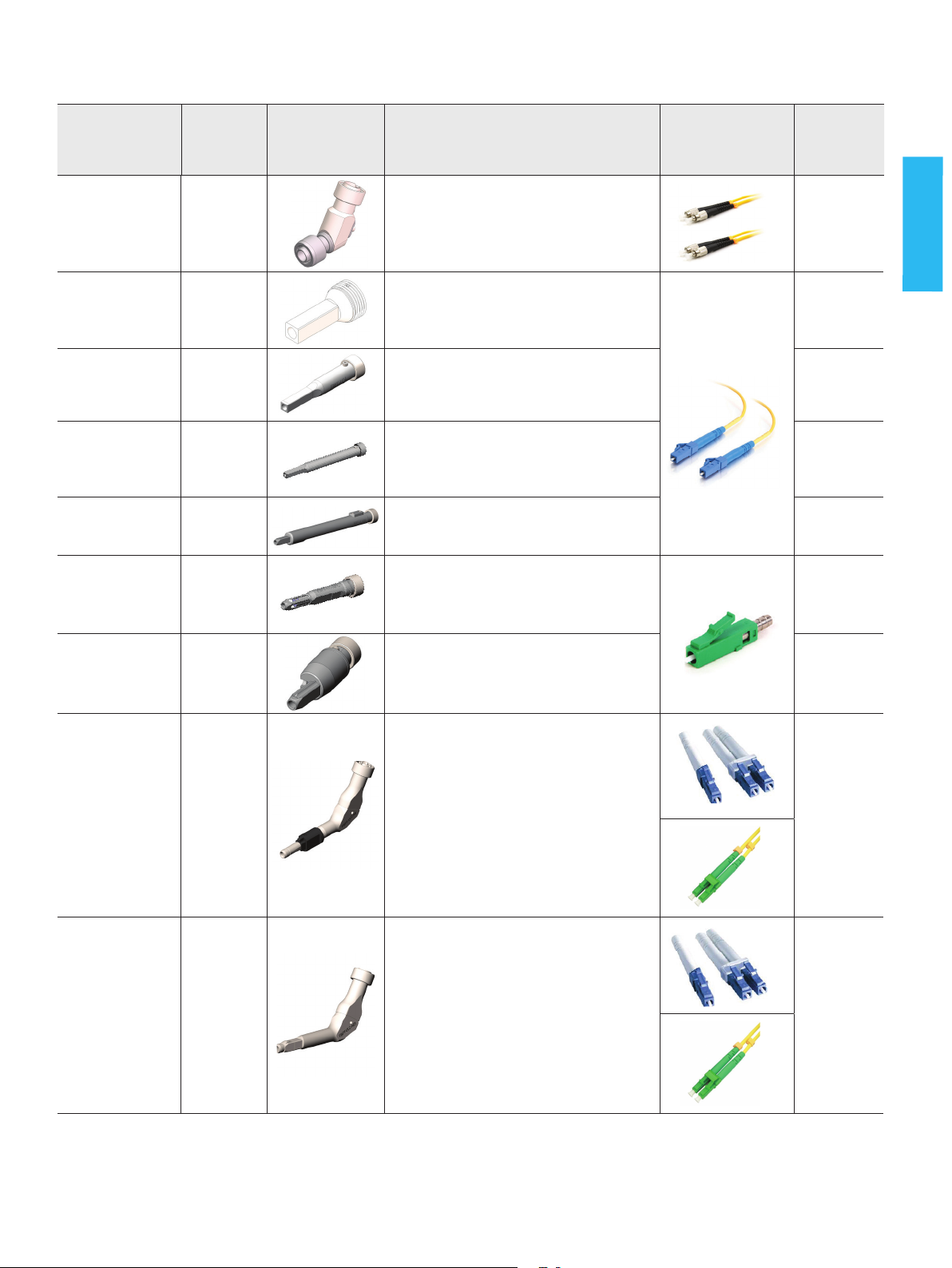

FBPT-LC LC LC/PC Bulkhead Tip Yes
FBPT-LC-L LC
FBPT-LC-XL LC
FBPT-LC-XXL
LC
LC/PC Bulkhead Tip, Long Reach (4 cm)
LC/PC Bulkhead Tip, Extra Long Reach (7.5 cm)
LC/PC Bulkhead Tip, Extra Long Reach (10 cm)
No
No
No
FBPT Probe Tips
FBPT-LC-APC LC
FBPT-LC-APC-8 LC
FBPT-ULC-A6 LC
FBPT-ULC-A6S LC
LC/PC and LC/APC Bulkhead Tip, Long Reach (4 cm)
LC/APC Bulkhead Tip, 8 Degree Mechanical Offset
LC/PC and LC/APC Bulkhead Tip, 60 Degree Mechanical Offset, Non-Fixed Rotating Interface
LC/PC and LC/APC Bulkhead Tip, 60 Degree Mechanical Offset, Fixed Squared Interface
No
No
No
No
 Fiber Inspection Tip and Adapter Selection Guide
Page 5
FBPT Probe Tips continued
Catalog Part Number
Segment
Product Image
Description
Connector Image
Barrel Assembly Required
LC/PC and MU/PC Bulkhead Tip,
FBPT-U12-A6 LC
60 Degree Mechanical Offset,
No
Round Interface
FBPT-LC-DC LC LC/PC Daughtercard Tip Yes
FBPT-MU MU MU/PC Bulkhead Tip (2.1 cm) Yes
FBPT Probe Tips
FBPT-MU-L MU
FBPT-MU-XL MU
MU/PC Bulkhead Tip, Long Reach (4.7 cm)
MU/PC Bulkhead Tip, Extra Long Reach (8 cm)
No
No
FBPT-MU-APC MU MU/APC Bulkhead Tip No
LC/PC and MU/PC Bulkhead Tip,
FBPT-U12-A6 MU
60 Degree Mechanical Offset,
No
Round Interface
FBPT-SC SC SC/PC Bulkhead Tip Yes
 Fiber Inspection Tip and Adapter Selection Guide
Page 6
FBPT Probe Tips continued
Catalog Part Number
FBPT-SC-L SC
FBPT-SC-A6 SC
FBPT-SCFC-A6 SC
Segment
Product Image
Description
SC/PC Bulkhead Tip, Long Reach (4.9 cm)
SC/PC Bulkhead Tip, 60 Degree Mechanical Offset
SC/PC and FC/PC Bulkhead Tip, 60 Degree Mechanical Offset
Connector Image
Barrel Assembly Required
FBPT Probe Tips
No
No
No
FBPT-SC-APC SC SC/APC Bulkhead Tip Yes
FBPT-SCA-A6 SC
SC/APC Bulkhead Tip, 60 Degree Mechanical Offset
No
FBPT-SC2 SC SC2 Bulkhead Tip Yes
FBPT-SC2-L SC
SC2 Bulkhead Tip, Long Reach (4.9 cm)
No
 Fiber Inspection Tip and Adapter Selection Guide
Page 7

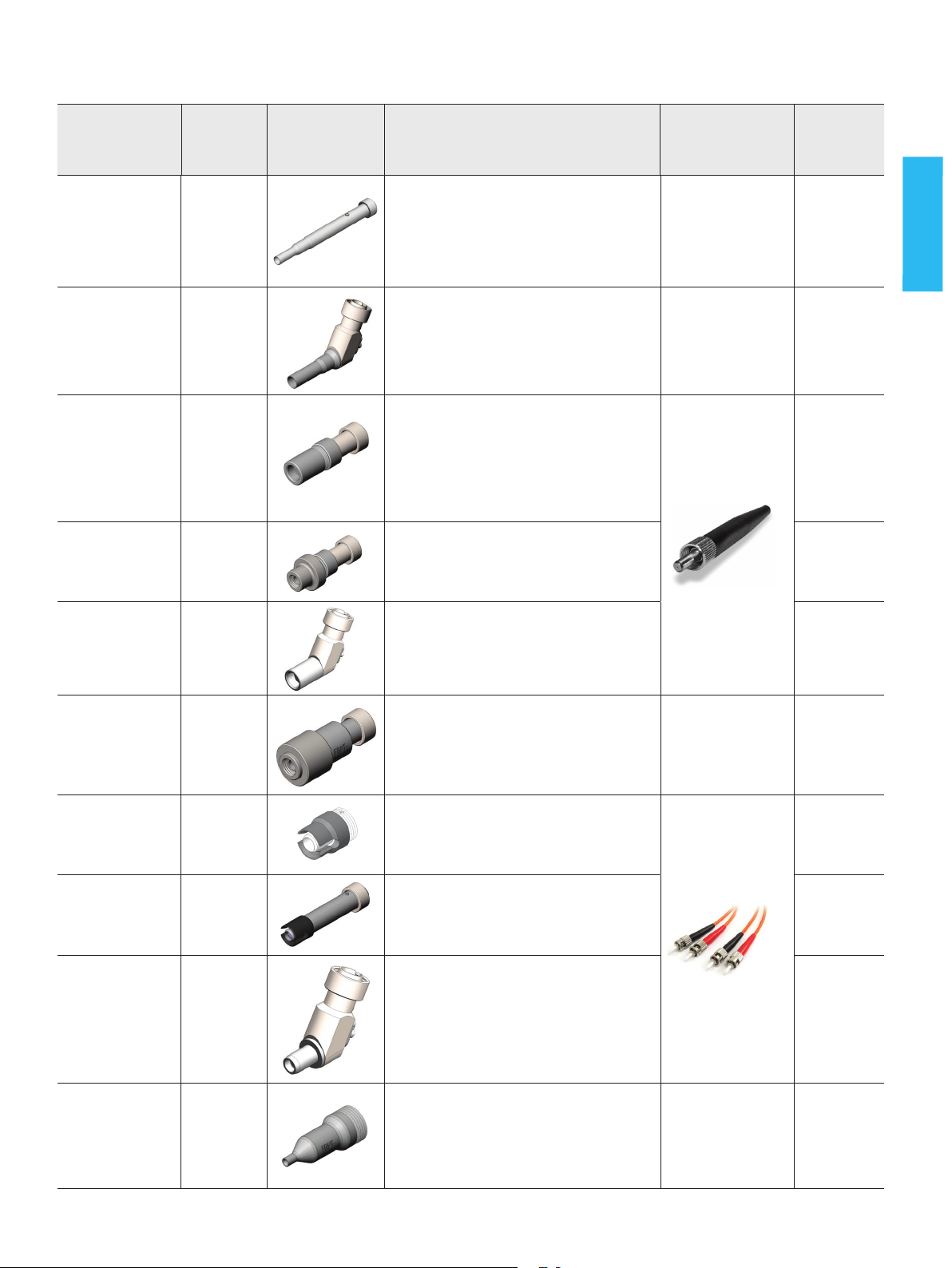

FBPT Probe Tips continued
Catalog Part Number
Segment
FBPT-SC2-XL SC
FBPT-SC2-A6 SC
Product Image
Description
SC2 Bulkhead Tip, Extra Long Reach (8 cm)
SC2 Bulkhead Tip, 60 Degree Mechanical Offset
Connector Image
Barrel Assembly Required
No
No
FBPT-SMA SMA SMA Bulkhead Tip No
FBPT-SMA-P SMA
SMA Bulkhead Tip, Threaded Interface
No
FBPT Probe Tips
FBPT-SMA-A6 SMA
FBPT-SMA-LM SMA
FBPT-ST
FBPT-ST-L
FBPT-ST-A6
ST ST Bulkhead Tip Yes
ST
ST
SMA Bulkhead Tip, 60 Degree Mechanical Offset
SMA Bulkhead Tip, Low Magnification
ST Bulkhead Tip, Long Reach (4.3 cm)
ST Bulkhead Tip, 60 Degree Mechanical Offset
No
No
No
No
FBPT-U12M
 Fiber Inspection Tip and Adapter Selection Guide
Patch Cord
Universal 1.25mm Patch Cord Tip. For 1.25mm PC patch cords, including LC and MU
Yes
Page 8
FBPT Probe Tips continued
Catalog Part Number
FBPT-U12MA-SF
FBPT-U25M
FBPT-U25MA
FBPT-U25PL
Segment
Patch Cord
Patch Cord
Patch Cord
Patch Cord
Product Image
Description
Universal 1.25mm APC Patch Cord Tip. For 1.25mm APC patch cords, including LC and MU.
Universal 2.5mm Patch Cord Tip. For
2.5mm PC patch cords, including FC, SC, and ST.
Universal 2.5mm APC Patch Cord Tip. For 2.5mm APC patch cords, including FC, SC, and ST.
Universal 2.5mm PC Patch Cord Tip, Plastic Interface
Connector Image
Barrel Assembly Required
FBPT Probe Tips
Yes
Yes
Yes
Yes
FBPT-U35M
Patch Cord
FBPT-MTP-L Ribbon
FBPT-MTP-A6 Ribbon
FBPT-MTPA-L Ribbon
FBPT-MTPA-L-1 Ribbon
Universal 3.5mm Patch Cord Tip Yes
MTP/MPO Bulkhead RibbonDrive Tip, MM, Long Reach (7.0 cm)
No
MTP/MPO Bulkhead RibbonDrive Tip, MM, 60 Degree Mechanical Offset, No Key
MTP/MPO Bulkhead RibbonDrive Tip, SM, Long Reach (7.0 cm)
MTP/MPO Bulkhead RibbonDrive Tip, SM, Long Reach (7.0 cm), No Key
No
No
No
FBPT-PRIZM Ribbon PRIZM RibbonDrive Tip No
 Fiber Inspection Tip and Adapter Selection Guide
Page 9
FBPT Probe Tips continued
Catalog Part Number
Segment
FBPT-CEV-A6 FTTX
FBPT-COD-L FTTX
FBPT-COD-A6 FTTX
Product Image
Description
Corning EvolvTM Receptacle Tip, Angled 60 Degree Mechanical Offset
OptiTap Simplex Tip, Long Reach (4.0 cm)
OptiTap Simplex Tip, 60 Degree Mechanical Offset
Connector Image
Barrel Assembly Required
No
No
No
FBPT-DLX FTTX DLX Drop Terminal Tip, Simplex No
FBPT Probe Tips
FBPT-COD-MT FTTX
FBPT-COD-MTA
FBPT-COD­MTOA
FBPT-COD­MTPG
FTTX
FTTX
FTTX
OptiTip RibbonDrive Plug and Receptacle Tip and Guides, MM. Includes FBPT-COD-MTOA, FBPT­COD-MTPG, and FBPT-COD-MTRG
OptiTip RibbonDrive Plug and Receptacle Tip and Guides, SM. Includes FBPT-COD-MTOA,FBPT-COD­MTAPG, and FBPT-COD-MTARG
OptiTip RibbonDrive Tip Only – No Guide
OptiTip RibbonDrive Plug Guide, MM
No
No
No
FBPT­MTOA Only
 Fiber Inspection Tip and Adapter Selection Guide
Page 10
FBPT Probe Tips continued
Catalog Part Number
FBPT-COD­MTRG
FBPT-COD­MTAPG
FBPT-COD­MTARG
Segment
FTTX
FTTX OptiTip RibbonDrive Plug Guide, SM
FTTX
FBPT-ODC-2 FTTX
Product Image
Description
OptiTip RibbonDrive Receptacle Guide, MM
OptiTip RibbonDrive Receptacle Guide, SM
ODC 2-Position Guides for Plug and Receptacle with BAP3 Barrel. Includes FBPP-BAP3, FBPT-ODC-G001, and FBPT-ODC-G002
Connector Image
Barrel Assembly Required
FBPT Probe Tips
FBPT­MTOA Only
FBPT­MTOA Only
FBPT­MTOA Only
Includes BAP3
FBPT-ODC-4 FTTX
FBPT­ODC-G001
FBPT­ODC-G002
FBPT­ODC-G003
FTTX ODC 2-Position Plug Guide
FTTX ODC 2-Position Receptacle Guide
FTTX ODC 4-Position Plug Guide
ODC 4-Position Guides for Plug and Receptacle with BAP3 Barrel. Includes FBPP-BAP3, FBPT-ODC-G003, and FBPT-ODC-G004
Includes BAP3
FBPP­BAP3 Only
FBPP­BAP3 Only
FBPP­BAP3 Only
FBPT- ODC­G004
 Fiber Inspection Tip and Adapter Selection Guide
FTTX ODC 4-Position Receptacle Guide
FBPP­BAP3 Only
Page 11
FBPT Probe Tips continued
Catalog Part Number
FBPT­ODC-G101
Segment
FTTX Q-ODC 2-Position Plug Guide
FBPT-U12M-N FTTX
Product Image
Description
Universal 1.25mm Pin Tip, for inspection of Q-ODC 2-Position Socket
Connector Image
Barrel Assembly Required
FBPP­BAP3 Only
FBPP­BAP3 Only
FBPT-LEMO1-P Broadcast Lemo F2 Pins Tip Yes
FBPT-LEMO1-S Broadcast Lemo F2 Sockets Tip Yes
FBPT Probe Tips
FBPT-BIC Other Biconic Bulkhead Tip Yes
FBPT-CLIK Other CLIK Bulkhead Tip for PC and APC No
FBPT-CS Other CS/PC Bulkhead Tip No
FBPT-CS-APC
FBPT-CS-APC-X Other
Other
CS/APC Bulkhead Tip No
CS/APC Bulkhead Tip, Parallel APC Surfaces
No
FBPT-D4 Other D4 Bulkhead Tip Yes
FBPT-LX5A Other LX5/F3000 Bulkhead Tip No
 Fiber Inspection Tip and Adapter Selection Guide
Page 12
FBPT Probe Tips continued
Catalog Part Number
Segment
FBPT-MDC Other
FBPT-MDC­APC
Other MDC/APC Bulkhead Tip No
Product Image
Description
MDC/PC Bulkhead Tip
FBPT-MTRJ-1 Other MTRJ Bulkhead Tip
FBPT-NP-A Other
FBPT-NP-B
Other
Sumitomo NanoPlug Side A Tip
Sumitomo NanoPlug Side B Tip
Connector Image
Barrel Assembly Required
FBPT Probe Tips
No
Yes
Yes
Yes
FBPT-SN Other SN/PC Bulkhead Tip No
FBPT-SN-APC
Other
SN/APC Bulkhead Tip No
FBPT-TOSA-1 Other TOSA/ROSA 1.25mm Tip Yes
FBPT-TOSA-2 Other TOSA/ROSA 1.25mm Tip, Slip Grip Yes
FBPT-URM Other URM Bulkhead Tip No
FBPT-URMA Other URM APC Bulkhead Tip No
FBPT-URM-X Other
 Fiber Inspection Tip and Adapter Selection Guide
URM Bulkhead Tip, Short
Yes
Page 13
FCPT Probe Tips

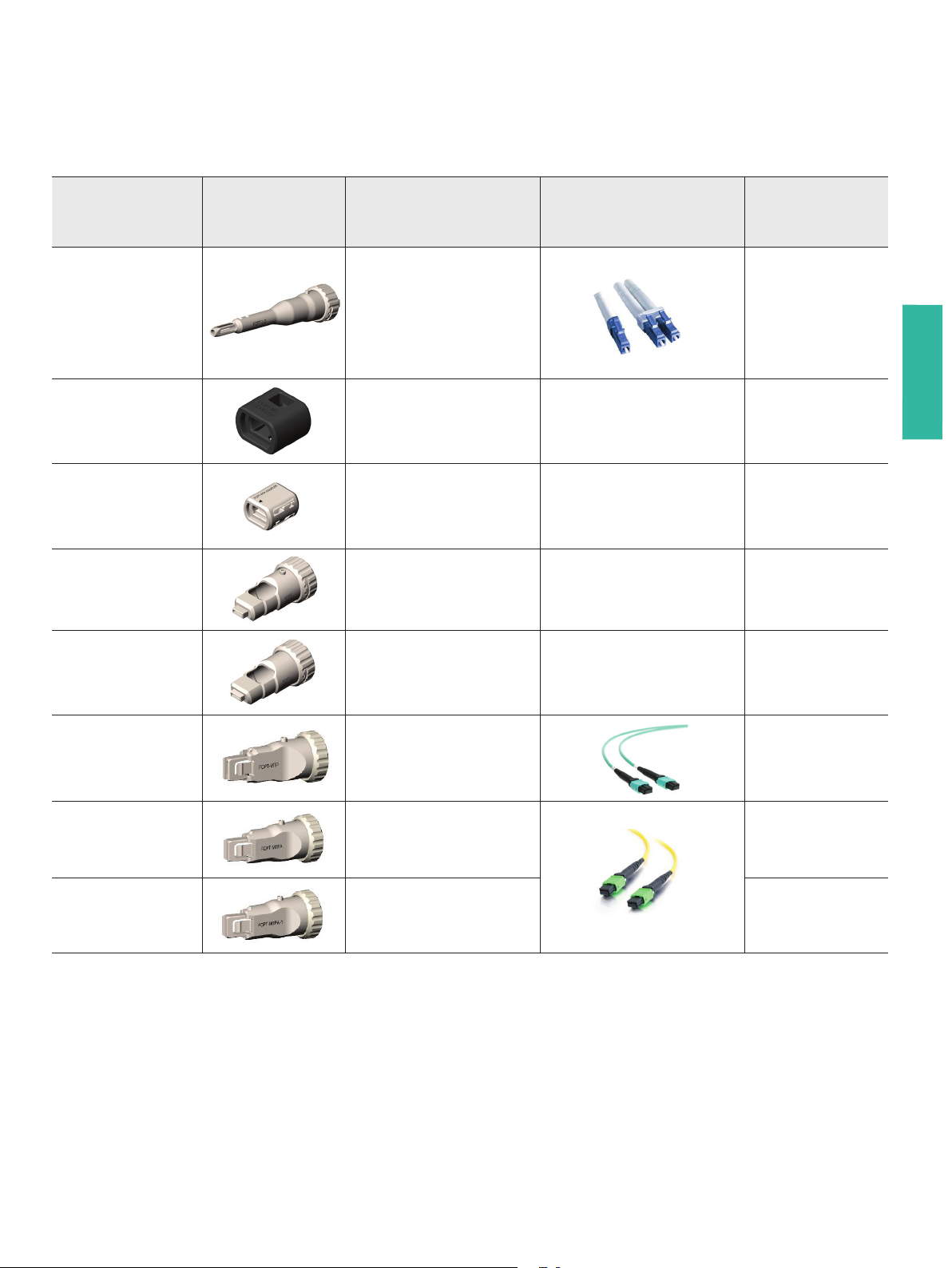

The FCPT Series probe tips attach to the FiberChek Sidewinder Inspection Probe. In addition to accepting various FCPT series tips, the FCPT-UFBPT adapter allows FBPP-BAP1 compatible FBPT series tips to be used with the Sidewinder.
Catalog Part Number
FCPT-LC
FCPT-MT­COUPLER
FCPT-MTP­COUPLER
FCPT-MT-DC
Product Image
Description Connector Image Optical
Assembly Required
LC/PC Bulkhead Sidewinder Tip
MT Ferrule Patch Cord Adapter for Sidewinder
FCPP-OLA-1
No
MTP/MPO Patch Cord Adapter for Sidewinder Tips
MT/PC Daughtercard Sidewinder Tip, MM
FCPP-OLA-1
FCPT Probe Tips
FCPT-MTA-DC
FCPT-MTP
FCPT-MTPA
FCPT-MTPA-1
MT/APC Daughtercard Sidewinder Tip, SM
MTP/MPO Sidewinder Tip, MM
MTP/MPO Sidewinder Tip, SM
MTP/MPO Sidewinder Tip, SM - No Key
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-1
 Fiber Inspection Tip and Adapter Selection Guide
Page 14

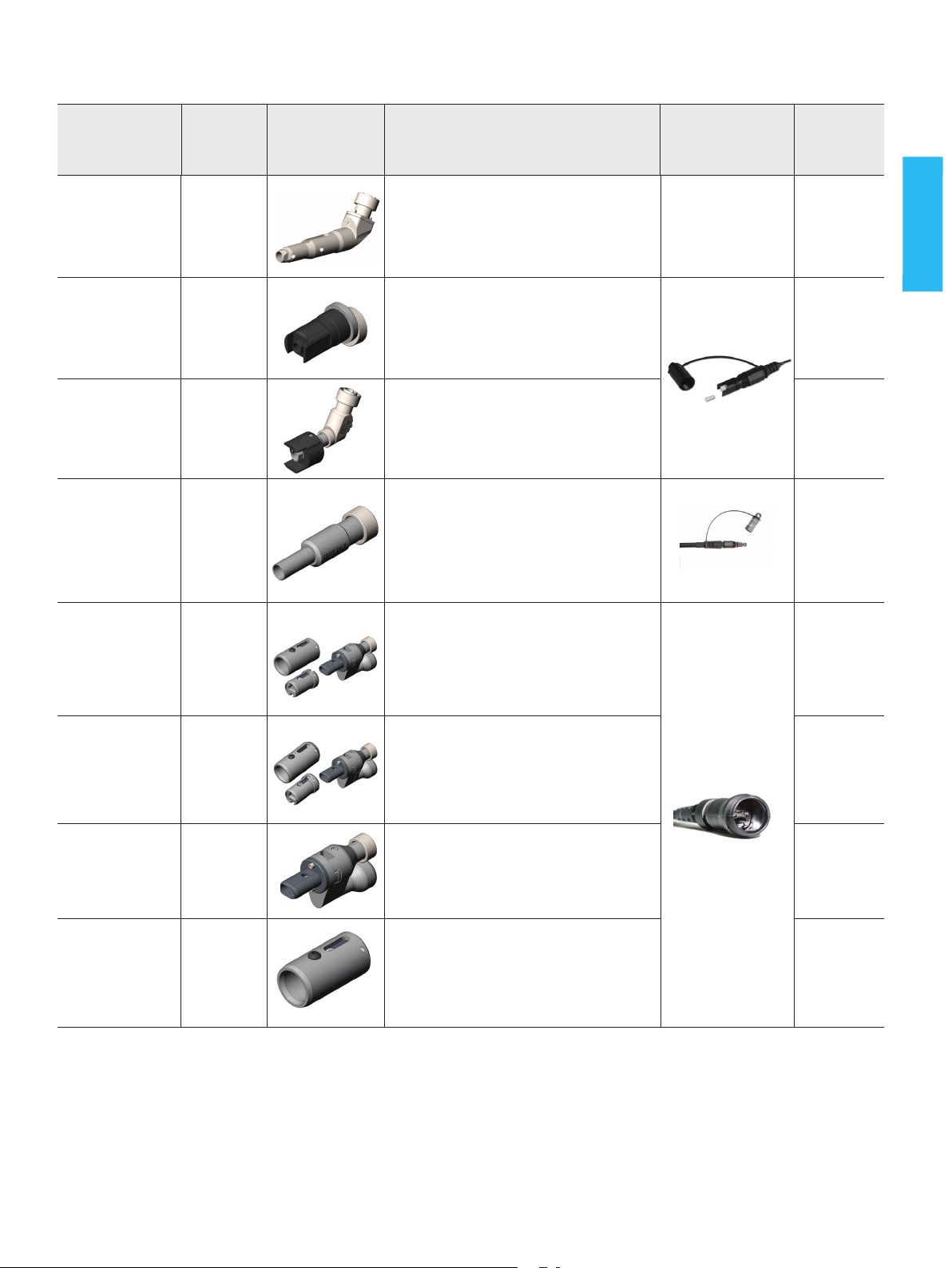

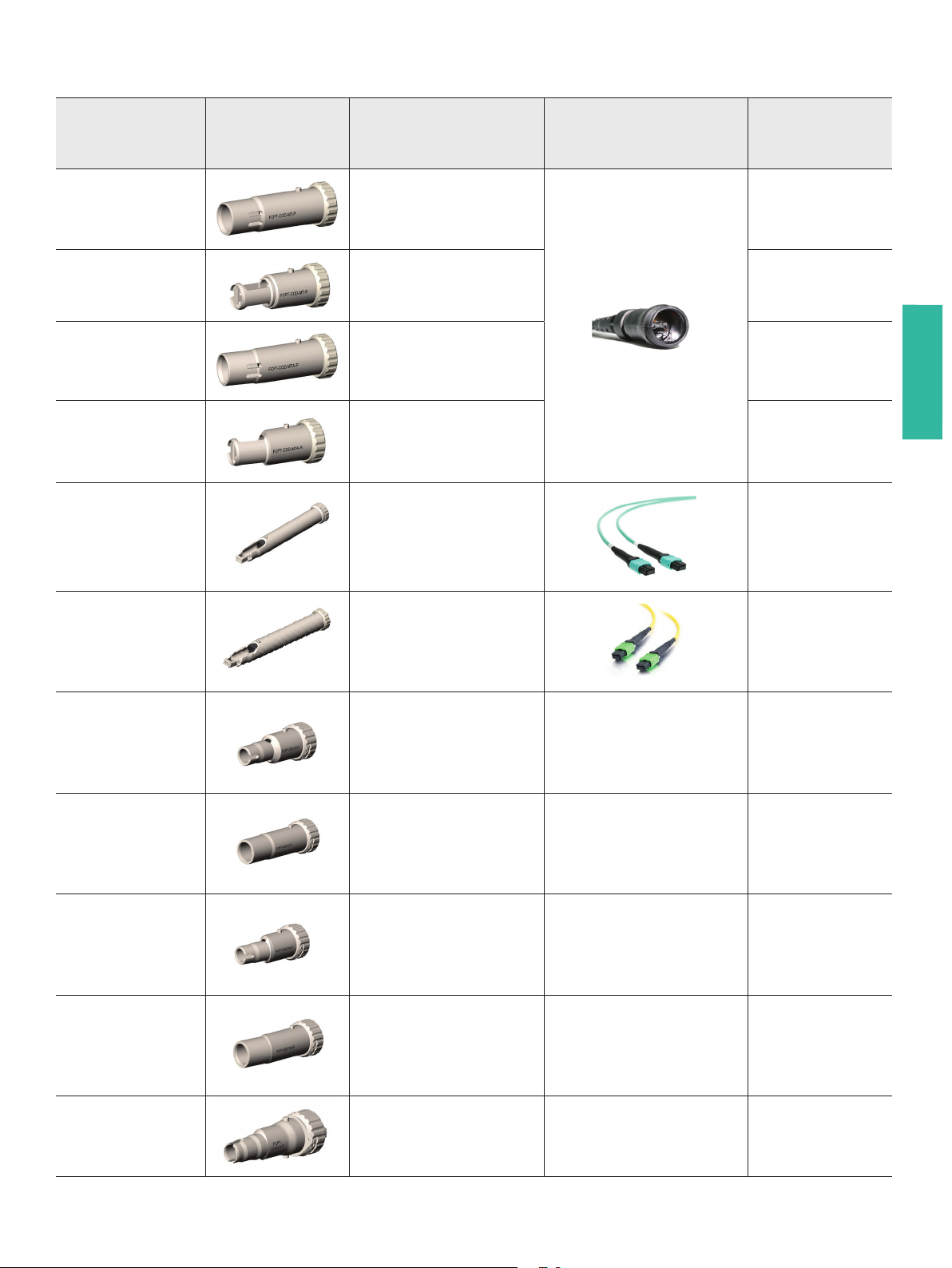

FCPT Probe Tips continued
Catalog Part Number
FCPT-COD-MT-P
FCPT-COD-MT-R
FCPT-COD-MTA-P
FCPT-COD-MTA-R
FCPT-MTP-L
Product Image
Description Connector Image Optical
Assembly Required
OptiTip Plug Sidewinder Tip, MM
OptiTip Receptacle Sidewinder Tip, MM
OptiTip Plug Sidewinder Tip, SM
OptiTip Receptacle Sidewinder Tip, SM
MTP/MPO Sidewinder Tip, MM, Long Reach
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-2
FCPT Probe Tips
FCPT-MTPA-L
FCPT-ODC12-P
FCPT-ODC12-S
FCPT-ODC12A-P
FCPT-ODC12A-S
MTP/MPO Sidewinder Tip, SM, Long Reach
Q-ODC-12 Plug Sidewinder Tip, MM
Q-ODC-12 Socket Sidewinder Tip, MM
Q-ODC-12 Plug Sidewinder Tip, SM
FCPP-OLA-2
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-1
Q-ODC-12 Socket Sidewinder Tip, SM FCPP-OLA-1
FCPT-QODC2-P
 Fiber Inspection Tip and Adapter Selection Guide
Q-ODC-2 Plug Sidewinder Tip, MM
FCPP-OLA-1
Page 15
FCPT Probe Tips continued
Catalog Part Number
Product Image
Description Connector Image Optical
Q-ODC-2 Socket
FCPT-QODC2-S
FCPT-JMTA-P
Sidewinder Tip, MM FCPP-OLA-1
JonHon Plug Sidewinder Tip, SM
FCPT-JMTA-R
JonHon Receptacle Sidewinder Tip, SM
FCPT-IP9A-P IP9 Plug Sidewinder Tip,
SM
Assembly Required
FCPP-OLA-1
FCPP-OLA-1
FCPP-OLA-3
FCPT Probe Tips
FCPT-IP9W-P
IP9 Universal Plug Sidewinder Tip, SM
FCPT-IP9A-R IP9 Receptacle
Sidewinder Tip, SM
FCPT Series Accessories
Catalog Part Number
FCPT-UFBPT
FCPP-OLA-1 Standard Optical Assembly for Sidewinder
Product Image
Description
Simplex FBPT Tip Adapter for Sidewinder (Requires FBPP-BAP1)
FCPP-OLA-3
FCPP-OLA-3
FCPP-OLA-2 Long-Reach Optical Assembly for Sidewinder
FCPP-OLA-3 IP9 Guide Optical Assembly for Sidewinder
 Fiber Inspection Tip and Adapter Selection Guide
Page 16
FMA Adapters
FMA Series adapters are designed for patch cord inspection. These adapters connect to the FV Bench-top Microscopes, and can also be attached to the FiberChek™ and FBP-P5000i by using the FBPT-UFMA, together
with an FBPP-BAP1 adapter. FMA Series adapters are all male-threaded.
Catalog Part Number

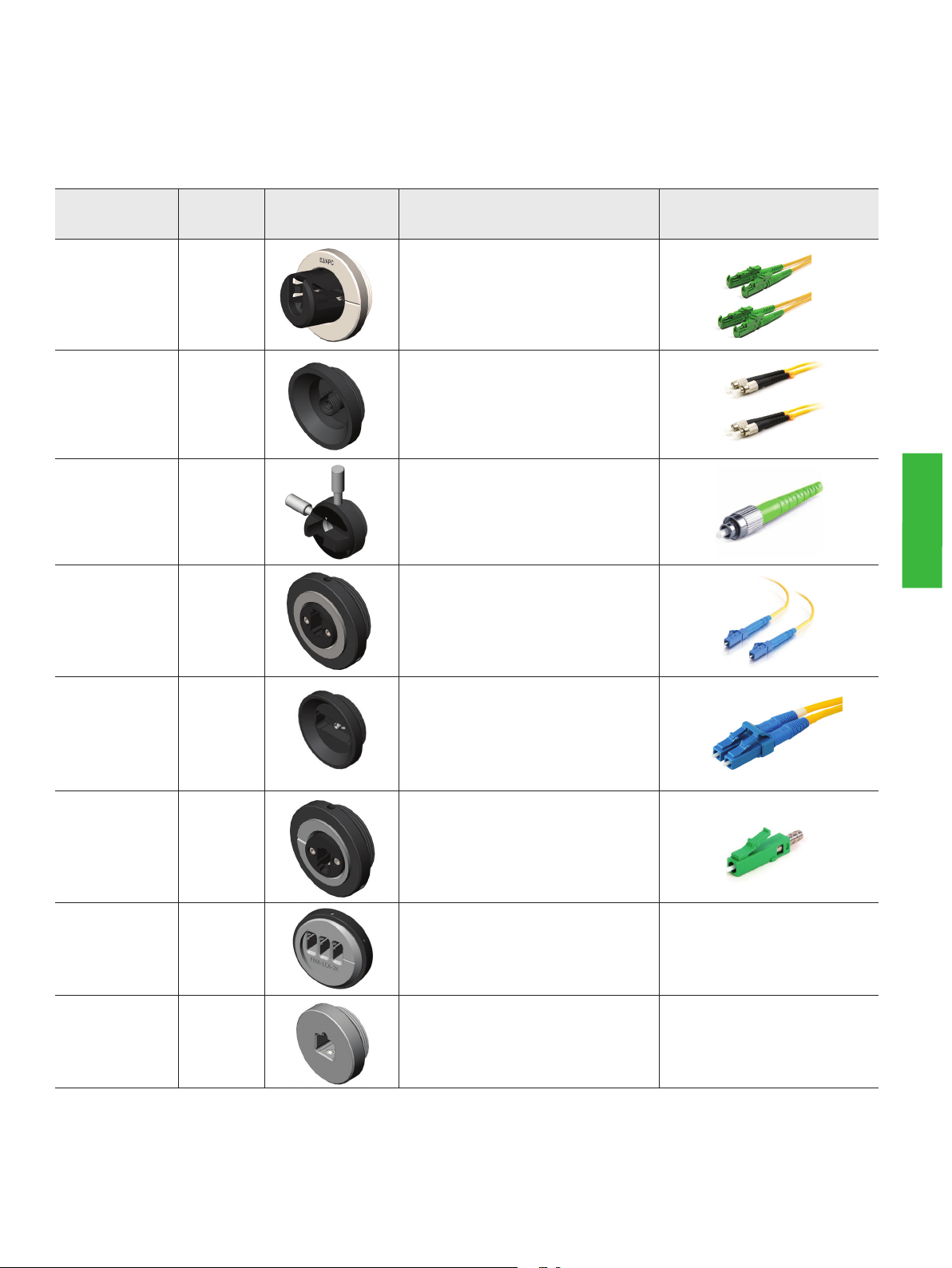

Segment Product Image Description Connector Image
FMA-E2A E2000 E2000 APC Adapter
FMA-FCPC FC FC/PC Adapter
FMA-FC-APC FC FC/APC Adapter
FMA-LC LC LC/PC Simplex Adapter
FMA Adapters
FMA-LC-2X LC LC/PC Duplex Adapter
FMA-LC-APC LC LC/APC Simplex Adapter
FMA-LCA-2X LC LC/APC Duplex Adapter
FMA-SC SC SC/PC Adapter
 Fiber Inspection Tip and Adapter Selection Guide
Page 17

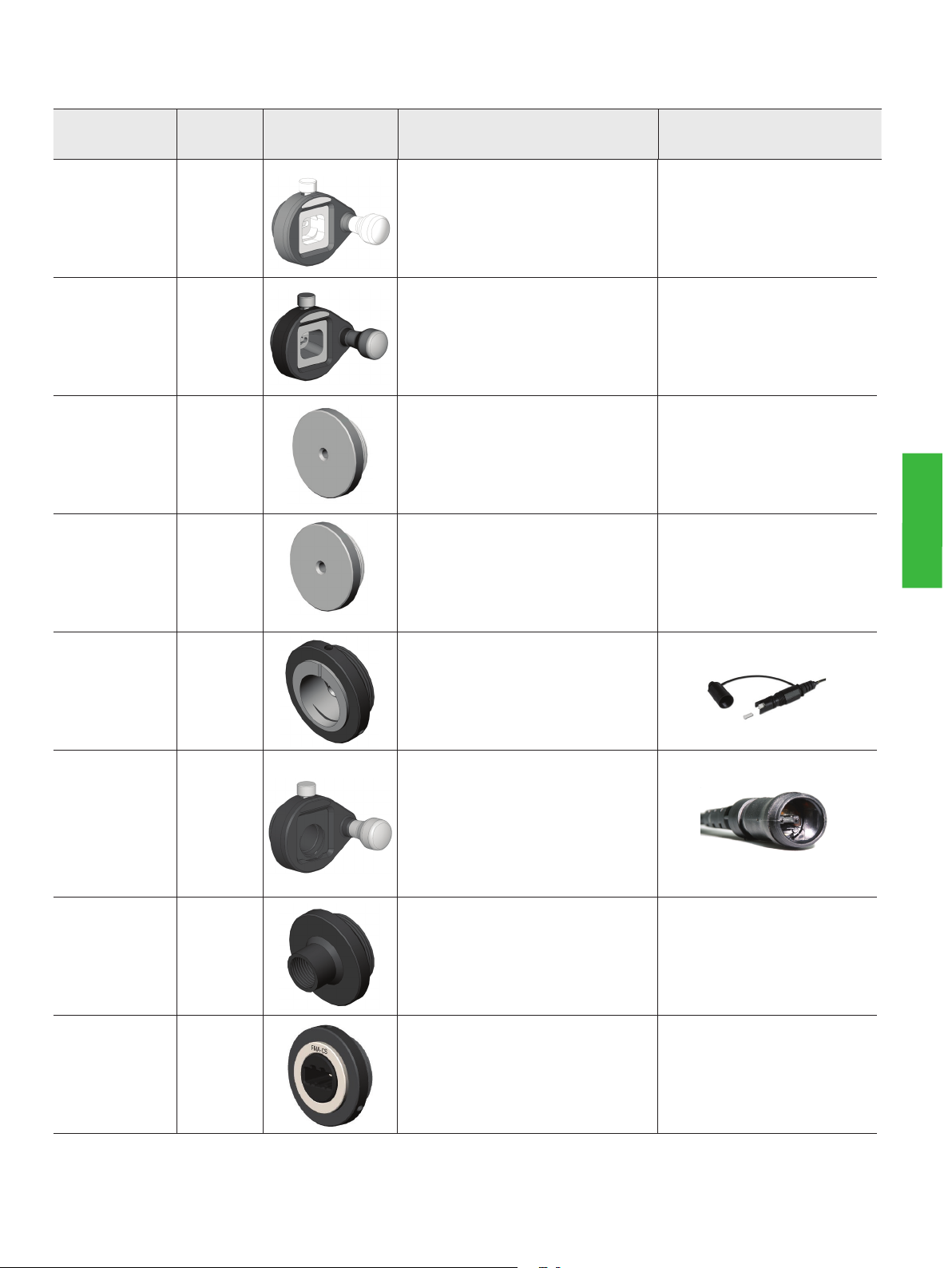

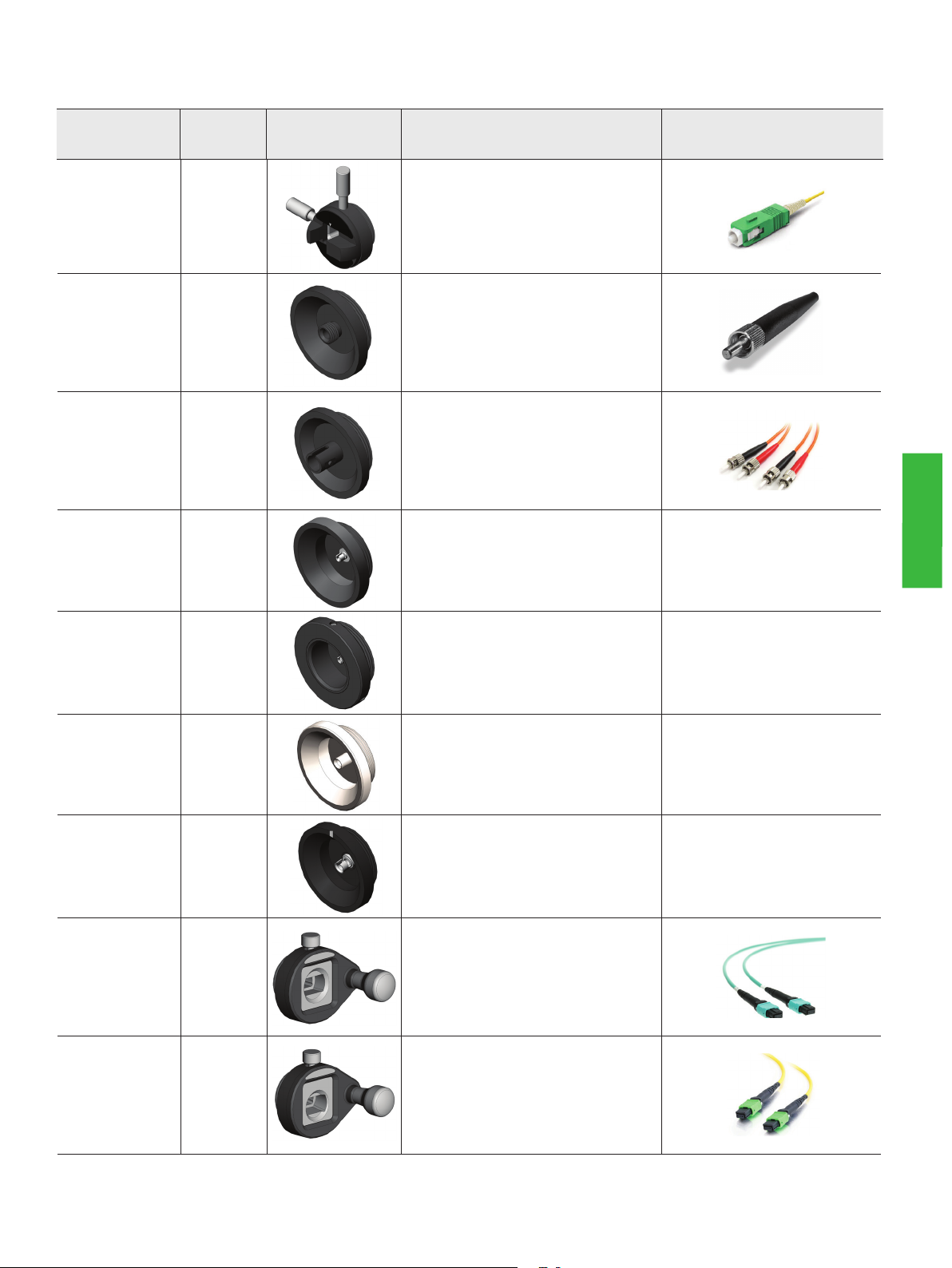

FMA Adapters continued
Catalog Part Number
Segment Product Image Description Connector Image
FMA-SC-APC SC SC/APC Adapter
FMA-SMA SMA SMA Adapter
FMA-ST ST ST Adapter
FMA-U12 Universal Universal 1.25mm PC Adapter
FMA Adapters
FMA-UA12-P Universal Universal 1.25mm APC Adapter
FMA-U25-SF Universal
Universal 2.5mm PC Adapter, Slip Fit
FMA-UAPC Universal Universal 2.5mm APC Adapter
FMA-MTP Ribbon
FMA-MTPA Ribbon
MTP/MPO RibbonDrive Adapter, MM
MTP/MPO RibbonDrive Adapter, SM
 Fiber Inspection Tip and Adapter Selection Guide
Page 18
FMA Adapters continued
Catalog Part Number
Segment Product Image Description Connector Image
FMA-MT Ribbon
FMA-MTA Ribbon
FMA-MIL1 Other
FMA-MIL2 Other
MT Ferrule RibbonDrive Adapter, MM
MT Ferrule RibbonDrive Adapter, SM
NEW
Mil 29504-14-15 Termini Male Adapter
FMA Adapters
NEW
Mil 29504-4-5 Termini Male Adapter
FMA-COD FTTX OptiTap Simplex Plug Adapter
FMA-COD­MTA-P
FTTX
OptiTip RibbonDrive Plug Adapter, SM
FMA-BIC Other Biconic Adapter
FMA-CS
CS/PC Adapter
 Fiber Inspection Tip and Adapter Selection Guide
Page 19
FMA Adapters continued
Catalog Part
Number

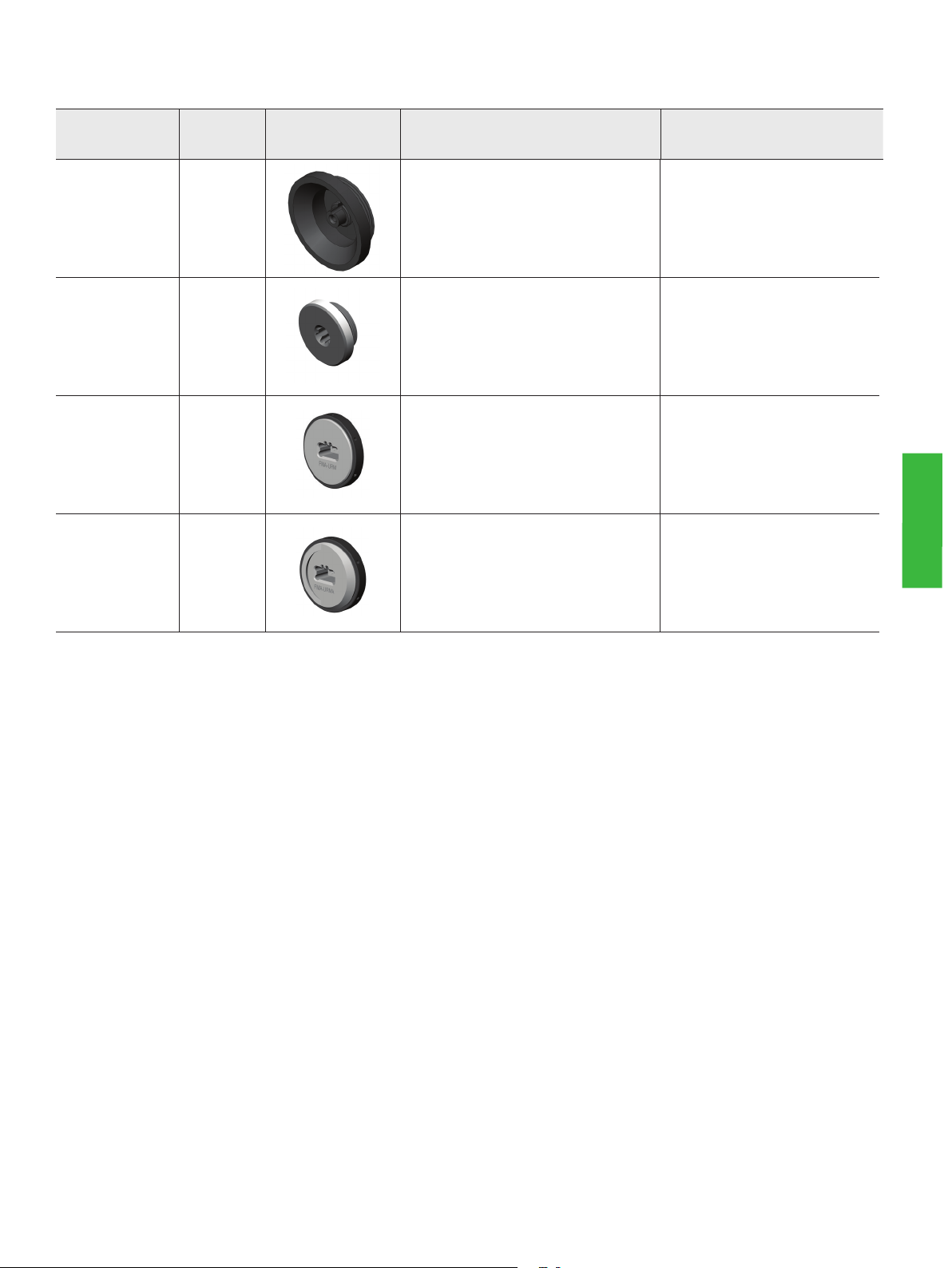

Segment Product Image Description Connector Image
FMA-D4 Other D4 Adapter
FMA-MTRJ-1 Other MTRJ Adapter, Simple Type
FMA-URM Other URM Adapter
FMA-URMA Other URM APC Adapter
FMA Adapters
 Fiber Inspection Tip and Adapter Selection Guide
Page 20

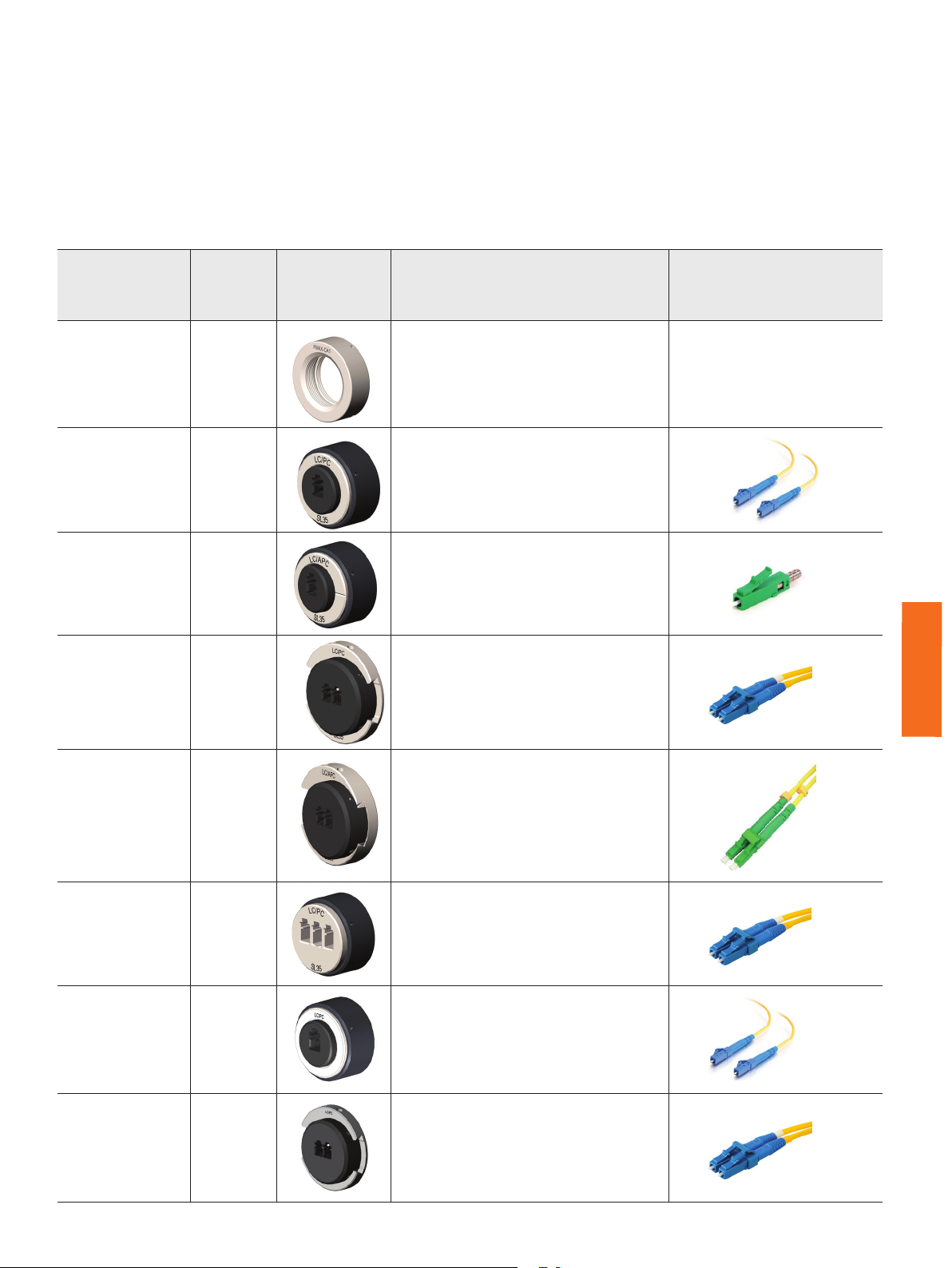

FMAX Adapters
FMAX Series adapters the next generation of adapters directed for patch cord inspection and are highly recommended for new deployments and projects. These adapters connect to the FV Benchtop Microscopes and the Patch Cord Microscope on the SmartClass Fiber Series. These are the only adapters recommended for the FVAi-2030. They can also be connected to the FiberChek™ Probe and FBP-P5000i by using the FBPT-UFMAE, together with an FBPP-BAP1. FMAX Series adapters are all female-threaded.
Catalog Part Number
Segment
FMAX-CA1 Other
FMAX-LC-SL35 LC
FMAX-LCA-SL35 LC
FMAX-LC-DUX­SL35
LC
Product Image
NEW
Description Connector Image
Coupling Adapter Converts FMA Adapters to FMAX
LC/PC Simplex Adapter SL Series: 35-Degree Chamfer
LC/APC Simplex Adapter SL Series: 35-Degree Chamfer
FMAX Adapters
LC/PC Duplex Sliding Adapter SL Series: 35-Degree Chamfer
FMAX-LCA­DUX-SL35
FMAX-LC-2X­SL35
LC
LC
LC/APC Duplex Sliding Adapter SL Series: 35-Degree Chamfer
LC/PC Duplex Stationary Adapter SL Series: 35-Degree Chamfer
FMAX-LC LC LC/PC Simplex Adapter
FMAX-LC-DUX LC LC/PC Duplex Adapter
 Fiber Inspection Tip and Adapter Selection Guide
Page 21

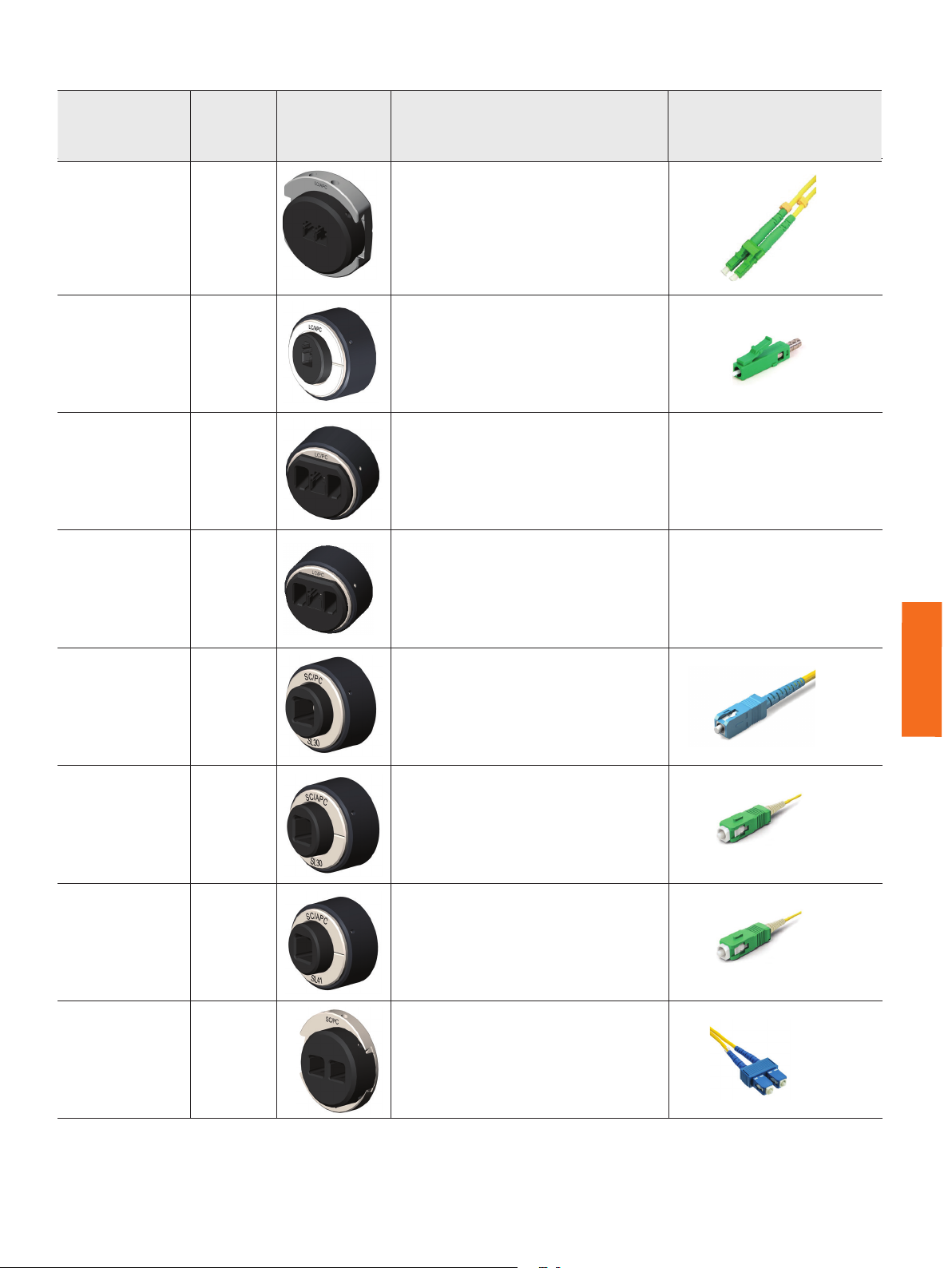

FMAX Adapters continued
Catalog Part
Number
Segment
Product
Description Connector Image
FMAX-LCA-DUX LC LC/APC Duplex Adapter
FMAX-LCA LC LC/APC Simplex Adapter
NEW
FMAX-LC-2X LC LC/PC Duplex stationery Adapter
NEW
FMAX-LC-2X­MINI
LC
LC/PC Duplex Mini Stationery Adapter
FMAX Adapters
FMAX-SC-SL30 SC
FMAX-SCA-SL30 SC
FMAX-SCA-SL41 SC
FMAX-SC-DUX­SL30
SC
SC/PC Simplex Adapter SL Series: 30-Degree Chamfer
SC/APC Simplex Adapter SL Series: 30-Degree Chamfer
SC/APC Simplex Adapter SL Series: 41-Degree Chamfer
SC/PC Duplex Adapter SL Series: 30-Degree Chamfer
 Fiber Inspection Tip and Adapter Selection Guide
Page 22

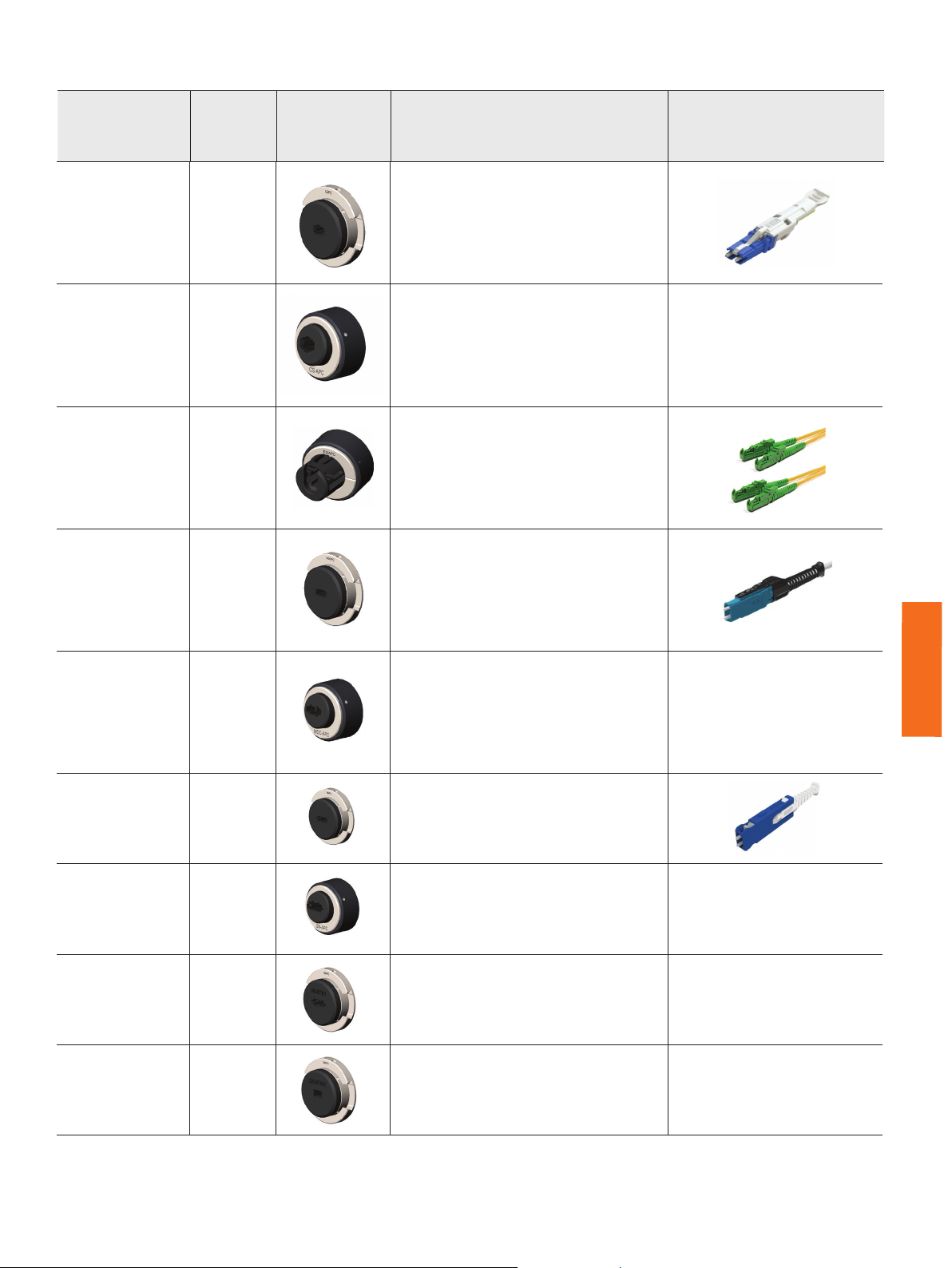

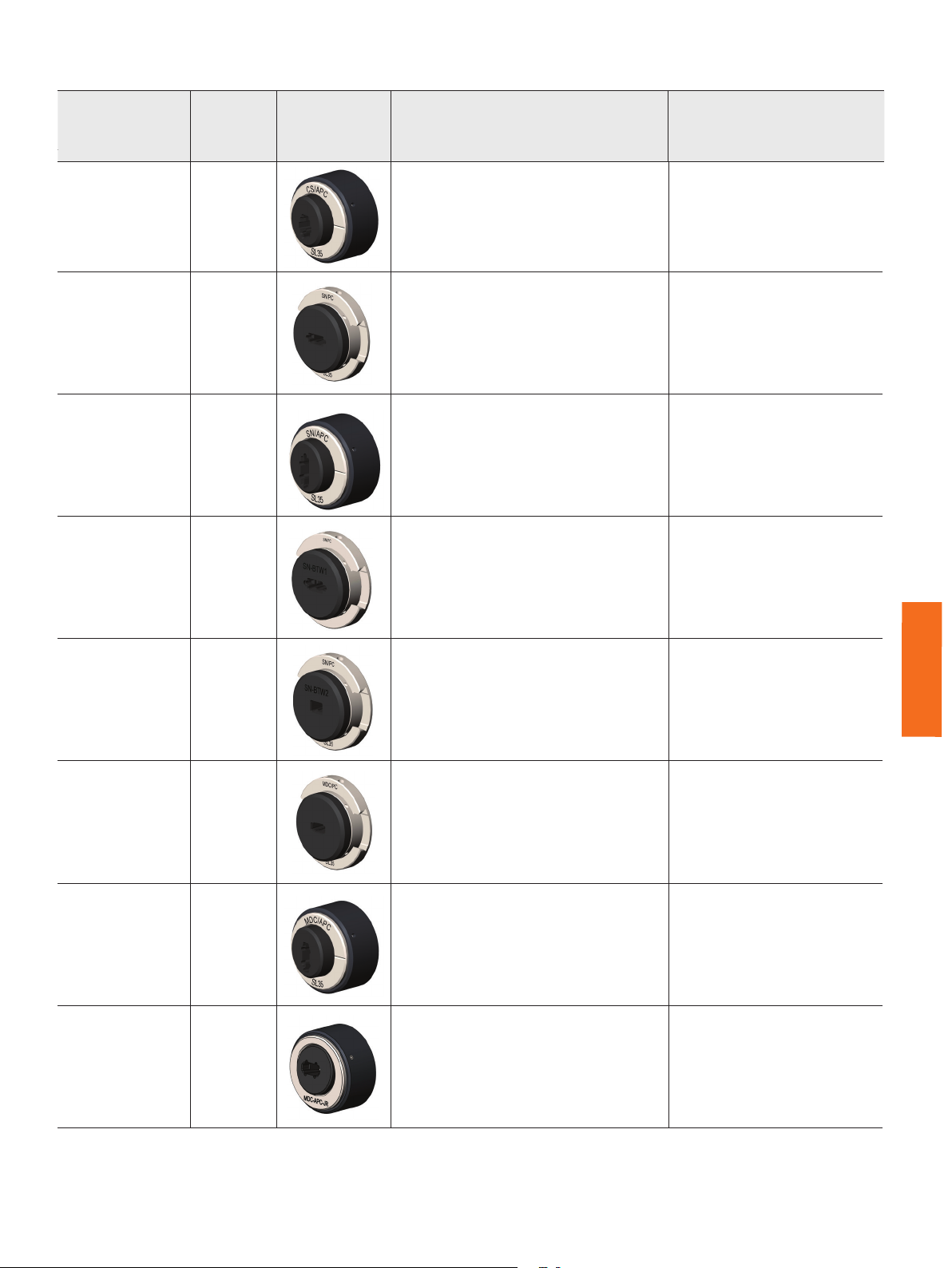

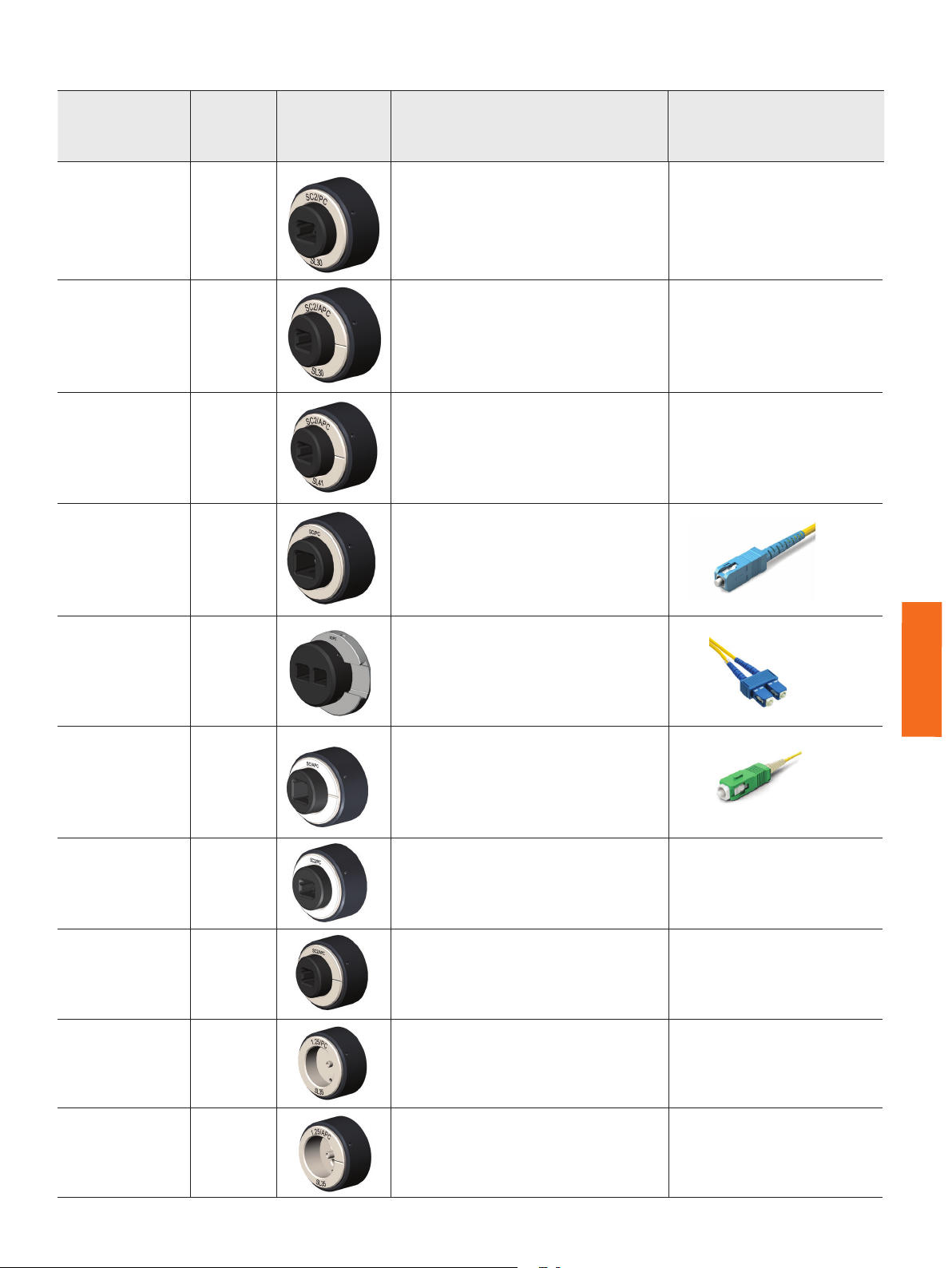

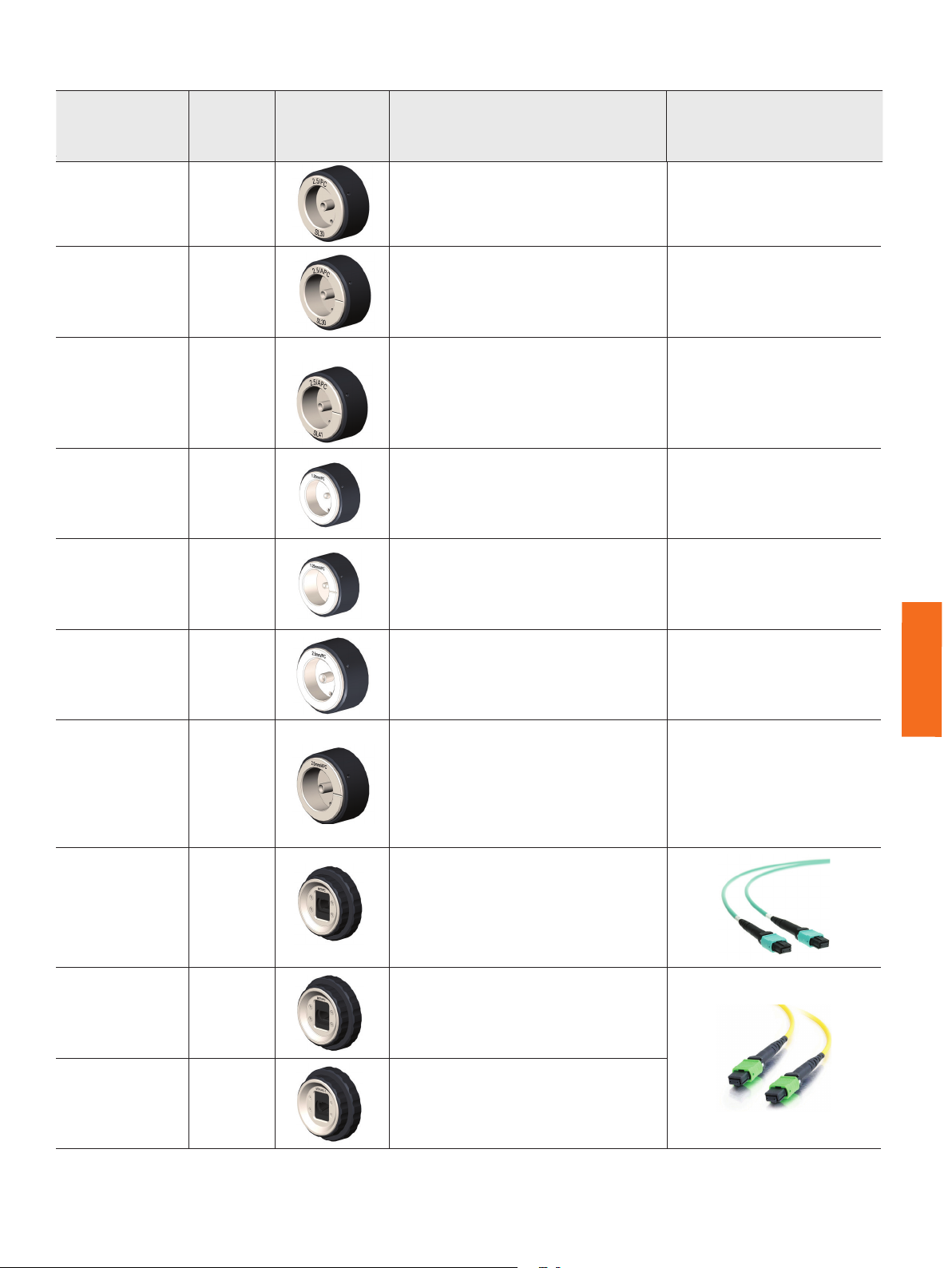

FMAX Adapters continued
Catalog Part Number
Segment
FMAX-SC2-SL30 SC
FMAX-SCA2­SL30
FMAX-SCA2­SL41
SC
SC
Product Image
Description Connector Image
SC2/PC Simplex Adapter SL Series: 30-Degree Chamfer
SC2/APC Simplex Adapter SL Series: 30-Degree Chamfer
SC2/APC Simplex Adapter SL Series: 41-Degree Chamfer
FMAX-SC SC SC/PC Adapter
FMAX-SC-DUX SC
SC/PC Duplex Adapter
FMAX-SCA SC SC/APC Adapter
FMAX-SC2 SC SC2/PC Adapter
FMAX-SCA2 SC SC2/APC Adapter
FMAX-U12-SL35 Universal Universal 1.25mm PC Adapter
FMAX Adapters
FMAX-U12A­SL35
 Fiber Inspection Tip and Adapter Selection Guide
Universal
Universal 1.25mm APC Adapter SL Series: 35-Degree Chamfer
Page 23
FMAX Adapters continued
Catalog Part Number
Segment
FMAX-U25-SL30 Universal
FMAX-U25A­SL30
FMAX-U25A­SL41
Universal
Universal
Product Image
Description Connector Image
Universal 2.5mm PC Adapter SL Series: 30-Degree Chamfer
Universal 2.5mm APC Adapter SL Series: 30-Degree Chamfer
Universal 2.5mm APC Adapter SL Series: 41-Degree Chamfer
FMAX-U12 Universal Universal 1.25mm PC Adapter
FMAX-U12A Universal Universal 1.25mm APC Adapter
FMAX-U25 Universal Universal 2.5mm PC Adapter
FMAX-U25A Universal Universal 2.5mm APC Adapter
FMAX-MTP Ribbon MTP/MPO RibbonDrive Adapter, MM
FMAX-MTPA Ribbon MTP/MPO RibbonDrive Adapter, SM
FMAX Adapters
FMAX-MTPA-1 Ribbon
 Fiber Inspection Tip and Adapter Selection Guide
MTP/MPO RibbonDrive Adapter, SM, Dual-Keyed
Page 24
FMAX Adapters continued
Catalog Part Number
Segment
FMAX-MT Ribbon
Product Image
Description Connector Image
MT Ferrule Ribbon Drive Adapter, MM
FMAX-MTA Ribbon MT Ferrule Ribbon Drive Adapter, SM
NEW
FMAX-MMCA Other MMC Female Adapter
NEW
FMAX-TMTA Other TMT/APC Female Adapter
FMAX-COD FTTX OptiTap Simplex Plug Adapter
NEW
FMAX-COD­MTA-P FTTX OptiTip and HMFOC Female Adapter
NEW
FMAX-DLX FTTX DLX Adapter
FMAX-CS-SL35 Other
CS/PC Simplex Adapter SL Series: 35-Degree Chamfer
FMAX Adapters
 Fiber Inspection Tip and Adapter Selection Guide
Page 25
FMAX Adapters continued
Catalog Part Number
FMAX-CS-APC­SL35
Segment
Other
FMAX-SN-SL35 Other
FMAX-SN-APC­SL35
Other
FMAX-SN­BTW1-SL35 Other
Product Image
NEW
Description Connector Image
CS/APC Simplex Adapter SL Series: 35-Degree Chamfer
SN/PC Simplex Adapter SL Series: 35-Degree Chamfer
SN/APC Simplex Adapter SL Series: 35-Degree Chamfer
SN BTW1 female adapter SL Series: 35-Degree Chamfer
FMAX-SN­BTW2-SL35
FMAX-MDC­SL35
FMAX-MDC­APC-SL35
FMAX-MDC­SL35
Other
Other
Other
Other
FMAX Adapters
SN BTW2 Female Duplex Adapter SL Series: 35-Degree Chamfer
MDC/PC Simplex Adapter SL Series: 35-Degree Chamfer
MDC/APC Simplex Adapter SL Series: 35-Degree Chamfer
NEW
MDC/APC Jr Simplex Adapter SL Series: 35-Degree Chamfer
 Fiber Inspection Tip and Adapter Selection Guide
Page 26
FMAX Adapters continued
Catalog Part Number
Segment
Product Image
Description Connector Image
FMAX-CS Other CS/PC Adapter
FMAX-CS-APC Other CS/APC Adapter
FMAX-E2A Other E2000/APC Adapter
FMAX-MDC Other
MDC/PC Adapter
FMAX-MDC-APC Other MDC/APC Adapter
FMAX-SN Other SN/PC Adapter
FMAX-SN-APC Other SN/APC Adapter
NEW
FMAX-SN-BTW1 Other SN BTW1 Female Adapter
FMAX Adapters
`
NEW
FMAX-SN-BTW2 Other SN BTW2 Female Adapter
 Fiber Inspection Tip and Adapter Selection Guide
Page 27

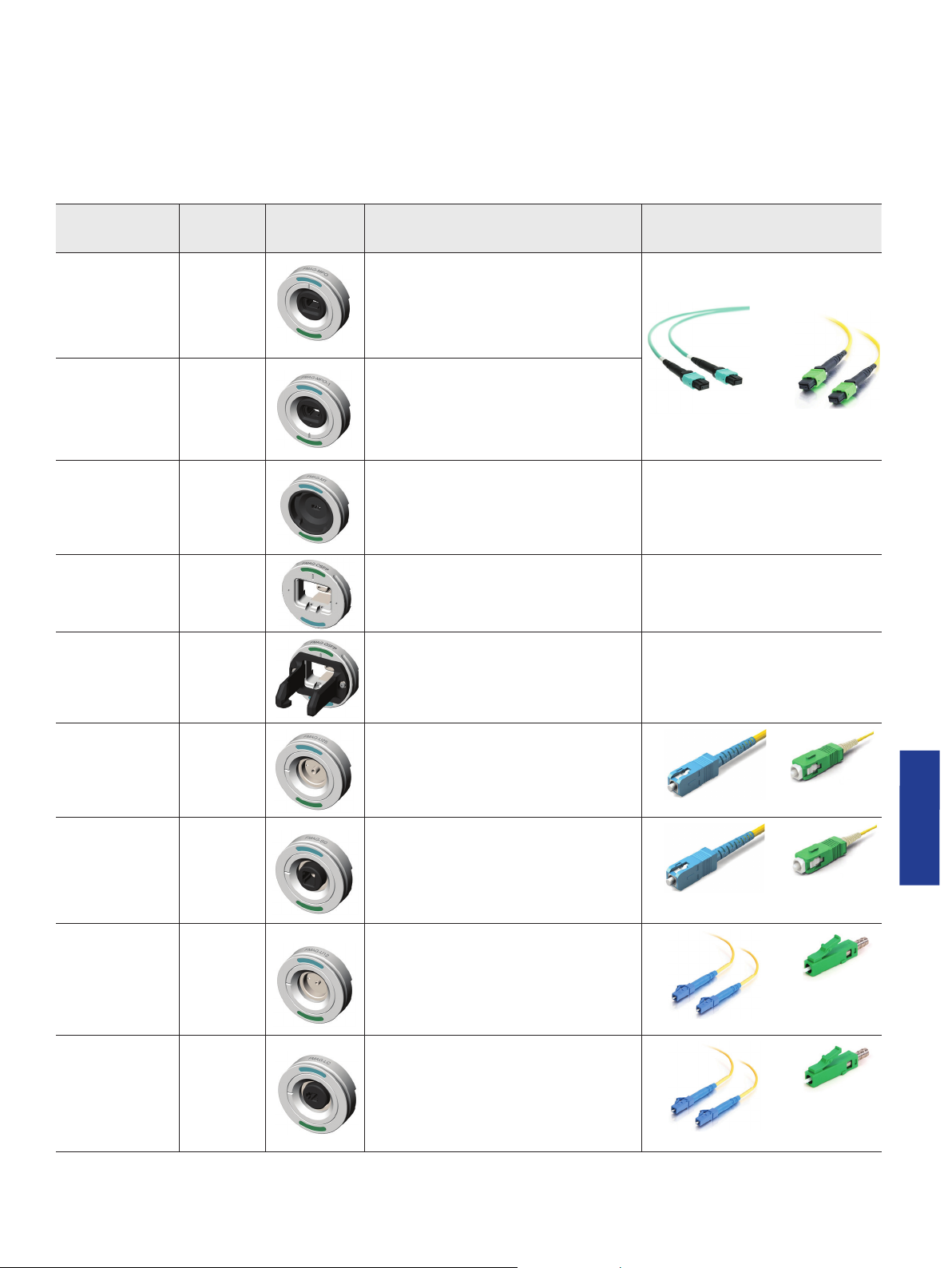

FMAG Adapters
FMAG Series adapters are designed for patch cord inspection. They connect to the FVAm Bench-top Microscope. FMAG Series adapters utilize a magnetic connection so operators can quickly switch adapter types and ensure precision alignment. Each FMAG series adapter has the capability to inspect both PC and APC connectors by simply pressing the green (APC) or Blue (PC) color coded indicator.
Catalog Part Number
Segment
Product Image
Description Connector Image
FMAG-MPO Ribbon MTP/MPO Adapter, MM/SM, PC/APC
FMAG-MPO-1 Ribbon
FMAG-MT Ribbon
MTP/MPO Adapter, MM/SM, PC/APC, Inverted Key
MT Ferrule Adapter, MM/SM, PC/APC
FMAG-OSFP Ribbon OSFP Adapter, MM/SM, PC/APC
FMAG-QSFP Ribbon QSFP Adapter, MM/SM, PC/APC
FMAG-U25 Universal
Universal 2.5mm Adapter, MM/SM, PC/APC
FMAG-SC SC SC Adapter, MM/SM, PC/APC
FMAG-U12 Universal
Universal 1.25mm Adapter, MM/SM, PC/APC
FMAG-LC LC LC Adapter, SM/MM, PC/APC
 Fiber Inspection Tip and Adapter Selection Guide
FMAG Adapters
Page 28
Tip Cases
Tip Cases provide a convenient solution for keeping various tips and adapters organized and accessible. They come in various sizes and configurations to best suit user's needs.
Model Description
FBPP-TACS1
FBPP-TACS2
FBPP-TACS3
FBPP-TACS7
FBPP-GC-6
Tip case, clear plastic, up to 18 adjustable compartments,
7.1 x 3.9 x 1.5 in (18.0 x 10.0 x 3.7 cm)
Tip case, black plastic, foam with 9 cutouts,
5.5 x 3.0 x 1.5 in (14.0 x 7.7 x 3.7 cm)
Tip case, black plastic, foam with 5 cutouts,
4.7 x 4.9 x 1.5 in (12.0 x 12.4 x 3.7 cm)
Tip case, clear plastic, up to 16 adjustable compartments,
10.8 x 6.9 x 1.8 in (27.5 x 17.5 x 4.5 cm)
Tip case, clear plastic, up to 6 adjustable compartments,
4.7 x 3.3 x 1.3 in (12.0 x 8.5 x 3.3 cm)
VIAVI Solutions
Contac t Us +1 844 GO VIAVI
(+   )
To reach the VIAVI of fice nearest you, visit viavisolutions.com/contact
Tip Cases
© 2022 VIAVI Solutions Inc. Product specifications and descriptions in this document are subject to change without notice. Patented as described at viavisolutions.com/patents
fit-tip-sg-fit-nse-ae 30186400 909 1022
viavisolutions.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
