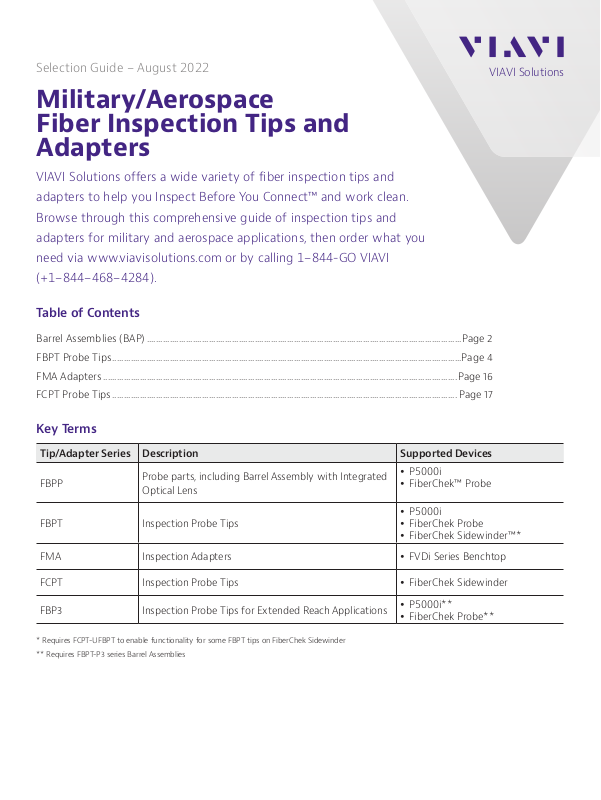

VIAVI FBPT-MIL-2P Selection Guide

Selection Guide  August 

Military/Aerospace
Fiber Inspection Tips and
Adapters

VIAVI Solutions offers a wide variety of fiber inspection tips and

adapters to help you Inspect Before You Connect™ and work clean.

Browse through this comprehensive guide of inspection tips and

adapters for military and aerospace applications, then order what you

need via www.viavisolutions.com or by calling -GO VIAVI

(+).

Table of Contents

Barrel Assemblies (BAP) .........................................................................................................................................Page 2

FBPT Probe Tips ........................................................................................................................................................Page 4

VIAVI Solutions

FMA Adapters ..........................................................................................................................................................Page 16

FCPT Probe Tips ...................................................................................................................................................... Page 17

Key Terms

Tip/Adapter Series Description Supported Devices

FBPP

FBPT Inspection Probe Tips

FMA Inspection Adapters y FVDi Series Benchtop

FCPT Inspection Probe Tips y FiberChek Sidewinder

FBP3 Inspection Probe Tips for Extended Reach Applications

* Requires FCPT-UFBPT to enable functionality for some FBPT tips on FiberChek Sidewinder

** Requires FBPT-P3 series Barrel Assemblies

Probe parts, including Barrel Assembly with Integrated
Optical Lens

y Pi
y FiberChek™ Probe

y Pi
y FiberChek Probe
y FiberChek Sidewinder™*

y Pi**
y FiberChek Probe**

Barrel Assemblies

33.50

11

B

C

D

1

2

3

4

5

DIMENSIONS SHOWN IN MM/[IN]

Barrel Assemblies (BAP)

Some of our FBPT Series tips require a BAP, or barrel assembly. A BAP contains a common set of optics that can
be used with multiple hollow tips. This approach makes many common tips more economical. Some tips contain
their own optics and do not require a BAP. For many of the Military / Aerospace applications, BAPs are also used in
conjunction with various guides.

Catalog Part
Number

FBPP-BAP1 BAP

FBPP-BAP1-G BAP Standard 4mm

FBPP-BAP2 BAP

Segment Product Image Description

Standard 4mm
Barrel Assembly
for P5000i and
FiberChek Probes

Barrel Assembly with
Protective Sleeve
for P5000i and
FiberChek Probes

Extended 4mm
Barrel Assembly
for P5000i and
FiberChek Probes

(BAP)

FBPP-BAP3 BAP Narrow 3mm Barrel

Assembly for P5000i
and FiberChek
Probes*

FBPP-BAP3-A6 BAP

Narrow 3mm Barrel
Assembly for P5000i
and FiberChek
Probes, Angled
60 Degrees*

FBPP-EOB3 BAP Narrow 3mm

Long Reach Barrel
Assembly for P5000i
and FiberChek
Probes

FBPP-BAP4 BAP Ultra Narrow 2.5mm

Barrel Assembly
for P5000i and
FiberChek Probes*

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

Barrel Assemblies

Barrel Assemblies (BAP) continued

Catalog Part
Number

FBPT-BAP4-A6 BAP Ultra Narrow 2.5mm

FBP3-UA BAP

FBPT-P3-1100 BAP

Segment Product Image Description

Barrel Tip for P5000i
and FiberChek
Probes, Angled
60 Degrees*

Single Tip Adapter
for FBP3*

Long Barrel
Extension with
1-row RibbonDrive™
11 Inch*

(BAP)

FBPT-P3-750 BAP

Long Barrel
Extension with
1-row RibbonDrive™

7.5 Inch*

* For visual image assessments

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips

The FBPT Series probe tips attach to the FiberChek and FBP-P5000i Inspection Probes. Some of them
can also be connected to the FiberChek Sidewinder with an adapter for use with simplex inspection.

In addition to being used for bulkhead and patch cord inspection, the FBPT series also includes Guides.
These are typically used to inspect Military and Aerospace connectors that have multiple pins and sockets in a
single connector interface.

Catalog Part
Number

Segment Product Image Description

Barrel
Assembly
Required

FBPT-MIL1-G001 28876 28876 Guide for 13-04 Plug-Pins FBPP-BAP3

FBPT-MIL1-G002 28876

FBPT-MIL1-G003 28876

FBPT-MIL1-G004 28876

28876 Guide for 13-04 Plug-Sockets FBPP-BAP3

28876 Guide for 13-04 Receptacle-Pins FBPP-BAP3

28876 Guide for 13-04 Receptacle-Sockets FBPP-BAP3

FBPT Probe Tips

FBPT-MIL1-G005 28876

FBPT-MIL1-G008 28876

FBPT-MIL-1P 28876

FBPT-MIL-1S 28876

FBPT-MIL-1SA 28876

FBPT-MIL-1S-X 28876

28876 Guide for 15-08 Plug-Pins FBPP-BAP3

28876 Guide for 15-08 Receptacle-Sockets FBPP-BAP3

MIL-T-29504/14 2.0mm PC Pin Tip FBPP-BAP1

MIL-T-29504/15 2.0mm PC Socket Tip FBPP-BAP1

MIL-T-29504/15 2.0mm APC Socket Tip FBPP-BAP1

MIL-T-29504/15 2.0mm PC Socket Tip

FBPP-BAP3

- Narrow Bore

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

FBPT­38999-17-08-PP

FBPT­38999-17-08-RS

FBPT­38999-11-02-PP-1

FBPT­38999-11-02-RS-1

FBPT­38999-13-04-PS-1

Segment Product Image Description

38999 38999 Type III Guide for 17-08 Plug-Pins

Size 16 Contacts

38999

38999 Type III Guide for 17-08 Receptacle-Sockets
Size 16 Contacts

38999

38999 Type III Guide for 11-02 Plug-Pins
Size 16 Contacts

38999

38999 Type III Guide for 11-02 Receptacle-Sockets
Size 16 Contacts

38999

38999 Type III Guide for 13-04 Plug-Sockets
Size 16 Contacts

Barrel
Assembly
Required

FBPP-BAP3

FBPP-BAP3

FBPP­BAP1-G

FBPP­BAP1-G

FBPP­BAP1-G

FBPT Probe Tips

FBPT-

38999

38999-13-04-RP-1

FBPT-

38999

38999-19-11-PP-1

FBPT-

38999

38999-19-11-RS-1

FBPT-

38999

38999-G006

FBPT-

38999

38999-G007

FBPT-MIL2-A6 38999

38999 Type III Guide for 13-04 Receptacle-Pins
Size 16 Contacts

38999 Type III Guide for 19-11 Plug-Pins
Size 16 Contacts

38999 Type III Guide for 19-11 Receptacle-Sockets
Size 16 Contacts

38999 Type III Guide for 13-04 Plug-Sockets
Size 16 Contacts

38999 Type III Guide for 13-04 Receptacle-Pins
Size 16 Contacts

MIL-T-29504/4/5 Tip for 1.58mm Pins and Sockets
Angled 60 Degrees

FBPP­BAP1-G

FBPP­BAP1-G

FBPP­BAP1-G

FBPP-BAP3

FBPP-BAP3

None

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

FBPT-MIL-2CPA 38999 Tip for Use with Glenair Test Probe Adapter for

38999 Shells

FBPT-MIL-2P 38999

FBPT-MIL-2P-X 38999

MIL-T-29504/4 1.58mm Pin Tip FBPP-BAP1

MIL-T-29504/4 1.58mm Pin Tip Modified to

0.064 Inch Bore

FBPT-MIL-2S 38999

FBPT-MT999 38999

MIL-T-29504/5 1.58mm Socket Tip FBPP-BAP1

Tip for Use with MT999 Inspection Guides None

Barrel
Assembly
Required

None

FBPP-BAP1

FBPT Probe Tips

FBPT-

38999

MT999-G001

FBPT-

38999

MT999-G003

FBPT-

38999

MT999-G005

FBPT-

38999

MT999-G007

FBPT-A801-1000P ARINC

801

MT-38999 Guide for Size 11 Plug with 1 Contact FBPT-

MT999

MT-38999 Guide for Size 11 Receptacle with
1 Contact

FBPT­MT999

MT-38999 Guide for Size 21 Plug with 4 Contacts FBPT-

MT999

MT-38999 Guide for Size 21 Receptacle with
4 Contacts

FBPT­MT999

ARINC Type 1 Guide for 11-02 Plug-Sockets FBPP-BAP3

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

FBPT-A801-1000R ARINC

801

FBPT-A801-1001P ARINC

801

FBPT-A801-1001R ARINC

801

FBPT-A801-1002P ARINC

801

FBPT-A801-1002R ARINC

801

Barrel
Assembly
Required

ARINC Type 1 Guide for 11-02 Receptacle-Pins FBPP-BAP3

ARINC Type 1 Guide for 13-04 Plug-Sockets FBPP-BAP3

ARINC Type 1 Guide for 13-04 Receptacle-Pins FBPP-BAP3

ARINC Type 1 Guide for 15-06 Plug-Sockets FBPP-BAP3

ARINC Type 1 Guide for 15-06 Receptacle-Pins FBPP-BAP3

FBPT Probe Tips

FBPT-A801-1003P ARINC

801

FBPT-A801-1003R ARINC

801

FBPT-A801-1005R ARINC

801

FBPT-A801-1002­PS-1

FBPT-A801-1002­RP-1

FBPT-A801-1003­PS-1

ARINC
801

ARINC
801

ARINC
801

ARINC Type 1 Guide for 21-16 Plug-Sockets FBPP-BAP3

ARINC Type 1 Guide for 21-16 Receptacle-Pins FBPP-BAP3

ARINC Type 1 Guide for 13-04 Receptacle-Pins

FBPP-BAP3

Wide

ARINC Type 1 Guide for 15-06 Plug-Sockets FBPP-

BAP1-G

ARINC Type 1 Guide for 15-06 Receptacle-Pins FBPP-

BAP1-G

ARINC Type 1 Guide for 21-16 Plug-Sockets FBPP-

BAP1-G

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

FBPT-A801-1003­RP-1

Segment Product Image Description

ARINC
801

FBPT-A801-1-15-P ARINC

801

FBPT-A801-1-15-R ARINC

801

FBPT-A801-1-17-P ARINC

801

FBPT-A801-1-17-R ARINC

801

Barrel
Assembly
Required

ARINC Type 1 Guide for 25-16 Receptacle-Pins FBPP-

BAP1-G

ARINC Type 1 Guide for 15-06 Plug-Sockets FBPT-

U12MX

ARINC Type 1 Guide for 15-06 Receptacle-Pins FBPT-

U12MX

ARINC Type 1 Guide for 17-08 Plug-Sockets FBPT-

U12MX

ARINC Type 1 Guide for 17-08 Receptacle-Pins FBPT-

U12MX

FBPT Probe Tips

FBPT-A801-1-19-P ARINC

801

FBPT-A801-1-19-R ARINC

801

FBPT-A801-1-21-P ARINC

801

FBPT-A801-1-21-R ARINC

801

FBPT-A801-1-23-P ARINC

801

FBPT-A801-1-23-R ARINC

801

ARINC Type 1 Guide for 19-12 Plug-Sockets FBPT-

U12MX

ARINC Type 1 Guide for 19-12 Receptacle-Pins FBPT-

U12MX

ARINC Type 1 Guide for 21-16 Plug-Sockets FBPT-

U12MX

ARINC Type 1 Guide for 21-16 Receptacle-Pins FBPT-

U12MX

ARINC Type 1 Guide for 23-24 Plug-Sockets FBPT-

U12MX

ARINC Type 1 Guide for 23-24 Receptacle-Pins FBPT-

U12MX

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

FBPT-A801-1-25-P ARINC

801

FBPT-A801-1-25-R ARINC

801

FBPT-A801-2001P ARINC

801

FBPT-A801-2001R ARINC

801

FBPT-A801-2002P ARINC

801

Barrel
Assembly
Required

ARINC Type 1 Guide for 25-32 Plug-Sockets FBPT-

U12MX

ARINC Type 1 Guide for 25-32 Receptacle-Pins FBPT-

U12MX

ARINC Type 2 Guide for F12 Plug-Pins FBPP-BAP3

ARINC Type 2 Guide for F12 Receptacle-Sockets FBPP-BAP3

ARINC Type 2 Guide for F12 Plug-Sockets FBPP-BAP3

FBPT Probe Tips

FBPT-A801­2002R

ARINC
801

FBPT-A801-4001P ARINC

801

FBPT-A801-4001R ARINC

801

FBPT-A801­4002P

FBPT-A801­4002R

ARINC
801

ARINC
801

ARINC Type 2 Guide for F12 Receptacle-Pins FBPP-BAP3

ARINC Type 4 Guide for 12 Contact Plug-Pins FBPP-BAP3

ARINC Type 4 Guide for 12 Contact Receptacle-

FBPP-BAP3

Sockets

ARINC Type 4 Guide for 36 Contact Plug-Pins FBPP-BAP3

ARINC Type 4 Guide for 36 Contact Receptacle-

FBPP-BAP3

Sockets

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

FBP3-MT-MB2­JSF-V2

FBP3-MT-MB6­JSF-V2

FBP3-MT-MB­JSF-V2-T

FBPT-MT-MB2­JSF-V2

FBPT-MT-MB2­JSF-V2-G

Segment Product Image Description

JSF JSF MT Motherboard 2-Position Tip and Guide Kit

for FBP3 (FBP3-MT-MB-JSF-V2-T and FBPT-MT­MB2-JSF-V2-G)

JSF

JSF MT Motherboard 6-Position Tip and Guide Kit
for FBP3 (FBP3-MT-MB-JSF-V2-T and FBPT-MT­MB6-JSF-V2-G)

JSF

JSF

JSF MT Motherboard Tip for FBP3 (Tip Only) FBPT-P3-

Tip and Guide Kit for 2-Position JSF MT
Motherboard (FBPT-MT-MB-JSF-V2-T and FBPT­MT-MB2-JSF-V2-G)

JSF

Guide for 2-Position JSF MT Motherboard None

Barrel
Assembly
Required

FBPT-P3­xxx

FBPT-P3­xxx

xxx

None

FBPT Probe Tips

FBPT-MT-MB6­JSF-V2

FBPT-MT-MB6­JSF-V2-G

FBPT-MT-MB­JSF-V2-T

FBPT-OPD-32­3-RP

FBPT-OPD-32­3-PS

JSF

JSF

JSF

Optik-D™

Optik-D™

Tip and Guide Kit for 6-Position JSF MT

None
Motherboard (FBPT-MT-MB-JSF-V2-T and FBPT­MT-MB6-JSF-V2-G)

Guide for 6-Position JSF MT Motherboard None

Tip for JSF MT Motherboard None

Optik-D Guide for 32-28 Rectangular Receptacle-

FBPP-BAP3
Pins

Optik-D Guide for 32-28 Rectangular Plug-Sockets FBPP-BAP3

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

Barrel

Assembly

Required

FBPT-PHD-G017 PHD PHD 38999 Guide for 17-20 Plug-Pins FBPP-BAP4

FBPT-PHD-G018 PHD

FBPT-PHD-G019 PHD

FBPT-PHD-G020 PHD

FBPT-PHD-G101 PHD

PHD 38999 Guide for 17-20 Plug-Sockets FBPP-BAP4

PHD 38999 Guide for 17-20 Receptacle-Pins FBPP-BAP4

PHD 38999 Guide for 17-20 Receptacle-Sockets FBPP-BAP4

PHD Rectangular 8 Contact Pins Guide FBPP-BAP4

FBPT Probe Tips

FBPT-PHD-G102 PHD

FBPT-ST ST

FBPT-ST-A6 ST

FBPT-ST-L ST

FBPT-TFOCA1 TFOCA

FBPT-TFOCA2 TFOCA

PHD Rectangular 8 Contact Sockets Guide FBPP-BAP4

ST Bulkhead Tip FBPP-BAP1

ST Bulkhead Tip Angled 60 Degrees None

ST Bulkhead Tip Long Reach None

TFOCA 1 Tip for Pins and Sockets FBPP-BAP1

TFOCA 2 Tip and Guide for Pins and Sockets FBPP-BAP1

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

FBPT-U12MX Universal Universal 1.25mm Tip for Use with

FBPT-A801-1-xx-xx Guides (automated analysis if
PC, visual assessment if APC)

FBPT-U25M-N Universal

FBP3-HDV66.4-MBVITA 66.4

Universal 2.5mm Pin Tip FBPP-BAP1

VITA 66.4 High Density Motherboard Tip and
Guide Kit (FBP3-HDV66.4-MB-T and FBPT­HDV66.4-MB-G)

FBP3-HDV66.4­MB-12

VITA 66.4

VITA 66.4 High Density Motherboard Tip and
Guide Kit (FBP3-HDV66.4-MB-12-T and FBPT­HDV66.4-MB-G)

Barrel

Assembly

Required

None

FBPT-P3-

xxx

FBPT-P3-

xxx

FBPT Probe Tips

FBP3-HDV66.4­MB-12-T

FBP3-HDV66.4­MB-T

FBP3-LDV66.4­MB-12

FBP3-LDV66.4­MB-12-T

FBPT-HDV66.4­MB-G

VITA 66.4

VITA 66.4 High Density 12x1 MT Ferrule
Motherboard Tip

VITA 66.4 VITA 66.4 High Density 12x2 MT Ferrule

Motherboard Tip

VITA 66.4 VITA 66.4 Low Density Motherboard Tip and Guide

Kit (FBP3-LDV66.4-MB-12-T and FBPT-LDV66.4­MB-12-G)

VITA 66.4

VITA 66.4 Low Density 12x1 MT Ferrule
Motherboard Tip

VITA 66.4

VITA 66.4 High Density 2 MT Ferrule
Motherboard Guide

FBPT-P3-

xxx

FBPT-P3-

xxx

FBPT-P3-

xxx

FBPT-P3-

xxx

FBP3-

HDV66.4-

MB-xx-T

FBPT-LDV66.4-

VITA 66.4

MB-12-G

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

VITA 66.4 Low Density 1 MT Ferrule Motherboard
Guide 12-Fiber

FBP3-

LDV66.4-

MB-12-T

FBPT Probe Tips continued

Catalog Part
Number

FBPT-HDV66.4-

Segment Product Image Description

VITA 66.4 VITA 66.4 High Density 12x2 MT Ferrule

DC-L

FBPT-LDV66.4-

VITA 66.4

DC-L

FBP3-C130 C130

Daughtercard Tip Long Reach

VITA 66.4 Low Density 12x1 MT Ferrule
Daughtercard Tip Long Reach

C130 Tip

Barrel

Assembly

Required

None

None

Requires

both FBPT-

P3-xxx AND

FBP3-UA

FBPT-C130 C130 C130 Tip None

FBP3-HBMT-MB Other

HBMT Motherboard Tip FBPT-P3-

xxx

FBPT Probe Tips

FBPT-65CM-P

FBPT-65CM-S

FBPT-65CN-P

FBPT-65CN-S

FBPT­AMP999-G001

FBPT­AMP999-G002

BACC65CM

BACC65CM

BACC65CM

BACC65CM

Other

Other

BACC65CM Pin Guide FBPP-BAP3

BACC65CM Socket Guide FBPP-BAP3

BACC65CN Pin Guide FBPP-BAP3

BACC65CN Socket Guide FBPP-BAP3

Guide for Amphenol 38999 3 Contacts

FBPP-BAP4
Size 20 Receptacle-Pins

Guide for Amphenol 38999 3 Contacts

FBPP-BAP4
Size 20 Plug- Sockets

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

Barrel

Assembly

Required

FBPT-ELIO Other ELIO Socket Inspection Tip FBPP-BAP1

FBPT-EXBEAM-1 Other

FBPT-GHD Other

Fibercast Jr-Sr Expanded Beam Tip None

Inspection Tip for Use with Glenair GHD

None
Test Probes

FBPT-HBMT-MB Other

FBPT-LC-DC Other

HBMT Motherboard Tip None

LC Daughtercard Tip FBPP-BAP1

FBPT Probe Tips

FBPT-

LuxCis

LUX24-G001

FBPT-

LuxCis

LUX24-G002

FBPT-U12M-N LuxCis

FBPT-MIL-3S LuxCis

FBPT-MC3 MC3

FBPT-MC3P MC3

Guide for Tyco LuxCis 24 Contacts Plug-Sockets FBPT-C130

Guide for Tyco LuxCis 24 Contacts Receptacle-Pins FBPT-C130

Universal 1.25mm LuxCis Pin Tip FBPP-BAP3

1.25mm LuxCis Socket Tip FBPP-BAP1

MC3 2.5mm Socket Tip FBPP-BAP1

MC3 5-Position 2.5mm Socket Guide FBPT-MC3

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

Barrel

Assembly

Required

FBPT-MTC-G001 MTC MTC Guide Plug-Pins FBPP-BAP3

FBPT-MTC-G002 MTC

FBPT-MTA-DC Other

FBPT-MT-DC Other

FBPT-MTP-DC Other

MTC Guide Receptacle-Sockets FBPP-BAP3

MT/APC SM Daughtercard Tip None

MT MM Daughtercard Tip None

MTP/MPO MM Daughtercard Tip None

FBPT Probe Tips

FBPT-MTP-XCVR Other

FBPT-PRIZM Other

FBPT-QPC-G006 QPC

FBPT-QPC-G007 QPC

FBPT-QPC-G018 QPC

FBPT-QPC-G019 QPC

MPO Tip for Board-Mounted Transceivers None

PRIZM Tip None

QPC 38999 Guide for 11-04 Plug-Sockets FBPP-BAP4

QPC 38999 Guide for 11-04 Receptacle-Pins FBPP-BAP4

QPC 38999 Guide for 17-20 Plug-Sockets FBPP-BAP4

QPC 38999 Guide for 17-20 Receptacle-Pins FBPP-BAP4

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FBPT Probe Tips continued

Catalog Part
Number

Segment Product Image Description

Barrel

Assembly

Required

FBPT-QPC-G022 QPC QPC 38999 Guide for 19-28 Plug-Sockets FBPP-BAP4

FBPT-QPC-G023 QPC

FBPT-QPC-G030 QPC

FBPT-QPC-G031 QPC

FBPT-RQX8-P Quadrax

QPC 38999 Guide for 19-28 Receptacle-Pins FBPP-BAP4

QPC 38999 Guide for 23-48 Plug-Sockets FBPP-BAP4

QPC 38999 Guide for 23-48 Receptacle-Pins FBPP-BAP4

Radiall Quadrax Size 8 Pin Tip FBPP-BAP1

FBPT Probe Tips

FBPT-RQX8-S Quadrax

FBPT-SABR-G001

FBPT-SABR-G002

1643202019

1643202019

Radiall Quadrax Size 8 Socket Tip FBPP-BAP1

Sabritech Guide for 1643202019 Receptacle-Pins FBPP-BAP3

Sabritech Guide for 1643202019 Plug-Sockets FBPP-BAP3

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FMA

FMA Series adapters are designed for patch cord inspection. These adapters connect to the FVDi Bench-top
Microscopes, and can also be attached to the FiberChek™ and FBP-P5000i by using the FBPT-UFMA, together

with an FBPP-BAP1 adapter. FMA Series adapters are all male-threaded.

Catalog Part

Type Product Image Description Barrel

Number

FMA-LUX FMA

FMA-LUXA FMA

FMA-MIL1 FMA

LuxCis 1.25mm Adapter Male
Threaded

LuxCis 1.25mm APC Adapter Male
Threaded

MIL-T-29504/15 2.0mm Termini
Adapter Male Threaded

Assembly
Required

N/A

FMA

N/A

N/A

FMA-MIL2 FMA

FMA-ST FMA

MIL-T-29504/5 1.58mm Termini

N/A

Adapter Male Threaded

ST Adapter Male Threaded N/A

 Military/Aerospace Fiber Inspection Tip and Adapter Selection Guide

FCPT (Sidewinder)

The FCPT Series probe tips attach to the FiberChek Sidewinder Inspection Probe. In addition to accepting various
FCPT series tips, the FCPT-UFBPT adapter allows certain FBPT series tips to be used with the Sidewinder.

Catalog Part

Type Product Image Description Optical

Number

FCPT-MTA-DC FCPT

FCPT-MTA-MB-JSF FCPT

FCPT-MT-DC FCPT

Assembly
Required

MT/APC SM Daughtercard

FCPP-OLA-1

Sidewinder Tip

JSF MT/APC SM Motherboard

FCPP-OLA-1

Sidewinder Tip

FCPT (Sidewinder)

MT MM Daughtercard Sidewinder Tip FCPP-OLA-1

FCPT-MT-MB-JSF FCPT

VIAVI Solutions

JSF MT Motherboard Sidewinder Tip FCPP-OLA-1

Contac t Us +1 844 GO VIAVI

(+   )

To reach the VIAVI of fice nearest you,
visit viavisolutions.com/contact

©  VIAVI Solutions Inc.
Product specifications and descriptions in this
document are subject to change without notice.
Patented as described at
viavisolutions.com/patents

fit-tip-military-sg-fit-nse-ae
  

viavisolutions.com
