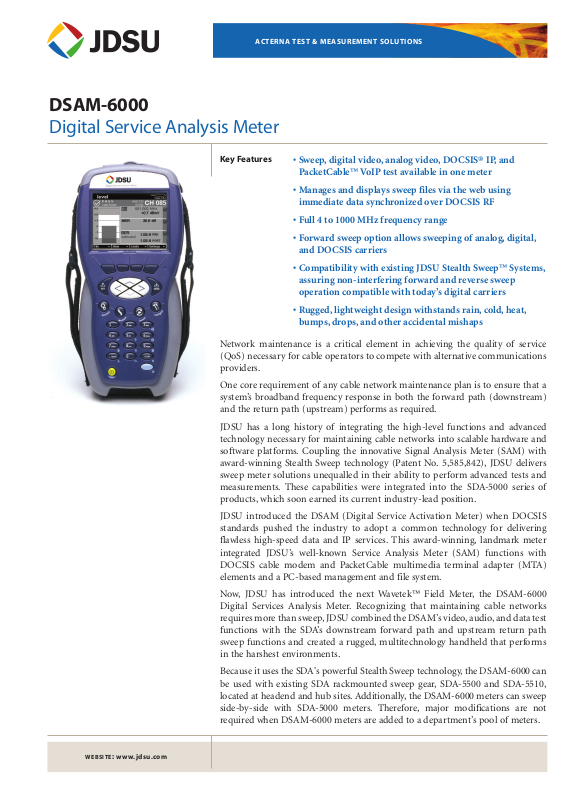

Page 1
DSAM-6000
Digital Service Analysis Meter
Key Features
• Sweep, digital video, analog video, DOCSIS® IP, and
PacketCable™ VoIP test available in one meter

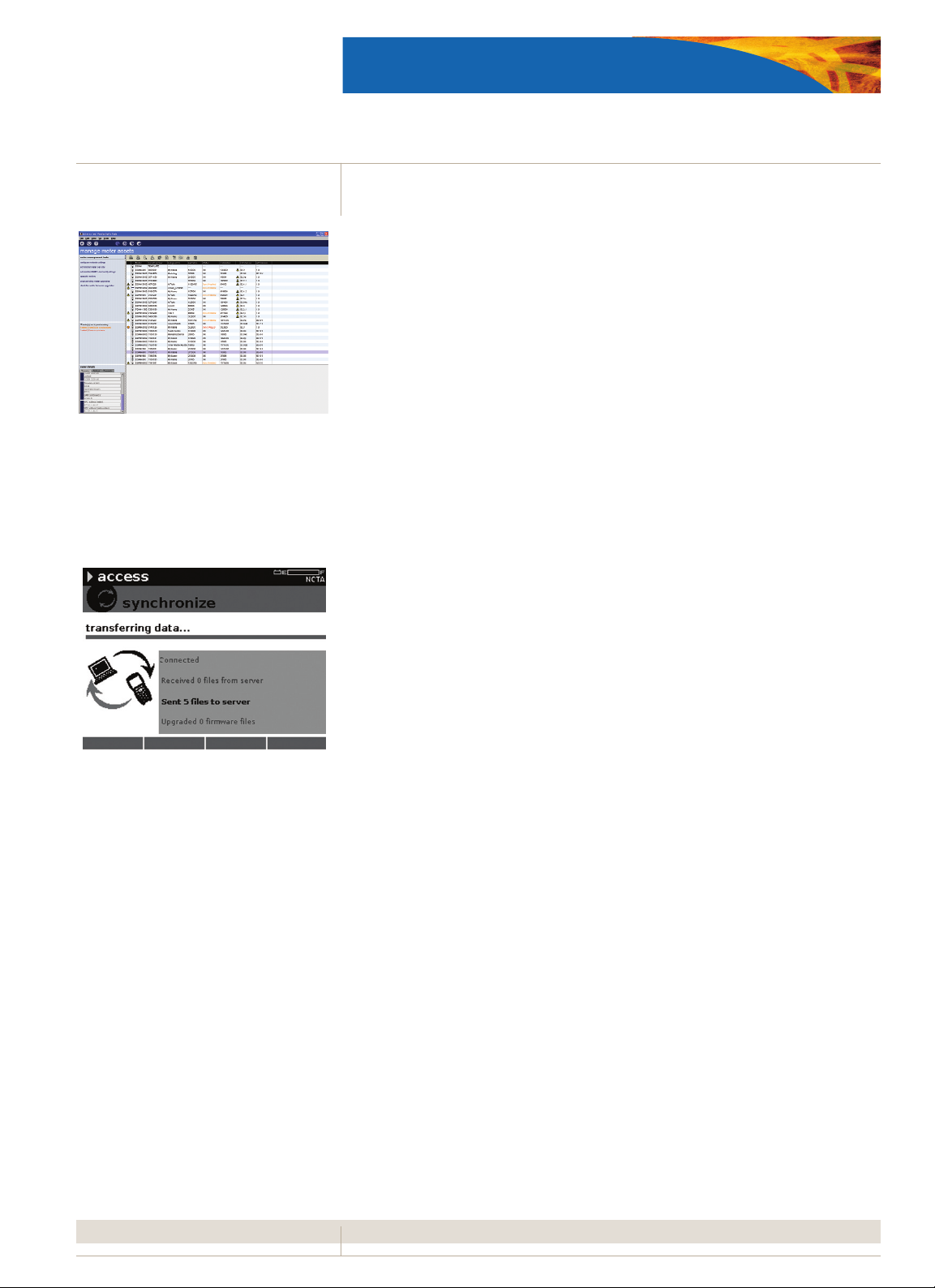

• Manages and displays sweep files via the web using
immediate data synchronized over DOCSIS RF
• Full 4 to 1000 MHz frequency range
• Forward sweep option allows sweeping of analog, digital,
and DOCSIS carriers
• Compatibility with existing JDSU Stealth Sweep™ Systems,
assuring non-interfering forward and reverse sweep
operation compatible with today’s digital carriers
• Rugged, lightweight design withstands rain, cold, heat,
bumps, drops, and other accidental mishaps
Network maintenance is a critical element in achieving the quality of service
(QoS) necessary for cable operators to compete with alternative communications
providers.
One core requirement of any cable network maintenance plan is to ensure that a
system’s broadband frequency response in both the forward path (downstream)
and the return path (upstream) performs as required.
JDSU has a long history of integrating the high-level functions and advanced
technology necessary for maintaining cable networks into scalable hardware and
software platforms. Coupling the innovative Signal Analysis Meter (SAM) with
award-winning Stealth Sweep technology (Patent No. 5,585,842), JDSU delivers
sweep meter solutions unequalled in their ability to perform advanced tests and
measurements. These capabilities were integrated into the SDA-5000 series of
products, which soon earned its current industry-lead position.
JDSU introduced the DSAM (Digital Service Activation Meter) when DOCSIS
standards pushed the industry to adopt a common technology for delivering
flawless high-speed data and IP services. This award-winning, landmark meter
integrated JDSU’s well-known Service Analysis Meter (SAM) functions with
DOCSIS cable modem and PacketCable multimedia terminal adapter (MTA)
elements and a PC-based management and file system.
Now, JDSU has introduced the next Wavetek™ Field Meter, the DSAM-6000
Digital Services Analysis Meter. Recognizing that maintaining cable networks
requires more than sweep,JDSU combined the DSAM’s video, audio, and data test
functions with the SDA’s downstream forward path and upstream return path
sweep functions and created a rugged, multitechnology handheld that performs
in the harshest environments.
Because it uses the SDA's powerful Stealth Sweep technology, the DSAM-6000 can
be used with existing SDA rackmounted sweep gear, SDA-5500 and SDA-5510,
located at headend and hub sites. Additionally, the DSAM-6000 meters can sweep
side-by-side with SDA-5000 meters. Therefore, major modifications are not
required when DSAM-6000 meters are added to a department’s pool of meters.
WEBSITE: www.jdsu.com
ACTERNA TEST & MEASUREMENT SOLUTIONS
Page 2
Signal Level Meter (SLM)
Traditional SLM test functions for analog video and audio levels as well as JDSU’s
extremely accurate digiCheck™ digital power level measurements are supported
by the DSAM-6000. Furthermore, the ability to measure carrier-to-noise (C/N)
on analog carriers comes standard. The DSAM-6000 can measure downstream
carriers to a full 1GHz and analyze 64 and 256 QAM, including deep interleave
(j=128, i=4) modulation. Also included are MER and pre- and post-FEC BER on
both digital video and DOCSIS carriers, allowing technicians to validate that
digital services are received and they meet adequate margin and quality
specifications.
Miniscan and Full Scan Modes
When measuring analog and digital as well as DOCSIS signals, technicians can see
high- and low-frequency channels and verify how much level headroom remains
when limits are activated. In miniscan mode, the DSAM monitors up to 12 channels at a time and in full scan mode it monitors the entire channel plan, up to 999
channels. The results of both scans are displayed either as an easy-to-see bar graph
or in an informative table.
Tilt Mode
Tilt mode is used while sweeping to check the forward tilt of the channel levels at
the low and high ends of the frequency spectrum. The variances of the levels,
which are displayed at the bottom of the DSAM-6000 screen, indicate distortion
of the frequency spectrum. Based on these results, technicians know which
equalizer pad to select that will provide optimum flatness at the end of the line.
Hum Analysis Mode
A hum measurement may be performed on a nonscrambled analog channel. Since
the instrument is battery powered, the measurement is independent of ground
loops and therefore is isolated from the line (mains). Severe hum is revealed on a
TV as either single (60/50 Hz) or double (120/100 Hz) horizontal bars across the
video screen. The DSAM-6000 hum display indicates the composit level of all
frequency components below 1000 Hz as well as the fundamental hum frequency.
The lower levels of adjacent frequencies as well as the fundamental are displayed
across a frequency graph. This is valuable in determining the source of hum
generation by displaying a telltale signature of the source (patent pending).
Constellation Mode
There are various elements in a network that compromise video quality. The
DSAM-6000 constellation mode displays patterns of data points on a graph,
which are easily interpreted, enabling technicians to detect and quickly diagnose
the source of digital video problems.
2
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
Features
Undesired electrical interference can appear on a
video channel as one or two horizontal bars. A Hum
measurement reveals if any electrical interference is
present on tested channel.
A Constellation graph shows impairments on the
network with patterns in the display.By identifying
the pattern technicians can figure out what is the
probable cause of the impairment.
Page 3
MER Mode
Modulation error ratio (MER) is the earliest indication of transmission quality
degradation resulting from noise, ingress, and composite distortions. An expression of signal-to-noise ratio plus all other non-transient distortion signals, MER
also shows phase and amplitude distortions that may have been passed from the
headend. MER is the best overall quality measurement that can be performed on
a digital QAM carrier. JDSU has perfected this valuable measurement by optimizing both custom hardware and proprietary software algorithms (Patent Nos.
6,061,393; 6,233,274; 6,278,730 and 6,385,237). The result is accurate readings
that far exceed those reported from customer premise equipment such as digital
settops.
BER Mode
Bit error ratio (BER) helps to quickly detect impulse changes in the system by
revealing when information is lost or corrupted at the bit layer. The DSAM-6000
measures BER by tracking the number of errored bits that are seen before forward
error correction (FEC), known as pre-BER, and the number of bits that cannot be
fixed by FEC, known as post-BER.
Errored Seconds and Severely Errored Seconds Measurement
For troubleshooting connections that are suspected of intermittent bit errors, the
technician needs a means of capturing the presence of errors that have occurred
over a period of time. If an error has occurred during any second of elapsed time,
the errored second field increments by one. One error or multiple errors in the
same second is counted as one errored second. If more than 1 bit in 1 million bits
has errors occurring in the same second, the severely errored second register increments by one. The errored seconds fields are conveniently included in the
digital level display.
QAM Ingress Mode
Detecting the presence of ingress within the digital tier of carriers on the
downstream path is nearly impossible without turning off the service. The tightly
spaced QAM carriers hide any visual presence of unwanted forward ingress such
as CSO and CTB. An MER test will indicate that an issue exists but with the
DSAM-6000 and the patented JDSU QAM Ingress mode the technician can
inspect what is actually going on beneath the digital “haystack” while still
remaining in service.
Return QAM Generator
Standard on the DSAM-6000, the Return QAM Generator is a mobile 16 QAM
transmitter. The ability to transmit a QAM-16 modulated signal back to the
headend is helpful for proving line capabilities for future data and voice channels
and for troubleshooting return path issues in the network.
3
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
In the level mode on a digital channel, the signal’s
level and MER are measured and the channel’s BER
and errored seconds are tracked.
QAM Ingress test allows the technician to see what is
going on underneath a live digital carrier which is
usually not viewable due to the presence of the
“haystack”.
Page 4
Comprehensive Analog and Digital Testing on the Forward Path
The DSAM architecture incorporates analog and digital testing into a single user
interface. This allows the technician to select a specific channel or a scan of
channels without having to differentiate between analog or digital video, DOCSIS
high-speed data, or voice.
The active channel plan functions as a meter configuration file as well as a channel
lineup. An extensive selection of configuration elements establishes the type of
tests that can be performed on a particular channel for each channel in the plan.
Also inherent within a given channel plan are autotest configurations for analog,
digital, and DOCSIS services. Most configurations can be entered into the meter
directly or through the JDSU Test Productivity Pack (TPP) client/server application software. Accessed via a PC, TPP manages channel plans and measurement
files for a collection of DSAM meters.
Networks with a history of multiple ownerships and diverse hardware architectures are not a problem for the DSAM-6000. Supervisors can create multiple
channel plans for a specified group of meters or one channel plan for the whole
network. The channel plans can be deployed with plan parameters locked when
needed. Specific plans are easily selected from Configure mode, or in many cases,
directly from within a measurement mode. After selecting an active plan, a
technician can check the top of the measurement screen to confirm that it is the
correct plan. The channel plan name is included any saved measurement file for
reference. Using the channel plan to configure an Autotest, multiple tests can be
run in a short period of time with only two button presses.

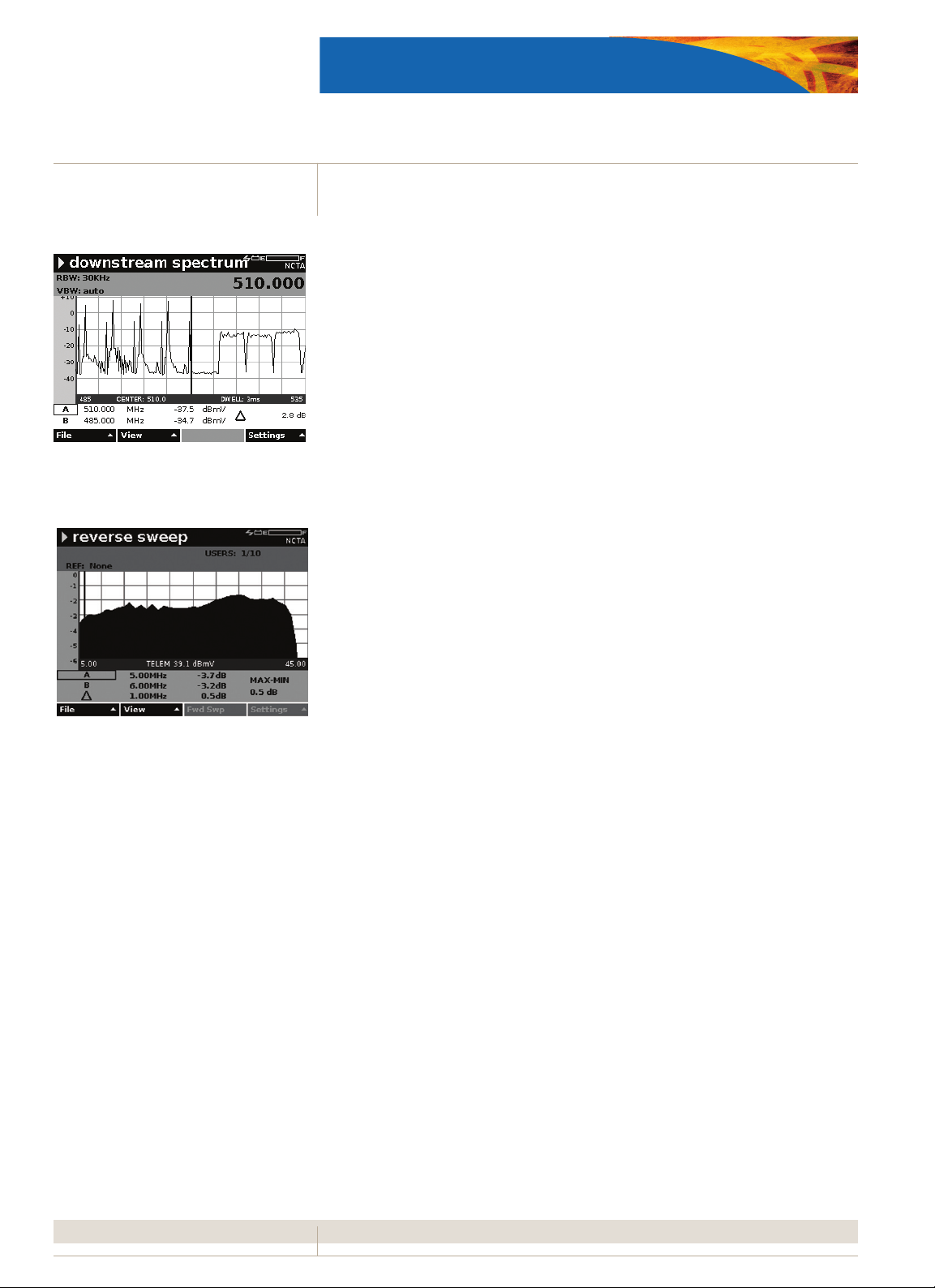

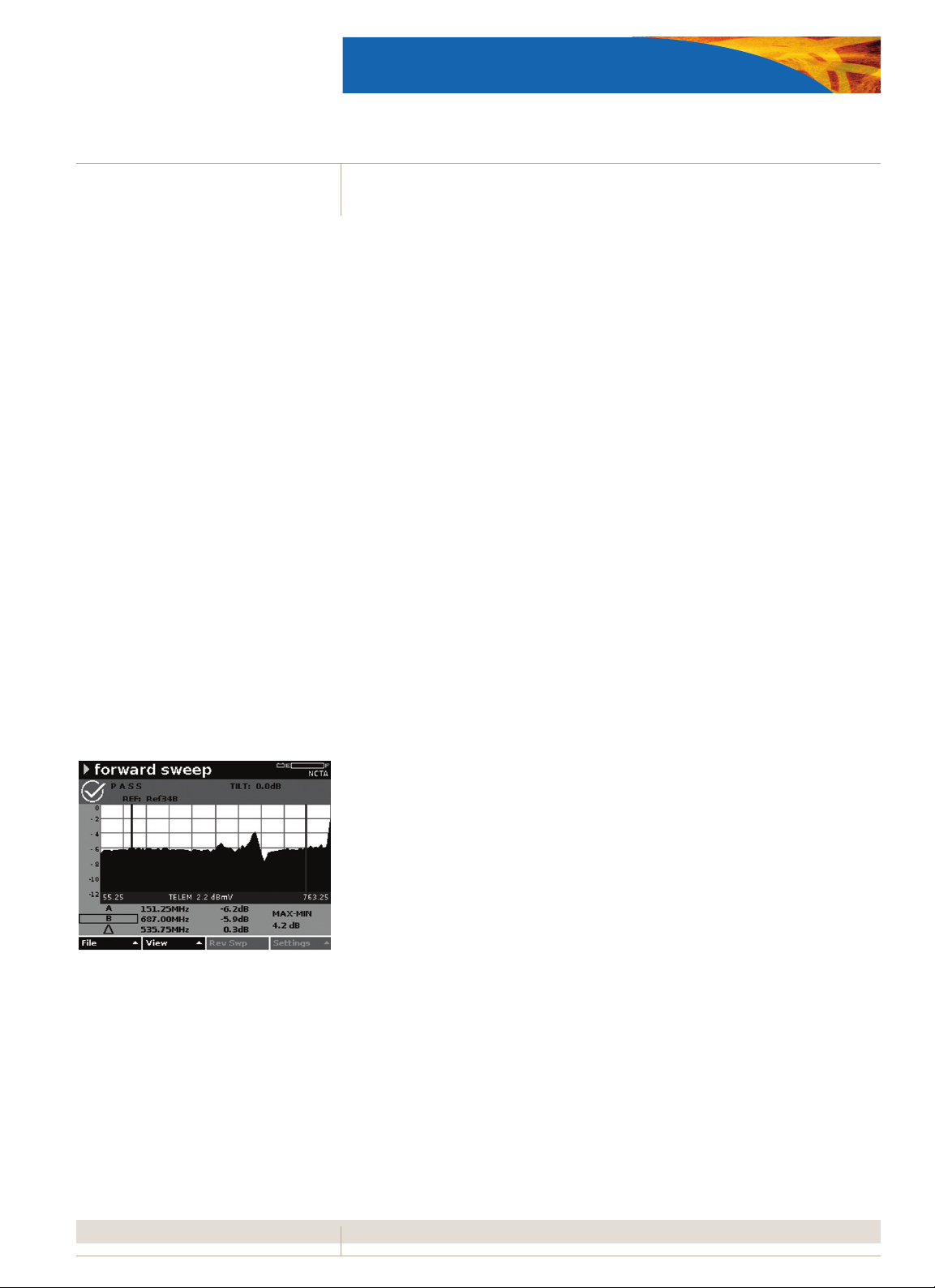

Return and Forward Path Testing and Maintenance
A cable plant is a two-way path of information, enabling communication between
equipment. As a vital link between the CPE and the CMTS, the return path must
be aligned and kept free of ingress and noise. With digital services, limiting noise
and ingress becomes even more important because their effect may not be noticed
until service has significantly degraded.
The DSAM-6000 is designed to test and maintain both the downstream forward
path and upstream return path. Its ability to sweep, along with conducting signal
level and quality measurements; ingress testing; verifying forward path signals;
and testing the level of ingress and noise provide the optimal approach to
maintaining the return path.
4
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
Applications
Page 5
DOCSIS Service Testing
The DSAM has a built in cable modem capable of performing quick and accurate
DOCSIS RF and IP testing. This eliminates the need for a test modem to verify
cable modem connectivity or a computer to test the customer premises equipments connection.
Range and Registration
The DSAM can range and register with the headend CMTS to establish the required configuration parameters and obtain a valid IP address on the network.
The DSAM’s range and registration test verifies that a specific portion of the line
can support high-speed data transmission. Ranging results show how much
margin remains before communications in both the up and down streams become disabled. Registration results validate that the CMTS is distributing correct
configuration files and IP addresses.
DOCSIS IP Test
The DSAM performs IP tests including packet loss, throughput and ping over the
DOCSIS layer. The displayed results indicate which problems need to be tracked
down and fixed and those that should be reported as headend or IP troubles.
5
DSAM-6000 DIGITAL SERVICE ANALYSIS METER

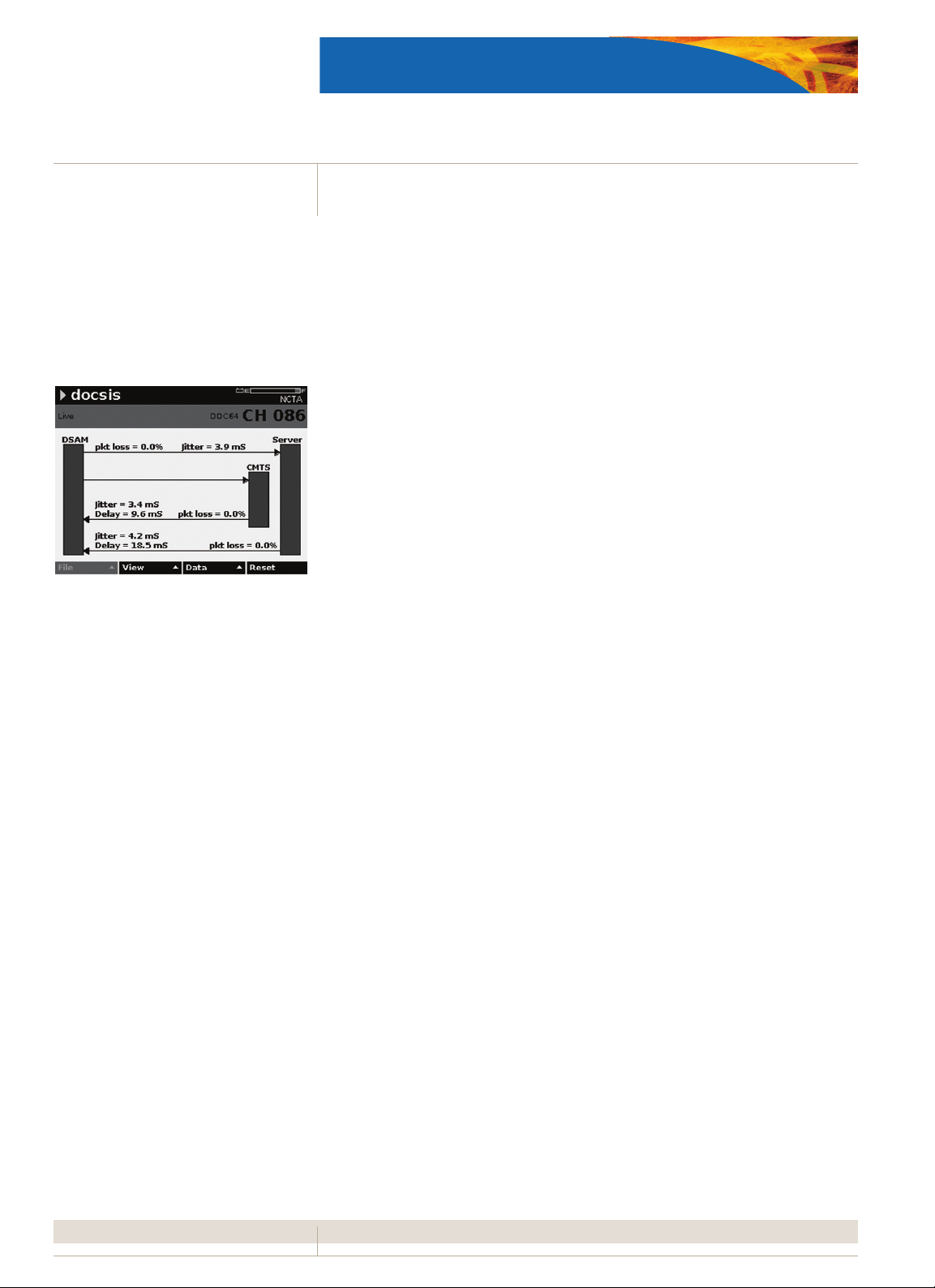

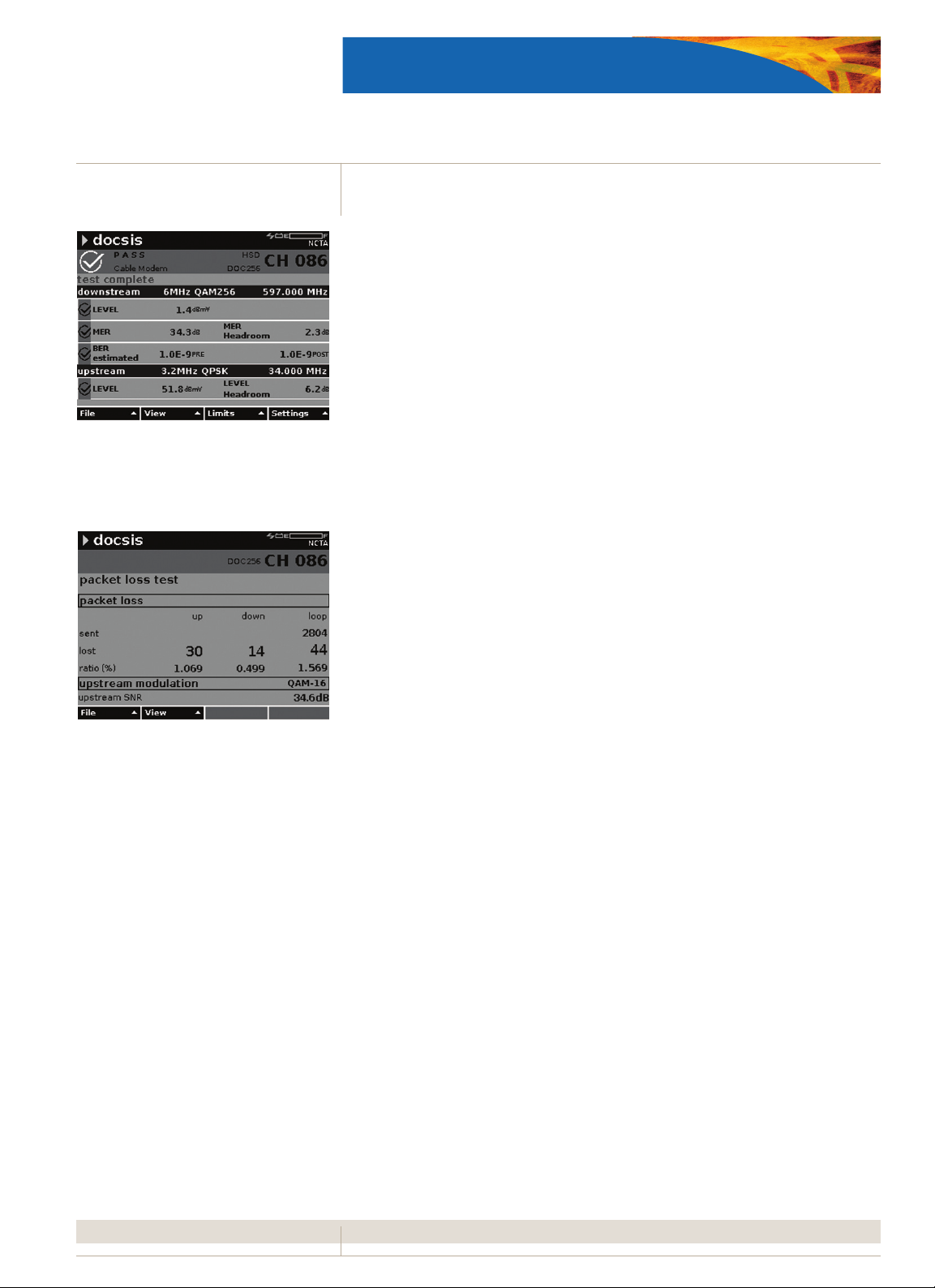

A packet loss test shows how well the HFC transmits
RTP data packets. Using TruPacket SNMP community
strings the DSAM is able to view both the up and
down stream packet losses separately as well as the
SNR the CMTS is receiving.
Using the range screen a technician is able to see
what levels the DSAM’s cable modem is reading and
transmitting.This allows the tech to see how close the
customer’s cable modem would be to failing.
Page 6
Voice Over IP (VoIP) Testing
The DSAM-6000 offers two tiers of VoIP testing options and a range of VoIP
troubleshooting tools. One VoIP test enables services to be validated over a
DOCSIS connection (VoIPCheck™ Option). The other on networks that have
deployed PacketCable VoIP (TruVoice™ VoIP Option). The DSAM with its builtin eMTA, can place calls as if they were from the CPE. Allowing technicians to
fully test the VoIP registration process and verify dial tones from the network.
VoIPCheck Option
With VoIPCheck, the DSAM-6000 can test VoIP services independent of the VoIP
specification being used. VoIPCheck can segment RF issues from IP issues,
helping to eliminate organizational finger pointing. Packet statistics, including
packet loss, jitter, and delay, as well as call-quality results such as R-value and
MOS, are displayed on the screen. With its in-depth results analysis capability, the
DSAM-6000 can determine the source of call-quality problems, expediting the
troubleshooting process.
TruVoice VoIP Option
TruVoice VoIP enables the DSAM-6000 to measure packet statistics (packet loss,
delay, and jitter) and call quality (R-value and MOS) while on an active phone call
either placed or received with the DSAM’s eMTA. Listening to the call, the
technician can hear if there are any noticeable problems and review the
diagnostics displayed on the DSAM’s screen. The technician can call any phone
number on any system and measure call-quality throughout the call’s path to
locate the problem source quickly and easily.
6
Applications
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
VoIPCheck is a voice quality verification test that runs
over the DSAM’s cable modem DOCSIS connection. It
allows for segmentation between HFC and IP issues by
showing on which side of the CMTS data impairments
are present.
Page 7
Sweep
Service quality depends on transmitting signals with the best noise specifications
and the lowest intermodulation distortion. The majority of all transmission errors, including digital, can be detected by measuring the frequency response of the
network. A sweep trace reveals every physical error in the network that influences
the transmitted signals. Also, since sweep results are independent of transmission
methods and formats, it is the most effective and efficient method for technicians
to set up the right gain versus frequency.
Sweepless Sweep® Mode
For fundamental alignment of the forward distribution network, the JDSU
Sweepless Sweep mode provides an economical solution. This mode scans the
entire forward spectrum, displaying all levels across all frequencies (as defined by
meter configuration). The technician adjusts the reception of the node amplifier
with this scan and then normalizes the display by saving a reference. The resultant
display is a flat zero level trace. When the measurement point is moved to the
output of the RF amplifier, any changes do to the amplifier will be displayed as a
deviation (delta) from the reference display. The same reference is used as the
technician moves down the cascade, thus providing an excellent tool to align
succeeding amplifiers to compensate for the effects of each cable segment. To
isolate the effects of headend changes in levels, or to align portions of the
spectrum where there are no active carriers to reference, the forward sweep option
should be considered.
Forward Sweep Option
During a forward sweep, existing video carriers (analog, digital, or scrambled) are
continuously referenced, eliminating any possibility of interference to the subscriber services.
The DSAM-6000 offers fast forward sweep capabilities, especially in systems with
numerous digital channels. By referencing 64 and 256 QAM signal types, the
DSAM-6000 removes any worries about subscriber interference and prevents
sweep carriers from being injected into the guard bands. Referencing active
carriers, instead of transmitting sweep signals over active carriers, allows the
DSAM-6000 to sweep without degrading service quality.
Where there are absent carriers the SDA-5500 headend transceiver inserts a sweep
point to fill vacant spectrum frequencies. To remove effects of headend level drift,
this instrument monitors the levels and transmits new reference information with
every sweep. If the signal levels change in the headend, they won't effect the sweep
response measurement.
7
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
Forward sweep on the DSAM-6000 uses a unique referencing method to accurately reveal any problems in
the system without interfering with any of the analog
or digital carriers.
Page 8
Enhanced Downstream Spectrum
Technicians need to be able to see the how the network is behaving and
troubleshoot whether channels have shifted, have missing carriers, or are
experiencing in-channel frequency response problems. Since most technicians do
not require a fully featured and expensive spectrum analyzer, the DSAM, with its
enhanced downstream spectrum, can help provide a technician with an
“everyday”spectrum analyzer. It allows the user to choose between two resolution
bandwidths (RBW) settings, 330 KHz or 30 KHz and modify the amount of time
spent measuring each frequency step, or dwell time of the analyzer, between 1 and
25 milliseconds. It also allows the user to see 4 MHz to 1 GHz, in 10 or 50 MHz
steps, without switching test modes. Furthermore, if viewing the return path
frequencies, the tech can turn on the internal low pass filter to eliminate noise
caused by the higher frequencies, providing a cleaner upstream view.
Reverse Sweep Option
The return path can be problematic for two-way communications. It should be
tended to as often or more than the forward path and any impairments should
promptly be fixed. One of the best procedures to preserving a clean return path is
with an active reverse sweep maintenance plan. The DSAM-6000 has a built-in
reverse sweep transmitter, removing the need for externally generated carriers.
A reverse sweep can uncover mismatch problems, revealed as standing waves, or
diplex filter roll-offs that can severely hamper the quality of services in the reverse
band.
Headend Sweep Equipment
With the DSAM-6000, one person can perform forward (downstream) and
reverse (upstream) path alignment simultaneously. For reverse testing with more
than one field technician, the rack mounted Model SDA-5510 Headend Reverse
Sweep Manager can perform reverse sweep on the same cluster of nodes for up to
ten different technicians. The SDA-5500 transceiver used in conjunction with the
model SDA-5510 receiver provides a full forward and reverse sweep alignment
solution. The SDA-5510 can also stand alone in remote hub sites for dedicated
reverse alignment applications.
8
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
Tight reverse sweep points are setup in the sweep
plan to view better resolution of the entire return
path. Helping to find mismatches or other problems
heading back to the headend or hubsite.
Page 9
9
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
The Test Productivity Pack (TPP) lets supervisors easily
configure, update, and upgrade DSAM-6000s in the
field. It also enables more knowledgeable techs to
remotely control a DSAM out in the field with TPP’s
Remote DSAM feature.
By synchronizing the DSAM, a technician can receive
updated meter information as well as send back saved
test data for historical record keeping and Home
Certification tests.
TechComplete™ Test Productivity Pack
The TechComplete Test Productivity Pack software contains the essential tools
needed to efficiently process trouble tickets and manage test meter inventory and
staff. Test data, limit plans, and channel plans are consolidated and stored on a
central database, ensuring that the correct data is accessed and right tests are performed. The client server architecture makes it easy for field technicians to access
the data remotely, review it, and use it in the field as reference for troubleshooting.
Even sweep results can be uploaded for later review to track the health of the
network. Roadblocks to ensuring quality of service, such as accessing incorrect
channel plans and limit plans, are eliminated, which significantly decreases the
number of call backs and unnecessary truck rolls. Additionally, meters can be
synchronized any time they are connected to the RF plant or an active Ethernet
connection.
TechComplete also helps managers communicate with their field staff. Test results
can be reviewed and experienced technicians at the hub can coach less-experienced field staff remotely, enabling more effective use of time and resources.
FieldView™ Option
Field View provides the communication between JDSU’s PathTrak return path
monitoring systems and field meters such as the DSAM-6000. A JDSU HSM-1000
sends spectrum measurements from PathTrak to the field meter, where the results
are displayed on the DSAM’s screen. By comparing local spectrum measurements
to those from PathTrak, field technicians can quickly resolve return path ingress
problems (Patent No. 6,425,132).
Upgrade DSAM Instruments to the DSAM-6000
Models of the DSAM-2500 and up can be upgraded to the DSAM-6000
maintenance tech meter. Any DSAM model below the DSAM-2500 must first be
upgraded to the DSAM-2500 or higher before the upgrade to the DSAM-6000 can
occur. All meters to be upgraded to the DSAM-6000 must be sent back to the
factory for hardware upgrades.
Page 10
10
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
DSAM-6000 Summary Features Matrix
Features Included (X) or Option (O)
Applications
Analog Video Levels,Tilt, Mini and Full Scan,C/N
1
X
Digital Video Ave Pwr,MER/EVM, Pre/Post FEC BER X
BER for Deep Interleave (128,4) X
DS Spec/Const. Downstream Full Spectrum X
Constellation X
Sig Gen Return QAM Generator (16 QAM or CW) X
Upstream Physical Verification Upstream 2-way connectivity,level with margins, X
and US Spectrum for ingress
Field View option,view of headend Upstream Spectrum O
Modem Service Verification MER/EVM of Downstream QAM X
over RF Downstream FEC BER, Rng and reg,config file, X
CM and CPE MAC cloning
IP Tests over RF and Ethernet Roundtrip and segmented Packet Loss, US and DS X
throughput, Ping
VoIP Test VoIP Che ck DOCS IS Vo IP Ver ifi cati on O
PacketCable VoIP Testing2, includes VoIPCheck O
Other Web Access Test,RF and Ethernet X
View CM diagnostics page X
Network RF Performance Forward (Downstream) Sweep O
Verification Reverse (Upstream) Sweep O
Two-ports for directional test points X
Functions
Common Test Utilities One Key Autotest X
Test Point Compensation X
Ingress Resistance Test (IRT) X
Fault Location using FDR feature in LST-1700 remote transmitter X
Browser Open Web Browser
3
O
Other Home Ceritification (Closeout) Testing O
Notes:
1
C/N functional on all DSAM models with new hardware as of DSAM-6000 start of production.
2
VoIP available for North American PacketCable based on compatibility and availability for specific systems.
3
Function integrated with JDSU TPP Field Data Management Software, a client/server based PC application software used to
manage DSAM field meters and test data from a central location.
Page 11
11
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
Specifications
Product Specifications
Frequency
Term 4 to 1000 MHz
Accuracy ±10 ppm at 77°F (25°C)
Tuning resolution Analog 10 KHz, Digital 50 KHz
Channel bandwidth Models ending in A, 8 MHz
Models ending in B, 6 MHz
Level Measurement, Analog
Signal types CW,video and audio (NTSC, PAL, and SECAM)
Range
1
–40 to +60 dBmV
Resolution 0.1 dB
Resolution bandwidth 280 KHz
Accuracy
2
±1.5 dB typical @ 25°C
Carrier-to-Noise Input @ ≥6 dBmV
30 to 45 dB ±2 dB
45 to 48 dB ±3 dB
Level Measurement, Digital
Modulation types QPR,QPSK, QAM (DVB/ACTS)
Range
1
–40 to +60 dBmV
Resolution 0.1 dB
Accuracy
2
±2.0 dB typical @ 25°C
Two-Way Ranging Test
DOCSIS based DOCSIS 1.0 and 1.1
Upstream transmit range and diplexer crossover
(DOCSIS modes only)
Models ending in A, 5 to 65 MHz 65/96MHz
(min. downstream DOCSIS center freq. 100 MHz)
Models ending in B, 5 to 42 MHz 42/88 MHz
(min. downstream DOCSIS center freq. 91 MHz)
Upstream modulation QPSK and 16 QAM as
instructed by CMTS
Transmitter output At 25ºC,maximum 55 dBmV
with 16 QAM and 58 dBmV
with QPSK, (typical)
Downstream QAM Demodulation
Modulation type 64 and 256 QAM,ITU-T J.83
Annex A, B or C (selectable)
Input range (lock range)
3
–15 to +50 dBmV
from 55 to 1000 MHz
BER
4
Pre- and Post-FEC 10-4to 10
-9
MER
5
Range 64 QAM: 21 to 35 dB
Accuracy ±2 dB (typical)
Range 256 QAM: 28 to 35 dB
Accuracy ±2 dB (typical)
EVM
5
Range 64 QAM: 1.2% to 5.8%
Accuracy ±0.5% (1.2% to 2.0%)
±1.0% (2.1% to 4.0%)
±1.4% (4.1% to 5.8%)
Range 256 QAM: 1.1% to 2.4%
Accuracy ±0.6%
Symbol rate Annex A,
5.057 to 6.952 Msps (64 and 256 QAM)
Annex B,
5.057 Msps (64 QAM) and 5.361 Msps (256 QAM)
Annex C,
5.274 Msps (64 QAM) and 5.361 Msps (256 QAM)
Test Point Compensation (User editable)
Forward path TPC Max 100 dB Total
Forward external loss (dB): 0 to 50
Forward probe loss (dB):0 to 50
Reverse path TPC
6
Max 55 dB Total
Reverse internal loss (dB):0 to 55
Reverse external loss (dB) :0 to 55
Reverse probe loss (dB):0 to 55
Reverse telemetry level (dBmV) 0 to 55
Reverse sweep insertion level (dBmV) 0 to 55
Interfaces
RF 75 ohm, F81 or BNC option
Max. sustained voltage 100 VAC,140 VDC
RS232 Standard via DB9 on charger module
or optional direct cable
Printer compatibility Epson and Citizen
Ethernet RJ45, 10 base T,TCP/IP and UDP supported
USB v1.1 host mode, 150 mA
maximum slave (future firmware release)
Standards Compliance
Shock and vibration IEC 60068
Drop EC 61010
Handle stress IEC 61010
Water resistance MIL-STD-810E
Safety – emissions EN 55022
Safety – immunity EN 61000
General
Display 320 x 240,grayscale, Selectable back light
Language support (user interface and help system)
English in all models
No-charge second language
option of Spanish, French, German,
Japanese, Polish or Chinese
Dimensions Model 1500, 2500 and 3500:
4.75 x 9.75 x 2.75 in (12 x 25 x 7 cm)
Model 2600, 3600,and 6000:
4.75 x 9.75 x 3.25 in (12 x 25 x 8.25 cm)
Weight Model 1500, 2500 and 3500:2 lb 12 oz (1.3 kg)
Model 2600 and 3600: 3 lb 4 oz (1.5 kg)
Storage and operating temperature range
0 to 120°F;–20 to +50°C
Power Super capacity Li-ion removable pack,
standard on DSAM-6000
Super capacity Li-ion, 7 hours (typical)
Charge time Super capacity Li-ion, 12 hours (typical)
Power supply input 90-264 VAC, 47-63 Hz
Upstream Spectrum (Ingress Scan)
Frequency range Models ending in A, 4 to 65 MHz
Models ending in B, 4 to 45 MHz
Sweep rate Less than 2 seconds; Display scaling and range
5 and 10 dB/division; 6 vertical divisions
Resolution bandwidth 280 kHz
Range
1
–40 to 60 dBmV (typical)
Downstream Spectrum (Forward Scan)
Frequency range 40 to 1000 MHz
Sweep rate Less than 2.5 seconds; Display scaling and range
5 and 10 dB/division; 6 vertical divisions
Resolution bandwidth 280 kHz
Dwell 1 ms
Span 50MHz or 10MHz zoom
Range
1
–35 to 60 dBmV (typical)
Constellation
Modulation type 64 and 256 QAM
Zoom capability Yes
Return QAM Generator
Frequency range Models ending in B: 5 to 55 MHz
Models ending in A: 5 to 65 MHz
Signal level range 8 to 58 dBmV
Signal modulation CW or 16 QAM
Symbol rates (Msps) 1.28, 2.56,3.84, 5.12
Cable Modem Diagnostic Page
IP address
7
192.168.100.1
Page 12
NORTH AMERICA
TEL
: 1 866 228 3762
FAX : +1 301 353 9216
Test & Measurement Regional Sales
LATIN AMERICA
TEL
: +55 11 5503 3800
FAX : +55 11 5505 1598
ASIA PACIFIC
TEL
: +852 2892 0990
FAX : +852 2892 0770
EMEA
TEL
: +49 7121 86 2222
FAX : +49 7121 86 1222
WEBSITE: www.jdsu.com
DSAM-6000 DIGITAL SERVICE ANALYSIS METER
All statements, technical information and recommendations related to the products herein are based upon information believed to be
reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any
inaccuracies. The user assumes all risks and liability whatsoever in connection with the use of a product or its application. JDSU reserves
the right to change at any time without notice the design, specifications, function, fit or form of its products described herein, including withdrawal at any time of a product offered for sale herein. JDSU makes no representations that the products
herein are free from any intellectual property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are
trademarks of JDS Uniphase Corporation. Other trademarks are the property of their respective holders. ©2006 JDS Uniphase
Corporation. All rights reserved. 30137427 000 0606 DSAM6000.DS.CAB.TM.AE
Specifications
Sweep Specifications
Forward Sweep
Requires SDA-5500 (SDA Compatible mode)
Reverse Sweep
Requires SDA-5500 (Single Reverse) or
SDA-5510 (Multiple Reverse) (SDA Compatible mode)
Sweep Modes
Frequency range 5 to 1000 MHz
Display span user definable
Display scale/range 6 vertical divisions
1, 2,5, or 10 dB/division
Sweep pulse occupied bandwidth 30 kHz
Stability ±0.5 dB,normalized
(dependent on stability of referenced carriers)
Sweep rate ~1 second (78 channels, including
scrambled and digital signal types)
Channel plan templates (user editable on SDA Headend gear)
China-1; China-2;France; HDTP-NL; Ireland;
Japan; Jerold;Jerold-HRC; Jerold-IRC; NCTA;
NCTA-HRC;NCTA-SUB; NCTA-IRC;
NTSC-broadcast; OIRT-D/K;PL-B/G; PAL-UK
Notes:
1
Total integrated power,detectable range
2
Accuracy for levels between –20 to 55 dBmV
Additional uncertainty ±0.5 dB across –20°C to 50°C
Additional uncertainty ±1.0 dB from 4 MHz to 15 MHz
3
Total integrated power,At 64 QAM
4
DSAM1500, 2500 and 3500 can support up to (I,J) = (128,1)
interleave for ITU-T J.83 Annex B;DSAM2600 and 3600 can suppor t
up to (I,J) = (128, 4) interleave for ITU-T J.83 Annex B
5
Accuracy and behavior from 100 MHz to 1000 MHz for levels between
–5 to 50 dBmV (typical)
6
The sum of the internal,external, and probe losses and the telemetry
level must be greater than or equal to 10.0 and less than or equal to
55.0
7
IP address is specified in the DOCSIS 1.1 and 2.0 operations support
system interface (OSSI) specifications
Loading...
