Viatom BP2, BP2A User Manual
1

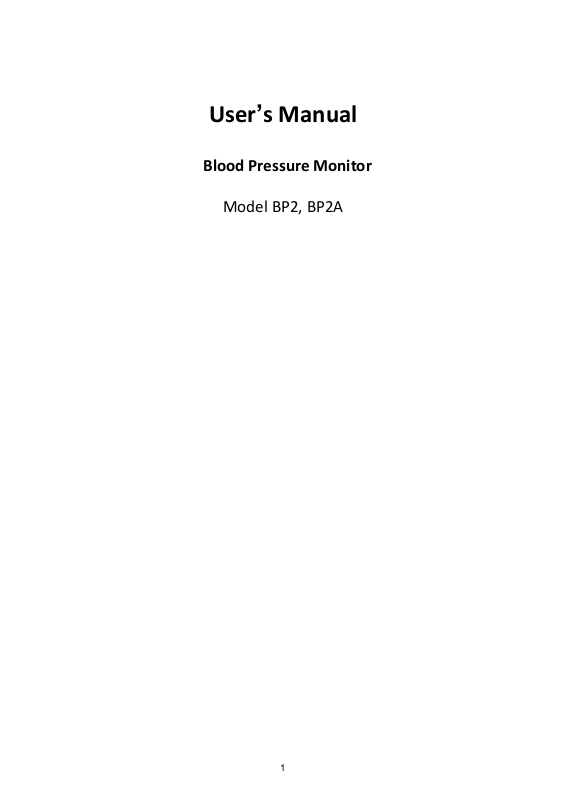

User’s Manual
Blood Pressure Monitor
Model BP2, BP2A
2
1. The Basics
This manual contains the instructions necessary to operate the product safely and in accordance with
1.1 Safety
Before using the product, please ensure that you have read this manual thoroughly and fully
This product has been designed for practical use, but is not a substitute for a visit to the doctor.
This product is not designed or intended for complete diagnosis of cardiac conditions. This
The data and results displayed on the product are for reference only and cannot be directly used
Do not attempt self-diagnosis or self-treatment based on the recording results and analysis.
Users should always consult their physician if they notice changes in their health.
We recommend not to use this product if you have a pacemaker or other implanted products.
Do not use this product with a defibrillator.
Never submerge the product in water or other liquids. Do not clean the product with acetone or
Do not drop this product or subject it to strong impact.
Do not place this product in pressure vessels or gas sterilization product.
Do not disassemble and modify the product, as this could cause damage, malfunction or impede
Do not interconnect the product with other product not described in the Instruction for Use, as
This product is not intended for use by people (including children) with restricted physical,
Do not allow the electrodes of the product to come into contact with other conductive parts
Do not use the product with persons with sensitive skin or allergies.
DO NOT use this product on infants, toddlers, children or persons who cannot express
its function and intended use. Observance of this manual is a prerequisite for proper product
performance and correct operation and ensures patient and operator safety.
Warnings and Cautionary Advices
understand corresponding precautions and risks.
product should never be used as a basis for starting or modifying treatment without independent
confirmation by medical examination.
for diagnostic interpretation or treatment.
Self-diagnosis or self-treatment may lead to deterioration of your health.
Follow the advice given by your doctor, if applicable.
other volatile solutions.
the operation of the product.
this could cause damage or malfunction.
sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are
supervised by a person who has responsibility for their safety or they receive instructions from
this person on how to use the product. Children should be supervised around the product to
ensure they do not play with it.
(including earth).
3
themselves.
Do not store the product in the following locations: locations in which the product is exposed to
This product displays changes in the heart rhythm and blood pressure etc. which may have
Vital signs measurements, such as those taken with this product, cannot identify all diseases.
Do not self-diagnose or self-medicate on the basis of this product without consulting your doctor.
This product is not a substitute for a medical examination or your heart or other organ function,
We recommend that you record the ECG curves and other measurements and provide them to
Clean the product and cuff with a dry, soft cloth or a cloth dampened with water and a neutral
Avoid tightly folding the cuff or storing the hose tightly twisted for long periods, as such
The product and cuff are not water-resistant. Prevent rain, sweat and water from soiling the
To measure blood pressure, the arm must be squeezed by the cuff hard enough to temporarily
Too frequent measurements can cause injury to the patient due to blood flow interference.
Consult your physician before using this product on an arm with an arterio-venous (A-V) shunt.
Consult your physician before using this monitor if you have had a mastectomy or lymph node
The pressurization of the CUFF can temporarily cause loss of function of simultaneously used
Consult your physician before using the product if you have severe blood flow problems or blood
Please prevent that operation of the product results in prolonged impairment of the circulation
direct sunlight, high temperatures or levels of moisture, or heavy contamination; locations near
to sources of water or fire; or locations that are subject to strong electromagnetic influences.
various different causes. These may be harmless, but may also be triggered by illnesses or
diseases of differing degree of severity. Please consult a medical specialist if you believe you may
have an illness or disease.
Regardless of the measurement taken using this product, you should consult your doctor
immediately if you experience symptoms that could indicate acute disease.
In particular, do not start taking any new medication or change the type and/or dosage of any
existing medication without prior approval.
or for medical electrocardiogram recordings, which require more complex measurements.
your doctor if required.
detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the product or
cuff.
treatment may shorten the life of the components.
product and cuff.
stop blood flow through the artery. This may cause pain, numbness or a temporary red mark to
the arm. This condition will appear especially when measurement is repeated successively. Any
pain, numbness, or red marks will disappear with time.
clearance.
monitoring product on the same limb.
disorders as cuff inflation can cause bruising.
4
of the blood of the patient.
Do not apply the cuff on an arm with another medical electrical equipment attached. The
People who have a severe circulatory deficit in the arm must consult a doctor before using the
Do not self-diagnose the measurement results and start treatment by yourself. Always consult
Do not apply the cuff on an arm with an unhealed wound, as this can cause further injury.
Do not apply the cuff on an arm receiving an intravenous drip or blood transfusion. It may cause
Remove tight-fitting or thick clothing from your arm while taking a measurement.
If the patients’ arm is outside the specified circumference range that may result in incorrect
The product is not intended for use with neonatal, pregnant, including pre-eclamptic, patients.
Do not use the product where flammable gases such as anesthetic gases are present. It may
Do not use the product in the area of HF surgical equipment, MRI, or CT scanner, or in an oxygen
The battery intended to be changed only by service personnel with the use of a tool, and
The patient is an intended operator.
Do not carry out the servicing and maintenance while the product is in use.
The patient can safely use all the functions of the product, and the patient can maintain the
This product emits radio frequencies (RF) in the 2.4 GHz band. DO NOT use this product in
DO NOT use this product with other medical electrical (ME) equipment simultaneously. This may
Sources of electromagnetic disturbance may affect this product (e.g. mobile telephones,
The use of accessories and cables other than those specified or provided by manufacture could
Interpretations made by this product are potential findings, not a complete diagnosis of cardiac
equipment may not function properly.
product, to avoid medical problems.
your doctor for evaluation of the results and treatment.
injury or accidents.
measurement results.
cause an explosion.
rich environment.
replacement by inadequately trained personnel may result in damage or burn.
product by carefully reading Chapter 7.
locations where RF is restricted, such as on an aircraft. Turn off the Bluetooth feature in this
product and remove batteries when in RF restricted areas. For further information on potential
restrictions refer to documentation on the Bluetooth usage by the FCC.
result in incorrect operation of the product and/ or cause an inaccurate blood pressure readings
and/ or EKG recordings.
microwave cookers, diathermy, lithotripsy, electrocautery, RFID, electromagnetic anti-theft
systems, and metal detectors), please try to stay away from them when making measurements.
result in increased electromagnetic emission or decreased electromagnetic immunity of the
product and result in improper operation.
5
conditions. All interpretations should be reviewed by a medical professional for clinical
DO NOT use this product in the presence of flammable anesthetics or drugs.
DO NOT use this product while charging.
Remain still while recording an ECG.
The detectors of ECG have been developed and tested on Lead I and II recordings only.
2. Introduction
2.1 Intended Use
2.2 Contraindications
2.3 About the product
1. LED screen
Display date, time and power status, etc.
Display ECG and blood pressure measurement process and results.
2. Start/ Stop button
1
2
3
4
5
6
5
decision-making.
The device is indented to measure blood pressure or electrocardiogram (ECG) in home or healthcare
facilities environment.
The device is a blood pressure monitor intended for use in measuring blood pressure and pulse rate in
adult population.
The product is intended to measure, display, store and review adults’ single-channel ECG rhythms and
gives some suggested symptoms such as regular beat, irregular beat, low HR and high HR.
This product is contraindicated for use in ambulatory environments.
This product is contraindicated for use on aircraft.
product name: Blood Pressure Monitor
Product model: BP2 (include NIBP+ECG), BP2A (only NIBP)
6
Power On/ Off
Power On:Press the button to power on.
Power off:Press and hold the button to power off.
Press to power on the product and
press again
to start measuring blood pressure.
Press to power on the product and touch the electrodes to start measuring ECG.
3. Memory button
Press to review historical data.
4. LED indicator
Blue light is on: the battery is being charged.
Blue light is off: the battery is full charged not charging
5. ECG electrode
Touch them to start measuring ECG with different methods.
6. USB connector
It connects with charging cable.
2.4 Symbols
Symbol
Meaning
SYS
Systolic blood pressure
DIA
Diastolic blood pressure
Pulse beat
HR
Heart rate
Battery indicator
Charging
Application part type BF
Manufacturer
IP22
Against ingress of solid foreign objects ≥12.5mm diameter,
Against dripping(15°tilted)
Follow operating instructions
MRI unsafe. Presents hazards in all MR environments as
product contains strongly ferromagnetic materials.
Non-ionizing radiation
Symbol for“ENVIRONMENT PROTECTION–Waste electrical
products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local
authority or retailer for recycling advice”.
3. Using the Product
3.1 Charge the Battery
Use the USB cable to charge the product. Connect the USB cable to a USB charger or to the PC. A fully
