VIA Technologies VT310-DP Series Operating Manual

Download
Page 1
Operating Guide
VT310-DP Series Mini-ITX Mainboard
October 7, 2005 Version 1.01
Page 2
VT310-DP Series Operating Guide
Table of Contents
Table of Contents..........................................................................................................................................................i
VIA VT310-DP Series Overview ................................................................................................................................1
VIA VT310-DP Series Layout ....................................................................................................................................2
VIA VT310-DP Series Specifications.........................................................................................................................3
VIA VT310-DP Processor SKUs ................................................................................................................................4
VIA CN400 Chipset Overview....................................................................................................................................5
VIA VT310-DP Series I/O Back Panel Layout..........................................................................................................6
VIA VT310-DP Series Heat Sink & Fan Layout.......................................................................................................7
VIA VT310-DP Series Heat Sink Layout & Mounting Holes ..................................................................................8
Noise Level Data ..........................................................................................................................................................9
Power Consumption ..................................................................................................................................................10
Power Specifications..................................................................................................................................................11
VIA VT310-DP Series Microsoft and Linux Driver Support ................................................................................12
Contact........................................................................................................................................................................13
October 7, 2005 - i - Version 1.01
Page 3
VT310-DP Series Operating Guide

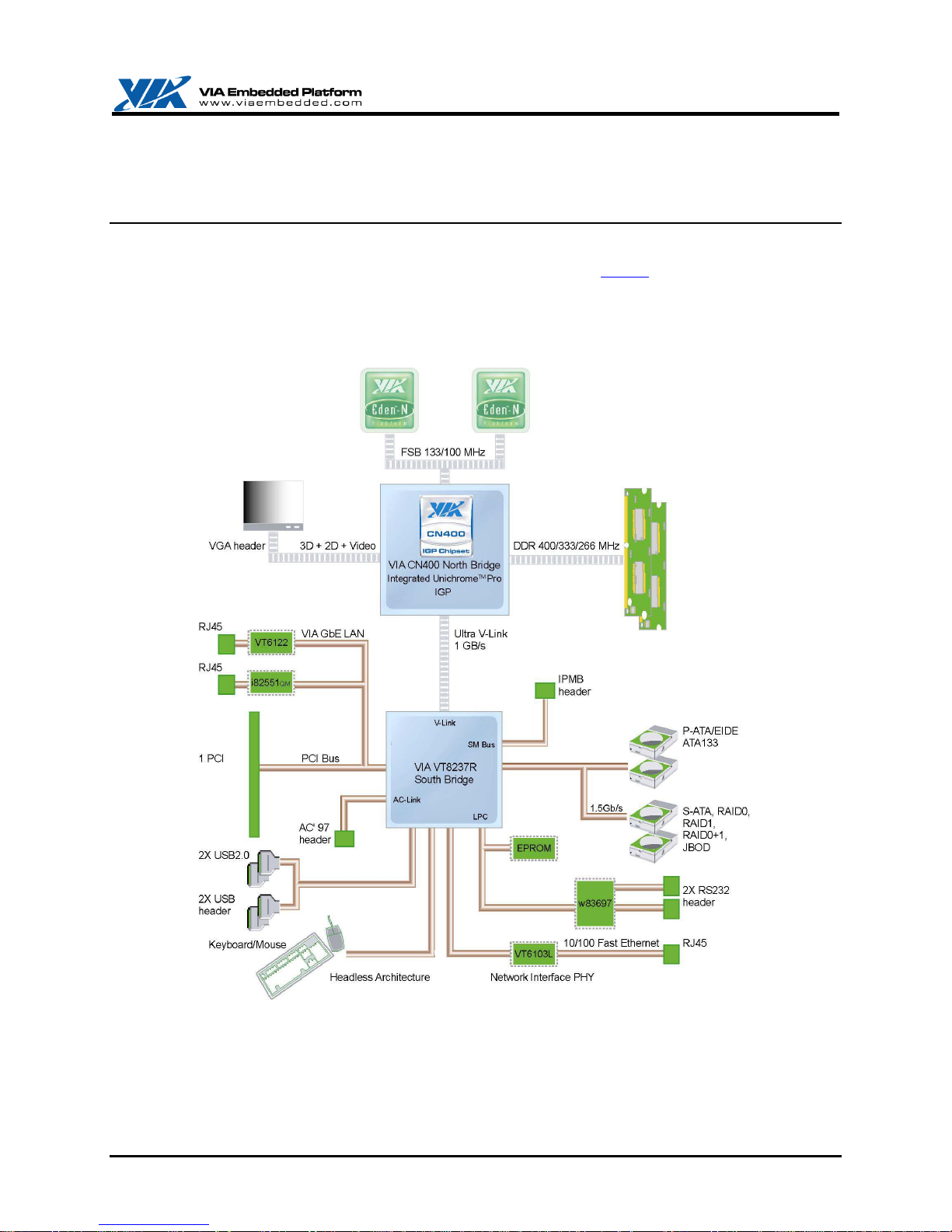

VIA VT310-DP Series Overview
The VIA VT310-DP mainboard is a dual processor Mini-ITX system board featuring the world’s smallest dual 1GHz VIA Eden™-N NanoBGA processors with the integrated VIA PadLock Hardware Security Suite and VIA PowerSaver 3.0 technology, as well as an impressive array of I/O features and high speed storage and connectivity options. The mainboard is based on the VIA CN400 chipset featuring an integrated 128-bit 2D/3D UniChrome Pro IGP graphics engine and hardware MPEG-2 decoding and MPEG-4 acceleration, up to 200MHz CPU front side bus, up to 1.5GB of DDR266/333/400 SDRAM memory controller with two DIMM slots, 1066MB/s Ultra V-Link to interface to the VT8237R South Bridge and further enhanced with VIA Vinyl™ Six-TRAC 6-channel AC’97 Audio.
The latest high-bandwidth storage and connectivity is supported with a one Gigabit Ethernet port, dual 10/100Mbps Ethernet ports, one PCI slot for expandability options, ATA-133, two Serial ATA with RAID & JBOD support, up to four USB 2.0 ports and Keyboard/Mouse and two COM ports. System management features include WMX protocol support, ACPI 2.0, console redirection, remote power cycling, and an array of hardware monitoring capabilities.
The VIA VT310-DP is fully compatible with Microsoft® and Linux operating systems and is available in a variety of configurations, including the fanless VIA Eden™-N NanoBGA processor for silent system designs.
October 7, 2005 - 1 - Version 1.01
Page 4
VT310-DP Series Operating Guide
VIA VT310-DP Series Layout
October 7, 2005 - 2 - Version 1.01
Page 5
VT310-DP Series Operating Guide
VIA VT310-DP Series Specifications
Processors
Chipset
System Memory
VGA
Expansion Slots Onboard IDE Onboard S-ATA Onboard LAN
Onboard Audio Onboard I/O Connectors
Back Panel I/O
BIOS
System Monitoring & Management
Form Factor
- 2 VIA EDEN-N NanoBGA processors
- VIA Padlock Security Suite
- PowerSaver 3.0: Extends battery life by dynamically reducing power consumption
- VIA CN400 North Bridge
- VT8237R South Bridge
- 2 DDR400/333/266 DIMM sockets
- Up to 1.5GB memory size, non-buffered, unregistered, non-ECC
- Integrated S3 Graphics UniChrome™ Pro IGP Graphics with MPEG-2 decoding and MPEG-4 acceleration
- 1 PCI, with riser card to support 2 PCI cards
- 1 UltraDMA 133/100/66 EIDE connector
- 2 Serial ATA ports
- VIA VT6103L 10/100 Base-T Ethernet PHY
- i82551QM 10/100 Base-T Ethernet Controller
- VIA VT6122 10/100/1000 Base-T Ethernet Controller (GbE LAN)
- VIA Vinyl six-TRAC 6-channel AC’97 Audio
- 1 USB front header for additional 2 USB 2.0 ports
- 1 VGA header for a second VGA port
- 1 CD Audio-In connector
- 1 front panel header for Case connector
- 1 Audio header for AC’97
- 1 SM Bus connector
- 1 PS2 header (headless architecture for KB/MS)
- 1 Buzzer header
- 1 4-pin CPU Fan and 2 3-pin chassis Fan
- 1 10-pin connector for RS232
- 1 ATX Power connector
- 1 VGA port
- 1 COM port
- 2 USB 2.0 ports
- 3 RJ-45 LAN ports
- Award BIOS
- 4Mbit flash memory
- CPU voltage monitoring
- Wake-on-LAN, Keyboard-Power-on, Timer-Power-on
- System power management
- AC power failure recovery
- Mini-ITX (8 Layers)
- 17 cm x 17 cm
* The specification is subject to change without prior notice.
October 7, 2005 - 3 - Version 1.01
Page 6
VT310-DP Series Operating Guide
VIA VT310-DP Processor SKUs
The VIA VT310-DP Series is available in 533MHz, 800MHz and 1.0GHz speed grades. The VIA VT310­DP utilizes two VIA’s ultra low power VIA Eden™-N ESP processor and world’s fastest AES encryption using the Advance Cryptography Engine (ACE).
VIA Eden™-N ESP N10K processor
1.0 GHz Fanless Operation
1.05v Operating Volts 128KB L1 Cache 64KB L2 Cache MMX and 3D Now
Suitable for fanless systems with hardware-based security and ultra low-power requirements
PadLock ACE US government approved Advanced Encryption Standard (AES), performing cryptographic functions for securing e-mails, personal files, online transactions, and networks.
PowerSaver 3.0 technology extends battery life by dynamically altering the voltage and clock frequency to reduce power consumption when the processor is not required to run at full speed.
October 7, 2005 - 4 - Version 1.01
Page 7
VT310-DP Series Operating Guide
VIA CN400 Chipset Overview
The VIA CN400 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The CN400 UniChrome™ Pro 2D/3D MPEG-2 decoder and MPEG-4 accelerator, DDR400 support, motion compensation and duo-view support to ensure a full featured, power efficient PC designs. Outstanding connectivity features include S-ATA with RAID functionalities, USB 2.0, 10/100 LAN and ATA/133.
features the integrated VIA
October 7, 2005 - 5 - Version 1.01
Page 8
VT310-DP Series Operating Guide
VIA VT310-DP Series I/O Back Panel Layout

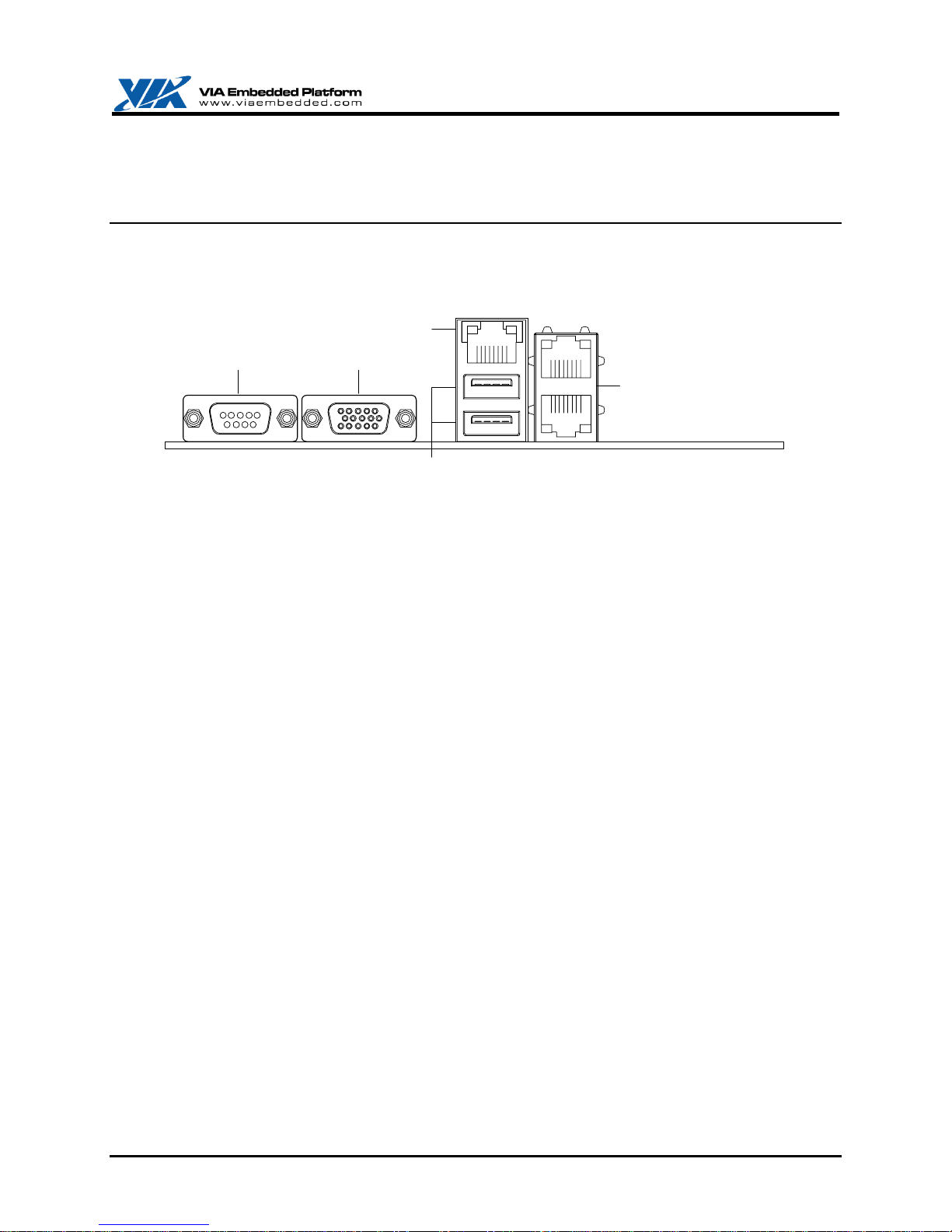

The VT310-DP’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as VGA port, RJ45 LAN ports, USB 2.0 ports and COM port.
RJ45 Port
VGA1COM1
RJ45 Ports Giga LAN
USB Ports
October 7, 2005 - 6 - Version 1.01
Page 9
VT310-DP Series Operating Guide

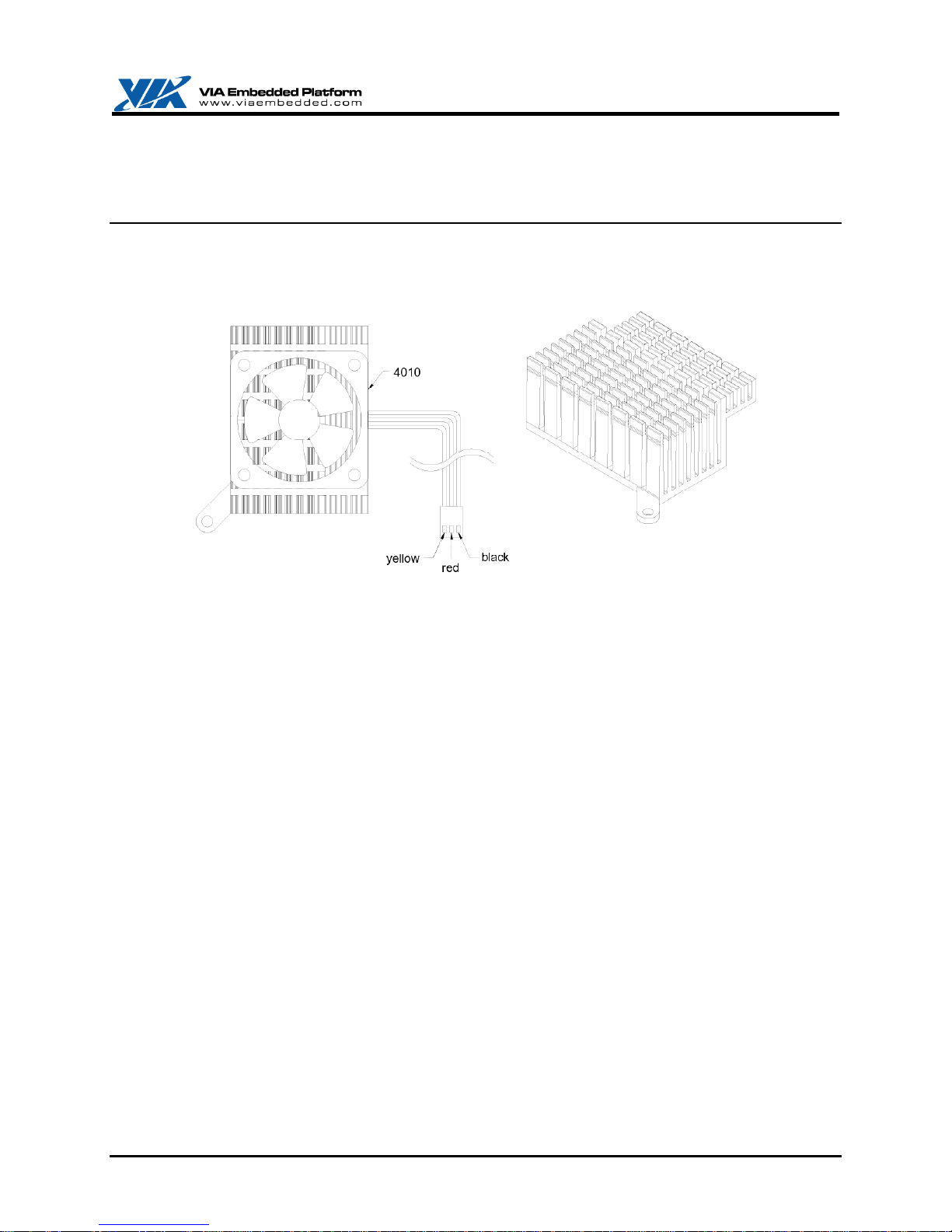

VIA VT310-DP Series Heat Sink & Fan Layout
October 7, 2005 - 7 - Version 1.01
Page 10
VT310-DP Series Operating Guide

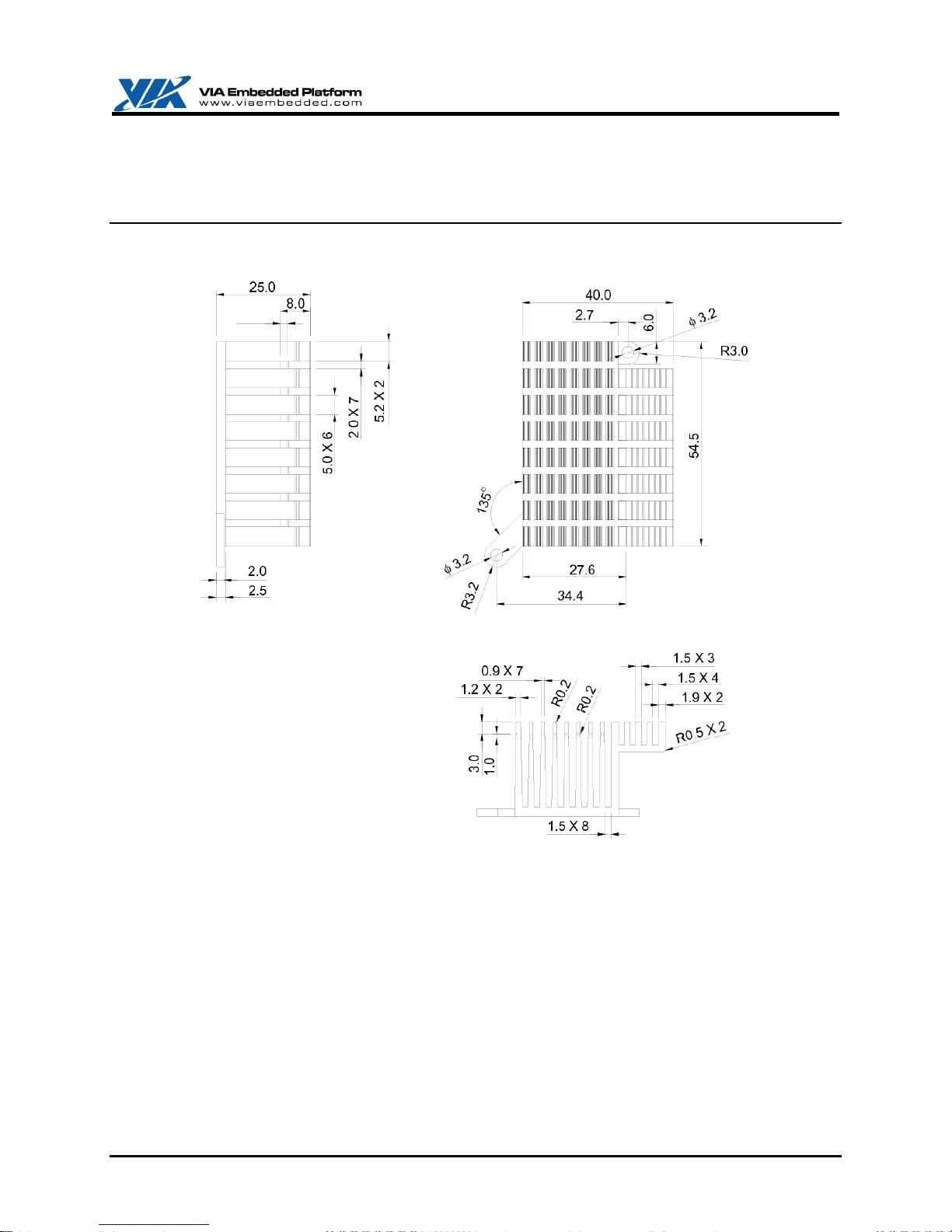

VIA VT310-DP Series Heat Sink Layout & Mounting Holes
October 7, 2005 - 8 - Version 1.01
Page 11
VT310-DP Series Operating Guide
Noise Level Data
VIA have been at the forefront of the quiet computing initiative. The VIA VT310-DP Series has been designed to be totally non-obtrusive with noise levels equivalent to a person whispering. With noise levels measuring at the totally silent 0dBA, a new wave of system design innovation and exciting opportunities are being created in an almost limitless number of emerging new market segments ­ranging from fanless thin clients, flat panel small form factor desktop replacement systems, LCD PCs, high density servers and a host of other space and power saving systems.
Common Sounds dBA Level
Threshold of hearing 0 dBA VIA VT310-DP 0 dBA Normal breathing 10 dBA Whispering at 1 meter 20 dBA Conventional PC 35 – 50 dBA Rainfall 50 dBA Normal speech 60 dBA
The dBA scale is logarithmic, i.e. 10 dBA represents a doubling in volume. dBA values are measured at a distance of one meter.
October 7, 2005 - 9 - Version 1.01
Page 12
VT310-DP Series Operating Guide
Power Consumption
Power consumption tests were carried out for the VIA VT310-DP (running with the 1.0GHz VIA Eden™-N ESP processor). The following tables are a comprehensive breakdown of the VT310-DP platform’s voltage, wattage and temperature values while running common system applications.
VIA VT310-DP
SPEEDY
Temp Tc_CPU1 Tc_CPU2 Tc_NB Tc_SB Tc_Ram Ta
℃
Powe r 3.3V 5V 5V* 12V CPU1 CPU2
Watt (W) 3.32 13.07 0.41 10.93 3.79 4.27
*Total PW R 27.7W
Total PWR is the sum of 3.3V, 5V, 5V standby and 12V
58.2 58.3 57.8 64.8 62.5 47.6
October 7, 2005 - 10 - Version 1.01
Page 13
VT310-DP Series Operating Guide
Power Specifications

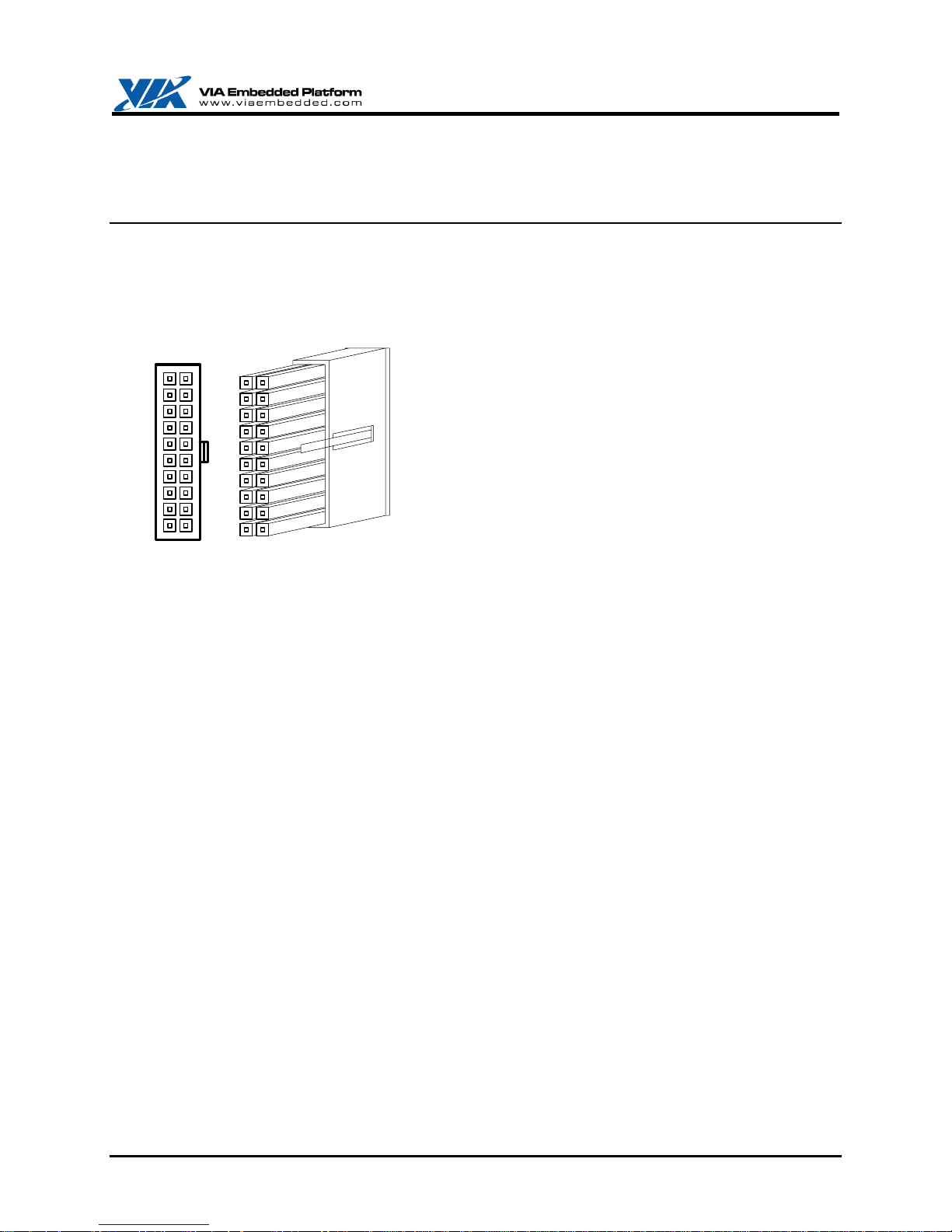

The VT310-DP utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the VT310-DP platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications.
1 2
1
2
3
4
5
6
7
8
9
11
12
13
14
3 4 5 6
17
18
19
2010
7 8 9 10
+3V +3V Gnd +5V Gnd +5V Gnd PWR_GD 5V_SB +12V
Note: NC = no connection
11 12 13 14 15 16 17 18 19 20
+3V
-12V Gnd PWR_ON­Gnd Gnd Gnd NC +5V +5V
October 7, 2005 - 11 - Version 1.01
Page 14
VT310-DP Series Operating Guide
VIA VT310-DP Series Microsoft and Linux Driver Support
Microsoft Driver Support
VIA VT310-DP series offers full support for the complete range of Microsoft operating systems.
For standard operating systems, Windows 98/Me/2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com
For embedded operating systems, Windows CE.NET and XP Embedded related driver supports can be found in the VIA Arena website at www.viaarena.com
Linux Driver Support
VIA VT310-DP mainboards have a very high degree of support under Linux.
Support and drivers are provided through various methods including:
• Drivers provided by VIA – Using a driver built into a distribution package – Visiting VIA Arena website at www.viaarena.com
• Installing a third party driver (such as the ALSA driver from the Advanced Linux Sound
Architecture project for integrated audio)
For OEM clients and system integrators developing a product for long term production, other code and resources may also be made available. You can submit a request either through the Developers portal on VIA Arena, or through your VEPD support contact. Alternatively, VIA can work further towards providing additional drivers to suite your specific needs.
.
.
for latest updates on a monthly basis
October 7, 2005 - 12 - Version 1.01
Page 15
VT310-DP Series Operating Guide
Contact
For more information on the VIA VT310-DP Series Mini ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com
USA
440 Mission Court, Suite 220 Fremont, CA 94539 Tel: (510) 683 3300 Fax: (510) 687 4654 Email: vpsd_sales@viatech.com
Germany
Mottmann Strasse 12 53842 Troisdorf-Oberlar Tel: 2241 397780 Fax: 2241 3977819 Email: sales@via-tech.de
Taiwan
1F, 531, Chung Cheng Road Hsin Tien, Taipei Tel: (02) 2218 5452 Fax: (02) 2218 5453 Email: mkt@via.com.tw
China
6F, DAscom Tower 9 Shangdi East Road Haidian District Beijing, 100085 Tel: 10 6296 3088 Fax: 10 6297 2929 Email: vpsdbj@viatech.com.cn
October 7, 2005 - 13 - Version 1.01
