VIA Technologies VIA P4MA - L, VIA P4MA - VSL User Manual

VIA Mainboard

User’s Manual

VIA P4MA - L

VIA P4MA - VSL

P4MA-L does NOT include Voice Post/Smart Card/
Memory Stick/Secure Digital functions as described
in this User’s Manual. This applies to all related pin
headers, BIOS settings, and software applications.
Voice Post and Smart media functions are only
supported by P4MA-VSL.

Version 1.0 - March 29th, 2002

P/N 99-51-010211

i

Copyright

Copyright by VIA Technologies Inc. (“VIA”). No part of this manual may be

reproduced or transmitted in any form without express written authorization

from VIA.

Trademarks

All trademarks are the property of their respective holders.

Data protection

All data should be backed-up prior to the installation of any drive unit or

storage peripheral. VIA will not be responsible for any loss of data resulting

from the use, disuse or misuse of this or any other VIA product.

No Warranty

VIA has made every effort to ensure the accuracy of the content of this

manual. However, it is possible that it may contain technical inaccuracies or

typographical or other errors. VIA will assume no liability for any inaccuracy

found in this publication, nor for damages, direct, indirect, incidental,

consequential or otherwise, that may result from such an inaccuracy, including

without limitation loss of data or profits.

VIA provides this manual “as is”, and does not issue a warranty of any kind,

express or implied, including without limitation implied warranties of

merchantability or fitness for a particular purpose.

The information provided in this manual is subject to change without notice.

VIA reserves the right to alter product designs, layouts or drivers without

notification.

ii

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

iii

TRADEMARKS

All trademarks used in this manual are the property of their respective owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95/98/98SE/ME/2000/XP and Windows NT are registered trademarks
of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.

NOTE

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people cannot step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or mod­ule.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening. Doing so could cause damage or
electrical shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

* The power cord or plug is damaged
* Liquid has penetrated into the equipment
* The equipment has been exposed to moisture
* The equipment does not work well or does not work according to
the User’s Manual.
* The equipment has dropped or damaged
* The equipment has been visably damaged

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI­TIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT MAY
DAMAGE THE EQUIPMENT.

iv

Box Contents

• 1 x VIA Mainboard

• 1 x User’s manual

• 1 x Quick Installation Guide

• 1 x Floppy ribbon cable

• 1 x ATA-66/100/133 IDE ribbon cable

• 1 x 2 Port USB 1.1 Module

• 1 x Driver Utilities CD

v

Contents

Specifications ........................................................ 1-1

Mainboard Specifications .................................................. 1-2

Mainboard Layout ............................................................ 1-4

Connectors Guide ............................................................. 1-5

Installation ............................................................ 2-1

CPU Installation ................................................................ 2-2

CPU Installation ............................................................... 2-2

CPU Core Speed .............................................................. 2-3

CPU Fan Installation ........................................................ 2-3

Memory Installation ........................................................... 2-5

DDR Module Installation .................................................. 2-6

Power Supply ................................................................... 2-7

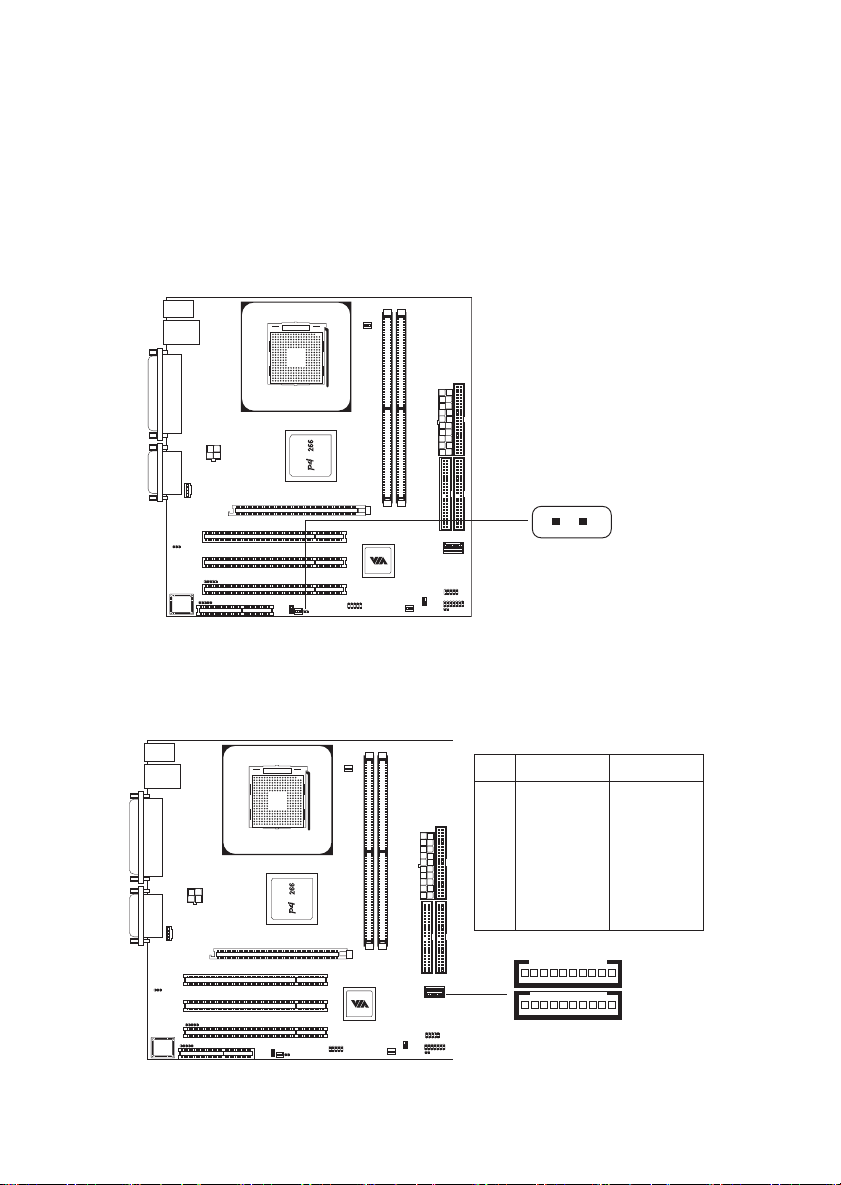

ATX 20-Pin Power Connector: ATXPWR ....................... 2-7

ATX 12V Power Connector: AUX12V............................ 2-7

Back Panel ....................................................................... 2-8

Mouse Connector: JMS1 .................................................. 2-8

Keyboard Connector: JKB1 ............................................. 2-8

USB Port Connectors....................................................... 2-9

Parallel Port Connector: LPT1 ......................................... 2-9

Serial Port Connector: COM 1 ....................................... 2-10

MIDI/Game Connector .................................................. 2-10

Audio Port Connectors ................................................... 2-10

RJ45 NIC Port ............................................................... 2-10

VGA Out ........................................................................ 2-10

Connectors ..................................................................... 2-11

Floppy Disk Drive Connector: FDD ................................2-11

IrDA Infrared Module Connector: IR ............................. 2-11

Consumer IR Connector: CIR ........................................ 2-12

CD-In Connector: CD_IN ............................................. 2-12

Hard Disk Connectors: IDE1 & IDE2 ........................... 2-13

Fan Power Connectors: CPU/SYS FAN ....................... 2-14

Case Connectors: F_PANEL/F_PANEL2 .................... 2-14

vi

Digital Audio Connector: SPDIF .................................... 2-16

PC Smart Card Reader: SCR......................................... 2-16

USB pin-header: USB3/4 ............................................... 2-17

Wake-On LAN Connector: WOL .................................. 2-17

Wake-On Ring Connector: WOR................................... 2-18

Secure Digital and Memory Stick Connectors: SD/MS . 2-18

Jumpers .......................................................................... 2-19

Clear CMOS Jumper: CLEAR_CMOS ......................... 2-19

Audio Codec Auto Detect Jumper: OB_CODEC ......... 2-20

Slots ............................................................................... 2-21

AGP (Accelerated Graphics Port) Slot .......................... 2-21

PCI Slots ........................................................................ 2-21

CNR (Communication Network Riser) Slot ................... 2-21

PCI Interrupt Request Routing ....................................... 2-22

BIOS Setup ........................................................... 3-1

Entering Setup ...................................................................3-2

Control Keys .................................................................... 3-2

Getting Help ......................................................................3-3

The Main Menu ................................................................ 3-4

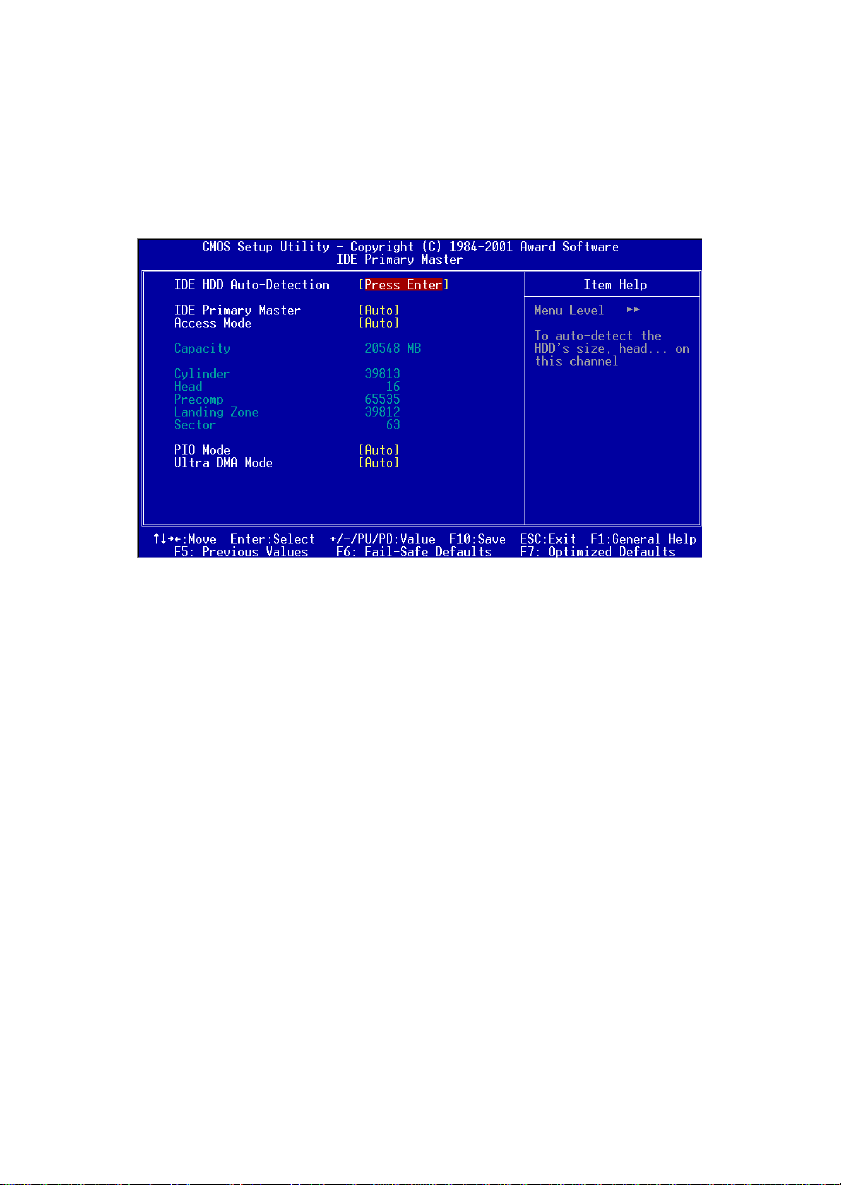

Standard CMOS Features ................................................3-6

Advanced BIOS Features ................................................. 3-8

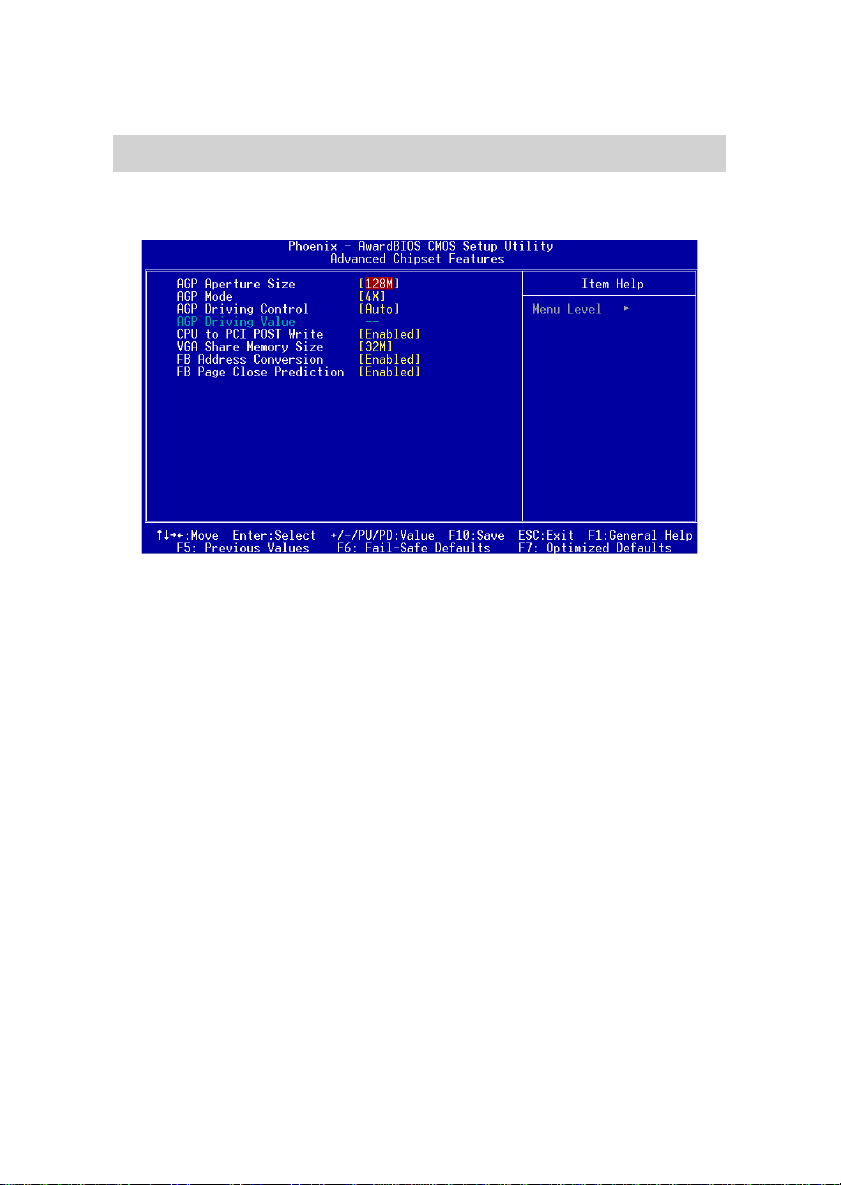

Advanced Chipset Features............................................. 3-11

Integrated Peripherals ......................................................3-13

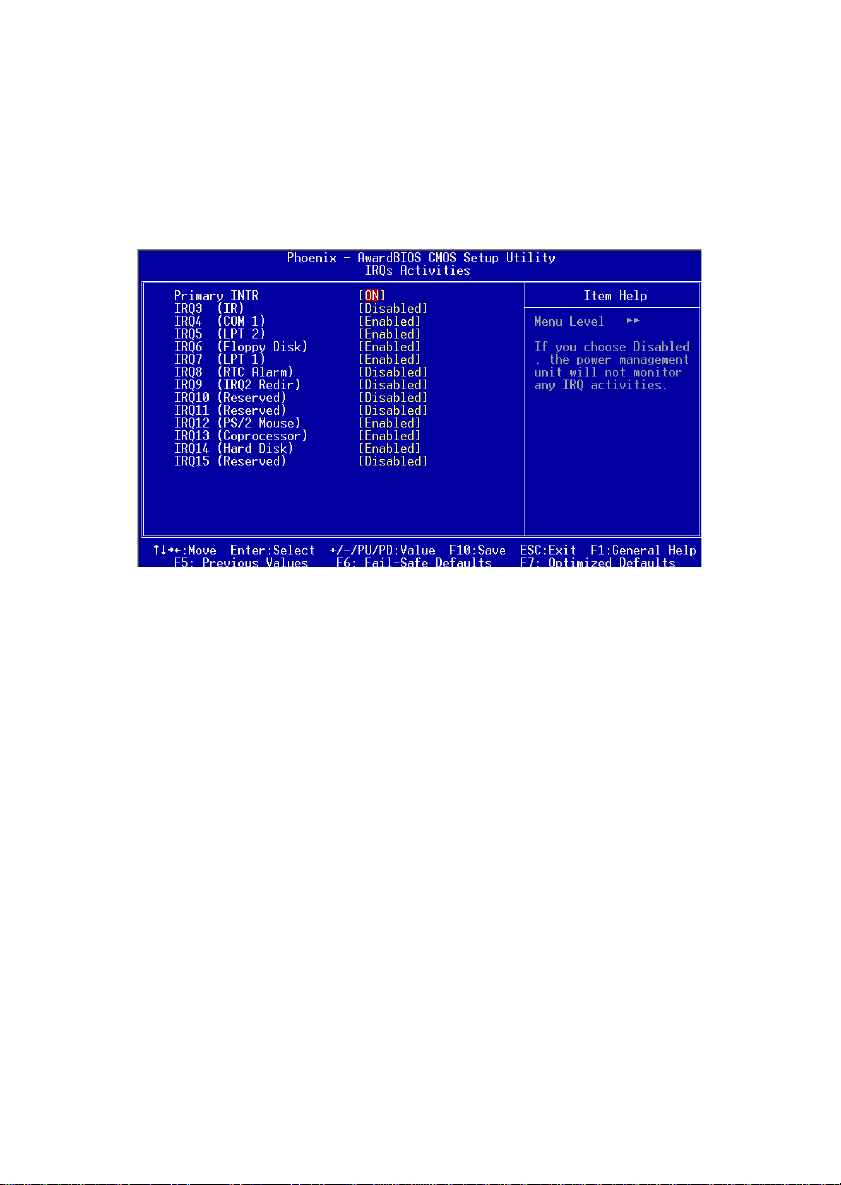

Power Management Setup .............................................. 3-18

PNP/PCI Configurations ................................................. 3-23

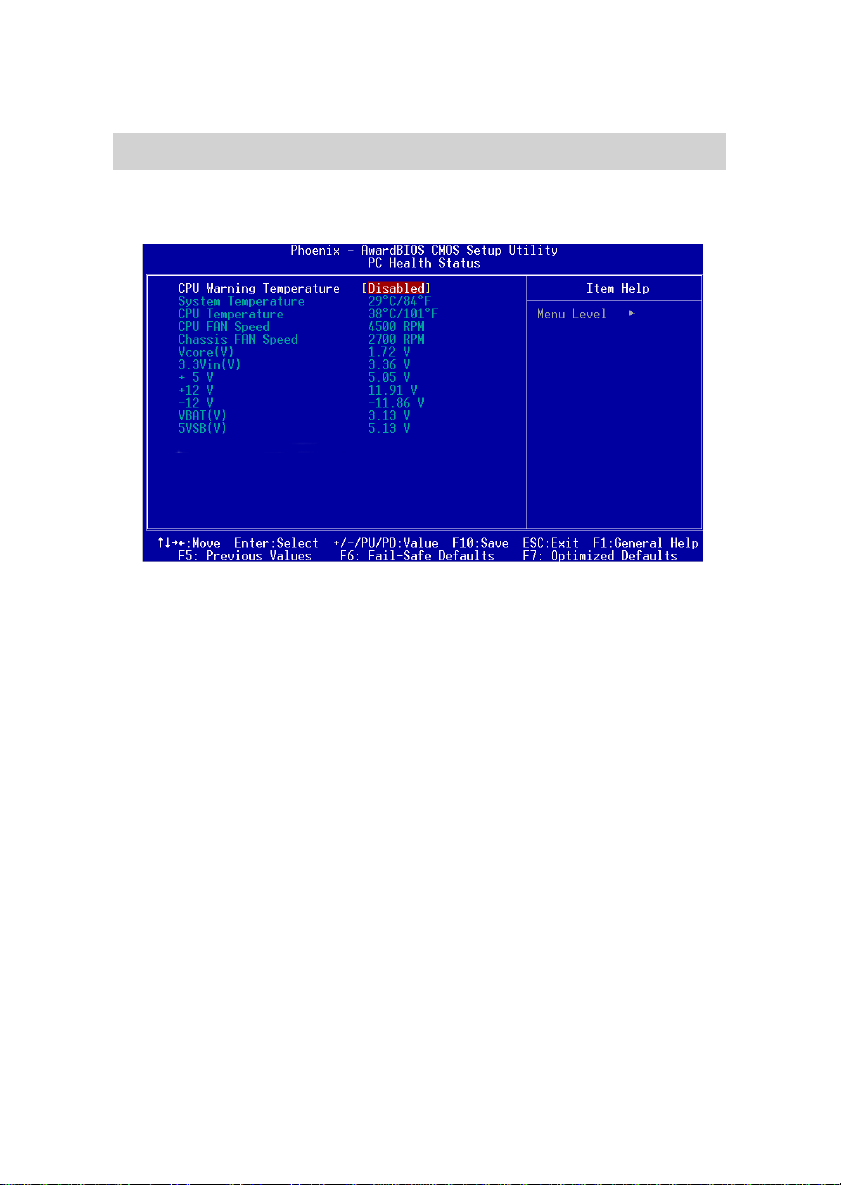

PC Health Status............................................................. 3-25

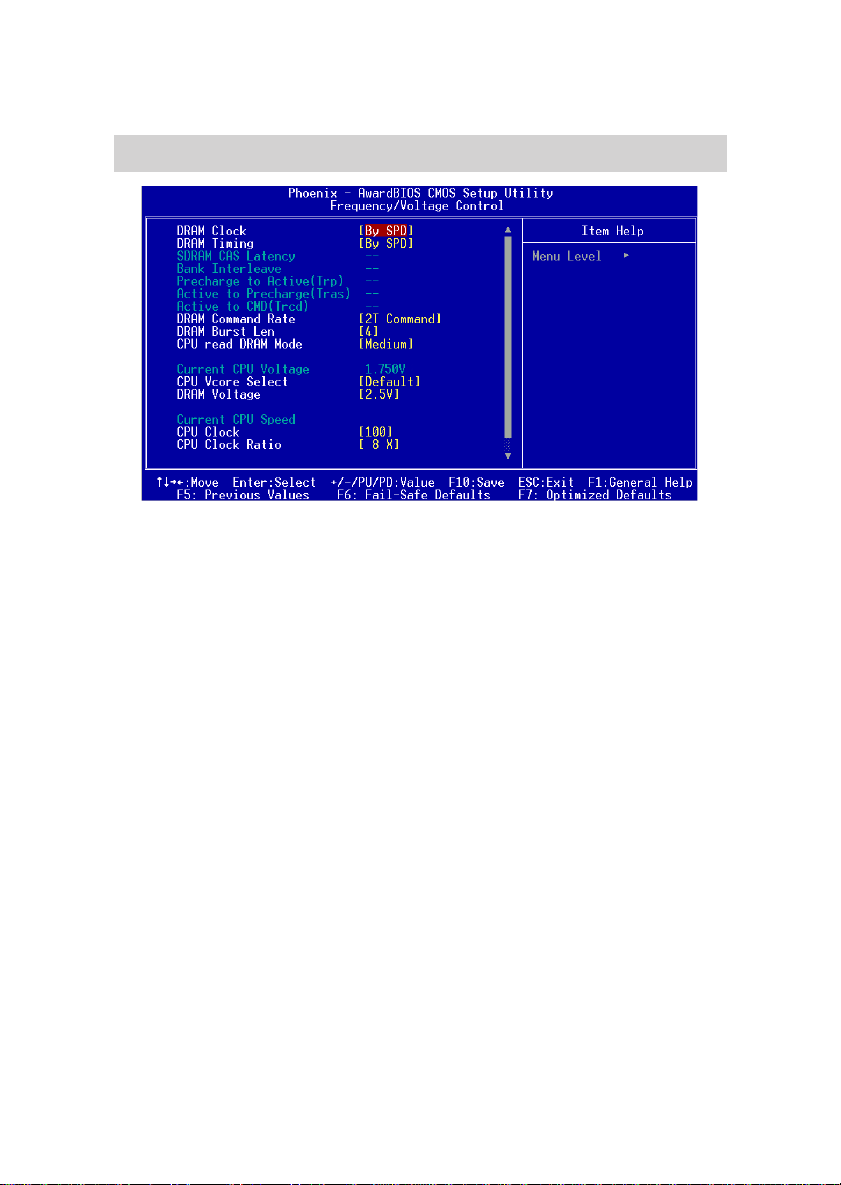

Frequency/Voltage Control .............................................. 3-26

Load Fail-Safe Defaults ...................................................3-29

Load Optimized Defaults ................................................. 3-30

Set Supervisor/User Password ........................................ 3-31

Save & Exit Setup........................................................... 3-33

Exit Without Saving ......................................................... 3-34

vii

Software Setup ..................................................... 4-1

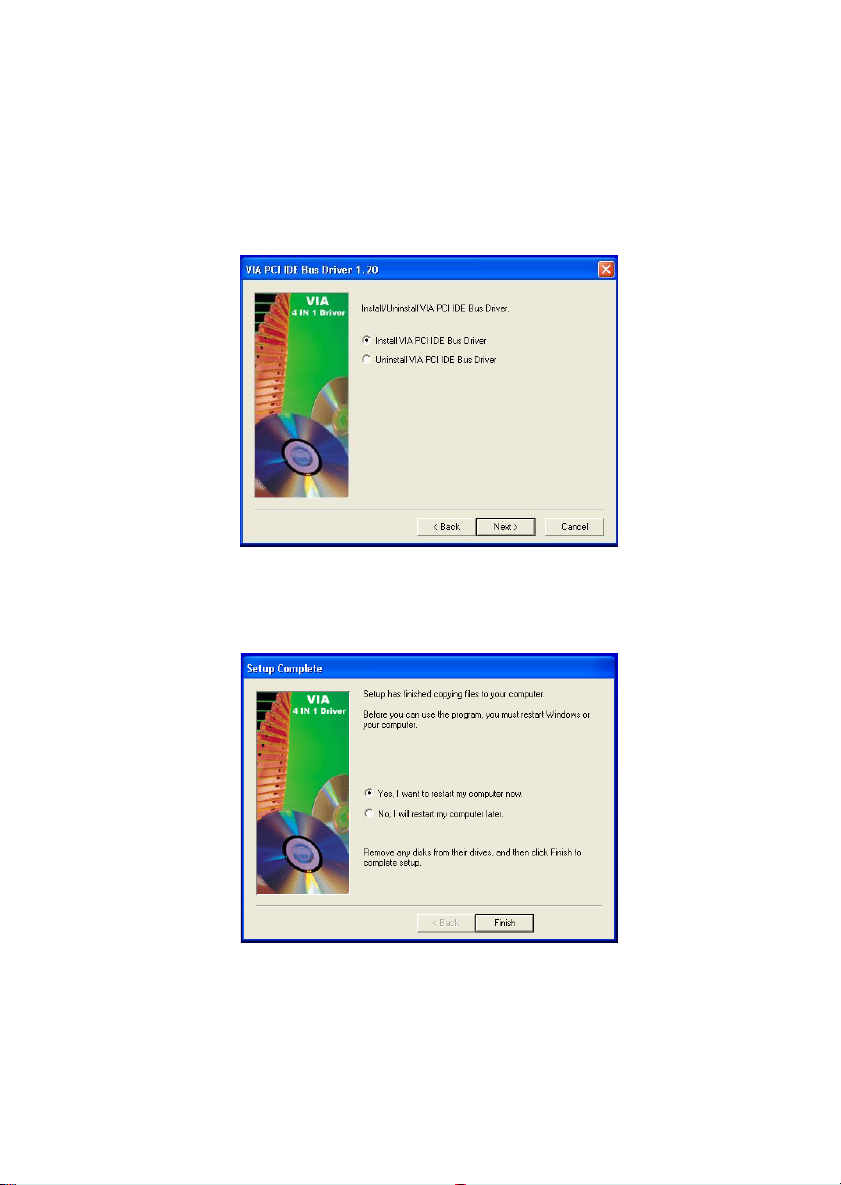

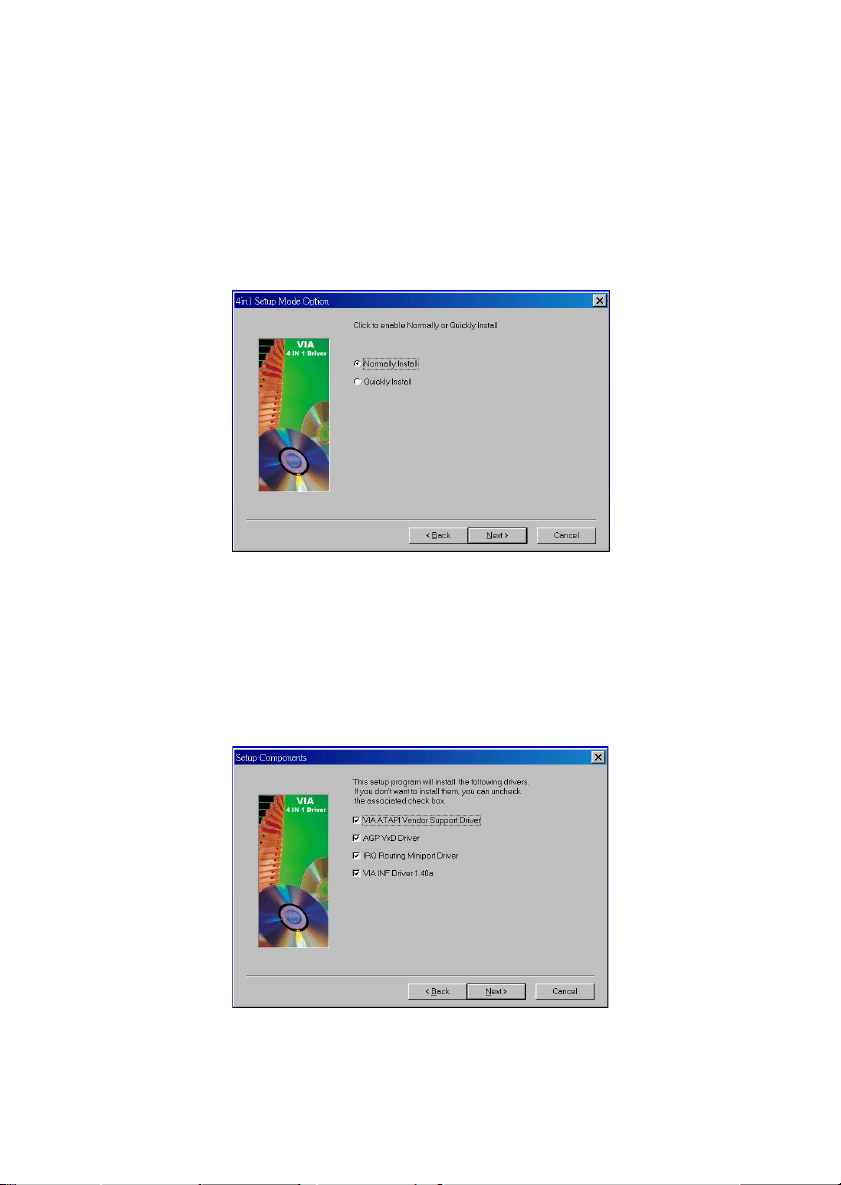

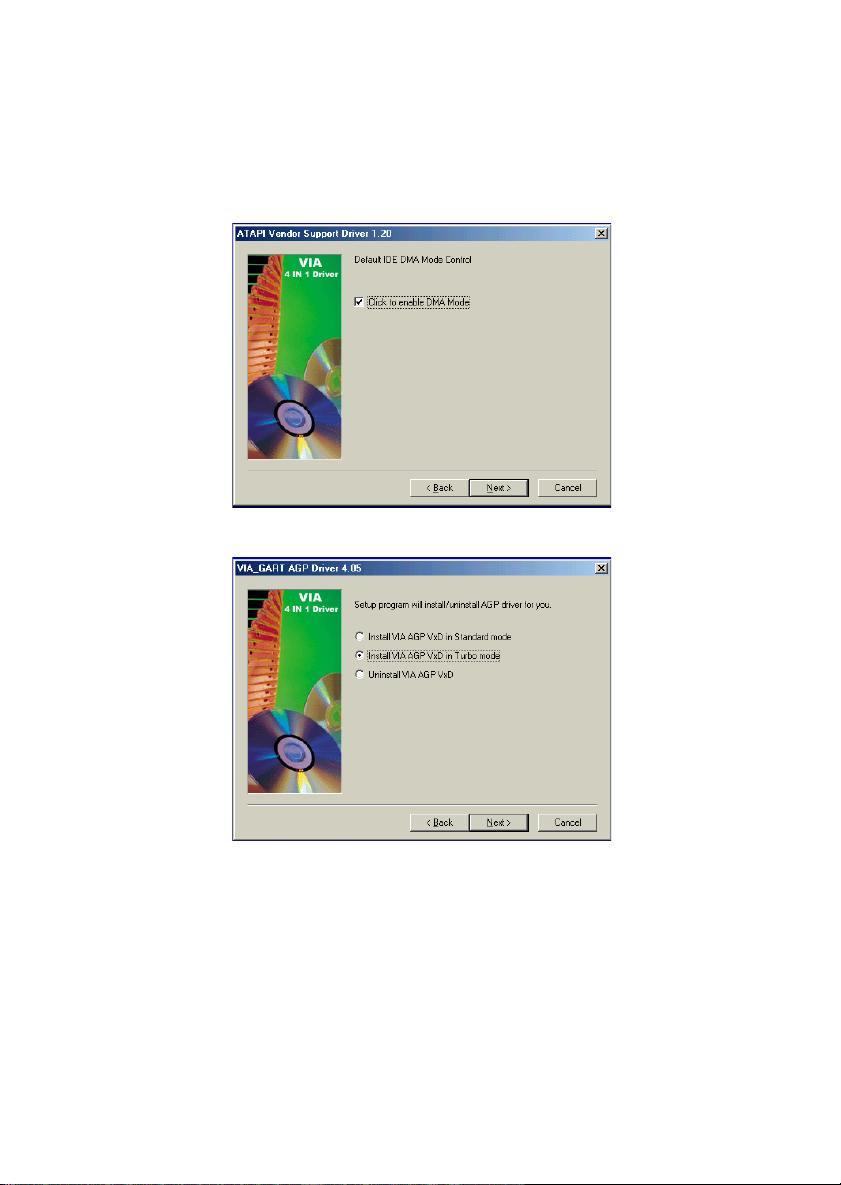

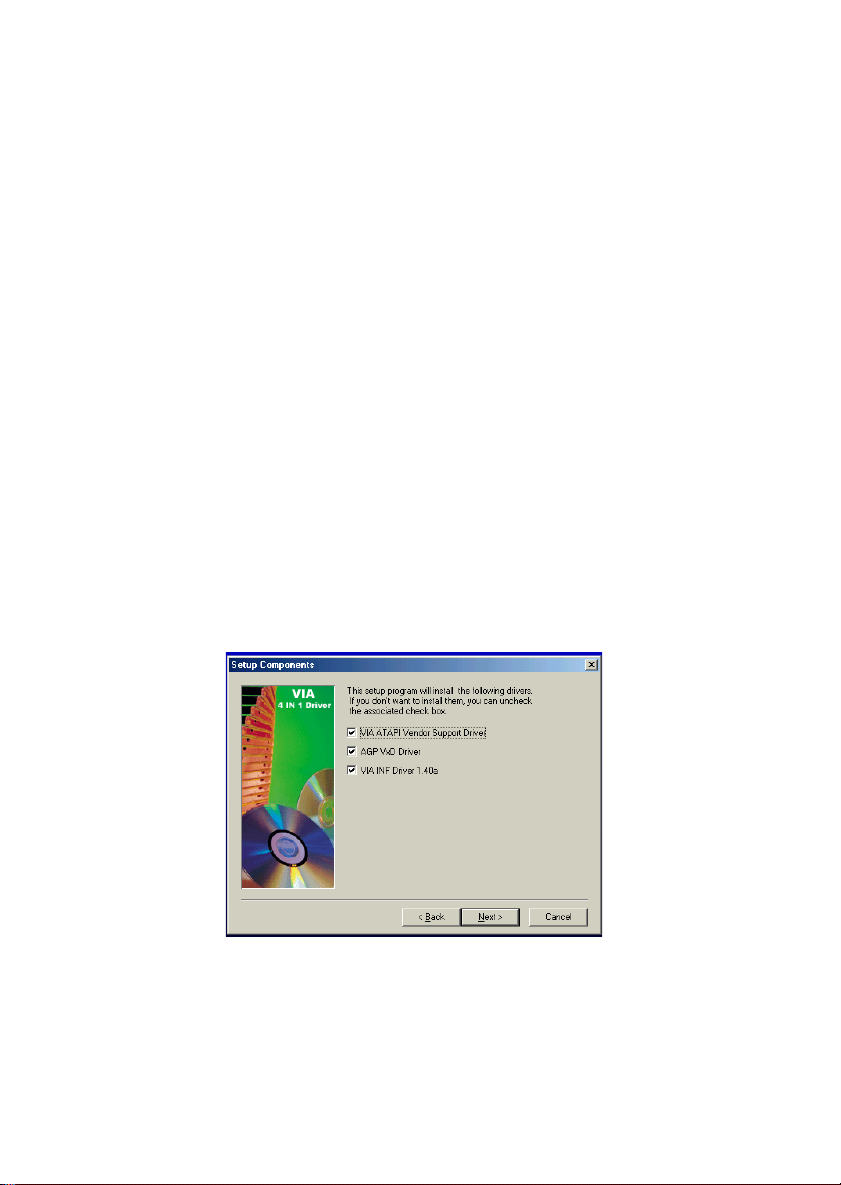

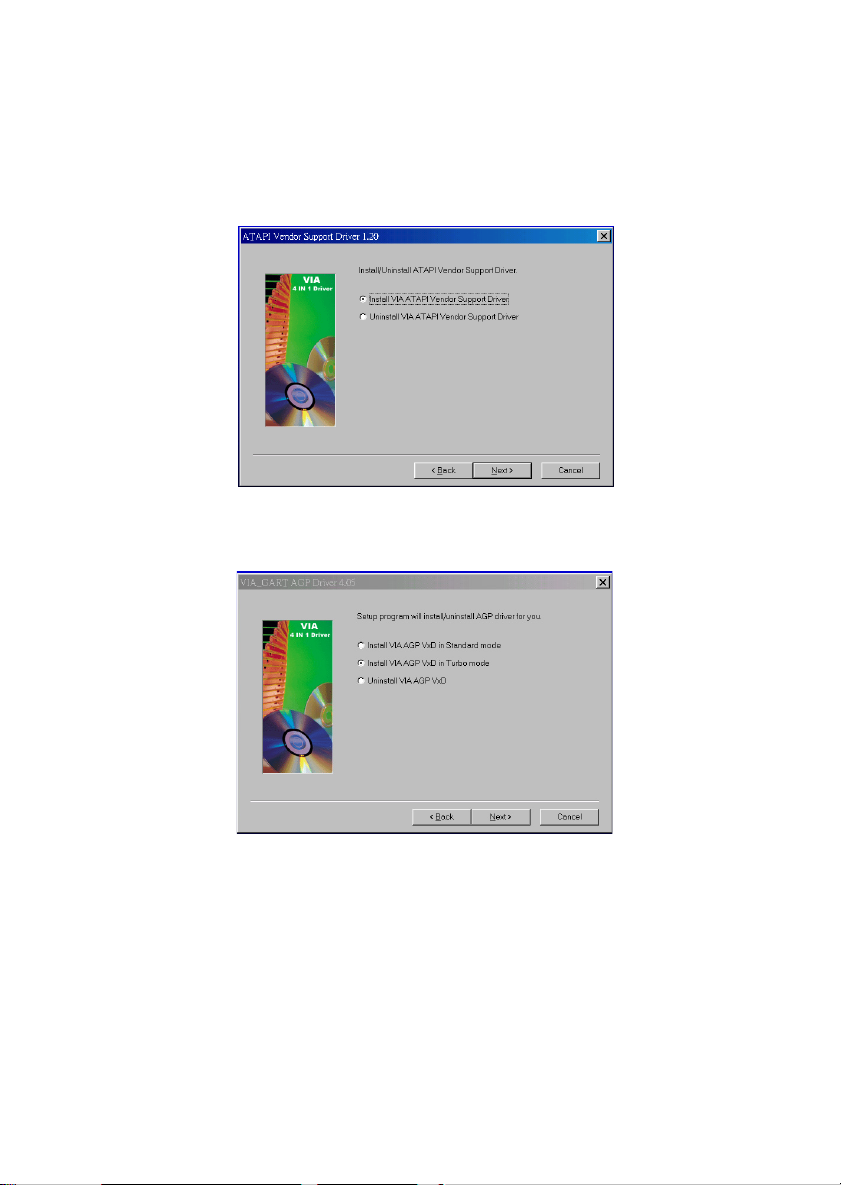

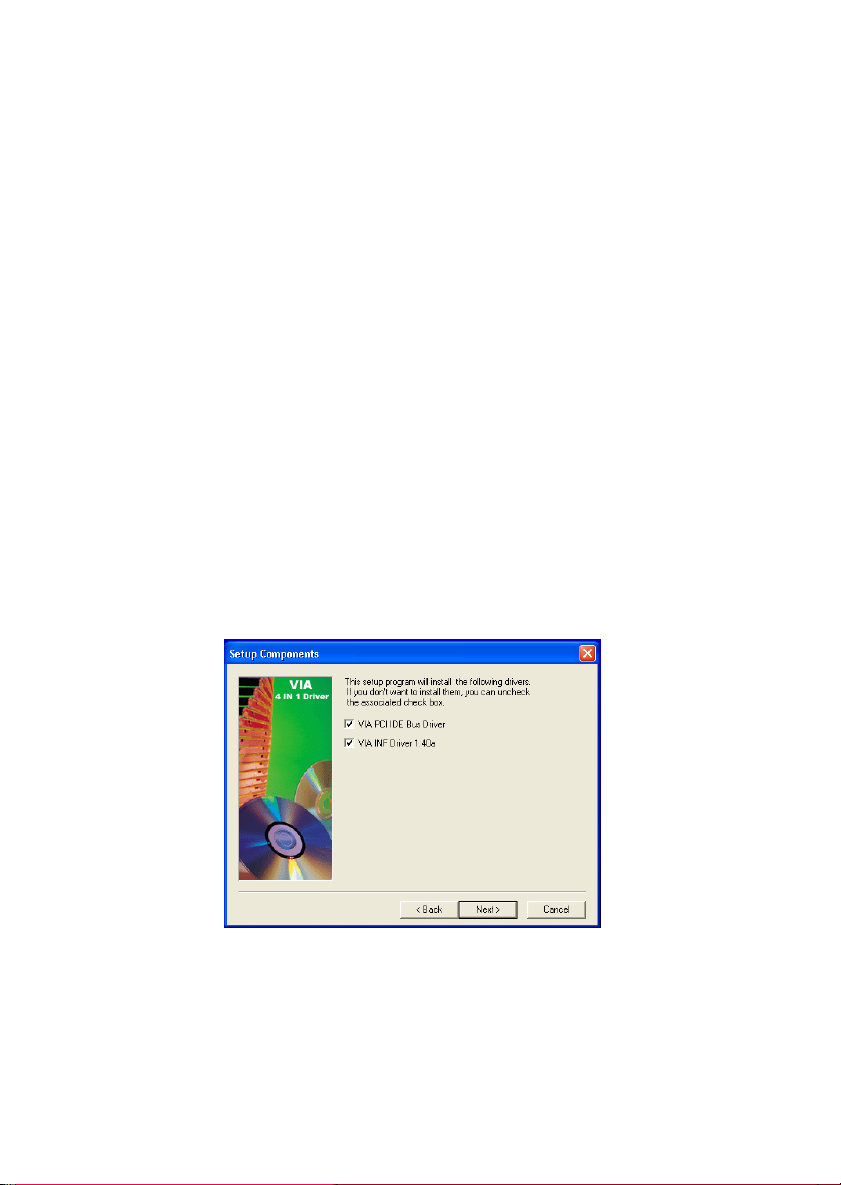

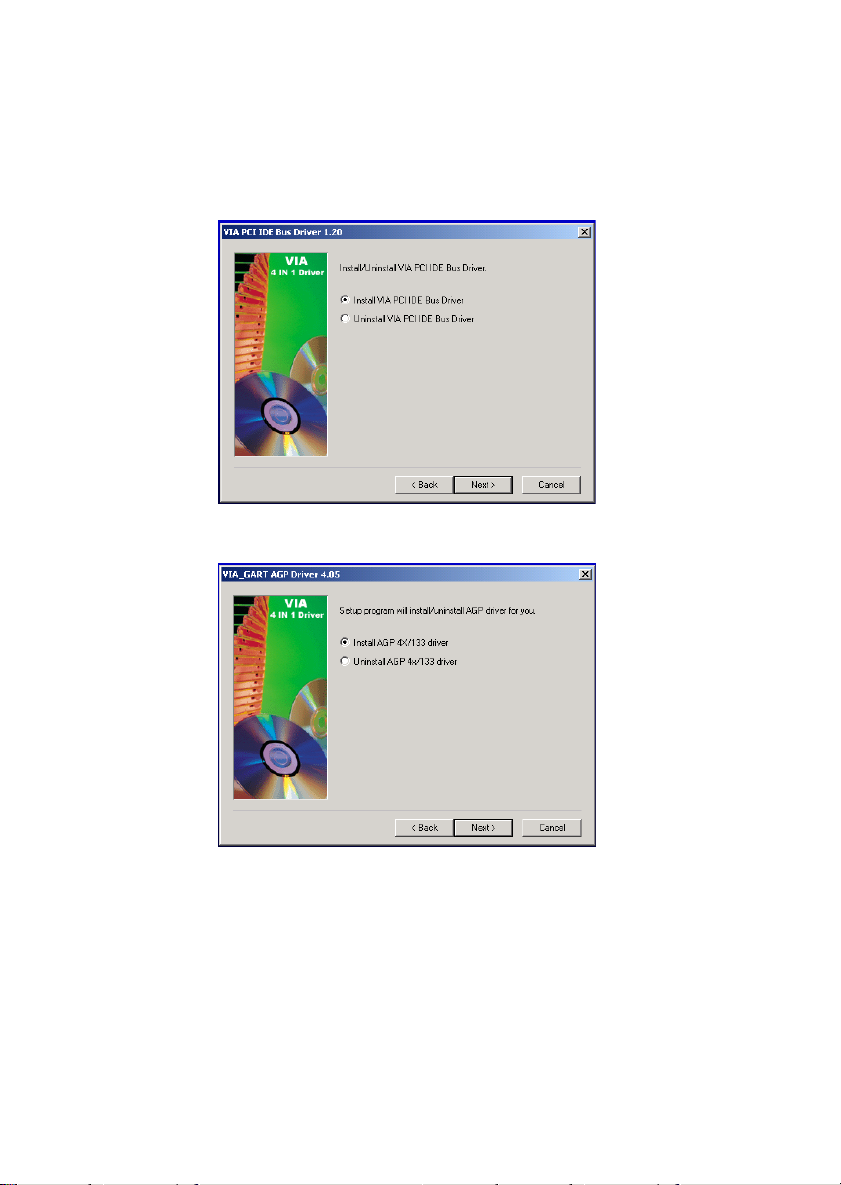

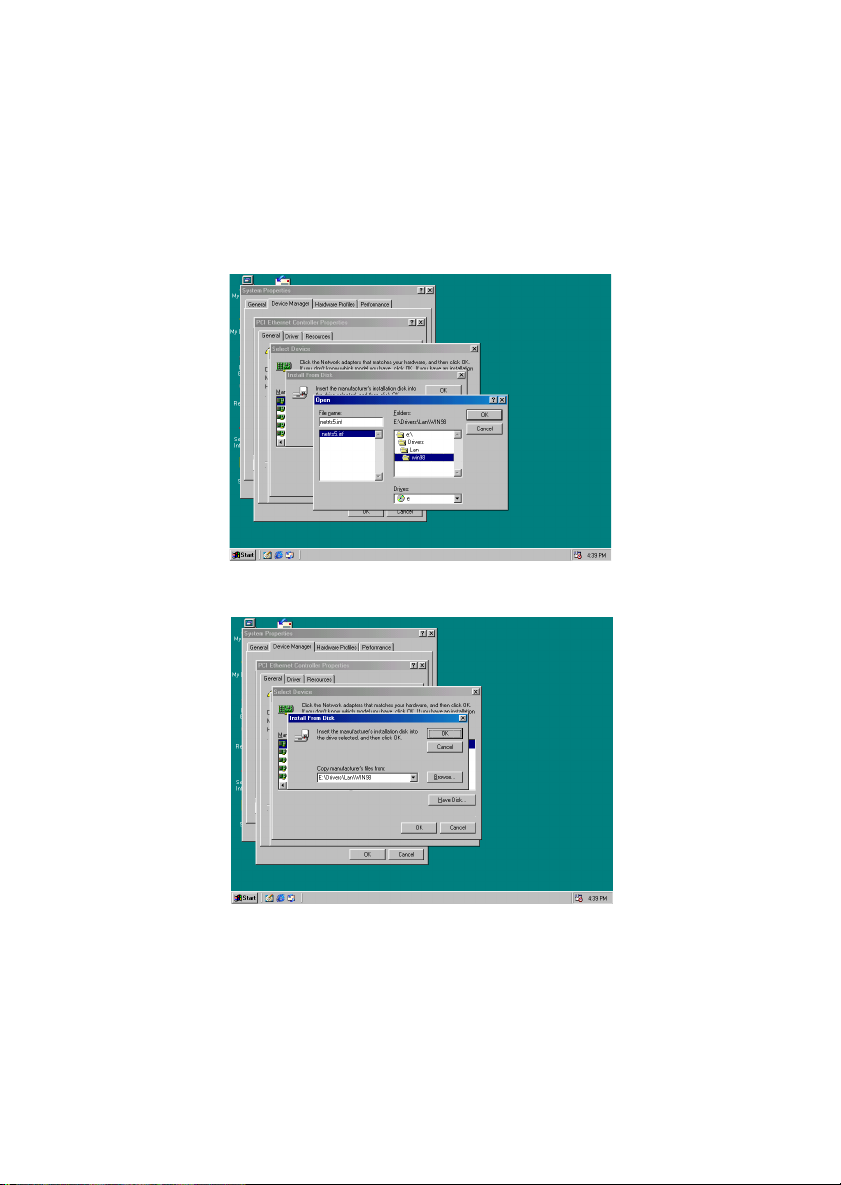

VIA ProSavage8 P4M266 Chipset Drivers ....................... 4-2

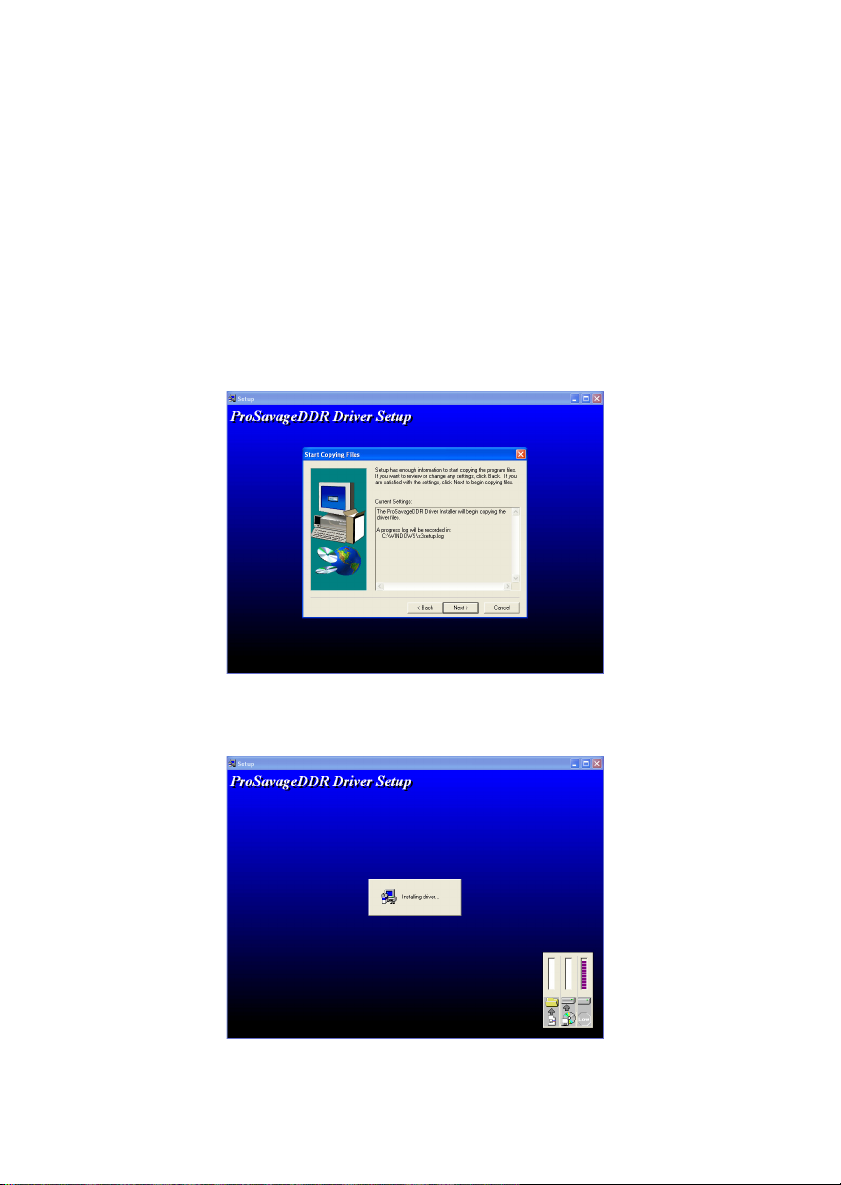

VIA ProSavage8 P4M266 VGA Driver .......................... 4-12

VIA Audio Driver ........................................................... 4-18

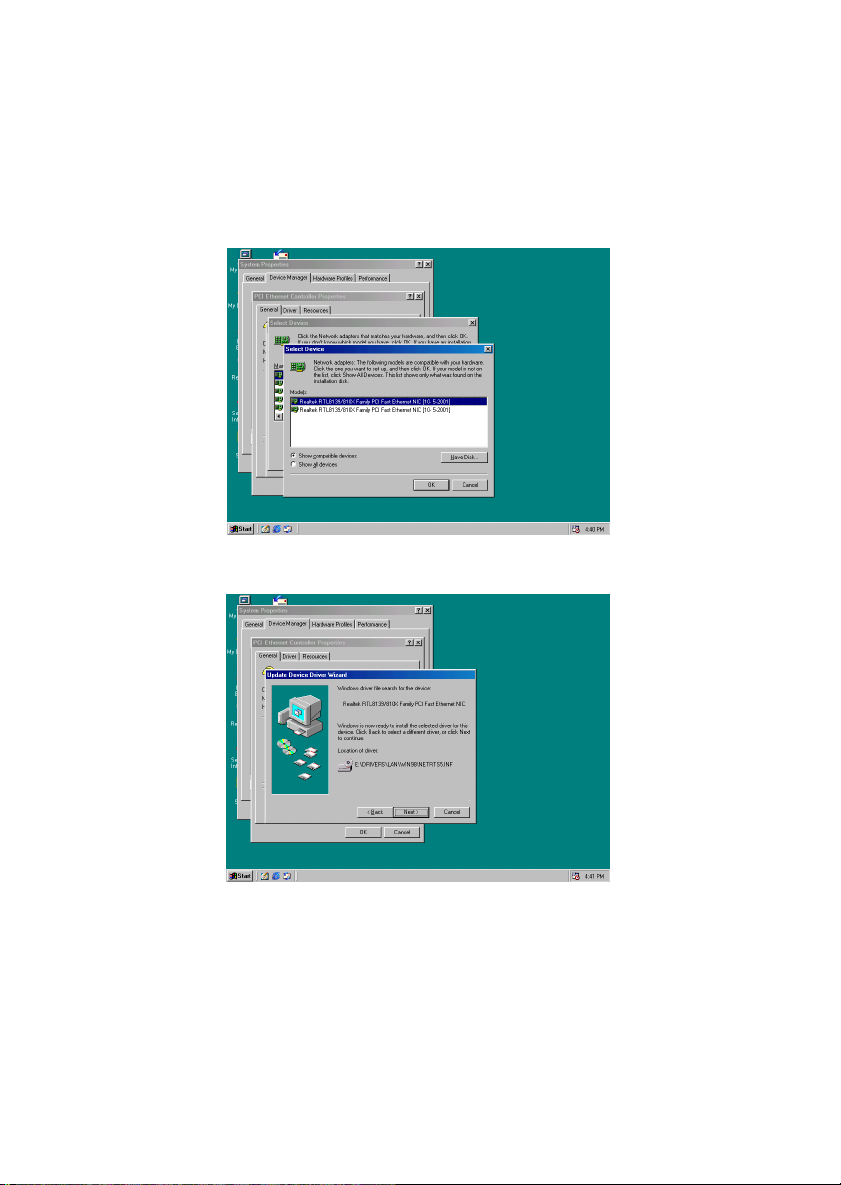

Realtek Network Driver .................................................. 4-19

Winbond Smart@IO Drivers ...........................................4-26

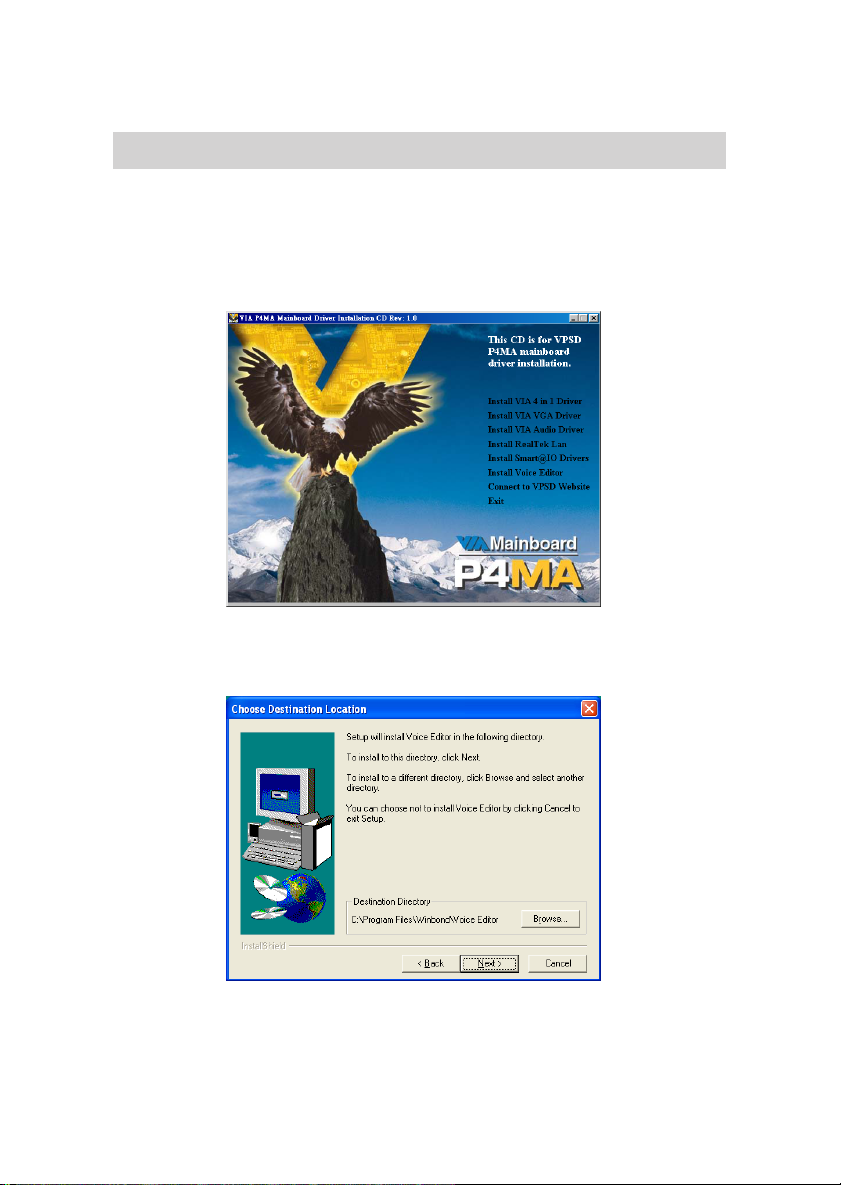

Winbond Voice Editor Utility ........................................... 4-28

viii

1

Specifications

Specifications

The VIA P4MA mainboard is based around the
VIA ProSavageDDR P4M266 chipset, which brings
support for high-performance DDR266 SDRAM to the
Intel® Pentium® 4 platform. It is a high performance,
cost-effective and energy efficient SMA chipset for
the desktop PC. VIA’s advanced V-Link controller
brings optimal system efficiency by effectively dou­bling bandwidth between the chipset’s north and south
bridges. P4M266 integrates S3 Graphics’ 128-bit
ProSavage8 graphics accelerator into a single chip,
providing ideal solution for the consumer and entry
level professionals.

This chapter includes the following sections:

Mainboard Specifications 1-2

Mainboard Layout 1-4

Connectors Guide 1-5

1-1

Chapter 1

Mainboard Specifications

CPU

• Supports Intel

• Supports 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.2GHz and upwards

Chipset

• VIA P4M266/VT8233A chipset

- Supports Intel® Pentium® 4 processors with 400MHz (100MHz QDR) CPU
Front Side Bus (FSB)

- Integrated Savage8 AGP Graphics

- External 4x AGP Bus

- High Bandwidth V-Link Client controller

- Integrated Hardware Sound Blaster/Direct Sound AC’97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI 1.0B and APM 1.2 compliant

Main Memory

• 2 x 184-pin DDR DIMM slots

• Supports up to 2GB of DDR SDRAM (PC2100/PC1600)

• Supports 2.5v DDR266 SDRAM

®

Pentium® 4/Northwood processors in the 478 pin package

Slots

• 1 x AGP (Accelerated Graphics Port) 4X slot

• 3 x PCI 2.2 32-bit PCI bus slots (supports 3.3v/5v PCI bus interface)

• 1 x CNR (Communication Network Riser) slot

Onboard IDE

• Integrated IDE controller provides IDE HDD/CD-ROM with PIO, Bus Mas-

ter and Ultra DMA 66/100/133 operation modes

• Can connect up to four IDE devices

Onboard Peripherals

• 1 x floppy port supports 1 x FDD

• 1 x serial ports (COM 1)

1-2

Specifications

• 1 x DB-15 VGA out port

• 1 x SPP/EPP/ECP mode compliant parallel port.

• 2 x USB 1.1 ports (plus 1 pin-header for up to 2 additional connections)

• 1 x MIDI/Game port

• 1 x RJ-45 NIC port

Audio

• S/W VIA VT1612A AC'97 Codec

BIOS

• Award Plug & Play BIOS

• Desktop Management Interface (DMI) function which records your

mainboard specifications

Dimension

• MicroATX Form Factor

• 24.5cm x 24cm

Mounting

• 6 mounting holes

1-3

Chapter 1

Top: Mouse

Bottom: Keyboard

Top: RJ45

Bottom: USB ports

Mainboard Layout

Socket 478

CPUFAN

Top:

Parallel port

Bottom:

COM 1/VGA out

Top: Game port

Bottom:

Line-Out

Line-In

Mic

AUX12V

M

AGP Slot

SPDIF

BIOS

CD_IN

CIR

IR

CNR

PCI Slot 1

PCI Slot 2

PCI Slot 3

OB_Codec

WOL

WOR

USB 3/4

CLEAR_CMOS

SYSFAN

VIA P4MA - L & VIA P4MA - VSL Mainboard

IDE 1

SD
MS

SCR

F_PANEL2

F_PANEL

ATXPWR

FDD

IDE 2

1-4

Specifications

Connectors Guide

Connectors Function Reference
ATXPWR ATX 20-pin power connector see p. 2-7
ATX12V ATX 12V power connector see p. 2-7

JMS1 Mouse connector see p. 2-8

JKB1 Keyboard connector see p. 2-8

USB Port Connectors Connecting to USB devices see p. 2-9

LPT1 Parallel port connector see p. 2-9

COM 1 Serial port connector see p. 2-10

MIDI/Game Connector Connecting to joystick or game pad see p. 2-10

Audio Port Connectors Line-Out/Line-In/Mic-In see p. 2-10

RJ45 NIC Port LAN port see p. 2-10

VGA Out VGA connector see p. 2-10

FDD Floppy disk drive connector see p. 2-11

IR IrDA Infrared Module connector see p. 2-11

CIR Consumer IR Module connector see p.2-12

CD_IN CD-In connector see p. 2-12

IDE 1 & IDE 2 Hard disk connectors see p. 2-13
CPUFAN/SYSFAN Fan Power connectors see p. 2-14

F_PANEL/F_PANEL2 Case connectors see p. 2-14

SPDIF Digital audio connector see p. 2-16

SCR PC Smart Card Reader connector see p. 2-16

USB 3/4 USB pin-header see p. 2-17

WOL Wake-On LAN connector see p. 2-17

WOR Wake-On Ring connector see p. 2-18

SD/MS Secure Digital/Memory Stick see p. 2-18

CLEAR_CMOS Clear CMOS jumper see p. 2-19

OB_CODEC Audio Codec Auto Detect jumper see p. 2-20
AGP Slot Connecting to AGP card see p. 2-21
PCI Slots Connecting to PCI cards see p. 2-21
CNR Slot Connecting to CNR card see p. 2-21

1-5

2

Installation

Installation

This chapter provides you with information
about hardware setup procedures. While installing
the mainboard, carefully hold the components and
closely follow the installation procedures. Some
components may be damaged if they are installed
incorrectly.

It is recommended to use a grounded wrist
strap before handling computer components. Static
electricity can damage some components.

This chapter contains the following sections:

CPU Installation 2-2

Memory Installation 2-5

Power Supply 2-7

Back Panel 2-8

Connectors 2-11

Jumpers 2-19

Slots 2-21

2-1

Chapter 2

CPU Installation

The VIA P4MA mainboard supports the Intel® Pentium® 4 processor in the 478
pin package (PGA478). When installing the CPU, ensure the CPU has a large-
size heatsink and a cooling fan attached on the top to prevent overheating. If
the heatsink and cooling fan are not included with the CPU, contact your
dealer to purchase and install them before turning on the computer.

CPU Installation

1. Pull the lever sideways away
from the socket. Then raise the
lever up to a 90-degree angle.

2. Look for the dot/cut edge. The
dot/cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

WARNING!

3. Hold the CPU down firmly,
then close the lever shut to
complete the installation.

Overheating will cause serious damage to the CPU
and system. Ensure the cooling fan and heatsink work
properly to protect the CPU from overheating.

2-2

Installation

CPU Core Speed

If CPU Clock = 100MHz

Core/Bus ratio = 18

then CPU core speed = CPU Clock x Core/Bus ratio

= 100MHz x 18
= 1.8GHz

Overclocking

This mainboard is designed to support overclocking. However,

WARNING!

please make sure your components are able to tolerate such abnor­mal settings, before overclocking. Any attempt to operate beyond
product specifications is not recommended. We do not guarantee the
damages or risks caused by inadequate operation or operation beyond

CPU Fan Installation

As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly important. To dissipate heat, you
MUST attach the CPU cooling fan and heatsink on top of the CPU. Follow the
instructions below to install the Heatsink/Fan:

1. Locate the CPU and its retention
mechanism on the mainboard.

Retention mechanism

2. Position the heatsink and fan onto the
retention mechanism.

2-3

Chapter 2

3. Mount the fan on top of the heatsink. Press down the fan firmly until its four clips
become wedged in the holes of the retention mechanism.

4. Press the two levers down to secure the fan. Each lever can be pressed down in only
ONE direction.

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector
on the mainboard.

2-4

Installation

Memory Installation

The VIA P4MA mainboard provides 2 sockets for 184-pin, 2.5V DDR DIMM
modules with 4 memory banks. To operate properly, at least one DIMM module
must be installed.
You can install PC1600/PC2100 DDR SDRAM modules on the DDR DIMM
slots (DDR 1~2).
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM, but
doubles the rate of transfer by transfering data twice per cycle. This is achieved
by transfering data on both the rising and falling edges of the clock.
Conventional SDRAM only uses the rising edge of the clock to transfer data.
Therefore, conventional SDRAM is called SDR (Single Data Rate) SDRAM.
DDR SDRAM uses 2.5 volts as opposed to 3.3 volts used in SDR SDRAM, and
requires 184-pin DIMM modules rather than 168-pin DIMM modules used by
SDR SDRAM. DDR SDRAM is also known as SDRAM-II, DDR DRAM and
DSDRAM (Double-Speed DRAM). PC2100 running at 133MHz will produce

2.1GB/s memory bandwidth. High memory bandwidth makes DDR an ideal
solution for high performance PC, workstations and servers.

Socket 478

M

DDR DIMM Slots

(DDR 1~2)

2-5

Chapter 2

DDR Module Installation

You can install either single sided or double sided 184-pin DDR DIMM modules
into the DDR DIMM slot, depending on your requirements. Differing from
SDR DIMM, DDR DIMM modules have only one notch on the center of the
module. The number of pins on either side of the breaks are also different. The
memory modules will only fit if placed in the correct orientation.
You can install DDR SDRAM modules in any of the following combinations:

Slot Memory Module Total Memory

Slot 1

(Bank 0 & Bank 1)

Slot 2

(Bank 2 & Bank 3)

Maximum System M emory Supported

64MB, 128MB,

256MB, 512MB, 1GB

64MB, 128MB,

256MB, 512MB, 1GB

64MB~1GB

64MB~1GB

64MB~2GB

1. The DDR DIMM module has only one notch on the center.

Notch

2. Insert the DDR module vertically into the DDR DIMM slot. Make sure the

notch is correctly aligned.

3. The plastic clips at sides of the DIMM slot will automatically close shut.

2-6

Installation

Power Supply

The VIA P4MA mainboard requires an ATX power supply for powering the
system. Before inserting the power supply connector, always make sure that all
components are installed properly to ensure that no damage will be caused.

ATX 20-Pin Power Connector: ATXPWR

This connector is for the ATX power supply. To connect to the ATX power
supply, make sure the plugs of the power supply are inserted in the correct
orientation and the pins are properly aligned. Then, push down the plugs
firmly into the connector.

Socket 478

11

1

2

1

3

AUX12V

4

M

10

20

ATXPWR

ATX 12V Power Connector: ATX12V

This 12V power connector is used to provide power to the CPU.

ATXPWR Pin Definition

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5 V
20 5 V

2-7

ATX12V Pin

PIN SIGNAL

1 GND
2 GND
3 12V
4 12V

Chapter 2

Back Panel

The Back Panel provides the following connectors:

Mouse

Keyboard USB

COM 1

Parallel

Mouse Connector: JMS1

The VIA P4MA mainboard provides a
standard PS/2 mouse connector for at­taching a PS/2 mouse. You can plug a
PS/2 mouse directly into this connec­tor. The connector location and pin
assignments are as follows:

6

4

2

PS/2 Mouse (6-pin Female)

5

3

1

MIDI/GameRJ45

L-out

L-in

VGA out

MIC

Keyboard Connector: JKB1

The mainboard provides a standard PS/
2 keyboard connector for attaching a
PS/2 keyboard. You can plug a PS/2
keyboard directly into this connector.

6

21

PS/2 Keyboard (6-pin Female)

5

34

Pin Definition

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V

5. Mouse Clock Mouse clock

6. NC No connection

Pin Definition

PIN SIGNAL DESCRIPTION

1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V

5. Keyboard Clock Keyboard clock

6. NC No connection

2-8

Installation

USB Port Connectors

The VIA P4MA mainboard provides 2 USB ports (plus 1 pin-headers for up to
2 additional USB connections; see 2-17). USB-compatible devices can be
plugged directly into these ports.

5 6 7 8

1 2 3 4

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data 0 Positive Data Channel 0
4 GN D Gro und

5. VCC +5 V

6. -Data 1 Negative Data Channel 1

7. +Data 1 Positive Data Channel 1

8. GND Gr ound

USB Ports

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female connector for LPT (parallel port). A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) modes.

Pin Definition

Pin Definition

13

1

1425

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GN D Ground
19 GN D Ground
20 GN D Ground
21 GN D Ground
22 GN D Ground
23 GN D Ground
24 GN D Ground
25 GN D Ground

2-9

Chapter 2

Serial Port Connectors: COM 1

The mainboard offers one 9-pin male Serial Port connector (COM 1) . You can
attach a serial mouse or other serial devices directly to this port.

Pin Definition

1 2 3 4 5

6 7 8 9

9-Pin Male DIN Connectors

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready

5. GND Ground

6. DSR Data Set Ready

7. RTS Request To Send

8. CTS Clear To Send

9. RI Ring Indicate

MIDI/Game Connector

You can connect a joystick or game pad
to this connector.

Audio Port Connectors

Line-Out is a connector for speakers or

headphones. The Line-In connector
can be used for an external CD player,
tape player, or other audio devices. The
Mic-In connector is for connecting mi­crophones.

Line Out

1/8” Stereo Audio Connectors

Line In MIC

RJ-45 NIC Port

The mainboard provides one standard
RJ-45 port for connection to the Local
Area Network (LAN). You can connect
a network cable to the LAN port.

VGA Out

A DB-15 pin female connector that con­nects to a VGA monitor.

2-10

Installation

Connectors

The VIA P4MA mainboard provides pin-header connectors for FDD, IDE HDD,
case, modem, LAN, USB Ports, IR module and the CPU/System FAN.

Floppy Disk Drive Connector: FDD

The standard floppy disk drive connector supports 360K, 720K, 1.2M, 1.44M,
and 2.88M.

Socket 478

M

FDD

IrDA Infrared Module Connector: IR

This connector allows you to connect an IrDA Infrared module. You must
configure the setting through the BIOS setup to activate the IR function.

Socket 478

Pin Definition

PIN SIGNAL

1 VCC
2 N C
3 IRRX
4 GND
5 IRTX

5

IR

1

2-11

M

Chapter 2

Consumer IR Connector: CIR

This connector allows you to connect a Consumer IR module. You must con­figure the setting through the BIOS setup to activate the IR function.

Socket 478

Pin Definition

PIN SIGNAL

1 5VDUAL
2 N C
3 CIRRX
4 GND
5 N C

M

5

1

CIR

CD-In Connector: CD_IN

This connector is for the CD-ROM audio connector.

Socket 478

CD_IN

CD_R

CD_GND

CD_L

M

2-12

Installation

Hard Disk Connectors: IDE1 & IDE2

The VIA P4MA mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/
66/100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA
33/66/100/133 functions. You can connect up to four hard disk drive, CD-ROM,
LS-120 and other devices. These connectors utilize the provided IDE hard disk
cable.

Socket 478

M

IDE 1

IDE 2

IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure the second
hard drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

TIP: If you install two hard disks on cable, you must config-
ure the second drive to Slave mode by setting its jumper. Refer to
the hard disk documentation supplied by hard disk vendors for

jumper setting instructions.

2-13

Chapter 2

Fan Power Connectors: CPU/SYS FAN

The CPUFAN (CPU fan) and SYSFAN (system fan) run on +12V and maintain
system cooling. When connecting the wire to the connectors, always be
aware that the red wire is the Positive and should be connected to the +12V.
The black wire is Ground and should be connected to GND. Both CPU and
System fan connectors have sensors to detect fan speed, but the power fan
does not have sensor.

GND

SENSOR

+12V

CPUFAN

Socket 478

M

GND

SENSOR

+12V

SYSFAN

Note: Always consult the vendor for proper CPU cooling fan.

Case Connectors: F_PANEL/F_PANEL2

The connector block F_PANEL/F_PANEL2 connect to the Power Switch, Re­set Switch, Power LED, HDD LED and SLED on the case.

2-14

Socket 478

Installation

F_Panel Pin Definition

PIN SIGNAL PIN SIGNAL

1 5VDUAL 8 GND

2 +5V 9 SPEAK

3 5VDUAL 10 RST_SW

4 HD_LED 11 N C

M

5 PLED 12 GND

6 PW_BN 13 SPEAK

7 +SPEAK 14 NC

HD_LED RST_SW

PW_BN

SLP_LED

+SLP_LED

2

1

PW_LED

-SLP_LED

SPEAKER

F_Panel2

14

F_Panel

13

Power Button (PW_BN)

Connect to a 2-pin switch button. Pressing this button will turn the system
power on or off.

Reset Switch (RST_SW)

The Reset Switch is used to reboot the system rather than turning the power
ON/OFF. Avoid rebooting while the HDD is working. You can connect the
Reset Switch from the system case to this pin.

Power LED (PW_LED)

The LED is lit when the system is power on. If the system is in S1 (POS - Power
On Suspend) or S3 (STR - Suspend To RAM) state, the LED will blink.

HDD LED (HD_LED)

HDD LED shows the activity of a hard disk drive. Avoid turning the power off
while HDD LED is lit. Connect the HDD LED from the system case to this pin.

Sleep LED (SLP_LED)

The SLED is lit when the system is in the S1 (POS - Power On Suspend) state.

Speaker (SPEAKER)

The speaker from the system case is connected to this pin.

2-15

Chapter 2

Digital Audio Connector: SPDIF

The SPDIF output provides digital audio to external speakers or compressed
AC3 data to an external Dolby Digital Decoder. Please make sure the SPDIF
module is CORRECTLY plugged onto the connector. Incorrect orientation may
cause permanent damage to the module.

SPDIF

+5V

1

SPDIF

GND

3

Socket 478

M

PC Smart Card Reader: SCR

This connector accommodates a Smart Card Reader that allows you to conve­niently make transactions such as financial, health care, telephony, or traveling
services through a Smart Card user interface software.

SCR Pin Definition

Socket 478

M

PIN SIGNAL

1 VCC
2 GND
3 -SCPWCTL
4 -SCRST

5. N C

6. SCRWLED

7. SCIO
8NC
9 SCCLK
10 SCPSNT

SCR

2

10

2-16

1

9

Installation

USB pin-header: USB3/4

The mainboard provides 1 front USB pin-header connector, allowing up to 2
additional USB ports. Please plug the USB 2-port module onto this pin-header.

Socket 478

USB 3/4 Pin Definition

PIN SIGNAL PIN SIGNAL

1 VCC 2 VCC

3 USB0- 4 USB1-

M

5 USB0+ 6 USB1+

7 GND 8 GND

9 NC 10 GND

2

10

USB 3/4

1

9

Wake-On LAN Connector: WOL

This connector allows you to connect a network card with the Wake-On LAN
function. The connector will power up the system when a signal is received
through the network card.

Socket 478

WOL

GND

M

2-17

+5VSB
