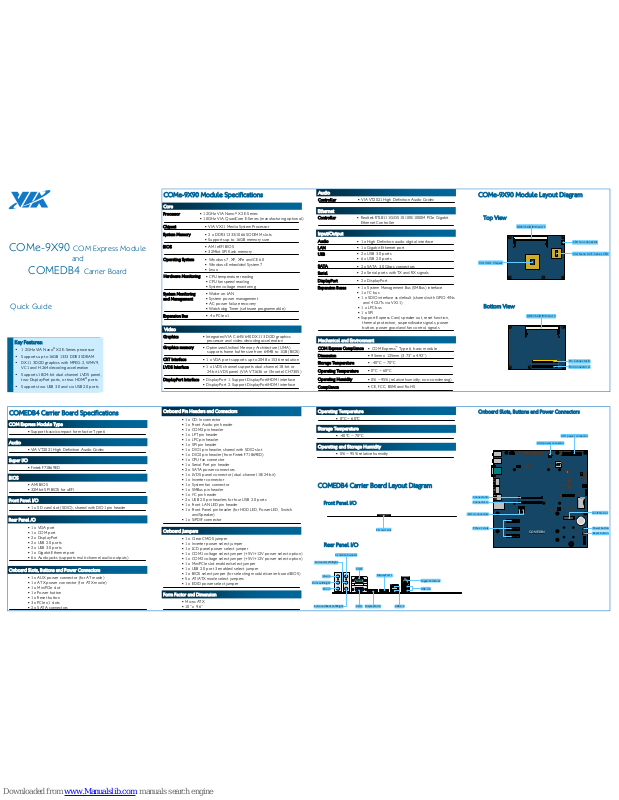

VIA Technologies COMe-9X90, COMEDB4 Quick Manual
DisplayPort ▪
2 x DisplayPort
Expansion Bus ▪
4 x PCIe x1
BIOS ▪
AMI eEFI BIOS
▪
32Mbit SPI flash memory
Video
▪
Wake-on-LAN
▪
System power management
▪
AC power failure recovery
▪
Watchdog Timer (software programmable)
Operating System ▪
Windows 7, XP, XPe and CE 6.0
▪
Windows Embedded System 7
▪
Linux
Hardware Monitoring ▪
CPU temperature reading
▪
CPU fan speed reading
▪
System voltage monitoring
System Memory ▪
2 x DDR3 1333/1066 SODIMM slots
▪
Supports up to 16GB memory size
COMe-9X90
COM Express Module
and
COMEDB4
Carrier Board
COM Express Module Type
▪ Support basic/compact form factor Type 6
COMEDB4 Carrier Board Specifications
▪ VIA VT2021 High Definition Audio Codec
▪ Fintek F71869ED
Audio
Super I/O
BIOS
▪ AMI BIOS
▪
32Mbit SPI BIOS for uEFI
Front Panel I/O
▪ 1 x SD card slot (SDIO), shared with DIO1 pin header
Rear Panel /O
▪ 1 x VGA port
▪
1 x COM port
▪
2 x DisplayPort
▪ 2 x USB 2.0 ports
▪
2 x USB 3.0 ports
▪
1 x Gigabit Ethernet port
▪ 6 x Audio jacks (supports multi-channel audio outputs)
Operating and Storage Humidity
▪ 0% ~ 95% relative humidity
Storage Temperature
▪ -40°C ~ 70°C
Onboard Pin Headers and Connectors
▪ 1 x CD-In connector
▪
1 x Front Audio pin header
▪ 1 x COM2 pin header
▪
1 x LPT pin header
▪
1 x LPC pin header
▪ 1 x SPI pin header
▪
1 x DIO1 pin header, shared with SDIO slot
▪
1 x DIO2 pin header (from Fintek F71869ED)
▪
1 x CPU fan connector
▪
1 x Serial Port pin header
▪
2 x SATA power connectors
▪
1 x LVDS panel connector (dual-channel 18/24-bit)
▪
1 x Inverter connector
▪
1 x System fan connector
▪
1 x SMBus pin header
▪
1 x I2C pin header
▪ 2 x USB 2.0 pin headers for four USB 2.0 ports
▪ 1 x Front LAN LED pin header
▪ 1 x Front Panel pin header (for HDD LED, Power LED, Switch
and Speaker)
▪ 1 x S/PDIF connector
Form Factor and Dimension
▪ Micro-ATX
▪
10” x 9.6”
DisplayPort Interface ▪
DisplayPort 1: Support DisplayPort/HDMI interface
▪
DisplayPort 2: Support DisplayPort/HDMI interface
CRT Interface ▪
1 x VGA port supports up to 2048 x 1536 resolution
Chipset ▪
VIA VX11 Media System Processor
Core
Processor
▪ 1.2GHz VIA Nano® X2 E-Series
▪ 1.0GHz VIA QuadCore E-Series (manufacturing optional)
COMe-9X90 Module Specifications
Graphics ▪
Integrated VIA C-645/640 DX11 3D/2D graphics
processor and video decoding acceleration
Operating Humidity ▪
0% ~95% (relative humidity; non-condensing)
Storage Temperature ▪
-40°C ~ 70°C
COM Express Compliance ▪
COM Express™ Type 6, basic module
Dimension ▪
95mm x 125mm (3.73” x 4.92”)
Operating Temperature ▪
0°C ~ 60°C
Controller ▪
Realtek RTL8111G/GS 10/100/1000M PCIe Gigabit
Ethernet Controller
Ethernet
Expansion Buses ▪
1 x System Management Bus (SMBus) interface
▪
1 x I²C bus
▪ 1 x SDIO interface as default (shared with GPIO 4INs
and 4 OUTs via VX11)
▪ 1 x LPC bus
▪ 1 x SPI
▪ Support Express Card, speaker out, reset function,
thermal protection, suspend/wake signals, power
button, power good and fan control signals
Serial ▪
2 x Serial ports with TX and RX signals
SATA ▪
2 x SATA 3.0 Gbps connectors
Audio ▪
1 x High Definition audio digital interface
LAN ▪
1 x Gigabit Ethernet port
USB ▪
2 x USB 3.0 ports
▪
6 x USB 2.0 ports
Input/Output
Mechanical and Environment
Key Features:
• 1.2GHz VIA Nano® X2 E-Series processor
• Supports up to 16GB 1333 DDR3 SDRAM
• DX11 3D/2D graphics with MPEG-2, WMV9,
VC1 and H.264 decoding acceleration
• Supports 18/24-bit dual-channel LVDS panel,
two DisplayPort ports, or two HDMI® ports
• Supports two USB 3.0 and six USB 2.0 ports
Top View
Bottom View
Rear Panel I/O
Front Panel I/O
Quick Guide
Onboard Jumpers
▪ 1 x Clear CMOS jumper
▪ 1 x Inverter power select jumper
▪ 1 x LCD panel power select jumper
▪ 1 x COM1 voltage select jumper (+5V/+12V power select option)
▪ 1 x COM2 voltage select jumper (+5V/+12V power select option)
▪ 1 x MiniPCIe slot enabled select jumper
▪ 1 x USB 2.0 port 3 enabled select jumper
▪ 1 x BIOS select jumper (for selecting module/carrier board BIOS)
▪ 5 x AT/ATX mode select jumpers
▪ 1 x EDID power select jumper
Operating Temperature
▪ 0°C ~ 60°C
Onboard Slots, Buttons and Power Connectors
▪ 1 x AUX power connector (for AT mode)
▪
1 x ATX power connector (for ATX mode)
▪ 1 x MiniPCIe slot
▪
1 x Power button
▪ 1 x Reset button
▪
3 x PCIe x1 slots
▪
2 x SATA connectors
COMEDB4 Carrier Board Layout Diagram
System Monitoring
and Management
Graphics memory ▪
Optimized Unified Memory Architecture (UMA)
supports frame buffer size from 64MB to 1GB (BIOS)
Controller ▪
VIA VT2021 High Definition Audio Codec
Audio
Compliance ▪
CE, FCC, BSMI and RoHS
COMe-9X90 Module Layout Diagram
Onboard Slots, Buttons and Power Connectors
LVDS Interface
▪ 1 x LVDS channel supports dual-channel 18-bit or
24-bit LVDS panel (VIA VT1636 or Chrontel CH7305)
DDR3 SODIMM slot 1
VIA Nano X2 E-Series CPU
CPU fan connector
VIA VX11 Chipset
A1
B1
C1
D1
Pin Connector B
Pin Connector A
DDR3 SODIMM slot 2
SD card slot
VGA
DisplayPort 2
COM
Gigabit Ethernet
Line-in
Mic-in
Surround Left/Right
Surround Back Left/Right
Center/Subwoofer
DisplayPort 1
USB 2.0
USB 3.0
Front Left/Right
COMEDB4
COMEDB4
PCIe x1 slots
Connector A
Connector B
SATA connectors
Power button
Reset button
miniPCIe slot
AUX power connector
ATX power connector
For more information on this and other VIA products,
please visit
www.viatech.com
Step 2
Install five 8mm hex spacers onto the carrier board. The hex spacer must
be placed on top of the board. From the bottom of the board, tighten
the hex spacers by using the M2.5x4mm screws (x5).
VIA Technologies, Inc.
1F, 531, Zhong-zheng Road, Xindian District,
New Taipei City 231, Taiwan
Tel: 886-2-2218-5452
Fax: 886-2-2218-5453
Web:
www.viatech.com
-A4_L 1 2 PVDD
A4_L 3 4 PVDD
GND 5 6 GND
-A5_L 7 8 GND
A5_L 9 10 -A0_L
GND 11 12 A0_L
-A6_L 13 14 GND
A6_L 15 16 -A1_L
GND 17 18 A1_L
-CLK2_L 19 20 GND
CLK2_L 21 22 -A2_L
GND 23 24 A2_L
-A7_L 25 26 GND
A7_L 27 28 -CLK1_L
NC 29 30 CLK1_L
NC 31 32 GND
DDC_PWR 33 34 -A3_L
NC 35 36 A3_L
NC 37 38 SPCLK
NC 39 40 SPD
LVDS
15
1 FANIO
2 FANPWM
3 GND
SYSFAN
16
5V_DIO1 1 2 12V_DIO1
COM_GPO0 3 4 COM_GPI0
COM_GPO1 5 6 COM_GPI1
COM_GPO2 7 8 COM_GPI2
COM_GPO3 9 10 COM_GPI3
GND 11 12 GND
DIO1
17
1 I2C_CLK
2 I2C_DATA
3 GND
I2C_BUS
19
1 SMB_CLK
2 SMB_DATA
3 GND
SMBUS
20
FP_5V 1 2 FP_5V
FP_5V 3 4 -SATA_LED
-PLED 5 6 -PW _BTN
FP_5V 7 8 GND
NC 9 10 RST_SW
NC 11 12 GND
SPEAK 13 14 FP_5V
KEY 15 16 NC
F_PANEL
18
1 +5V
2 SPDIFO
3 GND
SPDIF
21
CD_IN
1
1 CD_IN_L
2 CD_IN_GND
3 CD_IN_GND
4 CD_IN_R
MIC2_FR_L 1 2 AGND
MIC2_FR_R 3 4 FNT_DET
HP_OUT_R 5 6 MIC2_JD
FNT_IO_SENSE 7 8 KEY
HP_OUT_L 9 10 LINE2_JD
+12V 11 12 +12V
AGND 13 14 AGND
F_AUDIO
2
COM_DCD2 1 2 COM_RXD2
COM_TXD2 3 4 COM_DTR2
GND 5 6 COM_DSR2
COM_RTS2 7 8 COM_CTS2
COM_RI2 9 10 KEY
COM2
3
-LP_STB 1 2 -LP_AFD
LP_D0 3 4 -LP_ERR
LP_D1 5 6 -LP_INIT
LP_D2 7 8 -LP_SLIN
LP_D3 9 10 GND
LP_D4 11 12 GND
LP_D5 13 14 GND
LP_D6 15 16 GND
LP_D7 17 18 GND
-LP_ACK 19 20 GND
LP_BUSY 21 22 GND
LP_SLCT 25 26 KEY
LP_PE 23 24 GND
LPT
4
LPC_AD1 1 2 LPC_33M_CLK
-LPC_RESET 3 4 GND
LPC_AD0 5 6 NC
LPC_AD2 7 8 -LPC_FRAME
LPC_SERIRQ 9 10 LPC_AD3
-LPC_DRQ1 11 12 NC
+5V 13 14 +3.3V
+5V 15 16 +3.3V
GND 17 18 GND
GND 19 20 KEY
LPC
5
DIO2
6
5V_DIO2 1 2 12V_DIO2
GPO34 3 4 GPI50
GPO35 5 6 GPI51
GPO36 7 8 GPI52
GPO37 9 10 GPI53
GND 11 12 GND
1 FANIO
2 FANPWM
3 GND
CPUFAN
7
SER0_TX_CON 1 2 SER0_RX_CON
NC 3 4 NC
GND 5 6 NC
SER1_TX_CON 7 8 SER1_RX_CON
NC 9 10 KEY
SER_PORT
11
VUSB 1 2 VUSB
USBD_T0- 3 4 USBD_T1-
USBD_T0+ 5 6 USBD_T1+
GND 7 8 GND
KEY 9 10 GND
USB2_0/1
9
1 IVDD_IN
2 IVDD_IN
3 BAKLITE_EN
4 BLT_CK
5 BAKLITE_EN
6 BLT_CTRL
7 GND
8 GND
Inverter
14
3VSUS 1 2 -LAN_ACT
3VSUS 3 4 NC
GND 5 6 W_LAN_LED
3VSUS 7 8 GND
KEY 9 10 GND
FLAN_LED
22
SPI_VCC 1 2 GND
-SPI_SS0 3 4 SPI_CLK
SPI_DI 5 6 SPI_DO
KEY 7 8 RESET
SPI
10
2
Installing SODIMM memory
on COMe-9X90 module
Step 1
Align the notch on the memory module with the protruding wedge on the
SODIMM slot. Insert the memory module into the slot at 30 degrees angle.
Installing COMe-9X90 module
to COMEDB4 carrier board
Step 6
Connect the CPU fan connector cable.
Step 1
Locate the carrier board mounting points (x5) and the connectors (x2).
Step 5
Install the heatsink on COMe-9X90 module. Secure it with four M2.5x15mm
screws (with 3mm plastic washer).
1
Step 3
Align the pin connectors and mounting points of the COMe-9X90 module
into the connectors and hex spacers on the carrier board respectively. Then
press down the COMe-9X90 module until the pin connectors have been
fully inserted into the connectors.
Onboard Pin headers and Connectors
Step 2
Push down until the memory module snaps into place. The memory slot has
two locking mechanisms that will click once the memory module has been
fully inserted.
Pins Description
1-2 Enabled COM2 pin header
to support +5V
2-3 Normal (default)
3-4 Enabled COM2 pin header
to support +12V
24
JP_COM2_VSEL
23
Pins Description
1-2 Enabled COM1 pin header
to support +5V
2-3 Normal (default)
3-4 Enabled COM1 pin header
to support +12V
JP_COM1_VSEL
Pins Description
1-2 Keep CMOS setting (default)
2-3 Clear CMOS setting
36
CLEAR_CMOS
Pins Description
1-2 Enabled USB 2.0 port 3 pin header. (default)
3-4 Enabled USB 2.0 port 3 pin header. (default)
28
JP_USBP3_SEL
Pins Description
1-2 Use +5V for the Inv erter power.
2-3 Use +12V for the Inve rter power. (default)
30
IVDD
Pins Description
1-2 Use +5V for the
LCD panel power.
2-3 Use +3.3V for the
LCD panel power (default)
34
PVDD
Pins Description
1-2 Enabled Mini PCIe slot.
3-4 Enabled Mini PCIe slot.
29
JP_USBME_SEL
Note: For [29] JP_USBME_SEL to be activated,
the [28] JP_USBP3_SEL function has to be
disabled.
Onboard Jumpers
Step 4
Secure the COMe-9X90 module using M2.5x4mm screw. Then apply the
thermal paste on top of the processor and chipset.
VUSB 1 2 VUSB
USBD_T2- 3 4 USBD_T3-
USBD_T2+ 5 6 USBD_T3+
GND 7 8 GND
KEY 9 10 GND
USB2_2/3
8
1 +5V
2 +12V
3 GND
S_PWR2
12
1 +5V
2 +12V
3 GND
S_PWR1
13
Pins Description
1-2 Select mo dule SPI BIOS (default)
2-3 Select carrier board SPI BIOS
33
BIOS_DIS1
Copyright © 2013-2017 VIA Technologies, Inc. All rights reserved.
Pins Description
1-2 ATX mode (default)
2-3 AT mode
25
JP_AT/ATX_SEL5
Pins Description
1-2 ATX mode (default)
2-3 AT mode
26
JP_AT/ATX_SEL2
Pins Description
1-2 ATX mode (default)
2-3 AT mode
27
JP_AT/ATX_SEL3
Pins Description
1-2 ATX mode (default)
2-3 AT mode
32
JP_AT/ATX_SEL4
Pins Description
1-2 +3.3V (default)
2-3 +5V
31
EDID_PWR
Pins Description
1-2 ATX mode (default)
2-3 AT mode
35
JP_AT/ATX_SEL1
Note:
Due to the limitation of component height at the bottom side of COMe-9X90,
the SODIMM memory module installed in this side (SODIMM2 slot) ca nnot
be bundled with heatsink or thermal pad.
Loading...
