VIA Mainboard VB7007 Operating Manual

Operating Guide

VB7007 Mainboard

January 13, 2011 Version 1.04

VB7007 Operating Guide

Table of Contents

Table of Contents ..................................................................................................................i

VIA VB7007 Overview ...........................................................................................................1

VIA VB7007 Layout (Top and Side Views)................................................................................2

VIA VB7007 Specifications.....................................................................................................3

VIA VB7007 Processor SKU ...................................................................................................4

VIA VB7007 I/O Back Panel Layout.........................................................................................5

VIA VB7007 Dimensions & Mounting Holes ..............................................................................6

VIA VB7007 Layout & Height Distribution ................................................................................8

Power Consumption..............................................................................................................9

VB7007 C7_D 16000 .........................................................................................................9

A. Playing DVDs with PowerDVD 5.0 .................................................................................9

B. Playing MP3 with Media Player......................................................................................9

C. Running Network Applications - Copying Files (VT6103L).................................................9

D. Running Network Applications - Copying Files (VT6107) ..................................................9

E. Idle State................................................................................................................. 10

F. Running C.C. Winstone 2004 ...................................................................................... 10

G. S3 Mode .................................................................................................................. 10

VB7007 C7 10000 ...........................................................................................................11

A. Playing DVDs with PowerDVD 5.0 ............................................................................... 11

B. Playing MP3 with Media Player.................................................................................... 11

C. Running Network Applications - Copying Files (VT6103L)............................................... 11

D. Running Network Applications - Copying Files (VT6107) ................................................ 11

E. Idle State................................................................................................................. 11

F. Running C.C. Winstone 2004 ...................................................................................... 12

G. S3 Mode .................................................................................................................. 12

Power Specifications ........................................................................................................... 13

VIA VB7007 Microsoft and Linux Driver Support ..................................................................... 14

Microsoft Driver Support................................................................................................... 14

Linux Driver Support........................................................................................................ 14

Contact ............................................................................................................................. 15

January 13, 2011 - i - Version 1.04

VB7007 Operating Guide

VIA VB7007 Overview

The VIA VB7007 Mini-ITX mainboard is a compact native x86 platform for POS and kiosk
applications. The mainboard is based on the VIA CN700 chipset featuring the VIA UniChrome™ Pro
II IGP with 2D/3D graphics and video accelerators for rich digital media performance.

The VIA VB7007 onboard VIA C7 processor is a powerful, secure, and efficient processor with its
included VIA Padlock Security Engine, VIA CoolStream™ Architecture, VIA StepAhead™ Technology
Suite, and VIA TwinTurbo™ technology.

The VIA VB7007 delivers the performance levels with its included sizeable support of up to 1 GB of
533 MHz DDR2 memory and native support for SATA 3Gb/s storage devices. High-bandwidth
connectivity is supported with the included eight USB 2.0 ports and two Fast Ethernet LAN ports1
on the back panel. Four additional USB 2.0 ports are available through the onboard pin
connectors.

The VIA VB7007 is fully compatible with Microsoft® and Linux operating systems and is available in
a variety of configurations.

1

One of the Fast Ethernet ports can be exchanged for a Gigabit LAN as a manufacturing option.

January 13, 2011 - 1 - Version 1.04

VB7007 Operating Guide

VIA VB7007 Layout (Top and Side Views)

J2

J1

FIR

COM3

COM4

J3

COM2

Inverter

PVDD

IVDD_SEL

KB/MS

ATX Power

SYS_Fan

VIA C7 processor

CPU_Fan

DDR2 Memory slot

CN700 North Bridge

Buzzer

SMBus

DIO

VT8237S South Bridge

IDE

1

Battery

Front Panel

Front Audio

SPDIF

USB_0/1

LVDS Panel

USB_2/3

PCI

SATA

Clear CMOS

January 13, 2011 - 2 - Version 1.04

VB7007 Operating Guide

VIA VB7007 Specifications2

Model Name - VB7007-16 - VB7007-10E

Processor - VIA C7®-D 1.6 GHz NanoBGA2 processor - VIA C7® 1.0 GHz NanoBGA2 processor

Chipset - VIA CN700 North Bridge

System Memory - 1 x DDR2 533/6673 DIMM slot

VGA - VIA UniChrome™ Pro II Integrated Graphics with 2D/3D and MPEG-2 accelerators

Onboard Storage - 1 x UltraDMA 133/100/66/33 connector

- 2 x SATA 3Gb/s connectors

Expansion Slots - 1 x PCI slot

Onboard LAN - 1 x VIA VT6103L 10/100 Mbps Fast Ethernet PHY

Onboard Audio - VIA VT1708B High Definition audio codec

Onboard I/O Connectors - 3 x COM pin headers (with 5V/12V select)

Back Panel I/O - 1 x VGA port

- 4 x USB 2.0 ports

BIOS - Award BIOS

Operating System Windows 2000/XP, Linux, Win CE/XPe

System Monitoring &
Management

Operating Temperature

Operating Humidity 0% ~ 95% (relative humidity; non-condensing)

Form Factor - Mini-ITX (17 cm x 17 cm)

- VIA VT8237S South Bridge

- Up to 1 GB memory size

- 1 x VIA VT6107 10/100 Mbps Fast Ethernet controller or
1 x VIA VT6122 PCI Gigabit Ethernet Controller4

- 1 x digital I/O pin header

- 2 x USB pin headers (4 additional ports)

- 1 x SMBus pin header

- 1 x S/PDIF-out connector

- 1 x Dual-channel LVDS panel connector (18/24-bit)

- 1 x LVDS panel power selector (5V/3.3V)

- 1 x LVDS inverter pin header

- 1 x LVDS inverter power selector (5V/12V)

- 1 x FIR pin header

- 2 x fan connectors (CPU and SYS)

- 1 x fan panel connector

- 1 x front panel audio pin header

- 1 x ATX power connector

- 1 x COM port

- 1 x parallel port

- 2 x RJ45 LAN ports

- 4 x USB 2.0 ports

- 3 x audio jacks: Line-in, Line-out, and MIC-in

- 2 x PS/2 ports: keyboard and mouse

- SPI 4/8 Mbit flash memory

- Wake-on LAN, keyboard, and mouse

- RTC Timer

- System power management, AC Power failure recovery

0°C ~ 50°C

2

Specifications subject to change without notice.

3

DDR2 667 MHz memory modules can be used, but the effective speed will be 533 MHz.

4

Manufacturing option

January 13, 2011 - 3 - Version 1.04

VB7007 Operating Guide

VIA VB7007 Processor SKU

The VIA VB7007 is available in the following speed grade:

• 1.6 GHz VIA C7

• 1.0 GHz VIA C7

®

-D NanoBGA2 Processor

®

NanoBGA2 Processor

January 13, 2011 - 4 - Version 1.04

VB7007 Operating Guide

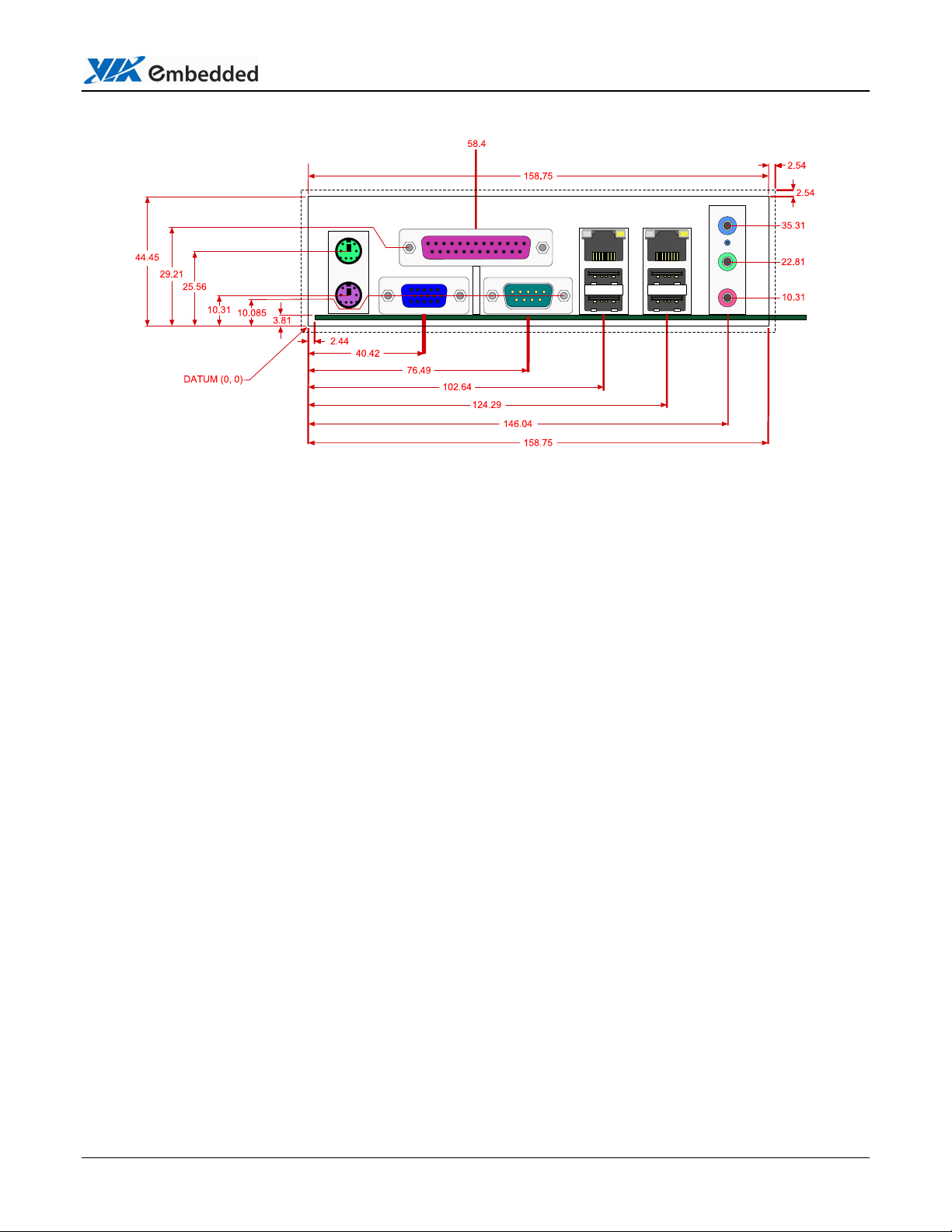

VIA VB7007 I/O Back Panel Layout

The VIA VB7007 mainboard comes in the compact dimensions of 17 cm x 17 cm. Its integrated
design supports most of the standard legacy x86 connectivity options through its onboard pin
connectors. Its back panel IO includes one PS/2 mouse port, one PS/2 keyboard port, one parallel
port, one VGA port, one COM port, four standard USB 2.0 ports, two RJ45 LAN ports, and three
audio jacks (Line-in, Line-out, and MIC-in).

January 13, 2011 - 5 - Version 1.04

VB7007 Operating Guide

VIA VB7007 Dimensions & Mounting Holes

January 13, 2011 - 6 - Version 1.04

VB7007 Operating Guide

January 13, 2011 - 7 - Version 1.04

VB7007 Operating Guide

VIA VB7007 Layout & Height Distribution

January 13, 2011 - 8 - Version 1.04

VB7007 Operating Guide

Power Consumption

The following tables are a comprehensive breakdown of the mainboard’s voltage, amp and wattage
values while running common system applications.

VB7007 C7_D 16000

A. Playing DVDs with PowerDVD 5.0

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.098 2.614 8.098

Main Board +5V 4.952 1.461 7.235

Main Board 5VSB 5.066 0.124 0.628

Main Board +12V 12.068 0.163 1.967

Total Power Consumption 17.928

B. Playing MP3 with Media Player

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.102 2.650 8.220

Main Board +5V 4.925 2.091 10.298

Main Board 5VSB 5.062 0.127 0.643

Main Board +12V 12.080 0.165 1.993

Total Power Consumption 21.154

C. Running Network Applications - Copying Files (VT6103L)

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.132 2.521 7.896

Main Board +5V 4.982 1.153 5.744

Main Board 5VSB 5.068 0.207 1.049

Main Board +12V 12.071 0.169 2.040

Total Power Consumption 16.729

D. Running Network Applications - Copying Files (VT6107)

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.141 2.512 7.890

Main Board +5V 4.983 1.097 5.466

Main Board 5VSB 5.070 0.188 0.953

Main Board +12V 12.076 0.167 2.017

Total Power Consumption 16.326

January 13, 2011 - 9 - Version 1.04

VB7007 Operating Guide

E. Idle State

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.177 2.365 7.514

Main Board +5V 5.005 0.871 4.359

Main Board 5VSB 5.082 0.122 0.620

Main Board +12V 12.077 0.169 2.041

Total Power Consumption 14.534

F. Running C.C. Winstone 2004

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.145 2.456 7.724

Main Board +5V 4.891 2.277 11.137

Main Board 5VSB 5.085 0.129 0.656

Main Board +12V 12.078 0.165 1.993

Total Power Consumption 21.510

G. S3 Mode

Measured Voltage Measure Amp Watts

Main Board +3.3V 0.000 0.000 0.000

Main Board +5V 0.000 0.000 0.000

Main Board 5VSB 5.140 0.152 0.781

Main Board +12V 0.000 0.000 0.000

Total Power Consumption 0.781

January 13, 2011 - 10 - Version 1.04

VB7007 Operating Guide

VB7007 C7 10000

A. Playing DVDs with PowerDVD 5.0

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.321 3.047 10.119

Main Board +5V 4.966 1.197 5.944

Main Board 5VSB 5.076 0.220 1.117

Main Board +12V 11.934 0.160 1.909

Total Power Consumption 19.089

B. Playing MP3 with Media Player

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.339 2.903 9.693

Main Board +5V 4.982 1.187 5.914

Main Board 5VSB 5.092 0.220 1.120

Main Board +12V 11.956 0.161 1.925

Total Power Consumption 18.652

C. Running Network Applications - Copying Files (VT6103L)

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.320 2.900 9.628

Main Board +5V 4.975 1.068 5.313

Main Board 5VSB 5.074 0.232 1.177

Main Board +12V 11.937 0.163 1.946

Total Power Consumption 18.064

D. Running Network Applications - Copying Files (VT6107)

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.335 2.929 9.768

Main Board +5V 4.981 1.112 5.539

Main Board 5VSB 5.089 0.205 1.043

Main Board +12V 11.950 0.165 1.972

Total Power Consumption 18.322

E. Idle State

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.354 2.758 9.250

Main Board +5V 5.009 0.655 3.281

Main Board 5VSB 5.105 0.221 1.128

Main Board +12V 11.954 0.167 1.996

Total Power Consumption 15.655

January 13, 2011 - 11 - Version 1.04

VB7007 Operating Guide

F. Running C.C. Winstone 2004

Measured Voltage Measure Amp Watts

Main Board +3.3V 3.341 2.807 9.378

Main Board +5V 4.979 1.385 6.896

Main Board 5VSB 5.094 0.220 1.121

Main Board +12V 11.963 0.161 1.926

Total Power Consumption 19.321

G. S3 Mode

Measured Voltage Measure Amp Watts

Main Board +3.3V 0.010 0.000 0.000

Main Board +5V 0.006 0.000 0.000

Main Board 5VSB 5.156 0.243 1.253

Main Board +12V 0.000 0.000 0.000

Total Power Consumption 1.253

January 13, 2011 - 12 - Version 1.04

VB7007 Operating Guide

Power Specifications

The VIA VB7007 mainboard utilizes an industry standard 20-pin ATX power connector for
connecting to the power supply. Due to its ultra low power requirements, a 90 – 120 Watt ATX
power supply is ample for even the heaviest of multimedia system applications.

Pin Signal Pin Signal

1 +3.3V 11 +3.3V

2 +3.3V 12 -12V

3 Gnd 13 Gnd

4 +5V 14 PS_ON

5 Gnd 15 Gnd

6 +5V 16 Gnd

7 Gnd 17 Gnd

8 PW_OK 18 -5V

9 +5V_SB 19 +5V

10 +12V 20 +5V

January 13, 2011 - 13 - Version 1.04

VB7007 Operating Guide

VIA VB7007 Microsoft and Linux Driver Support

M

ICROSOFT DRIVER SUPPORT

The VIA VB7007 mainboard is compatible with Microsoft operating systems. The latest Windows
Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at

www.viaembedded.com.

For embedded operating systems (Windows XP Embedded), the related drivers can be found in the
VIA Arena website at www.viaarena.com.

L

INUX DRIVER SUPPORT

The VIA VB7007 mainboard is highly compatible with many Linux distributions.

Support and drivers are provided through various methods including:

• Drivers provided by VIA

• Using a driver built into a distribution package

• Visiting VIA Arena website at www.viaarena.com for latest updates on a monthly basis

• Installing a third party driver (such as the ALSA driver from the Advanced Linux Sound

Architecture project for integrated audio)

For OEM clients and system integrators developing a product for long term production, other code
and resources may also be made available. You can submit a request either through the

Developers portal at VIA Arena, or through your VEPD support contact. Alternatively, VIA can work

further towards providing additional drivers to fit your specific needs.

January 13, 2011 - 14 - Version 1.04

VB7007 Operating Guide

Contact

For more information on the VIA VB7007 mainboard contact your sales representative or visit our
website at www.viaembedded.com.

Taiwan Headquarters
1F, 531 Zhong-Zheng Road
Xindian, Taipei, 23148
Taiwan

TEL: [phone]
FAX: [phone]
Email: [e-mail]

China
Tsinghua Science Park Bldg. 7
No. 1 Zongguancun East Road
Haiden District, Beijing 100084

TEL: [phone]
FAX: [phone]
Email: [e-mail]

USA
940 Mission Court
Fremont, CA 94539
USA

TEL: [phone]
FAX: [phone]
Email: [e-mail]

Japan
3-15-7 Ebisu MT Bldg. 6F
Higashi, Shibuya-ku
Tokyo 150-0011

TEL: [phone]
FAX: [phone]
Email: [e-mail]

Europe
In den Dauen 6
53117 Bonn
Germany

TEL: [phone]
FAX: [phone]
Email: [e-mail]

Korea
2F, Sangjin Bldg., 417
Dogok-Dong, Gangnam-Gu
Seoul 135-854

TEL: [phone]
FAX: [phone]
Email: [e-mail]

January 13, 2011 - 15 - Version 1.04
