Page 1
NETWORK BULLET CAMERA
Quick Start Guide
Page 2
1
Quick Start Guide
About this Manual
This Manual is applicable to Network Bullet Camera. The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
Page 3
2
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
Page 4
3
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply
standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info
which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
therefore with the applicable harmonized European
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol,
Page 5
4
Warnings Follow these
Cautions Follow these
safeguards to prevent
precautions to prevent
serious injury or death.
potential injury or material
damage.
Network Bullet Camera·Quick Start Guide
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings
are neglected. Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
● Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 12 VDC according
Page 6
5
to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact the service center.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a malfunction), and affect the endurance of sensor at the same time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
Page 7
6
● Do not place the camera in extremely hot, cold (the operating
temperature shall be-30° C to +60° C, or -40° C to +60° C if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required for
operating environment.
● Keep the camera away from liquid while in use.
● While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
● Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly according to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all the users. Please contact with your dealer for more details.
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
● If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)
Page 8
7
Network Bullet Camera·Quick Start Guide
Table of Contents
1 Appearance Description ............................................................... 8
2 Installation ................................................................................. 11
2.1 Ceiling Mounting ............................................................ 11
2.2 Wall Mounting with Junction Box ................................... 14
2.3 Installation of Water-proof Jacket .................................. 17
3 Setting the Network Camera over the LAN ................................. 19
3.1 Wiring ............................................................................. 19
3.2 Activating the Camera .................................................... 20
3.2.1 Activation via Web Browser ................................. 20
3.2.2 Activation via SADP Software ............................... 21
3.3 Modifying the IP Address ................................................ 23
4 Accessing via Web Browser ........................................................ 26
5 Operating via Guarding Vision App ............................................. 28
5.1 Enable Guarding Vision Service on Camera ..................... 28
5.1.1 Enable Guarding Vision Service via SADP Software.. 28
5.1.2 Enable Guarding Vision Service via Web Browser .... 29
5.2 Guarding Vision Setup .................................................... 31
5.3 Adding Camera to Guarding Vision ................................. 31
5.4 Initializing the Memory Card .......................................... 33
Page 9
8
6
1 4
2 3
1 Appearance Description
This series of cameras have three appearances shown as the figures below.
Type I:
1
2 3 4
5
Figure 1-1 Type I Bullet Camera Overview
Type II：
6
Figure 1-2 Type II Bullet Camera (PoE) Overview
5
Page 10
9
4
1 2
No.
Description
1 Mounting Base
2
Back Cover
3
Front Cover
4
IR LED
5
Grounding
6 Power Cord & Network Cable
5
6
Note:
For cameras support power over Ethernet (PoE), the power is passed along with data on Ethernet cabling. And a switch supports PoE function is required.
Description
Type III：
3
Type III Bullet Camera Overview
Page 11
10
No.
Description
1
Lens
2
Front Cover
3
Back Cover
4 Mounting Base
5
Power Cord
6 Network Cable
Description
Page 12
11
2 Installation
Before you start:
● Make sure the device in the package is in good condition and all
the assembly parts are included.
● The standard power supply is 12V DC, please make sure your
power supply matches with your camera.
● Make sure all the related equipment is power-off during the
installation.
● Check the specification of the products for the installation
environment.
● Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into the lens causing reflection.
Note:
Three types of the camera share the same installation method, we take type III bullet camera as the example to illustrate the installation.
2.1 Ceiling Mounting
Before you start:
Both wall mounting and ceiling mounting are suitable for the bullet camera. Ceiling mounting will be taken as an example in this section.
Page 13
12
And you can take steps of ceiling mounting as a reference for wall mounting.
Steps:
1. Paste the drill template (supplied) to the desired mounting position on the ceiling.
2. Drill the screw holes in the ceiling according to the supplied drill template.
Note:
Drill the cable hole, if adopting ceiling outlet to route the cable.
3-Φ 4 mm
Cable
Hole
3. Route the cables through the cable hole (optional), or the side opening.
4. Fix the camera on the ceiling with supplied screws.
Drill Template
Side
Opening

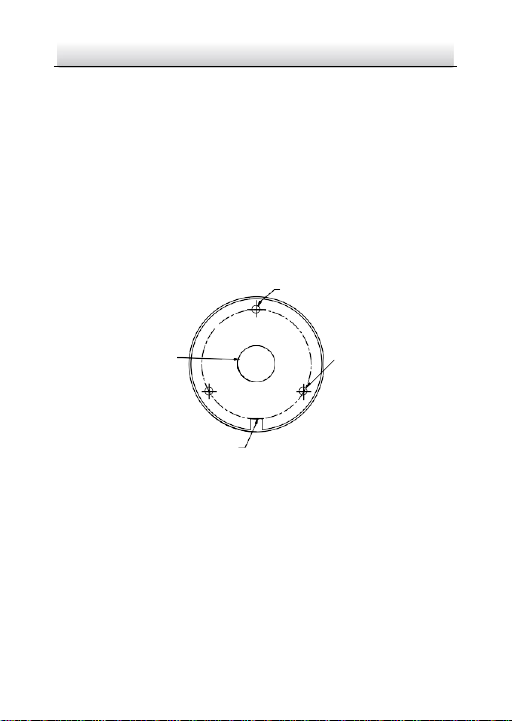

Figure 2-1 The Drill Template
Screw
Hole
Page 14
13
Note:
In the supplied screw package, both self-tapping screws, and
expansion bolts are contained.
If the ceiling is cement, expansion bolts are required to fix the
camera. If the ceiling is wooden, self-tapping screws are required.
5. Connect the corresponding power cord, and network cable.
6. Power on the camera, and set the network configuration (for details, refer to 3 Setting the Network Camera over the LAN and 4 Accessing via Web Browser) to check whether the image is gotten from the optimum angle. If not, adjust the surveillance angle.
1) Loosen the No.1 adjusting screw to adjust the rotation
2) Tighten the No.1 adjusting screw.
3) Loosen the No.2 adjusting screw to adjust the tilting position
4) Tighten the No. 2 adjusting screw.

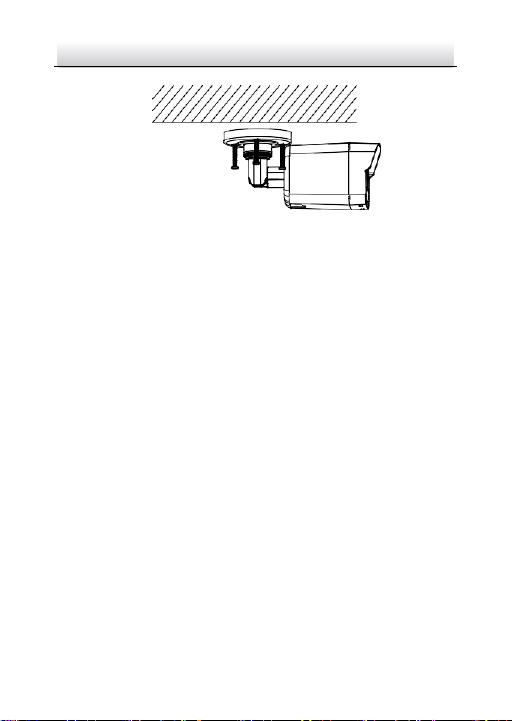

Figure 2-2 Fix the Camera on the Ceiling
position [0° to 360°].
[-90° to 90°].
Page 15
14
5) Loosen the No.3 adjusting screw to adjust the pan position [0° to 360°].
6) Tighten the No.3 adjusting screw.
R:0° to 360°

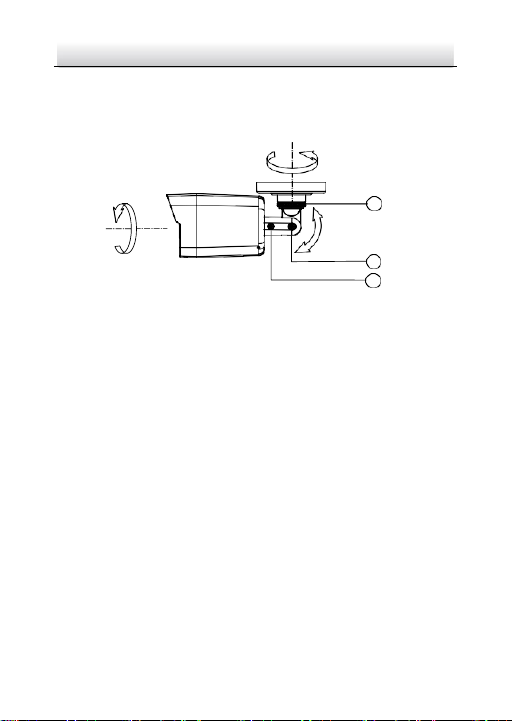

Figure 2-3 3-aix Adjustment
7. (Optional) Install the water-proof jacket. Refer to 2.3 Installation of Water-proof Jacket for details.
2.2 Wall Mounting with Junction Box
Before you start:
Both wall mounting and ceiling mounting are suitable for the
bullet camera. Wall mounting will be taken as an example in this section. And you can take steps of wall mounting as a reference for ceiling mounting.
You need to purchase a junction box first.
Steps:
1. Paste the drill template (supplied) to the desired mounting position on the wall.
P:0° to 360°
3
T:-90°to 90°
2 1
Page 16
15
2. Drill the screw holes and the cable hole (optional) in the wall according to the drill template.
Note:
Drill the cable hole, if adopting ceiling outlet to route the cable.
Screw
Hole
Cable
Hole
3. Take apart the junction box, and align the screw holes of the bullet camera with those on the junction box’ cover.
4. Fix the camera on the junction box’s cover with three PM4 × 10 screws.

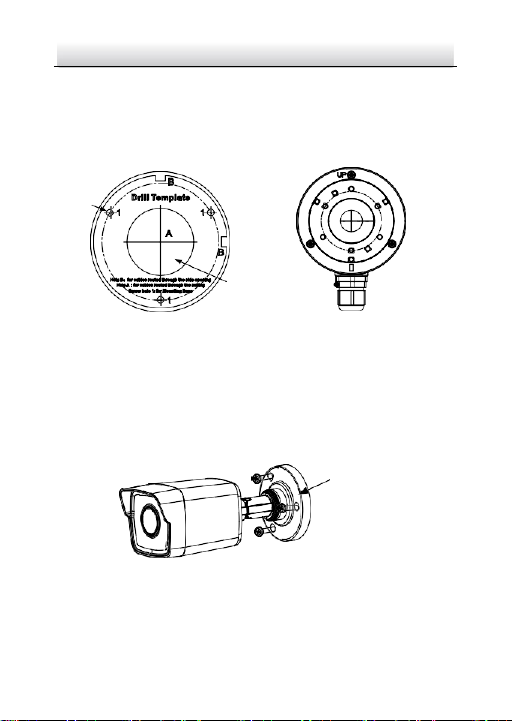

Figure 2-4 The Drill Template
Figure 2-5 Fix the Camera on Junction Box’s Cover
Junction Box
Cover
Page 17
16
Water Proof
Cover
Cable Gland
5. Secure the junction box’s body with three supplied screws on the wall.
6. Route the cables through the cable hole. Here we take bottom cable hole as the example to describe the installation.
7. Combine the junction box cover with its body with three screws on the junction box’s cover.

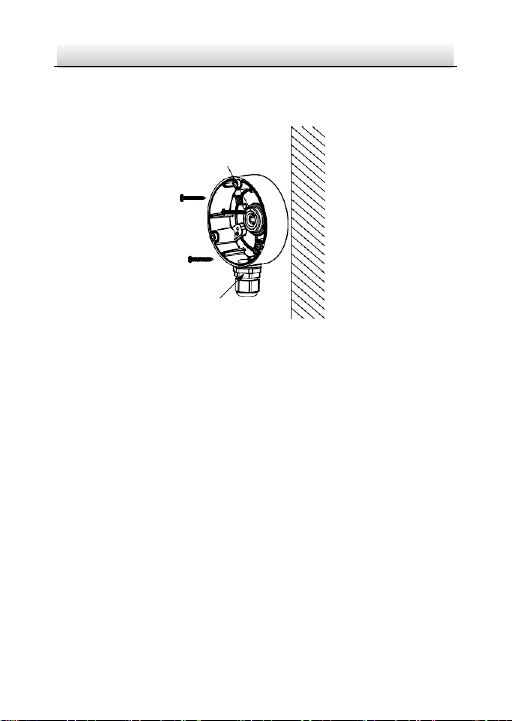

Figure 2-6 Fix the Junction Box on the Wall
1). Separate the water proof cover and the cable gland from the
junction box.
2). Route the cable through the bottom cable hole and the cable
gland.
3). Screw the cable gland back on the bottom cable hole.
4). Screw the water proof cover back on the side cable hole.
Page 18
17

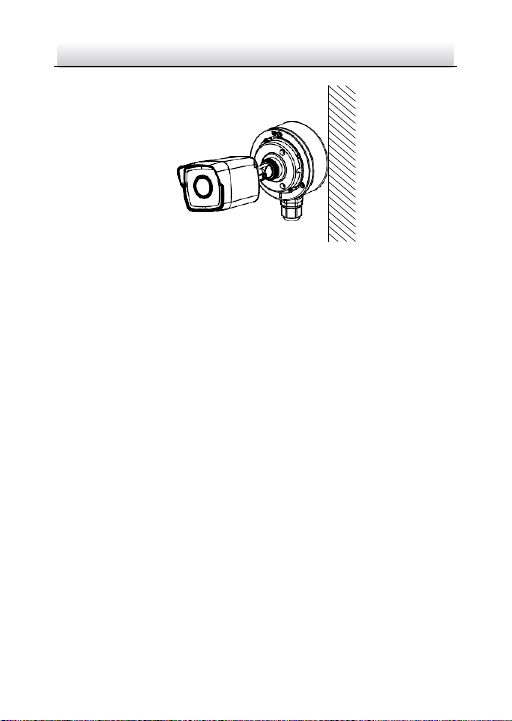

Figure 2-7 Combine Junction Box’s Cover with its Body
8. Repeat steps 5 to 7 of 2.1 Ceiling Mounting to complete the installation.

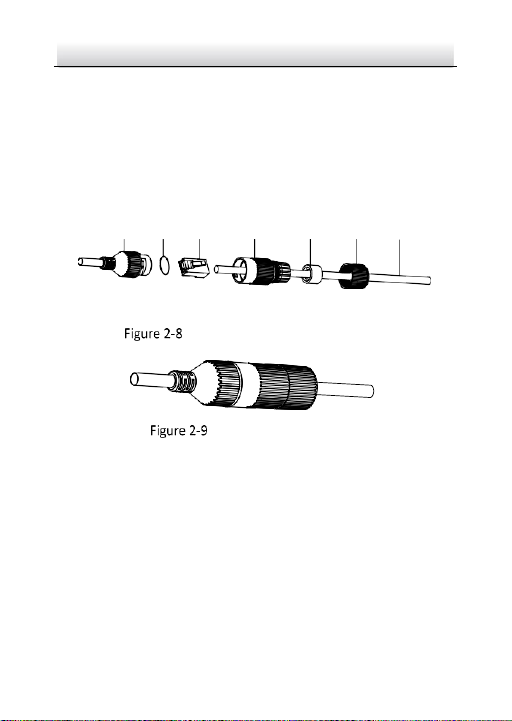

2.3 Installation of Water-proof Jacket
Purpose:
It is recommended to adopt the water-proof jacket (supplied) for the network interface when the camera is installed outdoor.
Steps:
1. If the network cable has been settled down, cut off the plug of the network cable first.
2. Route the network cable through the following components in sequence: fix nut, water-proof ring, and the main body of the water-proof jacket, as shown in the figure below.
3. Insert the water-proof ring into the main body of the water-proof jacket, to increase the sealing ability of the components.
Page 19
18
4. Wire the plug and network cables up.
5. Fix the O-ring to the network interface of the camera, and then connect the network cables.
6. Wrap the network interface with the main body of the water-proof jacket, and then rotate the fix nut clockwise to assemble it to the main body of the water-proof jacket.
Network Interface O-ring Plug Water-proof Jacket Water-pr oof Ring Fix Nut Network Cable
Components of Water-proof Jacket
Install Water-proof Jacket
Page 20
19
or
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.
If the product does not work properly, contact your dealer or the nearest service center for help.
3.1 Wiring

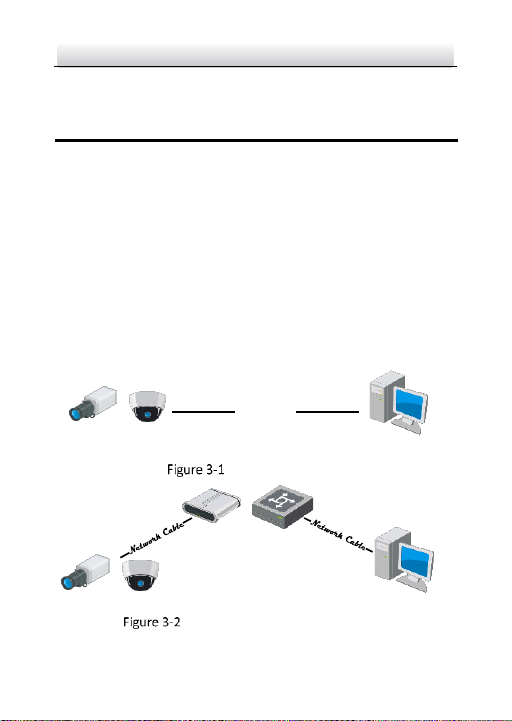

Connect the camera to network according to the following figures.
or
Network Camera
Network Cable
Connecting Directly
or
Network Camera Computer
Connecting via a Switch or a Router
Computer
Page 21
20
Network Bullet Camera·Quick Start Guide
3.2 Activating the Camera
You are required to activate the camera first by setting a strong password for it before you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation.
Note:
Refer to the User Manual of Network Camera for Activation via Client Software.
Activation via Web Browser
Steps:
1. Power on the camera. Connect the camera to your computer or the switch/router which your computer connects to.
2. Input the IP address into the address bar of the web browser, and press Enter to enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64. The computer and the camera should belong to the same
subnet.
For the camera enables the DHCP by default, you need to use
the SADP software to search the IP address.
Page 22
21
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

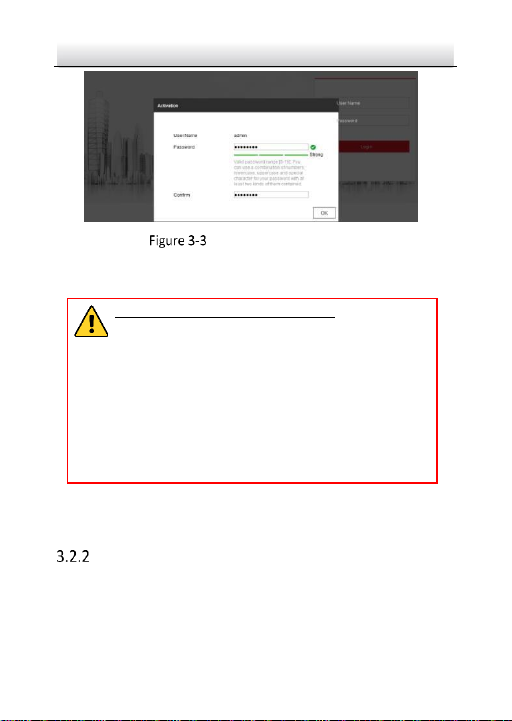

Activation Interface(Web)
3. Create a password and input the password into the password field.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via SADP Software
SADP software is used for detecting the online device, activating the camera, and resetting the password.
Page 23
22

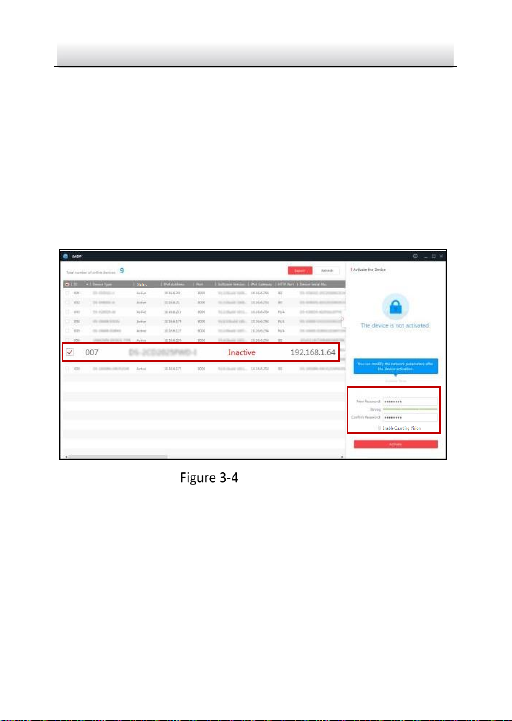

Select inactive device.
Input and confirm password.
Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera, please refer to the User Manual of Network Camera for other two activation methods.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the inactive device.
SADP Interface
Note:
The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details.
3. Create and input the new password in the password field, and confirm the password.
Page 24
23
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
Note:
You can enable the Guarding Vision service for the device during activation. Refer to Chapter 5.1 for detailed information.
4. Click Activate to start activation. You can check whether the activation is completed on the popup
window. If activation failed, make sure that the password meets the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC.
Use the SADP software or client software to search and change the IP address of the device. We take modifying the IP Address via SADP software as an example to introduce the IP address modification.
For IP address modification via client software, refer to the user manual of client software.
Page 25
24
Steps:
1. Run the SADP software.
2. Select an activate device.
3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.

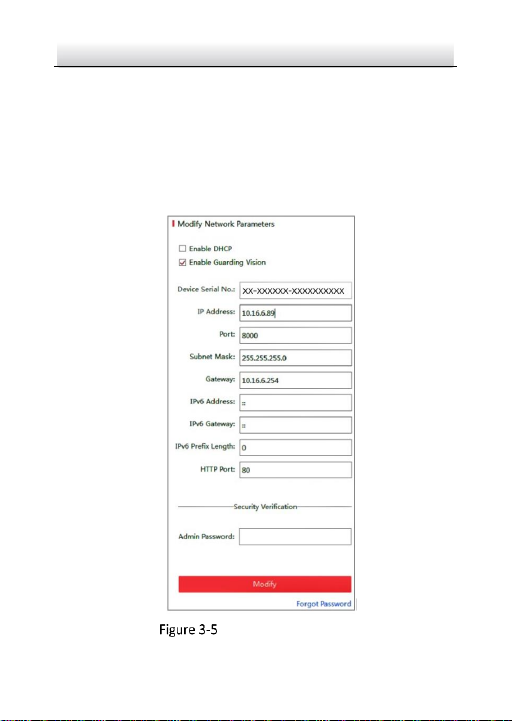

Modify the IP Address
Page 26
25
Note:
You can enable the Guarding Vision service for the device during activation. Refer to Chapter 5.1 for detailed information.
4. Input the admin password and click Modify to activate your IP address modification.
The batch IP address modification is supported by the SADP. Please refer to the User Manual of SADP for details.
Page 27
26
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network camera, and press the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.64. You are recommended
to change the IP address to the same subnet with your computer.
3. Input the user name and password. The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.
Note:
The device IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).
Page 28
27
4. Click Login.

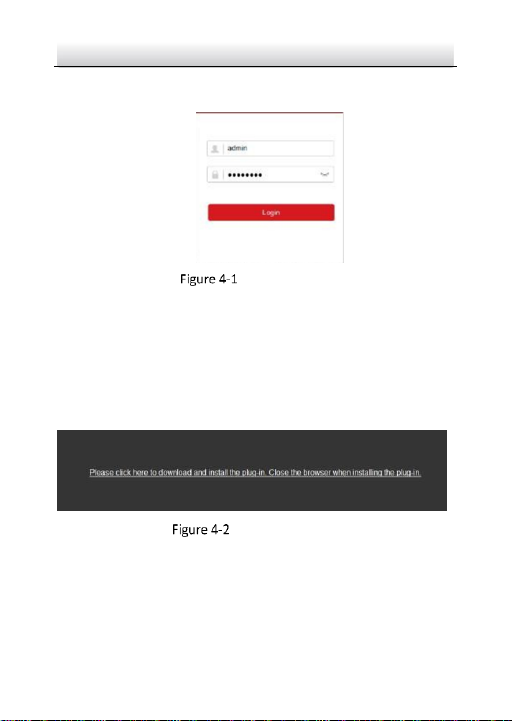

Login Interface
5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in.
Note:
You may have to close the web browser to finish the installation of the plug-in.
Download Plug-in
6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to the user manual of network camera.
Page 29
28
Network Bullet Camera·Quick Start Guide
5 Operating via Guarding Vision App
Purpose:
Guarding Vision is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so on.
Note:
Guarding Vision service is not supported by certain camera models.
5.1 Enable Guarding Vision Service on Camera
Purpose:
Guarding Vision service should be enabled on your camera before using the service.
You can enable the service through SADP software or web browser.
Enable Guarding Vision Service via SADP Software
Steps:
1. Check the checkbox of Enable Guarding Vision on:
1). "Activate the Device" page during camera activation, refer to
Chapter 3.2.2.
2). Or "Modify Network Parameters" page during modifying IP
address, refer to Chapter 3.3.
2. Create a verification code or change the verification code.
Page 30
29
Service” “Privacy Policy”

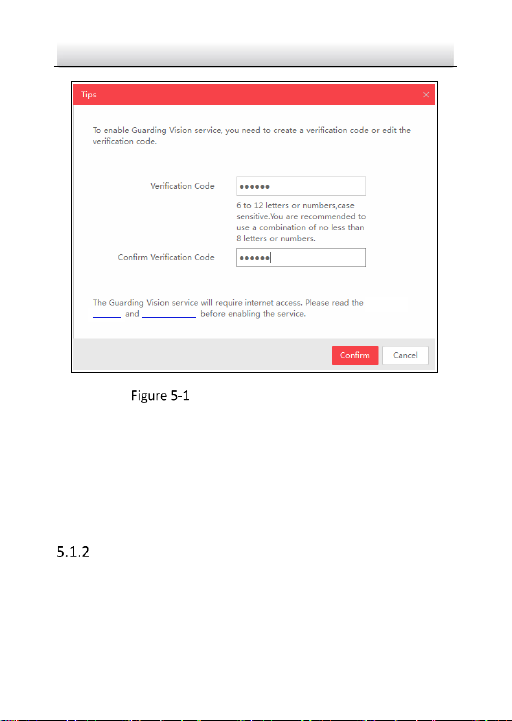

Verification Code Setting (SADP)
Note:
The verification code is required when you add the camera to Guarding Vision App.
3. Click and read "Terms of Service" and "Privacy Policy".
4. Confirm the settings.
Enable Guarding Vision Service via Web Browser
Before you start:
You need to activate the camera before enabling the service. Refer to Chapter 3.2.
Page 31
30
Guarding Vision
dev.guardingvision.com
Steps:
1. Access the camera through web browser. Refer to Chapter 4.
2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access
Platform Access Configuration (Web)
3. Select Platform Access Mode as Guarding Vision.
4. Check the checkbox of Enable.
5. Click and read "Terms of Service" and "Privacy Policy" in pop-up window.
6. Create a verification code or change the verification code for the camera.
Note:
The verification code is required when you add the camera to Guarding Vision App.
7. Save the settings.
Page 32
31
Network Bullet Camera·Quick Start Guide
5.2 Guarding Vision Setup
Steps:
1. Download and install the Guarding Vision App by searching “Guarding Vision” in App Store or Google PlayTM.
2. Launch the app and register for a Guarding Vision user account.
3. Log in Guarding Vision App after registration.
5.3 Adding Camera to Guarding Vision
Before you start:
You need to enable the Guarding Vision service on camera before adding it to your Guarding Vision account. Refer to Chapter 5.1.
Steps:
1. Use a network cable to connect the camera with a router if the camera does not support Wi-Fi.

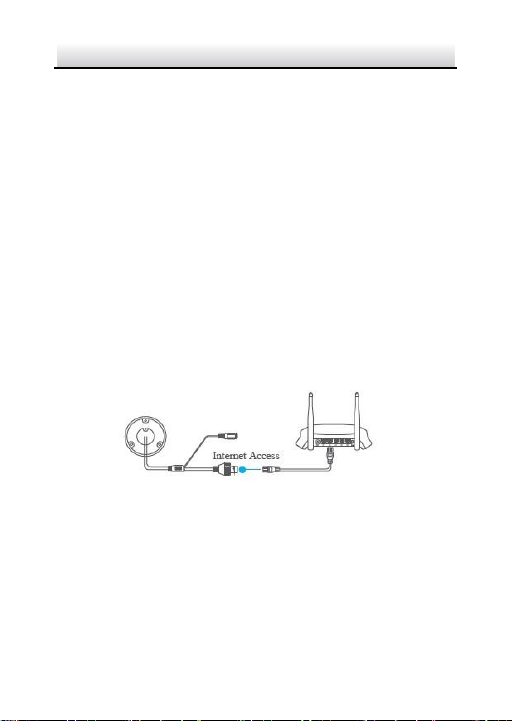

Figure 5-3 Connect a Router
Note:
After the camera connects to the network, please wait one minute before any operation on the camera using Guarding Vision App.
2. In the Guarding Vision App, tap “+” on the upper-right corner and then scan the QR code of the camera to add the camera.
Page 33
32
Network Bullet Camera·Quick Start Guide
You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package.
Figure 5-4 Scan QR Code
Note:
If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.
3. Input the verification code of your camera.
Note:
● The required verification code is the code you create or
change when you enabling Guarding Vision service on camera.
● If you forget the verification code, you can check the current
verification code on Platform Access configuration page via web browser.
4. Follow the prompts to set the network connection and add the camera to your Guarding Vision account.
Note:
For detailed information, refer to the user manual of the Guarding Vision App.
Page 34
33
Network Bullet Camera·Quick Start Guide
5.4 Initializing the Memory Card
Steps:
Check the memory card status by tapping on the Storage Status in the Device Settings interface.
If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
Page 35
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
