Vexar CD32M (-1)(-2), CD32M-1, CD32M-2, CD32M, CD36M Owner's Operation And Installation Manual

...

DIRECT-VENT FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

For more information, visit www.desatech.com

CD32M (-1)(-2), CD36M (-A1)(-A2), CD42M (-A)(-A2)

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

FOR YOUR SAFETY

This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or optional accessory items when needed. Keep it with your other important papers.

SAVE THIS BOOK

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property

FOR YOUR SAFETY

damage. Refer to this manual for correct installation and operational proce-

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch

dures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

WARNING: This direct-vent gas fireplace is intended for use with natural or propane/LP gas only. Do not attempt to burn any solid fuels in this appliance.

This fireplace is manufactured for Stylecrest Inc. under the Vexar brand name by DESA.

This fireplace may be installed as an OEM installation in a manufactured (mobile) home and must be installed in accordance with the manufacturers instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. This fireplace is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the fireplace.

Save this manual for future reference.

TABLE OF CONTENTS

INTRODUCTION

Before You Begin

TABLE OF CONTENTS

INTRODUCTION......................................................................... 2

SELECTING LOCATION ............................................................. 3

PRE-INSTALLATION PREPARATION ........................................ 3

INSTALLATION ........................................................................... 6

BURNER FLAME ADJUSTMENT .............................................. 11

OPERATING FIREPLACE ........................................................ 12

CONVERTING FIREPLACE FROM NATURAL GAS

TO PROPANE/LP GAS ........................................................ 13

INTRODUCTION

TROUBLESHOOTING .............................................................. 15

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 16

SPECIFICATIONS .................................................................... 20

WIRING DIAGRAM ................................................................... 20

OWNER’S REGISTRATION FORM .......................................... 21

ACCESSORY AND REPLACEMENT PARTS ........................... 23

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

Models CD32M sereies, CD36M-A series and CD42M-A series are heat circulating gravity direct-vent fireplaces with sealed combustion chamber. These fireplaces use millivolt gas control valve and millivolt ignition system.

These fireplaces are convertible with the standard setup as natural gas. Conversion may be performed by the O.E.M. mobile home builder or by a qualified service person on-site. If you are uncertain as to what gas your unit is equipped for, please check the rating plate located inside of the appliance opening or consult your mobile home supplier or your local distributor of DESA/Vexar products.

NOTICE: Check local building codes for area requirements before installing this appliance.

BEFORE YOU BEGIN

Before beginning the installation of your appliance, read these instructions through completely.

This DESA/Vexar fireplace and its components are safe when installed according to this installation manual and operated as recommended. Unless you use DESA/Vexar components designed and tested for this fireplace system, YOU MAY CAUSE A SAFETY

HAZARD!

The DESA/Vexar warranty will be voided by, and DESA/Vexar disclaims any responsibility for the following actions:

A) Modification to the fireplace, components, doors, blower, fans

or vent system.

B) Use of any component part not manufactured or approved

by DESA/Vexar in combination with a DESA/Vexar fireplace system.

Proper installation is the most important step in ensuring safe and continuous operation of the fireplace. Consult the local building codes as to the particular requirements concerned with the installation of all factory built fireplaces. This fireplace, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/ NFPA 70 or the Canadian Electrical Code, CSA C22.1.

The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 or the Canadian Installation Code, CAN/CGA B149. This appliance complies with ANSI Z21.88-1998 and CSA 2.33-M98 as a VENTED GAS FIREPLACE HEATER.

For more information, visit www.desatech.com

111916-01C

SELECTING LOCATION

PRE-INSTALLATION PREPARATION

Clearances to Combustibles

Mantel Clearances

3 3

SELECTING LOCATION

To determine the safest and most efficient location for your fireplace, consider the following guidelines:

1. The location must allow for proper clearances (see Figure 1).

2. Consider a location where the firepace would not be affected by drafts, air conditioning ducts, windows or doors.

3. A location that avoids the cutting of joists or roof rafters makes ventilation installation easier.

In selecting a location, the following precautions must be observed:

• Do not connect this appliance to a chimney system used for solid

fuel burning fireplace.

• Due to high temperatures, do not locate this appliance in high

traffic areas or near furniture and draperies.

• Never obstruct the openings of the appliance or flow of ventila-

tion air. Keep the control compartments accessible.

• Do not locate appliance close to where gasoline or other flam-

mable liquids may be stored. The appliance must be kept clear and free from combustible materials.

• Do not use this appliance if any part has been under water. Imme-

diately contact a local service technician to examine the appliance and to replace any part(s) of the control ignition system and other related components that have been submerged under water.

FULL

PROJECTION

CORNER

INSTALLATION

FLUSH

INSTALLATION

PRE-INSTALLATION PREPARATION

CAUTION: Do not block required air spaces with insulation or any other material. Do not obstruct the effective opening of the appliance with any type of facing material.

CLEARANCES TO COMBUSTIBLES

Minimum clearances to combustibles for the fireplace are:

• Back and Sides of Fireplace .................................................. 0"

• Floor ...................................................................................... 0"

• Perpendicular Wall ................................................................ 6"

• Front .................................................................................... 36"

• Top of Standoffs .................................................................... 0"

MANTEL CLEARANCES

Woodwork, such as wood trims, mantles, and other combustible materials should be placed within the required clearance specified in Figure 2.

Mantel Mantel From Top

Depth of Opening

(1) 14" (A) 16" (2) 12" (B) 14"

(3) 10" (C) 12" (4) 8" (D) 10" (5) 6" (E) 8" (6) 4" (F) 6"

Wall

(7) 2" (G) 4"

Figure 1 - Common Fireplace Locations

Flush installation is recommended where living space is limited.

Projected installation may be ideal for a new addition to an

existing finished wall.

Corner installation makes use of a space that may not normally be used and provides a wider and more efficient range for radiant heat transfer.

For more information, visit www.desatech.com

111916-01C

Top of Louver Opening

Figure 2 - Mantel Clearances

PRE-INSTALLATION PREPARATION

Vent Termination Clearances Framing

PRE-INSTALLATION PREPARATION

Continued

VENT TERMINATION CLEARANCES

The final position of your fireplace depends on the location of the vent termination in relation to the clearances that must be observed as shown in Figure 5 on page 5.

The vent system serves as the “chimney” as well as the combustion air supply (air intake). The horizontal run must have a rise of 1/4" (.6 cm) for every 12" (30.48 cm) of horizontal run towards the termination. The maximum horizontal run depends on the vertical rise from the fireplace adapter collar to the vent termination (see table below).

VERTICAL HORIZONTAL

0 to 1 ft (30.48 cm)

1 ft (30.48 cm) to 4 ft (121.92 cm)

2 ft (60.96 cm) to 8 ft (243.84 cm)

3 ft (91.44 cm) to 12 ft (365.76 cm)

4 ft (121.92 cm) to 16 ft (487.68 cm)

5 ft (152.40 cm) to 15 ft (457.20 cm)

6 ft (182.88 cm) to 14 ft (426.72 cm)

7 ft (213.36 cm) to 13 ft (396.24 cm)

8 ft (243.84 cm) to 12 ft (365.76 cm)

FRAMING

Once the final location has been determined, observing height clearances for vent termination, you may construct framing using dimensions shown in Figures 3 and 4, depending on your installation.

If the appliance is to be installed directly on carpeting, tile (other than ceramic), or any combustible material other than wood flooring, the appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

CD32M CD36M-A CD42M-A

A 32 3/8" 36 1/8" 40 1/8"

B 34 5/8" 41 1/4" 48 1/4"

C 19" 23 1/2" 25 5/8"

Figure 3 - Framing Dimension

WARNING: Never allow the vent to run downward as this may cause excessive temperatures which could cause a fire.

WARNING: Horizontal sections of this vent system require a minimum clearance of 2" from the top of the pipe and 1" minimum to the sides and bottom. Vertical sections of this system require a minimum of 1" clearance to combustible materials on all sides of the pipe.

For more information, visit www.desatech.com

CD32M CD36M-A CD42M-A A 28 1/2" 35 3/4" 41 5/8" B 13 5/8" 15" 21 5/8" C 39 3/8" 49 5/8" 58 1/2" D9 1/2" 10 3/8" 13 1/2" E9 7/8" 13 3/4" 16 3/4" F 34 1/2" 41 1/8" 48" G 35 1/2" 42 1/8" 48 1/4" H 54 3/8" 68 1/4" 81 1/2"

Figure 4 - Corner Installation

Nailing Tabs

111916-01C

PRE-INSTALLATION PREPARATION

Continued

A = clearance above grade, veranda, porch, deck, or balcony

[*12 inches (30.5cm) minimum]

B = clearance to window or door that may be opened

[12 inches (30.5cm) minimum]

C = clearance to permanently closed window [minimum 12 inches

(30.5cm) recommended to prevent condensation on window]

D = vertical clearance to ventilated soffit located above the terminal

within a horizontal distance of 24 inches (61cm) from the

center-line of the terminal [18 inches (45.7cm) minimum] E = clearance to unventilated soffit [12 inches (30.5cm) minimum] F = clearance to outside corner (see below) G = clearance to inside corner (see below) H = *not to be installed above a meter/regulator assembly within

36 inches (91.4cm) horizontally from the center-line of the regulator

vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings* only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*

* as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow

the current

Note: Local codes or regulations may require different clearances

Termination Clearances for Buildings with Combustible and Noncombustible Exteriors

Inside Corner

Fixed

Closed

TERMINATION CAP

Openable

National Fuel Gas Code, ANSI Z223.1

Outside Corner Recessed Location

Openable

AIR SUPPLY INLET

PRE-INSTALLATION PREPARATION

Fixed

Closed

I = clearance to service regulator vent outlet [*72 inches (182.9cm)

minimum]

J = clearance to non-mechanical air supply inlet to building or the

combustion air inlet to any other fireplace [*12 inches (30.5cm) minimum]

K = clearance to a mechanical air supply inlet [*72 inches (182.9cm)

minimum]

L = clearance above paved side-walk or a paved driveway located on

public property [*84 inches (213.4cm) minimum] M = clearance under veranda, porch, deck [*12 inches (30.5cm) minimum ] N = clearance above a roof shall extend a minimum of 24 inches (61cm)

above the highest point when it passes through the roof surface and

any other obstruction within a horizontal distance of 18 inches (45.7cm)

GAS METER RESTRICTED AREA

(TERMINATION PROHIBITED)

5 5

Balcony with No Side Wall

G = Combustible 24" (61cm)

Noncombustible 18" (45.7cm)

A = 6" (15.2cm)

Figure 5 - Minimum Clearances for Vent Terminations

For more information, visit www.desatech.com

111916-01C

B = 6" (15.2cm)

Balcony with Perpendicular Side Wall

Combustible & Noncombustible H = 24" (61cm) J = 20" (50.8cm)

C = Maximum depth of 48" (121.9cm) for

recessed location

D = Minimum width for back wall of

recessed location Combustible - 38" (96.5cm) Noncombustible - 24" (61cm)

E = Clearance from corner in

recessed locationCombustible - 6" (15.2cm) Noncombustible - 2" (5.1cm)

INSTALLATION

Venting Installation Precautions Venting Installation

INSTALLATION

WARNING: Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life.

NOTICE: Failure to follow these instructions will void the warranty.

VENTING INSTALLATION PRECAUTIONS

Consult local building codes before beginning the installation. The installer must make sure to select the proper vent system for installation. Before installing vent kit, the installer must read this fireplace manual and vent kit instructions.

Only a qualified service person should install venting system. The installer must follow these safety rules:

• Wear gloves and safety glasses for protection

• Use extreme caution when using ladders or when on roof tops

• Be aware of electrical wiring locations in walls and ceilings

The following actions will void the warranty on your venting system:

• Installation of any damaged venting component

• Unauthorized modification of the venting system

• Installation of any component part not manufactured or approved by DESA

• Installation other than as instructed by these instructions

WARNING: This gas fireplace and vent assembly must be vented directly to the outside. The venting system must NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each gas appliance must use a separate vent system. Do not use common vent systems.

VENTING INSTALLATION

1. Install elbow to fireplace collar adapter located on back of the unit at a 45° angle. Slide elbow over collar and twist to lock. Check to insure proper connection (see Figure 6).

2. Continue to install remainder of pipe for desired installation. Make sure each section is twist-locked securely.

3. When installation of vent pipe is complete, in stall vent termination. Depending on the location of your fireplace, you will vent vertically or horizontally.

4. Allow 1" of pipe to protrude from internal wall, depending on wall thickness. See Figure 7.

5. For horizontal installation, an optional siding standoff may be installed between the vent cap and the exterior wall. Secure horizontal vent cap to standoff. Secure standoff/vent cap assembly to wall (see Figure 7). Do not seal termination to vent pipe. The vent termination must be removable for service pipe inspection.

6. For vertical installation, a vertical termination is available. Also for vertical venting application, install vertical flue restrictor into inner collar of fireplace as shown in Figure 6.

When installing a length of pipe for vertical termination that is over 3 ft., support the pipe every 3 ft. using metal wall straps. Vertical to horizontal pipe must be kept at a 1 ft. to 4 ft. ratio with a maximum run of no more than 20 ft.

Female Locking Lugs

Vertical Flue Restrictor (For Vertical Venting Application)

Figure 6 - Venting Installation

Direct-Vent Pipe

CD32M and CD36M-A

4 1/4" Inner and 7 1/4" Outer

CD42M-A

5" Inner and 8" Outer

Wall Firestop

Maintain 1" Minimum Air Space Around Outer Pipe when Penetrating a Wall

Framed Openings

CD32M and CD36M-A

10" x 10"

CD42M-A

10 3/4" x 10 3/4"

Figure 7 - Vent Termination (Horizontal)

Male Locking Lugs

Siding Standoff (Optional)

Minimum Pipe Overlap 1

Horizontal Termination (Vent Cap)

Exterior Wall with Vinyl Siding

/4"

Deflector Shield

Screws

For more information, visit www.desatech.com

111916-01C

INSTALLATION

OFF

TPTH

REMOTE OFF ON

TPTH

Continued

If an offset is necessary in the attic to avoid obstruction, it is important to support the vent pipe every 3 ft. to avoid excessive stress on the elbows and possible separation (see Figure 8, page 7).

Clearances must be maintained between the roof and the termination. Refer to chart below.

Roof Pitch Minimum Height Above Roof

Flat - 7/12 1 ft. (30.48 cm) 7/12 - 8/12 1 1/2 ft. (45.72 cm) 8/12 - 9/12 2 ft (60.96 cm)

9/12 - 10/12 2 1/2 ft (76.20 cm) 10/12 - 11/12 4 ft (121.92 cm) 11/12 - 14/12 5 ft (152.40 cm) 14/12 - 16/12 6 ft (182.88 cm) 16/12 - 18/12 7 ft (213.36 cm) 18/12 - 20/12 7 1/2 ft (228.60 cm) 20/12 - 21/12 8 ft (243.84 cm)

INSTALLATION

Venting Installation (Con.)

Electrical Gookup and Remote Reeiver Diagram

Gas Supply Testing

Outlet Box

Three-prong Plug

Figure 9 - Duplex Outlet

Convertible Gas Valve

Remote Control Receiver

7 7

Figure 10 - Remote Control Receiver

Roof Flashing

GAS SUPPLY TESTING

NOTICE: This section is intended as a guide for qualified technicians installing gas to the appliance.

Wall Strap

WARNING: Do not connect appliance before pressure testing gas piping. Damage to gas valve may result and an unsafe condition may be created.

The appliance and its individual shutoff valve must be disconnected

45° Elbows

from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

The appliance must be isolated from the gas supply piping system by closing its individual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than

Ceiling Firestop

Figure 8 - Vertical Termination with Offset and Wall Strap

1/2 psig (3.5 kPa).

The gas control valve is secured underneath the firebox. Two 1/8" ports are provided on the gas control valve for pressure test gauge

ELECTRICAL HOOKUP AND REMOTE RECEIVER DIAGRAM

An outlet box with two receptacles (see Figure 9) has been supplied for your convenience and is located inside on the lower right side of the fireplace.

The remote control receiver is factory wired and connected to the convertible gas valve as shown in Figure 10.

111916-01C

For more information, visit www.desatech.com

connections (see Figure 11).

Pilot Adjustment

ON/OFF Knob

Inlet Pressure

Figure 11 - Gas Control Valve

Outlet Pressure

To Pilot Burner

16AI

To Main Burner

TPTH TP TH

Flame Adjustment Knob

Pilot Gas Line Do Not Kink

INSTALLATION

Gas Line Hook-Up Pilot Adjustment

INSTALLATION

Continued

GAS LINE HOOK-UP

WARNING: Gas line hook-up should be done by

your gas supplier or a qualified service person.

Complete your gas line installation by connecting the incoming gas line to the flexible gas line. Secure tightly with a wrench but do not over-tighten.

WARNING: Before you proceed, make sure your

gas supply is OFF.

An equipment shutoff valve has been included in the fireplace's gas supply system. However, consider installing an extra shutoff valve outside the appliance’s enclosure (check local codes), where it can be accessed more conveniently with a key through a wall as shown in Figure 12.

In conformance with local codes, route a 1/2" NPT gas line towards the appliance coming in from either the left or right side of the fireplace (see Figure 13).

Install a sediment trap between the incoming gas line and the gas control box. (see Figure 14). The sediment trap should extend down a minimum of 3" (7.62 cm) beyond the center of the pipe.

When routing gas line through conduit sleeve, make sure to repack insulation to fill gaps between gas line and conduit sleeve. Compounds used on threaded joints of gas piping shall be resistant to the action of propane or natural gas. Compounds should be applied lightly to ensure excess sealant does not enter the gas line.

Key

Shutoff Valve

WARNING: All gas piping and connections must be tested for leaks after the installation is completed.

Never use an open flame to check for a leak. After ensuring that the gas valve is open apply commercial leak detection fluid to all gas joints. Bubbles forming show a leak. Correct all leaks at once.

Do not operate any appliance if a leak is detected.

Incoming 1/2" Gas Line Permitted By Local Codes

Sediment Trap (Not Supplied)

3" Min.

(7.6 cm)

Figure 14 - Sediment Trap

Figure 12- Typical Exterior Wall Gas Shutoff Installation

Gas Routing (Right Side Not Shown)

Side of Fireplace

OFF

Front Face

Figure 13 - Gas Line Routing

For more information, visit www.desatech.com

Extension

TPTH

PILOT ADJUSTMENT

The pilot or electrode assembly is factory preset for the proper flame height. Alterations to these settings may have occurred during shipping and handling. If this is the case, some minor readjustments may be necessary and should be done by a qualified service technician. The proper settings for the thermopile height should be at a distance of 3/8" (.95 cm) to 1/2" (1.27 cm) from the pilot flame as shown in Figure 15.

1/8"

(0.3cm)

Figure 15 - Pilot Assembly

3/8" - 1/2" (.95cm-1.3cm)

111916-01C

INSTALLATION

Continued

INSTALLATION

Removing Glass Panel

Installin Log Set

9 9

REMOVING GLASS PANEL

CAUTION: Before you proceed, make sure your

gas control valve is in the OFF position.

1. To remove louvers, pull both spring latches (located in each end of louver) toward center of appliance at the same time until disengaged from locating holes. Repeat for bottom end spring latches (see Figure 16).

2. Remove screen rod by removing rod loop from glass door center bracket. Slide screen rod either to the left or right of fireplace until one end is free to completely remove screen from fireplace.

3. Undo latches located on top and bottom of firebox (see Figure

17). Carefully swing door to the left. The glass door is securely mounted to the firebox with 5 screws.

Glass

Bottom Louver

Figure 16 - Removing Louvers

Locating Holes

Spring Latch

3. Place log #3 (c-shaped crossover log) onto rear and front logs as shown in Figure 20. Make sure it is seated properly on the smooth surface on front log and on the pin on back log.

4. Place log #4 (small round log) on pin on right side of front log (see Figure 21).

5. Place log #5 (small front log) onto the front left part of grate making sure notches fit over prongs of grate (see Figure 22).

6. Place log #6 onto two pins on left side of back and front logs (see Figure 22).

Figure 18 - Installing Log #1, Models CD32M/CD36M-A Series

Figure 19 - Installing Log #2, Models CD32M/CD36M-A Series

Open

Figure 17 - Spring Latches

INSTALLING LOG SET

Each log is marked with a number in the following diagram. These numbers will help in identifying the logs when installed. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with fireplace.

Models CD32M and CD36M-A Series

1. Place log #1 (back log) on top of grate as shown in Figure 18.

2. Place log #2 (large front log) over pins on grate (see Figure 19).

111916-01C

Make sure notches in bottom of log fit over grate.

For more information, visit www.desatech.com

Figure 20 - Installing Log #3, Models CD32M/CD36M-A Series

Figure 22 - Installing Logs #5 and #6, Models CD32M/CD36M-A Series

Figure 21 - Installing Log #4, Models CD32M/CD36M-A Series

INSTALLATION

Installing Log Set (Cont.)

INSTALLATION

Continued

Model CD42M-A Series

1. Place log #1 (small base log) onto pin on left side of grate extension (see Figure 23).

2. Rest left side of log #2 (front log) on top of log #1 and right side onto pin located on right side of grate extension (see Figure 24).

3. Place log #3 (rear log) onto pins on rear of grate (see Figure 25).

4. Place log #4 (crossover log) onto pins from both logs #2 and #3 (see Figure 26).

5. Place log #5 (top log) onto right pin of front log (#2) and smooth surface of rear log (#3). Make sure it is seated properly (see Figure 27).

Figure 23 - Installing Log #1, Model CD42M-A

6. Place log #6 (left log) on left pin of front log (#2) and smooth surface of rear log (#3). Make sure it is seated properly (see Figure 28).

7. Place log #7 (right log) on right pin of top log (#5). Make sure it is seated properly (see Figure 28).

Figure 26 - Installing Log #4, Model CD42M-A

Figure 24 - Installing Log #2, Model CD42M-A

Figure 25 - Installing Log #3, Model CD42M-A

Figure 27 - Installing Log #5, Model CD42M-A

Figure 28 - Installing Logs #6 and #7, Model CD42M-A

For more information, visit www.desatech.com

111916-01C

INSTALLATION

Continued

Lava Rock and Ember Material

1. For all models, place lava rock along sides and front of firebox bottom in areas that are visible. It is not necessary to use all lava rock provided.

NOTICE: Do not put lava rock on or under burner. Placing lava rock on burner could cause performance problems.

2. Pull ember material apart into pieces no larger than a dime. Place loosely and directly onto exposed section of front burner and along space between burner and grate prongs. These will create glowing ember appearance as flame touches ember material. Do not block air slots by using too much ember material in one area. It is not necessary to use all ember material provided.

3. When lava rock and ember material are in place, close and latch glass door and secure louvers in place.

INSTALLATION

Installing Log Set (Cont.)

Decorative Facing

Face Extension for Model DC32M Only

BURNER FLAME ADJUSTMENT

11 11

WARNING: The glass door must be securely in place before operating fireplace. Do not operate fireplace if glass is missing or broken.

DECORATIVE FACING

Any noncombustible material may be used as facing (glass, tile, brick, etc.) as long as the proper clearances are observed (see Clearances to Combustibles, page 3). Louvered openings must not be obstructed and upper and lower panels must remain accessible for service. Use only heat-resistant, noncombustible mortar or adhesive when securing decorative facing materials.

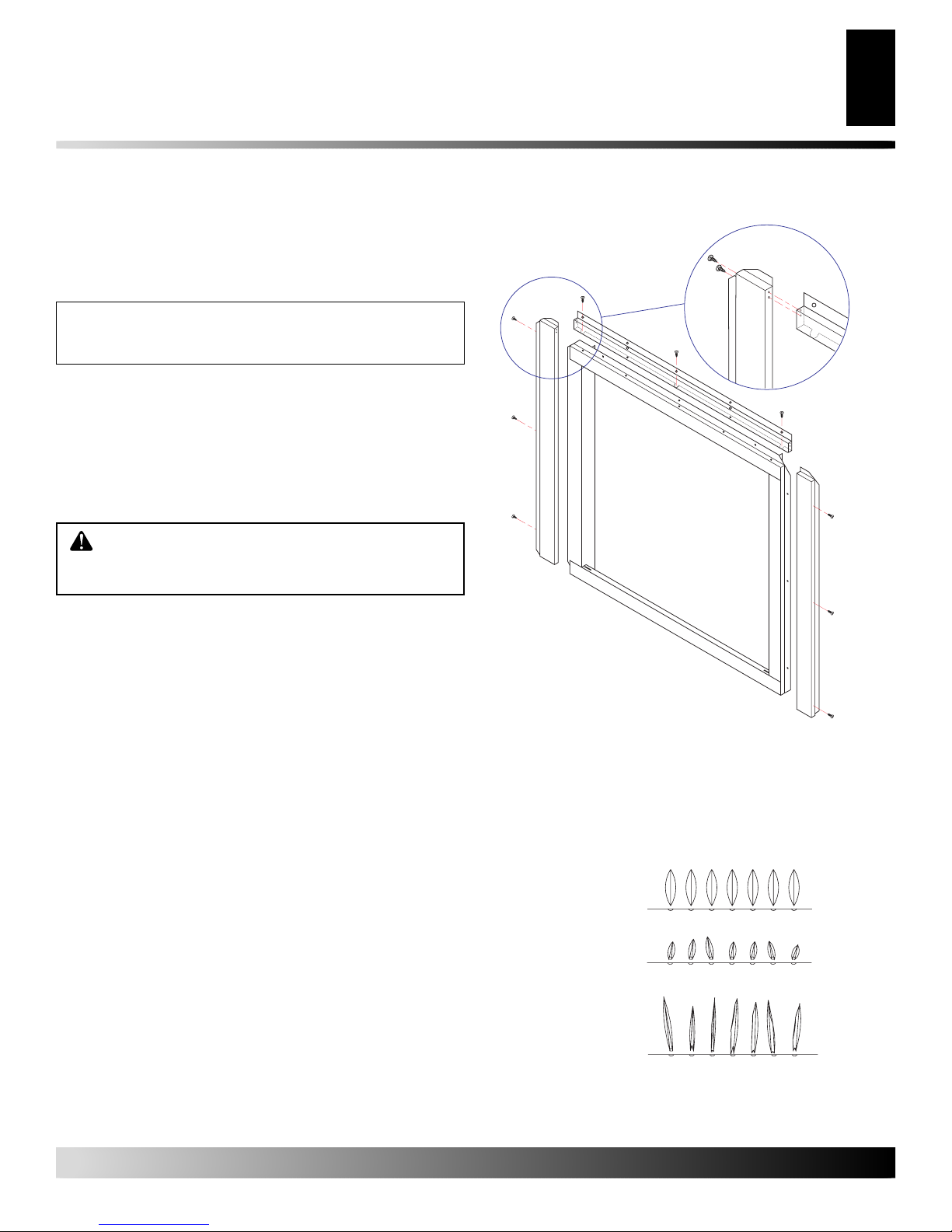

FACE EXTENSION FOR MODEL CD32M ONLY

Model CD32M comes equipped with a front face extension. The front face extension would add 3 1/2" to the width and 3/4" to the height of the fireplace face.

To install face extension:

1. Remove existing screws from front face assembly as shown in Figure 29.

2. Align holes on top face extension with holes on top side of front face assembly and secure with screws previously removed (see Figure 29).

3. Align holes on right face extension with holes on right side of front face assembly and secure with screws previously removed (see Figure 29). Do the same for left side.

4. Secure top face extension with left and right face extensions with two sheet metal screws (see Figure 29).

Figure 29 - Front Face Extension, Model CD32M Only

BURNER FLAME ADJUSTMENT

The burner flame adjustment (shutter opening) has been factory preset (for natural gas) to the proper air-to-gas ratio. This ratio results in an even, clean burning flame across the burner (see Figure 30).

CORRECT

Long, Blue Flame with Yellow Tips

INCORRECT CLOSE SHUTTER

Short, Sharp, Blowing Flame

INCORRECT OPEN SHUTTER

Long, Uneven, Yellow Flame

For more information, visit www.desatech.com

111916-01C

Figure 30 - Burner Flame Patterns

BURNER FLAME ADJUSTMENT

OPERATING FIREPLACE

Operation Guidelines For Your Safety Read Before Lighting Lighting Instructions

BURNER FLAME ADJUSTMENT

Continued

If adjustment is necessary, you can restore the proper flame setting by loosening the air shutter screw and rotating the air shutter until proper setting is achieved (see Figure 31). The correct shutter openings are as follows:

Tube Burner Pan Burner

Model Natural Propane/LP Natural Propane/LP CD32M 0.188" Max. — —

CD36M-A 0.188" Max — — CD42M-A 0.188" 0.313" 0.188" 0.500"

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for assistance. Consult a qualified installer for additional information.

Adjustment Screw

Figure 31 - Air Shutter Adjustments

Burner Pan

Adjustment Screw

Manifold

Air Shutter

Opening Firebox Bottom

Burner Gas Line

Burner Tube

OPERATING FIREPLACE

OPERATION GUIDELINES

• When used for the first time, the fireplace may emit a slight odor for about 16 to 24 hours. This is normal and is due to the “curing” of the logs and the “burn-in” of internal paint and lubricant used in the manufacturing process.

• Keep compartments, logs, burners and area surrounding logs clean by vacuuming and brushing at least twice a year or as necessary.

• Turn off gas and remote switch before servicing appliance. Any safety screen or guard removed for servicing the fireplace must be replaced prior to operation.

• Have a qualified agency periodically inspect vent system at the start of each heating season for any obstruction which will hinder its normal operation. Never obstruct the flow of combustion and ventilation air. Keep the front of the fireplace clear of all obstacles and materials

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in control knob. Never use tools.

If the knob will not push in or slide by hand, don’t try to repair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information above before proceeding.

2. Set the “HI-LO” knob to the lowest setting.

3. Turn off all electrical power to the appliance.

4. Open control access panel.

5. Push in gas control knob slightly and turn clockwise to “OFF”.

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above. If you don’t smell gas, go to the next step.

7. The pilot is located by the main burner.

8. Turn knob on gas control counterclockwise to “PILOT”.

For more information, visit www.desatech.com

111916-01C

OPERATING FIREPLACE

Lighting Instructions (Con.)

To Turn Off Gas To Appliance

CONVERTING FIREPLACE FROM NATURAL GAS TO PROPANE/LP GAS

13 13

OPERATING FIREPLACE

Continued

9. Push in the control knob all the way and hold in. Immediately light the pilot by pressing the red ignitor button until a flame appears. Continue to hold the control knob in for about one (1) minute after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 5 through 9.

• If knob does not pop out when released, stop and call

service technician or gas supplier.

• If the pilot will not stay lit after several tries, turn gas

control knob to “OFF” and call your service technician or gas supplier.

10. Turn gas control knob counterclockwise Knob can be turned to “ON” only if the control knob is

popped out.

11. Set “HI-LO” knob to desired setting.

12. Turn on all electric power to the appliance.

Note:

It is recommended that you maintain the gas control knob in

the full OFF position during lengthy periods of seasonal non-usage.

HI/LO Knob

Position Indicator

Gas Control Knob

Figure 32 - Control Knob in Pilot Position

Piezo Ignitor

Thermocouple

Figure 33 - Pilot

16AI

Pilot Burner

Thermopile

to “ON”.

TPTH TP TH

CONVERTING FIREPLACE FROM NATURAL GAS TO PROPANE/LP GAS

The conversion kit is packaged with the unit. Please check the contents before beginning this conversion.

WARNING: Before proceeding, make sure the gas control valve is in the OFF position and all electrical power to the appliance is turned off.

CONVERTING PILOT

1. Wait five (5) minutes to clear out any gas. Smell for any gas odor, especially near the floor. If any gas odor is present, STOP! See For Your Safety Read Before Lighting on page 12.

2. Locate the latch on the louver assembly. Remove top and bottom louvers by pulling the spring latches toward the center of the fireplace simultaneously until they are diengaged from the locating holes.

3. Undo latches located on top and bottom of firebox and swing door to the fully open position.

4. Carefully remove log set and ember material from burner and place them aside in a safe place.

5. Replace main burner orifice with burner orifice included in conversion kit (Model CD42M-A series contains two burner orifices).

6. Locate air shutter at end of burner manifold (end of tube burner for CD42M series). Loosen screw and adjust air shutter to proper setting (see Burner Flame Adjustment, page 11). Retighten screw.

7. Remove pilot hood by pulling up until it disengages from barrel. Do not remove the retainer clip (see Figure 34).

8. Remove pilot orifice from inside barrel using a 5/32" allen wrench to unscrew the orifice.

9. Replace pilot orifice with LP orifice supplied with this kit. The number 30 is stamped on the sleeve for identification. Insert small end of new pilot orifice into barrel and thread until tight with the allen wrench.

TO TURN OFF GAS

TO APPLIANCE

1. Turn off the wall switch.

2. Turn off all electric power to the appliance if service is to be performed.

3. Remove control access panel.

4. Push in gas control knob slightly and turn clockwise to “OFF”. Do not force.

5. Replace control access panel.

For more information, visit www.desatech.com

111916-01C

Pilot Hood

Pilot Orifice

Barrel Clip

Figure 34 - Converting Pilot

5/32" Allen Wrench

Pilot Bracket

Converting Control Valve

CONVERTING FIREPLACE FROM NATURAL GAS TO PROPANE/LP GAS

Continued

CONVERTING FIREPLACE FROM NATURAL GAS TO PROPANE/LP GAS

10. Line up notch on pilot hood to the positioning tab on barrel receiver and snap back into position.

IMPORTANT:

Be careful not to bend or kink the aluminum tubing during conversion. Make sure the pilot hood and orifice are properly mated and aligned after finishing this conversion.

CONVERTING CONTROL VALVE

Convert the gas control valve by swapping out the valve regulator portion of the gas valve.

1. Using a TORX T20 or a slotted screwdriver, remove and dis-

card the three mounting screws, pressure regulator tower, and diaphragm/spring components (see Figure 35).

2. Insure that the rubber gasket is properly positioned on the new

pressure regulator assembly. Install new pressure regulator assembly to valve using new mounting screws supplied with kit. Tighten screws securely (approximately 25 in/lb). See Figure 36.

Mounting Screws

Diaphragm/ Spring Components

Pressure Regulator Tower

3. Install the identification label enclosed with gas valve regulator to the valve body where it can easily be seen (see Figure 36).

WARNING: The conversion kit must be installed by a qualified service technician in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If any information is these instructions is not followed correctly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualified service technician is responsible for the proper installation of this conversion kit.

Mounting Screws

Rubber Gasket

Identification Label

Figure 35 - Removing Parts for Gas Control Valve Conversion

For more information, visit www.desatech.com

Figure 36- Installing New Parts for Gas Control Valve Conversion

111916-01C

TROUBLESHOOTING

WARNING: Turn off heater and let cool before servicing. Only

a qualified service person should service and repair heater.

TROUBLESHOOTING

15 15

OBSERVED PROBLEM

Pilot will not stay lit

Pilot lit but no flame on burner

POSSIBLE CAUSE

1. Defective thermocouple

1. Remote or wires defective

2. Thermopile not generating sufficient milivoltage

3. Plugged burner orifice

REMEDY

1. Check pilot flame. It must impinge on thermocouple

2. Clean or adjust pilot for maximum flame impingement on thermocouple

3. Ensure the connection between valve and thermocouple are tight and secure

4. Check thermocouple with millivolt meter. Take reading at thermocouple terminals of gas valve with remote control off. It should read 18 millivolts minimum. Replace faulty thermocouple if reading is below specified minimum

1. Check remote wires for proper connections. Place jumper wire across terminals at remote control. If burner comes on, replace remote. If okay, place jumper wire across remote control at valve. If burner comes on, wires are faulty or connections are bad

2. Check thermopile with millivolt meter. Take reading at thermopile terminals of gas valve with remote control off. It should read 325 millivolts minimum. Replace thermopile if reading is below specified minimum

3. Check burner orifice for stoppage and remove

Frequent pilot outage

For more information, visit www.desatech.com

111916-01C

1. Pilot flame may be too low or blowing (high) causing safety pilot to “drop out”

1. Clean and/or adjust pilot flame for maximum flame impingement on thermocouple

Models CD32M and CD36M-A Series

ILLUSTRATED PARTS BREAKDOWN

MODELS CD32M AND CD36M-A SERIES

21-2

21-1

ILLUSTRATED PARTS BREAKDOWN

21-3

21-5

21-4

21-6

For more information, visit www.desatech.com

111916-01C

PARTS LIST

MODELS CD32M AND CD36M-A SERIES

PARTS LIST

Models CD32M and CD36M-A Series

17 17

KEY PART NUMBER NO. CD32M CD36M-A DESCRIPTION QTY.

1 ** ** Firebox Assembly 1 2 ** ** Face Weldment 1 3 108892-01 108010-01 Door Assembly 1 4 108903-01 108011-01 Top Panel Assy Louver 1 5 108903-02 108011-02 Bottom Panel Assy Louver 1 6 ** ** Fireplace Top 1 7 ** ** Fireplace Top Insulation 1 8 ** ** Fireplace Surround 1 9 108885-01 108074-01 Burner Assembly 1 10 108890-01 108076-01 Burner Base Gasket 1 11 108897-01 110991-01 Rear Refractory 12 108901-01 110990-01 Right Refractory 13 108901-02 110989-01 Left Refractory 14 11418 11418 Push-On Nut 2 15 108440-01 12105 Screen 2 16 108455-02 13113 Screen Rod 1 17 ** ** Electrical Duct Assy 1 18 ** ** Gas Knock-Out Cover 2 19 ** ** Gas Conduit Assy 1 20 109082-03 109082-01 Heat Shield 1 21 109022-01 109006-01 Log Set 1 21-1 109403-01 109007-01 Front Log (Log 1) 1 21-2 109404-01 110182-01 Rear Log (Log 2) 1

21-3 109407-01 109008-01 Base Log (Log 3) 1 21-4 109406-01 107347-01 Crossover Log (Log 4) 1 21-5 109405-01 103010-03 Left Top Log (Log 5) 1 21-6 109408-01 107348-01 Right Top Log (Log 6) 1

†

1 1 1

KEY PART NUMBER NO. CD32M CD36M-A DESCRIPTION QTY.

22 11102 11102 Screw #8-32 x 3/8 PPH Zinc 2 23 11105 11105 Screw #10 x 1/2 Zinc 9 24 11179 11179 Screw #10-24 x 1/4 Zinc 4 25 11237 11237 Screw Trilab M4 x 8mm 1 26 14389 14389 HI-LO Sit Valve (Nat Gas) 1 27 14492 14492 Piezo Ignitor 1 28 14500 14500 Brass Fitting 2 29 14253 14253 Flexible Connector 1 30 14511 14511 Ignitor Bracket 1 31 14528 14528 Brass Elbow Fitting 1 32 104506-25 104506-01 Orifice 1 33 104509-02 14576 Aluminum Tubing Assy 1 34 26808 26808 Valve Bracket 1 35 26827 26827 Switch Bracket 1 36 108886-01 108077-01 Grate Base 1 37 108891-01 104504-03 Burner 1 38 108084-02 108084-02 Pilot Assembly (Nat Gas) 1 39 108889-01 108075-01 Burner Base Assembly 1 40 109699-01 — Right Face Extension 1 41 109699-02 — Left Face Extension 1 42 109700-01 — Top Face Extension 1

PARTS AVAILABLE NOT SHOWN

25487 25487 Lava Rock 1 110251-01 110251-01 Micro Switch Assembly 1 27253 27253 Notice Label 1 109896-01 112033-01 Gas Conversion Kit 1

** Not a field replaceable part.

†

Optional - See page 21.

For more information, visit www.desatech.com

111916-01C

Model CD42M-A

ILLUSTRATED PARTS BREAKDOWN

MODEL CD42M-A

ILLUSTRATED PARTS BREAKDOWN

212

21-3

21-6

21-1

21-5

21-7

21-4

For more information, visit www.desatech.com

111916-01C

PARTS LIST

MODEL CD42M-A

PARTS LIST

Model CD42M-A

19 19

KEY PART NO. NUMBER DESCRIPTION QTY.

1 ** Firebox Assembly 1 2 ** Face Weldment 1 3 108328-01 Door Assembly 1 4 108331-01 Top Panel Assembly Louver 1 5 108331-03 Bottom Panel Assembly Louver 1 6 ** Fireplace Top 1 7 ** Fireplace Top Insulation 1 8 ** Fireplace Surround 1 9 108329-05 Burner Assembly 1 10 108374-01 Burner Base Gasket 1 11 111300-01 Rear Refractory 12 111301-01 Right Refractory 13 111302-01 Left Refractory 14 11418 Push-On Nut 2 15 107840-01 Screen 2 16 108455-01 Screen Rod 1 17 110037-01 Electrical Duct Assembly 1 18 ** Gas Knock-Out Cover 2 19 ** Gas Conduit Assembly 1 20 ** Heat Shield 1 21 108778-01 Log Set 1 21-1 109401-01 Small Base Log (Log 1) 1 21-2 109396-01 Front Log (Log 2) 1 21-3 109397-01 Rear Log (Log 3) 1 21-4 109398-01 Crossover Log (Log 4) 1 21-5 109399-01 Top Log (Log 5) 1 21-6 109400-01 Left Top Log (Log 6) 1

†

1 1 1

KEY PART NO. NUMBER DESCRIPTION QTY.

21-7 109401-02 Right Top Log (Log 7) 1 22 11102 Screw #8-32 x 3/8 PPH Zinc 2 23 11105 Screw #10 x 1/2 Zinc 9 24 11179 Screw #10-24 x 1/4 Zinc 4 25 11237 Screw Trilab M4 x 8mm 1 26 14389 HI-LO Sit Valve (Natural Gas) 1 27 14492 Piezo Ignitor 1 28 14500 Brass Fitting 2 29 14253 Flexible Connector 1 30 14511 Ignitor Bracket 1 31 14528 Brass Elbow Fitting 1 32 104506-25 Orifice 1 33 14544 Aluminum Tubing Assembly 1 34 26808 Valve Bracket 1 35 26827 Switch Bracket 1 36 108346-01 Grate Base 1 37 108376-01 Burner 1 38 108084-02 Pilot Assembly (Natural Gas) 1 39 108755-01 Pilot Bracket 1 40 108373-01 Burner Base Assembly 1 41 108330-01 Burner Pan Assembly 1 42 104506-24 Orifice 1

PARTS AVAILABLE NOT SHOWN

25487 Lava Rock 1 110251-01 Micro Switch Assembly 1 27253 Notice Label 1 111007-01 Gas Conversion Kit 1

** Not a field replaceable part.

†

Optional - See page 21.

For more information, visit www.desatech.com

111916-01C

SPECIFICATIONS WIRING DIAGRAM

SPECIFICATIONS

CD32M CD36M-A CD42M-A

Gas Rate (Natural) 16,000/23,000 Btu/hr 15,000/22,000 Btu/hr 25,000/35,000 Btu/hr

Gas Rate (Propane/LP) 15,000/21,000 Btu/hr 14,000/20,000 Btu/hr 23,000/33,000 Btu/hr

Ignition Piezo Piezo Piezo

Natural Gas Manifold Pressure 3.5" w.c. 3.5" w.c. 3.5"w.c.

Propane/LP Manifold Pressure 10" w.c. 10" w.c. 10"w.c.

Minimum Inlet Supply Pressure 4.5" w.c. 4.5" w.c. 4.5" w.c.

WIRING DIAGRAM

Piezo Ignitor

Thermocouple

Incoming Main Gas Supply

Electrical Rating: 120v, 60Hz, 0.7A

Control Valv e

TPTH

Pilot

Thermopile

Pilot

Gas Line

Optional Wiring Diagram

For Fan Kit

Piezo Ignitor

Wireway

Safety Microswitch for Models CD32M-2, CD36M-A2 and CD42M-A2 Only

(Remote Switch

Supplied)

N.O.SW

GND

Do Not Connect To 120V

BLK

WHT

GRN

Connectors (Not Supplied)

Field Wire

Incoming 120V AC

(Fuse Box

Breaker)

For more information, visit www.desatech.com

111916-01C

ACCESSORY AND REPLACEMENT PARTS

MILLIVOLT

OFF

HI-LO

TPTH

VALV E

P/N #14389

REGULAR BLOWER KIT BK

FOR MODELS CD32M, CD32M-2 CD36M-A, CD36M-A2 AND CD42M-A

21 21

MICRO SWITCH ASSEMBLY

P/N 110251-01

FOR MODELS CD32M-2,

CD36M-A2, AND CD42M-A2 ONLY

PIEZO IGNITOR

P/N 14492

109479-01 (CD32M SERIES)

108719-01 (CD36M SERIES)

108455-01 (CD42M)

ROD

SCREEN

108440-01 (CD32M SERIES)

12105 (CD36M-A SERIES)

107840-01 (CD42M-A)

PILOT ASSY.

PN 108084-02 (NG)

PILOT ORIFICE

108085-01 #51 NAT 108085-02 #30 LP

GLASS DOOR ASSEMBLY P/N 108892-01 (CD32M SERIES) P/N 110994-01 (CD36M-A SERIES)

P/N 108328-01 (CD42M-A)

P/N 108903-01 (CD32M SERIES) P/N 108011-01 (CD36M-A SERIES) P/N 108331-01 (CD42M-A)

STANDARD

BOTTOM LOUVER P/N 108903-03 (CD32M SERIES) P/N 108011-03 (CD36M-A SERIES) P/N 108331-03 (CD42M-A)

CD32M SERIES

ORIFICE #47(NAT)

P/N 104506-25

ORIFICE #55 (LP)

P/N 14514

TUBE BURNER

ORIFICE #47(NAT)

P/N 104506-25

ORIFICE #56 (LP)

P/N 104506-20

STANDARD TOP LOUVER

CD36M-A SERIES

ORIFICE #43 (NAT)

P/N 104506-01

ORIFICE #55 (LP)

P/N 14514

CD42M-A

PAN BURNER

ORIFICE #46(NAT)

P/N 104506-24

ORIFICE #56 (LP)

P/N 104506-20

OPTIONAL REMOTE CONTROL KIT

P/N 00825 (ELECTRONIC ONLY) (BATTERY REQUIRED FOR TRANSMITTER)

RECEIVER

TRANSMITTER

For more information, visit www.desatech.com

111916-01C

STANDARD REMOTE CONTROL KIT P/N 14187 (MILLIVOLT ONLY) (BATTERIES REQUIRED FOR RECEIVER AND TRANSMITTER)

RECEIVER

TRANSMITTER

REMOTE CONTROL KIT P/N 00710 (OPTIONAL)

USED ON BLOWER ONLY

RECEIVER

TRANSMITTER

For more information, visit www.desatech.com

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

111916 01

NOT A UPC

111916-01 Rev. C 03/04

111916-01C

Vexar CD32M (-1)(-2), CD32M-1, CD32M-2, CD32M, CD36M Owner's Operation And Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
