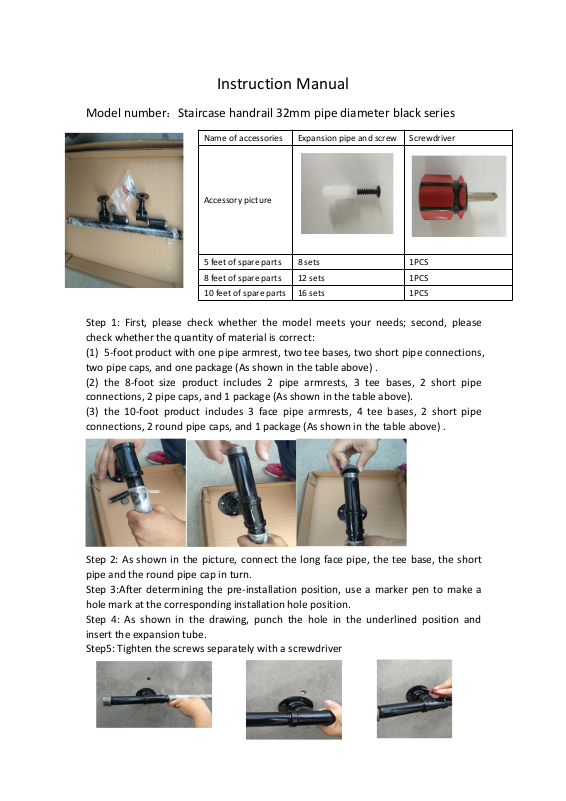

Instruction Manual
Name of accessories
Expansion pipe and screw
Screwdriver
Accessory picture
5 feet of spare parts
8 sets
1PCS
8 feet of spare parts
12 sets
1PCS
10 feet of spare parts
16 sets
1PCS
Model number：Staircase handrail 32mm pipe diameter black series
Step 1: First, please check whether the model meets your needs; second, please
check whether the quantity of material is correct:
(1) 5-foot product with one pipe armrest, two tee bases, two short pipe connections,
two pipe caps, and one package (As shown in the table above) .
(2) the 8-foot size product includes 2 pipe armrests, 3 tee bases, 2 short pipe
connections, 2 pipe caps, and 1 package (As shown in the table above).
(3) the 10-foot product includes 3 face pipe armrests, 4 tee bases, 2 short pipe
connections, 2 round pipe caps, and 1 package (As shown in the table above) .
Step 2: As shown in the picture, connect the long face pipe, the tee base, the short
pipe and the round pipe cap in turn.
Step 3:After determining the pre-installation position, use a marker pen to make a
hole mark at the corresponding installation hole position.
Step 4: As shown in the drawing, punch the hole in the underlined position and
insert the expansion tube.
Step5: Tighten the screws separately with a screwdriver
