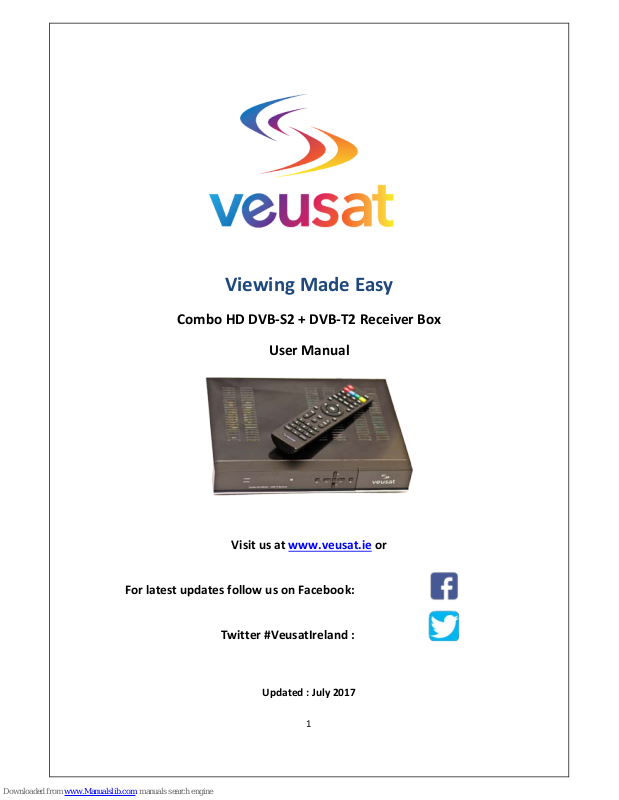

Viewing Made Easy
Combo HD DVB-S2 + DVB-T2 Receiver Box
User Manual
Visit us at www.veusat.ie or
For latest updates follow us on Facebook:
Twitter #VeusatIreland :
Updated : July 2017
Page 2
2
Contents
Installation Notes: ................................................................................................................................... 3
Note to Installer: ................................................................................................................................. 3
Additional Channels: ........................................................................................................................... 3
Safety First: ............................................................................................................................................. 4
Mains Supply: ...................................................................................................................................... 4
Liquid: .................................................................................................................................................. 4
Ventilation: .......................................................................................................................................... 4
Cleaning: ............................................................................................................................................. 4
Connection: ......................................................................................................................................... 4
Uncover: .............................................................................................................................................. 4
Product Overview ................................................................................................................................... 5
General: ............................................................................................................................................... 5
Front Panel: ......................................................................................................................................... 5
Rear Panel: .......................................................................................................................................... 6
Remote Control Unit ........................................................................................................................... 7
Channel Selection: .................................................................................................................................. 8
Info: (Yellow Button) ............................................................................................................................... 8
EPG (Electronic Program Guide): ............................................................................................................ 8
HDMI: ...................................................................................................................................................... 8
Menu List: ............................................................................................................................................... 9
Channel Update Feature: ........................................................................................................................ 9
IP Setting: ................................................................................................................................................ 9
Broadband Connection Using WiFi: ...................................................................................................... 10
Audio Description: ................................................................................................................................ 10
Subtitle Settings: ................................................................................................................................... 10
Basic Troubleshooting ........................................................................................................................... 11
CALL OUT CHARGE ................................................................................................................................ 11
Page 3
3
Installation Notes:
• Please be aware that this Receiver Box has a Terrestrial Tuner (Saorview Aerial
Required) and a Satellite Tuner (Satellite Dish Required).
• We highly recommend that this product be installed by a professional, qualified
installer.
• You will need to know which transmitter the aerial needs to be pointing to and that
the signal level is adequate.
• The Satellite dish must also be correctly aligned for the Astra Satellite at 28.2
degrees, which provides the UK channels. A Sky satellite dish would normally be
already correctly aligned to this satellite.
• If you are using a modem with LAN ports then we recommend connecting your
receiver box to your modem via a LAN/Network cable. If this is not feasible, you can
alternatively use a network plug adapter. These are very reliable and save running
unsightly cables
• You will only require an Internet connection for approx. 5 seconds to update your
channels every 4-6 weeks.
Note to Installer:
Please make note of the Transmitter in which the aerial is pointing to on Page 8 of this
manual listed under the heading Channel Update. This is so that you will know in future
which Transmitter Channel List to download.
Additional Channels:
Some channels on the receiver are from the Astra 1 Satellite @ 19.2 degrees. If you wish to
receive these channels then please contact us for a Dual LNB Kit. This kit allows you to
receive channels from 2 satellites on the same satellite dish.
Page 4
4
Safety First:
This Receiver Box has been manufactured to international safety standards. Please read the
following safety precautions carefully before installing and operating this unit.
Mains Supply:
• Before operating please ensure the unit’s operating voltage is 90-250V AC 50/60 Hz
– 3Amp Fuse.
• Do NOT overload the wall socket, extension cord or adapter.
• NEVER, use damaged power cords, or touch it with wet hands as this may result in
electric shock.
Liquid:
• The Receiver Box should NEVER be exposed to dripping or splashing water.
• Do NOT place liquid containers such as vases etc on top or near the Receiver Box.
Ventilation:
• Keep the air slots on the Receiver Box free from obstruction to allow sufficient
airflow to the unit to avoid overheating.
• Do NOT put the Receiver box on soft furnishings or carpets.
• Do NOT expose the Receiver Box to sources of heat such as fireplaces, heaters or
operate in humid conditions.
• Do NOT stack other electronic equipment on top of the Receiver Box.
Cleaning:
• In order to clean this product, please ensure the Receiver is plugged out from the
wall socket prior to cleaning. Use ONLY a dry soft cloth for cleaning.
Connection:
• Disconnect the Receiver Box from the mains when you connect/disconnect it to the
satellite LNB. Failure to do this could possibly cause damage to the LNB.
Uncover:
• Do not remove the cover of this unit as this may result in electric shock. Contact
qualified and licensed service personnel or installer only, to repair the receiver.
Page 5
5
Product Overview
General:
• DVB-S2 and DVB-T2 supported.
• Multi-language menu supported.
• USB 2.0 Interface.
• Sensitive Tuner with Loop-Through.
• DISEq C1.0/1.1/1.2/1.3 (USALS).
• Multi-language DAV Subtitle Output.
• EPG 7 Day Electronic Program Guide.

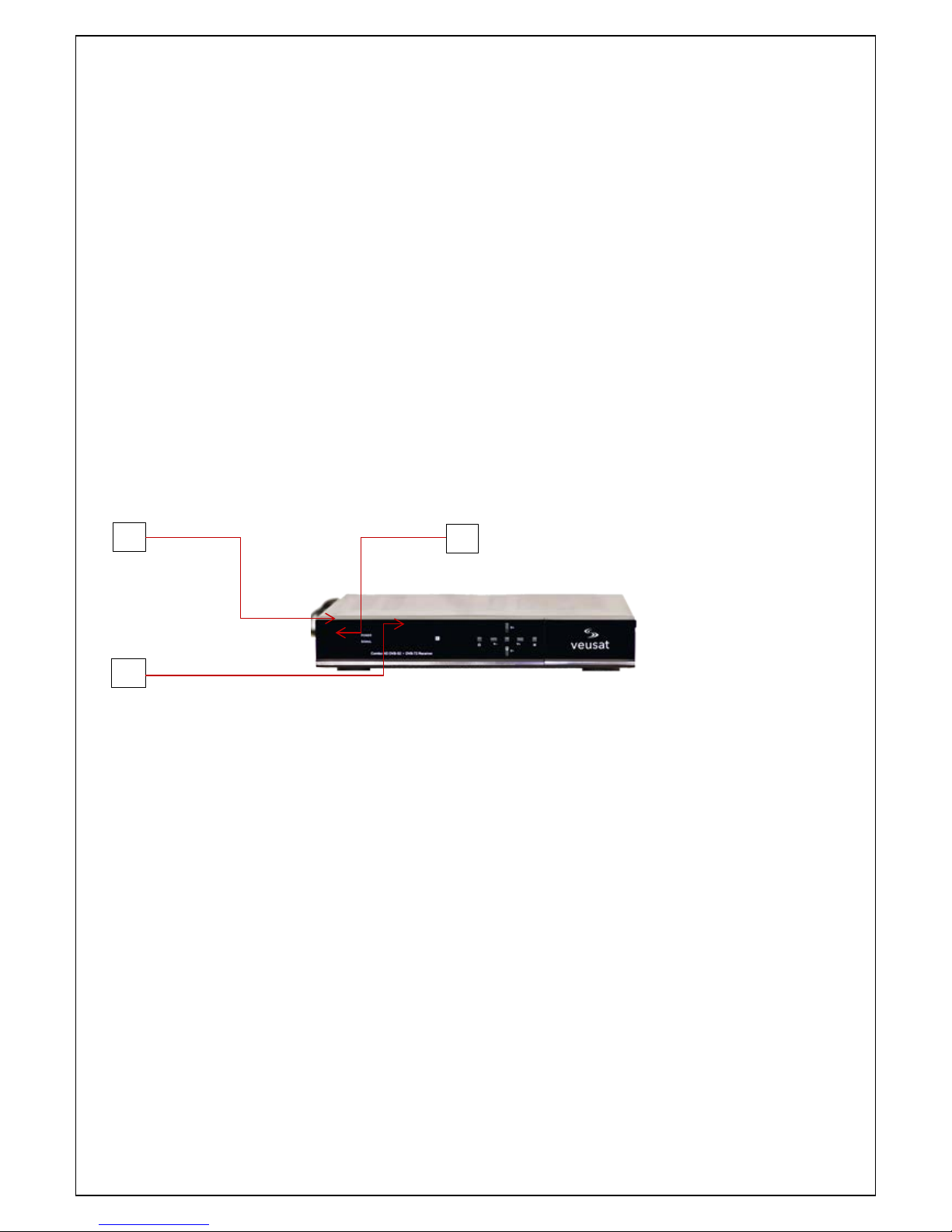

Front Panel:
1. Power Indicator
2. Signal Indicator
3. Display: Channel Information & Local Time (In Standby Mode)
1 2 3
Page 6
6

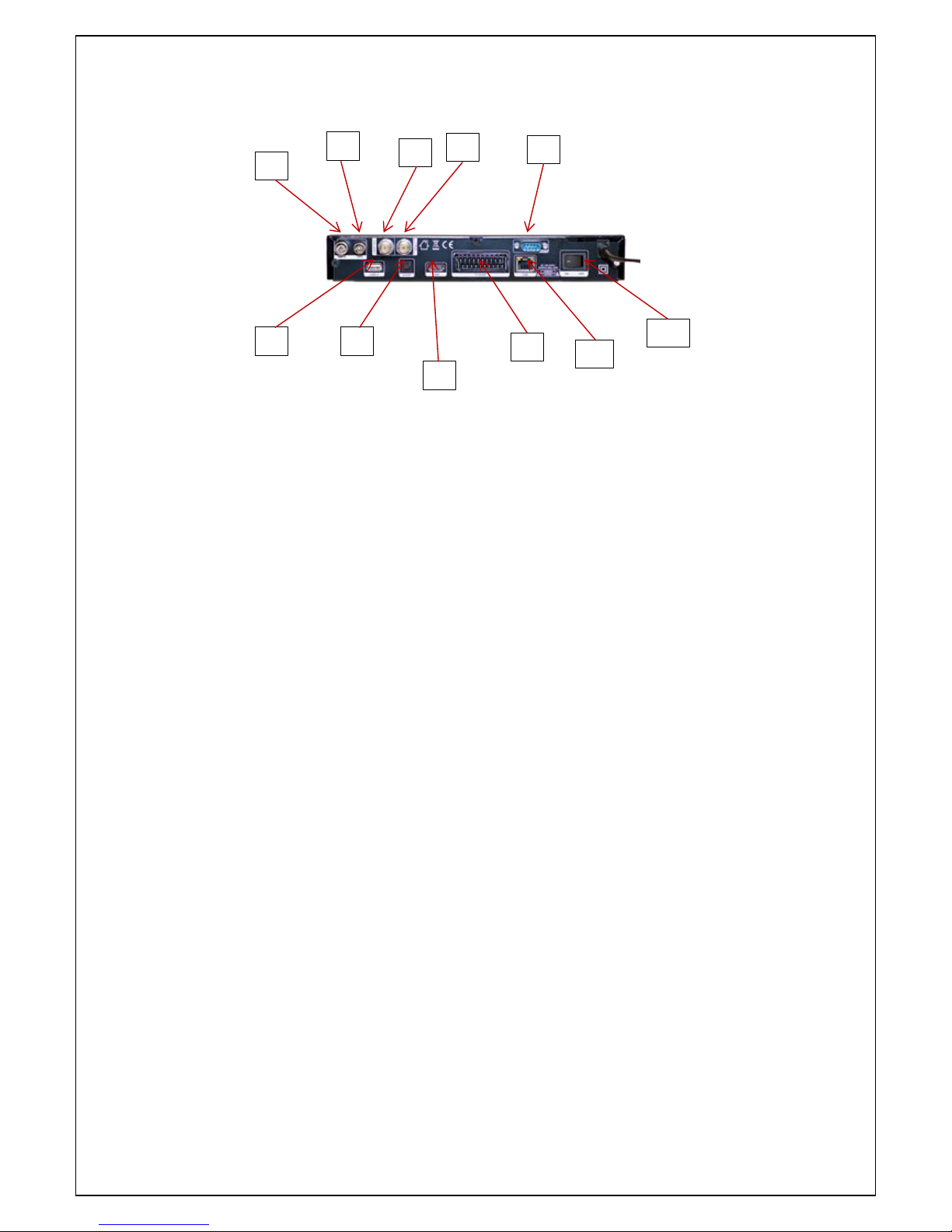

Rear Panel:
1. ANT IN: Connection for Aerial Cable
2. LOOP OUT: Not In Use
3. LOOP OUT: Not In Use
4. LNB IN: Connection for Satellite Dish Cable
5. USB 2.0: USB Port for WiFi Aerial
6. HDMI: Connection for TV (using a HDMI Cable)
7. S/PDIF: Digital Audio Output
8. RS232: Connection for PC/Laptop using a serial cable
9. TV SCART: Connection for TV (using a SCART Cable)….if no HDMI ports are available
on the TV
10. LAN: Connection to your Internet Router (using an Ethernet Cable)
11. ON/OFF: Power On/Off
1
2
3
4 5 6 7 9 8 10
11
Page 7
7
Remote Control Unit
1. POWER: Control the On/Off power to the receiver box.
2. MUTE: Mute the audio.
3. AUDIO: Display the Audio list.
4. PAUSE: Freeze the picture.
5. ZOOM: Enlarge the picture.
6. INFO: Display the program information.
7. RECALL: Display the previously viewed channel list or switch the last watched
channel.
8. TEXT: Not In Use
9. SUBTITLE: Display the subtitle language list. Only available when the subtitles are
switched On.
10. USB: Enter into the USB device interface.
11. MENU: Activate Main Menu
12. EXIT: Exit current menu step by step.
13. CURSOR UP/DOWN: Change program.
14. CURSOR LEFT/RIGHT: Change volume in viewing mode.
15. OK: Confirm the selected operation or display the channel list when watching a
program.
16. EPG: Display the TV Program Guide
17. FAV: Display Favourite Channel List.
18. FIND: Not In Use
19. HDMI: Set HDMI mode.
20. PAGE+/PAGE-: Changes the channel page when in the Channel List mode.
21. F1: Accessorial Function
22. NUMERIC KEYS 0-9: Change the TV Channel manually.
23. SLEEP: Sleep Mode
Page 8
8
Channel Selection:
• PRESS OK and the Favourites List will be displayed.
• Scroll to your desired category using the Cursor keys on your remote control and
PRESS OK to select.
• The Channel List for this category will be displayed.
• Scroll to your desired channel and PRESS OK.
Note: If you select All Channels, then you must PRESS the FAV button to bring you back to
the Favourites List.
Info: (Yellow Button)
• PRESS the Yellow INFO button to display the channel name.
• PRESS the button again to display the program information.
• PRESS EXIT to return to your viewing channel.
EPG (Electronic Program Guide):
• PRESS the EPG button to display the program guide.
• Using the CURSOR keys on your remote control scroll to the desired channel and
PRESS OK for program information.
Note: To view Daily and Weekly EPG information, PRESS the Green button.
HDMI:
This feature is pre-set to 720i 50Hz. If you wish to change this, please do the following:
• PRESS the HDMI button.
• Scroll to your desired setting.
• PRESS OK
Note: Options 1-3 are for non HD TV’s or HD Ready. Option 4 can be used for full HD TV’s.
Page 9
9
Menu List:
When you press the Menu button, Channel Update will be highlighted in yellow on the left
hand side of your tv screen. Scroll up/down to the various subsections:
• CHANNEL UPDATE: Do NOT change any settings in IP/URL, PORT or in the
USERNAME/PASSWORD section as this will prevent you from updating channels
correctly.
• SETTINGS: To change any settings, PRESS 0000 to access the menu.
• TIMES: The time settings have been factory set for AUTO – GMT +00:00 and
SUMMERTIME AUTO
• ABOUT STB: Information relating to the software on the receiver.
• EXSPANSION: Sub Menu for Applications.
Channel Update Feature:
**Please Update your channels every 4-6 weeks or check our Facebook page for update
notifications.
To update your channels:
• PRESS Menu (Channel Update will be highlighted in yellow)
• PRESS OK (FTP Download will be highlighted in yellow)
• PRESS OK (FTP Download page will be displayed)
• CONNECT NET will be highlighted……PRESS OK.
• SCROLL to the TRANSMITTER that your aerial is pointing to and PRESS OK.
• DOWNLOAD to USB or UPDATE DIRECTLY will be displayed.
• Select UPDATE DIRECTLY and PRESS OK.
• A Warning will appear “Do you want to update the software/database?”
• Select YES and PRESS OK to download the channel list.
• When the channel list has been updated….PRESS EXIT 3 times to return to your
previously watched channel.
Note: If the ALL CHANNELS is displayed, just PRESS the FAV button to return to the
Favourites list.
IP Setting:
The IP setting allows the box to obtain an automatic IP address from the modem it is
connected to. Please ensure that the DHCP is set to ON. You can do this by selecting Menu
and then EXSPANSION to check the DHCP setting.
Page 10
10
Broadband Connection Using WiFi:
• PRESS Menu
• Select EXPANSION
• Using the CURSOR on your remote, move right and scroll to WiFi
• PRESS OK
• Your system will now start scanning for devices.
• When a device is found, CLICK on the device you wish to connect to.
• ENTER the WiFi password if required.
• PRESS OK
• The screen will show the IP Address when it is connected to the device.
If FAIL is displayed on the screen and you have entered the correct password, please reboot
your box and try again.
If a warning message “NO NETWORK INTERFACE” is displayed, this means your box is not
connected to the Internet. Please check all connections are connected properly.
To connect to a HOTSPOT on your mobile phone, please follow your mobile phone
manufacturer’s instructions.
Audio Description:
Some channels have an audio description feature. To turn this feature ON/OFF, PRESS the
RED audio button at the top of your remote control. You will see a list of Audio’s available.
Simply use the CURSORS on your remote to scroll to the Audio of your choice and PRESS OK.
Then PRESS EXIT to return to your previously watched channel.
Subtitle Settings:
To turn subtitles ON/OFF..
• PRESS Menu
• Scroll down to SETTINGS (highlighted in yellow)
• Move CURSOR right (Please Input PIN will appear).
• ENTER 0000 for PIN (System settings will be highlighted in yellow)
• PRESS OK and scroll down to Subtitle Control
• Move CURSOR LEFT/RIGHT to select ON or OFF as your subtitle preference.
• PRESS EXIT 3 times to return to your previously watched channel.
WARNING: DO NOT CARRY OUT A FACTORY RESET OF YOUR RECEIVER BOX, AS REINSTALLATION WILL INCUR A CHARGE.
Page 11
11
Basic Troubleshooting
Before contacting your installer, please read the guide below carefully. If the problem
persists after completing any of the procedures below, please contact your installer for
further instructions to rectify the problem.
No Message Displayed On The Front Panel/Product Does Not Power On
• Check the main power cable and make sure it is plugged in to a suitable power
outlet.
• Check the mains supply is switched on.
• Connect the power cable to a different power outlet.
• Check the power switch located at the back of the box is switched to the ON
position.
No Picture
• Make sure that the box is powered on and in operation mode by pressing the
POWER button.
• Ensure the HDMI/SCART cable is firmly connected to the TV
• Check that the correct Source/Input has been selected on your TV (e.g.
HDMI1/HDMI2). The Source/Input button can be found on your TV’s remote control.
• Check that the channel your wish to watch is currently ON AIR.
Poor Picture or Sound Quality
• Ensure no mobile phones or microwave appliances are placed near the box.
• Check the HDMI/SCART cable is correctly connected to your TV and box.
• Check if the box or your TV is not set to MUTE.
• Check the Audio Type in your TV Box Menu
Remote Control Not Functioning
• Ensure you point the top end of the remote control directly towards the receiving
part of the TV box.
• Remove and reinsert the batteries on your remote control.
• Replace batteries on your remote control with a new set.
CALL OUT CHARGE
Please ensure that you have read the instructions carefully and followed the
recommendations for troubleshooting on this guide before contacting your
supplier/installer. A call out charge will apply for any issue to be resolved.
Veusat July 2017
Loading...
