Vetus M4.15, M4.17 Operation Manual

Operation manual

M4.15 M4.17

ii

1

M4.15
M4.17

340202.03

Operation manual

Please enter the serial numbers here.
These numbers should be quoted when inquiring about Customer
Service, Repairs or Spare Parts (see page 6).

We reserve the right to make any changes without previous
notice.

Copyright © 2011 Vetus N.V. Schiedam Holland

Serial numbers

Engine serial number Vetus:

Mitsubishi:

Gearbox serial number:

2

Please read and observe the information given in this operation
manual. This will enable you to avoid accidents, preserve the
manufacturer’s warranty and maintain the engine in peak operat­ing condition.

For the Guarantee Conditions, see the Vetus Diesel Service and
Warrantee Manual.

This engine has been built exclusively for the application speci­fied in the scope of supply and is to be used only for the intended
purpose. Any use exceeding that scope is considered to be
contrary to the intended purpose. The manufacturer will not not
assume responsibility for any damage resulting therefrom. The
risks involved are to be borne by the user.

Use in accordance with the intended purpose also implies com-

pliance with the conditions laid down by the manufacturer for
operation, maintenance and servicing. The engine should only
be operated, maintained and serviced by persons which are
familiar with the former and the hazards involved.

The relevant accident prevention guidelines and other gener­ally accepted safety and industrial hygiene regulations must be
observed.

Unauthorized engine modifications will invalidate any liability
claims against the manufacturer for resultant damage.

Manipulations of the injection and regulating system may also
influence the performance of the engine, and its emissions.
Adherence to legislation on pollution cannot be guaranteed
under such conditions.

3

Serial numbers 1

1 Introduction 4

2 Engine description

General 6

Identification of engine parts 8

Control panels 10

3 Use

General guidelines 11

First commissioning 12

Running-in 15

Starting 16

(Pre-heating) 17

Cruising 19

Stopping 20

4 Routine maintenance

Introduction 21

Maintenance schedule 22

5 Maintenance

Checking the oil level 23

Checking the coolant level 24

Checking and cleaning the

raw water strainer 25

Draining water from the water

separator/fuel filter 26

(Bleeding) 26

Changing the oil 28

Battery, cables and cable

connections 30

Checking the gearbox oil level 32

Changing the gearbox oil 33

Checking valve clearance 34

Replacing the fuel filter 36

Cleaning fuel lift pump 37

Checking the V-belt 38

Checking flexible engine mounts 39

Checking hose connections 39

Checking fastenings 39

Checking the raw water pump 40

Coolant replacement 42

Cleaning the heat exchanger 44

Checking engine rpm 47

6 Winter lay-up

Winter storage procedure 48

Recommissioning after winter

storage 51

7 Troubleshooting 54

8 Technical Data 60

9 Operating media

Lubrication Oil 63

Fuel 64

Coolant 65

10 Wiring Diagrams 66

11 Overall Dimensions 68

Contents

4

Dear customer,

Vetus diesel engines are designed both for pleasure and com­mercial craft. Consequently, a wide range of variants are offered
to meet the requirements of specific cases.

Your engine is appropriately equipped for your vessel, which
means that not necessarily all components described in this
manual are mounted to your engine.

We have endeavoured to highlight any differences so that you
will able to locate the operating and maintenance instructions
relevant to your engine quickly and easily.

Please read this manual before starting your engine and always
observe the operating and maintenance instructions.

We are available to help with any additional inquiries.

Sincerely,
Vetus n.v.

Introduction

5

Safety measures

Introduction

All safety instructions in this manual are desig­nated by the accompanying symbol. Please follow
them carefully.

Pass the safety instructions to other persons operating the
engine as well.

General regulations and laws for safety and accident prevention
must also be observed.

• Neverattempttotouchmovingpartswhentheengineisrun­ning.

• Never touch hot parts of the engine, and keep flammable

materials well away from the engine.

• Alwaysstoptheenginebeforecheckingoradjustingcompo­nents.

• Always stop the engine before checking or topping up the

coolant or oil.

•

Never

open cap on top of header tank when the engine is at

operating temperature.

• Alwayscarryoutmaintenancesafelybyonlyusingtoolswell

matched in size.

6

Engine data tag

The

vetus

engine serial number and per­formance data are printed on the engine
data tag.

Model and engine serial number must be
given when ordering spare parts.

Engine data tag location

The

vetus

engine data tag is attached to

the valve cover.

Engine serial number

The

Mitsubishi

engine serial number is

stamped on the fuel injection pump.

Engine description

General

VD01077

VD01048

VD01049

7

Cylinder numbering

Cylinders are numbered consecutively,
beginning at the front end.

Fuel pump seal

The manufacturer shall not be held liable
for damages resulting from adjustments
made to the fuel injection pump.
The maximum engine speed adjustment
screw has been sealed to prevent this.

Adjustments to the fuel pump
are to be carried out by author­ized Vetus-Mitsubishi Service
specialists only.

General

Engine description

VD00147 VD00145

Lead seal

Maximum
rpm adjust­ment screw

8

1 Oil filler cap
2 Fuel pump air bleed nipple
3 Fuel supply pipe connection ø 8 mm
4 Fuel lift pump
5 Oil dipstick
6 Oil filter
7 Water separator/fuel filter drain plug
8 Water separator/Fuel filter
9 Gearbox filler cap
10 Gearbox oil dipstick
11 Electrical system connectoion box
12 Fuse
13 Fuel return pipe connection ø 8 mm
14 Water separator/fuel filter air bleed

nipple
15 Air inlet silencer
16 Manual operation of electric stop
17 Connection for throttle push-pull

cable
18 Cooling system air bleed nipple /
Connection for extra expansion

tank (Keel cooling model only)
19 Calorifier connection
20 Gearbox drain plug
21 Gearbox

Engine description

Identification of engine parts

Service side

VD01050

9

22 Starter motor
23 Raw water inlet ø 20 mm
24 Raw water pump
25 V-belt
26 Alternator
27 Filler cap for cooling system
28 Expansion tank
29 Heat exchanger
30 Cooling system drain plug
31 Airvent connection
32 Exhaust injection bend ø 50 mm
33 Connection for gearbox push-pull

cable

Identification of engine parts

Starter side

Engine description

VD01051

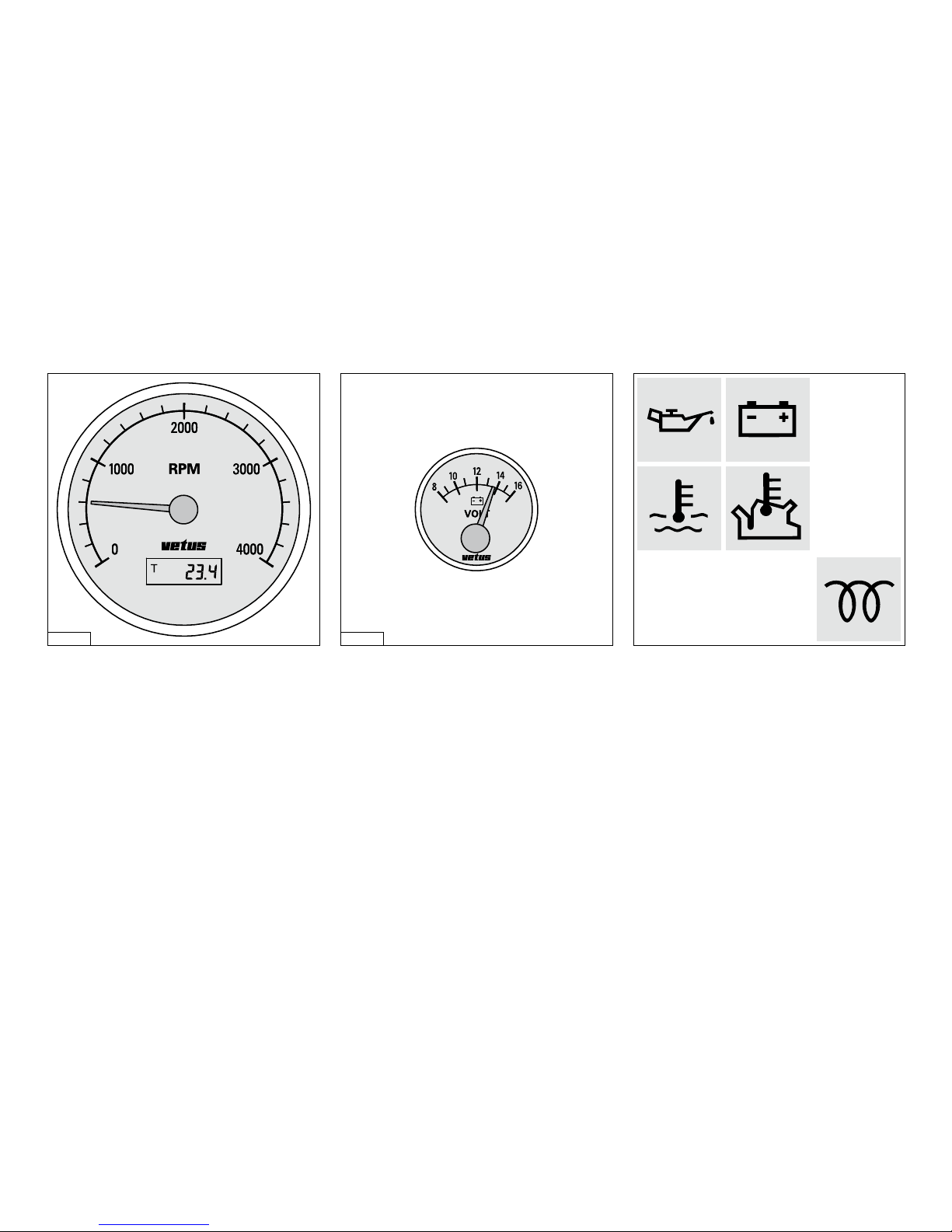

1 Tachometer/Operating hours counter
2 Voltmeter
3 Starter pre-heat switch/lock
4 Warning light high raw water temperature
5 Warning light low oil pressure

6 Warning light high coolant temperature
7 Warning light battery charging
8 Indicator light pre-heating
9 Warning light gearbox low oil pressure *

*) This is an option, not fitted as standard.

10

Basic panel (model 22)
Fly-bridge panel (excl. voltmeter, model 21)

Sailingboat panel (model 10)

Engine description

Control panels

5

3

7

8

6

4

VD00575

5

3

7

8

6

4

9

1 2

VD00576

11

General guidelines for use

Implementing the following recommendations will result in longer
life and better performance and more economical operation of
your engine.

• Carryout themaintenancedescribed regularly,including the

‘Daily procedures before starting’.

• Useanti-freezein the engine coolant allyear long,this helps

prevent corrosion as well as protecting against frost damage.
For specifications see page 65.

• Neverruntheenginewithoutathermostat.

• Useagoodqualitylubricatingoil.Forspecificationsseepage

63.

• Usea goodqualitydiesel fuel thatisfree of waterandother

pollutants.

• Always stop the engine immediately if one of the warning

lamps for oil pressure, high coolant temperature, high raw
water temperature or battery charging lights up.

Use

General guidelines

Commissioning the engine

Before starting the engine for the first time,
the following procedures must be carried
out:

Filling with engine oil

As a rule engines are delivered empty of
oil.
Fill the engine with oil through the filler
neck on top of the valve cover, for quantity
and specification see page 63.

Check the oil level with the dipstick, see
page 23.

A second oil filling cap is located at the
front of the engine on starboard side.

First commissioning

Use

12

Engine Oil

5 litres (1 UKgal) 15W40

API: CD, CE or CF4
ACEA: A3/B3, A3/B4

For example:

- Vetus Marine Diesel Engine Oil
15W-40

- Shell Nautilus Premium Inboard Oil
15W-40

OIL

VD01052

OIL

VD01053

13

Filling gearbox with oil

Fill the gearbox with oil.

Check the oil level with the dipstick, see
page 32.

Technodrive:

type TMC40 : 0.20 litres Engine oil
SAE 20/30
type TMC40 M/P : 0.20 litres, ATF*)
(0.35 UK pt, 0.4 US pt)
type TMC60 : 0,80 liter, Engine oil
SAE 20/30
type TMC60 E/P : 0,80 liter, ATF*)
(1.4 UK pt, 1.7 US pt)
type TM345 A / H : 1.6 litres, Engine oil
SAE 20W40-CD
(2.8 UK pt, 3.4 US pt)
*) ATF: Automatic Trans mission Fluid type
A, Suffix A.

ZF Hurth:
type ZF10M : 0.35 litres ATF*)
(0.6 UK pt, 0.74 US pt)
type ZF12 : 1.1 litres ATF*)
(1.9 UK pt, 2.3 US pt)
type ZF15MA : 0.56 litres ATF*)
(1 UK pt, 1.2 US pt)
type ZF15V : 1.0 litres ATF*)
(1.8 UK pt, 2.1 US pt)

*) ATF: Automatic Trans mission Fluid type
A, Suffix A.

First commissioning

Use

OIL OIL

VD01034

17

27

VD01054

Vetus engines are normally equipped
with Technodrive or ZF-Hurth gear­boxes.

In case your engine is equipped with
another brand of gearbox follow the
instructions given in the supplied own­ers manual.

14

Filling the cooling system

Remove the cap of the filler neck on the
top of the heat exchanger housing.
Remove the bolt from the upper side of the
thermostat cover, so that air can escape
from the cooling system.
Fill the cooling system.
Use a mixture of 40% antifreeze (ethylene­glycol based) and 60% tap water or use a
special coolant.

For specifications see page 65.

The level of the coolant must be approx.
1 cm (3/8”) below the lower edge of the
filler neck.
Bleeding will take place automatically dur­ing filling!
Replace the filler cap.
After the engine has run for the first time
and has reached operating temperature
and has cooled down again to ambient
temperature, check the coolant level in the
heat exchanger housing.

If necessary, add coolant.

Use

First commissioning

Water heater

If a water heater is connected to the
engine and this heater is positioned
above the upper side of the engine
then bleeding of the heater will not
take place automatically! Fill the heater
separately to bleed the cooling system
completely.

Never fill the cooling system
with sea water or brackish
water.

VD01056VD01055 VD00144

Coolant

quantity

:

6.5 litres (1.4 UKgal)

13

(3/8”)

15

Fuel

Ensure that the fuel tank is filled with diesel
fuel.
Use only clean, water-free, commercial
approved diesel fuel.
For fuel grade see page 64.
Bleed the fuel system, see page 26.

Other preparations

• Checkbatteryandcableconnections.

• Starttheengine,seepage16,andletit

run for about 10 minutes without load.

Check the engine and all connections

(fuel, cooling water and exhaust) for
leaks.

Running-in

In order to ensure a long life for your
engine, please observe the following for
the first 50 operating hours:

• Allow the engine to reach operating

temperature before applying a load.

• Avoidfastacceleration.

• Do not allow the engine to run faster

than 3/4 of maximum RPM.

First commissioning
Running-in

Use

FUEL

VD00002

Never fill the fuel tank while
the engine is running. Do not
spill fuel. Prevent unneces­sary pollution.

16

After repair work:

Check that all guards have been replaced
and that all tools have been removed from
the engine.
When starting with pre-heating, do not use
any other substance (e.g. injection with
‘Easy Start’). Doing so could result in an
accident.

Preparation starting

Before starting the engine, always check
that the control lever(s) is (are) in the neu­tral position.

Never start the engine with
the fuel injection pump
removed.
Disconnect battery.

Set the control lever to ‘half throttle’ with­out engaging the gearbox.

Use

Starting

Before starting,

alWays

check the follow-

ing points:

• Engineoillevel.

• Coolantlevel.

• Seacockopen.

• Mainswitch‘

oN

’.

• Gearboxin‘

Neutral

’ position.

neutral

gearbox

forward

half throttle,
gearbox not engaged

gearbox
reverse

reverse

throttle

forward

throttle

VD00111

VD00112

17

Turn the start key on the instrument panel
clock-wise; the warning lights for oil pres­sure and alternator will now light up and
the alarm buzzer will sound.

Pre-heating

Turn the key further clockwise to the ‘ ’
position; only the pre-heating indica­tor light will be lit now.

Hold the key in this position for about 6
seconds.

Pre-heating time

The ideal pre-heating time depends on
ambient temperature; the lower the ambi­ent temperature, the longer the pre-heat­ing time required. See table.

WarNiNg

To prevent the glow plugs from
burning out, never exceed the
stated maximum pre-heating
time.

Starting

Use

Ambient

Pre-heating time

Temperature

Above + 5°C (41°F) about 6 seconds

+5°C to -5°C

about 12 seconds

(+41°F to +23°F)

Below -5°C (23°F) about 18 seconds

Maximum

1 minute

pre-heating time

VD00107 VD00108

18

WarNiNg

Never turn the key to the ‘

start

’ posi­tion while the engine is running.
Doing so will damage the starter
motor.

Starting

Now turn the key further to the ‘

start

’

position.

Release the key as soon as the engine
fires (the key will return to the ‘

oN

’ posi­tion) and throttle back.
Leave the key in this position while the
engine is running.

Check that the indicator lights for oil pres­sure and alternator are off. Cooling water
should now flow out of the exhaust; if this
is not the case, stop the engine immedi­ately. Before submitting the engine to full
load it should be brought up to operating
temperature as quickly as possible by
running at 3/4 of maximum revs.

Never

turn the main switch off while the engine
is running.

The instrument panel is provided with the
following instruments (Depending of the
type of panel, see page 10).

Use

Starting

WarNiNg

Release the key if the engine does
not fire within 10 seconds. Wait until
the starter motor has stopped running
completely before turning the key to
the ‘

start

’ position again. Never allow
the starter motor to run for more than
30 seconds consecutively.

VD00109

VD00110

19

Tachometer

Indicating the number of revolutions per
minute of the engine.
Avoid idling for more than 10 minutes.
Also the number of running hours is indi­cated.

Idling speed,
M4.15: 840 rpm
M4.17: 840 rpm

Voltmeter

Indicating the battery voltage.
When the engine is running, the battery
voltage should be between 12 and 14
Volts.
With the engine stopped and the start key
in the first position, the voltmeter should
indicate 12 Volts.

Warning lights

None of the five warning lights should light
up while the engine is running. Oil pres­sure, battery charging and temperature
indicator lights are all connected to an
alarm buzzer. If this alarm buzzer sounds
while running,

stop the eNgiNe iMMedi

-

ately!

Cruising

Use

VD00577 VD00578

Electrical shutdown

Reduce engine speed to idle and shift the
gearbox to ‘

Neutral

’. Turn the key entirely

to the left, through the ‘

off

’ position.

Never stop the engine immediately after
it has been in operation for a long time.
Allow the engine to idle for a few minutes
before stopping.

When the engine has stopped, turn the
key to the ‘

off

’ position.

If the engine is not to be used for some
time, it is recommended that the sea cock
is closed and the battery main switch
turned off.

Mechanical shutdown

On the engine itself stopping is possible
by pressing the black button on the fuel
injection pump.
If the fuel supply is not shut off by the elec­trically operated fuel solenoid stopping of
the engine can be done this way.

Stopping

Use

20

VD00105 VD00106

VD01057

21

Introduction

The following guidelines should be observed for daily and peri­odic maintenance. Perform each function at the indicated time
interval.
The intervals stated are for normal operational conditions. Service
the unit more frequently under severe conditions.
Failure to carry out maintenance can result in faults and perma­nent damage to the engine.
No claim can be made on the Guarantee if maintenance has been
neglected.

Routine Maintenance

Introduction

22

Every 10 hours or daily, before starting

After the first 50 hours

Every 100 hours, at least once every year

Maintenance schedule

Routine Maintenance

Check engine oil level 23

Check coolant level 24

Check water strainer 25

Drain water from fuel filter 26

Engine oil change 28

Replace oil filter 28

Battery, cables and cable connections 30

Check gearbox oil level 32

Drain water from fuel filter 26

Engine oil change 28

Replace oil filter 28

Gearbox oil change 33

Replace fuel filter 36

Check idle rpm 47

Every 500 hours, at least once every year

Gearbox oil change 33

Check valve clearance 34

Replace fuel filter 36

Cleaning fuel lift pump 37

Check V-belt 38

Check flexible engine mounts 39

Check engine for leaks 39

Check tightness of all fasteners, bolts and nuts 39

Every 1000 hours, at least once every 2 years

Raw water pump inspection 40

Replace coolant 42

Stop the engine before carrying out any maintenance
work.

When required

Bleeding fuel system 26

Cleaning heat exchanger 44

Check idle rpm 47

23

Check oil level

Turn the engine off.
The dipstick is located on the starboard
side of the engine.

Oil level

The oil level must be at or near the upper
mark on the dipstick*. If necessary top up
with the same brand and type of oil.

*) The difference between the two oil level

marks is: 1.9 litres (3 1/4 UKpt)

Topping up oil

The oil filling cap is on top of the the valve
cover.

A second oil filling cap is located at the
front of the engine on starboard side, see
page 12.

Maintenance

Checking engine oil level

Daily, before starting.

VD01058 VD00126 VD01052

Checking coolant level

Check the coolant level in the header tank.
This has to be checked when the engine
is cold.
Remove the cap of the filler neck on the
heat exchanger.

The level of the coolant must be approx.
1 cm (3/8”) below the lower edge of the
filler neck.

If necessary, top up.

When topping up coolant, remove the
bolt from the upper side of the thermostat
cover, so that air can escape from the
cooling system.

WarNiNg

Never open the cap on the
header tank when the engine is
at operating temperature.

Topping up coolant

The internal cooling system can be filled
with a mixture of anti-freeze (40 %) and tap
water (60 %) or with a special coolant. For
specification, see page 65.

Never fill the cooling system with
sea water or brackish water.

Checking coolant level

Daily, before starting.

Maintenance

24

VD01059

VD00144 VD01056 VD01055

13

(3/8”)

25

Checking the raw water strainer

Check daily whether there is any dirt in the
raw water strainer.

Cleaning the strainer

Close the seacock before removing the lid
of the water strainer.

Clean the raw water strainer as often as is
necessary, depending on the pollution of
the waterways, but at least once every 6
months. A clogged raw water strainer will
result in excessive temperatures or over­heating of the engine coolant.

Check the sealing between the lid and
housing after cleaning and re-assembling
the strainer. An improperly sealed lid will
result in air sucked in by the sea water
pump which again will result in overheat­ing of the engine.

Maintenance

Checking and cleaning the raw water strainer

Daily, before starting.

VD00125 CT30119

Empty fuel filter

• Openthedrainplugatthelowersideof

the filter.

• Drain the water and close the drain

plug.

Empty water separator

Empty the separately installed water sepa­rator/fuel filter:

• Openthedrainplugatthelowersideof

the filter.

• Drain the water and close the drain

plug.

Note : The water separator is not within
the scope of supply but installation is
required!

Bleeding

After the water separator/fuel filter has
been drained, the air has to be bled from
the fuel system.
The fuel system is self-bleeding.

Turn the key of the starter switch to posi­tion ‘ON’ and the fuel lift pump will feed the
fuel system.

Maintenance

Draining of water from the water separator/fuel filter

Every 100 operating hours.

VD00027

26

VD01060

VD00107

27

Open the two bleeding nipples to speed
up the bleeding process.

One (1) bleeding nipple is located at the
filter.

A second bleeding nipple is located at the
fuel injection pump.

Close the bleeding nipples when all air
has escaped.

Start the engine

Operate the starter switch until the engine
fires; release the starter switch if the engine
does not fire within 20 seconds. Wait until
the starter motor has stopped before mak­ing a new attempt to start the engine.

Repeat the above if the engine cuts out
after a short time.

Draining of water from the water separator/fuel filter

Every 100 operating hours.

Maintenance

VD00109VD01062VD01061

2112

13

28

Change the oil with a switched off engine
at operation temperature. (Lube oil tem­perature approx. 80°C (176°F).)

Be aware of the risk of skin
burning during draining the
hot oil! Used oil must be col­lected in a container for prop­er disposal according to laws
and regulations.

Draining the oil

Remove the dipstick; insert the suction
hose of the supplied sump pump in the
dipstick tube.
Push down the pump handle quickly and
pull it up slowly.

Removing the oil filter

Unscrew the oil filter, with a commercially
available tool, when all the oil has been
pumped out.
Catch any dripping oil.

Beware of burns from hot oil.

Maintenance

Engine oil change

Every 100 operating hours.

VD01063 VD01064

Engine oil change

Change the engine oil every 100 hours of
operation (together with engine oil filter
replacement).

If the engine runs less than 100 hours dur­ing the year the oil should be changed at
least once a year.

Run the engine for a few minutes before
changing the oil; warm oil can be pumped
out more easily.

29

Oiling the oil seal

Clean the contact surface of the gasket.
Lubricate the oil seal of the new filter ele­ment with clean engine oil.

Oil filter installation

Install the filter in accordance with the
instructions printed on the filter element
housing.

Refilling with oil

Refill the engine with new oil (for specifica­tion see page 63) through the filler open­ing in the valve cover.
Operate the engine at idling speed for a
short period of time. Check for oil leaks
whilst the engine is running.
Stop the engine. Allow 5 minutes for the oil
to return to the sump. Check the oil level
with the dipstick.

Engine oil change

Every 100 operating hours.

Maintenance

VD00124

VD01065 VD01052

oil filter, art.Code: StM0051

aMount of oil:
(

oil filter inCl.)

5.6 litres (1.25 UKgal)

30

Battery, battery connections

Keep battery clean and dry.
Remove battery cables (negative first).
Clean battery posts (+ and -) and clamps
and grease with acid-free and acid-resist­ant grease.
Ensure that clamps make good contact
after reassembling. Hand tighten the bolts
only.

Checking specific gravity

Every Vetus Maintenance-free battery has
a hydrometer (1) built into the cover.
Visual inspection of the hydrometer will
show one of three conditions:

Hydrometer operation

• Green dot visible - State of charge 65 %
or more.

• Dark- State of charge less than

65 %. Recharge immediately.

• Clearorlightyellow - Electrolyte level
low.

In case of low level, caused by over-

charging the battery for a long period
of time with a voltage too high, replace
battery. Check alternator and/or voltage
regulator.

Maintenance

Battery, cables and connections

Every 100 operating hours.

VD00117 VD00118

VD00121 VD00122 VD00123

Vetus maintenance-free batteries

GREEN

DOT

ALL DARK CLEAR

31

Checking electrolyte level

For conventional batteries it is required
to check the electrolyte level regularly.
Remove vent caps (taking care no spark
or open flame is nearby) and inspect the
level. Fluid should be 10 to 15 mm (3/8” to
5/8”) above top of all plates. If necessary
top up with distilled water. Replace vent
caps and charge the battery for 15 min­utes at 15 - 25 Amps to mix electrolyte.

Checking specific gravity

Measure the electrolyte specific gravity
of the individual cells with a commer­cial hydrometer. The hydrometer reading
(see table) indicates the state of charge.
Hydrometer reading of all cells should be
at least 1.200 and show less than 0.050
between high and low. If not, recharge or
replace battery. During checking the tem­perature of the electrolyte should prefer­ably be 20°C (68°F).

The gases emitted by the
battery are explosive! Keep
sparks and naked flames
away from the battery!

Do not allow battery acid to come into
contact with skin or clothing!
Wear protective goggles!
Do not rest tools on the battery!

Battery, cables and connections

Every 100 operating hours.

Maintenance

Specific State of
gravity charge

1.280 100%

1.200 50% recharge

1.120 10% recharge
immediately

VD00119

VD00120

Conventional batteries Conventional batteries

32

Oil level check (ZF-Hurth)

Unscrew the dipstick out of the gearbox
housing.

Check the oil level by cleaning the dip­stick and lowering it into the hole, without
screwing it in. The oil level should be
between the end and the notch in the
dipstick.
If necessary top up by pouring oil in the
dipstick hole. For oil type and specification
see page 63.

Oil level check (Technodrive)

The oil level must between the two marks
on the dipstick
If necessary top up.
The fillercap is on top of the gearbox
housing. For oil type and specification see
page 63.

Vetus engines are normally equipped
with ZF-Hurth or Technodrive gearbox­es. Consult the supplied Owners Manual
for more details about care and mainte­nance. In case your engine is equipped
with another brand of gearbox follow the
instructions given in the supplied owners
manual for changing oil and other care
and maintenance.

Maintenance

Gearbox oil level check

Every 100 operating hours.

VD01038 VD01066

17 27

VD01034

33

Draining the oil

Drain the oil with the aid of a separate
sump pump.
Remove the dipstick (ZF-Hurth, 17) or
remove the dipstick (Technodrive,

27).

Insert the suction hose of the sump pump
in the dipstick hole. Push down the pump
handle quickly and pull it up slowly.
Remove the sump pump when all the old
oil has been pumped out.

Or, if sufficient space below the gearbox is
available, oil can be drained by removing
the drain plug.

Drain plug: ZF-Hurth

17

Technodrive 14

Collect the oil in a dripping pan.

Filling with new oil

Refill the gearbox to the correct level via
the dipstick opening (ZF-Hurth, 17) or
via the filling hole (Techno drive,

27)

.

For oil specification see page 63.

In case your engine is equipped with
another brand of gearbox follow the
instructions given in the supplied owners
manual for changing oil and other care
and maintenance.

Changing the gearbox oil

Every 500 operating hours.

Maintenance

VD01043 VD01042

34

Checking / adjusting valve clearance

Checking the valve clearance must be
done with a cold engine, that is an engine
which did not run for at least 6 hours.

Remove rocker cover

Remove the 5 bolts of the rocker cover.
Complete the following steps:

Locating TDC

Locate the Top Dead Center (TDC), at the
end of the compression stroke, for cylin­der 1 by barring the engine slowly until the
TDC marks of the engine block and the
crank pulley match.

Checking valve clearance

Every 500 operating hours.

Maintenance

VD00130

TDC mark
cylinder 1 and 4

TDC mark
cylinder 2 and 3

Mark on
gearcase

Injection
timing
mark

VD01067

12 27

Note: There are two TDC’s e.g. compres­sion and suction. At the TDC at the end
of the compression stroke the rocker arm

does not move when the crank pulley is
rotated a little.

35

Adjusting valve clearance

• Checkvalveclearanceatcylinder1and

adjust if necessary.

• Rotate the crankshaft 180° clockwise
and check valve clearance at cylinder 3.

• Again rotate the crankshaft 180° and

check valve clearance at cylinder 4.

• Finally again rotate the crankshaft 180°
and check valve clearance at cylinder 2.

Cylinder numbering

Cylinders are numbered consecutively,
beginning at the front end.

Checking valve clearance

Every 500 operating hours.

Maintenance

ValVe ClearanCe: inlet

0.25 mm (0.010”)

exhauSt

0.25 mm (0.010”)

VD01068

12

VD00146

1.2 x 6.5

36

Fuel filter removal

The fuel filter is to be replaced as a unit.

• Closethefuelstopcock.

• Removethefuelfilter,useafilterwrench.

Catch any fuel.

Keep naked flames away when
working on the fuel system. Do
not smoke!

Fuel filter installation

• Clean any debris from thefilter carrier

rim.

• Lubricate the rubber gasket sparingly

with clean engine oil.

• Fillthenewfilterwithcleandieselfuel.

• Installthefilter.Whentherubbergasket

touches the housing, apply another
tightening of a half to three quarters of
a turn by hand.

VD01017

VD00154 VD00133

Maintenance

Fuel filter replacement

Every 500 operating hours.

fuel filter, art.Code: StM3690

37

Fuel lift pump

• Check, and if necessary clean, filter

inside the fuel lift pump.

• Openthefuelstopcock.

• Checkforleakage.

Bleeding

After replacing the fuel filter and cleaning
the pilot filter inside the fuel lift pump the
air has to be bled from the fuel system.

For bleeding see page 26.

Start the engine

Operate the starter switch until the engine
fires; release the starter switch if the engine
does not fire within 20 seconds. Wait until
the starter motor has stopped before mak­ing a new attempt to start the engine.

Repeat the above if the engine cuts out
after a short time.

Cleaning fuel lift pump

Every 500 operating hours.

Maintenance

STM7220 VD00109

Fuel filter

fuel filter , art.Code: StM4050

38

Inspection V-belt

Inspect the belt for wear and tear (fraying
and cracking). Belts which are in poor
condition should be replaced.

Check, tension and change belts only
with the engine off. Refit belt guard, if
provided.

Checking tension

Check tension of the V-belt by applying
moderate finger and thumb pressure. If
the deflection of the belt is more than
12 mm (1/2”), using about 10 kg (20 lbs)
thumb pressure, it should be tensioned.

Tensioning V-belt

Loosen the bolt of the adjustment bracket
and both the alternator mounting bolts.
Now push the alternator outwards until the
belt tension is correct.
Now first re-tighten the upper mounting
bolt of the alternator.
Then re-tighten the bolt of the adjustment
bracket and the lower mounting bolt.

Maintenance

Checking the V-belt

Every 500 operating hours.

VD00034 VD00128 VD00129

V-belt, art.Code: StM7966

1412

39

Check flexible engine mounts

Check the bolts which secure the damper
element, the mounting bolts to engine bed
and the nuts at the adjustment spindle for
tightness.
Inspect the rubber element of the engine
support for cracks. Also check the deflec­tion of the damper element, the deflection
influences the alignment of engine and
propshaft! Re-align engine in case of
doubt.

Inspection hose connections

Inspect all hose connections of the cool­ingsystem. (Cracked hoses, loose hose
clamps)

Check fasteners

Check tightness of all fasteners, bolts and
nuts.

Flexible engine mounts, hose connections and fasteners

Every 500 operating hours.

Maintenance

VD00160 VD01069

40

Raw water pump inspection

The rubber impeller of the outboard water
pump is not proof against running dry.
If the water supply has been blocked, it
may be necessary to replace the impeller.
Always carry a spare impeller on board.

Pump cover removal

Inspection where appropriate changing is
as follows:

• Closetheseacock.

• Remove the cover of the pump by

unscrewing the screws out of the hous­ing.

Impeller removal

• Slidetheimpelleroffoftheshaftusing

a waterpump plier.

• Mark the impeller to ensure correct

re-installation if it is to be re-used. The
impeller must be installed in the same
position as removed.

Maintenance

Raw water pump inspection

Every 1000 operating hours.

VD01070 VD01071

1.6 x 6.3

VD01031

41

Impeller inspection

• Inspecttheimpellerfordamage.

• Replacetheimpellerifnecessary.

Re-install the impeller

• The impellershould be lubricatedwith

glycerin or a non-petroleum based lubri­cant such as a silicone spray before fit­ting it into the impeller housing.

• Fittheimpellertothepumpshaft.(ifan

existing impeller is re-used, install it in
the same position as removed).

Replacing the pump cover

• Replacethecoverwithanew gasket.

• Checkthewaterfilterandopenthesea

cock.

Raw water pump inspection

Every 1000 operating hours.

Maintenance

VD00127 VD00004 VD00159

iMpeller, art.Code: StM8061 GaSket, art.Code: StM8002

42

Be aware of the risk of skin
burning during draining the hot
coolant! Used coolant must be
collected in a container for
proper disposal according to
laws and regulations.

Draining of coolant

Remove the drain plugs from the engine
block (1) and heat exchanger (2). Remove
the filler cap to vent the cooling system
and check that all the coolant has been
drained. After draining replace the drain
plugs.

Maintenance

Coolant replacement

Every 1000 operating hours.

Coolant replacement

The coolant has to be replaced every
1000 operating hours or at least once
every two years.

N.B. Replacing the coolant may also
be necessary as part of the winter stor­age procedure; in case that the coolant
present in the cooling system offers insuf­ficient protection for the winter.

VD01072 VD01073

14 13

1

2

43

Filling the cooling system

Remove the cap of the filler neck on the
top of the heat exchanger housing.
Remove the bolt from the upper side of the
thermostat cover, so that air can escape
from the cooling system.
Fill the cooling system.
Use a mixture of 40% antifreeze (ethylene­glycol based) and 60% tap water or use a
special coolant.

For specifications see page 65.

The level of the coolant must be approx.
1 cm (3/8”) below the lower edge of the
filler neck.
Bleeding will take place automatically dur­ing filling!
Replace the filler cap.

After the engine has run for the first time
and has reached operating temperature
and has cooled down again to ambient
temperature, check the coolant level in the

heat exchanger housing.

If necessary, add coolant.

Maintenance

Coolant replacement

Every 1000 operating hours.

Water heater

If a water heater is connected to the
engine and this heater is positioned
above the upper side of the engine
than bleeding of the heater will not
take place automatically! Fill the heater
separately to bleed the cooling system
completely.

Never fill the cooling system
with sea water or brackish
water.

VD01056VD01055 VD00144

Coolant

quantity

:

6.5 litres (1.4 UKgal)

13

(3/8”)

4444

Remove the drain plug

• Close the seacock and detach the

water inlet hose from the sea water
pump.

• Drain the coolant: To do this, remove

the drain plug from the heat exchanger
housing.

• Removethefillercapfromthetopofthe

heat exchanger housing to allow air into
the system and check that all coolant
has drained off.

Removal of bolts out of the end covers

Take out both central bolts from the end
covers and take the end covers with the
O-rings out of the housing.

Maintenance

Cleaning the heat exchanger

VD01073 VD01059

13

VD01076

6

4545

Remove heat exchanger

Slide the heat exchanger out of the housing.

Cleaning the heat exchanger

Clean the heat exchanger: Use a pipe
cleaner to remove fouling in the pipes.
Then rinse the heat exchanger pipes with
clean water.
Ensure that both heat exchanger end
chambers are free from dirt.

Cleaning the heat exchanger

Maintenance

VD01021 STM7217VD01075

6

46

Replacing heat exchanger

Replace the heat exchanger in the original
position in the heat exchanger housing.
Use new O-rings (61 x 2.5 mm) which
have been greased.

Replacing the end covers

Fit the end covers in the housing; the con­nector cover is fitted with a locating pin
so that it can be fitted in one way only in
relation to the heat exchanger.
This ensures the correct position of the
separator baffle in the connector cover in
relation to the heat exchanger.

Tighten up the bolts when both covers are
in the correct position.

• Refitthedrainplug.

• Reconnectallhosespreviously

removed.

• Refillthecoolingsystem,seepage43.

Cleaning the heat exchanger

Maintenance

VD00157 VD00143

o-rinG, art.Code: StM6113 (2 x)

4747

At full load (with the boat cruising) the
maximum engine speed should be about
3,200 RPM (see technical data page 60). If
the engine does not reach this speed, it is
being overloaded!
If this is the case, check the ship’s pro­peller for defects or irregularities, and
also to see that it is the correct pitch and
diameter.

Checking engine speed

The engine idling speed should be 840
rpm.
Allow the engine to warm up normally
(until the coolant temperature reaches at
least 60°C (140°F).) before checking and/
or adjusting the idling speed.
Check the engine RPM using a rev. coun­ter, or use the rev. counter fitted to the
control panel.

Adjusting engine idling speed

If the engine speed differs from that stated
above, it must be adjusted.
The engine idling speed can be reset
using the adjustment screw on the fuel
pump.

Maintenance

Checking engine speed

WarNiNg

The maximum engine speed adjust­ment screw has been correctly set
at the factory and sealed. DO NOT
attempt to remove this seal.

Lead seal

Increasing RPM

Maximum
speed adjust­ment screw

Minimum
speed adjust­ment screw

VD00134 VD00145

10

48

Fuel system

Drain the water from the water separator/
fuel filter and the fuel tank. Ensure that the
tank is completely filled with fuel.

Running with protective fuel mixture

Connect the fuel supply pipe to a can filled
with a mixture of one (1) part of engine oil*
to nine (9) parts of clean fuel**. Use this
mixture to run the engine at no load for
approx. 10 minutes.
Stop the engine.

* Engine oil with protective properties.
E.g. Shell Super Diesel T 10W40
** Preferably water-free fuel.
Collect some fuel from the return pipe,

while engine is running.

Never run the engine under
load with this mixture of fuel
and oil.

Winter storage procedure

Winter lay-up

VD01060 VD00136

49

Lubrication system

With the engine still at operating tem­perature: (If not, run the engine until warm,
then turn off.)

Replace the oil filter and change the
engine oil; use oil with protective proper­ties. See page 63.

Raw water cooling system

Close the seacock before removing the lid
of the water strainer. If necessary, clean
the raw water strainer.
Pour 1 litre (2 UK pt) of anti-freeze into the
water strainer and run the engine until the
anti-freeze has disappeared into the cool­ing system.
Take care that no anti-freeze is spilled into
the waterway (anti-freeze is poisonous).

Check the seal between the lid and hous­ing after cleaning and re-assembling the
strainer.
An improperly sealed lid will result in air
sucked in by the raw water pump which
again will result in overheating of the
engine.

Winter lay-up

Winter storage procedure

VD01063 VD00125

50

Fresh water cooling system

To avoid corrosion during winter storage
the cooling system must be filled with an
antifreeze/water mixture (or a coolant). For
specifications see page 65.
N.B. Replacing the coolant is only neces­sary if the coolant present in the cooling
system offers insufficient protection for
the winter.
For coolant replacement see page 42.

Electrical system

Disconnect the battery cables.

Charging the batteries

Charge batteries during winter lay-up regularly
if required!

Winter storage procedure

Winter lay-up

VD01059 VD00139 VD001xx

51

Check that the lid of the raw water
strainer is reinstalled.

Open the sea cock.

Winter lay-up

Recommissioning after winter storage

1

2

3

4

5

6

Check that the lid of the raw water
pump and drain plugs are reinstalled.
(pages 40, 42)

Re-tighten possible loose hose
clamps.

Check the coolant level. (page 24)

Check the engine oil level. (page 23)

VD00125

VD01070

VD01074

VD01059

VD00138

VD01058

52

Recommissioning after winter storage

Winter lay-up

Drain the water from the water sepa­rator/fuel filter. (page 26)

Open the fuel valve.

7

8

9

10

11

12

Drain the water from the fuel tank.

Install a new fuel filter. (page 36)

Make sure that the batteries are fully
charged. (pages 30, 50)

Connect the batteries.

VD00027

VD00141

VD01017

VD00137

CT40063

VD00140

53

Winter lay-up

Recommissioning after winter storage

Start the engine.
Check the fuel system, the cooling
system and the exhaust for leakage.

13

14

Stop the engine and change the oil
of the gearbox. (page 33)

Check the operation of the instru­ments, the remote control and the
gearbox.

VD01078

VD01043

15

VD00581

54

Engine faults are in most cases caused by improper operation or
insufficient maintenance.

In case of a fault, always check first that the operation and main­tenance instructions have been followed.

In the following tables information is given about the possible
causes of faults and suggested remedies. Please note that these
tables can never be complete.

If you are unable to identify the cause of the fault or to rectify it
yourself, then contact the nearest service representative.

Before starting, make sure that nobody is in the
immediate vincinity of the engine.
When carrying out repair, never start the engine with
the fuel injection pump removed removed.

Disconnect battery!

Troubleshooting

General

55

Fault finding table

Troubleshooting

Possible fault

a

Faulty or discharged battery

b

Loose or corroded connections

in starting circuit.

C

Faulty starter-switch or faulty

starter-relay.

d

Faulty starter-motor or pinion

does not engage.

e

Starter-relay is not engaged

due to a voltage too low; cau­sed by a very long intermediate
cable from engine to control
panel.

Possible fault

a

Fuel stop valve closed.

b

(Nearly) Empty fuel tank.

C

Air in fuel system.

d

Fuel filter clogged with water

and/or contamination.

e

Leaking fuel supply line or fuel

injection line.

f

Faulty injector/injection pump.

G

Vent line of fuel supply tank

clogged.

h

Exhaust restricted.

i

Electric fuel lift pump doesn’t

operate.

j

Delivery and suction valves of

electric fuel lift pump obstructed
by dirt.

k

Clogged filter of electric fuel lift

pump.

1 Engine will not crank 2 Engine cranks but will not start, no smoke from exhaust

Remedy

a

Check / recharge bat-

tery and check engine
alternator and/or battery
charger.

b

Clean and tighten con-

nections.

C

Check / replace.

d

Check / replace starter-

motor.

e

Install an auxiliary starter

relay.

Remedy

a

Open.

b

Refill.

C

Check and bleed.

d

Check or replace.

e

Check / replace.

f

Check, replace if

required.

G

Check / clean.

h

Check.

i

Check / replace.

j

Check / clean.

Install a fuel pilot filter

in fuel line from tank to
engine.

k

Check / clean.

56

Fault finding table

Troubleshooting

Possible fault

a

Air in fuel system.

b

Faulty injector/injection pump.

C

Setting of stop valve incorrect.

d

Faulty glow plugs.

e

Incorrect valve clearance.

f

Incorrect injection timing after

overhauling of engine.

G

Insufficient intake air.

h

Wrong fuel quality or contami-

nated fuel.

i

Incorrect lube oil SAE class or

quality for ambient tempera­ture.

Possible fault

a

(Nearly) Empty fuel tank.

b

Air in fuel system.

C

Fuel filter clogged with water

and/or contamination.

d

Leaking fuel supply line or fuel

injection line.

e

Faulty injector/injection pump.

f

Vent line of fuel supply tank

clogged.

G

Fuel supply line restricted.

h

Incorrect valve clearance.

i

Idle setting too low.

j

Exhaust restricted.

k

Wrong fuel quality or contami-

nated fuel.

l

Clogged filter of electric fuel lift

pump.

3 Engine cranks but will not start, smoke from exhaust 4 Engine starts but runs unevenly (rough idling) or stalls

Remedy

a

Check and bleed.

b

Check, replace if

required.

C

Check / adjust.

d

Check / replace.

e

Adjust.

f

Check / adjust.

G

Check.

h

Check fuel. Drain and

flush fuel tank. Replace
with new fuel.

i

Replace.

Remedy

a

Refill.

b

Check and bleed.

C

Check or replace.

d

Check / replace.

e

Check, replace if required.

f

Check / clean.

G

Check / clean.

h

Adjust.

i

Check/ adjust.

j

Check.

k

Check fuel. Drain and

flush fuel tank. Replace
with new fuel.

l

Check / clean.

57

Fault finding table

Troubleshooting

Possible fault

a

Air in fuel system.

b

Fuel filter clogged with water

and/or contamination.

C

Leaking fuel supply line or fuel

injection line.

d

Faulty injector/injection pump.

e

Setting of stop valve incorrect.

f

Oil level too high.

G

Incorrect valve clearance.

h

Exhaust restricted.

i

Insufficient intake air.

j

Wrong fuel quality or contami-

nated fuel.

k

Engine overloaded.

Possible fault

a

Faulty injector/injection pump.

b

Oil level too high.

C

Oil level too low.

d

Faulty oil filter.

e

Coolant pump defective.

f

Heat exchanger dirty or clogged

as a result of rubber particles
from a worn impeller.

G

Coolant level too low.

h

Sea cock closed.

i

Raw water strainer clogged.

j

Leaking raw water intake

system.

k

Faulty thermostat.

l

Faulty impeller raw water pump.

M

Insufficient intake air.

n

Motor becomes apparantly

overheated as a result of faulty
temperature switch, sensor or
meter.

5 Engine does not reach maximum rpm under load 6 Engine overheats

Remedy

a

Check and bleed.

b

Check or replace.

C

Check / replace.

d

Check, replace if

required.

e

Check / adjust.

f

Lower level.

G

Adjust.

h

Check / clean.

i

Check.

j

Check fuel. Drain and

flush fuel tank. Replace
with new fuel.

k

Check size of propeller.

Remedy

a

Check, replace if

required.

b

Lower level.

C

Increase level.

d

Replace.

e

Check / clean.

f

Check / clean.

G

Check / top up.

h

Open.

i

Check / clean.

j

Check / replace.

k

Check / replace.

l

Check / replace.

M

Check / replace air

intake filter.

n

Check / replace.

58

Fault finding table

Troubleshooting

Possible fault

a

Air in fuel system.

b

Fuel filter clogged with water

and/or contamination.

C

Leaking fuel supply line or fuel

injection line.

d

Faulty injector/injection pump.

e

Fuel supply line restricted.

f

Faulty glow plugs.

G

Incorrect valve clearance.

h

Clogged filter of electric fuel lift

pump.

i

Faulty electric fuel lift pump.

Possible fault

a

Oil level too low.

b

Excessive inclination of engine.

C

Incorrect lube oil SAE class or

quality for ambient tempera­ture.

7 Engine not firing on all cylinders 8 Engine has little or no oil pressure

Remedy

a

Check and bleed.

b

Check or replace.

C

Check / replace.

d

Check, replace if

required.

e

Check / clean.

f

Check / replace.

G

Adjust.

h

Check / clean.

i

Check / replace.

Remedy

a

Increase level.

b

Check / Adjust.

C

Replace.

Possible fault

a

Oil level too high.

b

Excessive inclination of engine.

C

Incorrect lube oil SAE class or

quality for ambient tempera­ture.

d

Excessive wear of cylinder/

piston.

e

Insufficient intake air.

f

Engine overloaded.

9 Engine oil consumption excessive

Remedy

a

Lower level.

b

Check / Adjust.

C

Replace.

d

Check compression;

overhaul engine.

e

Check.

f

Check size of propeller.

59

Fault finding table

Troubleshooting

Possible fault

a

Oil level too high.

b

Excessive inclination of engine.

Possible fault

a

Air in fuel system.

b

Faulty injector/injection pump.

C

Water in fuel system.

d

Faulty glow plugs.

e

Incorrect valve clearance.

f

Incorrect injection timing.

G

Wrong fuel quality or contami-

nated fuel.

h

Vapour in exhaust gases con-

denses as a result of very low
ambient temperature.

10A Blue exhaust smoke (idling) 10C White exhaust smoke (at full load)

Remedy

a

Lower level.

b

Check / Adjust.

Remedy

a

Check and bleed.

b

Check, replace if

required.

C

Check water separator.

d

Check / replace.

e

Adjust.

f

Check / adjust.

G

Check fuel. Drain and

flush fuel tank. Replace
with new fuel.

h

-

Possible fault

a

Insufficient intake air.

b

Faulty injector / injection pump.

C

Engine overloaded, max. rpm

is not reached.

10B Black exhaust smoke (at load)

Remedy

a

Check.

b

Check/replace if required.

C

Check sizes of propeller.

60

Model M4.15 M4.17

General

Make Vetus Mitsubishi
Number of cylinders 4 4
Based on S4L-61DM S4L2-61DM
Type 4-stroke diesel, in-line
Injection Indirect
Aspiration Natural
Bore 78 mm 78 mm
Stroke 78.5 mm 92 mm
Total displacement 1500 cm

3

1758 cm

3

Compression ratio 22 : 1 22 : 1
Idle speed 840 rpm 840 rpm
Max. no. of revolutions at
no load 3200 rpm 3200 rpm
Valve clearance (cold) Inlet 0.25 mm
Exhaust 0.25 mm
Weight 185 kg (408 lbs)
(with standard gearbox)

Engine installation

Max. installation angle 15 degrees backwards
Max. athwartships angle 25 degrees continuously,
30 degrees intermittent

Model M4.15 M4.17

Maximum output

at the flywheel (ISO 3046-1) 24.3 kW (33 hp) 30.9 kW (42 hp)
at the prop shaft (ISO 3046-1) 23.6 kW (32.1 hp) 30 kW (40.8 hp)
at no. of revolutions of 3000 rpm 3000 rpm
Torque, 77.4 Nm 98 Nm
(7.9 kgm, (10 kgm,

57.1 ft.lb) 72.3 ft.lb)
at no. of revolutions 3000 rpm 3000 rpm

Fuel consumption

at no. of revolutions 252 g/kW.h 252 g/kW.h
of 1800 rpm (185 g/hp.h) (185 g/hp.h)

Fuel System (Self-bleeding)

Injection pump Bosch model M (Nippon Denso)
Injectors Plug injector
Opening pressure 140 bar (kgf/cm

2

) (2030 psi)
Firing order 1 - 3 - 4 - 2
Injection timing 21° BTDC 17° BTDC
Fuel filter element STM3690
Fuel lift pump
Suction height max. max. 1.5 m (5 ft)
Fuel supply connection for hose 8 mm (5/16”) I.D.
Fuel return connection for hose 8 mm (5/16”) I.D.

Technical data

Engine specifications

61

Model M4.15 M4.17

Oil lubrication system

Oil capacity, max.
without oil filter 5.4 litres (1.2 UKgal)
with oil filter 5.6 litres (1.25 UKgal)
Oil Filter STM0051
Oil temperature insump max. 130°C (266°F)

Cooling system

Capacity,
Intercooler version 6.5 litres (1.4 UKgal)
Keel cooler version 7.2 litres (1.6 UKgal)
Thermostat opening at 82°C±1.5°C
(180°F±3°F),
fully opened at 95°C (203°F)
Coolant pump,
Flow at max. engine rpm 50 l/min (11 UKgal/min)
Total head keelcooler
at max. flow 2 m Water (6’ 7”)
Raw water pump,
Flow at max. engine rpm 30 l/min (6.6 UKgal/min)
Total head at max. flow 2 m Water (6’ 7”)
Impeller STM8061
Inlet connection for hose 20 mm (3/4”) I.D.
Heater return connection 8 mm (5/16”)

Model M4.15 M4.17

Exhaust system

Exhaust diameter 50 mm
Exhaust back pressure at specified output
max. 150 mbar (2.2 psi)

Electrical system

Voltage 12 Volt
Alternator 14 Volt, 50 A
Battery capacity min. 55 Ah, max. 108 Ah
Protection Tubular glass fuse,
32 x 6.3 mm 10 A slow blow

V-belt STM7966

Gearbox Reduction ratio

Technodrive:
model TMC40 1.45 / 2.00 : 1
model TMC40M 1.45 / 2.00 : 1
model TMC60 (E,M) 1.5 / 2.00 / 2.50 : 1
model TM345 (A,H) 1.54 / 2.0 / 2.47 : 1

ZF Hurth: model ZF10M 2.05 / 2.72 : 1
model ZF12 2.14 / 2.63 : 1
model ZF15MA 1.88 / 2.63 : 1
model ZF15V 2.13 / 2.99 : 1

Engine specifications

Technical data

Screw connection

Wrench Torque

Diameter Pitch

Size

Nm (kgm) (ft.lbf)

Cylinder head bolt M10 1.25 14 88 ±5 (9 ±0.5) (65 ±3.5)

Connecting rod nut M9 1.0 14 34.8 ±2.5 (3.55 ±0.25) (26 ±2)

Fly-wheel bolt M12 1.25 19 132 ±5 (13.5 ±0.5) (98 ±3.5)

Crank shaft pulley nut M18 1.5 27 172 ±25 (17.5 ±2.5) (127 ±19)

Main bearing cap bolt M10 1.25 17 51.5 ±2.5 (5.25 ±0.25) (38 ±2)

Rocker stay bolt M8 1.25 12 14.7 ±5 (1.5 ±0.5) (10 ±3.5)

Valve cover bolt M8 1.25 12 11.3 ±1.5 (1.15 ±0.15) (8 ±1)

Nozzle holder M20 1.5 21 54 ±5 (5.5 ±0.5) (40 ±3.5)

Fuel leak oil pipe nut M12 1.5 18 27 ±2.5 (2.75 ±0.25) (20 ±2)

Nozzle retaining nut M16 0.75 19 37 ±2.5 (3.75 ±0.25) (27 ±2)

Fuel injection pipe nut M12 1.5 — 29 ±5 (3 ±0.5) (22 ±3.5)

Delivery valve holder — 19 44 ±5 (4.5 ±0.5) (32 ±3.5)

Solenoid lock nut M30 1.5 36 44 ±5 (4.5 ±0.5) (32 ±3.5)

Temperature switch M16 1.5 17 22.6 ±4 (2.3 ±0.4) (16 ±3)

Oil filter M20 1.5 — 12 ±1 (1.2 ±0.1) (9 ±0.8)

Oil pressure switch PT1/8 26 10 ±2 (1 ±0.2) (7 ±1.5)

Pressure relief valve M22 1.5 22 49 ±5 (5 ±0.5) (36 ±3.5)

Oil drain plug M14 1.5 22 39 ±5 (4 ±0.5) (29 ±3.5)

Glow plug M10 1.25 12 17.2 ±2.5 (1.75 ±0.25) (13 ±2)

Fly-wheel housing bolt M12 1.25 17 64 ±10 (6.5 ±1) (47 ±7)

Torque wrench settings

Technical data

62

63

Engine Lubricating Oil

Only use a recognised brand of oil for lubricating the engine.

Lube oils are differentiated according to their performance and
quality class. In common use are specifications named after
API (American Petroleum Institute) and CCMC (Committee of
Common Market Automobile Constructors).
Approved API Oils : CD, CE and CF4
Approved ACEA Oils : A3/B3, A3/B4

As the viscosity of lube oil is dependent on temperature, the oil
vicosity (SAE grade) should be selected according to the ambient
temperature when the the engine is started.
To avoid oil changes dictated by the seasons we advise one of
the following multi-grade oils.

- SAE 10W40 for temperatures of -25°C up to +30°C
(-13°F up to +86°F)

- SAE 15W40 for temperatures of -20°C up to +35°C
(-4°F up to +95°F)

For example: Vetus Marine Diesel Engine Oil 15W-40
Shell Nautilus Premium Inboard Oil 15W-40

Gearbox Lubricating Oil

Only use a recognised brand of oil for lubricating the gearbox.

Technodrive:

model TMC40 : 0.20 litres, Engine oil SAE 20/30
model TMC40 M / P : 0.20 litres, ATF*) (0.35 UK pt, 0.4 US pt)
model TMC60 : 0.80 litres, Engine oil SAE 20/30
model TMC60 E / P : 0.80 litres, ATF*) (1.4 UK pt, 1.7 US pt)
model TM345 A / H : 1.6 litres, Engine oil SAE 20W-40-CD
(2.8 UK pt, 3.4 US pt)

ZF Hurth:
model ZF10M : 0.35 litres, ATF*) (0.6 UK pt, 0.74 US pt)
model 12 : 1.1 litres, ATF*) (1.9 UK pt, 2.3 US pt)
model 15MA : 0.56 litres, ATF*) (1 UK pt, 1.2 US pt)
model 15V : 1.0 litres, ATF*) (1.8 UK pt, 2.1 US pt)

Other brands of gearboxes:

See supplied owners manual for oil type and quantities.

*) ATF : AutomaticTransmission Fluid;
Transmissie olie type A, Suffix A.
For example : Vetus Transmission Oil
Shell Donax T6
Gulf ATF Synth

Operating media

Lubricating oil

Fuel Quality Grade

Use commercially available diesel fuel with less than 0.5% sulfer
content. If the sulfur content is higher than 0.5%, the intervals
between oil changes should be halved e.g. change oil every 250
hours. Don’t use fuel with more than 1% sulfur!

The following fuel specifications / standards are approved:

• CENEN590orDIN/EN590(underdevelopment)

• DIN51601(Feb.1986)

• BS2869(1988):A1andA2

• ASTMD975-88:D1andD2

• NATOCodeF-54andF75

The exhaust emission levels determined during certification by
the supervising authority are always based on the reference fuel
described by law.

Winter-grade fuel

Waxing may occur at low temperatures, clogging the fuel system
and reducing engine efficiency.
If the ambient temperature is less than 0°C (+32°F), winter-grade
fuel -suitable down to -15°C (+5°F) - should be used. This fuel is
usually available from filling stations well in advance of the cold
months. Diesel fuel containing additives (Super Diesel) is often
on sale as well, for use down to -20°C (-4°F).

Fuel

Operating media

64

65

Coolant fluid

The preparation and monitoring of coolant in inter-cooled engines
is especially important because corrosion, cavitation and freezing
can lead to engine damage. Use as coolant a mixture of a cool­ing system protective liquid (anti-freeze, ethylene glycol based)
and tap water.

In tropical climates, where anti-freeze availability may be limited,
use a corrosion inhibitor to protect the engine cooling system.

The concentration of the cooling system protective liquid in the
coolant should not fall below/exceed the following limits:

The protective liquid concentration must be maintained under all
circumstances. Therefor if coolant must be added always use the
same mixture of anti-freeze and tap water.

Water quality for coolant preparation

Use preferably tap water.

If an other available fresh water is used; the values given below
must not be exceeded.

Never use sea-water or brackish water.

Cooling system protective liquids must be disposed of
in accordance with environmental regulations.

Operating media

Coolant

Cooling system protective Water Protection against
liquid (Anti-freeze) freezing to

max. 45 vol% 55% -35°C (-31°F)

40 vol% 60% -28°C (-18°F)

min. 35 vol% 65% -22°C (-8°F)

Water quality min. max.

pH-value at 20°C (68°F) 6.5 8.5

Chloride ion content [mg/dm

3

] – 100

Sulfate ion content [mg/dm

3

] – 100

Total hardness [degrees] 3 12

66

Wiring diagram

Engine with panel model ‘20’, ‘21’, ‘22’

-4 -1 -2 -5 -3

Q1

R1

61 91 92 93 W

L1 L2 L3 L4 L5

R2

R3

-6

19/94

X2M

95W155817/1931

X1

-8

-7

-5 -4

-3 -6

D1

D2

D3 D4

D5

D6

D7

D8

D9

D10

L6

BZ

n/h

V

G

3Y

B4 B1 B2 B5 B3B6

p

ϑϑ

Coolant

temp.

Exhaust

temp.

A1 A3 A4 A2 A5 A6

Alternator

D+

W

B+

Stop

solenoid

Fuel pumpPre-heatingStarter motor

Oil

press.

30

8587

8630

8587

86

A1 A3 A4 A2

A5

A6

B4 B1 B2 B5 B3B6

p

Red Yellow Orange Violet White Black

ETR

ETS

-1 -2

Engine panel model

'20' '21' '22'

Voltmeter

Tachometer/
hour counter

Key switch

Plug 'A'

Socket 'A'

Warning lights

Pre-

heating

Battery charging

Gearbox
oil press.

Plug 'B'

Socket 'B'

Transparent

Yellow/
Green

Green Brown Blue Gray

Gearbox

oil press.

Yellow/
Green

Battery

Battery

main

switch

Fuse or
circuit breaker

Pre-

heating

relay

Auxiliary
start relay

Model 20 21 22
Voltmeter Ð Ð 1
Tachometer Ð 1 1

R

M M

VD00407

03-09 <-

67

Options, panel model ‘10’

Wiring diagram

Q1

R1

61 91 92 93 95

L1 L2 L3 L4 L5

R3

R2

19/94

155817/1931

D1

D2

D3 D4

D5

D6

D7

D8

D9

D10

L6

BZ

G

3Y

B4 B1 B2 B5 B3B6

p

ϑ

ϑ

Coolant

temp.

Exhaust

temp.

A1 A3 A4 A2 A5 A6

Alternator

D+

W

B+

Stop

solenoid

Fuel pumpPre-heatingStarter motor

Oil

press.

30

8587

8630

8587

86

A1 A3 A4 A2

A5 A6

B4 B1 B2 B5 B3B6

Red Yellow Orange Violet White Black

ETR

ETS

Engine panel model

'10'

W

Transparent

Yellow/
Green

Green Brown Blue Gray

Battery charging

J3

J4

Battery

Battery

main

switch

Fuse or
circuit breaker

Pre-

heating

relay

Auxiliary
start relay

Plug 'A'

Socket 'A'

Warning lights

Pre-

heating

R

M M

Key switch

Plug 'B'

Socket 'B'

VD00406

03-09 <-

68

Wiring diagram

Engine with panel model ‘20’, ‘21’, ‘22’

engine with intercooling

-4 -1 -2 -5 -3

Q1

R1

61 91 92 93 W

L1 L2 L3 L4 L5

R2

R3

-6

19/94

X2M

95W155817/1931

X1

-8

-7

-5 -4

-3 -6

D1

D2

D3 D4

D5

D6

D7

D8

D9

D10

L6

BZ

n/h

V

G

3Y

B4 B1 B2 B5 B3B6

p

ϑϑ

Coolant

temp.

Exhaust

temp.

A1 A3 A4 A2 A5 A6

Alternator

D+

W

B+

Stop

solenoid

Fuel pumpPre-heatingStarter motor

Oil

press.

30

8587

8630

8587

86

A1 A3 A4 A2

A5

A6

B4 B1 B2 B5 B3B6

p

Red Yellow Orange Violet White Black

ETR

ETS

-1 -2

Engine panel model

'20' '21' '22'

Voltmeter

Tachometer/
hour counter

Key switch

Plug 'A'

Socket 'A'

Warning lights

Pre-

heating

Battery charging

Gearbox
oil press.

Plug 'B'

Socket 'B'

Transparent

Yellow/
Green

Green Brown Blue Gray

Gearbox
oil press.

Yellow/
Green

Battery

Battery

main

switch

Fuse or
circuit breaker

Pre-

heating

relay

Auxiliary
start relay

Model 20 21 22

Voltmeter − − 1
Tachometer − 1 1

R

M M

Battery charging
2

nd

alternator

Connection for
2

nd

alternator

Black

Yellow/
Green

Violet

2

1

3

VD00407

L4

L2

L1

L5

L3

L6

03-09 ->

69

Options, 2nd alternator

engine with intercooling

Wiring diagram

Black

Yellow/
Green

Violet

White

Red

Yellow

Red

2nd Alternator

G

3Y

2nd Alternator

D+

W

B+

Battery

Battery
main switch

30

85 87

86

87a

Fuse 5A

30

85

87

86

87a

1N4002

30

8587

86

87a

Consumers

1

2

3

VD00650

03-09 ->

70

Wiring diagram

Engine with panel model ‘20’, ‘21’, ‘22’

engine with keel cooling

-4 -1 -2 -5 -3

Q1

R1

61 91 92 93 W

L1 L2 L3 L4 L5

R2

R3

-6

19/94

X2M

95W155817/1931

X1

-8

-7

-5 -4

-3 -6

D1

D2

D3 D4

D5

D6

D7

D8

D9

D10

L6

BZ

n/h

V

G

3Y

B4 B1 B2 B5 B3B6

p

ϑ

Coolant

temp.

A1 A3 A4 A2 A5 A6

Alternator

D+

W

B+

Stop

solenoid

Fuel pumpPre-heatingStarter motor

Oil

press.

30

8587

8630

8587

86

A1 A3 A4 A2

A5

A6

B4 B1 B2 B5 B3B6

p

Red Yellow Orange Violet White Black

ETR

ETS

-1 -2

Engine panel model

'20' '21' '22'

Voltmeter

Tachometer/
hour counter

Key switch

Plug 'A'

Socket 'A'

Warning lights

Pre-

heating

Battery charging

Gearbox

oil press.

Plug 'B'

Socket 'B'

Transparent

Yellow/
Green

Green Brown Blue Gray

Gearbox
oil press.

Yellow/
Green

Battery

Battery

main

switch

Fuse or
circuit breaker

Pre-

heating

relay

Auxiliary
start relay

Model 20 21 22

Voltmeter − − 1
Tachometer − 1 1

R

M M

Battery charging 2nd alternator

Green

Violet

85 87

86

87a

VD00651

03-09 ->

71

Engine with panel model ‘20’, ‘21’, ‘22’

engine with keel cooling

Wiring diagram

Battery charging 2nd alternator

Black

Green

Violet

White

Red

Yellow

Red

2nd Alternator

G

3Y

2nd Alternator

D+

W

B+

Battery

Battery
main switch

30

85 87

86

87a

Fuse 5A

30

85

87

86

87a

1N4002

30

8587

86

87a

Consumers

L4

L2

L1

L5

L3

L6

03-09 ->

72

Wiring diagram

Options, panel model ‘10’

engine with intercooling

Q1

R1

61 91 92 93 95

L1 L2 L3 L4 L5

R3

R2

19/94

155817/1931

D1

D2

D3 D4

D5

D6

D7

D8

D9

D10

L6

BZ

G

3Y

B4 B1 B2 B5 B3B6

p

ϑ

ϑ

Coolant

temp.

Exhaust

temp.

A1 A3 A4 A2 A5 A6

Alternator

D+

W

B+

Stop

solenoid

Fuel pumpPre-heatingStarter motor

Oil

press.

30

8587

8630

8587

86

A1 A3 A4 A2

A5 A6

B4 B1 B2 B5 B3B6

Red Yellow Orange Violet White Black

ETR

ETS

Engine panel model

'10'

W

Transparent

Yellow/
Green

Green Brown Blue Gray

Battery charging

J3

J4

Battery

Battery

main

switch

Fuse or
circuit breaker

Pre-

heating

relay

Auxiliary
start relay

Plug 'A'

Socket 'A'

Warning lights

Pre-

heating

R

M M

Key switch

Plug 'B'

Socket 'B'

Battery charging
2

nd

alternator

Connection for
2

nd

alternator

Black

Yellow/
Green

Violet

2

1

3

VD00652

L2

L1

L5

L3

L4 & L6

03-09 ->

73

Options, panel model ‘34’

engine with intercooling

Wiring diagram

-4 -1 -2 -5 -3

Q1

R1

61 91 92 93 W

Ð +
(31) (15)

-1 -2

L1 L2 L3 L4 L5

R2

R3

-6

19/94

X2M

95W155817/1931

-1 -2 -3 -4

G1 G2 NC NC

M1

M2

X1

-8

-7

-5 -4

-3 -6 -1 -2

X3M X4M

D1D2D3 D4

D5

D6

D7

D8

D9

D10

L6

BZ

n/h

V

p

ϑ

G

3Y

B4 B1 B2 B5 B3B6

p

ϑ

ϑ

Coolant

temp.

Exhaust

temp.

A1 A3 A4 A2 A5 A6

Alternator

D+

W

B+

Fuel lift pump

Pre-heating

(Glow plugs)

Starter motor

Oil

press.

30

8587

8630

8587

86

A1 A3 A4

A2

A5 A6

B4 B1 B2 B5 B3B6

p

Gearbox

oil press.

Red Yellow Orange Violet White Black

ETR

Transparent

Yellow/
Green

Yellow/
Green

Green Brown Blue Gray

Battery

Battery

main

switch

Fuse or
circuit breaker

Pre-

heating

relay

Auxiliary
start relay

Key switch

Voltmeter

Tachometer/

hour counter

Oil pressure

gauge

Temperature

gauge

Warning lights

Pre-

heating

Battery charging

Gearbox
oil press.

Plug 'A'

Socket 'A'

Plug 'B'

Socket 'B'

+

-1 -2 -1 -2 -3 -4-3

B4 B1 B2 B5 B3B6

Socket 'B'

Interface

STM6911

To 2

nd

panel

Stop

solenoid

ETS

R

Engine panel model

'34'

M

M

Battery charging
2

nd

alternator

Connection for
2

nd

alternator

Black

Yellow/
Green

Violet

Interface cable MPVB2

2

1

3

VD00635

L4

L2

L1

L5

L3

L6

03-09 ->

7474

Overall Dimensions

M4.15 / M4.17

1:10

FUEL SUPPLY ø 8 mm

FUEL RETURN ø 8 mm

EXHAUST ø 50 mm

SEA WATER INTAKE ø 20 mm

75

76

77

Manual

Art. code Description

340201.03 (STM0118) Bedieningshandleiding M4.15 / M4.17 (Nederlands)

340202.03 (STM0119) Operation manual M4.15 / M4.17 (English)

340203.02 (STM0124) Bedienungsanleitung M4.15 / M4.17 (Deutsch)

340204.03 (STM0125) Manuel d’utilisation M4.15 / M4.17 (Français)

340205.02 (STM0126) Manual de operacion M4.15 / M4.17 (Español)

340206.02 (STM0127) Istruzioni per l’uso M4.15 / M4.17 (Italiano)

340207.02 (STM0128) Brugsanvisning M4.15 / M4.17 (Dansk)

340208.02 (STM0129) Användarmanual M4.15 / M4.17 (Svenska)

340210.01 Käyttöopas M4.15 / M4.17 (Suomeksi)

320331.01 (STM0032) Installatiehandleiding / Installation manual (Nederlands/English)

320199.05 (STM0016) Service- en Garantieboek / Service and Warranty Manual (Nederlands/English /
Service- und Garantieheft / Livret Garantie et Service / (Deutsch/Français)
Manual de servicio y garantía / Libretto di assistenza e garanzia (Español/Italiano)

341331.01 (STM0091) Onderdelenboek / Parts manual M4.15 / M4.17 (Nederlands/English)

342402.02 Service manual M4.15 / M4.17 (English)

78

Vetus Diesel VF4 VF5

Nederlands

340202.03 2011-11 Printed in the Netherlands

FOKKERSTRAAT 57 - 3125 BD SCHIEDAM - HOLLAND - TEL.:+ 31(10) 4377700
FAX:[phone] - E-MAIL: [e-mail] - INTERNET: http://www.vetus.com

Vetus Diesel M4.15 M4.17

English

vetus n.v.
