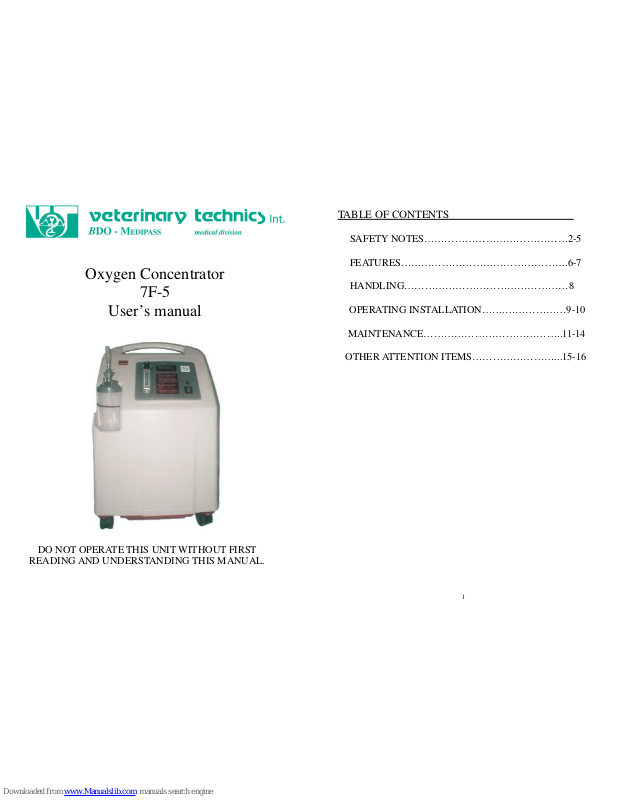

Veterinary technics 7F-5 User Manual

Oxygen Concentrator

7F-5

User’s manual

DO NOT OPERATE THIS UNIT WITHOUT FIRST

READING AND UNDERSTANDING THIS MANUAL.

1

TABLE OF CONTENTS

SAFETY NOTES……………………………………2-5

FEATURES………………………………………….6-7

HANDLING…………………………………………8

OPERATING INSTALLATION…….………………9-10

MAINTENANCE…………………………………..11-14

OTHER ATTENTION ITEMS……………………...15-16

2

SAFETY NOTES

WARNING: For avoiding power outage or oxygen concentrator
operating failure, exigent oxygen user and serious patient must
equip with reserve oxygen supply (for example: oxygen cylinder,
oxygen bag). This device is to be used as an oxygen supplement
and is not considered life supporting or life sustaining.

ⅠⅠⅠⅠ.BEFORE INSTALLATION

 The concentrator should always be kept upright to prevent cabinet

damage while being transported.

 If the electrical source power voltage is instable that beyond

normal power rang, please add the manostat.

 Please use eligible, safe power set and junction box.

 Non-professional people do not open oxygen concentrator’s

cabinet.

ⅡⅡⅡⅡ.PUT POSITION

 You may select a room in your house where using your oxygen

concentrator would be most convenient. Your concentrator can be

easily rolled from room to room on its casters.

 Be certain to place the unit so all sides are at least 10cm away

from walls, draperies, furniture, or other obstruction. Do not place

the unit in a confined area.

 Oxygen concentrator must avoid heat source, fire source, wetness,

exorbitant or over-low extra ventricular condition.

 Sundries and vessel do not be placed on top of the concentrator.

3

SAFETY NOTES



NEVER block the air openings of the unit or place it on a soft

surface, such as a bed or couch, where the air opening may be

blocked. Keep the openings free from lint, hair and the like.

ⅢⅢⅢⅢ.USING

 The use of oxygen therapy requires that special care be taken to

reduce the risk of fire. Users MUST NOT SMOKE while using

this device. Keep all matches, lighted cigarettes or other sources of

ignition out of the room in which this product is located. NO

SMOKING signs should be prominently displayed. Textiles and

other materials that normally would not burn are easily ignited and

burn with great intensity in oxygen enriched air. Failure to observe

this warning can result in severe fire, property damage and cause

physical injury or DEATH.

 For optimum performance, do not open or turn off the concentrator

frequently, reset after 3～5 minutes. Shorter periods of operation

may reduce maximum product life.

 A spontaneous and violent ignition may occur if oil, grease or

greasy substances come in contact with oxygen under pressure.

These substances MUST be kept away from the oxygen

concentrator, tubing and connections, and all other oxygen

equipment. DO NOT use any lubricants unless recommended by

manufacturer.

ⅣⅣⅣⅣ. MAINTENANCE

The oxygen concentrator was specifically designed to minimize

routine preventive maintenance at intervals of once per year. Only

professionals of the healthcare field or persons fully conversant with

4

SAFETY NOTES

this process such as authorized or factory trained personnel should

perform preventive maintenance or performance adjustments on the

oxygen concentrator.

ⅤⅤⅤⅤ. RADIO FREQUENCY INTERFERENCE

 Most electronic equipment is influenced by Radio Frequency

Interference (RFI). CAUTION should be exercised with regard to

the use of portable communications equipment in the area around

such equipment.

ⅥⅥⅥⅥ. TO REDUCE THE RISK OF BURNS, ELECTROCUTION,

FIRE OR INJURY TO PERSONS.

 Avoid using while bathing. If continuous usage is required by the

physician’s prescription:

The concentrator must be located in another room at least

2.5m from the bath.

 DO NOT come in contact with the concentrator while wet.

 DO NOT place or store product where it can drop into water or

other liquid.

 DO NOT reach for product that has fallen into water. UNPLUG

IMMEDIATELY.

 A product should NEVER be left unattended when plugged in.

 This device is to be used only in accordance with the prescription of

a physician and this User’s Manual. If at any time the patient or

attendant conclude that the patient is receiving an insufficient

amount of oxygen, the supplier and/or physician should be contacted

immediately. No adjustments should be made to the flowrate unless

5

SAFETY NOTES

prescribed by a physician.

 Close supervision is necessary when this product is used near

children or physically-challenged individuals.

 Use this product for only intended use as described in this manual.

 DO NOT use parts, accessories or adapters other than those

authorized by manufacturer.

 DO NOT connect the concentrator in parallel or series with other

oxygen concentrators or oxygen therapy devices.

 Use of some administration accessories or certain humidifiers not

specified for use with oxygen concentrator may impair the

performance.

 In certain circumstances oxygen therapy can be hazardous.

Manufacturer recommends that you seek medical advice before

using this product.

 Avoid creation of any spark near medical oxygen equipment. This

includes sparks from static electricity created by any type of

friction.
