Vetek XA Series, X Series Operating Instruction

Instruction number
LMI-31-03/05/09/ENG

Analytical balances
series XA/X

Vetek AB
Box 79, Industrivagen 3 Tel [phone] www.vetek.com
760 40 Vaddo, Sweden Fax [phone] e-mail [email protected]

- 2 -

MAY 2009

- 3 -

Contents

1.

 TECHNICAL PARAMETERS ......................................................................................... 5

2. UNWRAPING THE BALANCE ....................................................................................... 6

2.1. The balance XA/X ................................................................................................ 6

3. START THE BALANCE UP ........................................................................................... 8

3.1. Conditions of proper usage ................................................................................. 8

3.2. Set level up .......................................................................................................... 8

3.3. Warmin up ........................................................................................................... 8

4. APPROPRATION ........................................................................................................... 9

5. DESCRIPTION OF THE BALANCE ............................................................................. 10

5.1. Graphic display .................................................................................................. 10

5.2. Keyboard ........................................................................................................... 10

5.3. Connections....................................................................................................... 11

6. USER MENU ................................................................................................................ 11

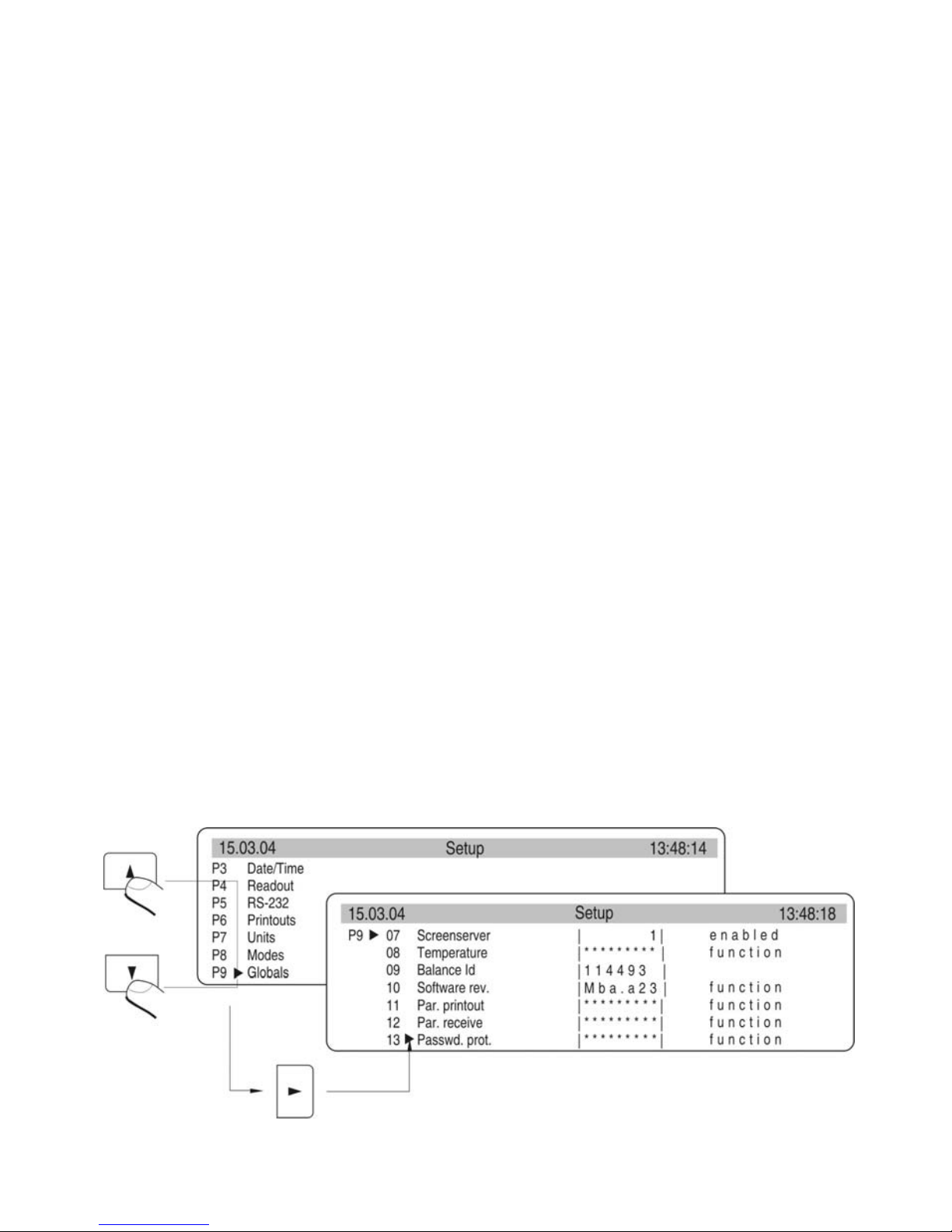

6.1. Move in user menu ............................................................................................ 15

6.2. User menu ......................................................................................................... 17

7. WEIGHING ................................................................................................................... 18

7.1. Pipettes calibration ............................................................................................ 19

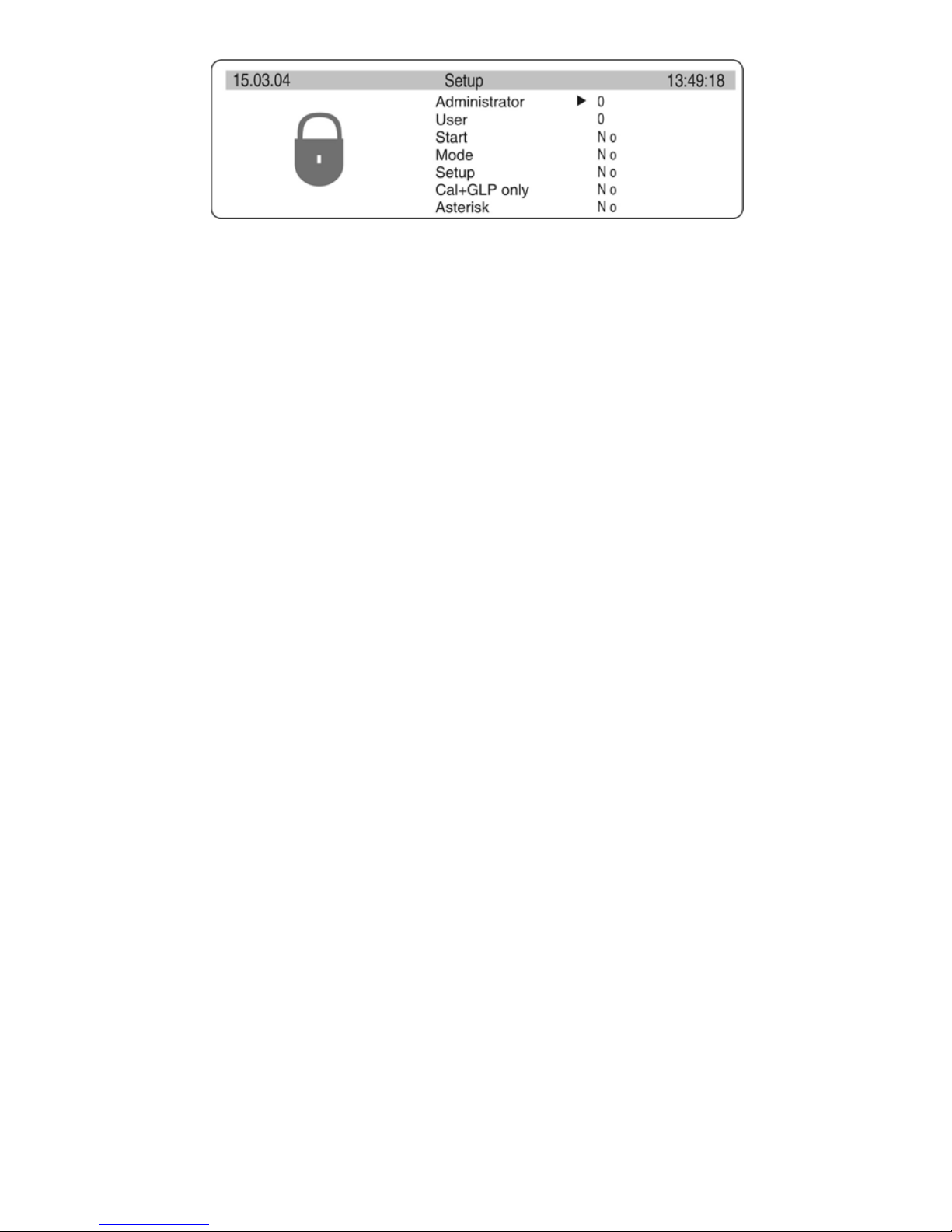

7.2. Log-in function ................................................................................................... 20

8. BALANCE CALIBRATION ........................................................................................... 22

8.1. Automatic balance calibration ............................................................................ 23

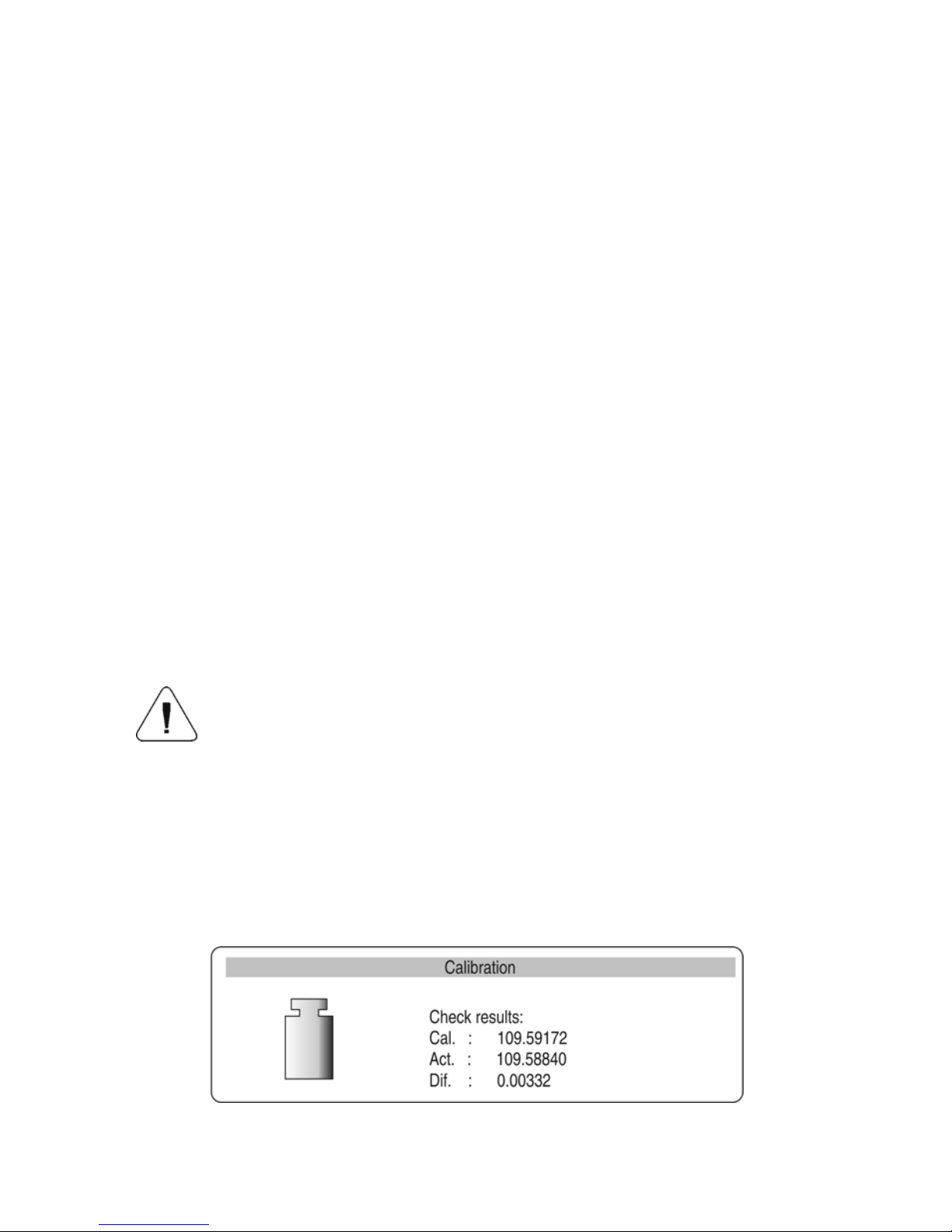

8.2. Calibration test ................................................................................................... 24

8.3. Manual calibration ............................................................................................. 25

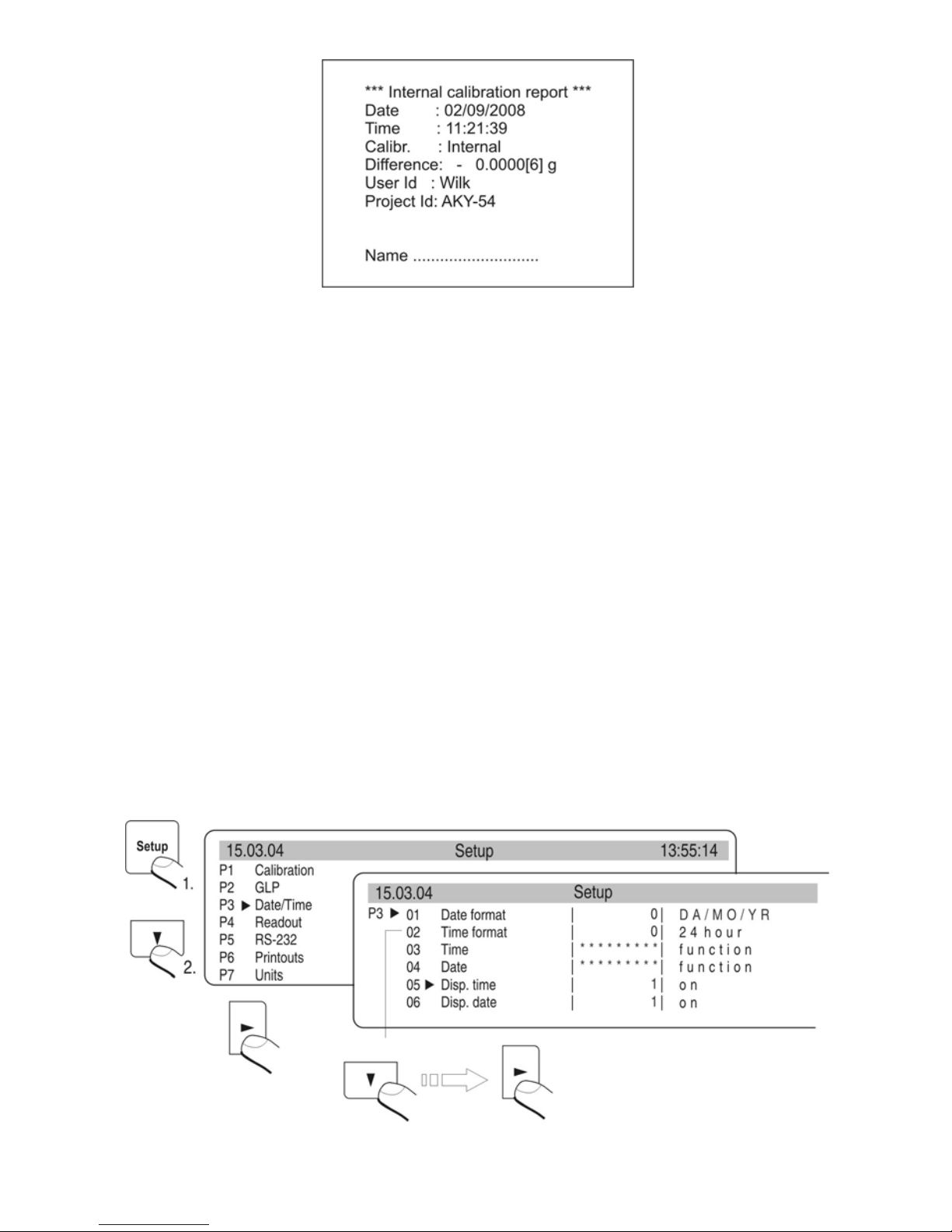

8.4. Calibration report printout .................................................................................. 27

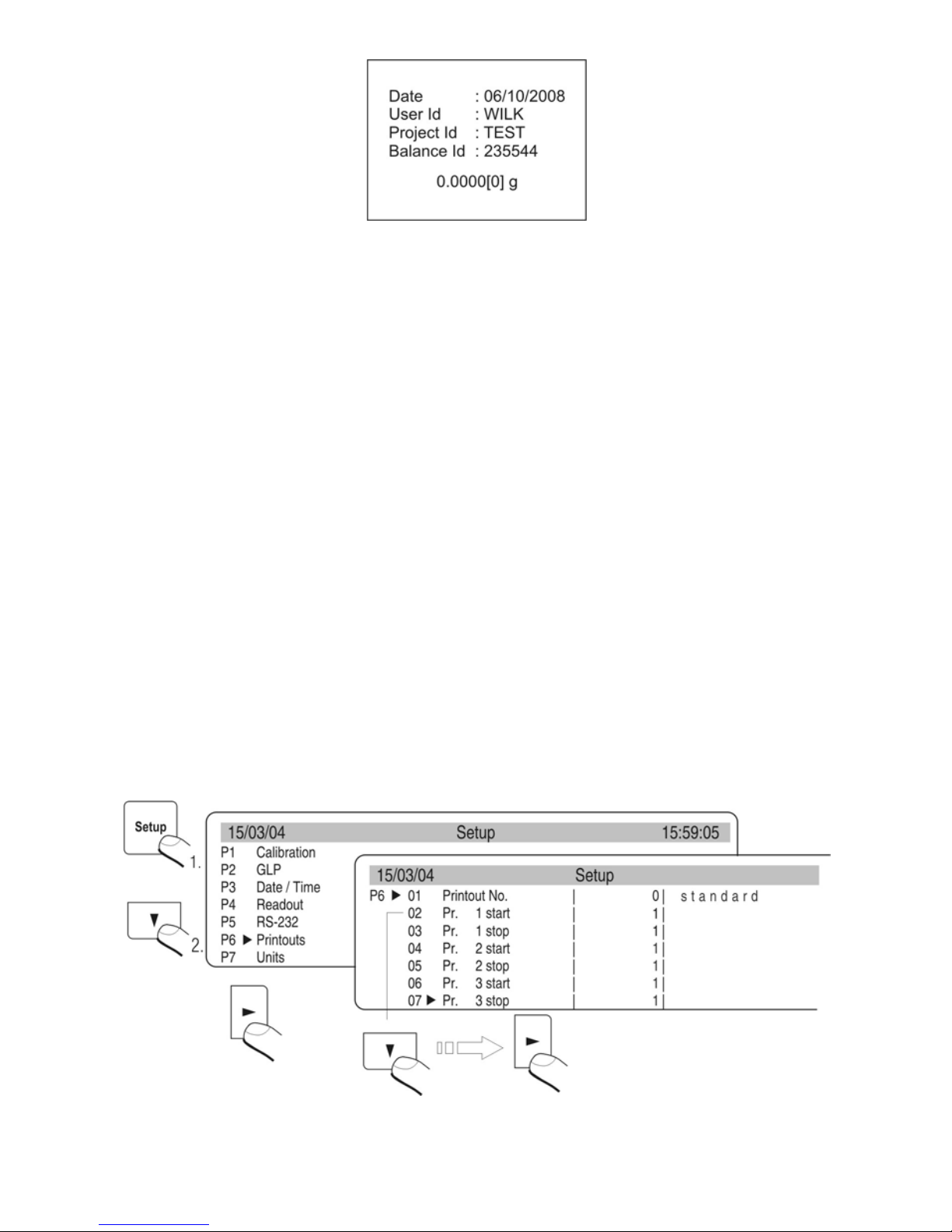

9. SETTING PRINTOUTS FOR GLP PROCEDURES ..................................................... 28

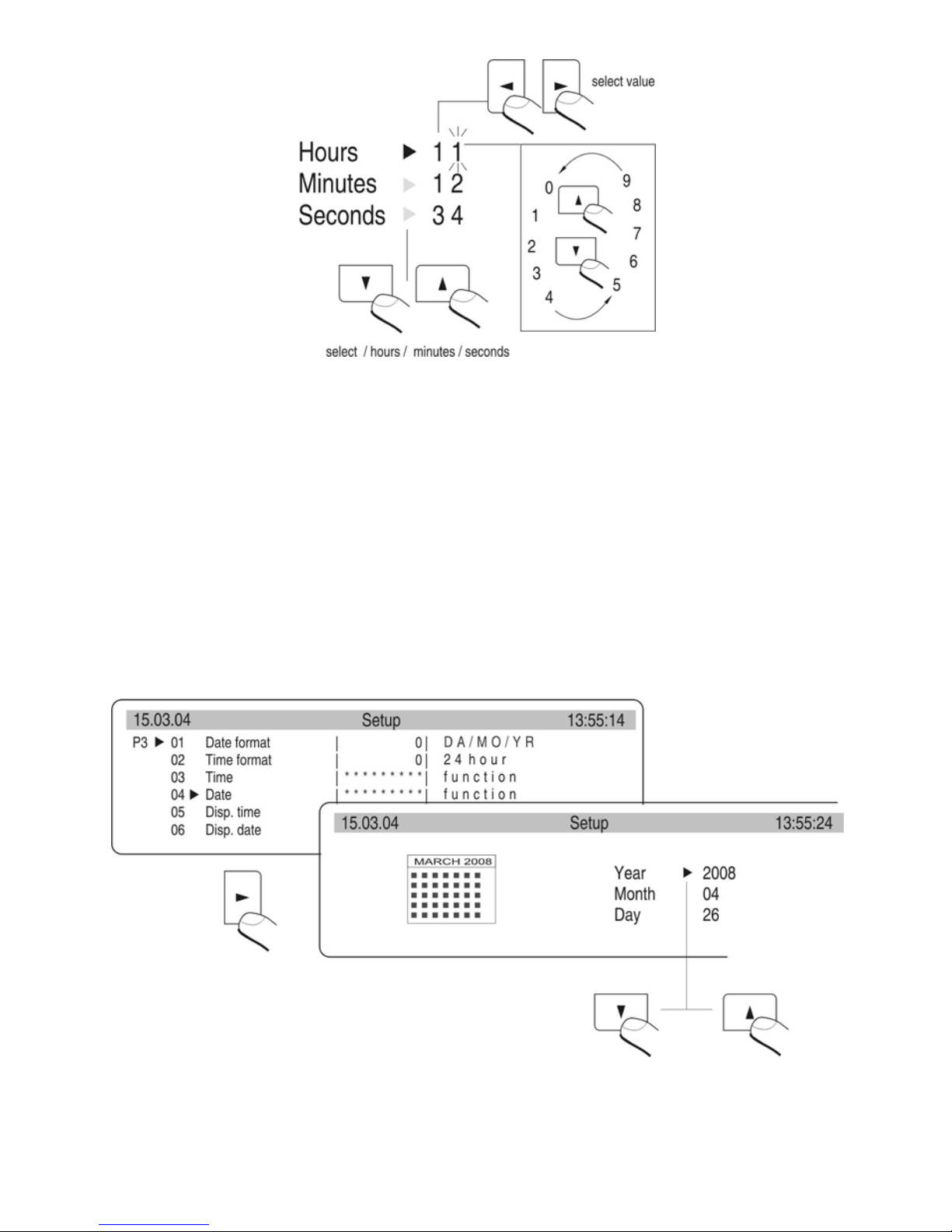

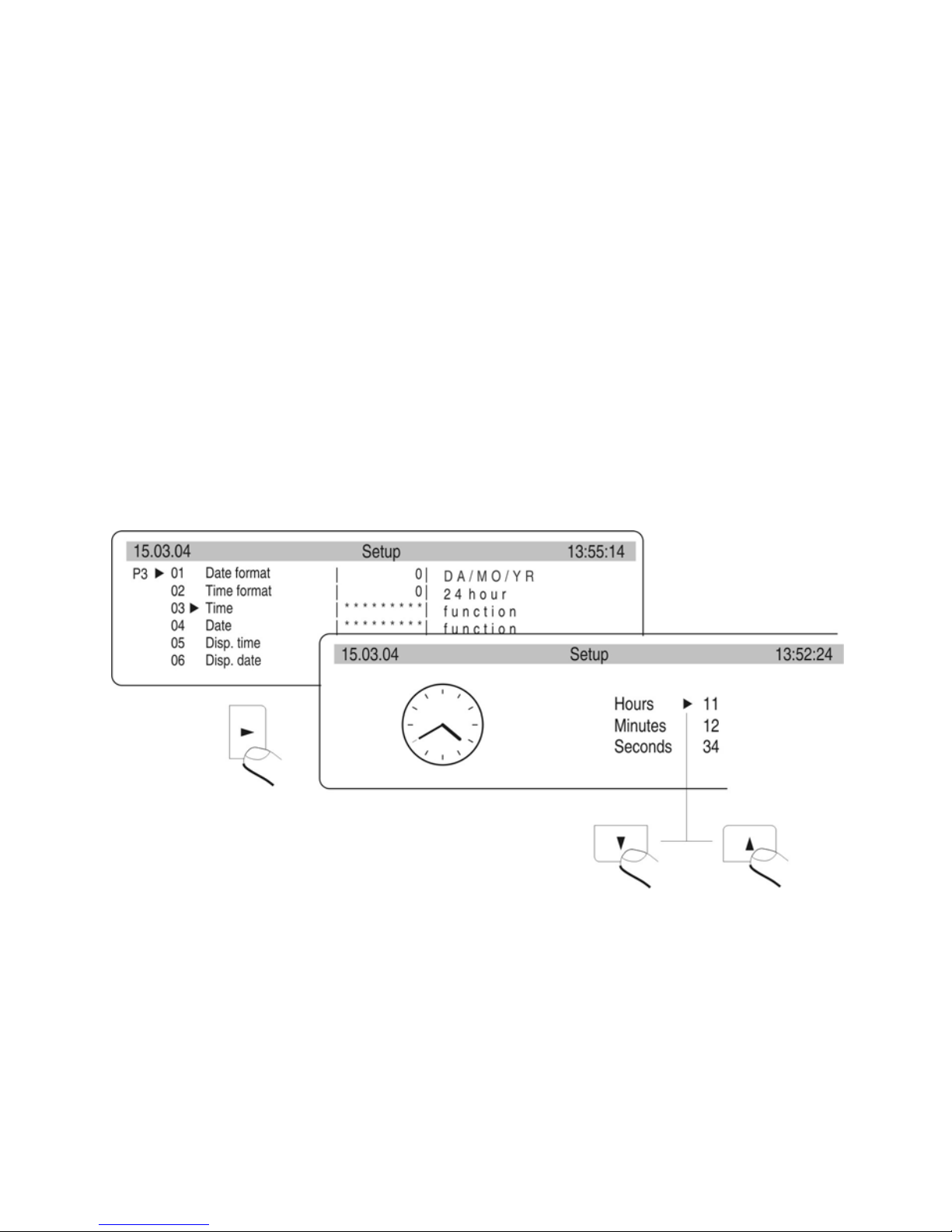

10.SETTING TIME AND DATE ......................................................................................... 28

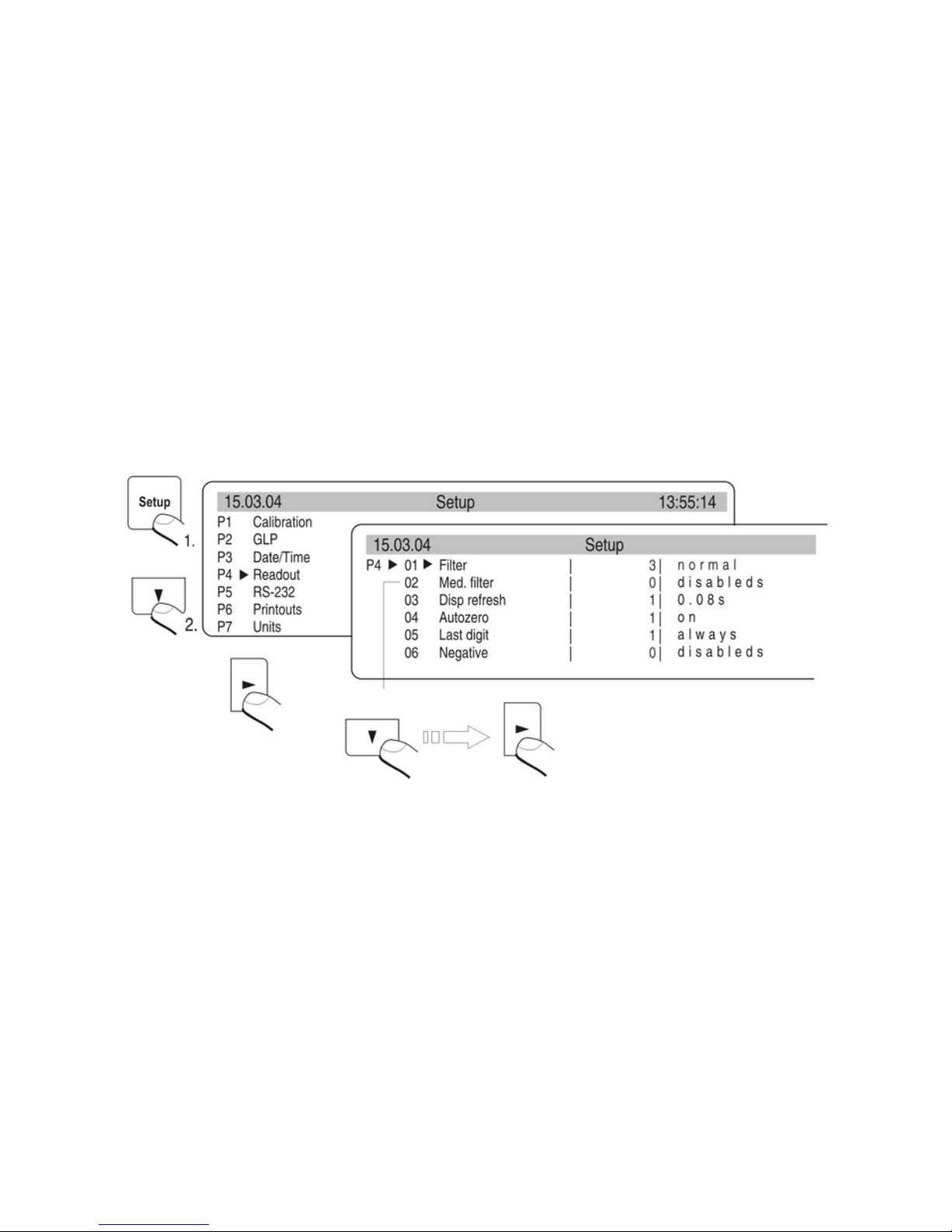

11.SETTING THE PARAMETERS .................................................................................... 31

11.1. Setting filter........................................................................................................ 31

11.2. Value release ..................................................................................................... 32

11.3. Set the display refreshing time .......................................................................... 32

11.4. Set autozero working ......................................................................................... 32

11.5. Last digit ............................................................................................................ 32

11.6. Negative ............................................................................................................ 32

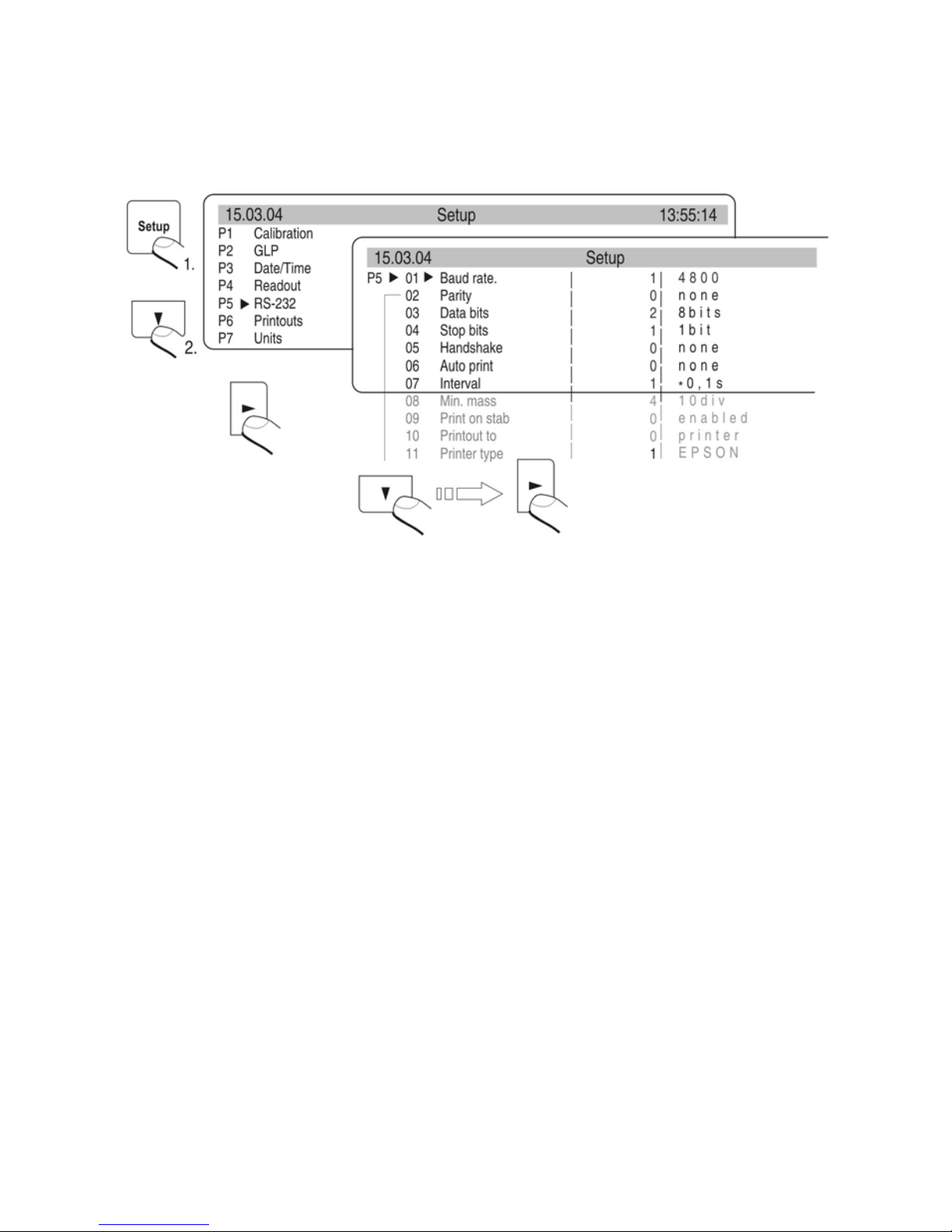

12.FUNCTIONS IN USING RS 232 PORT ........................................................................ 33

13.PRINTOUTS ................................................................................................................. 34

14.ACCESS TO MASS UNITS .......................................................................................... 34

15.SETTING ACCESSIBILITY OF THE WORK MODES ................................................. 35

16.OTHER PARAMETERS ............................................................................................... 35

17.USING WORK MODES ................................................................................................ 37

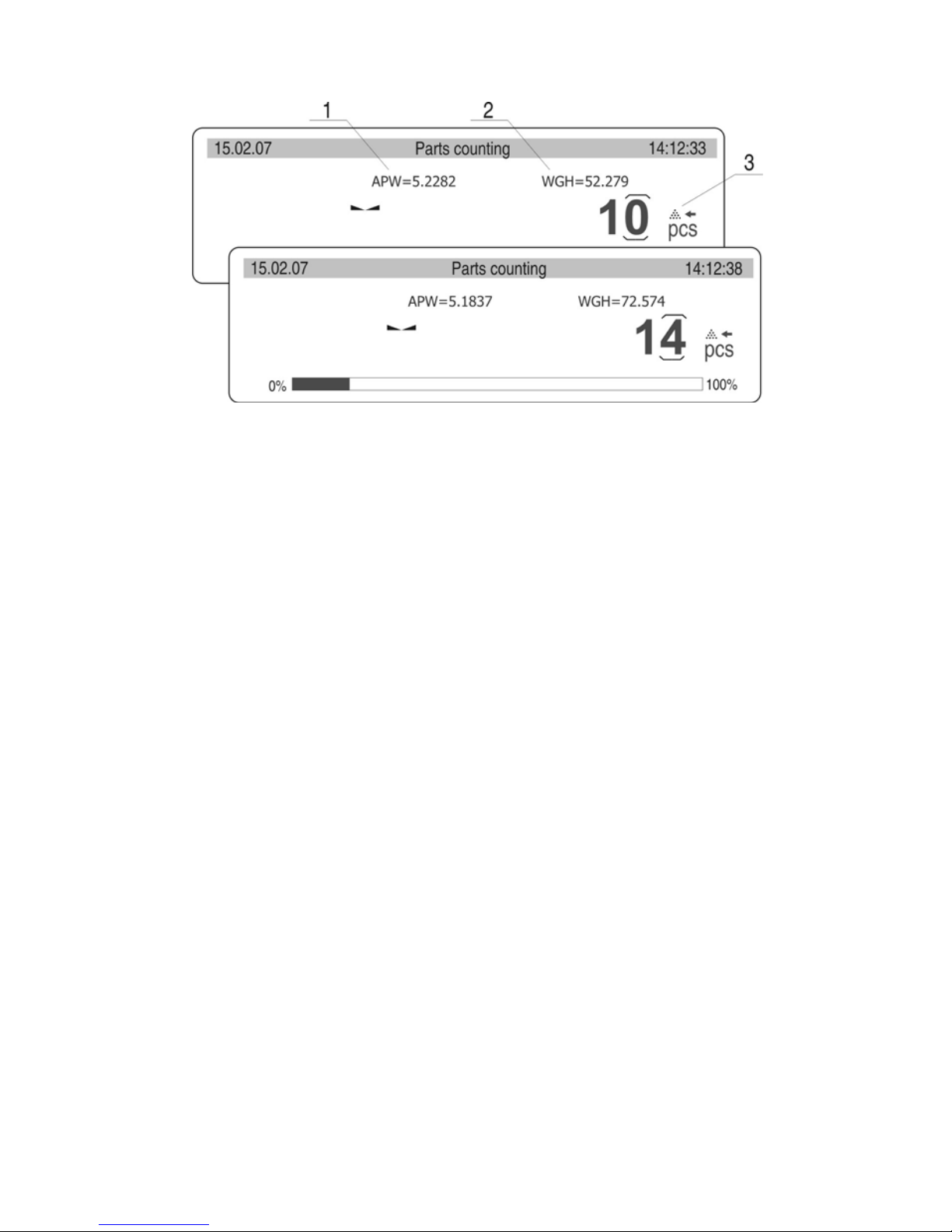

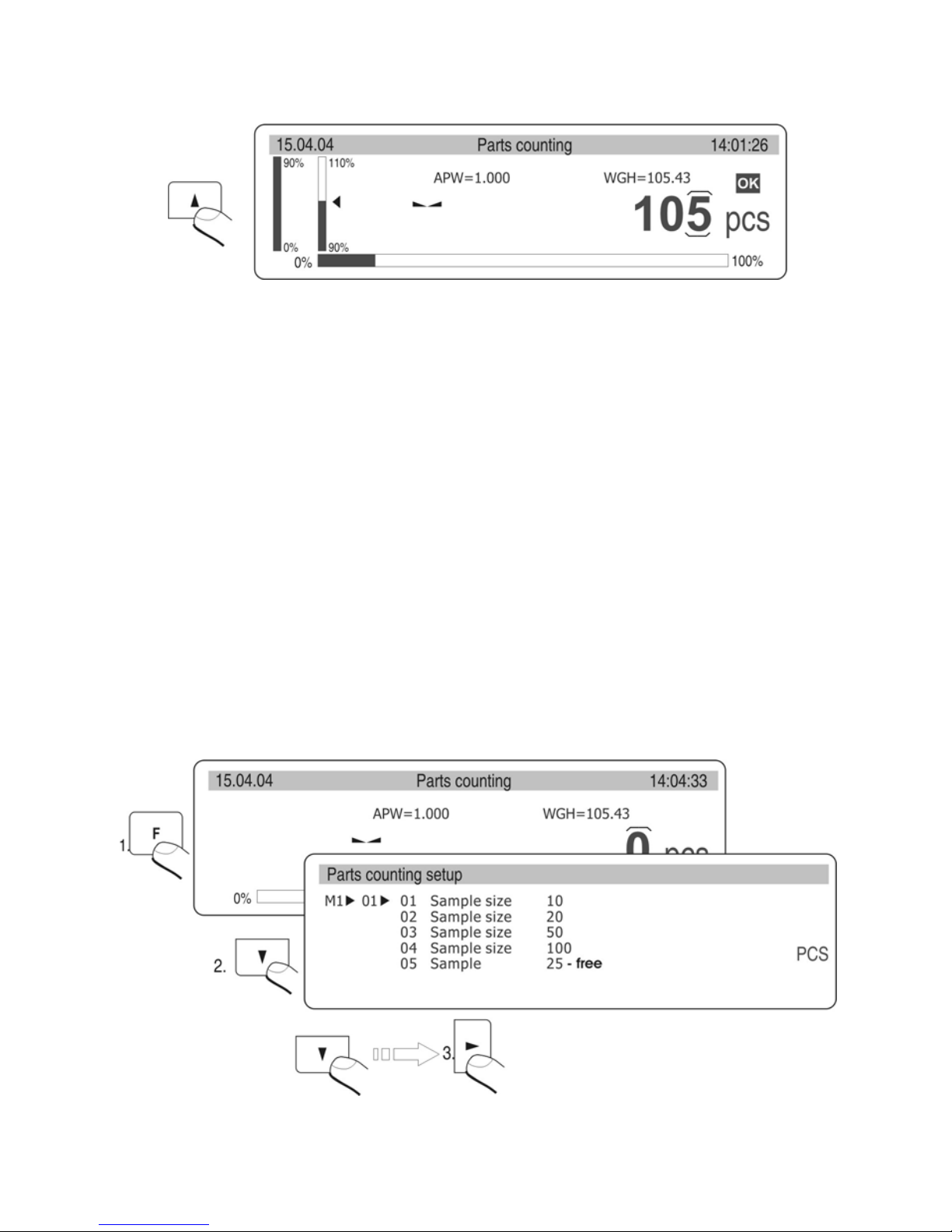

17.1. Counting pieces of the same mass .................................................................... 37

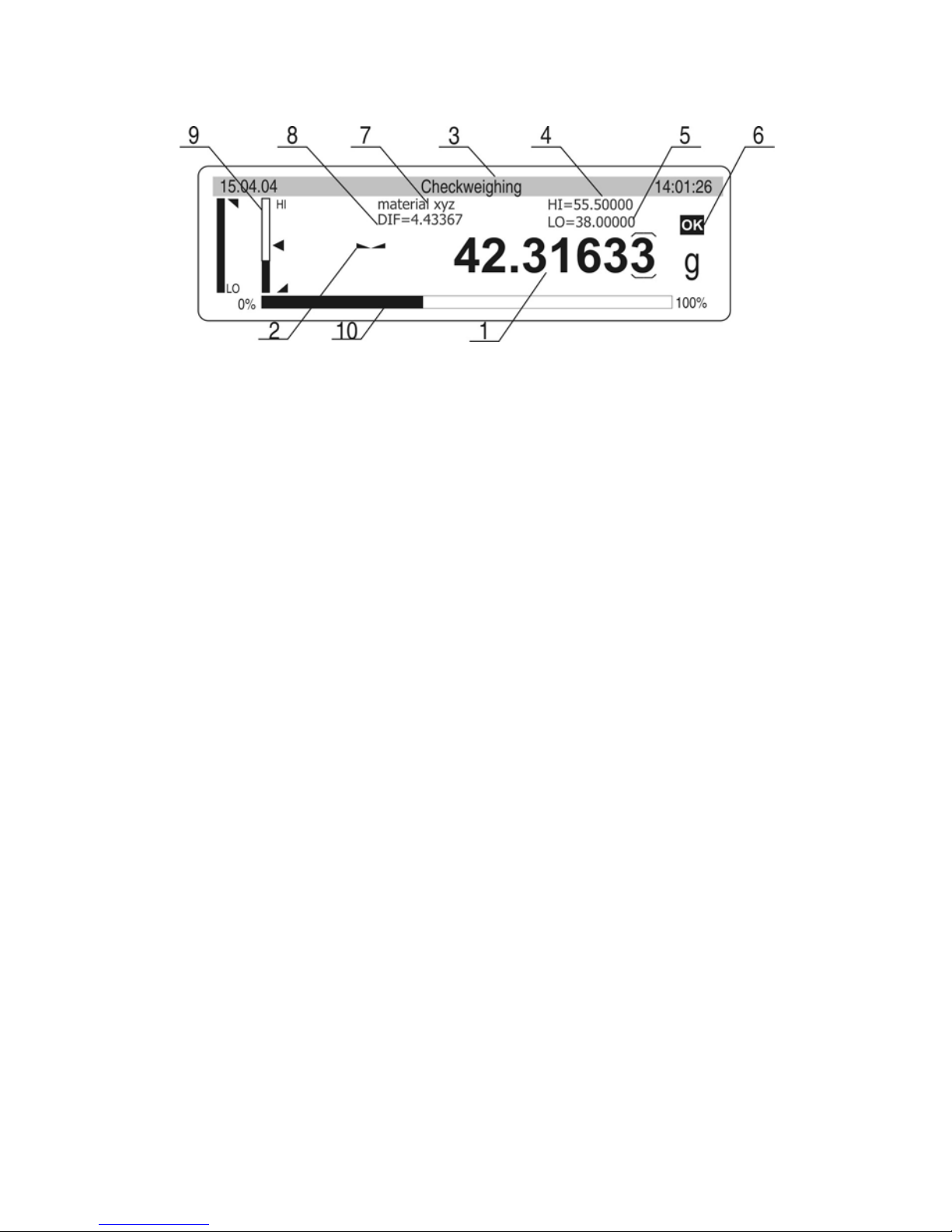

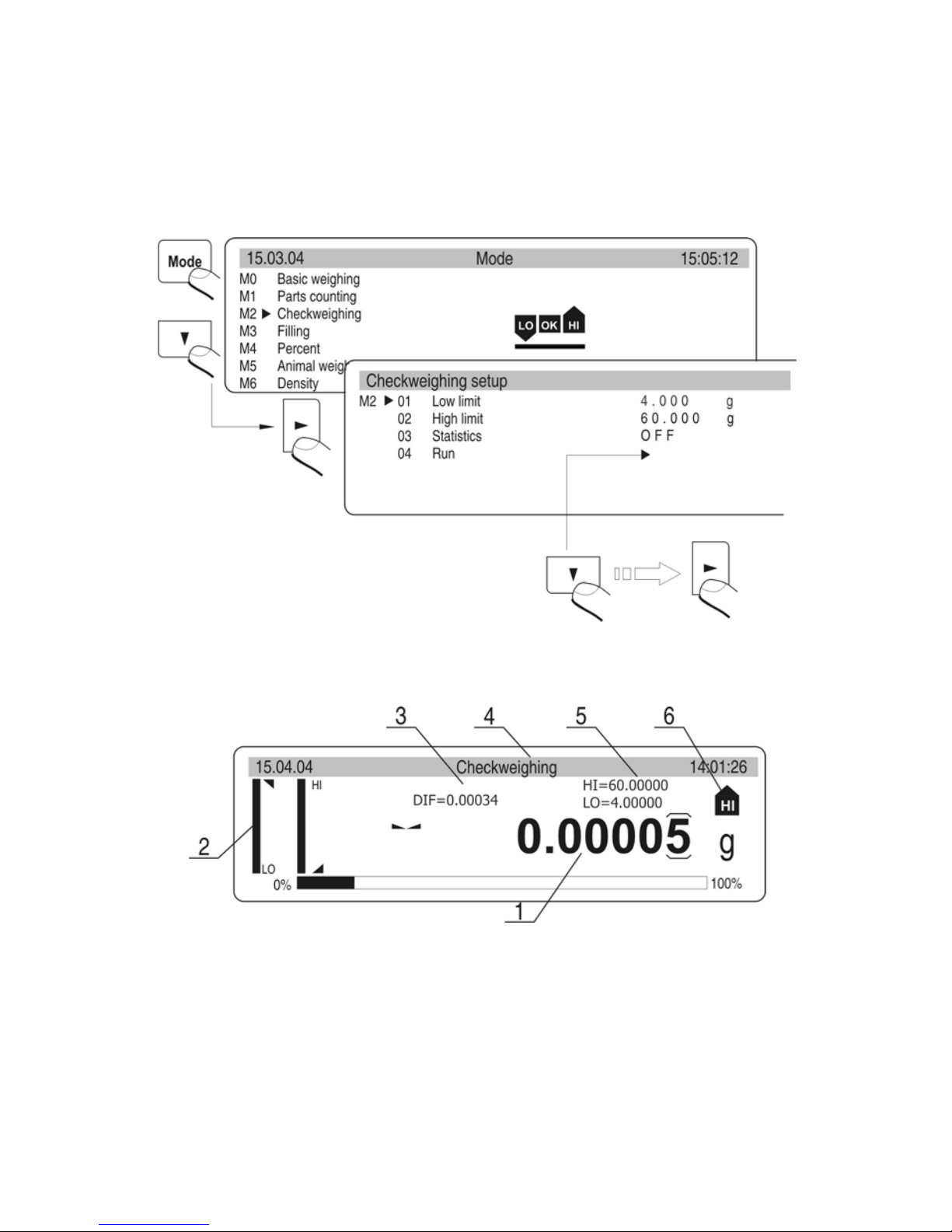

17.2. Checkweighing .................................................................................................. 41

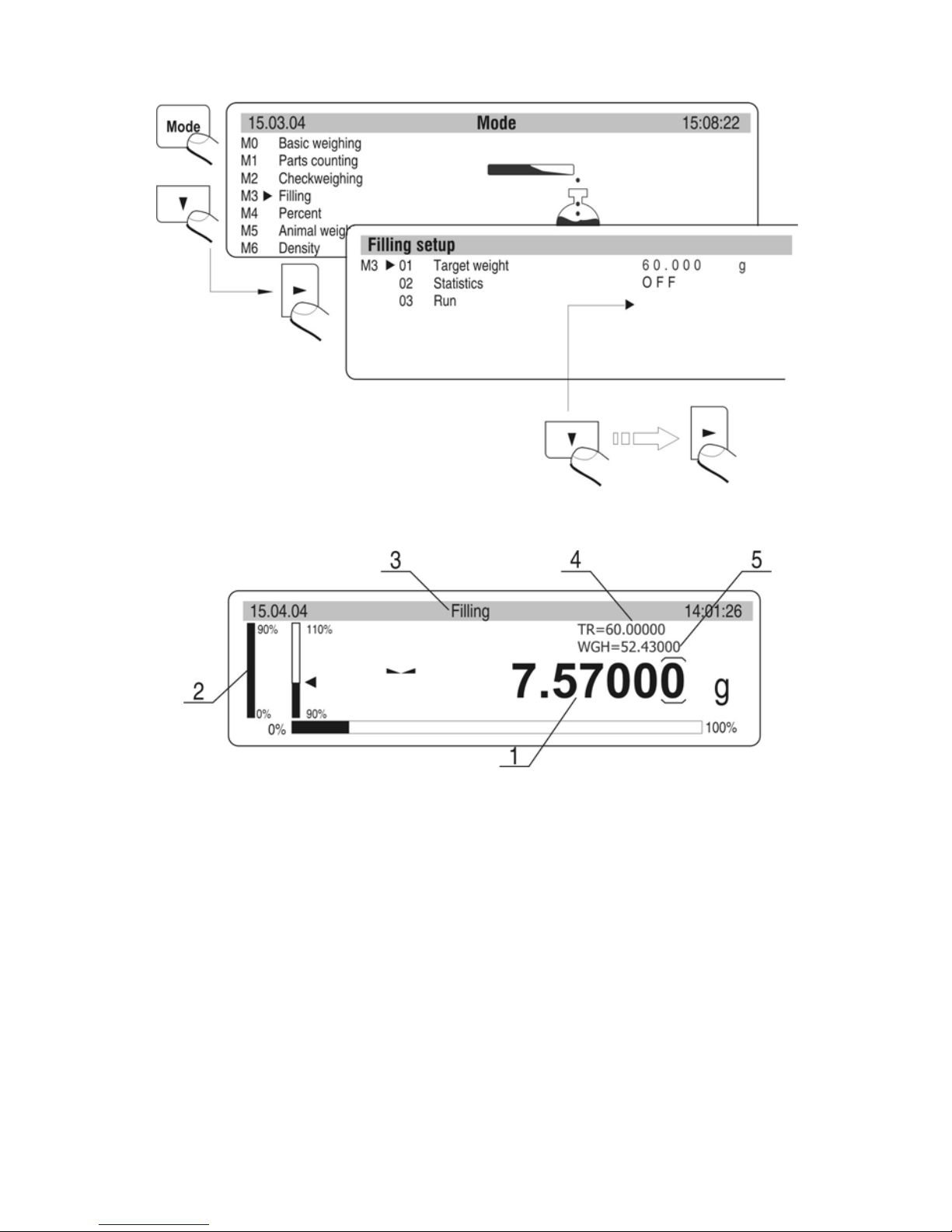

17.3. Dosage .............................................................................................................. 44

- 4 -

17.4. Percents ............................................................................................................ 46

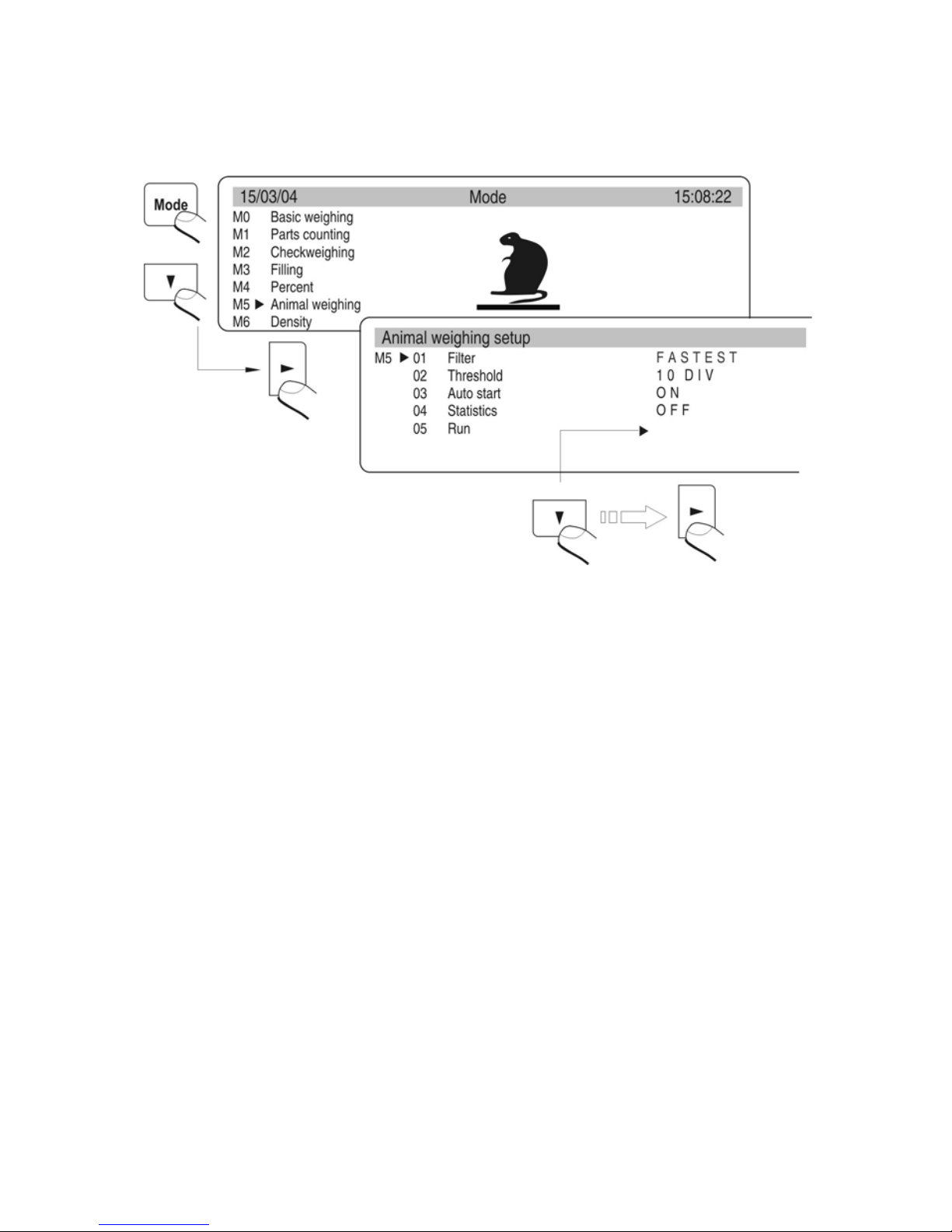

17.5. Weighing animals .............................................................................................. 49

17.6. Density of solids and liquids .............................................................................. 50

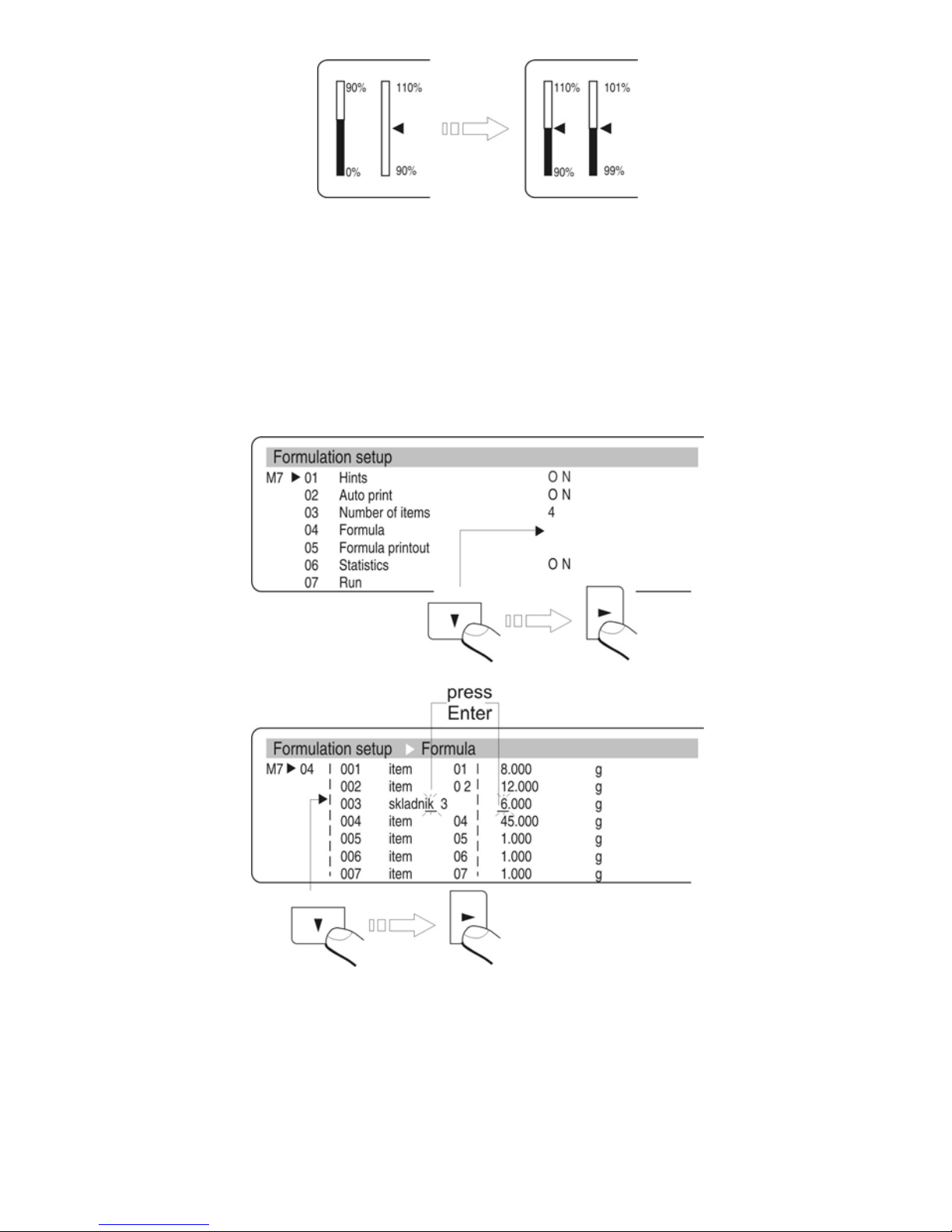

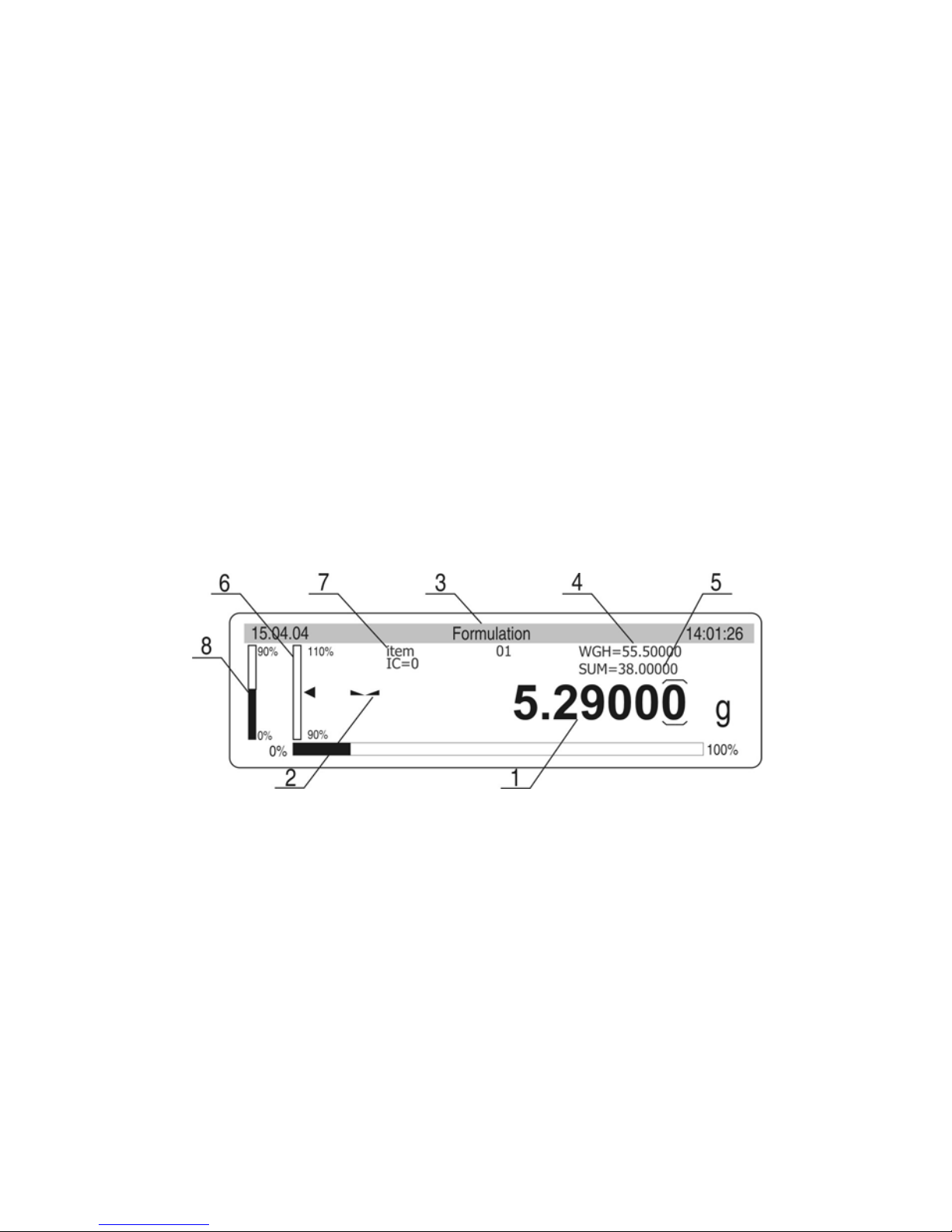

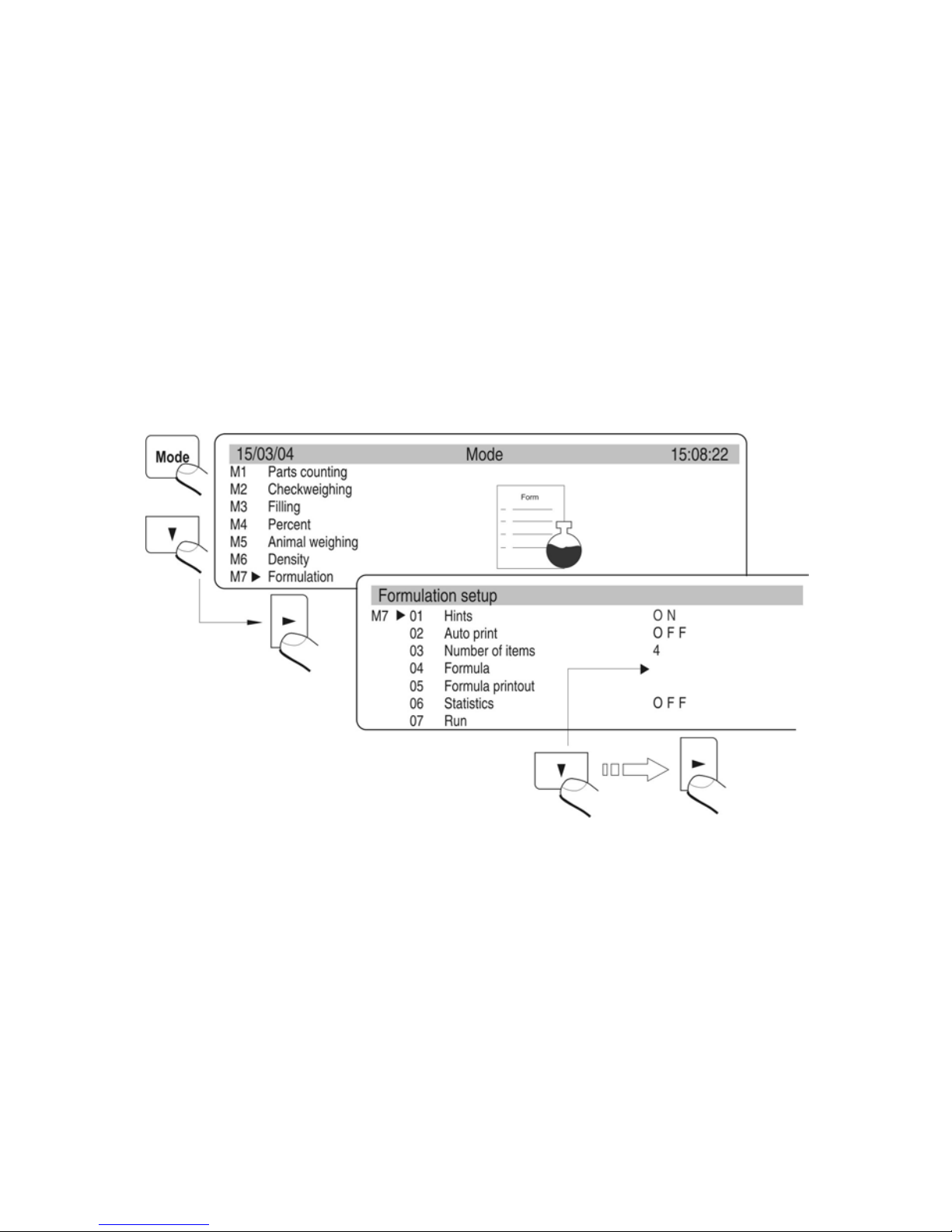

17.7. Formulation........................................................................................................ 52

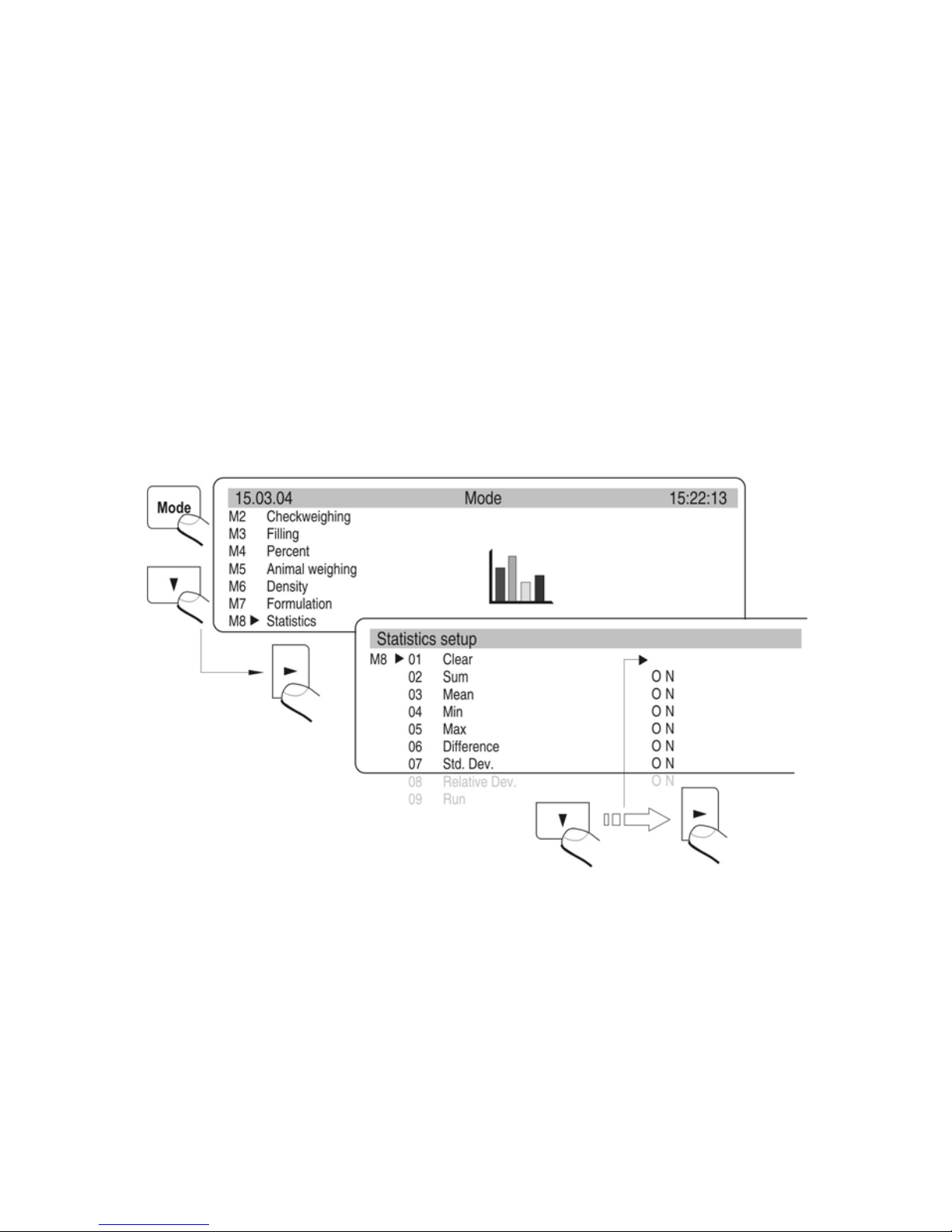

17.8. Statistics ............................................................................................................ 56

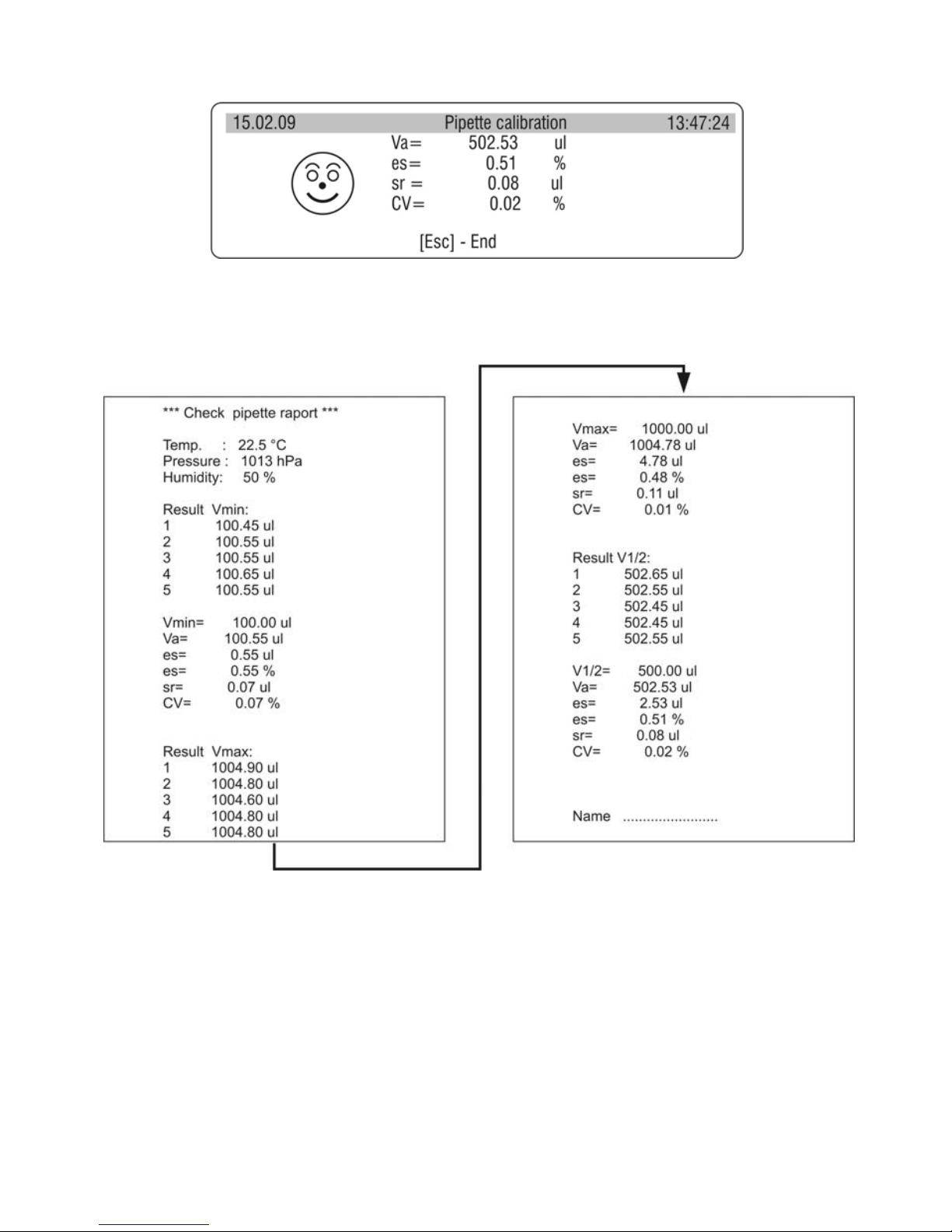

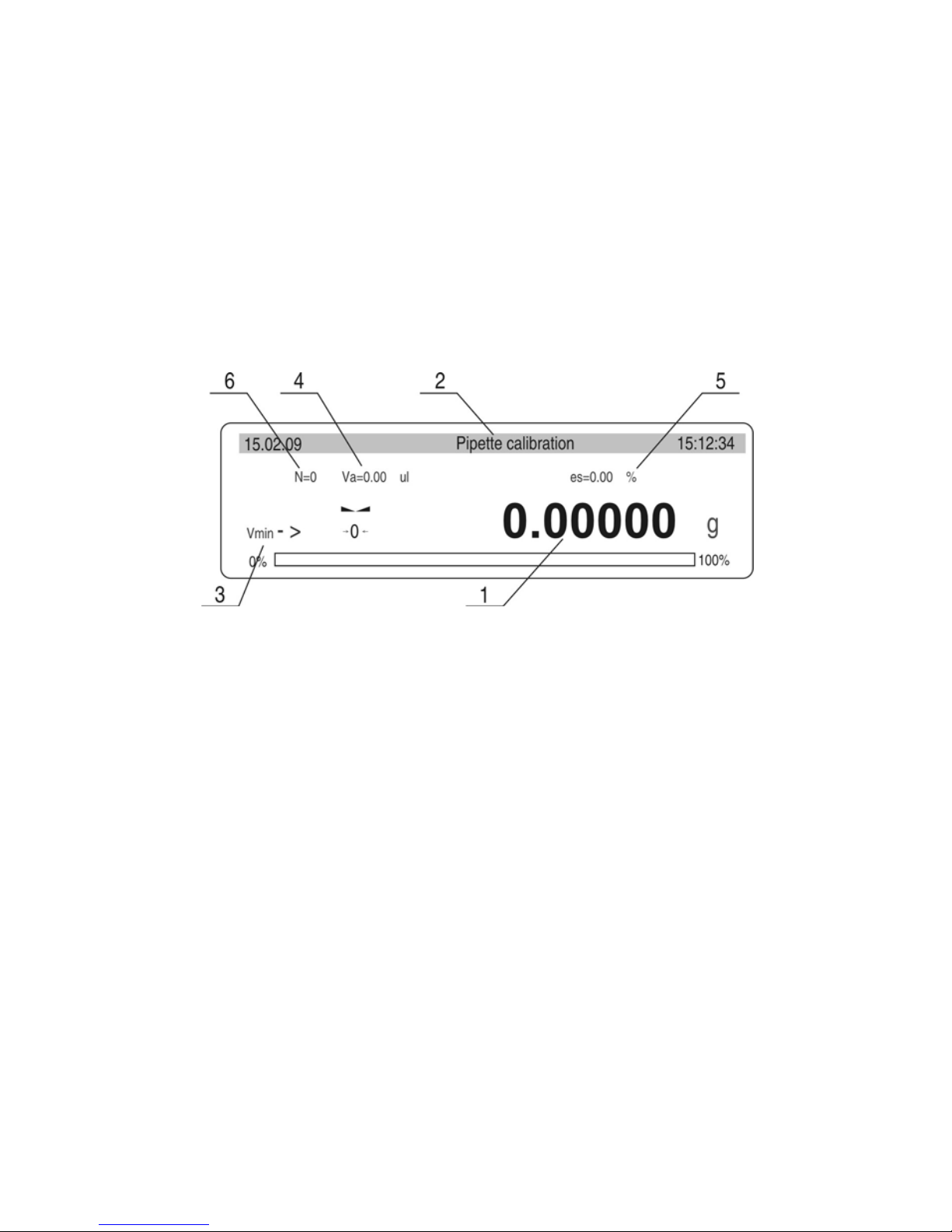

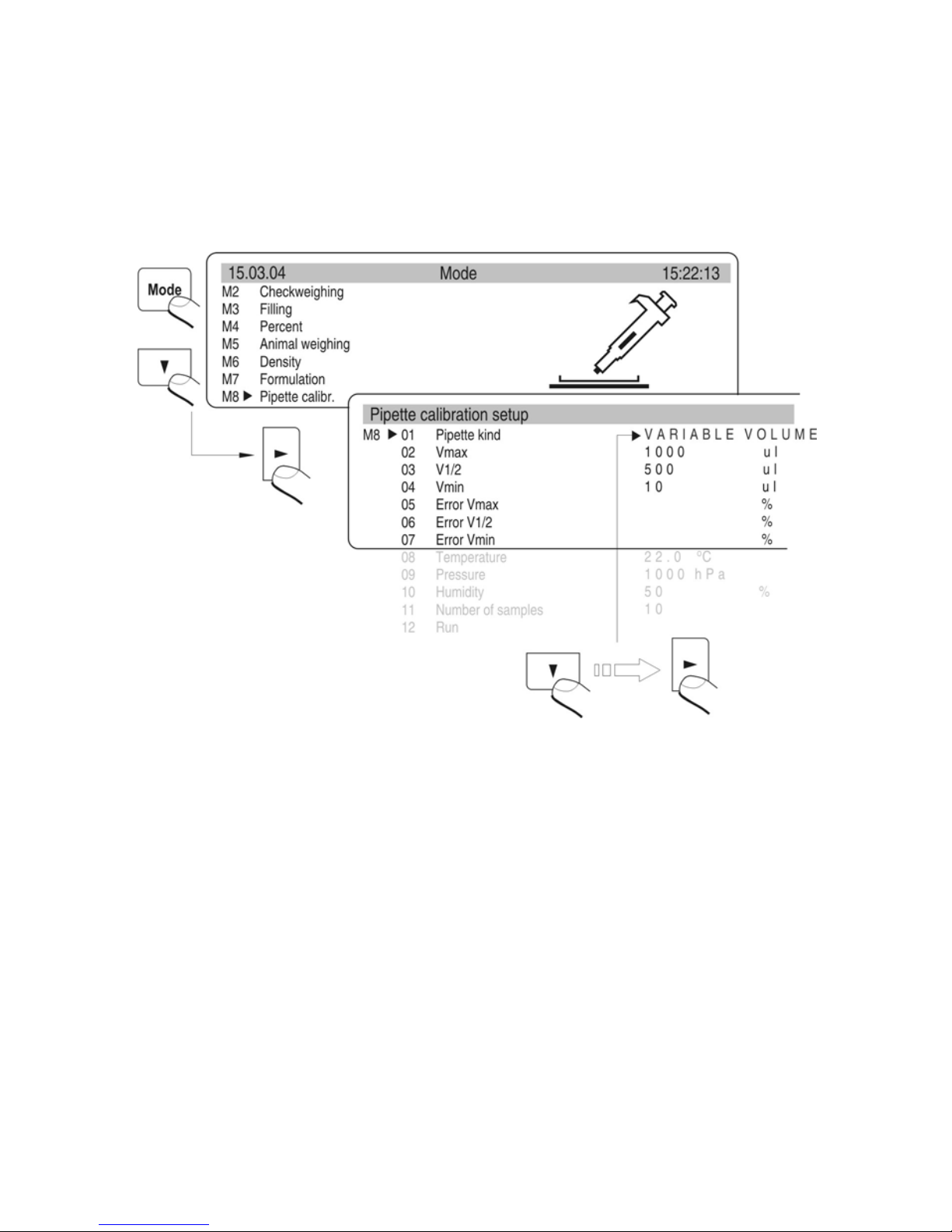

17.9. Calibration of pipettes ........................................................................................ 57

18.KINDS OF PRINTOUTS ............................................................................................... 61

18.1. Standard printout ............................................................................................... 61

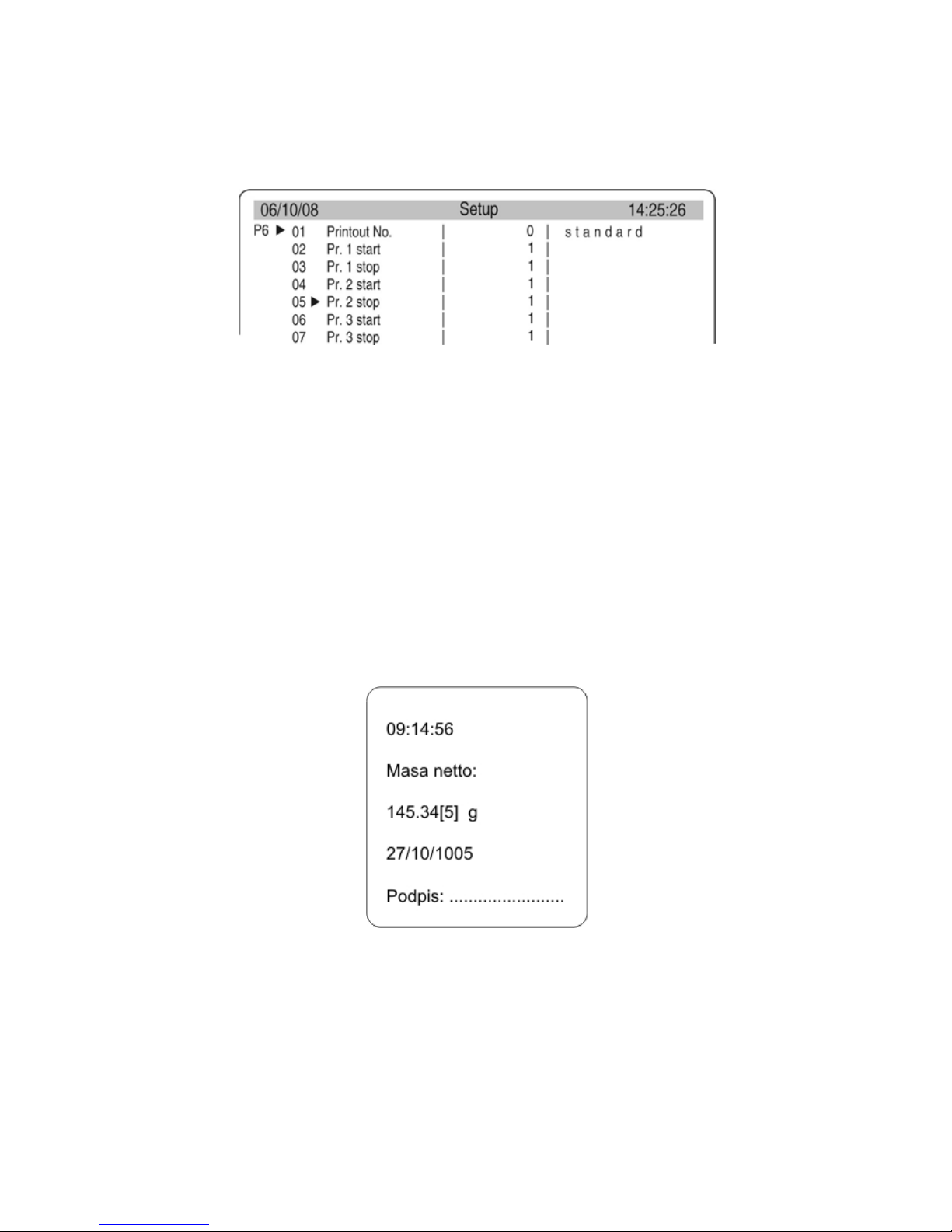

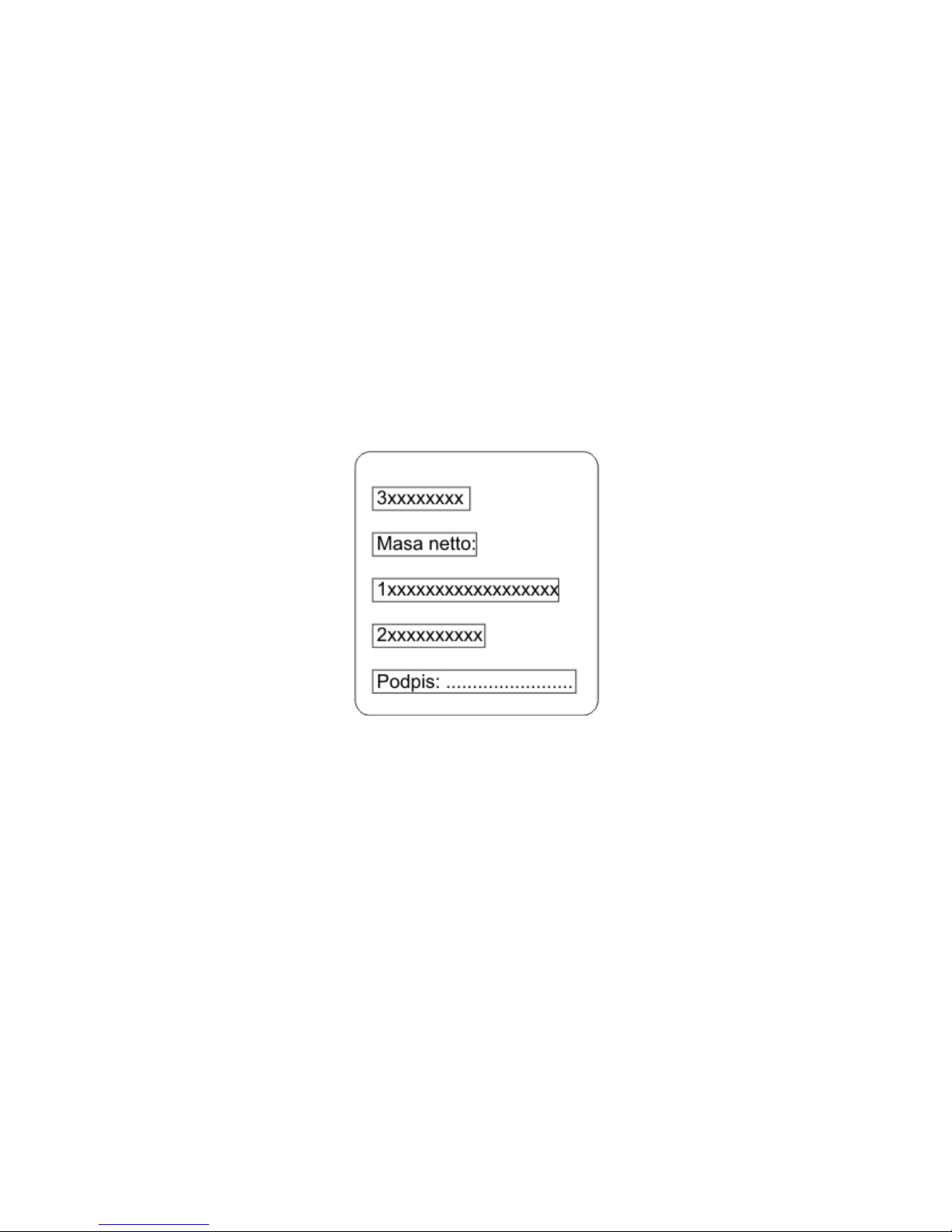

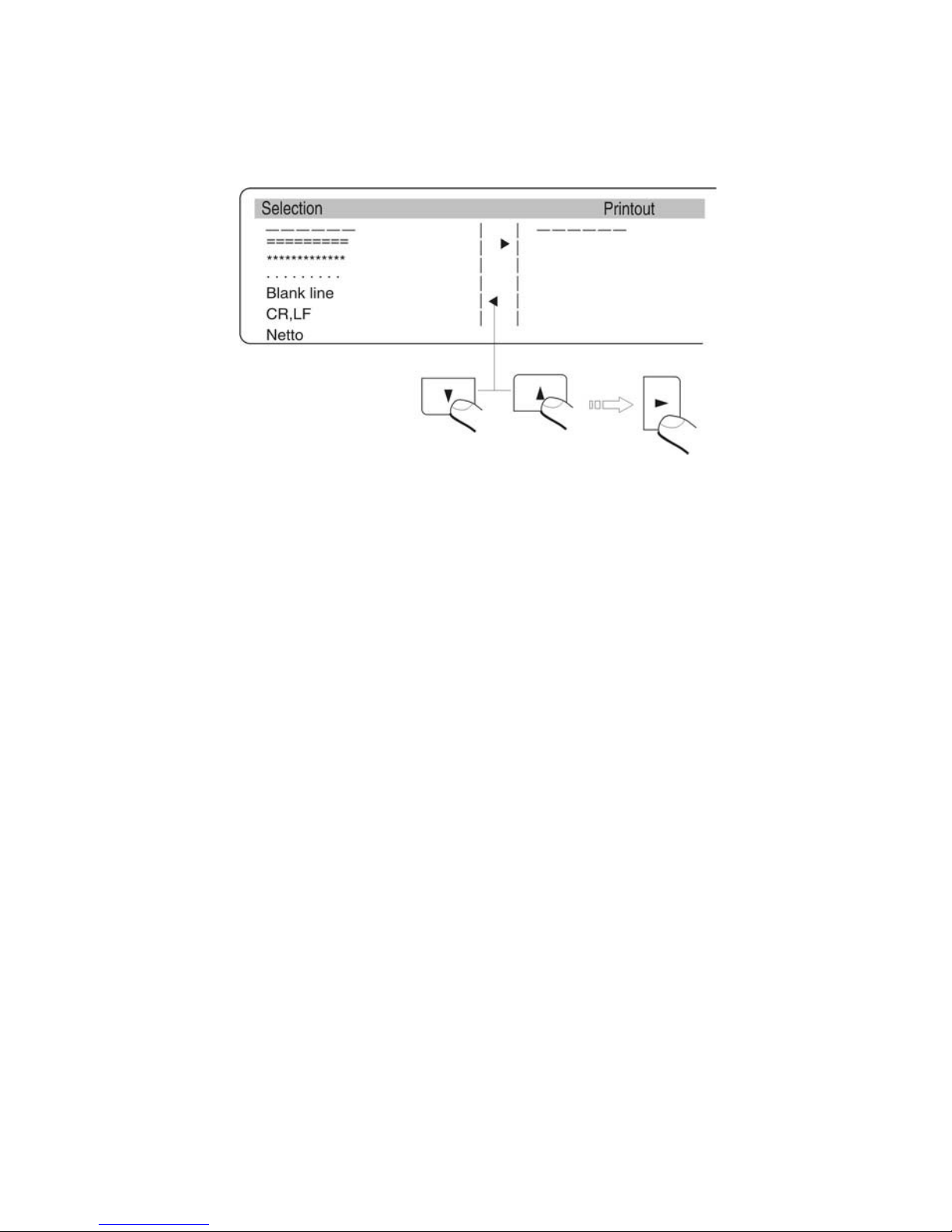

18.2. Non-standard printout ........................................................................................ 62

19.COOPERATION WITH PRINTER OR COMPUTER .................................................... 67

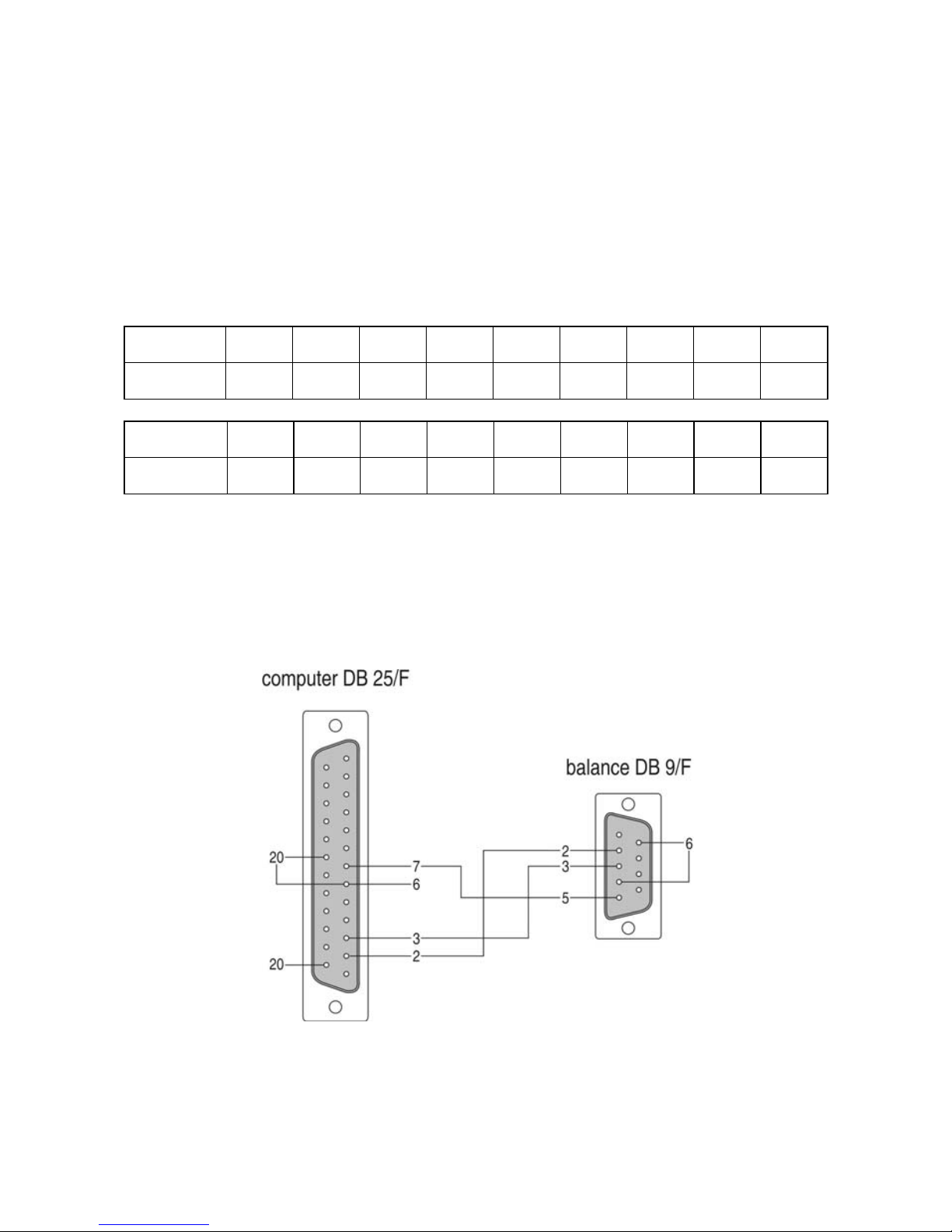

19.1. Connections....................................................................................................... 68

20.COOPERATION WITH LABEL PRINTERS CITIZEN CLP-521 ................................... 69

21.COOPERATION WITH PRINTER EPSON ................................................................... 74

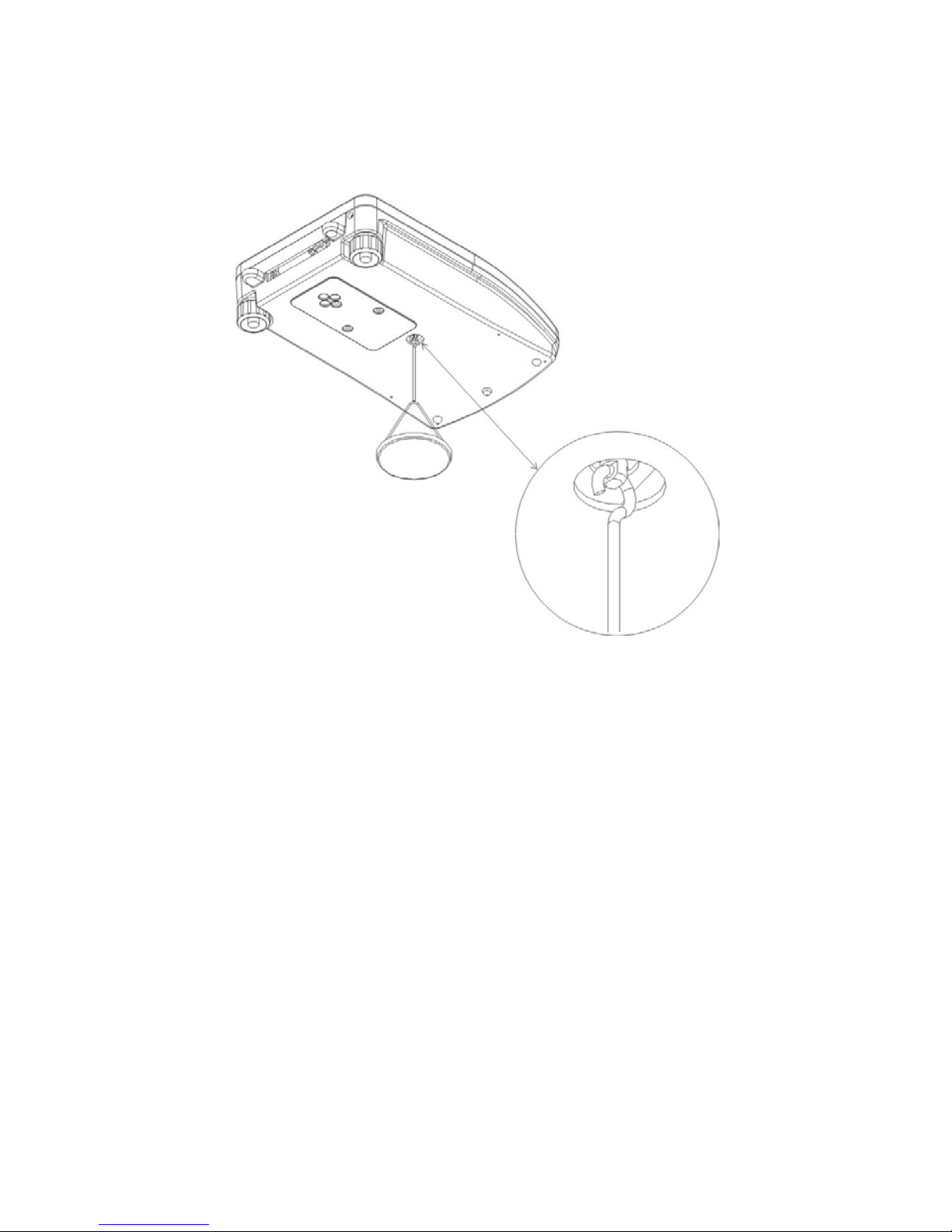

22.WEIGHING LOADS UNDER THE BALANCE ............................................................. 75

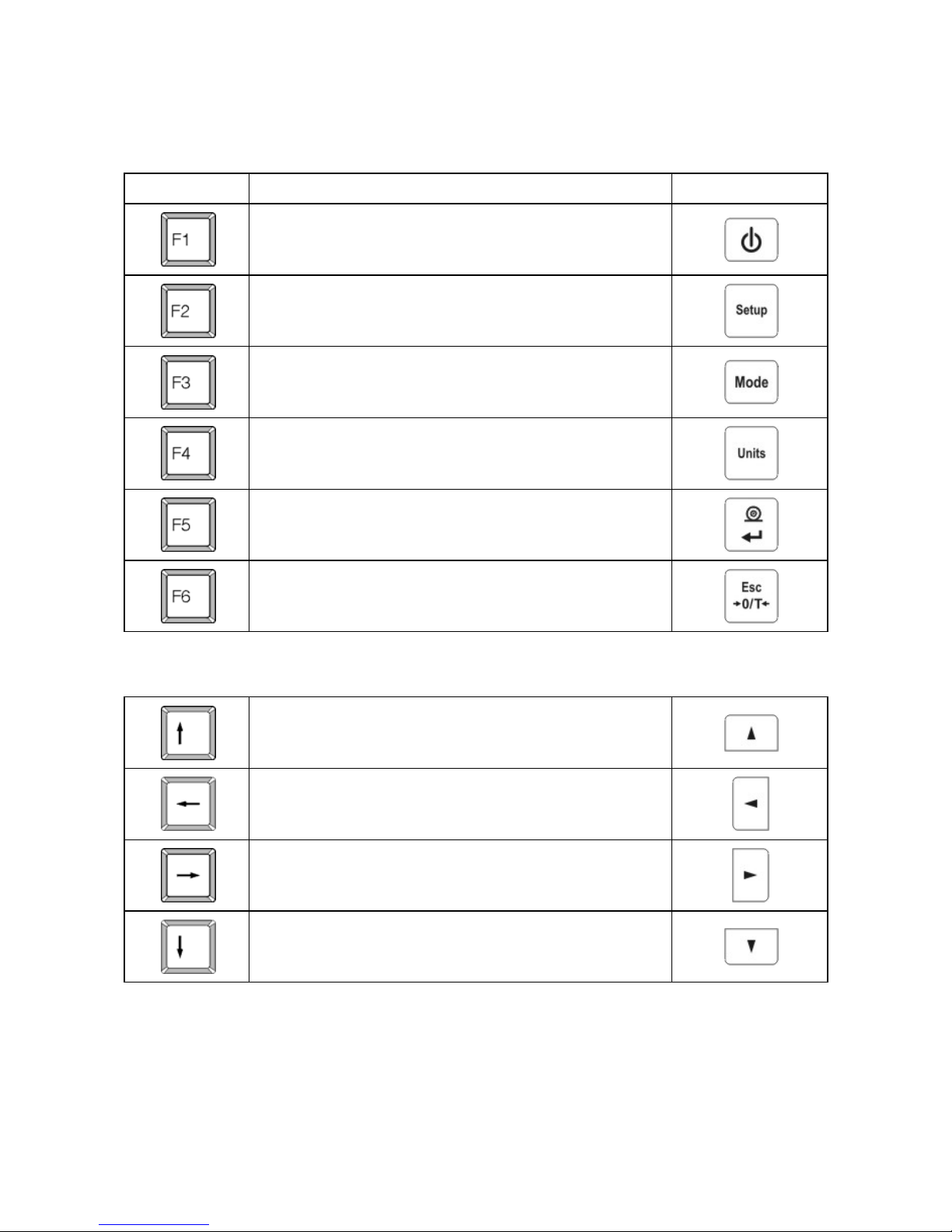

23.CONNECTING ADDITIONAL KEYS ............................................................................ 76

24.LIST OF COMMUNICATIONS COMPUTER-BALANCE ............................................. 76

25.COMMANDS ABOUT ERRORS .................................................................................. 79

- 5 -

1. TECHNICAL PARAMETERS

XA 52/X XA 110/X XA 210/X XA 60/220/X

Max capacity 52 g 100 g 210 g 60/220 g

Min capacity 1 mg 1 mg 1 mg 1 mg

Readability 0,01 mg 0,01 mg 0,01 mg 0,01/0,1 mg

Tare range -52 g -100 g -210g -220 g

Repeatabilty 0,01 mg 0,025mg 0,03 mg 0,02/0,1 mg

Linearity ± 0,02 mg ± 0,05 mg ± 0,1 mg ± 0,05/0,2 mg

Pan size Φ 85 mm

Sensibility 2 ppm/°C in temperature +18 ° ÷ +30 °C

Temperature +10 ° ÷ +50 °C

Supply supplier 230V 50Hz AC / 11V AC

Calibration internal (automatic)

Display graphic (with backlight)
Max ambient

humidity

80 %

*

Min ambient
humidity

35 %

*

XA 100/X XA 160/X XA 220/X XA 310/X

Max capacity 100 g 160 g 220 g 310 g

Min capacity 10 mg 10 mg 10 mg 10 mg

Readability 0,1 mg 0,1 mg 0,1 mg 0,1 mg

Tare range -100 g -160 g -220 g -310 g

Repeatabilty 0,1 mg 0,1 mg 0,1 mg 0,2 mg

Linearity ± 0,2 mg ± 0,2 mg ± 0,2 mg ± 0,3 mg

Pan size Φ 100 mm

Sensibility 2 ppm/°C in temperature +18 ° ÷ +30 °C

Temperature +10 ° ÷ +50 °C

Supply supplier 230V 50Hz AC / 11V AC

Calibration internal (automatic)

Display graphic (with backlight)
Max ambient

humidity

80 %

*

Min ambient
humidity

35 %

*

- 6 -

*

- when any problems with electrostatics occurs humidity of air should be increased to 50%, but when it is not possible to keep 50%

humidity the ionizer should be used to eliminate electrostatic effects on balance indications.

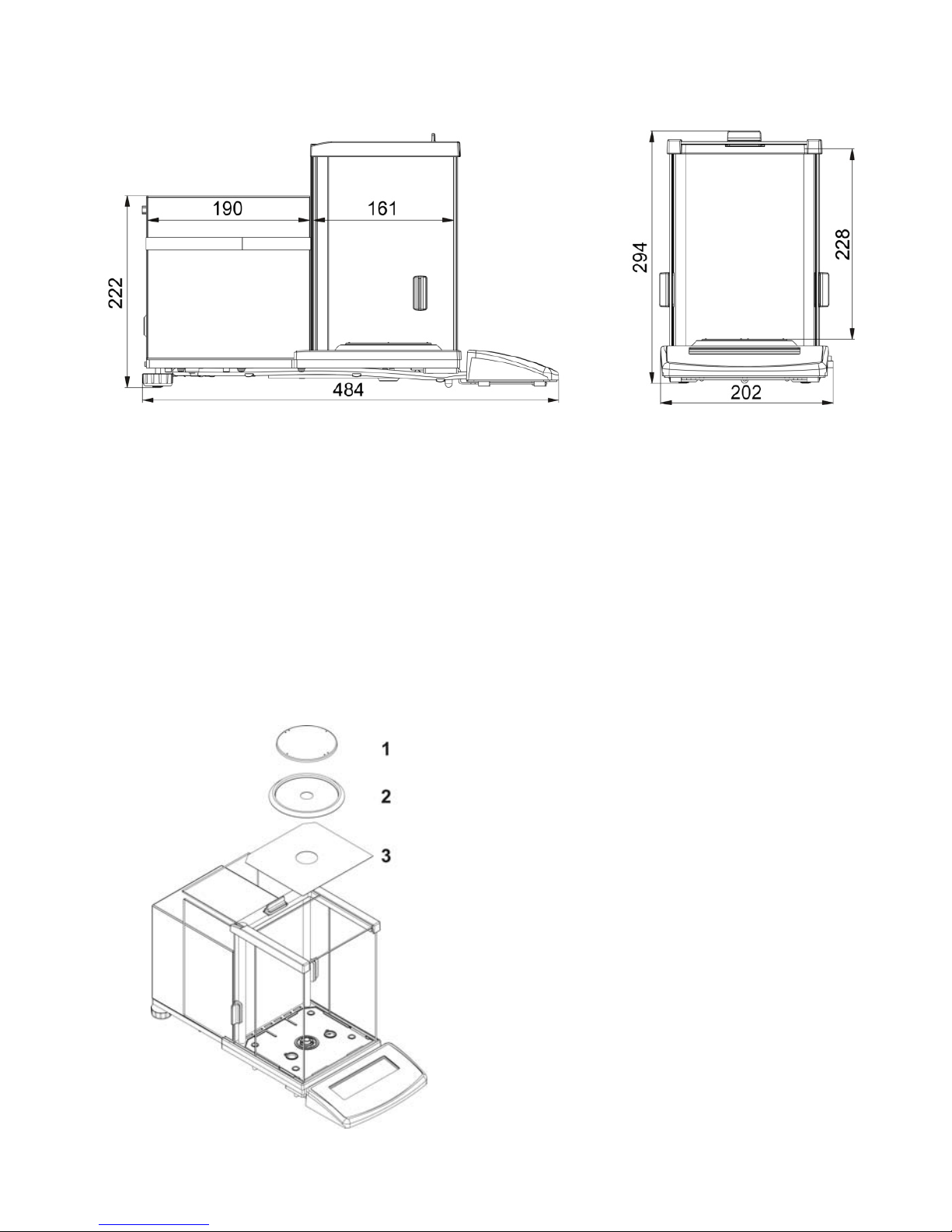

Dimensions:

2. UNWRAPING THE BALANCE

2.1. The balance XA/X

Cut safet

y tape off. Take balance off the box. Take all necessary to correct
performance of balance elements off the box. After replace balance in place of use put
scale and rest of elements on. The balance is supplied with 230 V AC / 11V AC
supplier.

The balance with Φ 100 mm pan:

- open side doors of weighing chamber,

- inside the chamber place lower shield of

weighing chamber (3),

- inside the chamber place anti-breeze
shield (2),

- put the balance pan inside the ring (1),

− close side doors of weighing
chamber,

− turn on balance supply,

− pin of power adaptor should be

connected to socket in the back
of balance casing.

- 7 -

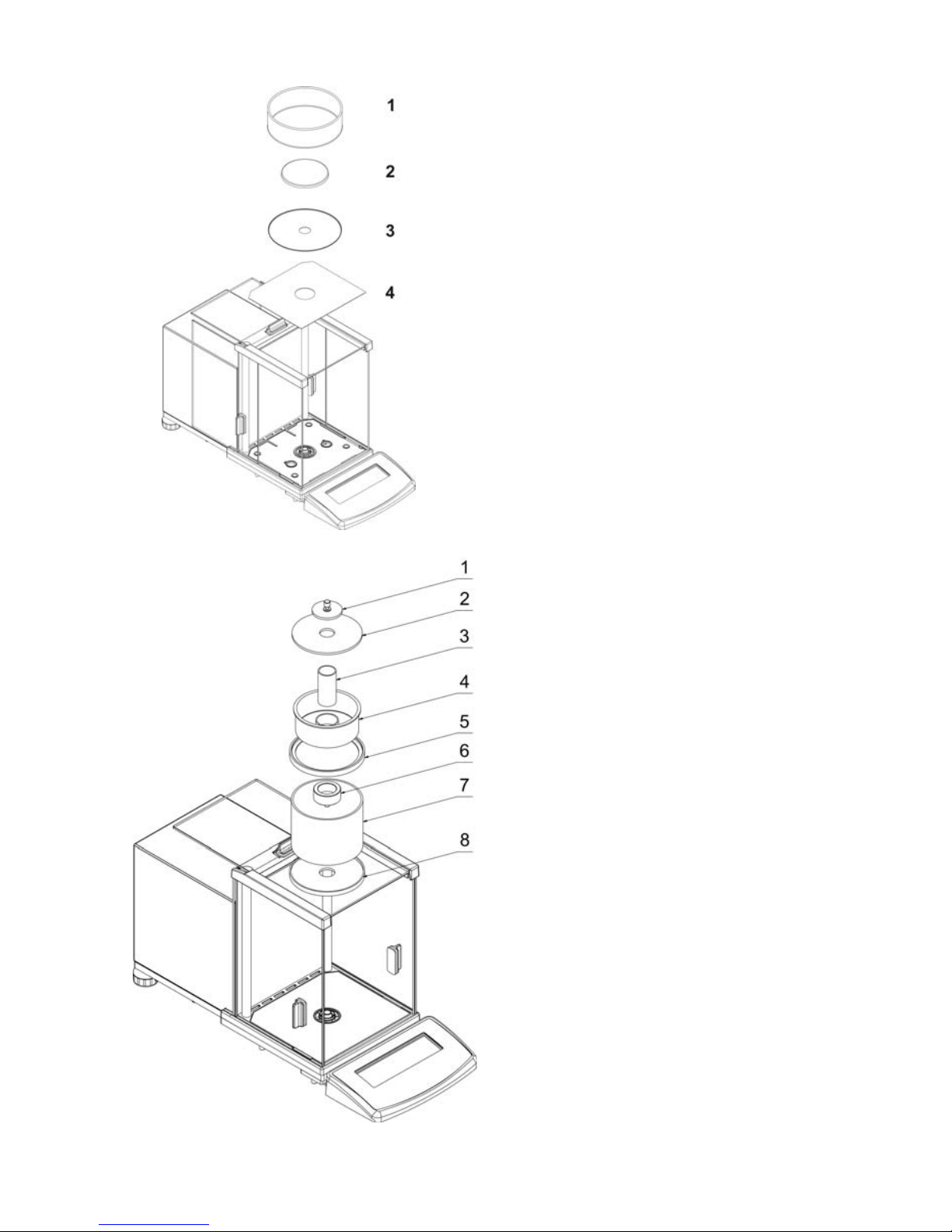

The balance with Φ 85 mm pan:

- open side doors of weighing chamber,

- inside the chamber place lower shield of

weighing chamber(4),

- put centering ring on the shield (3),

- put the balance pan inside the ring (2),

- put the anti-breeze shield on the

centering ring (1),

− close side doors of weighing
chamber,

− turn on balance supply,

− pin of power adaptor should be

connected to socket in the back
of balance casing.

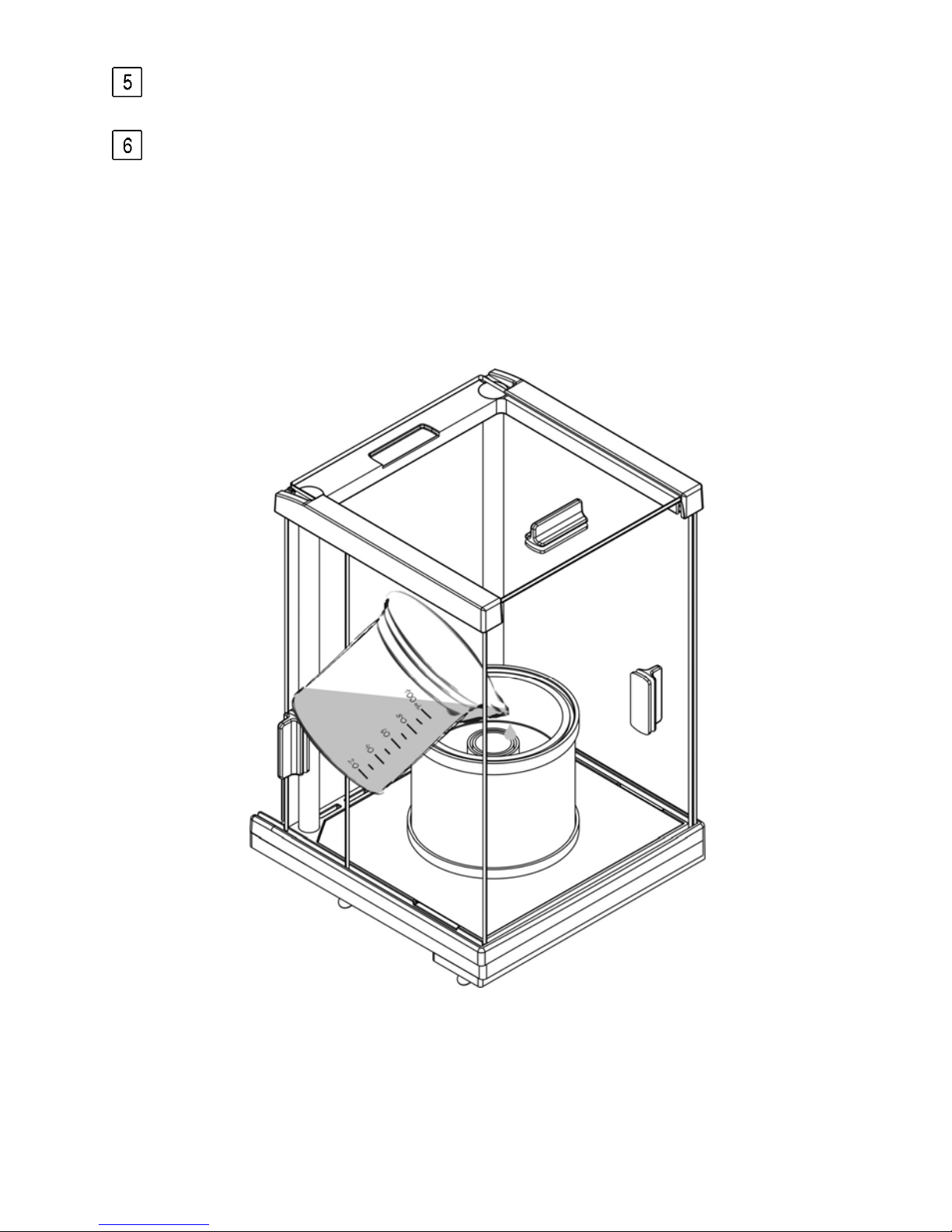

The balance with pipettes calibration set:

- slide chamber side doors off (8)

- inside the chamber put bottom ring

(8),

- put glass ring on bottom ring (7),

- replace pan inside glass ring (6),

- put upper ring on glass ring (5),

- put steam protection container on

upper ring (4),

- put container to pipettes calibration
inside the container (3),

- put glass pad on upper ring (2),

- put glass lid on glass pad (1).

Draw. 1.The components installation for the XA/X balances

- 8 -

3. START THE BALANCE UP

3.1. Conditions of proper usage

− Set the balance on stable table, far from vibrations

− The balance should be replaced far from draughts and air breeze

− The balance should be in stable temperature and humidity room

− The balance should be replaced far from sources of

− Temperature in the room +18° C ÷ +30° C ( AS /X)

− If the static electricity has influence on the balance indications it base should be

earthed. Earthing screw is in the rear part of the balance base

− The balance should be replaced in leveled position

− Before pipettes calibration and after assembling the set start the balance with

empty pan on (without container). When zeros come up on the display put the
container on the pan and after stabilization press ESC/ZERO TARA.

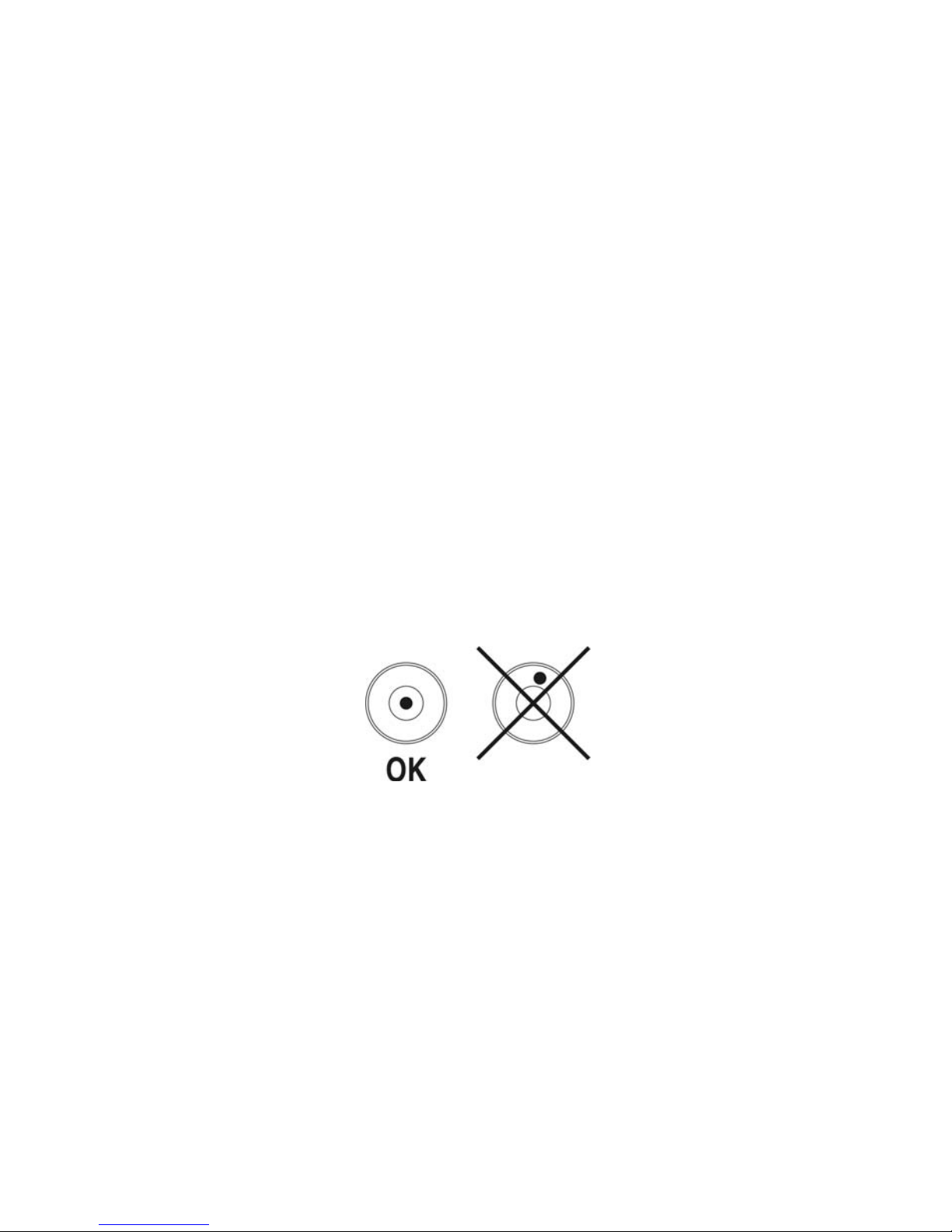

3.2. Set level up

After repl

acing the balance in the place of usage the balance should be leveled. The
correct leveling is shown on the level indication installed at the rear of the balance. The air
bubble should be in the centre position of the indication.

3.3. Warmin up

Before measurements user should wait untill the balance reaches temperature

stabilization. It is warming up time.

For analytical balances warming-up time is about 1 hour. This periods refers to the
balances which ware in surrounding temperature (work) before start weighing.
If the analytical balances are kept in lower temperature(for example in winter time) before
weighing the warming-up time is about 8 hours and for precision balances it is about 2
hours.
During warm-up stabilization the indications can change.

- 9 -

4. APPROPRATION

T

he balances with graphic display are used to do precise measurements in laboratories. It

is possible to do the zero function in all measure range.

The balance weights in following units:

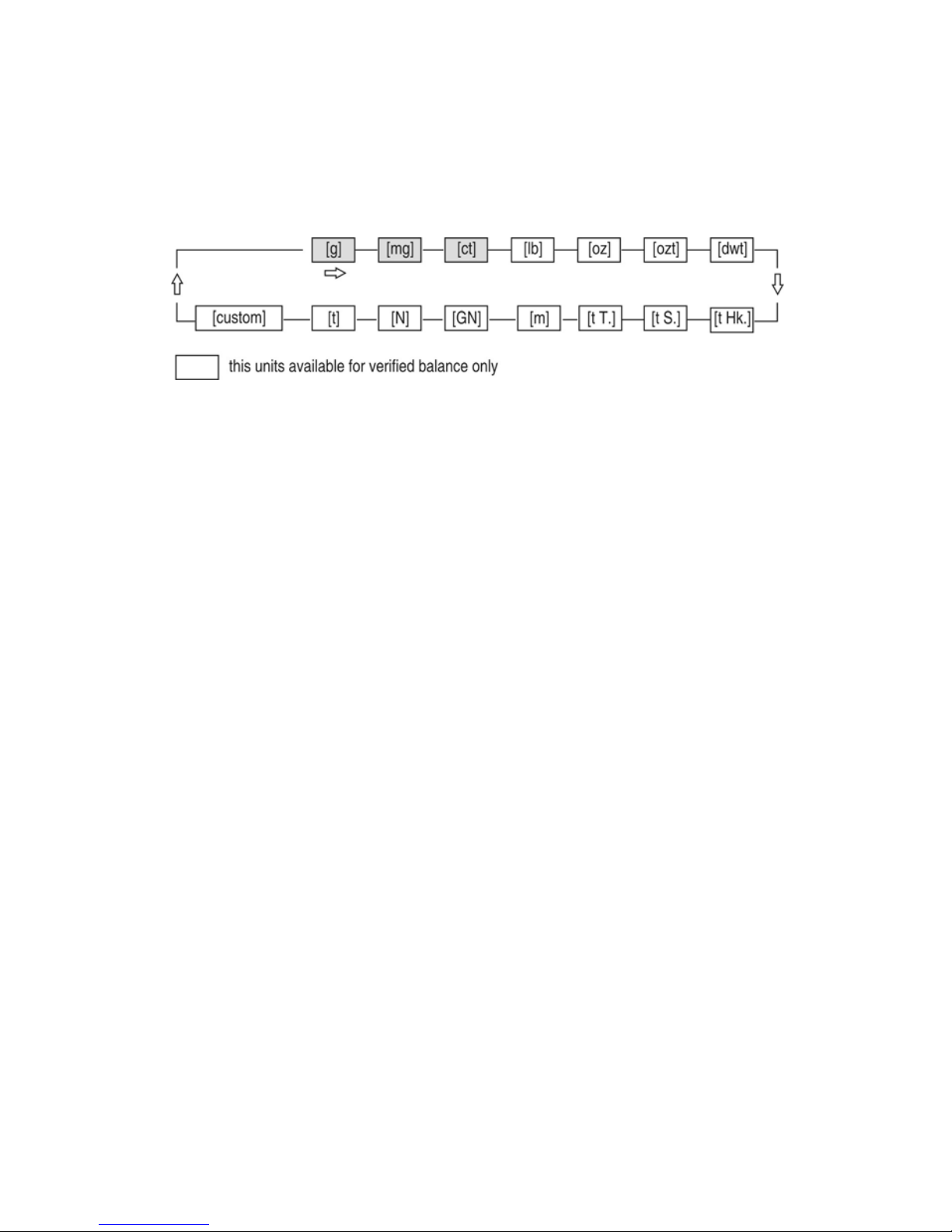

Draw. 2. Measure units

Apart from weighing in various units the balances have additional functions as:

− counts pieces

− weights

− dosages

− determines deviations of the standard mass

− weights animals

− detemines liquids and solids density

− making mixtures up to recipes

− statistics of measurements series

− recipes

Measure units and particular functions can be inaccessible for user. It is possible to
adapt the balance to individual needs and access functions and units which are necessary
at this moment.

It is possible to define accessible or no-accessible in user menu and it is described in
further part of the manual.

- 10 -

5. DESCRIPTION OF THE BALANCE

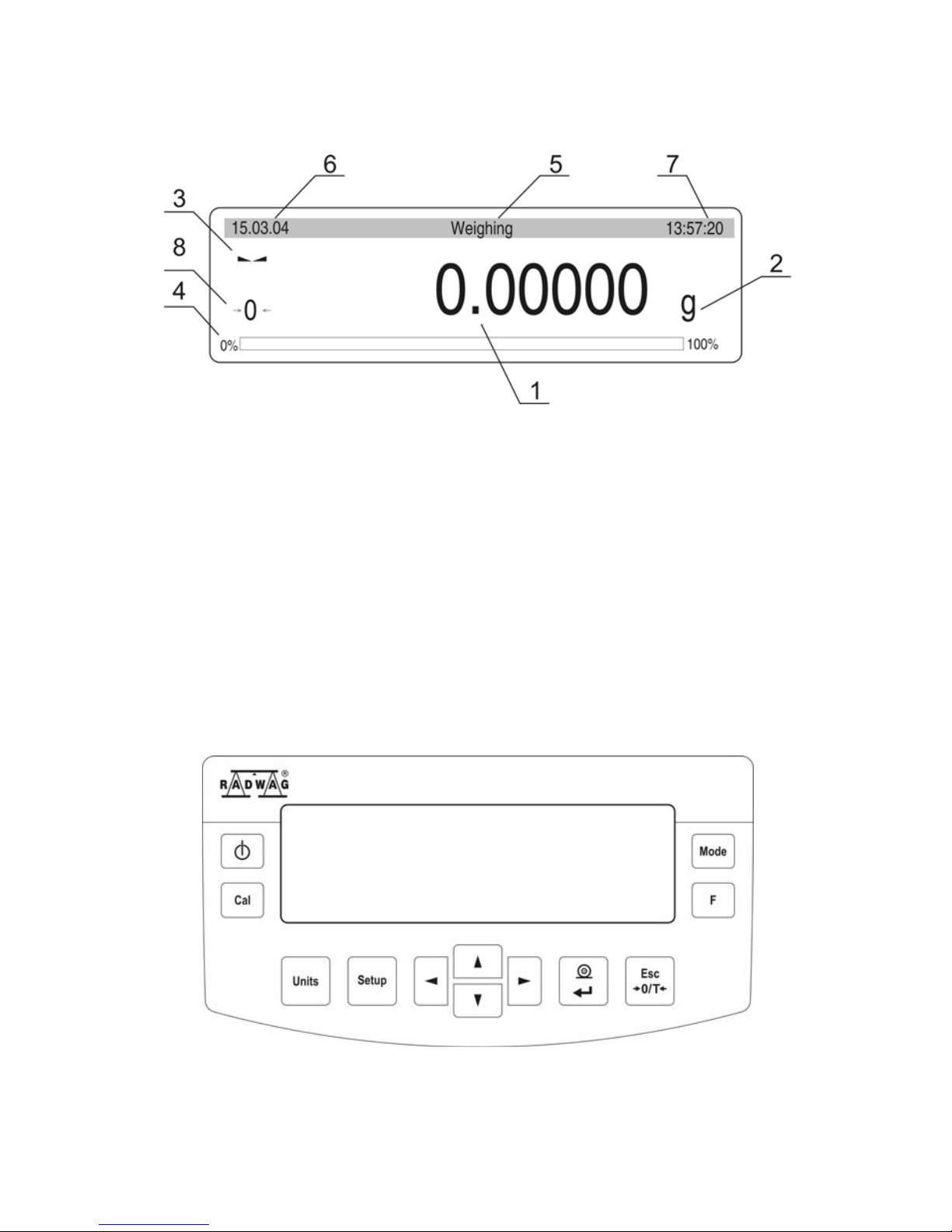

5.1. Graphic display

Draw

. 3. Display

1. load mass and quantity of pieces

2. measure unit

3. the result is stable

4. line of max range of the balance

5. work mode

6. date

7. time

8. precise ZERO

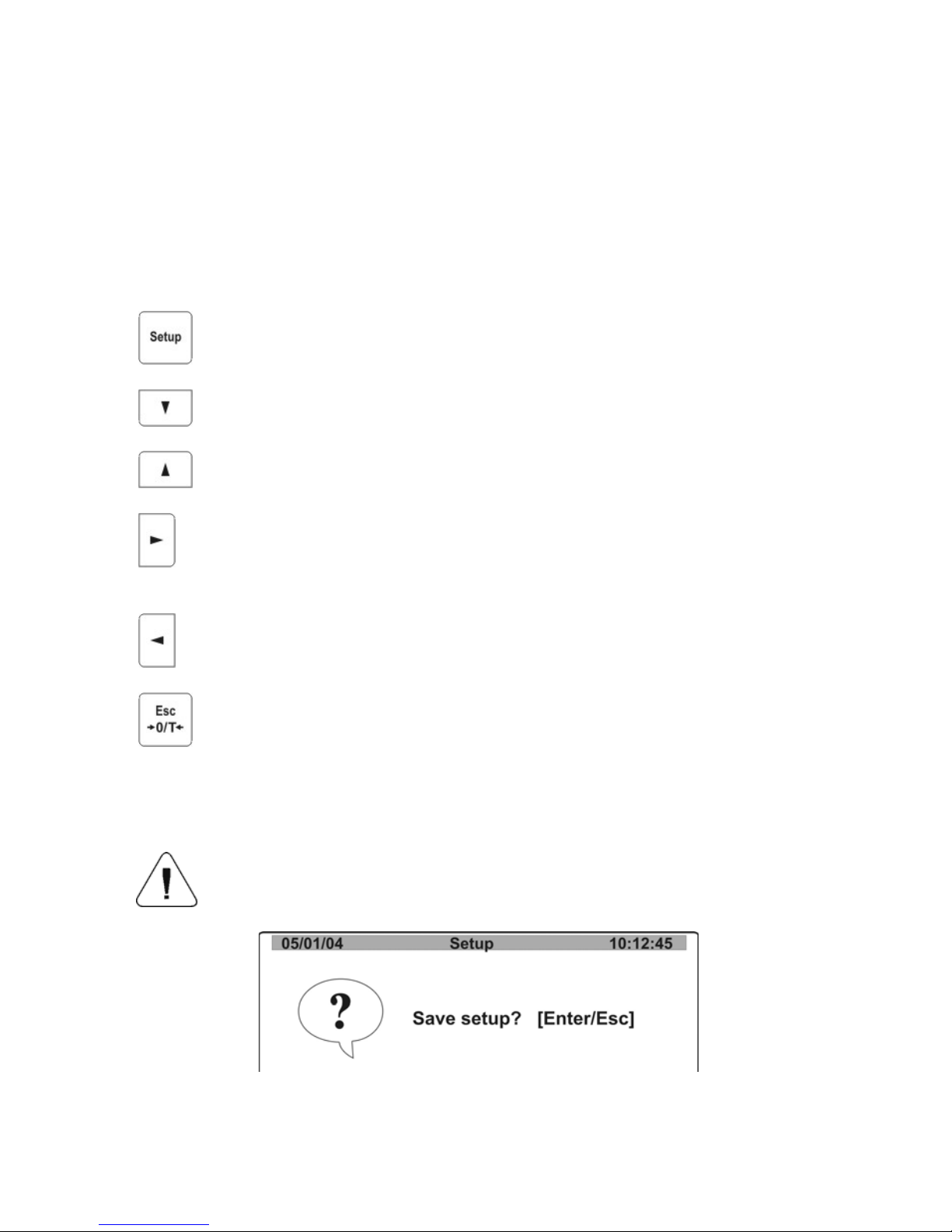

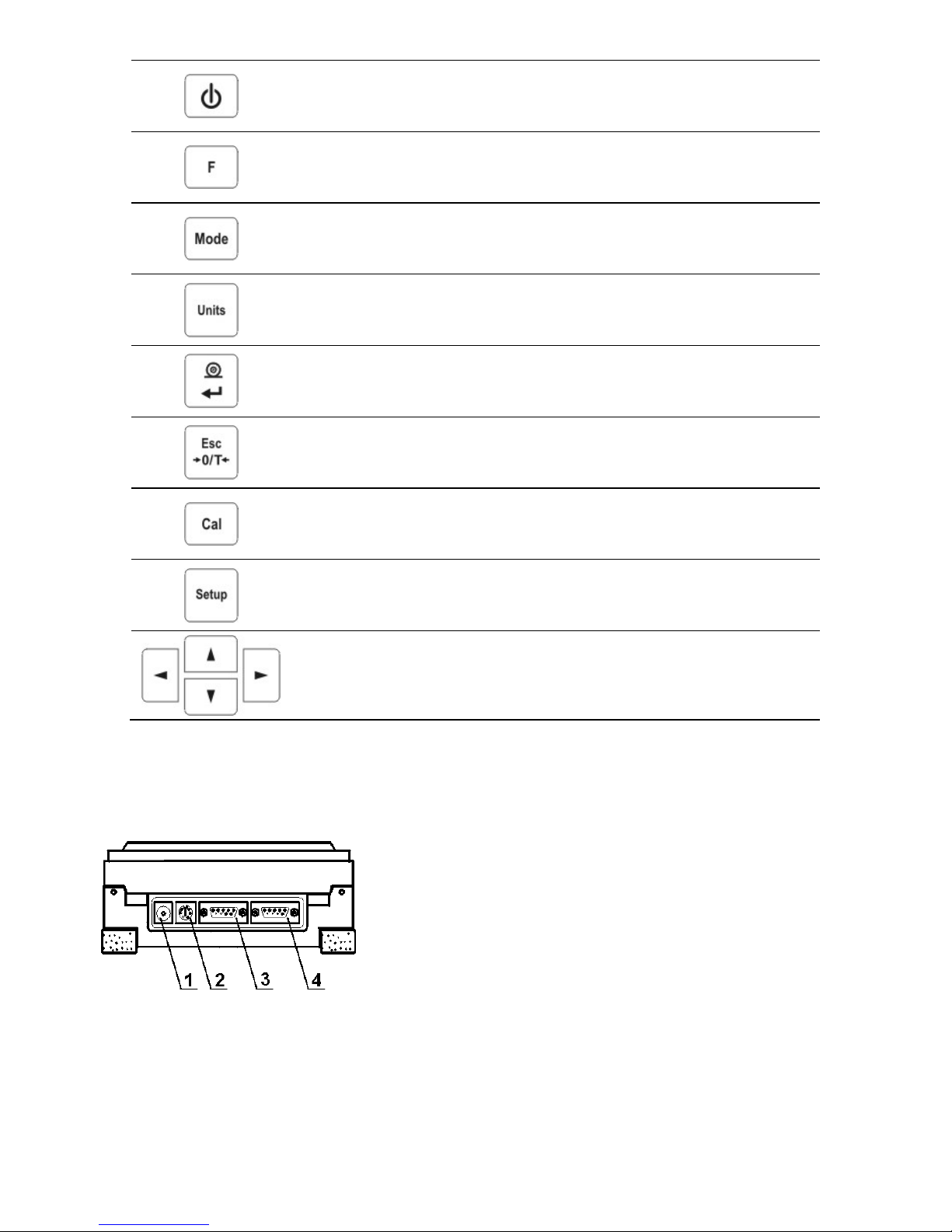

5.2. Keyboard

Each ke

y is dual-function key. Particular function can be done through. User also can

move in the balance menu.

- 11 -

ON/OFF key, switches the display off, after switching off other
subcomponents are supplied and the balance is in stand by
mode.

Function key F ,fast enter into work mode

Key MODE – selects the work mode

UNITS key, changes measure units

PRINT/ENTER key – sends information to external instrument
(PRINT) or confirms parameter value or function (ENTER).

Key ESC/ZEROTARA – sets indication to zero

Calibration

Menu of balances

Navigation bar

5.3. Connections

1.

power adapter socket

2. PS keyboard connector

3. RS 232 port

4. additional display socket

Draw. 4. Sockets of the XA/X balances

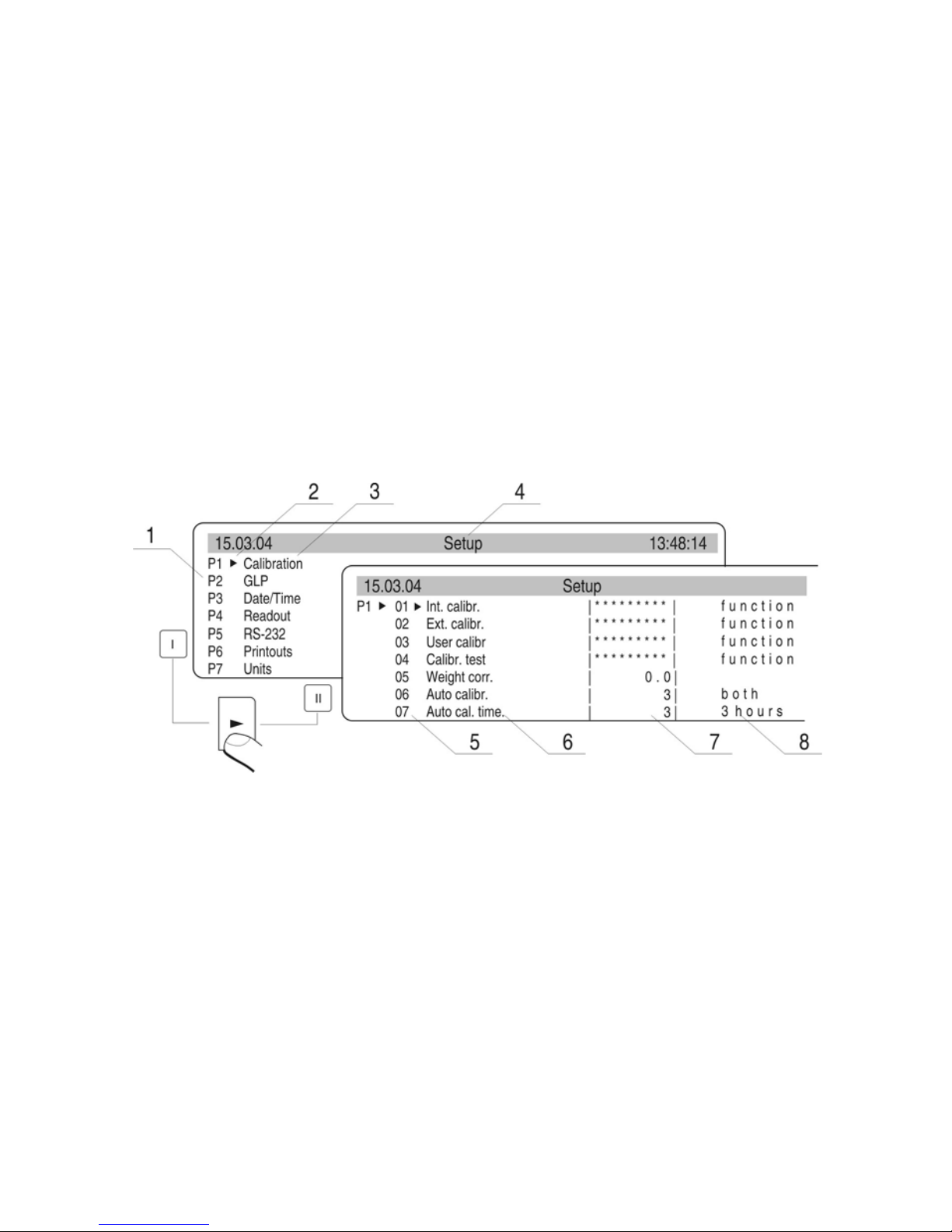

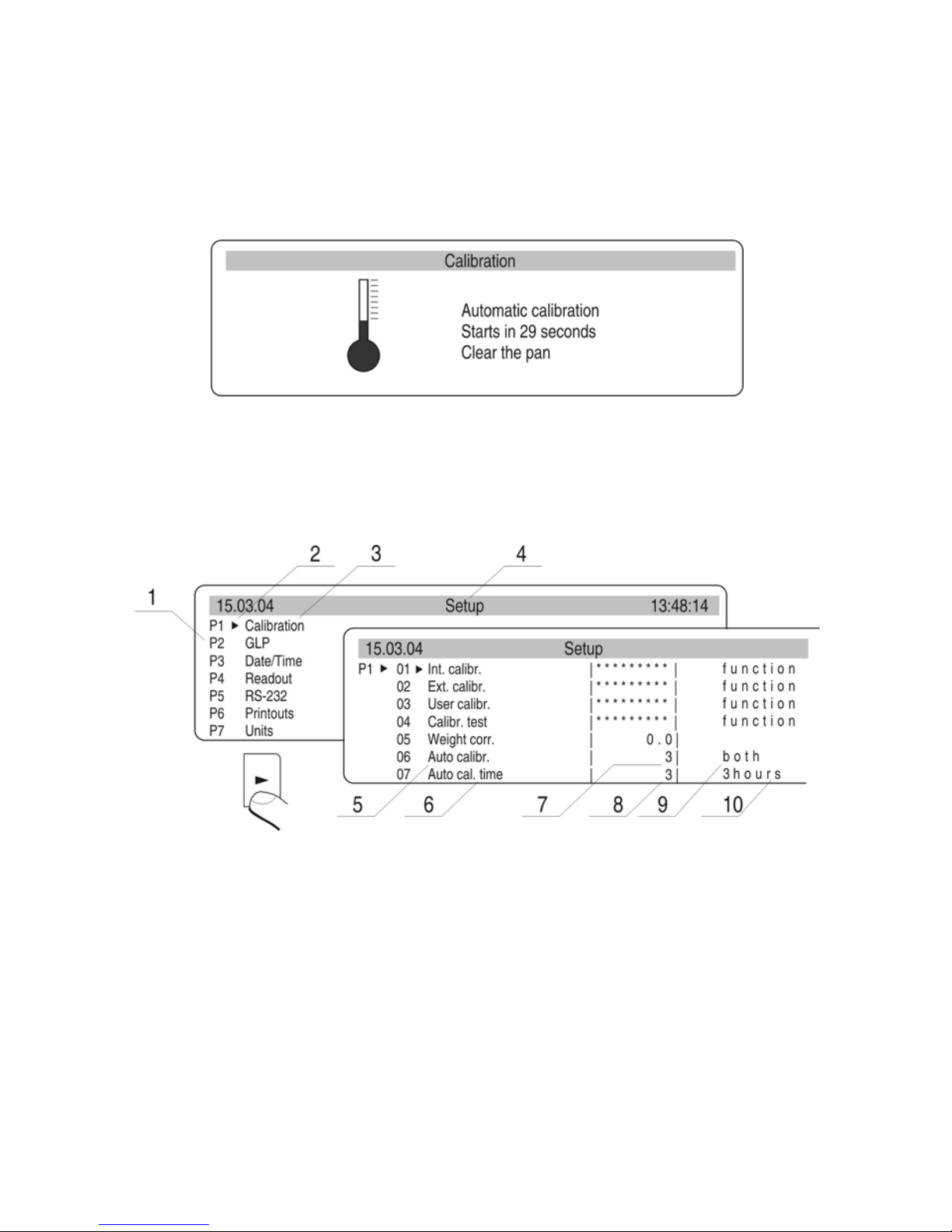

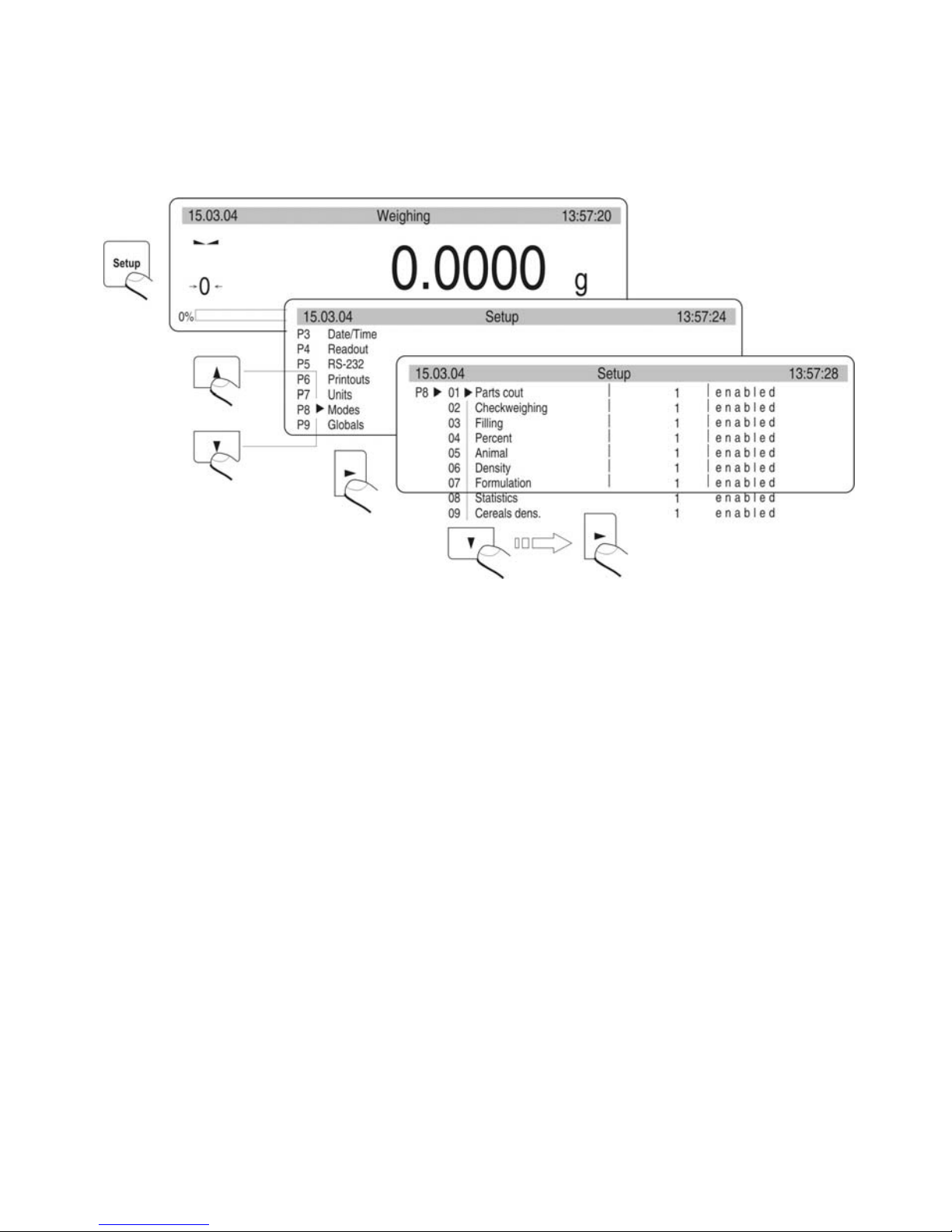

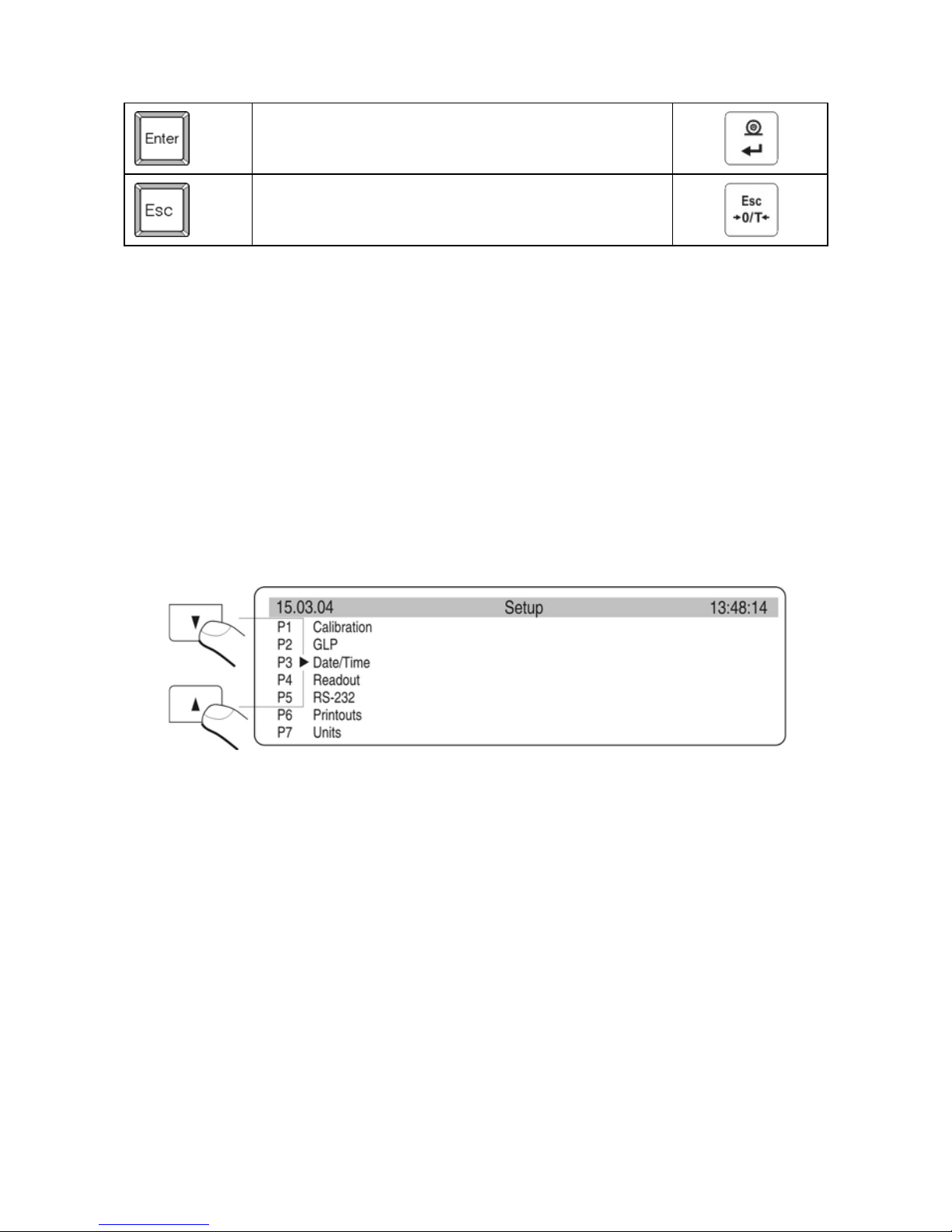

6. USER MENU

There are 9 groups in user menu. Each group is named by P letter. Name and contents of
each group is presented below.

- 12 -

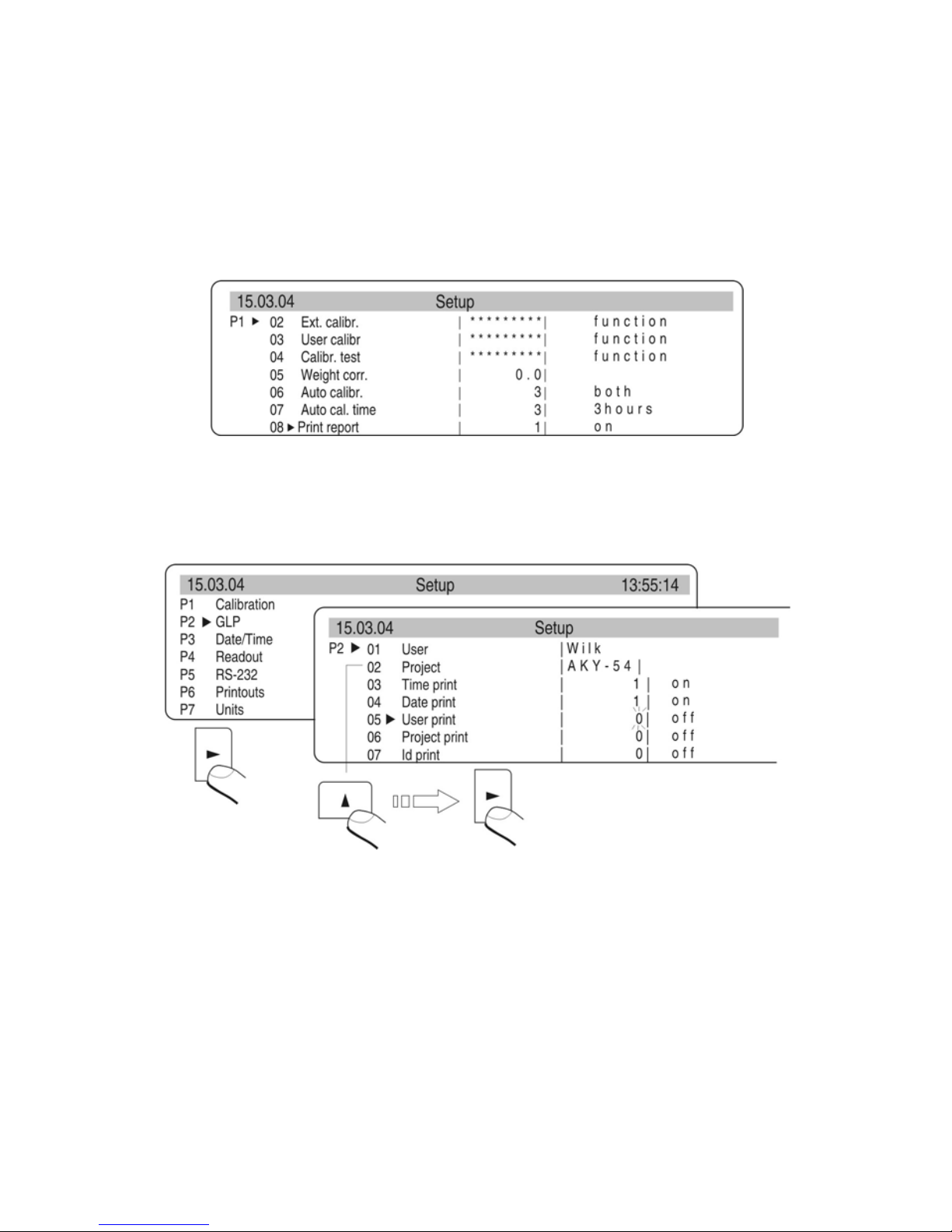

P1 Calibration

01 Int. calibr |

* * * * * * * *

| function

02 Ext. calibr |

* * * * * * * *

| function

03 User calibr |

* * * * * * * *

| function

04 Calibr test |

* * * * * * * *

| function
05 Weight corr. | * * * * * *0.0 |
06 Auto calibr | * * * * * *0.3 | both
07 Auto cal time | * * * * * *0.3 | 3 hours
08 Print report | * * * * * *0.1 | on

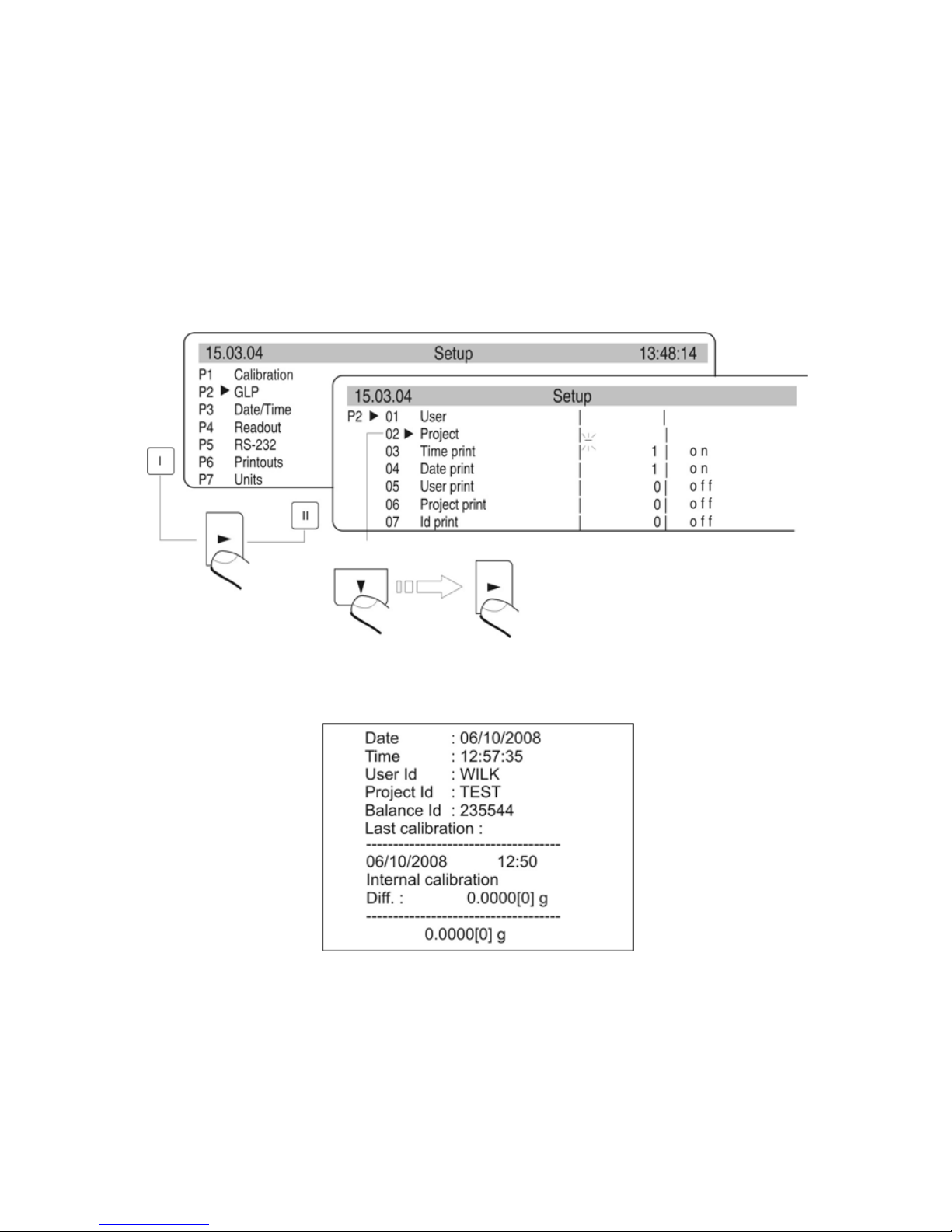

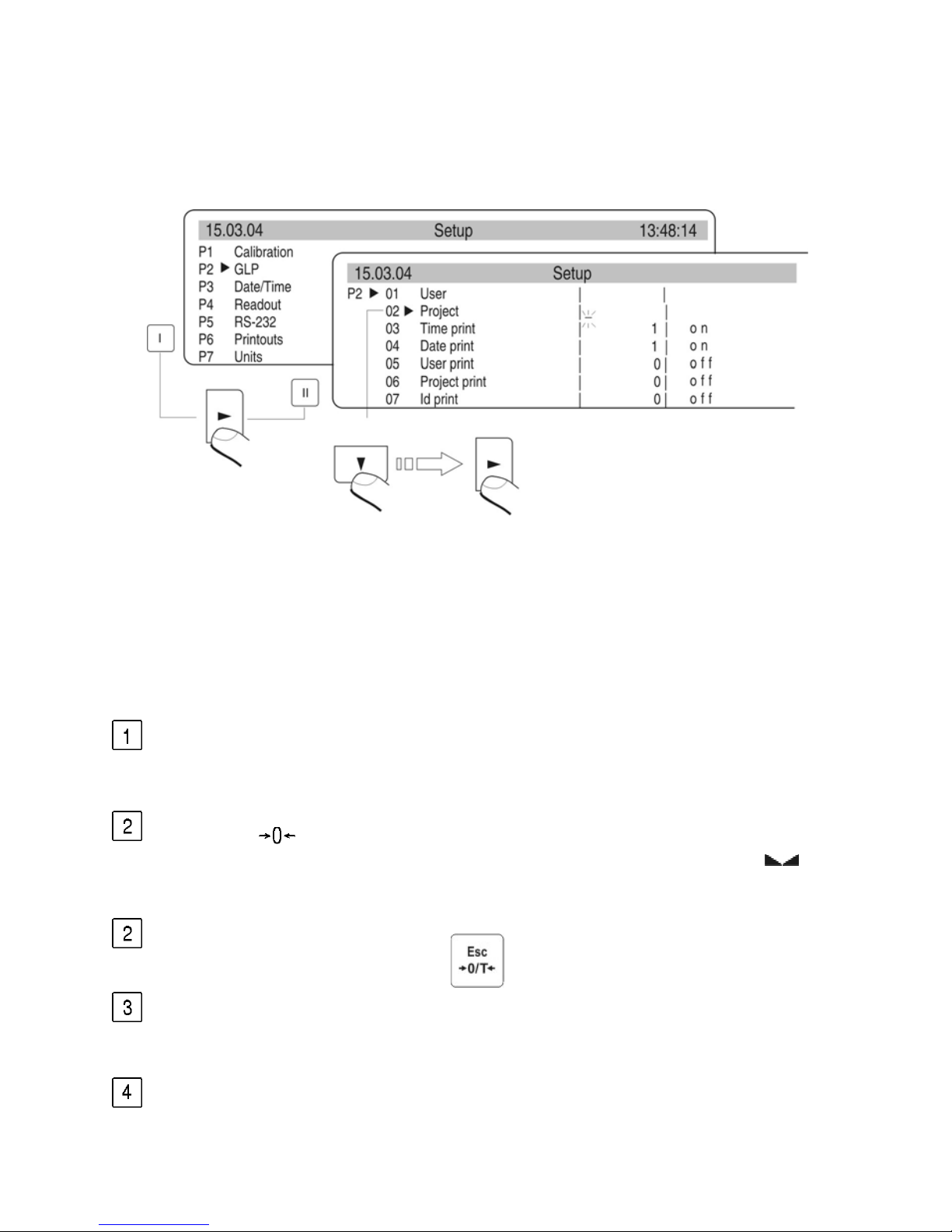

P2 GLP

01 User | Nowak Jan |
02 Project | AR – 65/04 |
03 Time print | * * * * * *0.0 | off
04 Date print | * * * * * *0.0 | off
05 User print | * * * * * *0.0 | off
06 Project print | * * * * * *0.0 | off
07 Id print | * * * * * *0.0 | off
08 Last cal print | * * * * * *0.0 | off

P3 Date/Time

01 Date format | * * * * * * * 0 | DA/MO/YR
02 Time format | * * * * * * * 0 | 24 h.
03 Time |

* * * * * * * *

| function

04 Date |

* * * * * * * *

| function

05 Display time | * * * * * * * 1 | yes
06 Display date | * * * * * * * 1 | yes

P4 Readout

01 Filter | * * * * * * * 3 | normal
02 Value relase | * * * * * * * 1 | fast + rel
03 Disp. Refresh | * * * * * * * 1 | 0.08s
04 Autozero | * * * * * * * 1 | on
05 Last digit | * * * * * * * 1 | always
06 Negative | * * * * * * * 1 | disabled

P5 RS - 232

01 Baud rate | * * * * * * * 1 | 4800
02 Parity | * * * * * * * 0 | none
03 Data bits | * * * * * * * 2 | 8 bits
04 Stop bits | * * * * * * * 1 | 1 bit
05 Handsake

| * * * * * * * 0 | none
06 Auto print | * * * * * * * 0 | none
07 Interval | * * * * * * * 1 | * 0.1 s
08 Min. mass | * * * * * * * 4 | 10 d
09 Print on stab | * * * * * * * 1 | enabled
10 Printer type | * * * * * * * 0 | Epson /Standard
11 Cut paper | * * * * * * * 0 | no

- 13 -

P6 Printout

01 Printout no. | * * * * * * * 0 | standard
02 Printout. 1 start | * * * * * * * 1 |
03 Printout. 1 stop | * * * * * * * 1 |
04 Printout. 2 start | * * * * * * * 1 |
05 Printout. 2 stop | * * * * * * * 1 |

... . . . . . . . . . . | * * * * * * * 0 |

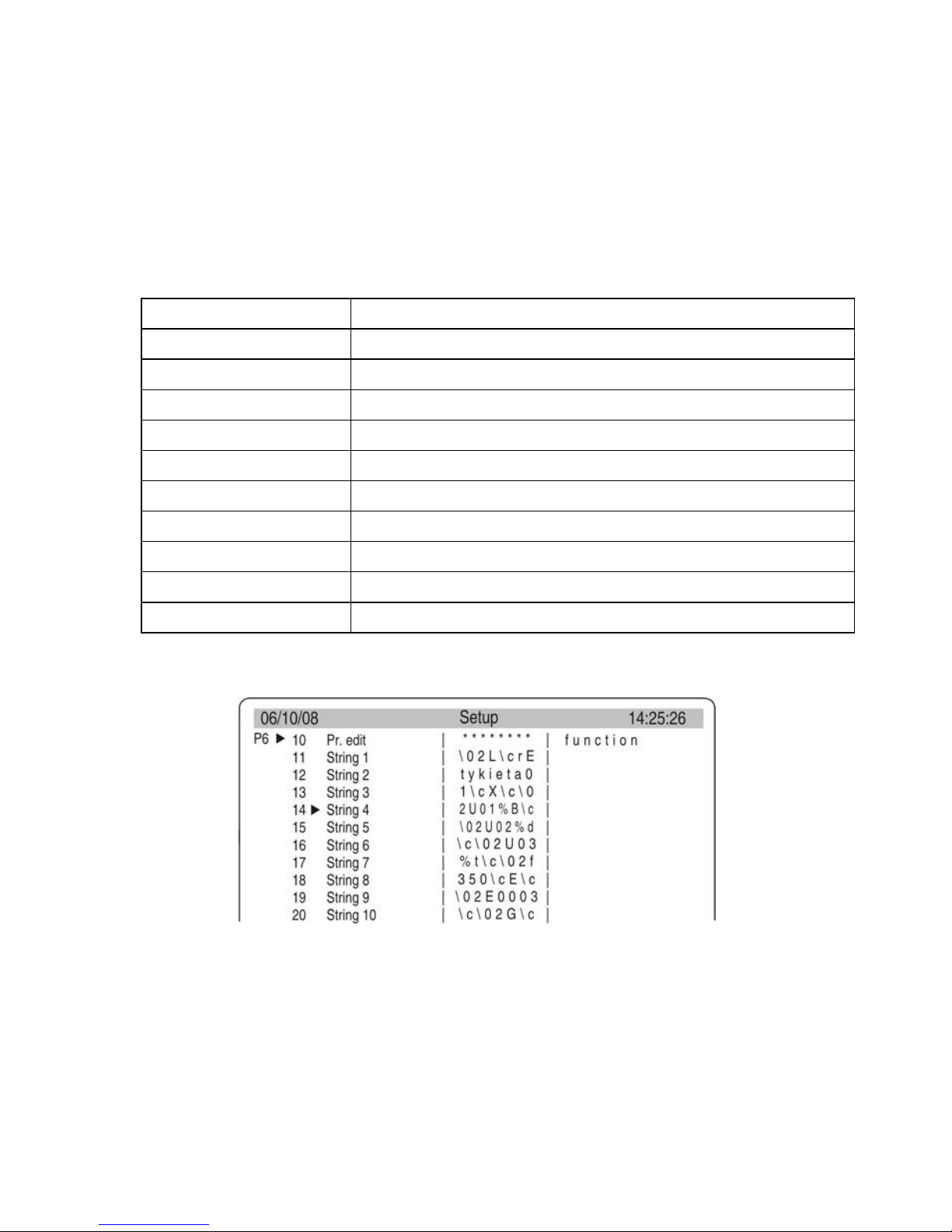

10 Pr. edit. |

* * * * * * * *

| function
11 Text 1 | * * * * * * * 1 |
11 Text 2 | * * * * * * * 4 |

... . . . . . . . . . . | * * * * * * * 1 |

89 Text 80 | * * * * * * * 0 |

P7 Units

01 Grams | * * * * * * * 1 | enabled
02 Miligrams | * * * * * * * 1 | enabled
03 Carats | * * * * * * * 1 | enabled
04 Pounds | * * * * * * * 1 | enabled

05 Ounces | * * * * * * * 1 | enabled

06 Ounces troy | * * * * * * * 1 | enabled
07 Dwt | * * * * * * * 1 | enabled
08 Taele Hk. | * * * * * * * 1 | enabled
09 Taele S. | * * * * * * * 1 | enabled
10 Taele T. | * * * * * * * 1 | enabled
11 Momms | * * * * * * * 1 | enabled
12 Grains | * * * * * * * 1 | enabled
13 Newtons | * * * * * * * 1 | enabled
14 Ticaal | * * * * * * * 1 | enabled
15 Custom | * * * * * * * 1 | enabled

P8 Work modes

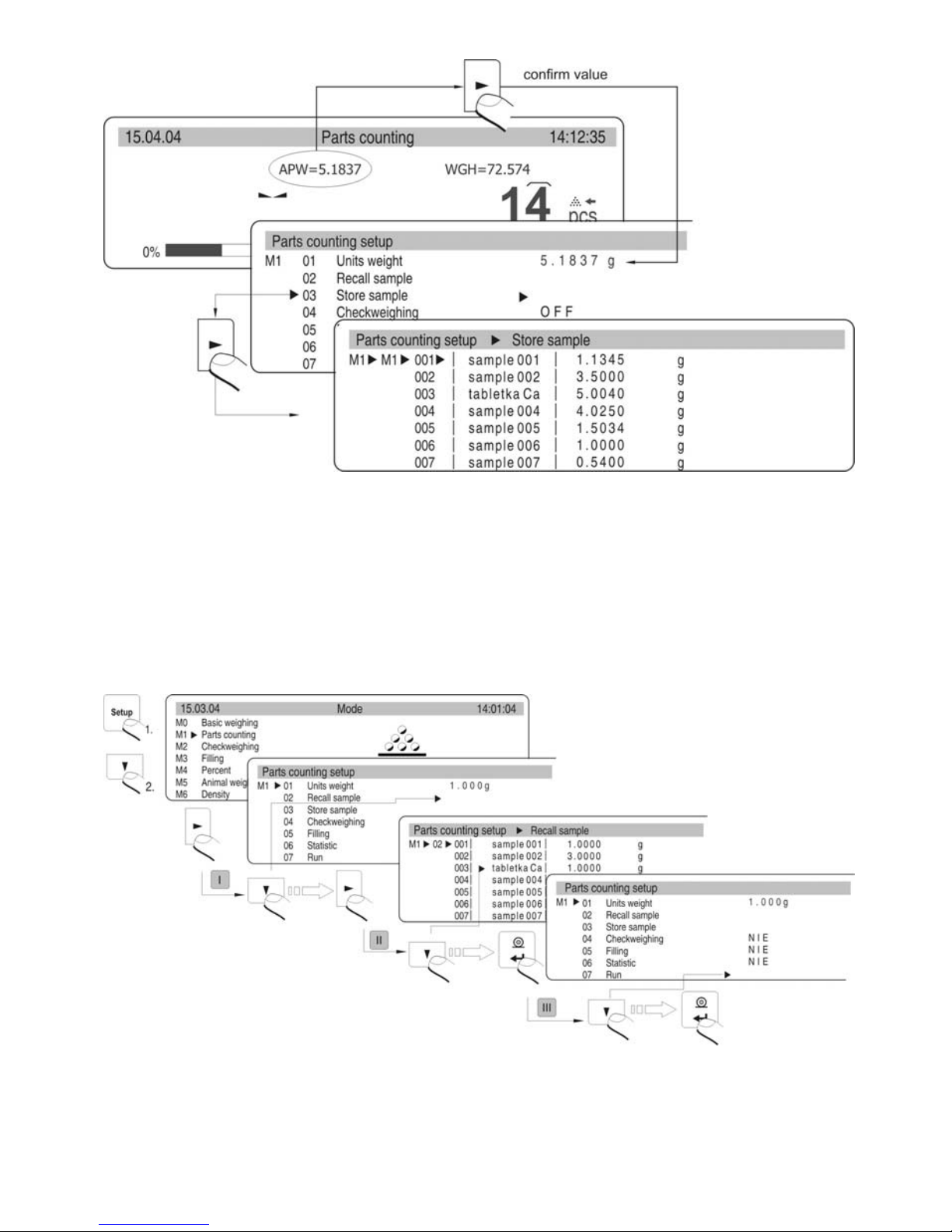

01 Parts count | * * * * * * * 1 | enabled
02 Checkweighing | * * * * * * * 1 | enabled
03 Dosages | * * * * * * * 1 | enabled
04 Deviations | * * * * * * * 1 | enabled
05 Animals | * * * * * * * 1 | enabled
06 Density | * * * * * * * 1 | ena

bled
07 Recipes | * * * * * * * 1 | enabled

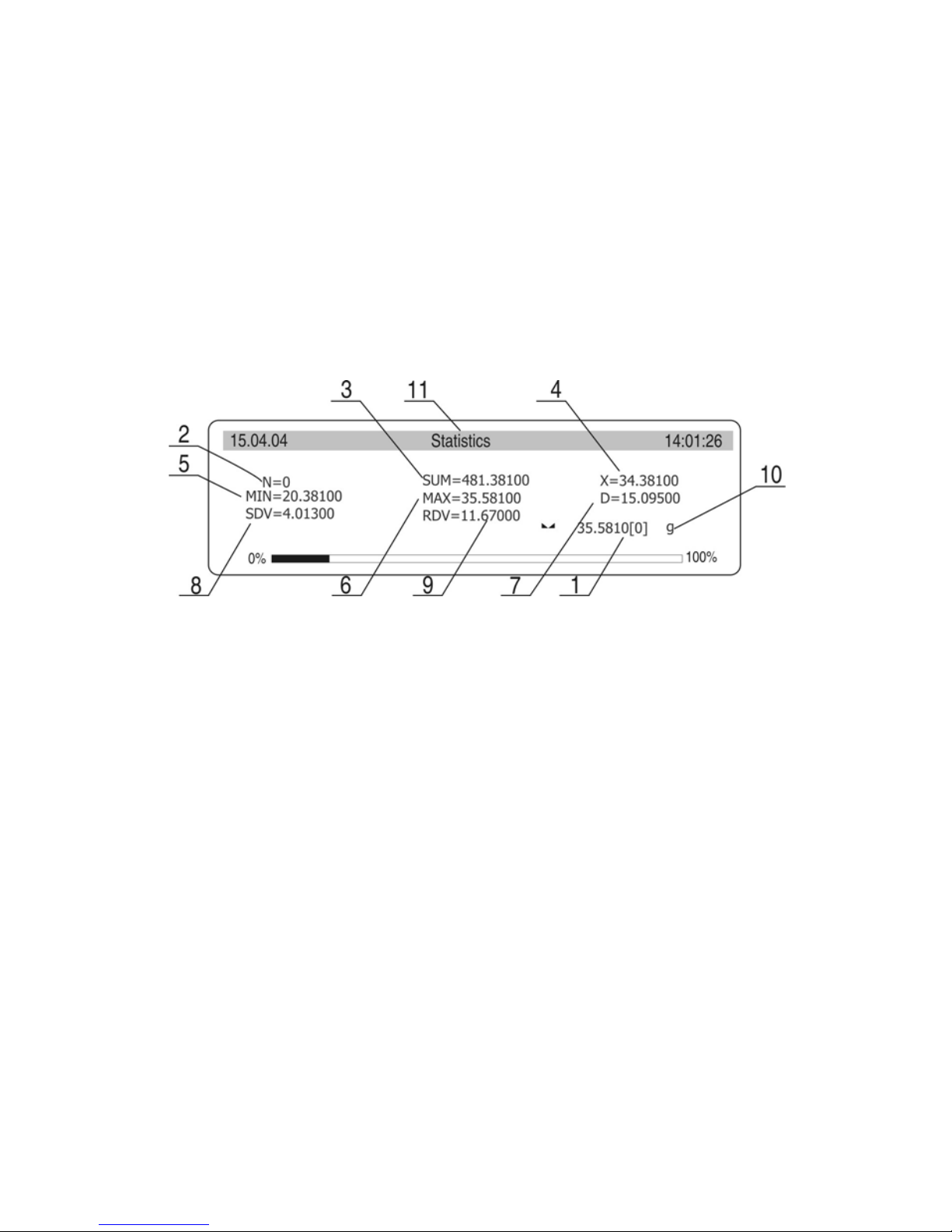

08 Statistics | * * * * * * * 1 | enabled

P9 Others

01 Setting ID |

* * * * * * * *

| function
02 Autoprint ID | * * * * * * * 0 | disabled
03 beep | * * * * * * * 1 | enabled
04 Language | * * * * * * * 1 | Polish
05 Backlight | * * * * * * * 1 | enabled
06 Contrst |

* * * * * * * *

| function
07 Screensaver | * * * * * * * 0 | disabled
08 Temperature |

* * * * * * * *

| function

- 14 -

09 Balance number | 114493 * * * |
10 Software number | MBa.a 35 * |
11 Par. printout |

* * * * * * * *

| function

12 Par. receive |

* * * * * * * *

| function

13 Password protection |

* * * * * * * *

| function

Parameters in user menu are:

• functional – for particular activity eg. the balance calibration

• selectable – selects one of few values from the balance memory

• noted – changes sets in the balance memory eg. Date, time, user number, texts

•

Menu –graphic version

Press the SETUP key to display main menu of the balance (display I). Select the submenu
whose contents is displayed after pressing the RIGHT ARROW key (display II).

Draw. 5. Menu

1 - main menu number
2 – indication of the function selection
3 – function name
4 – currently used function
5 – submenu number
6 – submenu name
7 – attribute of the menu
8 – value of the attribute

- 15 -

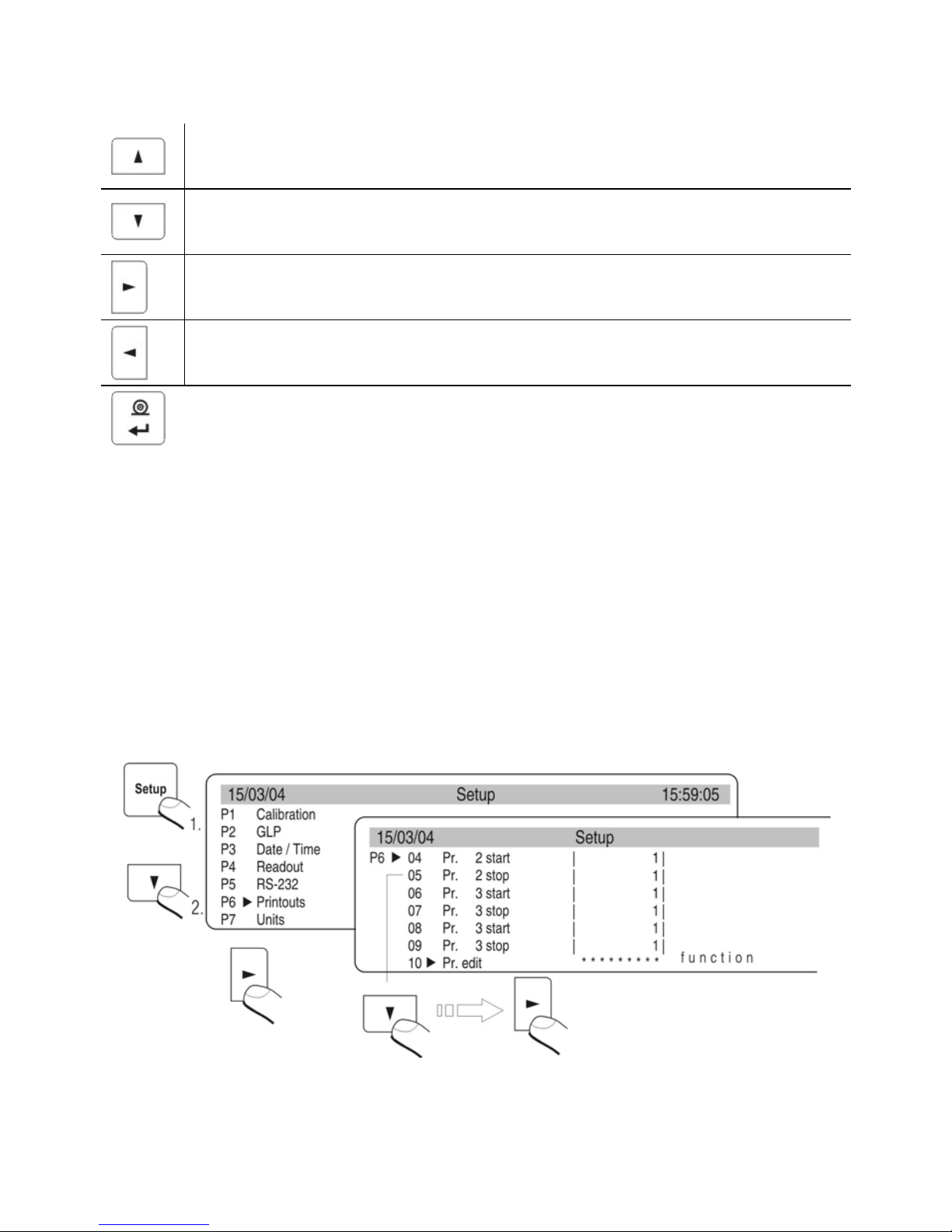

6.1. Move in user menu

User moves i

n the menu by

- the balance keyboard

- PS keyboard,

- Communicates from computer to the balance

6.1.1. The balance keyboard

enter main menu

move down in the menu

move up in the menu

selects submenu which is activated, submenu contents is presented on the

display

move one level up to main menu

Resignation parameter changing

6.1.2. Return to weighing function

Introduce

d changes are recorded after return to weighing mode and confirm
changes. Press the ESC key many times. If following question appears on
the display press: ENTER – confirm or ESC – cancel

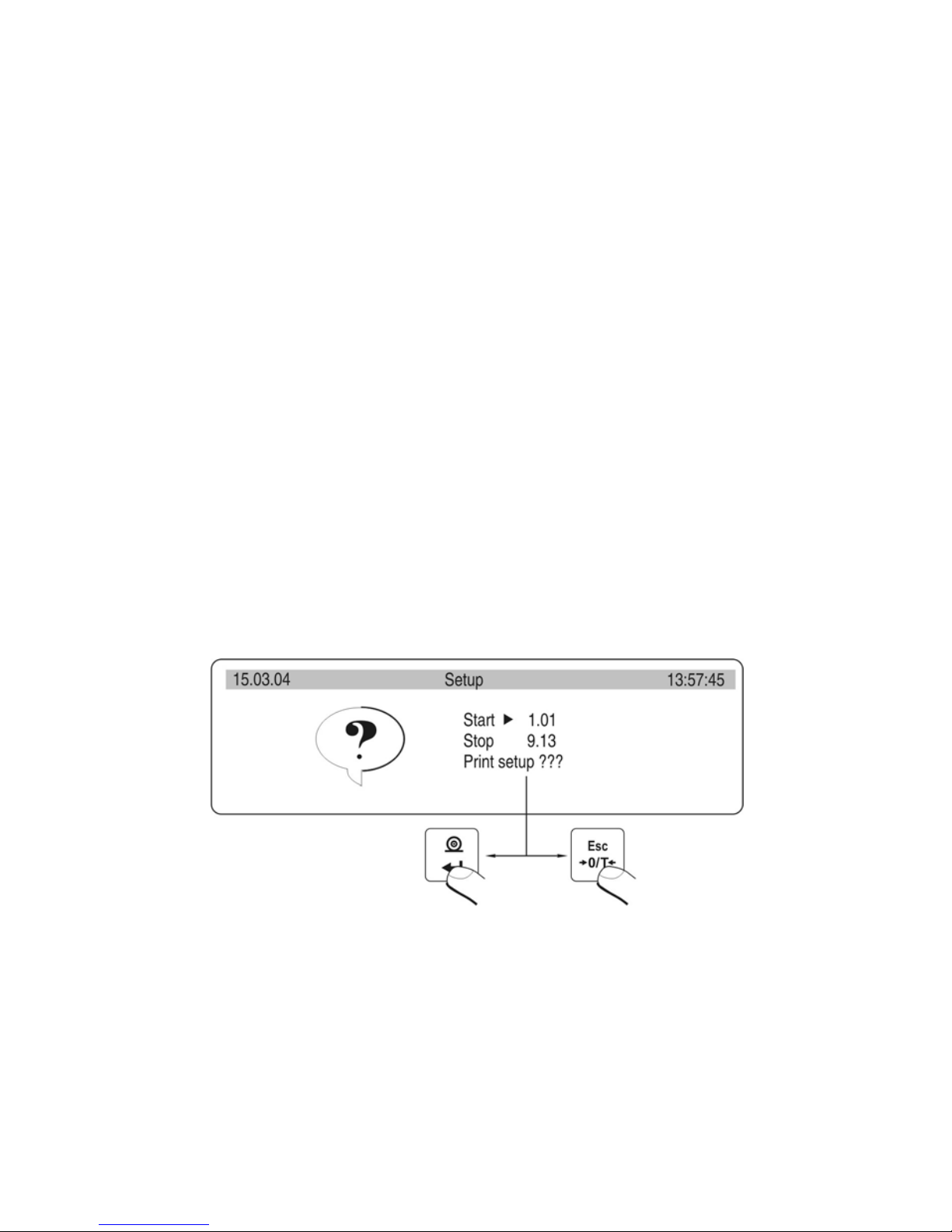

Draw. 6. Return to weighing

- 16 -

6.1.3. PS computer keyboard

Each ke

y on the balance keyboard has its equvivalent on the PS keyboard

- for functions

Description keyboard

Switch on/off the balance display

Move to the balance menu

Selects work mode

Selects measure unit

PRINT

TARE

- for Direktion keys

Move up

Move to level up

Sets selected parameter

Move down

- 17 -

- for ENTER / PRINT keys and ESC

Confirm changes

Cancel and leave function without changes

6.1.4. By means of virtual keyboard through RS 232

Most of the functions are d

one by the balance desk or PS keyboard. They are aslo done by
sending orders computer – balance.
This commands enables to move in the balance manu and control the balance work. The
list of the commands is at the end of the manual.

6.2. User menu

T

he menu is presented in p.5. Press the Setup key in weighing level. Main menu is

presented on the display. Select the submenu which is modificated .

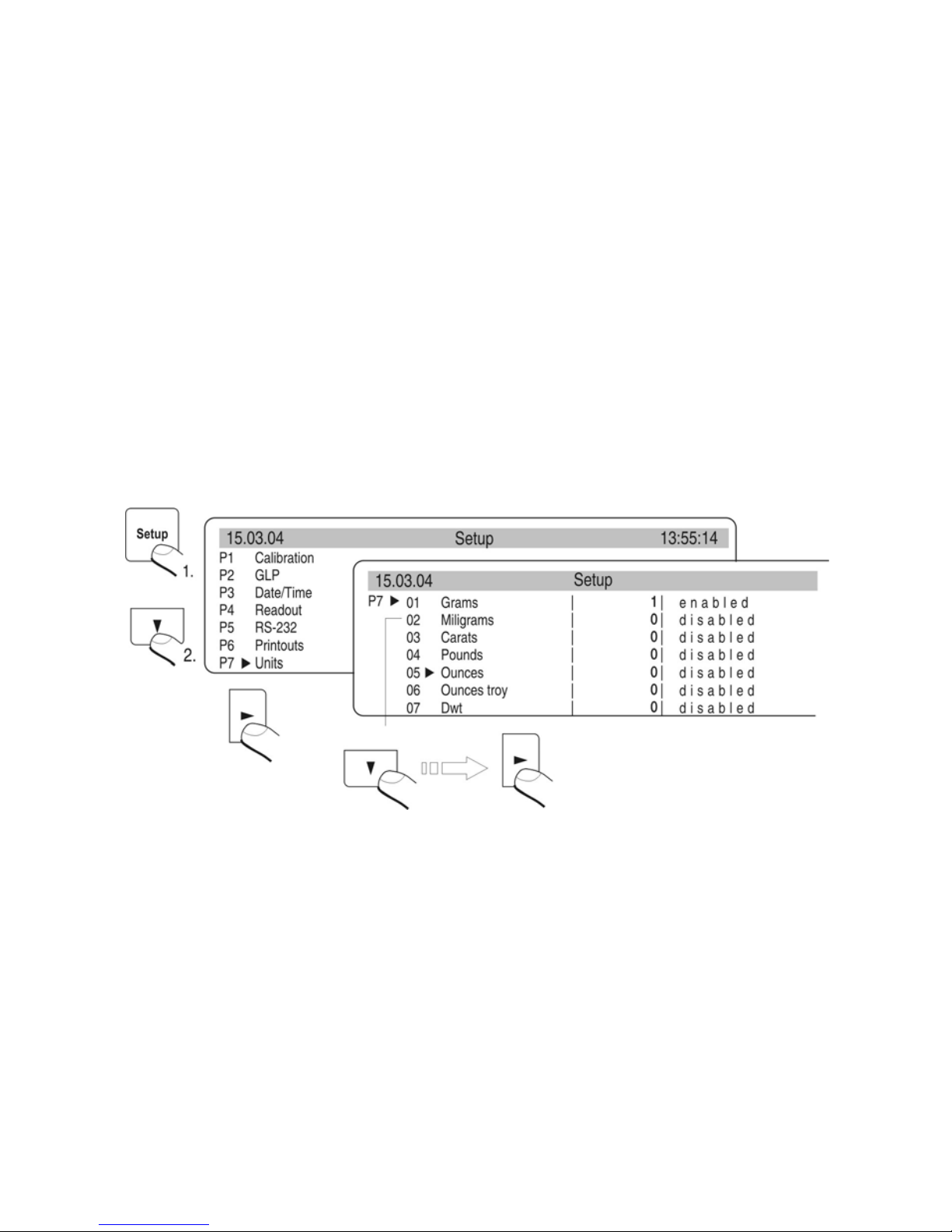

Draw. 7.Main menu – submenu selection

If the menu is modificated press the RIGHT ARROW key. Selected menu appears on the
display. Select what will be changed in this submenu (activate). Select through keys
presented on the Draw above. Press the RIGHT ARROW key.

- 18 -

Reaction of the balance:

- Activity of the balance (eg. the balance calibration) is done for submenu described
as Function

- Attribute activation for submenu which is indicated (digit flashing means the value
can be changed and some signs can be written)

Draw. 8. The balance submenu

7. WEIGHING

Follo

wing conditions must be fulfilled to get reliable results:

- Stable temperature

- Stable ground

- Proper parameters for external conditions

Before measurements or for essential changes of the external conditions (if the
temperature changes more than 1° C/h) calibrate the balance in accordance with p.

7.1.

Before measurements load the pan and check if the balance show „precise zero” –
displayed in down left corner of the display (only if the parameter P4 06
Autozero has the value 1: yes) and check if the measurement is stable – is
displayed in right up corner of the display. If the balance does not show zero press
the key

If the conditions are unfavourable (no stable result) lines appear on the display.
After settled time the balance returns to weighing mode without set up to zero. In
this case wait untill the conditions stabilize and press Esc again

By the Units key select measure unit. Put the load on the pan and after stabilization
read out the result. If measure unit user wants to use is not displayed during
pressing the Units key check if it has access attribute.

- 19 -

The indication can be set to zero many times. Sum of loads noted in the balance
memory cannot be higher than max capacity.

Betwenn following measurements do not unpluged the balance.
The balance should be switched off by the ON/OFF key. After pressing the key
again the balance is ready to work without warm stabilization.

7.1. Pipettes calibration

In specia

l function or via cooperation with special computer software PIPETTES user
can calibrate pipettes (pipettes calibration stand). Function is described in further part of
manual.

Independently on pipettes calibration for this function steam protection ring must be
installed on (see point Unpacking balance). Container of steam curtain minimizes errors of
measurement when liquid evaporates during weighing.

Before pipettes calibration pour water to steam protection ring to 2/3 height of ring.

The set is ready to use after about an hour –this time is necessary to get moisture
stability. Remember to control distilling water level in container – surface of container

- 20 -

should be covered with water all the time. Overflow of water in container can be removed
with automatic pump or pipette.

To minimize all humidity measurements inside chamber and influence of blast air
during opening side doors the dosing liquid from pipettes must be done through a hole in
upper cover of weighing chamber.

7.2. Log-in function

The operator has own access code to internal menu. The password system is defined by
administrator. Password can contain max 6 digits.

The balance program enables to declare:

• One administrator who is authorised to use all sets and programme functions,
change the passwords – own and user

• One user who is authorised to sets and the balance functions determined by
administrator

Setting password and access authorization

• After set the password and access parameters (parameter P9 13 Password
protection) write the password for administrator

• If the admistrator password is different from “0” the program wants administrator
password during enter for the parameter
P9 13 Password protection.

• Every enter this parameter the software demands administrator password, after
writting correct password it is possible to set the parameter P9 13 Password
protection

• If the password is not correct the command about wrong password is show and
the balance displays previous window

• Dependly on setting the password is shown as digits or stars (start value each
digit = 0)

According to point 5.1.1 of the manual enter the menu P9 Others

Draw. 9. Password-activation the function

- 21 -

Draw. 9-1. Menu password protection

- Administrator

line to write administrator who has access to all set up

- User

line to write user password. User who has access to setting with NO attribute (are not
protected by password)

- Start up

If it is settled on YES during start the balance up user must write access password
(administrator or user)

- Functions

If it is settled on NO (not protected by password) user can use implemented functions
in the balance.

- Set up

If it is set up on NO (not protected by password) user can change setting in the
balance

- Only Kal+GLP

If it is set up on YES user can perform the calibration and calibration report

- Stars

If it is settled on YES during start the balance up password is hidden under starts

Administrator password

Write the password for administrator (max 6 digits) and user. Each admistrator has
access to all functions in the balance. User has access to balance possibilities in
accordance with above description. Please, remember the password. If you set YES
for „Start up” function the password must be writen after switch the balance on.
If the password is not correct using the balance is not possible.

To write the password in use keys described on the drawing 2. or PS/2 keyboard (it
can be connected to the balance port).

Set up the attributes for other options dependly on authorizations for user.

- 22 -

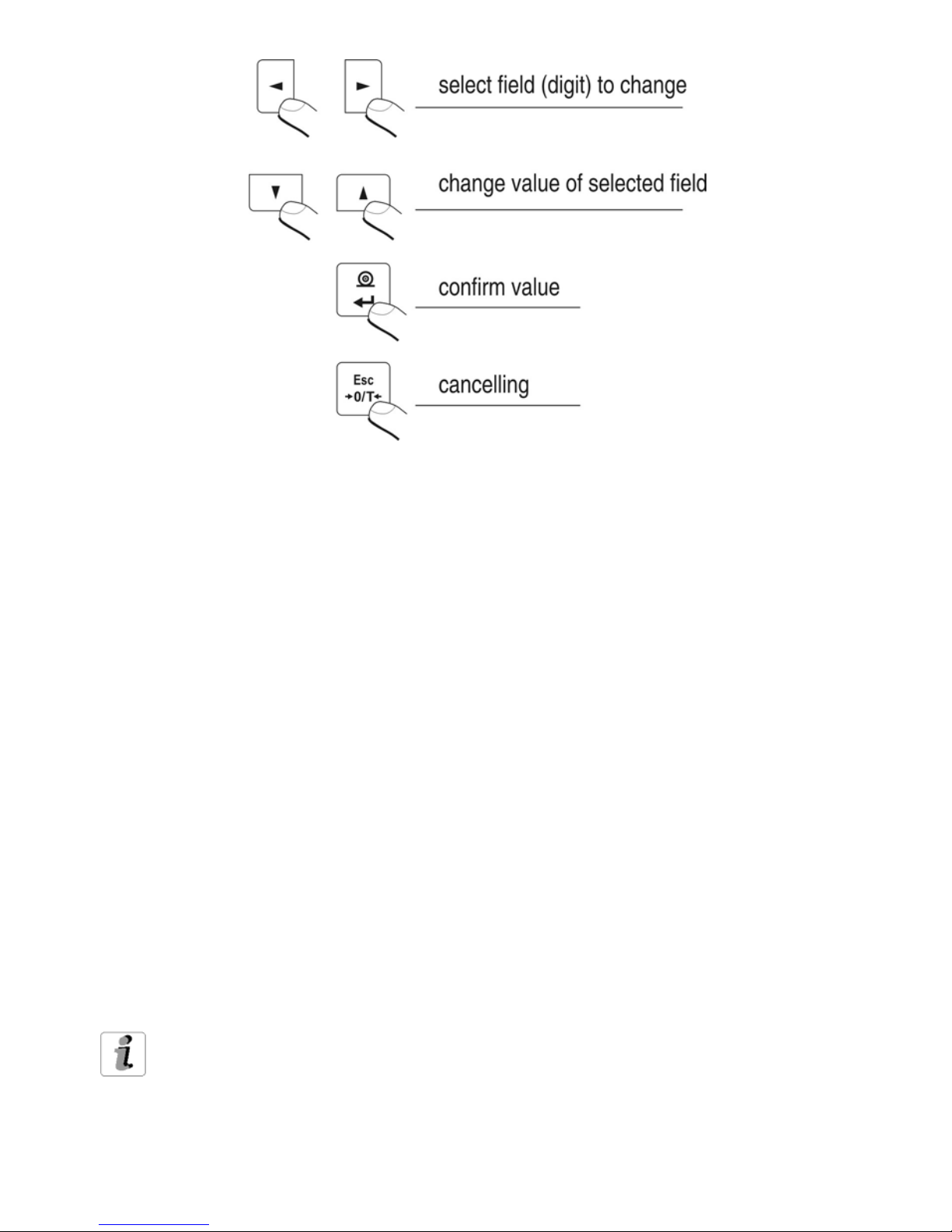

Draw. 10. The keys –introducing the values in the menu

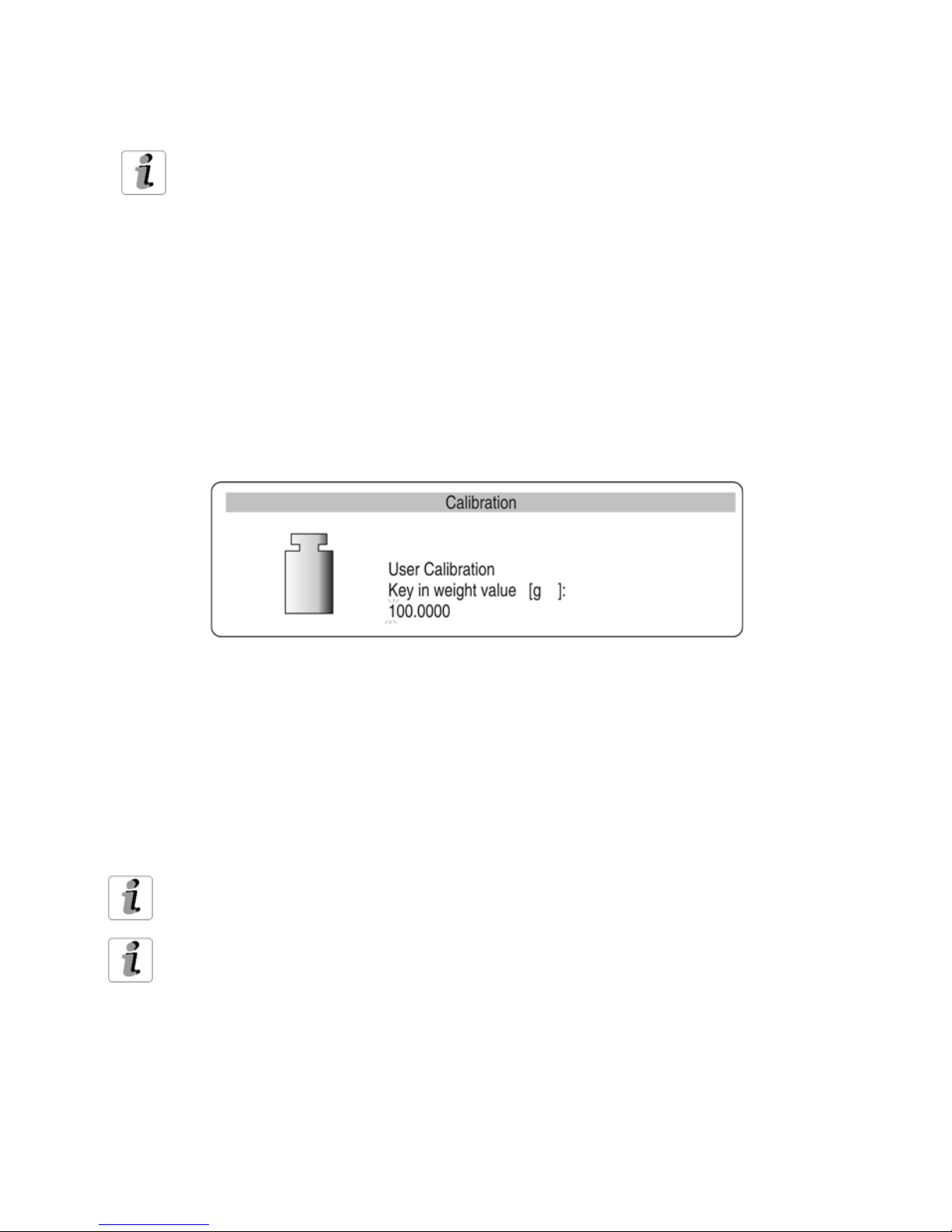

8. BALANCE CALIBRATION

To ensure high precision of weighing corrective factor in relation to standard mass must be
noted in the balance memory periodicaly – it is the balance calibration.

Calibration should be performed when:

- The weighing is started,

- Long breaks are between following measure series

- Temperature inside the balance changes more than: 0,8° C

Kind of calibration:

- Internal automatic calibration

- * started if temperature changes, started if the time changes

- Internal manual calibration

* started by the balance keyboard

- Calibration made with external weight

- with declared mass which cannot be modificated

- * with any mass which should be given before the calibration process(for not

legalized balances only)

In verified balances only automatic internal calibration and manu al internal calibration is
accessible.

Perform the calibration when there is no load on the pan!

- 23 -

8.1. Automatic balance calibration

It is performed w

hen:

- Period of time passes from last calibration

- temperature changes for settled value by manufacturer

* for balances XA/X is 0,8° C,

Following information appears on the display:

Draw. 11. Automatic calibration – display view

Time delay in starting the calibration up enables user to take load off the pan untill the
measurements are performed. If the T/O key is pressed the calibration process is stopped.

Set up automatic calibration

Draw. 12.Set up automatic balance calibration

1 – main menu number
2 – function selection factor
3 – function name
4 – name of actual activity
5 – selects factor to autocalibration (time / temp.)
6 – declaring autocalibration time
7 – value of factors for autocalibration
8 – value of time for autocalibration

If the value for autocalibration factor and time changes descriptions for these lines changes
as well (on the drawing field No9. And No 10.)

- 24 -

01 Internal calibration

Start internal calibration process, the process is automaticaly without operator

interference, if there is load on the pan the display shows order to remove the load

02 External calibration

calibration performed by external mass, its value is recorded in factory menu, function
inadmissible in verified balances

03 User calibration

calibration performed with any mass which must be introduced before the calibration,
function inadmissible in verified balances

04 Calibration test

comparison internal calibration mass with its value recorded in the balance memory

05 Weight code

correct value of internal calibration mass, function inadmissible in verified balances

06 Automatic calibration

determine factor which decides about start automatic internal calibration
0 non – non of the factors causes start of the calibration
1 time – calibration in relation to time determined in p. 07
2 temperature – calibration in relation to changes of surroundign temperature
3 both – calibration in relation to changes of time and temperature

07 Automatic calibration time

Determination of time automatic calibration starts up

Return to weighing

The changes are recorded when the balance returns to weighing mode with
the recording the changes. Press the ESC many times. Following question
appears on the display.
Select one of the options : ENTER – record / ESC – cancell

(see. Draw 9. Return to weighing p. 5.1.2. Return to weighing)

8.2. Calibration test

Internal calibration mass is compared to its valu

e in the balance memory. This preocess is

automatic. Its result is shown on the display.

Draw. 13. The calibration tesi

- 25 -

Cal. – value of internal calibration mass
Act. – result of weighing internal calibration mass
Dif – difference between two values

Return to weighing

Changes are recorded only after return to weighing mode and confirmation
the changes. Press the ESC key many times. Following question appears
on the display. Select one of the options: ENTER – confirmation / ESC –
cancel.

(see drawing. 9.Return to weighing p. 5.1.2.Return to weighing)

8.3. Manual calibration

8.3.1. Internal calibration

1.

Enter submenu P1 – Calibration.

2. Select the function 01 Internal calibration.

3. Press the RIGHT ARROW key.

4. The balance performs the calibration automatically. During this calibration do not

load the pan.

5. After this process the balance records results of the calibration in the memory and

returns to weighing mode.

- Pressing the ESC key stops the calibration process

- If during the calibration load is on the pan display show order about error. The

calibration process is stopped.
After take load off the calibration process is finished.

If the function DRH is active user cannot stop the internal calibration process.

8.3.2. External calibration

T

he external calibration should be performed with external mass class:

- E

2

– for balances XA/X

List of weights for separate balances is included in technical specification in the final part of
the manual.

1. Move to submenu P1 – Calibration.

2. Select the function 02 external calibration

3. Press the RIGHT ARROW key.

4. Order to take the load off the pan appears on the display (no load on the pan).

After yesing load off the pan press the ENTER key.

5. The balance determines mass of empty pan

6. Put load and press the ENTER

- 26 -

7. After the calibration the balance returns to submenu P1 - Calibration

8. Return to weighing – as in the point 5.1.2.

If the function DRH is active user cannot perform the external calibration
process. Function DRH is active in verified balances.

8.3.3. Calibration performed by user

User cali

bration should be made with any external weight of class:

• E

2

– for balances XA/X

- Enter menu group P1 Calibration. Select the parameter 03 user calibration

- Press the RIGHT ARROW key. The balance displays order to note calibration mass.

The first digit flashes and it can be changed.

Draw. 14. User calibration – declaring value of weight

- Record new external mass by functional keys (in accordance with p. 5.1.1 of the

manual)

- Confirm the mass. The balance starts calibration and shows orders on the display.

- The balance determines mass of empty pan and shows order to put this mass

- After put the weight on the pan confirm by the Enter.

- After this procedure balance returns to menu to group P1 Calibration.

- In accordance with previous point start weighing mode.

It is recomended to select external calibration mass as its mass would be about
¾ of max balance capacity.

If the DRH function is active user cannot perform the external calibration
process.

- 27 -

8.4. Calibration report printout

After calibrati

on user can receive the calibration report. The report can be printed on

connected printer and sent to computer or recorded in file.

P1 08 Report printout: 1: yes – report is printed
P1 08 Report printout: 0: no – report is not printed

If the parameter has the value 1 the report is generated and sent automatically.

Draw. 15. Submenu calibration

A content of report depends on setting in submenu GLP. All options with YES attribute are
printed.

Draw. 16.Submenu GLP - setting

Apart from information settled in menu group the report contains: calibration mass
remembered by balance after last calibration (description Old:), calibration mass
determined during actual calibration (description: Calibration) and deviation of the
calibration (description Deviation:) – difference between these two masses.

- 28 -

Draw. 17.Example of balance calibration report

9. SETTING PRINTOUTS FOR GLP PROCEDURES

P2 GLP is grou

p of the parameters which declares factors on the calibration printout. For

fields:

- user (max 8 alphanumerical signs)

- design (max 8 alphanumerical signs)

introduce names by the balance keyboard or the PS/2 keyboard. For the rest select:

- 1 no (do not print during report)

- 0 yes (print during report)

Main view of the GLP submenu is presented on drawing 19, page 24. If you use the PS/2
keyboard see what dependences are between the balance keyboard and PS/2 keyboard
(p. 5.1.2)

10. SETTING TIME AND DATE

T

he balance has real time clock whose parameters can be modificated. Enter the menu

group P3 Date/Time as it is show below:

Draw. 18. Submenu Date /Time

- 29 -

01 Date form

There are two possibilities:

- 1 format date Month/Day/Year

- 0 format date Day/Month/Year

After selection proper value confirm by the ENTER key.

02 Time form

There are two possibilities:

- 1 time form 12 h

- 0 time form 24 h

After selection press the ENTER to confirm.
12 h form is distinguished by the letters PM or AM on the printouts.

03 Time

Enter setting the parameter 03 Time by the RIGHT ARROW key in accordance with below
scheme.

Draw. 19. Submenu Date / Time –setting time

Replace the marker next to the value which will be changed (Hour, Minute, Second).
Confirm with the RIGHT ARROW key. Change the numerical values with UP ARROW and
DOWN ARROW keys.

- 30 -

Draw. 20.Submenu Date / Time –setting time – steering keys

Confirm settled value (last change digit stops flashing)

Repeat above activities for following values. After setting new values for time press the
ENTER key. The balance returns to submenu P3 Date/Time and displayed time changes.
After setting time return to weighing mode in accordance to p. 5.1.1 of the manual.

04 Date

Set the parameter 04 Date with the RIGHT ARROW key. In accordance with previous
description (03 Time) set actual date. After setting date return to weighing mode as it is
presented in p. 5.1.2 of the manual.

Draw. 21.Submenu Date /Time –setting date

- 31 -

05 Display time

for the value 1 – YES on top graph time is displayed, for the value 0 – NO, time is not
displayed

06 Display date

For the value 1 – YES date is displayed on top graph, for the value 0 – NO, date is not
displayed.

Return to weighing

(see Draw. 9. - 5.1.2. – Return to weighing)

11. SETTING THE PARAMETERS

User can a

djust the balance to existing conditions (filter) and own needs (autozero,

displaying last digit) by means of parameters in group <P4 Readout>.

Draw. 22.Submenu Readout – internal setting

11.1. Setting filter

Dependly on conditions set the filter. If the conditions are conductive set the filter as very
fast (value of the parameter 01 Filter 1) and if the conditions are bad (vibrations, draught)
set the filter as slowly or very slowly (value of the parameter 01 Filter at 4 or 5). Efficience
of filter is different for range of weighing. The filter works slower during getting to weighed
mass. It works faster when mass is the settled filer range (parameter filter range accessed
only from service menu – user does not have access).

- 32 -

11.2. Value release

Select an

d set way for stability result of weighing: fast, fast +reliable or reliable.

Dependly on selected option time of weighing is sorter or longer.

11.3. Set the display refreshing time

T

his parameter determines period of time which the display refreshes in.
For higher values of the refreshing parameter indirect not stable mass indications are not
presented on the display during putting on and taking off the load.
For low values all changes in mass during weighing are visible – it enables to dosage
liquids and solids. The refreshing time is settled in seconds.

11.4. Set autozero working

T

o ensure precise indications programmable function „AUTOZERO” is in the balance. This
function controls automatically and corrects zero indication of the balance.

If the AUTOZERO function is active each measurement starts at precise zero every time.
In special cases this function disturbes in the measurements eg. when the load is put on
the pan very slowly (pouring substance)

In this case correcting system of zero indication can correct also indication of real load
mass. AUTOZERA is switched on and off in the parameter P4 03 in accordance with p.

5.1.1 of the manual.

11.5. Last digit

T

o ensure comfort of work with the balance user determines (dependly on needs) if last
digit should be displayed and when. One of the following values can be selected:

- 0 never

- 1 always

- 2 when stab

11.6. Negative

T

his function is designed for changes of displaying.

- 33 -

12. FUNCTIONS IN USING RS 232 PORT

User can set th

e parameters necessary for correct communication balance with computer

or printer.

Draw. 23. Submenu RS 232 -setting

01 Baud rate / 0 : 2400 1 : 4800 2 : 9600 3 : 19200
02 Parity / 0 : no 1 : parity 2 : non parity
03 Date bits / 1 : 7 bits 2 : 8 bits
04 Stop bits / 1 : 1 bit 2 : 2 bits
05 Tramsmission control / 0 : no 1 : RTS/CTS 2 : XON/XOFF
06 Automatic printout / 0 : no 1 : continuous 2 : with brake 3 : when stable
07 Interval Interval the balance sends the result from the display. It is

counted on base on form for the parameter x 0.1 s = time
yestu-interval). Value from 1 to 9999 can be written.

08 Min mass Min mass for automatic work. RS 232. Following

measurement is sent when the result is lower than min aftre

taking the load off the pan.
09 Print only stable 0 : no 1 : yes
10 Type of printer Epson or standard
11 Printout cut for EPSON printers only with this function. For YES function

the paper is cut automatically.

After setting correct values return to weighing mode as it is described in p. 5.1.2 of the
manual.

- 34 -

13. PRINTOUTS

This function is used to make not standard printouts and select type of printout. Precise
description for printouts is described in p.17.

14. ACCESS TO MASS UNITS

In this group

of parameters user declares mass units which are accessible for operator

directly under the key Units.

All units which value of the parameters is set up at 1: yes are accessible from the level of
switching between units.
For units described as 09 Taele Hk., 10 Taele S., 11 Taele T . there are following
dependences:

• If all of them have attribute 1: yes the balance show only first of them 09 Taele
Hk

If the measurement is done in units 11 Taele T set the attribute 0 : no for two previous

Enter group of the parameters P7 Units according to p. 5.2.7.

Draw. 24.Measure units – setting

After set proper values of the parameters return to weighing mode in accordance to p 5.1.2
of the manual.

For verified balances following measure units are avai lable:[g], [mg], [ct] –despite setting 1
– YES in balance menu .

- 35 -

15. SETTING ACCESSIBILITY OF THE WORK MODES

In this group

of parameters user declares work modes which are accessible for operator

after pressing Mode key.

Draw. 25.The balance functions -setting

All work modes values of the parameters are 1: yes are accessible from the level of
switching between work modes. The changes of the parameters can be done according to
p. 5.1.1 of the manual.

16. OTHER PARAMETERS

User can set p

arameters have influence on work with balance in group of the parameters

P9 Others eg. beep signals etc. Enter submenu group P9 Others the same as in p. 14.

01 Setting ID

it includes 6 digits 6 codes which can be used during printouts for product
specification, operator, batch etc.

02 Automatic printout ID

for the option YES all digit codes are printed, for option NO the codes are not printed.

03 Signal

Beep signal for pressing keys

- 36 -

04 Language

selection of languages

05 Backlight

switch on/off the backlight

06 Contrast

changes contrast – after entering this function a window appears, by means of keys
on the balance contrast on the display can be changed

07 Screen server

if the screen server is switched on displayed values disappear after settled time and if
displayed value of the measurement does not change.

08 Temperature

it is information about temperature which is registered by temperature sensor in the
balance. Return to the menu – press the ESC key04 Język

wybór języka opisów parametrów polski lub angielski

09 The balance number

It is only information about factory number of the balance

10 Number of the program

It is information about program of the balance

11 Printout of the parameters

if the function is active the balance parameters in user menu are printed. User gives
numbers of the parameters which should be printed.

Draw. 26.Submenu Others -printing setting

After confirmation parameters are printed through RS 232 port, actually sent settled
user parameters in the balance

12 The parameters reception

If the functions are activated all parameters of the balance are received through RS

232. After reception the balance informs user how many parameters are accepted,
how many are changed, how many were declared incorrectly and how many were not
accepted by the software.

- 37 -

Printing and reception of the parameters is very easy and fast procedure of
introducing new setting.

After printing actual parameters to file in the computer user changes the parameters
very fastly and without any problems. User sends new corrected setting to the
balance software. After these changes the balance accepts new set up. User must
know all parameters and computer operation very well.

13 Password protection

this submenu contains options about access password for administrator and user (see

6.1.)

17. USING WORK MODES

17.1.

Counting pieces of the same mass

It can be don

e after write singular piece mass:

- Write singular piece mass

- Determine singular piece mass on base of standard quantity

Element selection from date base

17.1.1. Counting pieces after writing piece mass

Start function o

f counting pieces (draw. 30).

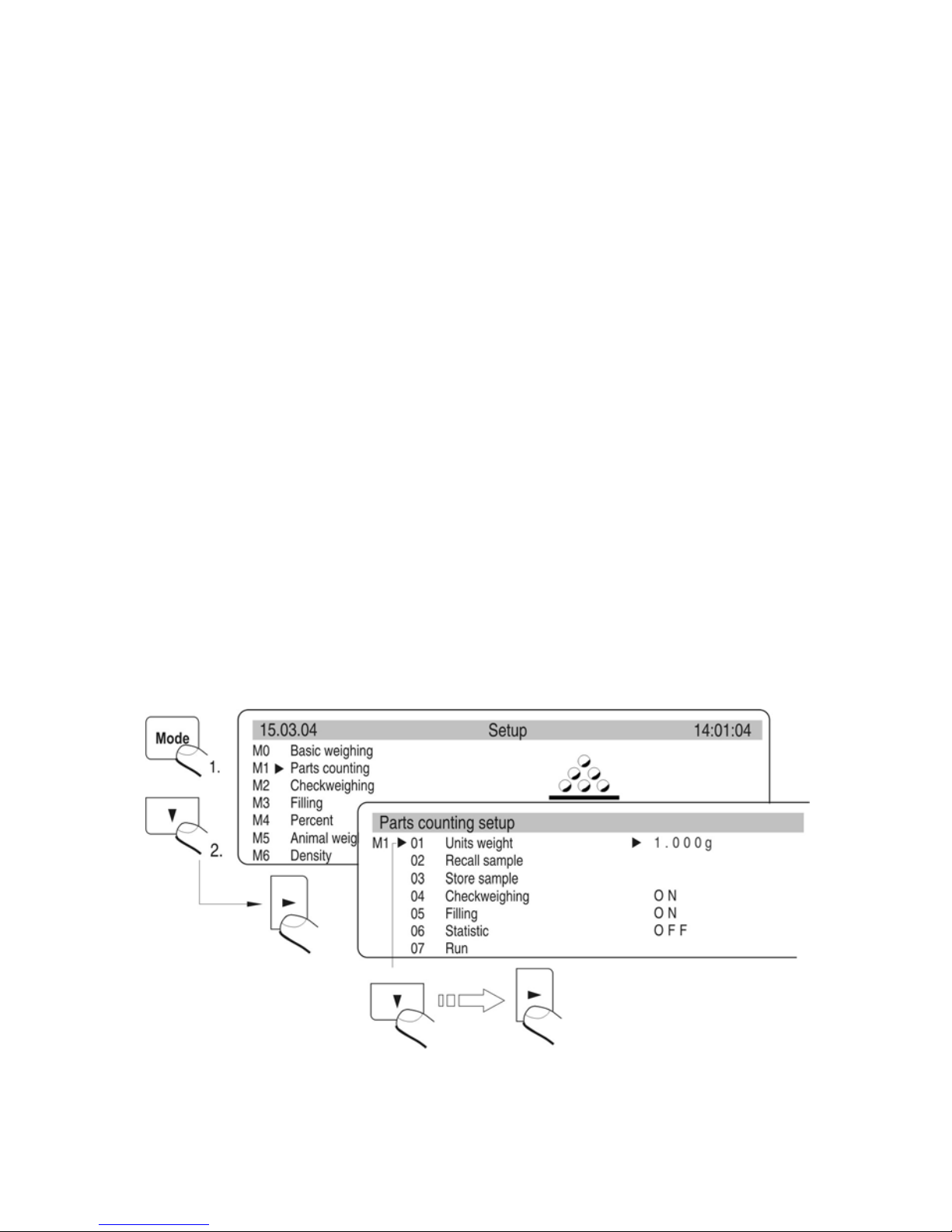

Draw. 27. Counting pieces –main menu

- 38 -

Set standard mass and press the ENTER or select 07 Start and press the RIGHT
ARROW. Functions to count details are activated.

Draw. 28. Counting pieces –display view

APW – singular piece mass [g]
WGH – all pieces mass on the pan
pcs – mark for counting pieces

Return to weighing

- Press the MODE and display shows list of all functions

- Select MO Weighing, Press the RIGHT ARROW, display show stage of
weighing

17.1.2. Counting through determine singular element mass from the
s

tandard batch

Start the procedure of counting pieces in accordance with p. 16.1.1, it does not matter
which mass in the field 01. Select 07 Start and press the key RIGHT ARROW. In the
counting pieces function press the key Units. Dialog window appears on the display.
Select the batch quantity (fields 01 – 04) or write it in 05 – Standard.

Draw. 29.Counting pieces with using standard batch

- 39 -

Then press the RIGHT ARROW key and follow orders presented on the display.

Draw. 30.Display with AKD function on

1- Single piece mass
2 - all elements mass
3 - AKD function(automatic correction of preciseness)

Display shows quantity of pieces which are on the pan (10 pieces). If less than counted
actually quantity is added mass of singular piece is corrected. In this case APW = 5.2282
to 5.1837. From this moment following pieces are counted in relation to singular mass.
This way mass of singular piece can be determined on base of batch standard.

The are four conditions of AKD (Automatic Correction of Preciseness) in the balance

software

1. quantity of pieces (after adding) must be higher than it was previously

2. quantity of pieces (after adding) must be less than twice quantity which was on
the display before adding

3. actual quantity must be in tolerance ± 0,3 of the total value,

4. the result must be stable.

If user decides that batch quantity is enough singular piece mass must be introduced into

the balance memory after pressing the key RIGHT ARROW.

- 40 -

Draw. 31. Automatic Correction of Preciseness –record in data base

Select the field and write names of weighed elements. Press the Enter (record name) and
Enter (record value). Next to name singular piece mass should be introduced. It can be

remembered using 02 Recall sample

17.1.3. Select piece from data base

Active function of counting pieces as it is shown on below scheme

Draw. 32.Select piece from data base

Select piece from data base. Start counting pieces.

- 41 -

17.2. Checkweighing

T

he sample is weighed precisely when the limits of weighing are settled. The process is

shown (side graphs) and controled.

The function activation:

Draw. 33.Checkweighing – the function activation

Display

Draw. 34.Checkweighing –display view

1 – result
2 – bargraphs
3 – function name
4 – difference between mass of weighed load and middle of tolerance field
(HI/LO)
5 – value of low (LO) and (HI) high limit
6 – graphs which presents weighing range

- 42 -

Remember to set the parameter
02 High limit firstly. The balance program checks if the values are correct and if
they are in measure range.

If settled values of the parameters are incorrect the balance shows command about error
and returns to setting parameters without changes.

Checkweighing with stage base

Checkweighing in RANGE BASE which contains:

− 500 records

− Name of the product for each record (max 10 alphanumerical signs)

− Value of upper range for each record

− Value of lower range for each record

Programming stage base

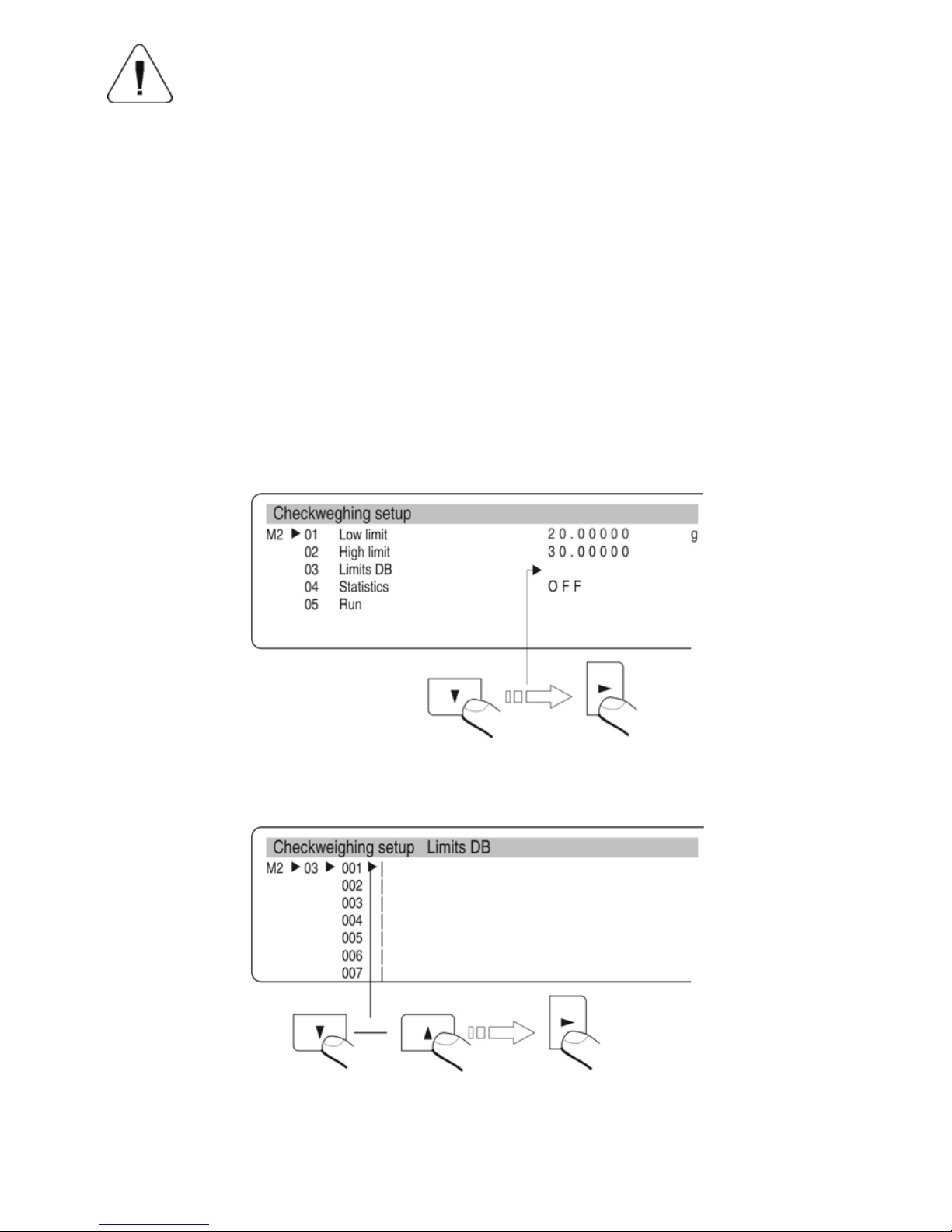

Draw. 35. Checkweighing –submenu view

− Move into ,,Stage base” and press RIGHT ARROW

− Select record number and press RIGHT ARROW

Draw. 36.Checkweighing– programming stag e base

- 43 -

Move into ,,Stage base” and press RIGHT ARROW

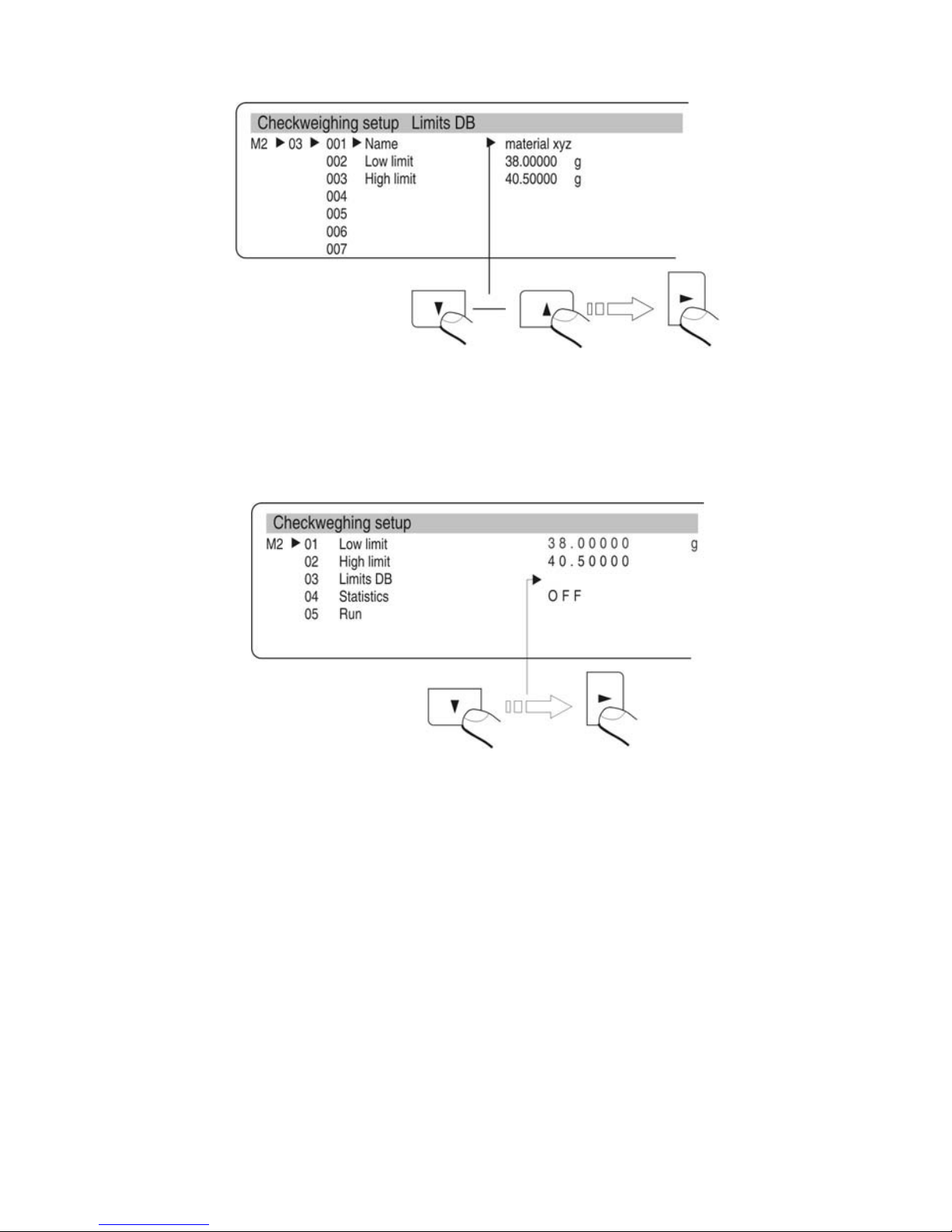

Draw. 37.Checkweighing -stage base programming –values

− Enter name for selected record (product name)

− Enter value of upper range

− Enter value of down range

− Confirm values with ENTER – press twice

Draw. 38.Checkweighing – start work with checkweighing rang es

- 44 -

− Move into ,,START” and press RIGHT ARROW

− The balance is ready for weighing in selected ranges

Draw. 39.Checkweighing – display view

1 – result
2 – stable measurement
3 – function name
4 – value of upper range
5 – value of down range
6 – graphic interpretation which defines range of weighing with measured load (LO –
OK.- HI)
7– name of the product recorded in range base
8 – difference between result and the ranges
9 – graphic view which place weighed mass is
10 – used load of the balance.

Selecting other product from stage base

− Press SETUP during checkweighing

− Display shows dialogue windows ,move to range base and select other product or

enter other values for up and down range (if you use range base)

17.3. Dosage

Durin

g dosage (pouring) load mass is filled up till the settled mass is reached. Before the

procedure set the standard mass which is upper stage of the dosage.

- 45 -

Activation of the function

Draw. 40. Dosage – activation

Display

Draw. 41. Dosage – display

1 – mass which should be added
2 – graphs
3 – function name
4 – TR reference value mass which is declared

(see drawing. 38. M3 01 Reference mass)

5 – WGH mass on the pan

- 46 -

17.4. Percents

T

his function compares load mass to standard mass which value should be given. The
result of this operation is displayed in percentages.
Following functions: dosage, weighing, statistics can cooperate with deviation function.

Activation of the function

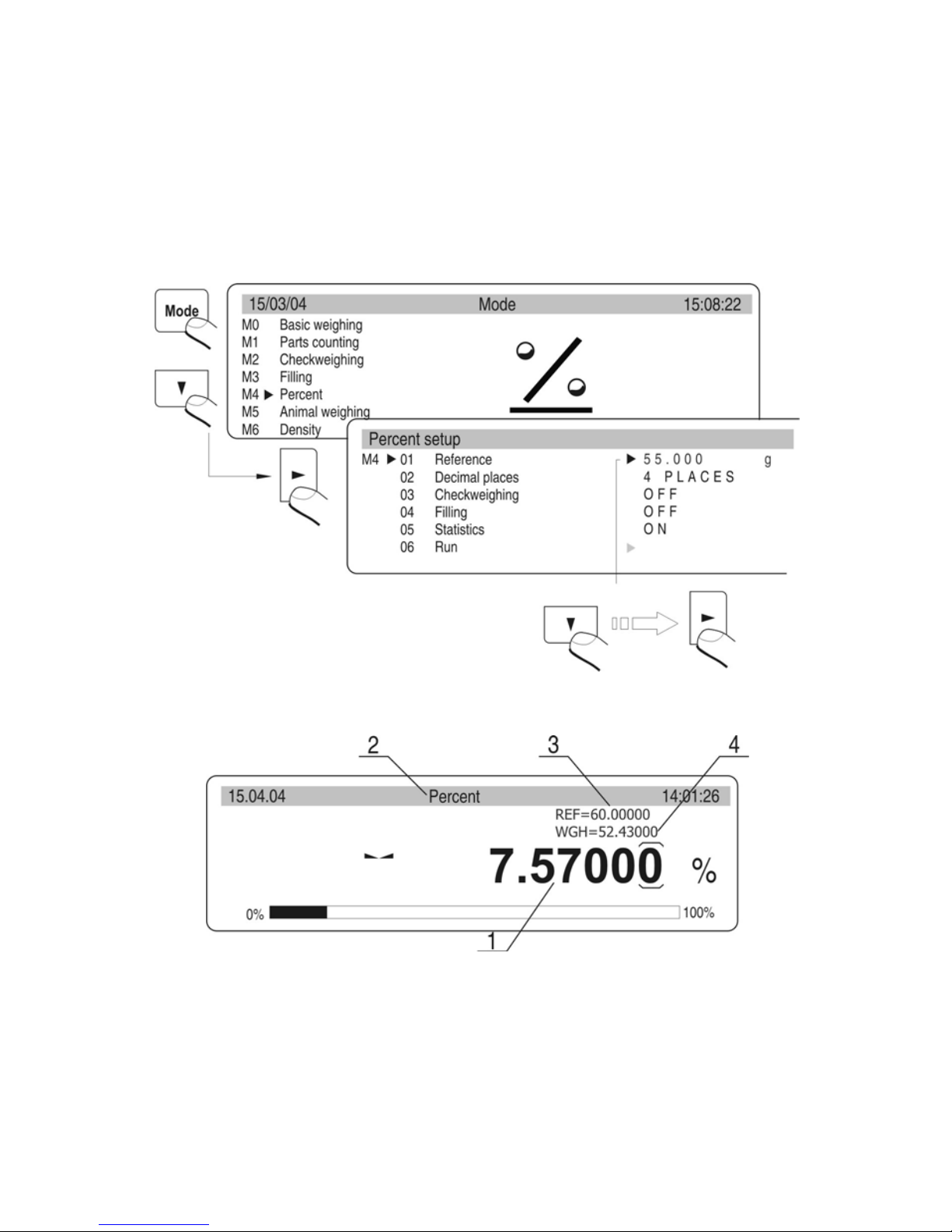

Draw. 42. Percents –activation

Display

Draw 43. Percents –display

1 – percentage value, proportion of the mass on the pan and standard mass
2 – function name

3 – REF reference mass (see drawing 40 – M4 01)

4 – WGH mass on the pan

- 47 -

Cooperation of the deviations with other functions

During activation of the function set option YES for parameters M4 03, 04, 05. Select field
START and start work.

- after setting function Dosage YES give up and down stage as % values

- after setting function Dosage YES give the mass value in %

after selecting Statistics select field Cancel and cancel previous statistics and cha nge the
attribute NO into attribute YES. Confirm this option and press the key Enter.

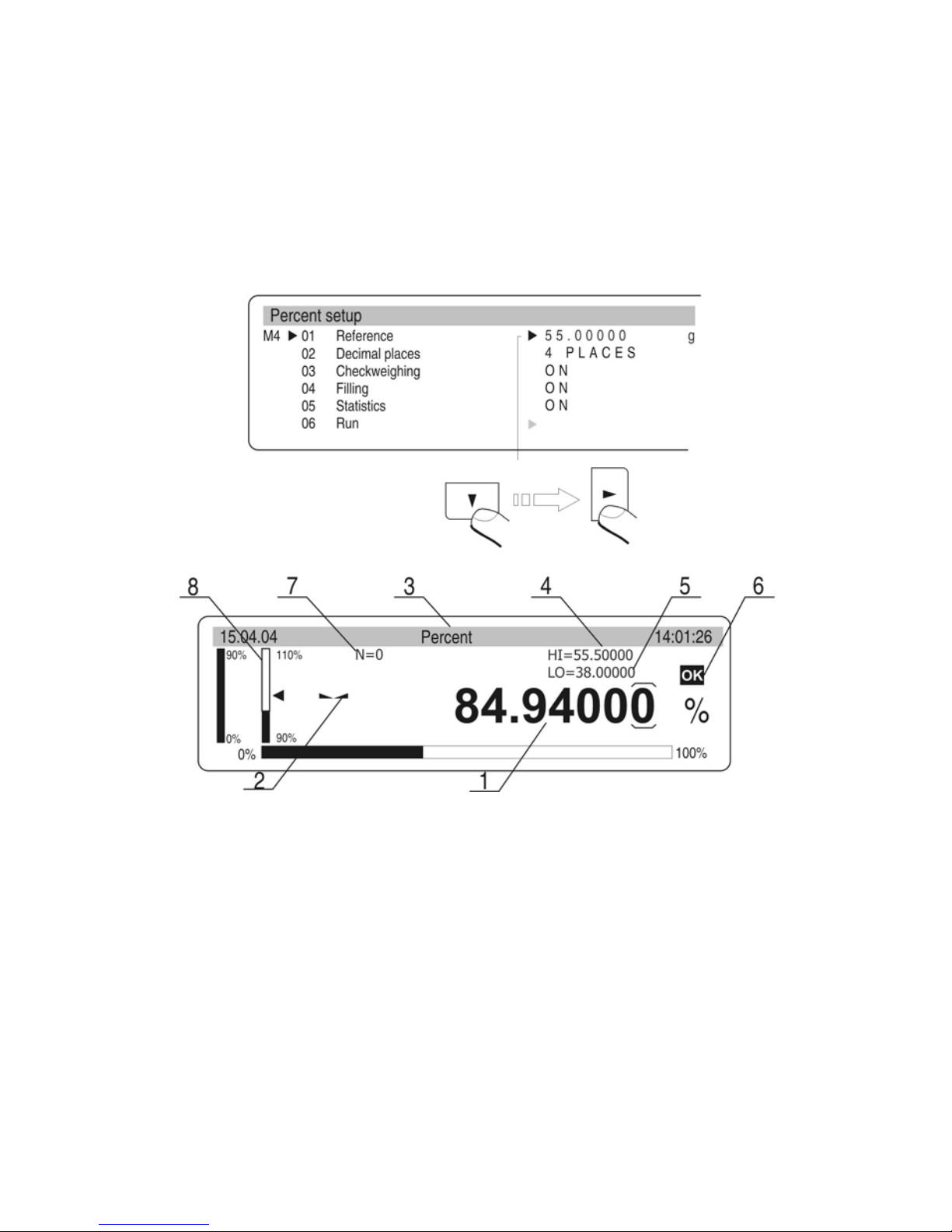

Draw. 44.Percents –cooperation with other functions

1 – percentage value relation of the load on the pan to reference mass
2 – stable measurement sign
3 – function name
4 – REF reference mass
5 – WGH mass on the pan
6 – graph which presents weighign range where the weighing range is
7 – statistics (N=0 – no measurements)
8 – active function dosage (load mass between 90 – 110%)

After measurements eg. 10 (quantity of measurements N=10) user can see results of
statistics of made measurements.

- 48 -

− Enter work mode

− Select the parameter 05 Statistics

− Pressing the F key and enter the parameter 05 Statistics

− Select the parameter 02 Results

− Enter function of showing statistics results

− After pressing the ENTER statistics result can be printed

− Return to statistics submenu and higher levels – key ESC

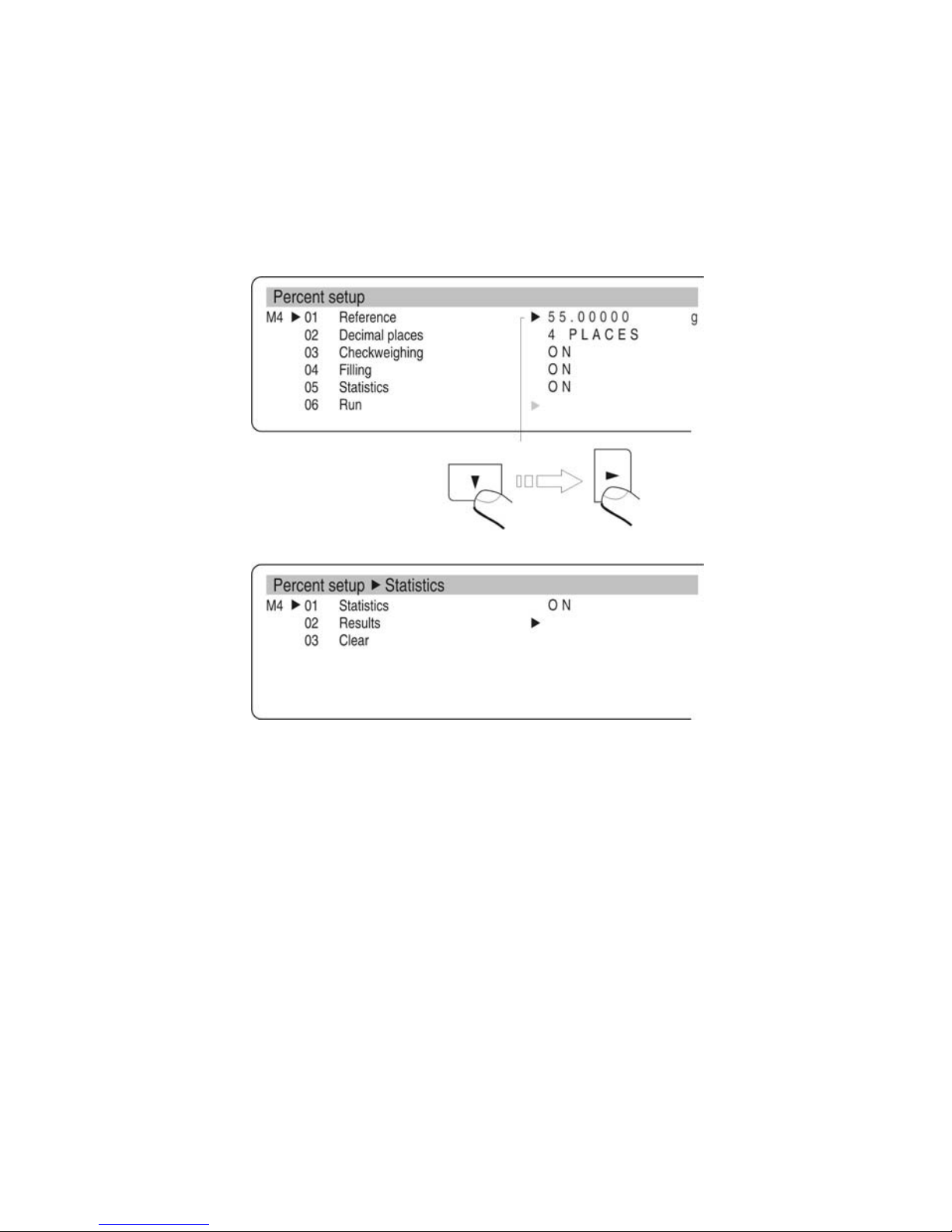

Draw. 45.Percents –cooperation with other functions - Statistics

Reference mass

In this software reference mass can be defined by weighing standard
Press F key in main menu window. The software starts procedure and displays special
command. Please follow the commands.
When this procedure is finished the software returns to main window of deviation function.

- 49 -

17.5. Weighing animals

Function activation

Draw. 46. Weighing animals–view of the display

Internal setting

- FILTR (Decides how fast final stable result is received, the faster filter the shorter
time of measurement)

- STAGE Value in actual scale intervals is value the result must be below The
result of weighing must be smaller than value of actual scale intervals in order to
do following automatic measurement)

- AUTO START (Automatic start up following measurements)

- STATISTICS (Statistics counting for particular subjects)

- START (Start measurements up)

- 50 -

17.6. Density of solids and liquids

In additi

onal equipment of analytical balance there are Specific Gravity Measurement Kit.

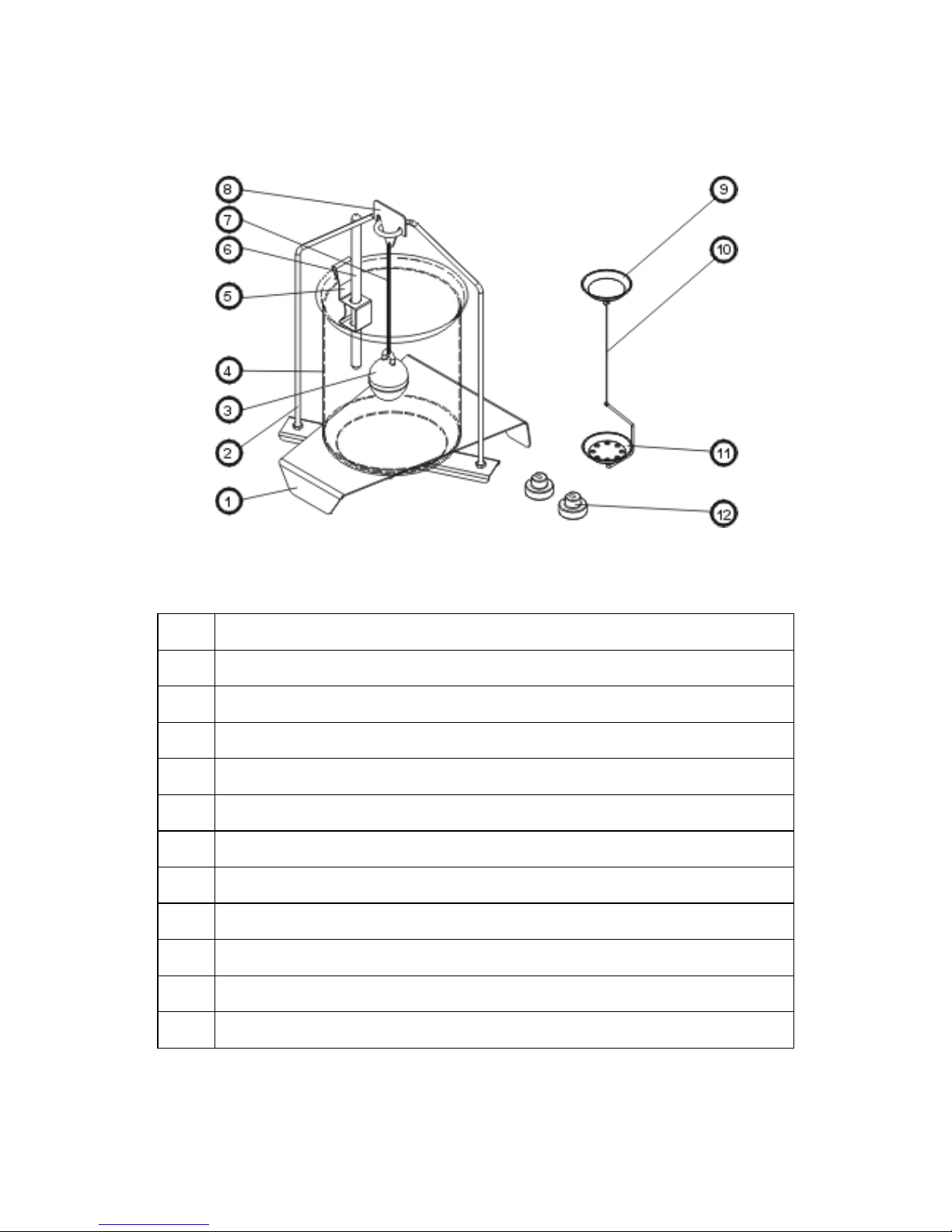

Draw. 47.Specific Gravity Measurement Kit

Components of the kit:

1 Beaker stand

2 Pan stand

3 Float

4 Beaker

5 Termometer clamp

6 Termometer

7 String

8 Float hook

9 Top pan

10 String

11 Bottom pan

12 Attachments

- 51 -

17.6.1. Density of liquids

Basic comp

onent during measure solids of liquids is glass float. It has precise determined
capacity which is stamped on the float hook. Write password to balance memory before the
measurements.

During the measurement of liquid density mass of glass float in the air is compared to its
mass in the liquid.
The result is presented on the display automatically after its counting by the balance
program. The result can be sent through RS 232 to printer or computer after pressing
PRINT key.

17.6.2. Density of solids

Densit

y of solids can be determined in one of 3 different liquids:

−

WATER (destiled water),

−

ALCOHOL (spirit 100% +/- 0.1% at 20 ° C),

−

OTHER (other liquid with known density)

Measurement of density of solids is based on comparison sample mass in air (weighed on
top pan) to the same sample mass in the liquid (on bottom pan).

The program counts density of sample and displays it on the display. The result can be
sent through RS 232 to printer or computer after setting the key PRINT.

Precise description of measurements performance and setting is the manual of
Specific Gravity Measurement Kit.

- 52 -

17.7. Formulation

T

his function is used to make mixtures under recipes. This function is recomended to use
in drug-stores. The program is equiped with calculate memory. The balance remembers
singular component mass and sum of weighed components.

Following information are presented on the display in this work mode:

1. load mass on the pan

2. actual weighed component name (max 10 signs)

3. mass which should be measured for actual weighed component „WGH”

4. quantity of components which is weighed in the mixture „IC”

5. components mass already weighed „SUM”

The function activation

Draw. 48. Recipes – internal setting

parameter 01 Hints

after set the parameter at YES the balance displays names and singular components mass
recorded in the parameter 04 Recipe on the graphic display

parameter 02 Automatic printout
after set the parameter at YES the balance sends value on printer or computer through RS
port after confirmation mass of each component

- 53 -

parameter 03 Quantity of components

user determines quantity of components the mixture should include (max 20 signs)

parameter 04 Recipe

after set this parameter following submenu is displayed. In this submenu user can write
names (not more than 10 signs) and set (standard mass) of each component in the mixture

parameter 05 Recipe printout

This function prints composition of the mixture on connected printer. There are names and
setting of particular component and total contents of the mixture.

parameter 06 Statistics

switch on (YES) or switch off (NO) statistic counting

Attention:
Statistics counting refers only to total mass of prepared mixtures (singular components
mass are not counted).

parameter 07 Start

enter work modes Recipes

Information on the graphic display for recipes

Draw. 49. Recipes –functions

1 – mass which is actually on the pan.
2 – stable measurement sing
3 – function name
4 – settled mass of the weighed component in the parameter
04 Recipe
5 – Sum of weighed components of the mixture which are in calculate memory of the
balance
6 – quantity of weighed components in the recipe
7 – name of weighed component

8 – side graphs, Information how much left to gain settled component is presented on

these graphs.

- 54 -

Draw. 50.Graphs – automatic scale

Procedure of preparing mixtures – according to recorded components and their
mass in the balance memory

Write names and components mass in the parameter 04 Recipe. Remember about the
dependences:

− there cannot be more than 10 signs

confirm each name by the ENTER key and write mass which will be in the mixture

Draw. 51. Declared recipes

- 55 -

− total mass of the mixture together with the container cannot be bigger than max

capacity of the balance

− there cannot be more than 20 components in the mixture

− Write quantity of components in the parameter 03 Quantity of components

− Quantity of components cannot be higher than 20 pcs

− The program records mixture contents in order they were introduced in the

parameter 04 Recipes. If user writes 10 components in the parameter 04 Recipes
and set 8 for quantity of components the program finishes preparation of the
mixture after weighing 8 components.

- The balance program creates mixture in order of recorded components
in the parameter 04 Recipes and starts from the component 1 and
finishes at settled component in the parameter 03 Quantity of
components

− If the documentation is printed set the parameter 02 Automatic printout at 1 : YES.

After confirmation of each component (key UNITS) their mass are printed on
connected printer or computer.

• Set the parameter 01 Prompts at 1 : YES

• Enter function Recipes by pressing the ENTER key

• Tare container mass to the balance memory

• Weight first component (mass in the WGH)

• Press the UNITS key. Mass of component 1 is recorded in the balance memory.

The information on the display changes:

component 2, mass WGH, IC=1, SUM=. . . .

• Information on the display is settle do zero.

• Repeat it for all components

• After weighing last component and write its mass to the balance memory (the

UNITS key) total mass of mixture and prompts to following steps are displayed.

Procedure of making mixtures without recording components and their mass date in
the balance memory

If documentation of preparing mixture is printed set the parameter 02 Printout at 1 : YES.
If mass of each component is confirmed each mass with their names is printed on
connected printer or computer.

• Set the parameter 01 Prompts at the value 0 : NO

• Enter function Recipes by pressing ENTER

• Tare container mass to the balance memory

• Pour component 1 to the container – in relation to information about mixture

• Press the UNITS key. Mass of component 1 is recoded in the balance memory.

The information on the display changes: IC=1, SUM=. . . The indication is set to
zero. Press the key Units

• Repeat it for all components of the mixture

• After write last component press the →0/T←. Procedure of making mixtures is

finished. Sum of mixture is kept on the display.

• Press PRINT to print(send) report of made mixture

- 56 -

Statistics counting

Statictics counting relate only to making mixtures (particular mass components are not
included in the counting).
If user performs statictic counting in this work mode:

1. enter the parameter 06 Statistics

2. cancell previous results of statistic counting

3. set the parameter 06 01 Statistics at YES

4. enter work mode for preparing mixtures

5. perform measurement series

6. enter the parameter 06 Statistics again

7. enter the parameter 06 02 Results

8. to print results press the key PRINT

17.8. Statistics

A

ctivation

Draw. 52. Statistics –function activation

Results of previous statistics should removed after function activation. It is realized through
option M8 01 Cancel.

All statistic date are actualized after write following measurement to the balance memory.
Following measurement is written to series after load is put on the pan, stabilization of the
result (measure unit is displayed) and after pressing ENTER.

- 57 -

User decides what statistic date are presented on the graphic display during
measurements by setting their activity in the submenu of work mode (values which are set
for YES are active). Independly on setting (YES/ NO), during final result the printout
contains full statistics.

N : 5 (quantity of weights)
SUM : 161.121 g (all components total mass)
X : 32.224 g (average mass of weighed components)
MIN : 20.486 g (min mass)
MAX : 35.578 g (max mass)
D : 15.092 g (difference between Max- Min)
SDV : 6.581 g (standard deviation)

RDV : 20.4 % (variation factor)

Draw. 53. Statistics –display for series of measurement

1. mass on the pan

2. measurement number in measurement series

3. sum of all weighed components in measurement series

4. average mass of weighed components in the series

5. mass of the lightest component in measurement series

6. mass of the heaviest component in measurement series

7. difference between the lightest and the heaviest component in measurement
series

8. value of counted standard deviation

9. value of variation factor

10. measure unit [g]

11. work mode

17.9. Calibration of pipettes

F

unction of pipettes calibration refers to pipettes with stable and changeable capacity.
During the procedure precision and repeatability errors both are defined. For pipettes with
changeable capacity errors are defined for Max, Min and ½ Max.

All pipettes are checked according to precision and repeatability norm PN-EN ISO
8655:2003.

- 58 -

To ensure precise measurements keep following environmental conditions:

 Temperature of environment, tip and liquid should be 20°C - 25°C stabilized

during weighing in range of ± 0.5.C

 Moisture about 50 - 75%

Use distillated water only in a calibration process.

Function activation:

Draw. 54. Calibration of pipettes - activation

- 59 -

Before calibration following data must be loaded:

- Pipette [stable /changeable capacity]

- capacity Vmax [ml]

- capacity V1/2max [ml]

- capacity Vmin [ml]

- Error of capacity Vmax [%]

- Error of capacity V1/2max [%]

- Error of capacity Vmin [%]

- Temperature of liquid [oC]

- Atmospheric pressure [hPa]

- Moisture [%]

- Amount of samples

Display view

Draw. 55. Calibration of pipettes - display

1 – result
2 – function is active
3 – capacity checked
4 – average capacity
5 – precision error
6 – amount of samples (measurements)

Final result of the procedure is error of precision [ES], standard deviation [sr] and
repeatability error [CV].

- 60 -

After each check a result is presented on display.

Draw. 56. Calibration of pipettes - summary

A report is printed after pressing PRINT key.

Draw. 57. Example of a report of in calibration procedure

- 61 -

18. KINDS OF PRINTOUTS

18.1. Standard printout

T

here are 2 types of printouts. First of them is standard printout. It includes result of
weighing and all variables which have attribute YES in GLP submenu. In User and Project
fields names should be written.

Draw. 58. Declaration of variables to printout –submenu GLP

Example of standard printout

Draw 59 Example of standard printout

(all options settled on YES – printed)

- 62 -

Draw. 60 Example of standard printout

Question mark before load mass means that the result is not stable.

18.2. Non-standard printout

Proced

ure of creating non-standard printouts:

− user can create own 4 printouts,

− give the number of the text which starts the printout eg. Printout 1 Start – 1 and

text number which finishes the printout eg. Printout 1 Stop – 40. In this case texts
from 1 to 40 are printed.

− And then write text in the lines 1 ÷ 40.

It is recomended to use PC keyboard what is simplier and faster way.

− Non-standard printouts can overlap each other:

Printout 1 Start – 1

Printout 1 Stop – 40
Printout 2 Start – 20
Printout 2 Stop – 40

Non-standard printout can be created by Edition of the printout.

During manual writting give all special signs as CRLF, tabul ator etc. If function Printout
Edition is used all these values can be selected in form of ready elements. They are
transmitted from one side Line of selection to the other window Printout

Draw. 61. Menu printouts –the function activation

- 63 -

Non-standard printout can include:

− Variable dependly on work mode and other user necessities (mass, date, Project

No)

− Stable texts in user menu

Non-standard printout can include not more than 640 signs recorded as 80 texts 8 signs
each (from the parameter Text 1 to Text 80). User can design 4 non-standard printouts

18.2.1. Texts

Variab

les in all modes and with the same values

%% Printout of „%” singular sign
%N Actual net mass in basic unit
%d Actual date
%t Actual Time
%i The balance number
%R The program number
%P The Project number
%U The user name
%F Actual function name –work mode
%C Date and time of last calibration
%K Kind of last calibration
%I Deviation of last calibration
%1 Code 1
%2 Code 2
%3 Code 3
%4 Code 4
%5 Code 5
%6 Code 6

Variables dependent on used work mode

Variable Description Mod where the variable is active
%W 1 piece mass COUNTING PIECES
%H Top stage

WEIGHING

%L Down Stage
%Z Standard mass DOSAGE
%B Reference mass DEVIATIONS
%A Filter

WEIGHING ANIMALS

%b Stage

- 64 -

%i Liquid

MEASUREMENT OF DENSITY

%p Procedure
%c Temperature
%a Density of liquid
%v Float capacity

Statistic variables in all modes apart from basic weighing

%n The measurement number
%x Average value
%S Sum
%m Min value
%M Max value
%D Difference between max and min value
%s Standard deviation
%r Variation factor

Variable in all modes which value depends on the mode

%V - Mass in actual unit. Value connected to work mode eg. counting pieces for

mode Counting pieces or deviation from standard mass in % for mode
Deviation

Special signs used to create special printouts

\\ Singular sign „\”
\c CRLF
\r CR
\n LF
\t Tabulator
\s Skip to next „stringu”
\0 End of the printout

Each text (Text 1 ÷ 89 Text 80) can include max 8 signs (letters, digits, special signs,
spaces). To write long sentence create it using 8 sings texts. User can use special signs to
include variables dependly on own necessities.

- 65 -

Example 1:
Max mass cannot be higher than 11.250 g!

If user write this sentence uses 46 signs grouped in adjacent lines of the text. Set up
following texts and write 8 signs in each of them untill the sentence finishes.

Parameter number

Text
123 45678

19 Text 10 M a s a m a k
20 Text 11 s y m a l n a
21 Text 12 n i e m o ż e
22 Text 13 p r z e k r a c
23 Text 14 z a ć 1 1 . 2
24 Text 15 5 5 0 g !

Example 2:

Zakład Mechaniki Precyzyjnej „RADWAG”
Date:
Time:
Moad mass:

*****Signature:.........

***<actual work mode>***

Set following texts and write 8 signs in each of them untill it is finished.

Parameter number Text

1 2 3 4 5 6 7 8
25 Text 16 Z a k ł a d M
26 Text 17 e c h a n i k i
27 Text 18 P r e c y z y
28 Text 19 j n e j „ R A
29 Text 20 D W A G „ \ c D
30 Text 21 a t a : % d \ c
31 Text 22 G o d z i n a :
32 Text 23 % t \ r \ n M a
33 Text 24 s a ł a d u n
34 Text 25 k u : % N \ c \
35 Text 26 c * * * * * P o
36 Text 27 d p i s : . . .

37 Text 28 . . . . . . . \

38 Text 29 c * * * % F * *
39 Text 30 *

- 66 -

On the balance desk

Move up through digits, letters and sings o 1

Move down through digits, letters and sings o 1

Determine sign to change and move right (if the key is pressed flashing sign is
moved in right direction. If no sign is written this keys makes space in the text)

Determine sign to change and move lef (after this key is pressed flashing sign
is cancelled)

Confirm the text

− On PS/2 keyboard

Press F2 to enter main menu. Press F3 to set parameters indications next to
group P6 Printouts and press F2 to enter menu group and then select parameter.
Press F2 to activate the procedure of writing the text. By means of keyboard write
the text (max 8 signs) and confirm by Enter. Repeat this procedure for the rest of
the texts.
Description of the computer keyboard is in the p. 5.1.3

18.2.2. Composing texts by Edition function

The function activation

Draw. 62.Not standard printouts –printout edition

- 67 -

After activation of the function select printout number (1-4) and beginning of writting the
texts in (range from text 1 to text 80). Then select the option Edition to edite (create)
printout or cancell all (remove all printouts).

Draw. 63. Edition of printouts – selection the elements

To select following fields use keys ARROWS TOP/UP. To print field press the RIGHT
ARROW key. After the edition press ENTER/PRINT. Display shows question if printout

should be done – press ENTER/PRINT again.

18.2.3. Select non-standard printouts

if ST

ANDARD printout is selected – there will be only result and variables declared in the

GLP (see p. 17.1 Standard printout - drawing 60. Declaration of the variables to printout –

submenu GLP).

If non-standard printout is printed select kind of the printout (1-4) and give the beginning
and end of the printout.

19. COOPERATION WITH PRINTER OR COMPUTER

T

o send the information on the display with the unit of measure to the computer or printer,
press the < PRINT > key. 9600 bit/s is the default setting for the speed of transmission. If
the peripheral unit has a different speed of transmission, you may change the speed of
transmission in the balance menu.

- 68 -

19.1. Connections

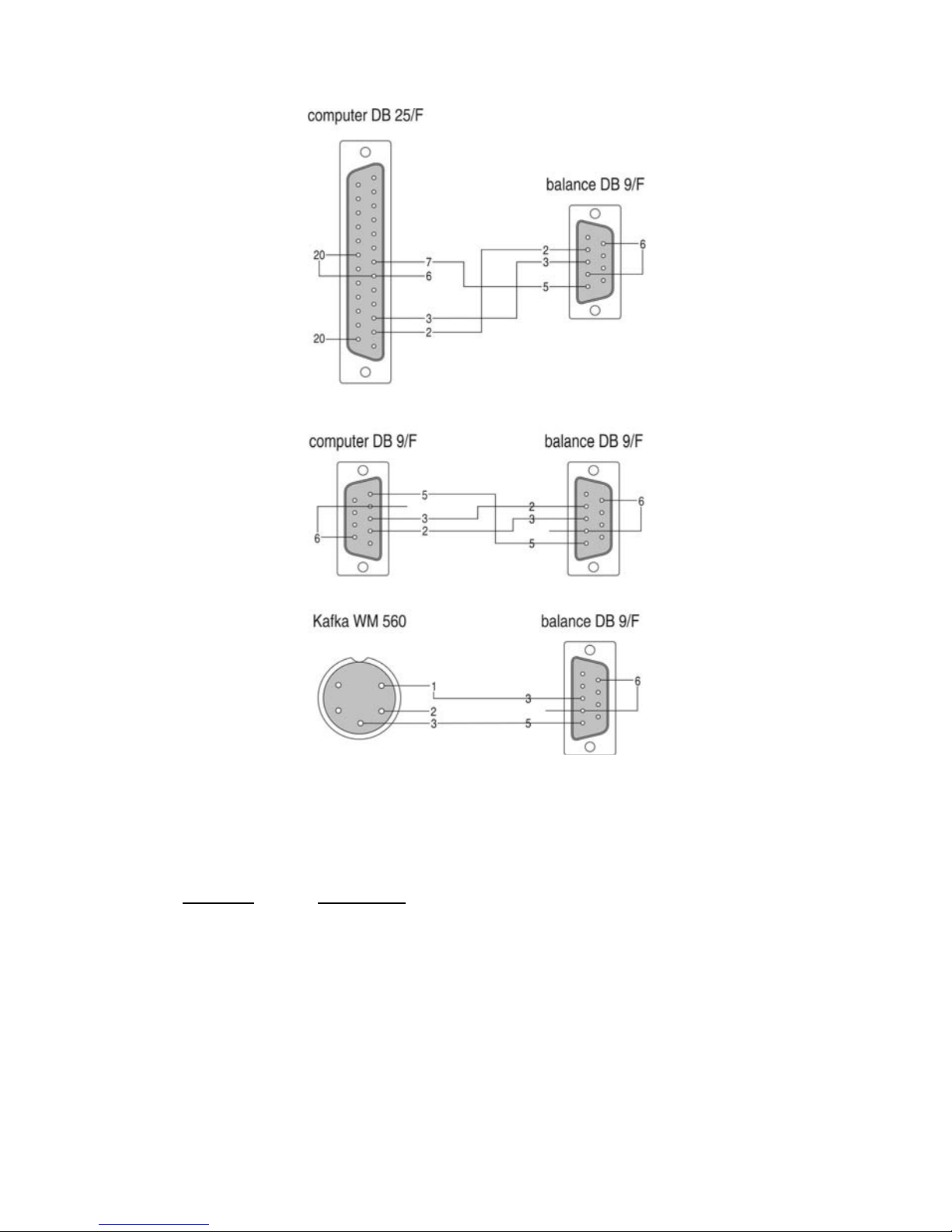

Draw. 64.connections balance - computer

The balance connection DB 9/F – The computer connection DB 9/F (with control of
sending date)

Balance

Computer

2 (RxD) 3 (TxD)
3 (TxD) 2 (RxD)

4 (DTR) 6 DSR
5 (GND) 5 (GND)
6 (DSR) 6 (DTR)
7 (RTS) 8 (CTS)
8 (CTS) 7 (RTS)

- 69 -

20. COOPERATION WITH LABEL PRINTERS CITIZEN CLP-521

You sho

uld follow the steps below to assure the proper operation with the label printer. Use

the program „ETISOFT” to designer your own label

 label size
 a kind and number of data to place on the label

Notice:
In order to print properly interial (inside balance) variable, you should predict a
proper number of characters for each variable. (charts 2, 3,and 4).

After giving it an original name, save the label on a computer hard drive. (alphanumeric
characters). Download the label to the CITIZEN CLP-521 printe

- Set RS232 baud rate in the printer to 9600 bits per second

- example of label named “Etykieta01”

Draw 65.Label example

Design special printout which enables labels according to the design.
Set the parameters .:

− Printout number

− Place of start and stop of the printout (start and stop)

− After each measurement 3 labels should be printed

- 70 -

Printout designing procedure:

 Inscribe printout data in corresponding texts – P6 parameters’ group Printout;

parameters: String 01 ÷ String 80.

Use variables from chart 1 (printout control variables) and variables including different data
from the balance.

TABLE 1

\02L\c

Start of the label

rlabelname\c

Label name

X\c

Start of variables’edition

\02U01NN\c

Variable 1; NN – variable symbol

\02U02NN\c

Variable 2; NN – variable symbol

\02U03NN\c

Variable 3; NN – variable symbol

\02UnnNN\c

Variable nn. NN – variable symbol

\02fnnn\c

Paper feeding nnn [mm] –depending on the label size

E\c

End of variables editio

\02Ennnn\c

Print nnnn labels

\02G\c

End of the label

− An example of an internal printout definition

Draw. 66. Design of the label in menu

- 71 -

• Then set the rest of the parameters
Printout number – 1
Prn. 1 start – 1
Prn. 1 stop – 10

Draw. 67. Declaration of range of printout

− After setting all the corresponding parameters, return to weighing mode (save the
parameters).

Now you can connect the balance with the printer (a cable diagram in the users’
manual). Check the setting of transmission parameters both in the balance and in the
printer. They should be the same. Place a load on the weight pan and after stabilizing
press PRINT. The designed printout will be sent to the printer and three identical
labels will be printed out.

The printout apperance

Draw. 68. Printed label

- 72 -

TABLE 2

Variables present in all operation modes

Variable Number of characters Description

%% 1 Single character printout „%”

%N 16 or 18 * Present net mass in basic unit

%d 10 Present date

%t 8 (for 24h version) Present time

%i 8 Balance number

%R 8 Program number

%P 8 Project number

%U 8 Operator number

%F X ** Name of present operation work mode

%C 25 Date and time of last calibration

%K X ** Type of last calibration

%I 16 or 18 * Deviation in the last calibration

%1 6 Code 1

%2 6 Code 2

%3 6 Code 3

%4 6 Code 4

%5 6 Code 5

%6 6 Code 6

%V 16 or 18 *

Mass (present unit) or a value connected
with present operation mode eg. Number of
pcs for pcs counting or deviation of
standard weight in % for deviation mode

* if the digit and parameter print to PC/printer is set on
** dependly on name lenght

- 73 -

TABLE 3

Variables that can be used in operation mode

Variable

Number of
characters

Description

The mode in which the variable
is active

%W 16 or 18 * 1 pcs mass Psc counting

%H 16 or 18 * Upper threshold

Checkweighing

%L 16 or 18 * Lower threshold

%Z 16 or 18 * Expected mass Dosage

%B 16 or 18 * Related mass Deviations

%A 14 Filter

Animals weighing

%b 14 Threshold

%i 14 Liquid

Mass density measurement

%p 14 Procedure

%c 14 Temperature

%a 16 Liquid mass den sity

%v 16 Plunger volume

TABELA 4

Zmienne statystyczne występujące we wszystkich modach oprócz ważenia podstawowego

Zmienna

Ilość
znaków

Opis zmiennej

%n

7

Measurment number

%x

16

Avarage value

%S

16

Sum

%m

16

Minimal value

%M

16

Maximal value

%D

16

The difference between minima and maximal value

%s

16

Standard deviation

%r

16

Variance factor

* Depends on the printout parameter PC/printer (additional digit marker)
**depends on the name length

- 74 -

21. COOPERATION WITH PRINTER EPSON

T

o have Polish signs on the printouts:

− Change code side into CP852 at the beginning of printout

−

Record scheme:

\1B\74\12\c

− Program following part of the printout according to below tables with Polish
signs:

ą ć ę ł ń ó ś ź ż

CP 852 \A5 \86 \A9 \88 \E4 \A2 \98 \AB \BE

Ą Ć Ę Ł Ń Ó Ś Ź Ż

CP 852 \A4 \8F \A8 \9D \E3 \E0 \97 \8D \BD

(instead of polish signs write their code equvivalents)

To have the paper cut after each printout following command should be entered:

\1D\56\41\08\C

Connection scheme

balance – printer Citizen , balance – printer Epson

Draw. 69. Scheme of connection balance –printer Citizen

- 75 -

22. WEIGHING LOADS UNDER THE BALANCE

In standard v

ersion balances have possible to weight loads under the XA/X balance. To

use this function:

Draw. 70.Weighing under analytical balances –location

Remove the cover in the base of the balance. There is a hook visible which can be used to
suspend a sample.
Hang the load on the look in the hole under the balance (the hook is a part of standard
equipment).

Note:

1. The suspension eye is directly connected to the weighing mechanism. Take great
care not to move or rotate the eye, as this will damage the weighing mechanism.

2. The mass of all suspended accessories should be set to zero by pressing TARE
before commencing any weighing.

- 76 -

23. CONNECTING ADDITIONAL KEYS

It is possible to connect external tare and print buttons by special luster through port
RS232.

Printer or computer can be connected to the cluster.
Connected elements are not standard accessories of the balance.

1. balance

2. cable which connects balance with cluster

3. cluster

4. button TARA

5. button PRINT

24. LIST OF COMMUNICATIONS COMPUTER-BALANCE

Function

INTERFACE RESET

Command R CR LF (zero actual orders, restore factory setting)

Function SEND ALL COMMANDS FROM THE BALANCE
Command PC CR LF (all recorded information in commands in the balance programme

are sent from the balance)

Function SEND THE RESULT IN BASIC UNIT
Command S CR LF (result is sent from the balance in basic interval after stability)

Function SEND RESULT IN BASIC UNIT IMMEDIATELY
Command SI CR LF

Function SEND THE RESULT IN ACTUAL INTERVAL
Command SU CR LF (result in actual unit is sent from the balance after stability)

Function SEND RESULT IN ACTUAL INTERVAL IMMEDIATELY
Command SUI CR LF

Function ZERO THE BALANCE
Command Z CR LF (set the balance to zero after it reaches stability

Function ZERO IMMEDIATELY
Command ZI CR LF

Function TARE WHEN STABLE
Command T CR LF

Function TARE THE BALANCE IMMEDIATELY
Command TI CR LF

- 77 -

Function SWITCH CONSTANCE TRANSMISSION IN BASIC INTERVAL
Command C0 CR LF

Function SWITCH CONSTANCE TRANSMISSION IN BASIC INTERVAL
Command C1 CR LF

Function SWITCH CONSTANCE TRANSMISSION OFF IN ACTUAL
Command CU0 CR LF

Function SWITCH CONSTANCE TRANSMISSION ON IN ACTUAL

CommandCU1 CR LF

Function NUMBER OF THE BALANCE
Command NB CR LF

Function RANGE OF WEIGHIGN
Command FS CR LF

Function PROGRAM VERSION
Command RV CR LF

Function WRITE OR CHANGE DATE IN THE BALANCE
Command PD CR LF (the balance sends settled date or the date is changed)

Function WRITE NEW OR CHANGE TIME IN THE BALANCE
Command PD CR LF (the balance sends settled time or this time is changed)

Function WRITE ACTUAL WORK MODE
Command PM CR LF

Function SEND SETUP
Command PS CR LF (all balance setup is sent – printout of the parameters)

Function SOUND SIGNAL – „BEEP“
Command B CR LF (sound beep is switched on)

Function SEND LAST ERROR CODE
Command ER CR LF (last order of the error is sent)

Function DISPLAY STRING
Command DS CR LF (signs are shown on the display)

Function CANCELL STRING
Command CS CR LF (cancels string and restores previous state of the display)

Function DISPLAY HEADLINE
Command DH CR LF (sings are displayed in top headline of the display)

Function CANCELL HEADLINE
Command CH CR LF (cancels information in the top headline)

- 78 -

Function DISPLAY HEADLINE
Command DF CR LF (displays signs in the bottom headline)

Function CANCELL HEADLINE
Command CF CR LF (cancels information in bottom headline)

Function PERFORM INTERNAL CALIBRATION
Command CL CR LF

Function BLOCK THE KEYBOARD
Command KL CR LF

Function UNBLOCK THE KEYBOARD
Command KU CR LF

Function SWITCH „ECHO“ OFF FOR THE KEYBOARD
Command E0 CR LF (keys codes are switched off)

Function SWITCH „ECHO“ ON FOR THE KEYBOARD
Command E1 CR LF

Function SWITCH THE BALANCE OFF
Command O0 CR LF (the same as ON/OFF)

Function SWITCH THE BALANCE ON
Command O1 CR LF (the same as ON/OFF)

Function SWITCH AUTOZERO OFF
Command A0 CR LF

Function SWITCH AUTOZERO ON
Command A1 CR LF

If command which is not listed or with error and with CRLF at the end the command is
returned in E S CR LF form. Spaces in the forms should be omited

- 79 -

25. COMMANDS ABOUT ERRORS

Command Error

numbe

r

Error description

"control sum error"

1.1

Errors during date transmission

"Error A/D"

1.2

Converter error

"Exceed range"

2.1

Exceed max measure range of the balance

"Exceed range"

2.2

Exceed max measure range of the balance

"A/D Null"

2.3

No divisions from converter

"A/D Full"

2.4

Exceed max value converter intervals
"Tara/Zero above the
range"

2.5

Exceed admissible tare or zero value

"Tara above the range"

2.6

Exceed admissible tare value for the

balances
"Zero above the range"

2.7

Exceed zero range for the balances
"Result > 4% Max"

2.8

To high start mass (start the balance up with

load on the pan)

"Result> 1% Max"

2.9

Difference between determined calibration

mass and calibration mass recorded in the

balance memory higher than (difference

>1%)
"Piece < 1 Div"

2.10

Singular mass value in counting pieces

function less than actual scale interval

Piece < 10 Div"

2.11

Mass on the pan during determining mas sof

singular piece in the function of counting

pieces less than 10 actual scale intervals

"Ref < 1000 Div"

2.12

Value of reference mass in the function

deviations is less than 1000 actual scales

intervals
"Above the range"

3.1

The parameter value above the range
"Faulty value"

3.2

Inadmissible value of parameter
"Blocked - DRH"

3.3

Zmiana parametru niedopuszczalna

(aktywna funkcja DRH w menu fabrycznym)
"Writting error"

4.1

Errors during date transmission to sprinter or

computer

" Parity error"

4.2

" Frame error"

4.3

"Stopped transmission
CTS"

4.4

"Stopped transmission
XOFF"

4.5

"Incorrect date"

5.1

Faulty date
"Exceed time"

6.1

Exceed admissible time during for an

operation (eg. zero)

Instruction number:

LMI-31-03/05/09/ENG

- 80 -
