Page 1
APPROX WEIGHT: lbs.

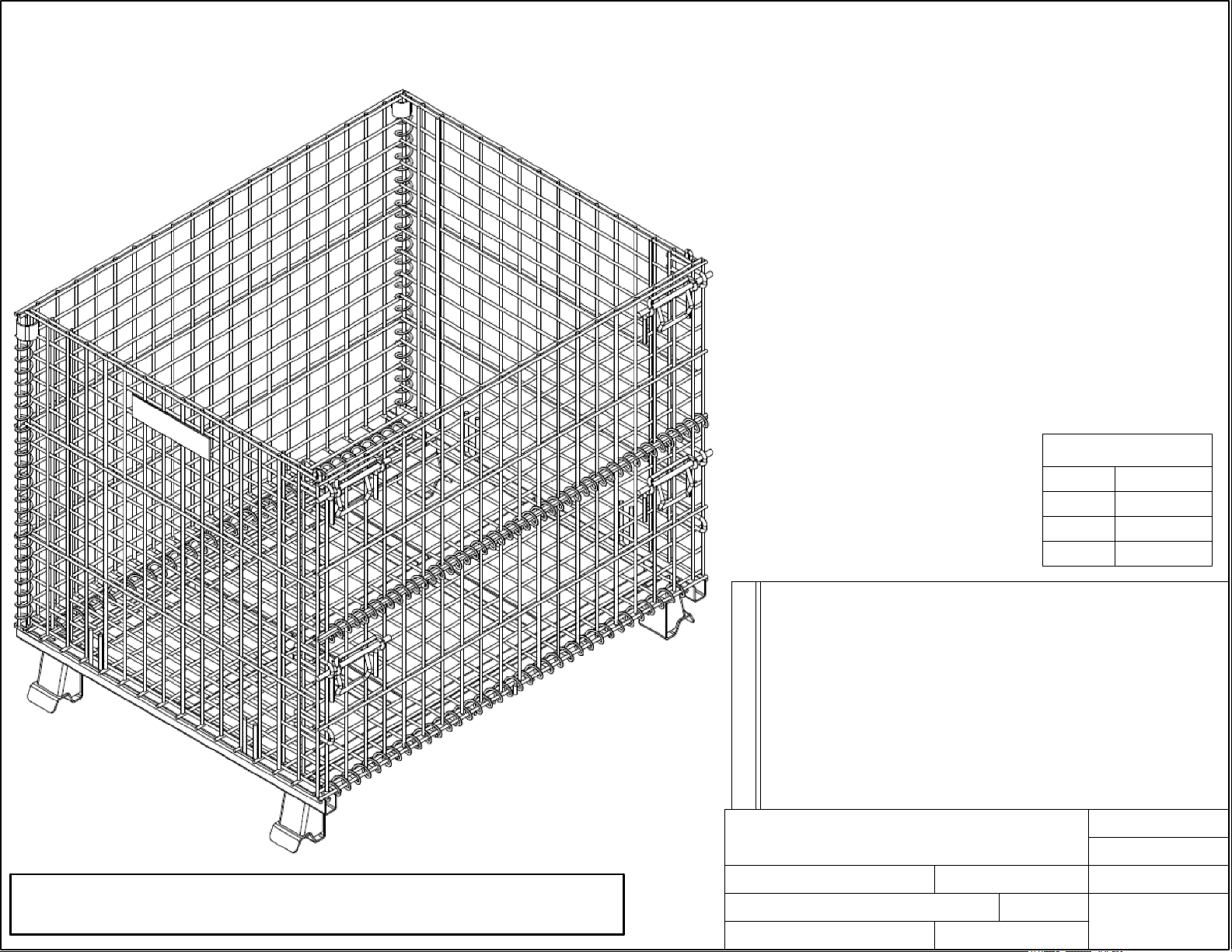

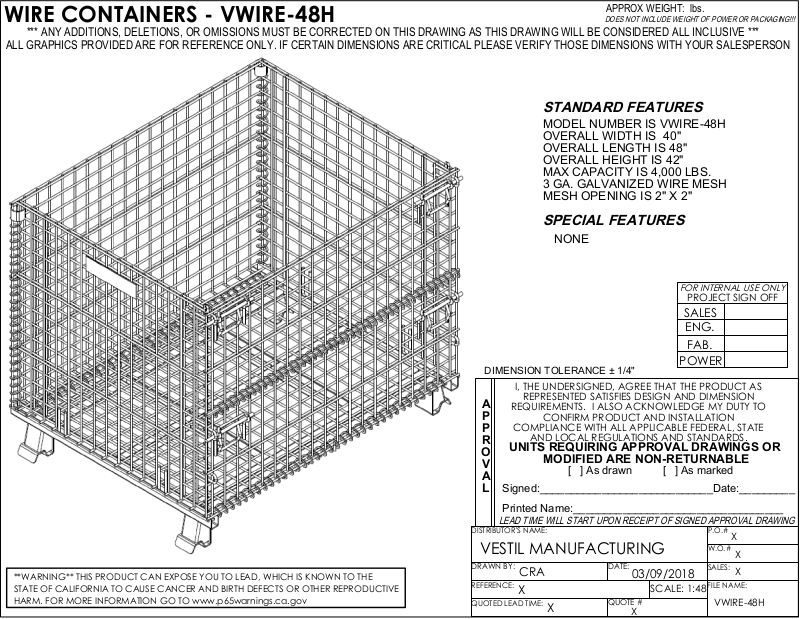

WIRE CONTAINERS - VWIRE-48H
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
STANDARD FEATURES
MODEL NUMBER IS VWIRE-48H
OVERALL WIDTH IS 40"
OVERALL LENGTH IS 48"
OVERALL HEIGHT IS 42"
MAX CAPACITY IS 4,000 LBS.
3 GA. GALVANIZED WIRE MESH
MESH OPENING IS 2" X 2"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
A
P
P
R
O
V
A
L
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
POWER
**WARNING** THIS PRODUCT CAN EXPOSE YOU TO LEAD, WHICH IS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM. FOR MORE INFORMATION GO TO www.p65warnings.ca.gov
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
CRA
X
:
X
DATE:
03/09/2018
SCALE: 1:48
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
VWIRE-48H
