APPROX WEIGHT: 115 lbs.

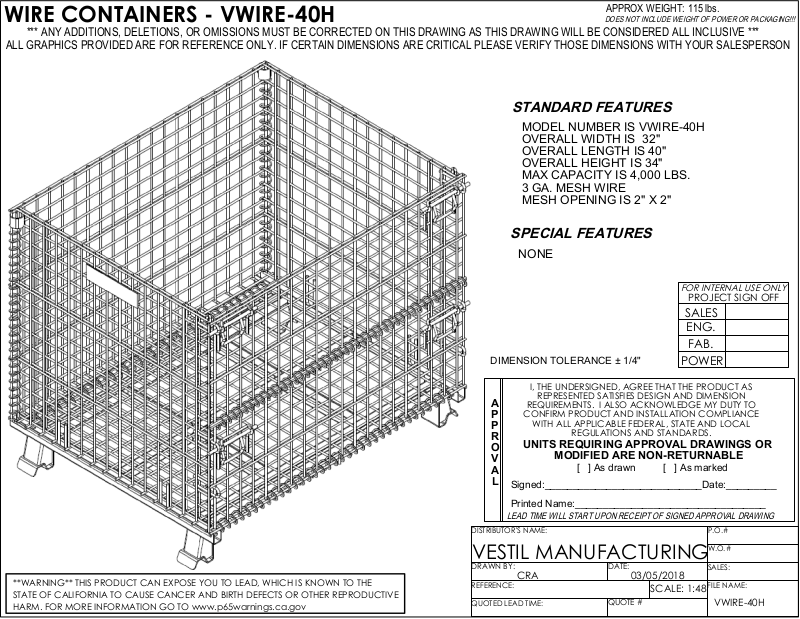

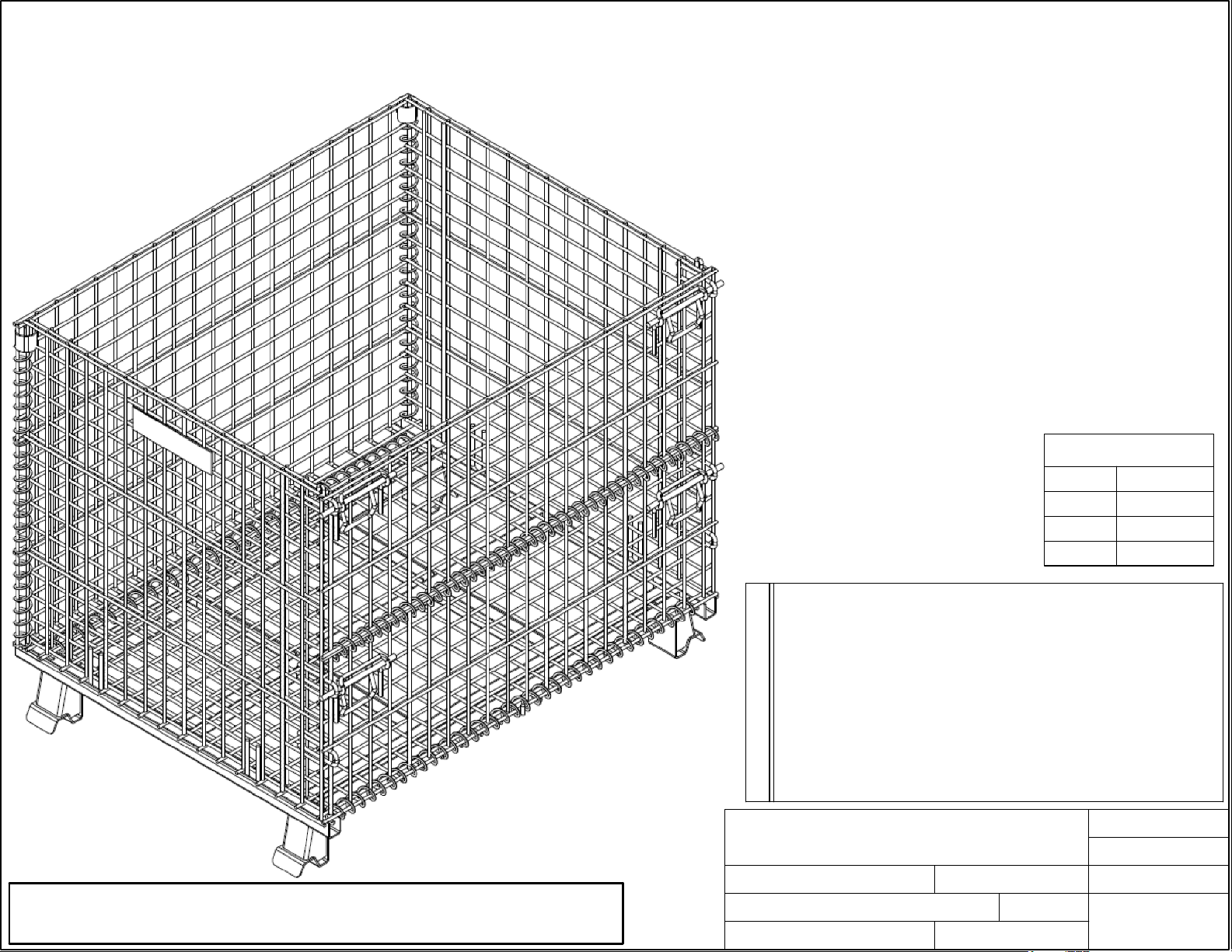

WIRE CONTAINERS - VWIRE-40H
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
STANDARD FEATURES
MODEL NUMBER IS VWIRE-40H
OVERALL WIDTH IS 32"
OVERALL LENGTH IS 40"
OVERALL HEIGHT IS 34"
MAX CAPACITY IS 4,000 LBS.
3 GA. MESH WIRE
MESH OPENING IS 2" X 2"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
DIMENSION TOLERANCE ± 1/4"
POWER
**WARNING** THIS PRODUCT CAN EXPOSE YOU TO LEAD, WHICH IS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM. FOR MORE INFORMATION GO TO www.p65warnings.ca.gov
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION COMPLIANCE
WITH ALL APPLICABLE FEDERAL, STATE AND LOCAL
REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
CRA
REFERENCE:
QUOTED LEAD TIME
:
DATE:
03/05/2018
SCALE: 1:48
QUOTE #
P.O.#
W.O.#
SALES:
FILE NAME:
VWIRE-40H
