APPROX WEIGHT: 225.85 lbs.

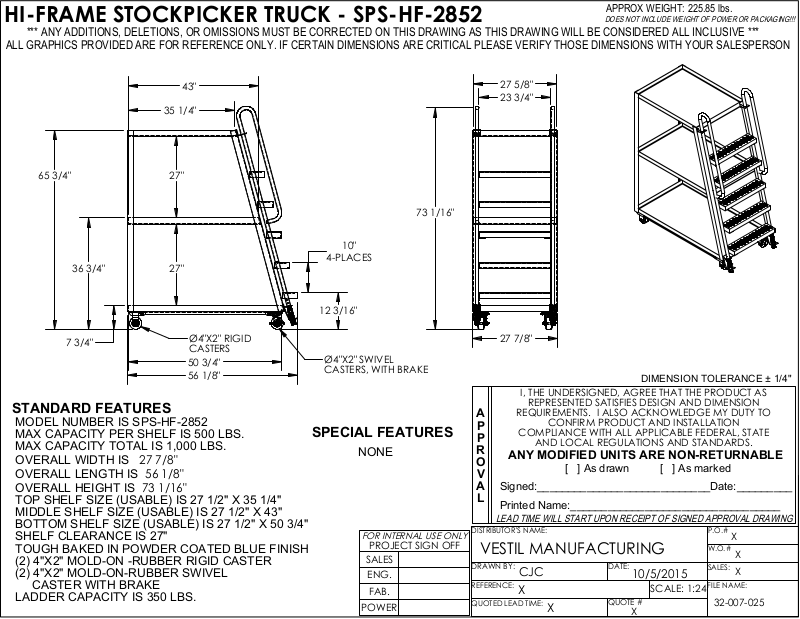

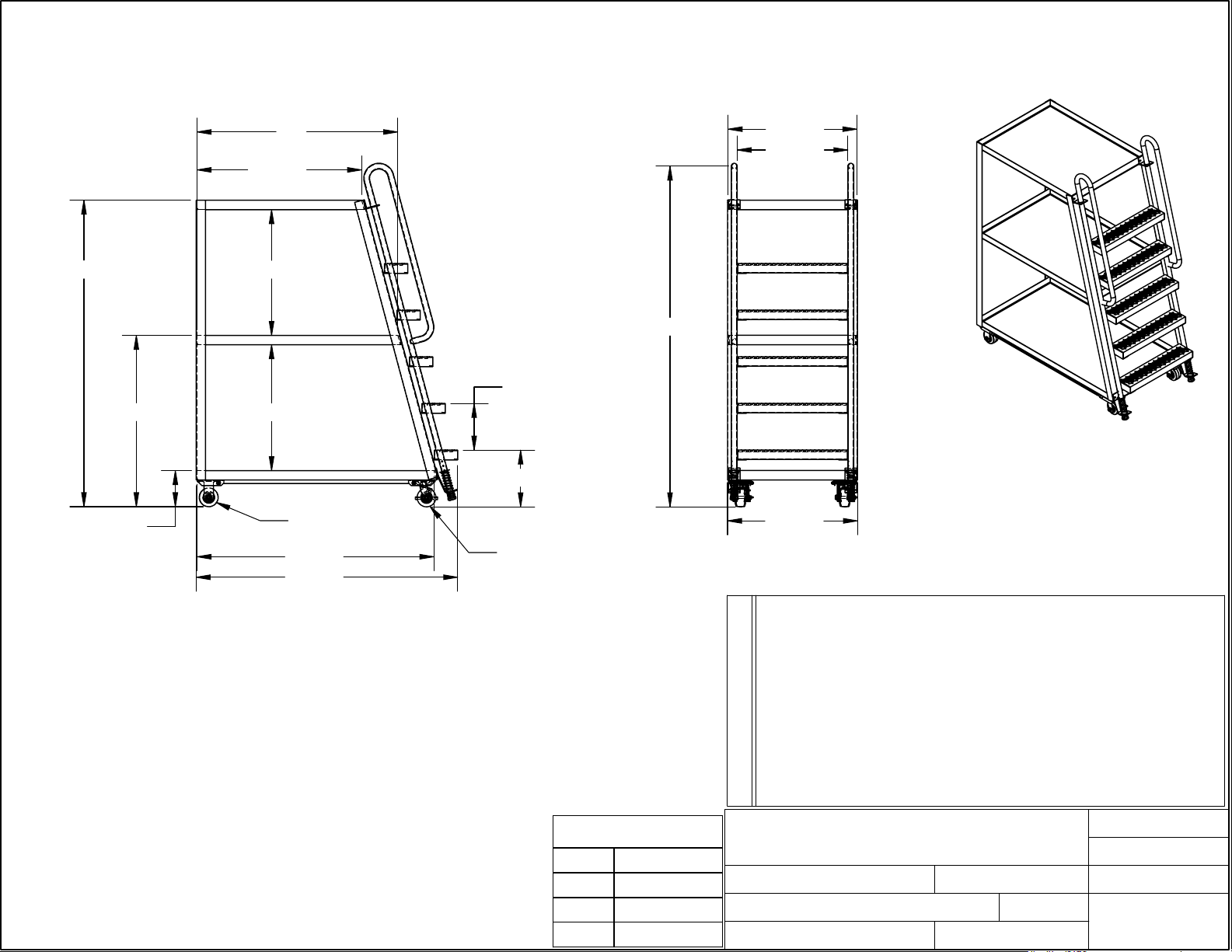

HI-FRAME STOCKPICKER TRUCK - SPS-HF-2852
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
43"
35 1/4"
65 3/4"
36 3/4"
7 3/4"
27"
27"
Ø4"X2" RIGID
CASTERS
50 3/4"
56 1/8"
STANDARD FEATURES
MODEL NUMBER IS SPS-HF-2852
MAX CAPACITY PER SHELF IS 500 LBS.
MAX CAPACITY TOTAL IS 1,000 LBS.
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
TOP SHELF SIZE (USABLE) IS 27 1/2" X 35 1/4"
MIDDLE SHELF SIZE (USABLE) IS 27 1/2" X 43"
BOTTOM SHELF SIZE (USABLE) IS 27 1/2" X 50 3/4"
SHELF CLEARANCE IS 27"
TOUGH BAKED IN POWDER COATED BLUE FINISH
(2) 4"X2" MOLD-ON -RUBBER RIGID CASTER
(2) 4"X2" MOLD-ON-RUBBER SWIVEL
CASTER WITH BRAKE
LADDER CAPACITY IS 350 LBS.
27 7/8"
56 1/8"
73 1/16"
73 1/16"
10"
4-PLACES
12 3/16"
Ø4"X2" SWIVEL
CASTERS, WITH BRAKE
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
27 5/8"
23 3/4"
27 7/8"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
CJC
X
DATE:
10/5/2015
SCALE: 1:24
:
X
QUOTE #
X
SALES:
X
FILE NAME:
32-007-025
