APPROX WEIGHT: 27.59 lbs.

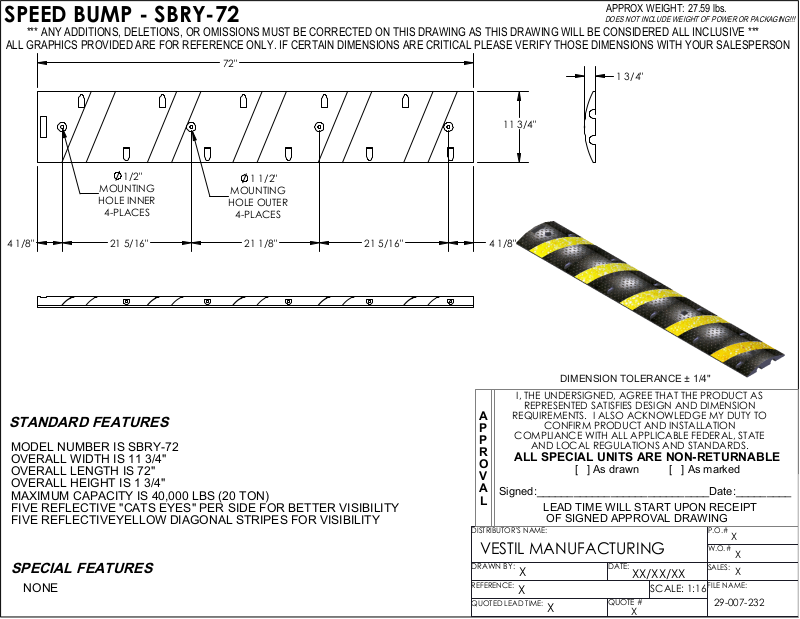

SPEED BUMP - SBRY-72
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
72"
1 3/4"
11 3/4"
4 1/8"
1/2"
MOUNTING
HOLE INNER
4-PLACES
21 5/16"
1 1/2"
MOUNTING
HOLE OUTER
4-PLACES
21 1/8"
21 5/16"
STANDARD FEATURES
MODEL NUMBER IS SBRY-72
OVERALL WIDTH IS 11 3/4"
OVERALL LENGTH IS 72"
OVERALL HEIGHT IS 1 3/4"
MAXIMUM CAPACITY IS 40,000 LBS (20 TON)
FIVE REFLECTIVE "CATS EYES" PER SIDE FOR BETTER VISIBILITY
FIVE REFLECTIVEYELLOW DIAGONAL STRIPES FOR VISIBILITY
SPECIAL FEATURES
NONE
4 1/8"
DIMENSION TOLERANCE ± 1/4"
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
AGREE THAT
THE PRODUCT AS
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
X
X
:
X
DATE:
XX/XX/XX
QUOTE #
X
SCALE: 1:16
P.O.#
W.O.#
SALES:
FILE NAME:
29-007-232
X
X
X
