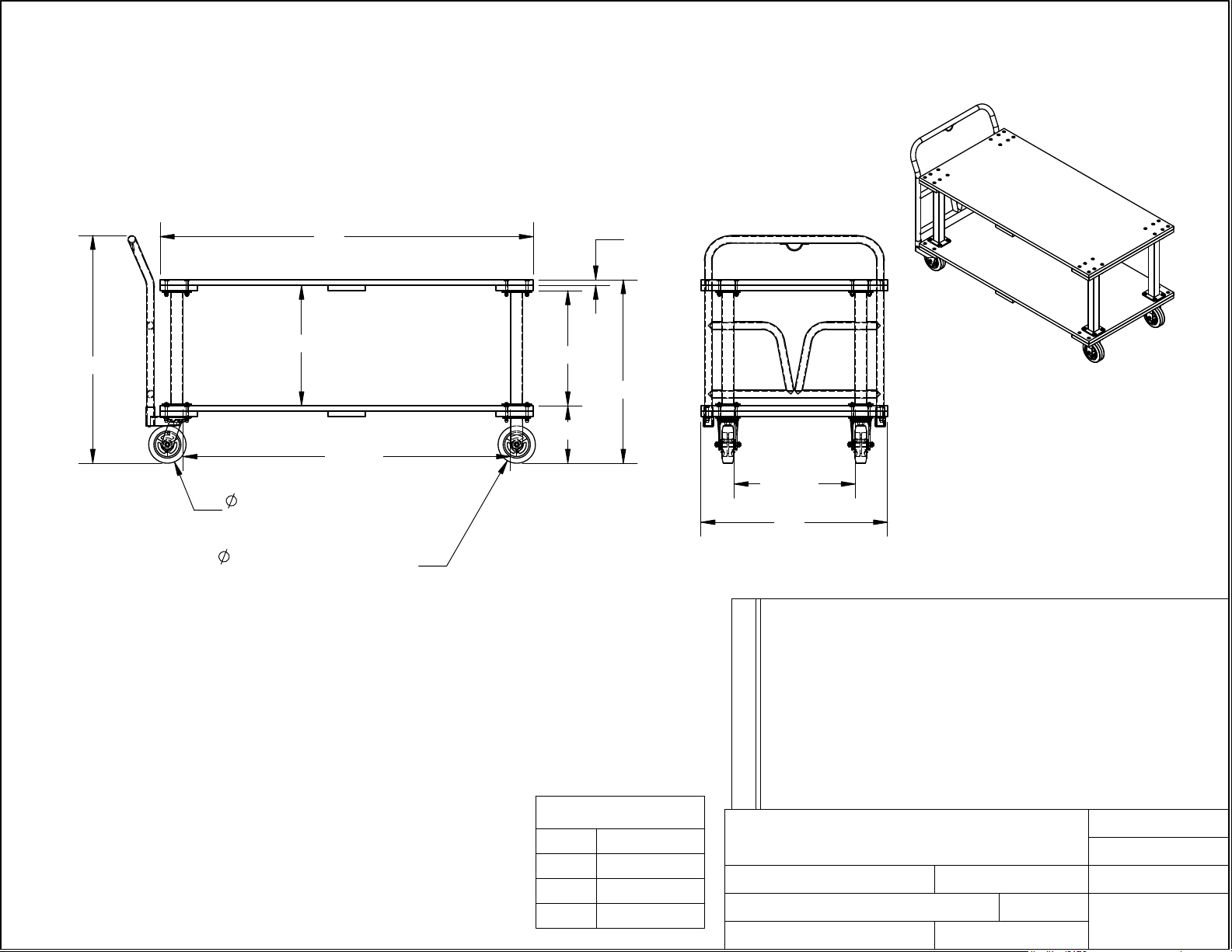

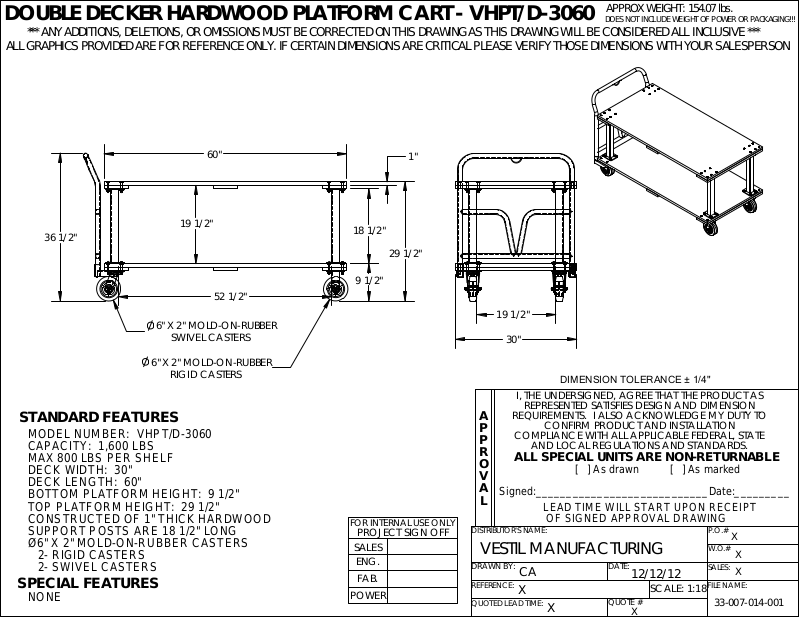

DOUBLE DECKER HARDWOOD PLATFORM CART - VHPT/D-3060
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
APPROX WEIGHT: 154.07 lbs.
60"
19 1/2"
36 1/2"
52 1/2"
6" X 2" MOLD-ON-RUBBER
SWIVEL CASTERS
6" X 2" MOLD-ON-RUBBER
RIGID CASTERS
STANDARD FEATURES
MODEL NUMBER: VHPT/D-3060
CAPACITY: 1,600 LBS
MAX 800 LBS PER SHELF
DECK WIDTH: 30"
DECK LENGTH: 60"
BOTTOM PLATFORM HEIGHT: 9 1/2"
TOP PLATFORM HEIGHT: 29 1/2"
CONSTRUCTED OF 1" THICK HARDWOOD
SUPPORT POSTS ARE 18 1/2" LONG
Ø6" X 2" MOLD-ON-RUBBER CASTERS
2- RIGID CASTERS
2- SWIVEL CASTERS
SPECIAL FEATURES
NONE
1"
18 1/2"
29 1/2"
9 1/2"
