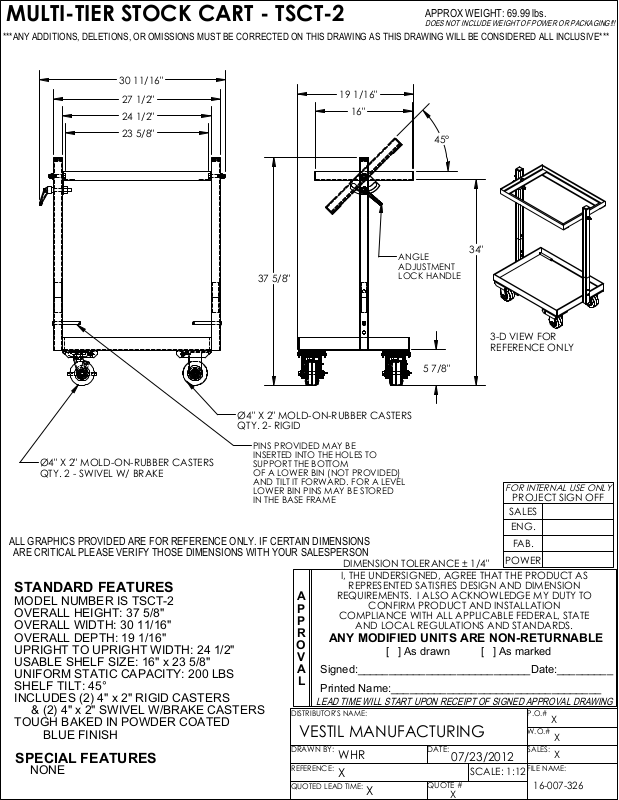

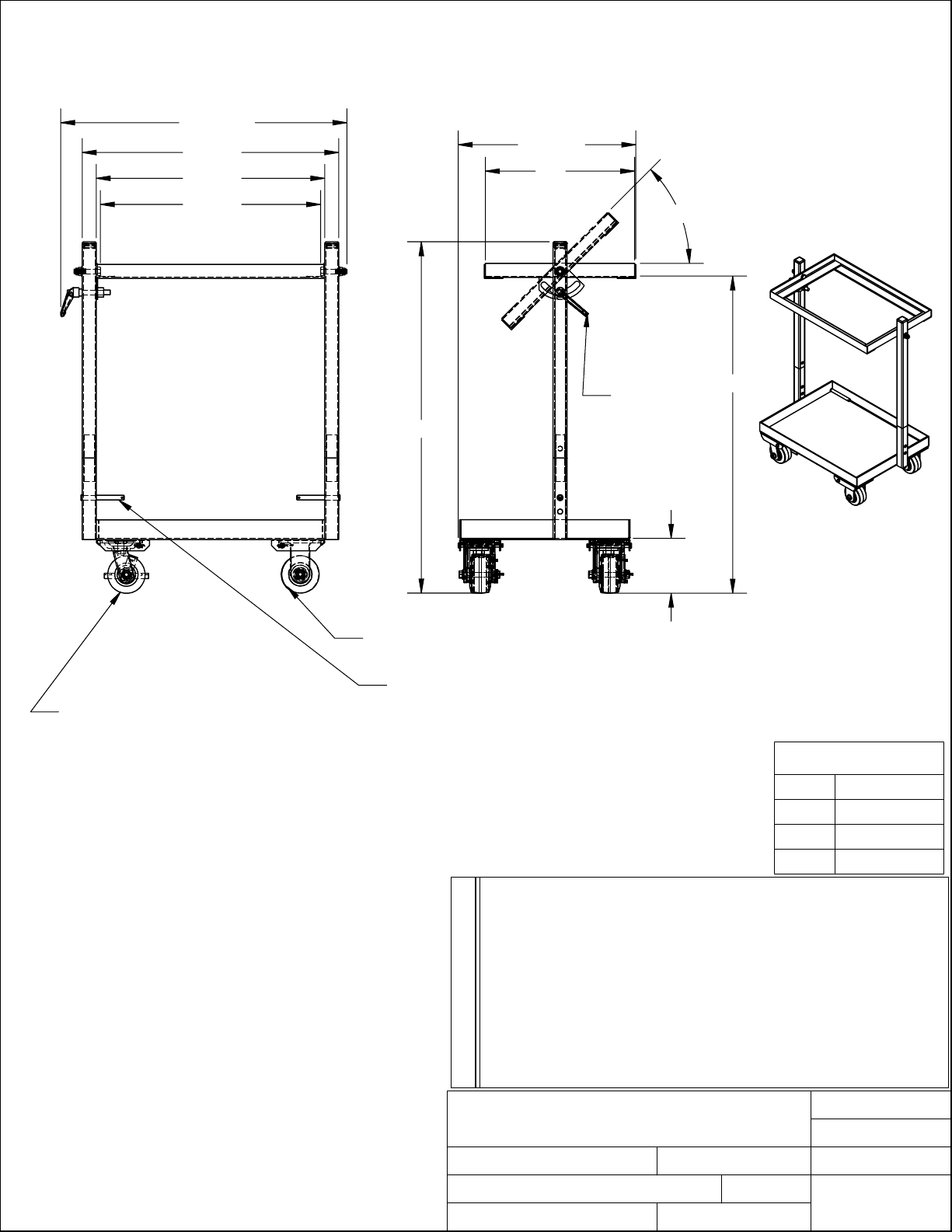

MULTI-TIER STOCK CART - TSCT-2
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
30 11/16"
27 1/2"
24 1/2"
23 5/8"
19 1/16"
16"
APPROX WEIGHT: 69.99 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
45°
37 5/8"
Ø4" X 2" MOLD-ON-RUBBER CASTERS
QTY. 2- RIGID
PINS PROVIDED MAY BE
Ø4" X 2" MOLD-ON-RUBBER CASTERS
QTY. 2 - SWIVEL W/ BRAKE
INSERTED INTO THE HOLES TO
SUPPORT THE BOTTOM
OF A LOWER BIN (NOT PROVIDED)
AND TILT IT FORWARD. FOR A LEVEL
LOWER BIN PINS MAY BE STORED
IN THE BASE FRAME
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
STANDARD FEATURES
MODEL NUMBER IS TSCT-2
OVERALL HEIGHT: 37 5/8"
OVERALL WIDTH: 30 11/16"
OVERALL DEPTH: 19 1/16"
UPRIGHT TO UPRIGHT WIDTH: 24 1/2"
USABLE SHELF SIZE: 16" x 23 5/8"
UNIFORM STATIC CAPACITY: 200 LBS
SHELF TILT: 45°
INCLUDES (2) 4" x 2" RIGID CASTERS
& (2) 4" x 2" SWIVEL W/BRAKE CASTERS
A
P
P
R
O
V
A
L
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
TOUGH BAKED IN POWDER COATED
BLUE FINISH
SPECIAL FEATURES
NONE
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
WHR
X
:
ANGLE
ADJUSTMENT
LOCK HANDLE
5 7/8"
CONFIRM PRODUCT AND INSTALLATION
DATE:
34"
3-D VIEW FOR
REFERENCE ONLY
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
P.O.#
W.O.#
SALES:
07/23/2012
SCALE: 1:12
X
QUOTE #
X
FILE NAME:
16-007-326
X
X
X
