APPROX WEIGHT: 159.33 lbs.

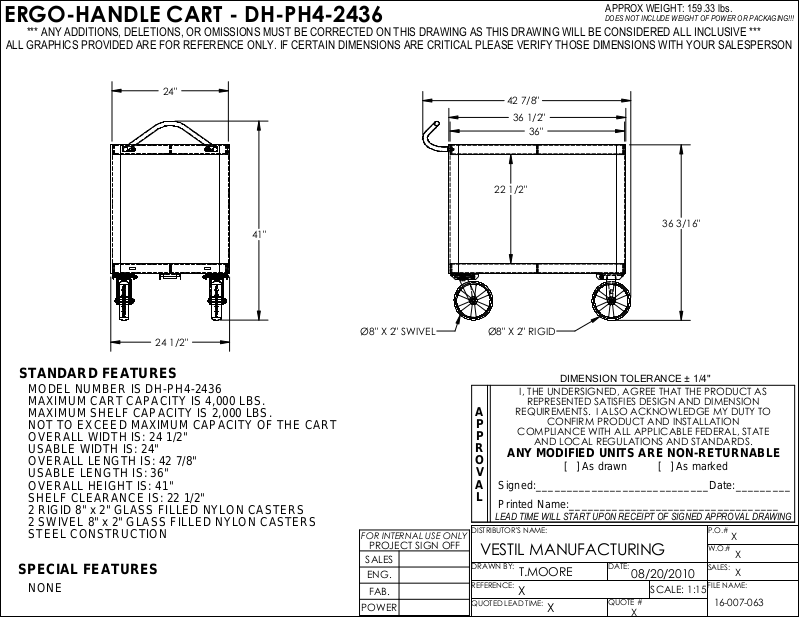

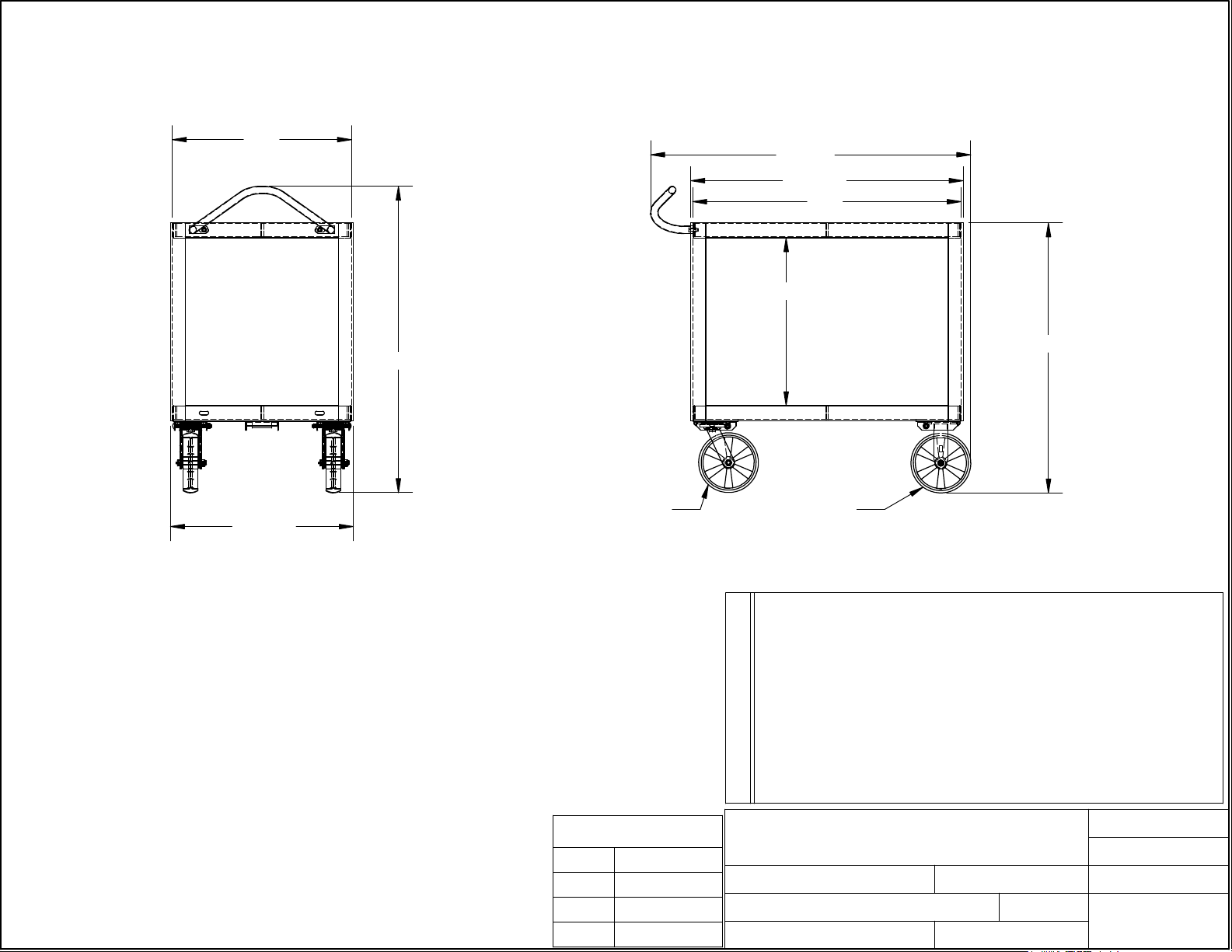

ERGO-HANDLE CART - DH-PH4-2436
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
24"
41"
24 1/2"
STANDARD FEATURES
MODEL NUMBER IS DH-PH4-2436
MAXIMUM CART CAPACITY IS 4,000 LBS.
MAXIMUM SHELF CAPACITY IS 2,000 LBS.
NOT TO EXCEED MAXIMUM CAPACITY OF THE CART
OVERALL WIDTH IS: 24 1/2"
USABLE WIDTH IS: 24"
OVERALL LENGTH IS: 42 7/8"
USABLE LENGTH IS: 36"
OVERALL HEIGHT IS: 41"
SHELF CLEARANCE IS: 22 1/2"
2 RIGID 8" x 2" GLASS FILLED NYLON CASTERS
2 SWIVEL 8" x 2" GLASS FILLED NYLON CASTERS
STEEL CONSTRUCTION
SPECIAL FEATURES
NONE
42 7/8"
36 1/2"
36"
22 1/2"
Ø8" X 2" SWIVEL Ø8" X 2" RIGID
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
T.MOORE
X
:
X
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
36 3/16"
DIMENSION TOLERANCE ± 1/4"
DATE:
08/20/2010
SCALE: 1:15
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
16-007-063
