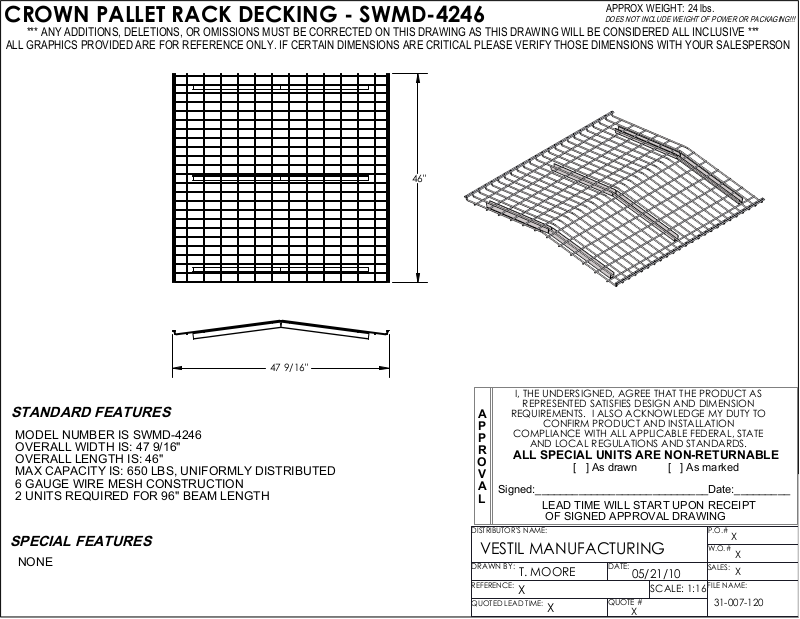

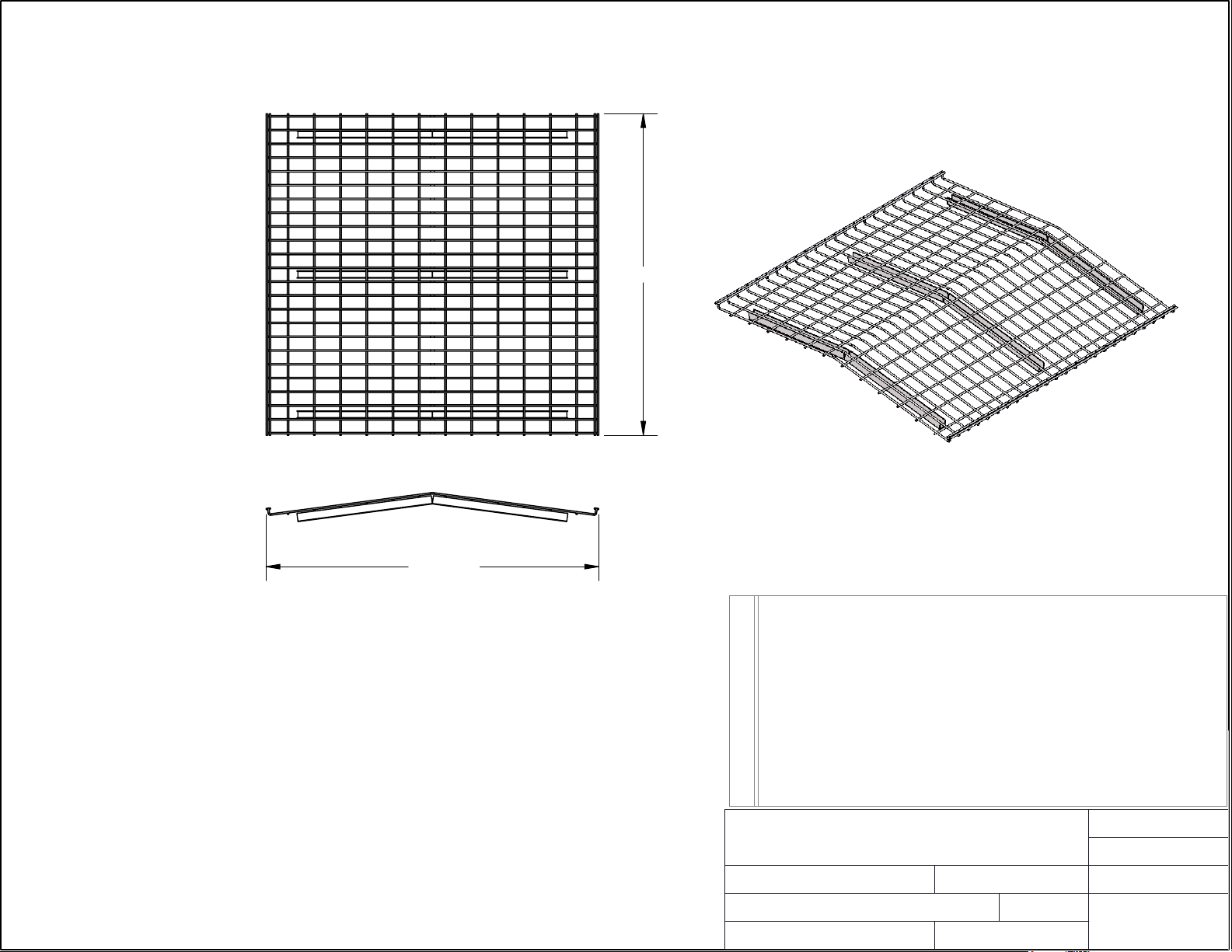

CROWN PALLET RACK DECKING
- SWMD-4246
APPROX WEIGHT: 24
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
lbs.
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
46"
47 9/16"
STANDARD FEATURES
MODEL NUMBER IS SWMD-4246
OVERALL WIDTH IS: 47 9/16"
OVERALL LENGTH IS: 46"
MAX CAPACITY IS: 650 LBS, UNIFORMLY DISTRIBUTED
6 GAUGE WIRE MESH CONSTRUCTION
2 UNIT
S REQUIRED FOR 96" BEAM LENGTH
SPECIAL FEATURES
NONE
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
T. MOORE
X
:
X
AGREE THAT
DATE:
05/21/10
SCALE: 1:16
QUOTE #
X
THE PRODUCT AS
P.O.#
W.O.#
SALES:
FILE NAME:
31-007-120
X
X
X
