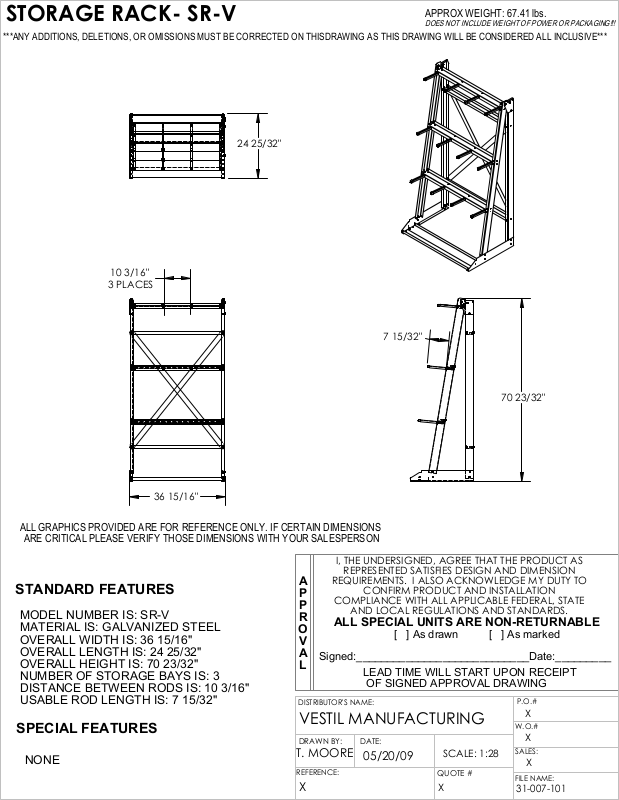

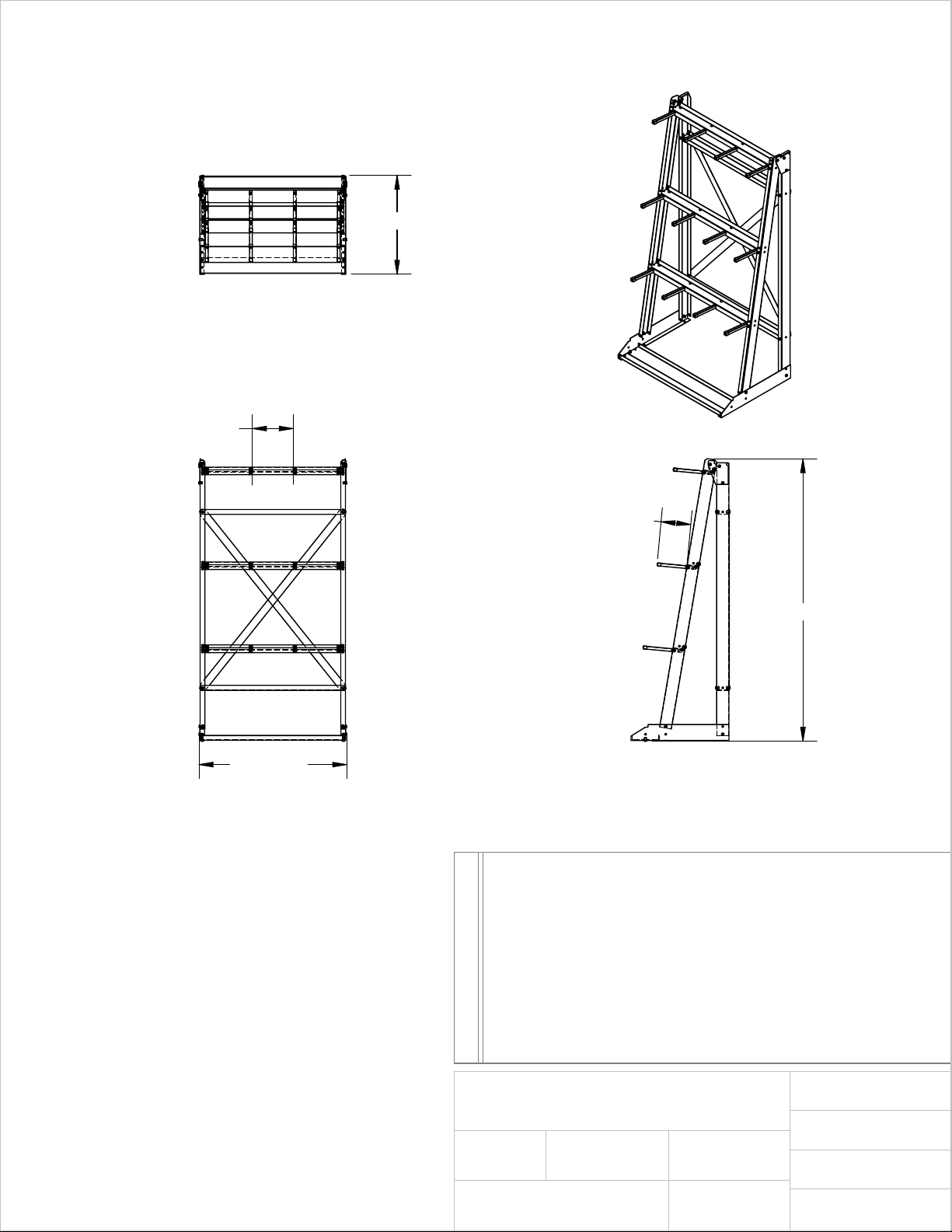

STORAGE RACK- SR-V
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THISDRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
24 25/32"
10 3/16"
3 PLACES
APPROX WEIGHT: 67.41 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
36 15/16"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
STANDARD FEATURES
MODEL NUMBER IS: SR-V
MATERIAL IS: GALVANIZED STEEL
OVERALL WIDTH IS: 36 15/16"
OVERALL LENGTH IS: 24 25/32"
OVERALL HEIGHT IS: 70 23/32"
NUMBER OF STORAGE BAYS IS: 3
DISTANCE BETWEEN RODS IS: 10 3/16"
USABLE ROD LENGTH IS: 7 15/32"
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
SPECIAL FEATURES
NONE
DRAWN BY:
T. MOORE
REFERENCE:
X
DATE:
05/20/09
7 15/32"
70 23/32"
AGREE THAT
[ ] As drawn [ ] As marked
SCALE: 1:28
QUOTE #
X
THE PRODUCT AS
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
31-007-101
