APPROX WEIGHT: 129 lbs.

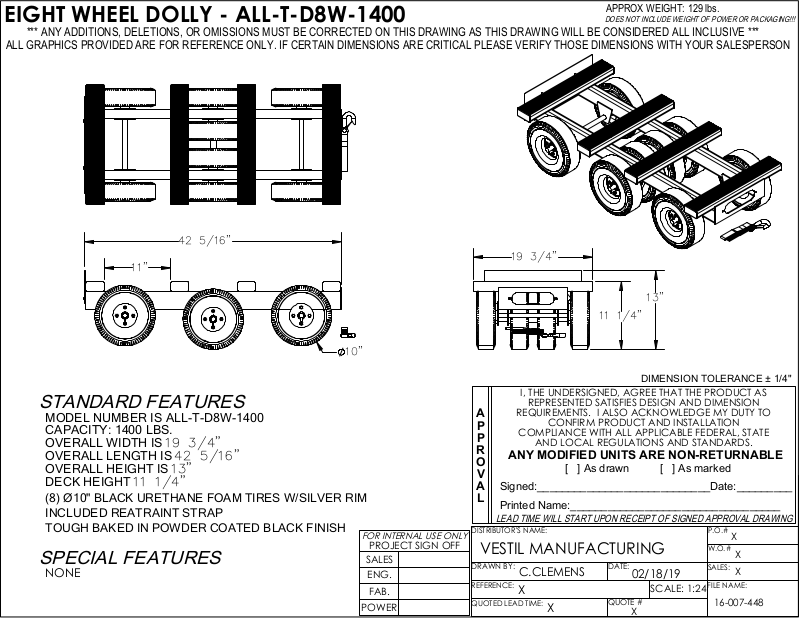

EIGHT WHEEL DOLLY - ALL-T-D8W-1400
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
42 5/16"
19 3/4"
11"
13"
STANDARD FEATURES
MODEL NUMBER IS ALL-T-D8W-1400
CAPACITY: 1400 LBS.
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
DECK HEIGHT
11 1/4"
19 3/4"
42 5/16"
13"
(8) Ø10" BLACK URETHANE FOAM TIRES W/SILVER RIM
INCLUDED REATRAINT STRAP
TOUGH BAKED IN POWDER COATED BLACK FINISH
SPECIAL FEATURES
NONE
10"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
11 1/4"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
C.CLEMENS
X
:
X
DATE:
02/18/19
SCALE: 1:24
QUOTE #
X
SALES:
X
FILE NAME:
16-007-448
