APPROX WEIGHT: 12.80 lbs.

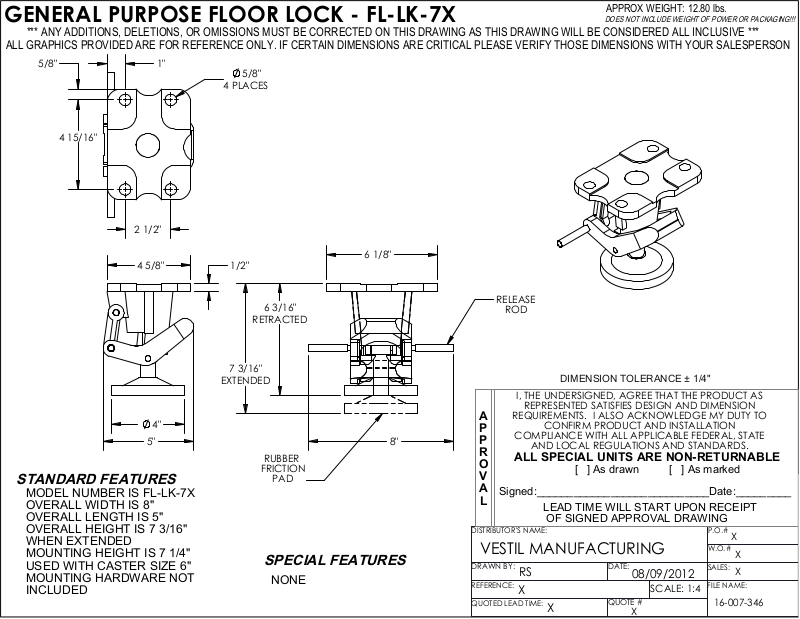

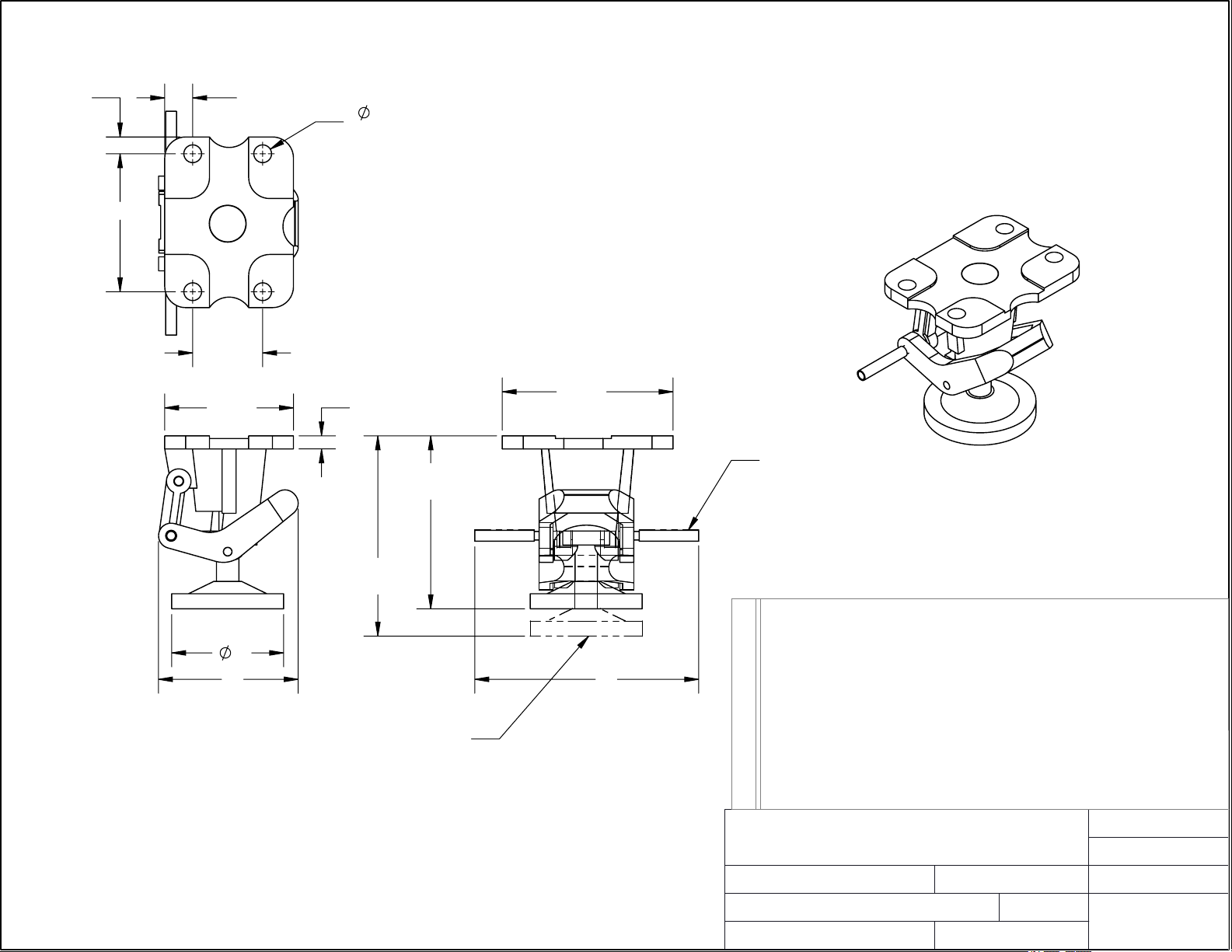

GENERAL PURPOSE FLOOR LOCK - FL-LK-7X
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
5/8"
4 15/16"
1"
2 1/2"
4 5/8"
5/8"
4 PLACES
1/2"
RETRACTED
6 3/16"
6 1/8"
RELEASE
ROD
4"
5"
STANDARD FEATURES
MODEL NUMBER IS FL-LK-7X
OVERALL WIDTH IS 8"
OVERALL LENGTH IS 5"
OVERALL HEIGHT IS 7 3/16"
WHEN EXTENDED
MOUNTING HEIGHT IS 7 1/4"
USED WITH CASTER SIZE 6"
MOUNTING HARDWARE NOT
INCLUDED
7 3/16"
EXTENDED
FRICTION
8"
RUBBER
PAD
SPECIAL FEATURES
NONE
DIMENSION TOLERANCE ± 1/4"
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
AGREE THAT
THE PRODUCT AS
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
RS
X
:
X
DATE:
08/09/2012
QUOTE #
X
SCALE: 1:4
P.O.#
W.O.#
SALES:
FILE NAME:
16-007-346
X
X
X
