APPROX WEIGHT: 36.07 lbs.

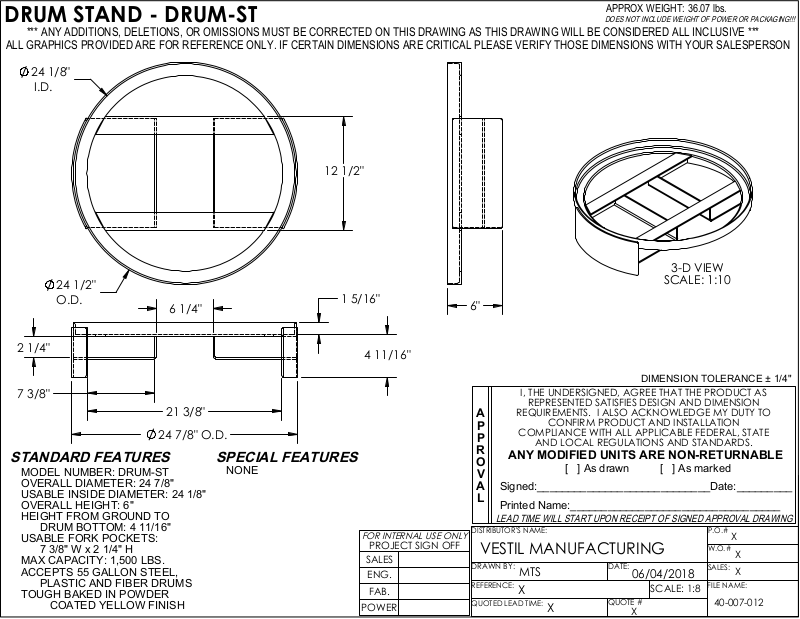

DRUM STAND - DRUM-ST
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
24 1/8"
I.D.
12 1/2"
3-D VIEW
24 1/2"
O.D.
6 1/4"
1 5/16"
6"
SCALE: 1:10
2 1/4"
7 3/8"
21 3/8"
24 7/8" O.D.
STANDARD FEATURES
MODEL NUMBER: DRUM-ST
OVERALL DIAMETER: 24 7/8"
USABLE INSIDE DIAMETER: 24 1/8"
OVERALL HEIGHT: 6"
HEIGHT FROM GROUND TO
DRUM BOTTOM: 4 11/16"
USABLE FORK POCKETS:
7 3/8" W x 2 1/4" H
MAX CAPACITY: 1,500 LBS.
ACCEPTS 55 GALLON STEEL,
PLASTIC AND FIBER DRUMS
TOUGH BAKED IN POWDER
COATED YELLOW FINISH
SPECIAL FEATURES
NONE
4 11/16"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
MTS
X
DATE:
06/04/2018
SCALE: 1:8
:
X
QUOTE #
X
SALES:
X
FILE NAME:
40-007-012
