APPROX WEIGHT: 81.55 lbs.

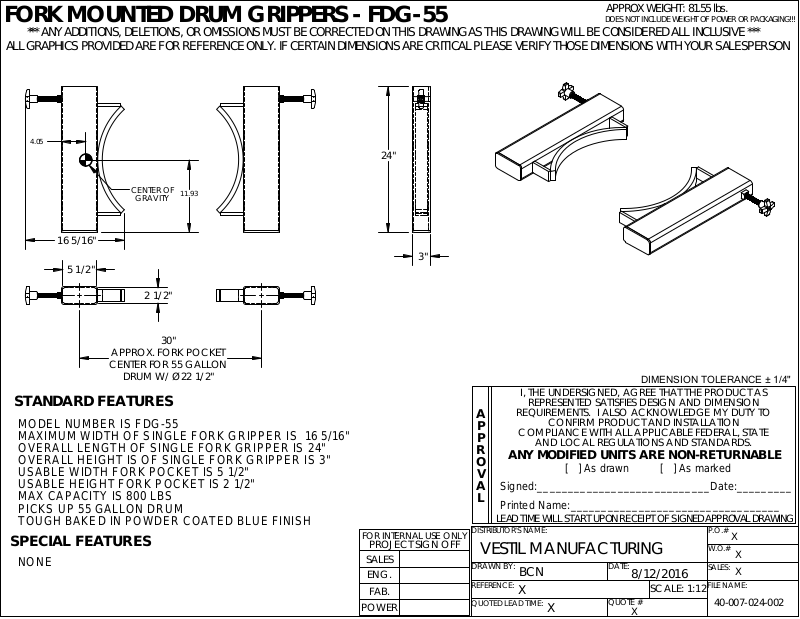

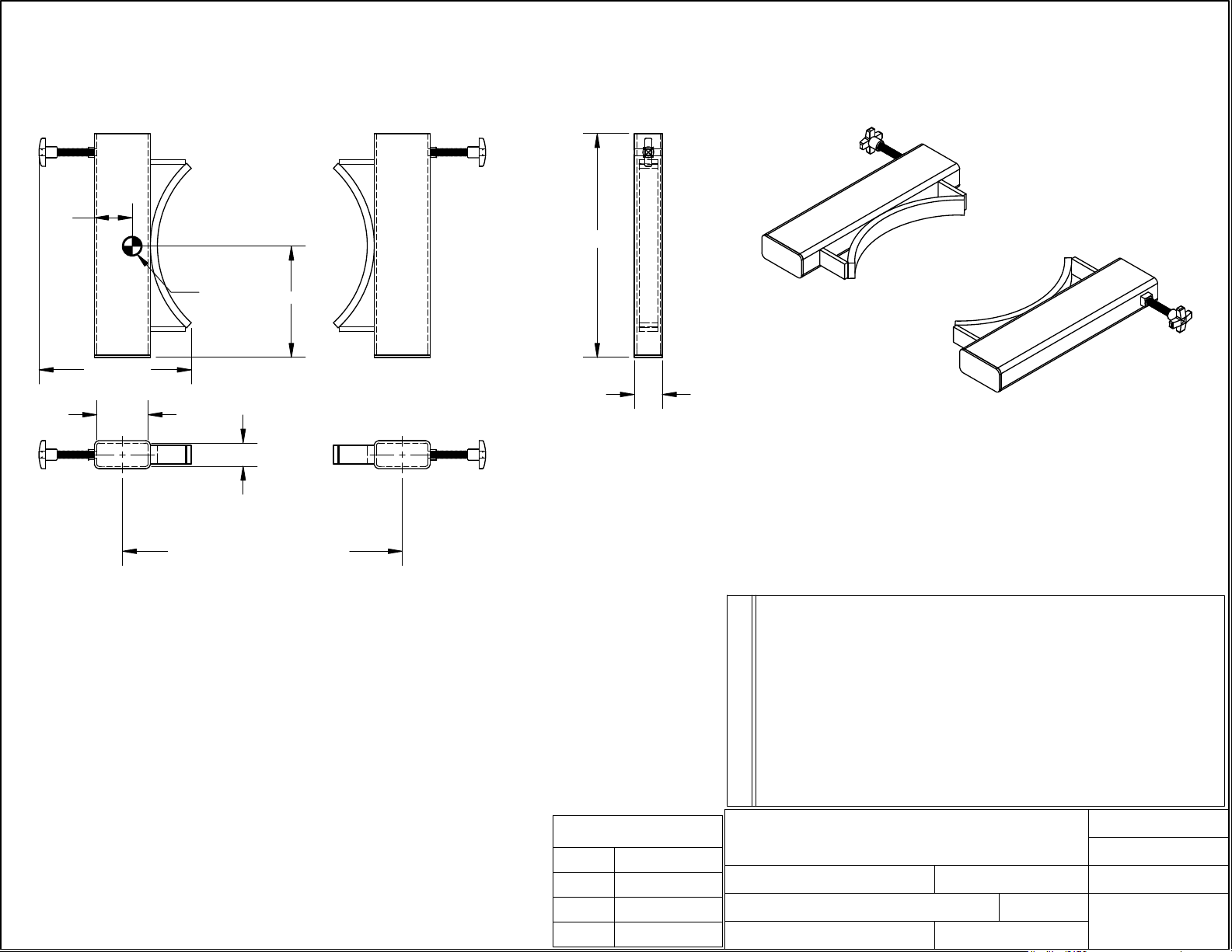

FORK MOUNTED DRUM GRIPPERS - FDG-55
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
4.05
24"
CENTER OF
GRAVITY
16 5/16"
5 1/2"
2 1/2"
APPROX. FORK POCKET
CENTER FOR 55 GALLON
DRUM W/ Ø22 1/2"
11.93
30"
STANDARD FEATURES
MODEL NUMBER IS FDG-55
MAXIMUM WIDTH OF SINGLE FORK GRIPPER IS 16 5/16"
OVERALL LENGTH OF SINGLE FORK GRIPPER IS 24"
OVERALL HEIGHT IS OF SINGLE FORK GRIPPER IS 3"
USABLE WIDTH FORK POCKET IS 5 1/2"
USABLE HEIGHT FORK POCKET IS 2 1/2"
MAX CAPACITY IS 800 LBS
PICKS UP 55 GALLON DRUM
TOUGH BAKED IN POWDER COATED BLUE FINISH
SPECIAL FEATURES
NONE
3"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
BCN
X
DATE:
8/12/2016
SCALE: 1:12
X
QUOTE #
X
SALES:
X
FILE NAME:
40-007-024-002
