APPROX WEIGHT: 5.67 lbs.

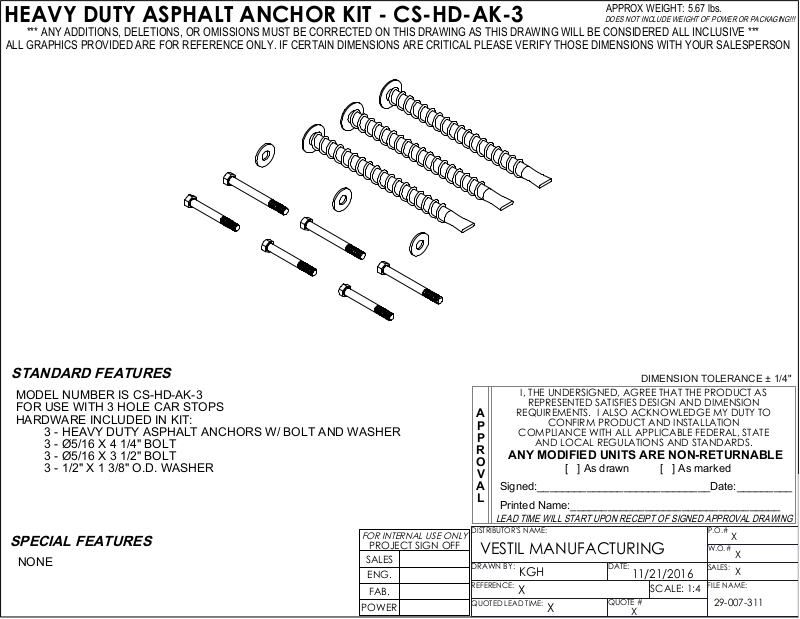

HEAVY DUTY ASPHALT ANCHOR KIT - CS-HD-AK-3
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
STANDARD FEATURES
MODEL NUMBER IS CS-HD-AK-3
FOR USE WITH 3 HOLE CAR STOPS
HARDWARE INCLUDED IN KIT:
3 - HEAVY DUTY ASPHALT ANCHORS W/ BOLT AND WASHER
3 - Ø5/16 X 4 1/4" BOLT
3 - Ø5/16 X 3 1/2" BOLT
3 - 1/2" X 1 3/8" O.D. WASHER
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
KGH
X
DATE:
11/21/2016
SCALE: 1:4
:
X
QUOTE #
X
SALES:
X
FILE NAME:
29-007-311
