APPROX WEIGHT: 18.82 lbs.

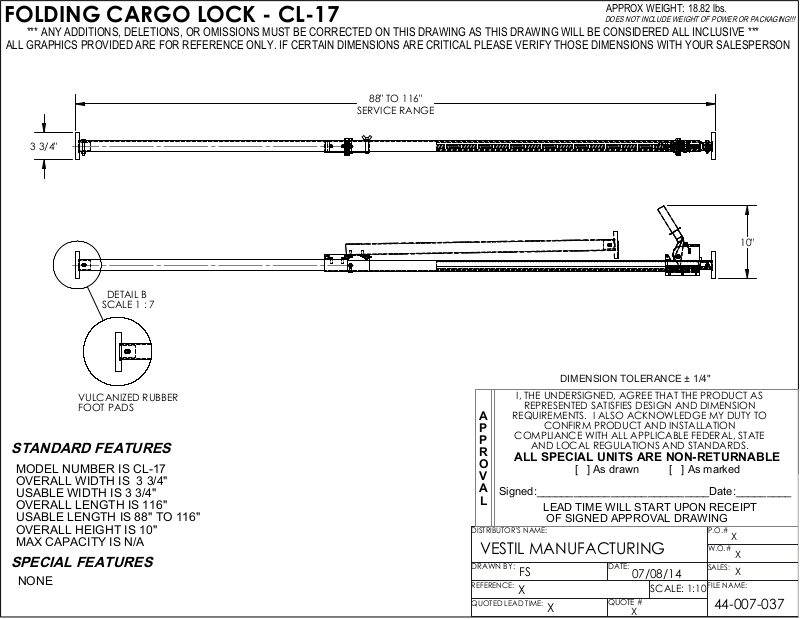

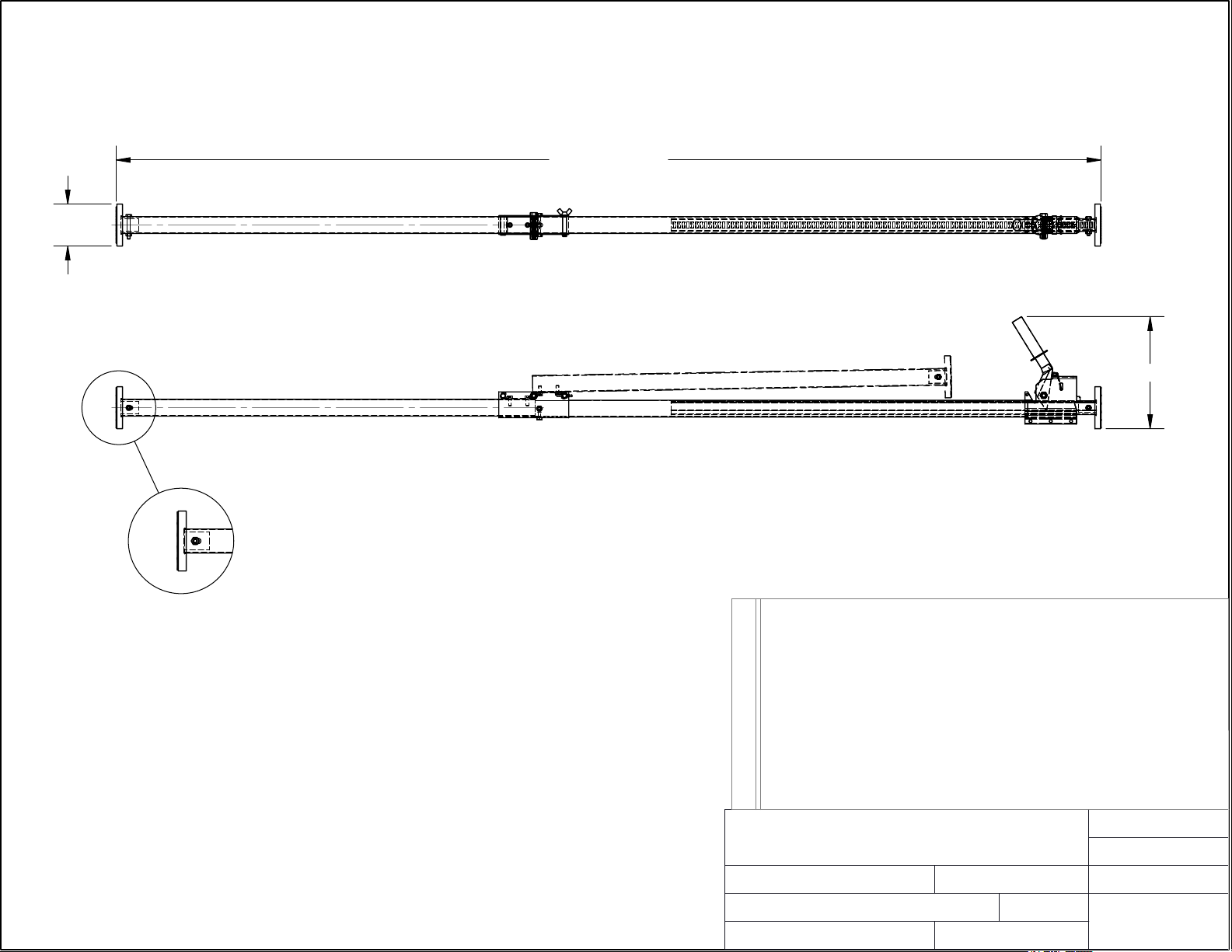

FOLDING CARGO LOCK - CL-17
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
88" TO 116"
SERVICE RANGE
3 3/4"
10"
DETAIL B
SCALE 1 : 7
VULCANIZED RUBBER
FOOT PADS
STANDARD FEATURES
MODEL NUMBER IS CL-17
OVERALL WIDTH IS 3 3/4"
USABLE WIDTH IS 3 3/4"
OVERALL LENGTH IS 116"
USABLE LENGTH IS 88" TO 116"
OVERALL HEIGHT IS 10"
MAX CAPACITY IS N/A
SPECIAL FEATURES
NONE
DIMENSION TOLERANCE ± 1/4"
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
AGREE THAT
THE PRODUCT AS
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
FS
X
:
X
DATE:
07/08/14
QUOTE #
X
SCALE: 1:10
P.O.#
W.O.#
SALES:
FILE NAME:
44-007-037
X
X
