Page 1
APPROX WEIGHT: 88.98 lbs.

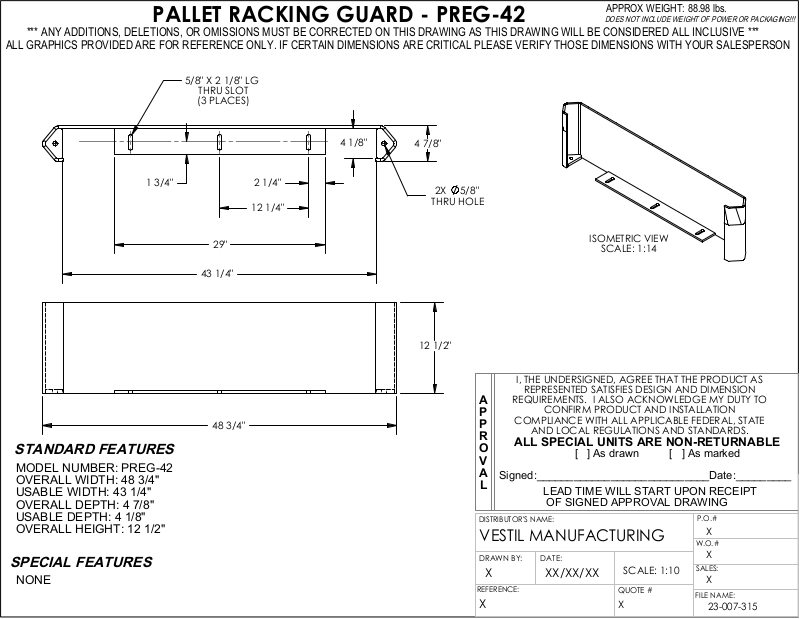

PALLET RACKING GUARD
- PREG-42
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
5/8" X 2 1/8" LG
THRU
SLOT
(3 PLACES)
1 3/4"
STANDARD FEATURES
MODEL NUMBER: PREG-42
OVERALL WIDTH: 48 3/4"
USABLE WIDTH: 43 1/4"
OVERALL DEPTH
USABLE DEPTH
: 4 7/8"
: 4 1/8"
OVERALL HEIGHT: 12 1/2"
SPECIAL FEATURES
NONE
29"
43 1/4"
48 3/4"
2 1/4"
12 1/4"
4 1/8"
4 7/8"
2X
THRU HOLE
12 1/2"
5/8"
ISOMETRIC VIEW
SCALE: 1:14
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
AGREE THAT
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
X
REFERENCE:
X
DATE:
XX/XX/XX
QUOTE #
X
SCALE: 1:10
THE PRODUCT AS
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
23-007-315
