APPROX WEIGHT: 161.56 lbs.
APPROX WEIGHT: 161.56 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!

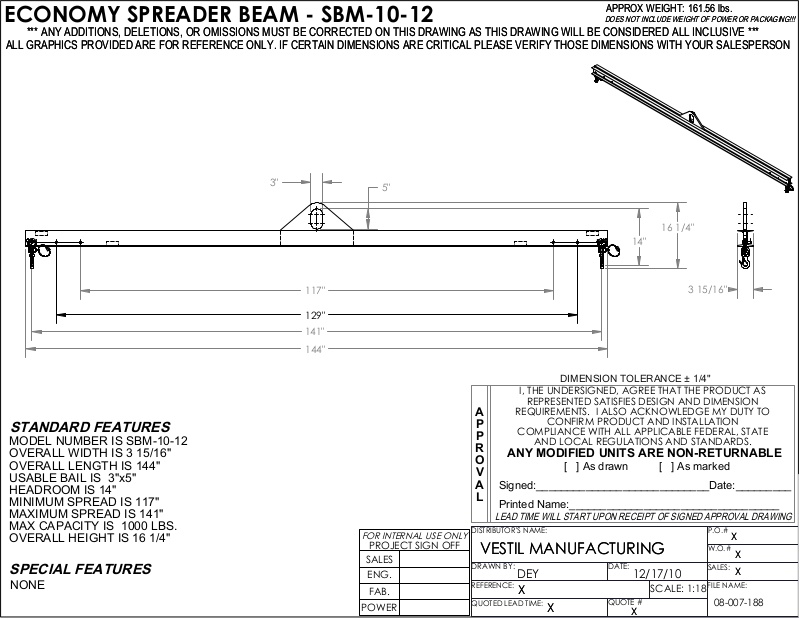

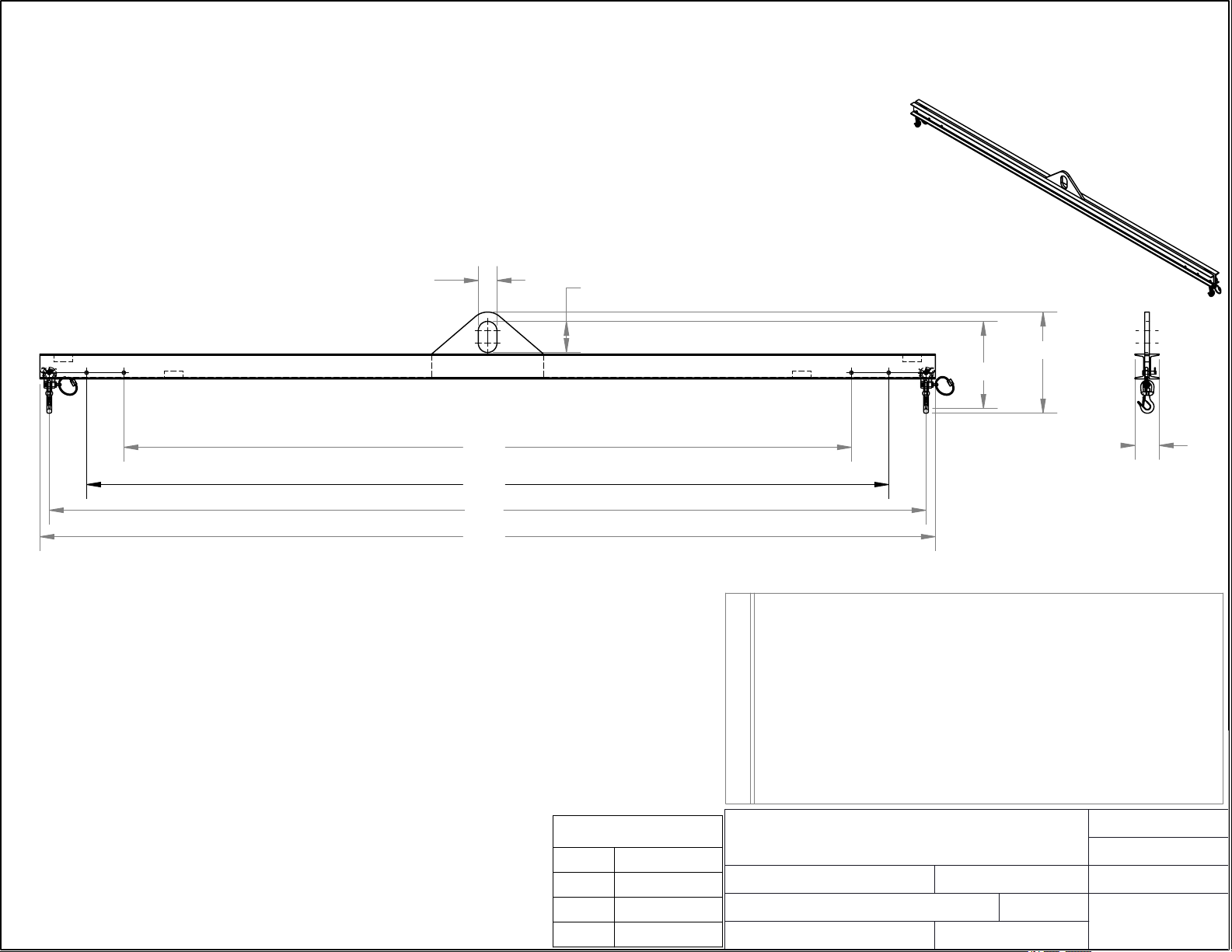

ECONOMY SPREADER BEAM - SBM-10-12
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
STANDARD FEATURES
MODEL NUMBER IS SBM-10-12
OVERALL WIDTH IS 3 15/16"
OVERALL LENGTH IS 144"
USABLE BAIL IS 3"x5"
HEADROOM IS 14"
MINIMUM SPREAD IS 117"
MAXIMUM SPREAD IS 141"
MAX CAPACITY IS 1000 LBS.
OVERALL HEIGHT IS 16 1/4"
SPECIAL FEATURES
NONE
3"
117"
129"
141"
144"
5"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
16 1/4"
14"
3 15/16"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
X
W.O.#
X
X
DEY
X
X
DATE:
12/17/10
SCALE: 1:18
:
X
X
QUOTE #
X
X
SALES:
X
X
FILE NAME:
08-007-188
