APPROX WEIGHT: 127.85 lbs.

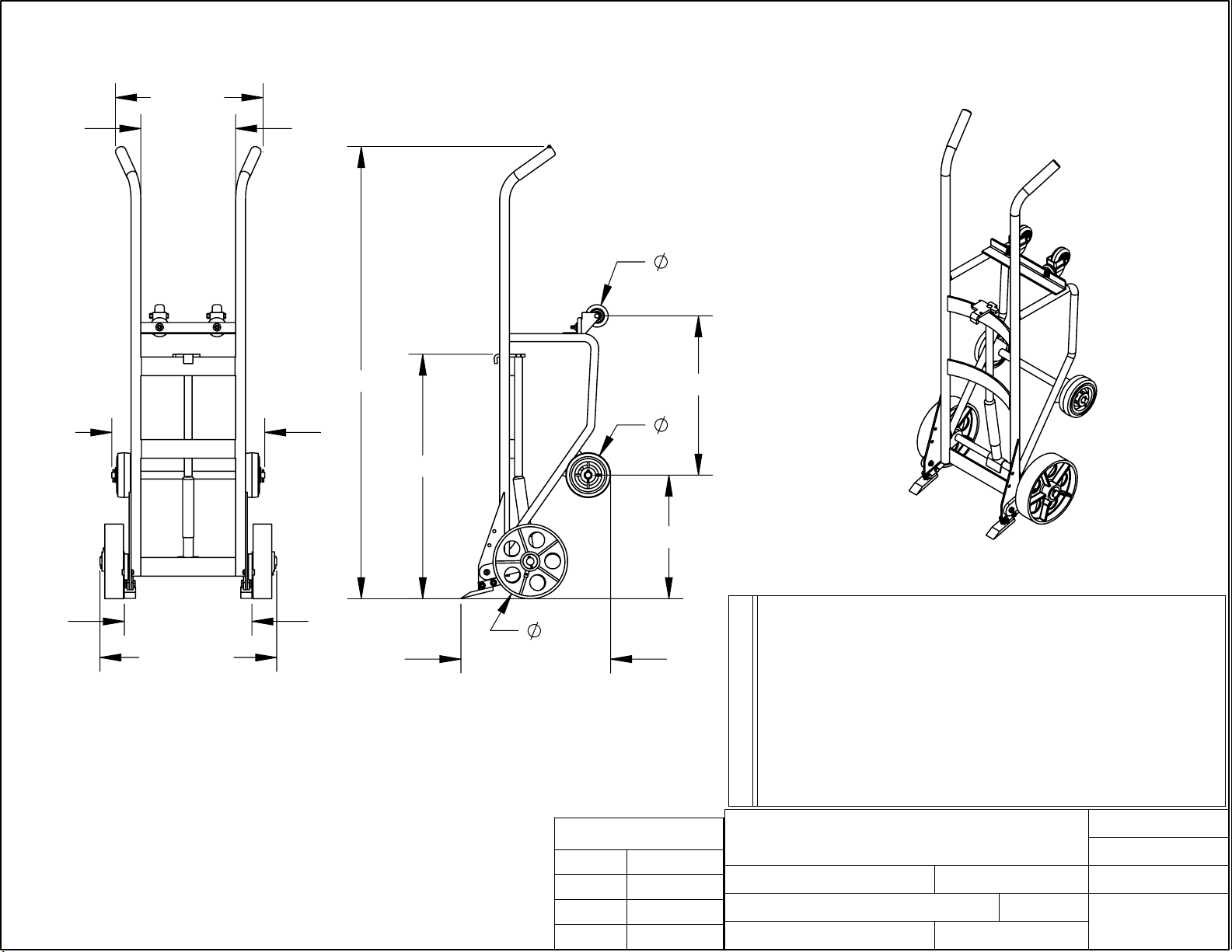

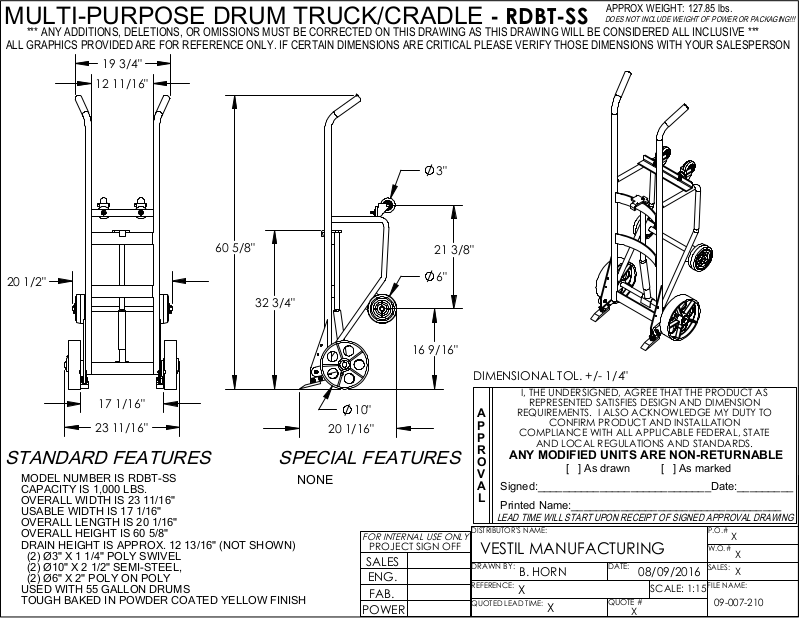

MULTI-PURPOSE DRUM TRUCK/CRADLE
- RDBT-SS
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
19 3/4"
12 11/16"
3"
60 5/8"
20 1/2"
32 3/4"
17 1/16"
23 11/16"
STANDARD FEATURES
MODEL NUMBER IS RDBT-SS
CAPACITY IS 1,000 LBS.
OVERALL WIDTH IS 23 11/16"
USABLE WIDTH IS 17 1/16"
OVERALL LENGTH IS 20 1/16"
OVERALL HEIGHT IS 60 5/8"
DRAIN HEIGHT IS APPROX. 12 13/16" (NOT SHOWN)
(2) Ø3" X 1 1/4" POLY SWIVEL
(2) Ø10" X 2 1/2" SEMI-STEEL,
(2) Ø6" X 2" POLY ON POLY
USED WITH 55 GALLON DRUMS
TOUGH BAKED IN POWDER COATED YELLOW FINISH
21 3/8"
6"
16 9/16"
10"
20 1/16"
SPECIAL FEATURES
NONE
