APPROX WEIGHT: 1.49 lbs.

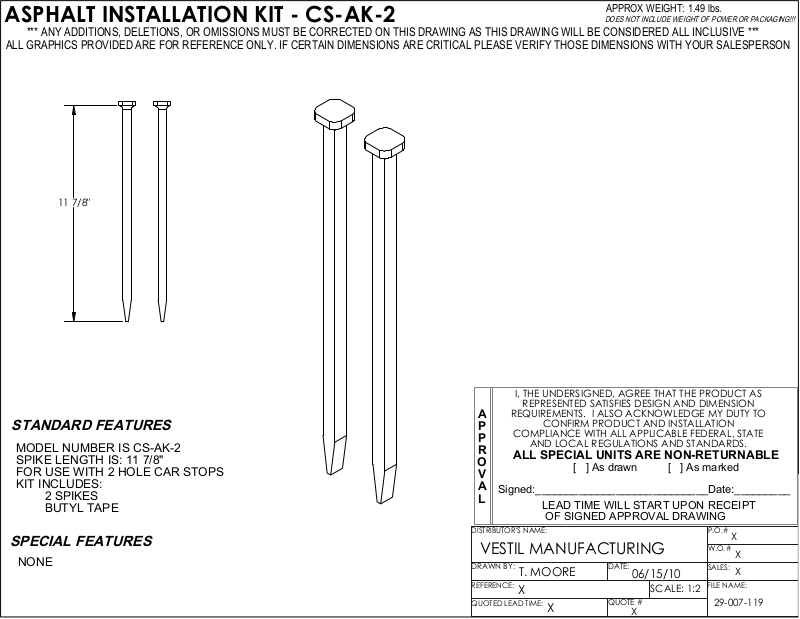

ASPHALT INSTALLATION KIT
- CS-AK-2
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
11 7/8"
STANDARD FEATURES
MODEL NUMBER IS CS-AK-2
SPIKE LENGTH IS: 11 7/8"
FOR USE WITH 2 HOLE CAR STOPS
KIT INCLUDES:
2 SPIKES
BUTYL TAPE
SPECIAL FEATURES
NONE
DIMENSION TOLERANCE ± 1/4"
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
T. MOORE
X
:
X
AGREE THAT
DATE:
06/15/10
SCALE: 1:2
QUOTE #
X
THE PRODUCT AS
P.O.#
W.O.#
SALES:
FILE NAME:
29-007-119
X
X
X
