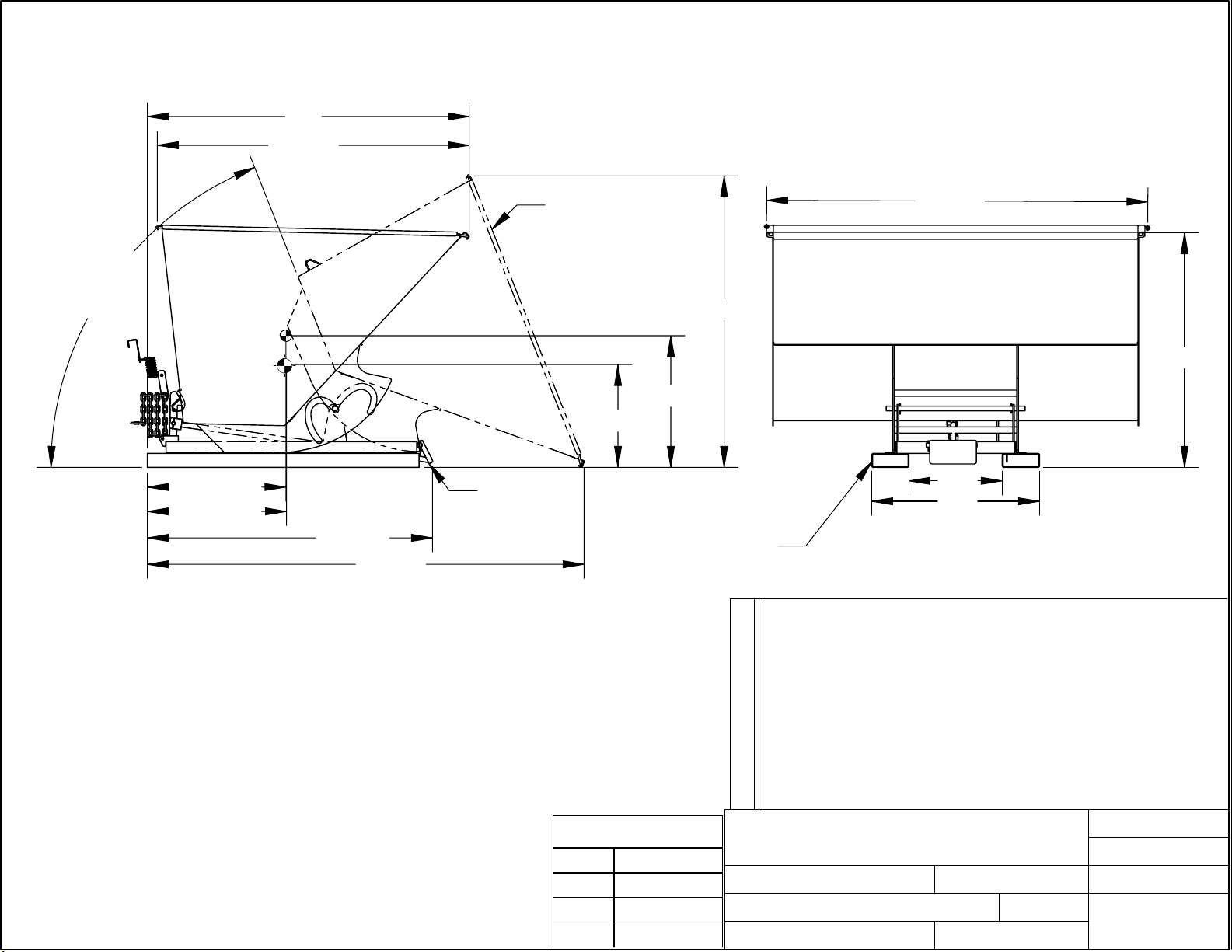

SELF-DUMPING STEEL HOPPER W/ BUMPER RELEASE - D-300-MD
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
APPROX WEIGHT: 940.02 lbs.
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
69"
66 7/8"
68°
DUMPED
ANGLE
LOAD CENTER
CENTER OF
GRAVITY
29 11/16"
29 13/16"
61 1/8"
93 5/8"
STANDARD FEATURES
MODEL NUMBER: D-300-MD
VOLUME: 3 CU. YDS.
CAPACITY: 4,000 LBS.
OVERALL WIDTH: 81 3/4"
OVERALL LENGTH: 69"
OVERALL HEIGHT: 50 5/16"
NEVER EXCEED LOAD CENTER RATING PER FORK
TRUCK MANUFACTURER'S GUIDELINES.
DO NOT USE THIS FORK TRUCK ATTACHMENT IF
LOAD WILL EXCEED FORK TRUCK
MANUFACTURER'S LOAD CENTER RATING.
APPROX. WEIGHT/ LOST LOAD=940.02 LBS.
MINIMUM EFFECTIVE THICKNESS= LESS THAN 1"
PULL CABLE IS AT LEAST: 48"
TOUGH BAKED IN POWDER
COATED BLUE FINISH
SPECIAL FEATURES
NONE
***ADDITION OF CASTERS MAY CHANGE WEIGHT
CAPACITY BASED ON CASTER RATING***
DUMPED
POSITION
CONTACT
RELEASE
LEVER
FOR INTERNAL USE ONLY
POWER
28 1/4"
22 1/16"
7 1/2" X 2 1/2"
USABLE FORK
POCKETS
PROJECT SIGN OFF
SALES
ENG.
FAB.
81 3/4"
62 1/2"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
W. STALEY
X
:
X
20"
36"
DATE:
5/7/08
QUOTE #
X
SCALE: 1:24
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
37-007-027
50 5/16"
