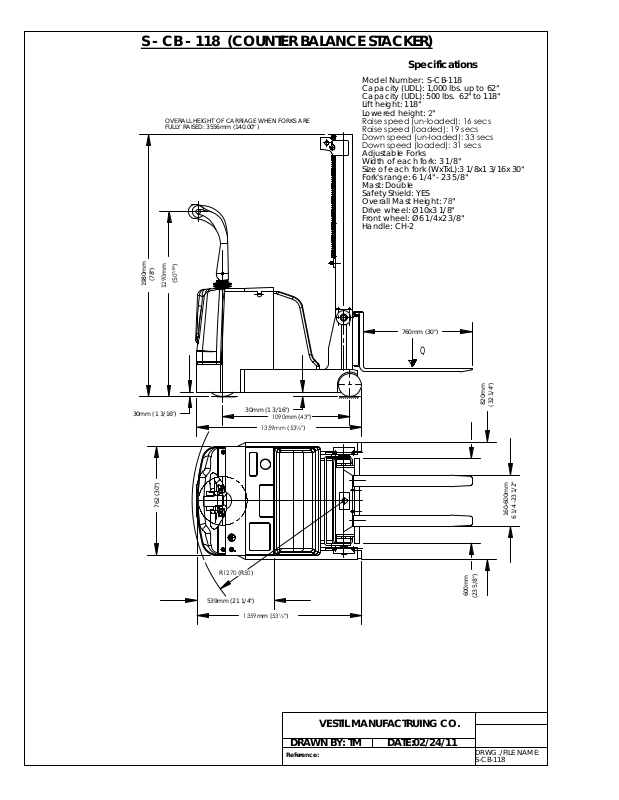

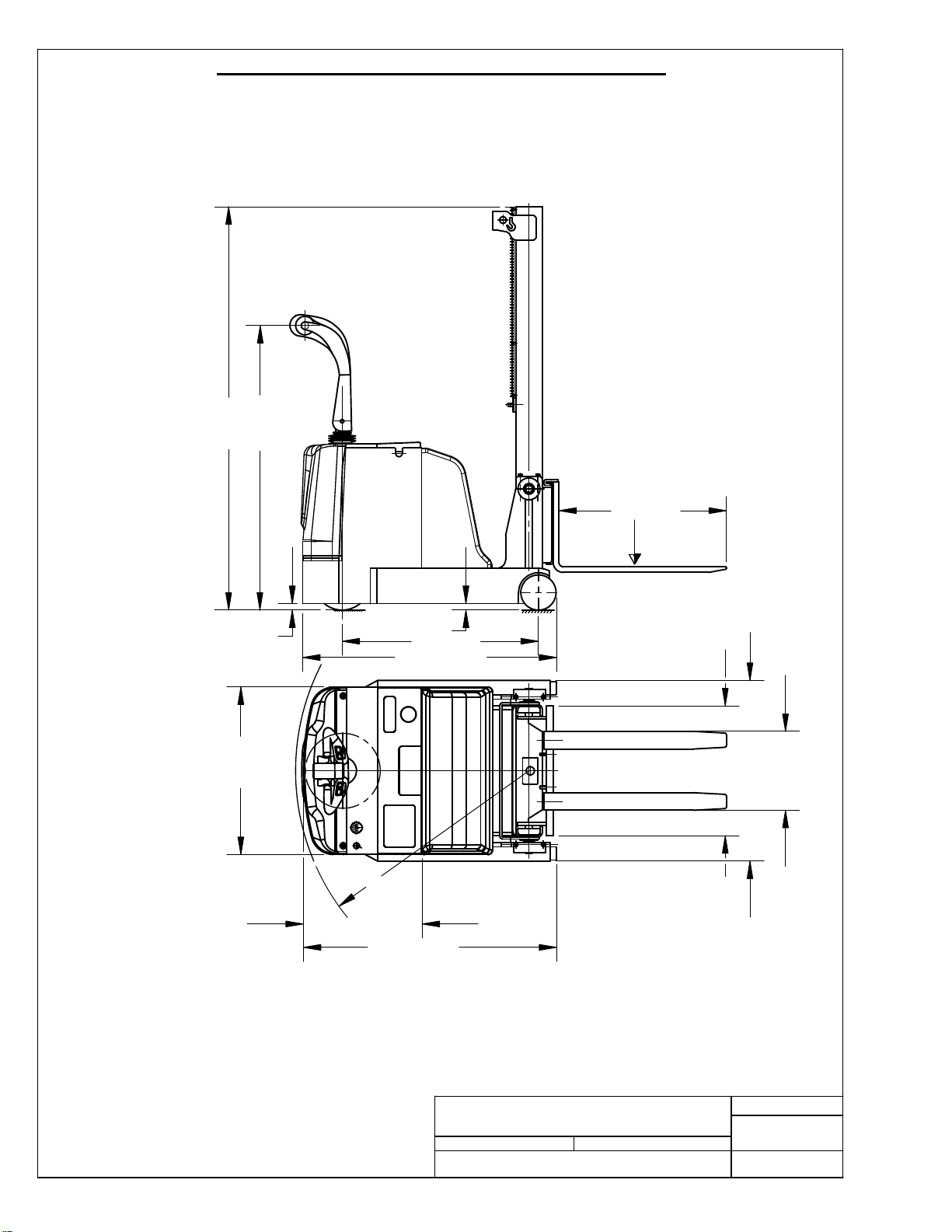

S - CB - 118
FULLY RAISED: 3556mm (140.00" )
")
7/8
(78")
1290mm
(50
1980mm
(COUNTER BALANCE STACKER)
Specifications
Model Number: S-CB-118
Capacity (UDL): 1,000 lbs. up to 62"
Capacity (UDL): 500 lbs. 62" to 118"
Lift height: 118"
OVERALL HEIGHT OF CARRIAGE WHEN FORKS ARE
Lowered height: 2"
Raise speed (un-loaded): 16 secs
Raise speed (loaded): 19 secs
Down speed (un-loaded): 33 secs
Down speed (loaded): 31 secs
Adjustable Forks
Width of each fork: 3 1/8"
Size of each fork (WxTxL):3 1/8x1 3/16x 30"
Fork's range: 6 1/4" - 23 5/8"
Mast: Double
Safety Shield: YES
Overall Mast Height: 78"
Drive wheel: Ø10x3 1/8"
Front wheel: Ø6 1/4x2 3/8"
Handle: CH-2
760mm (30")
30mm (1 3/16")
762 (30")
30mm (1 3/16")
1270 (R50)
R
539mm (21 1/4")
1359mm (53½")
1090mm (43")
1359mm (53½")
820mm
(32 1/4")
160-600mm
6 1/4 -23 1/2"
600mm
(23 5/8")
VESTIL MANUFACTRUING CO.
DRAWN BY: TM
Reference:
DATE:02Q/24/11
DRWG./FILE NAME:
S-CB-118
