APPROX WEIGHT: 227.66 lbs.

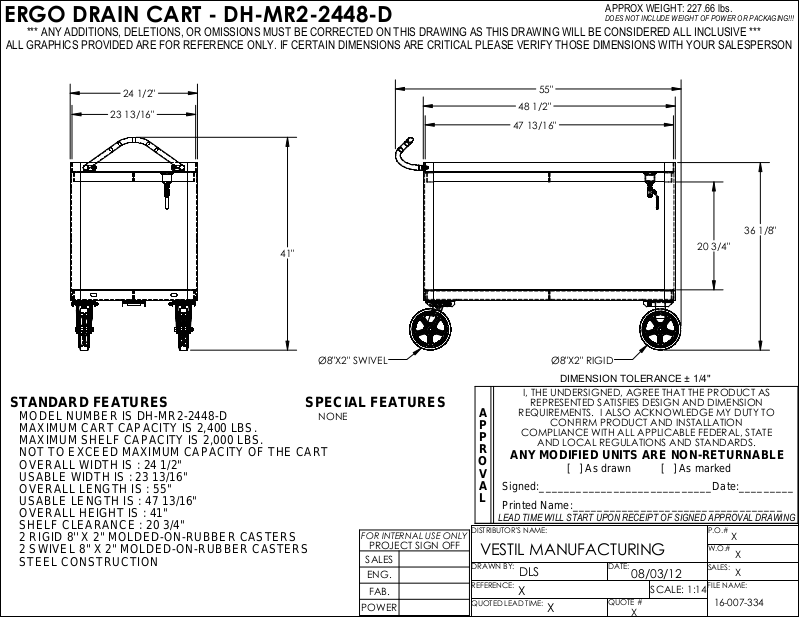

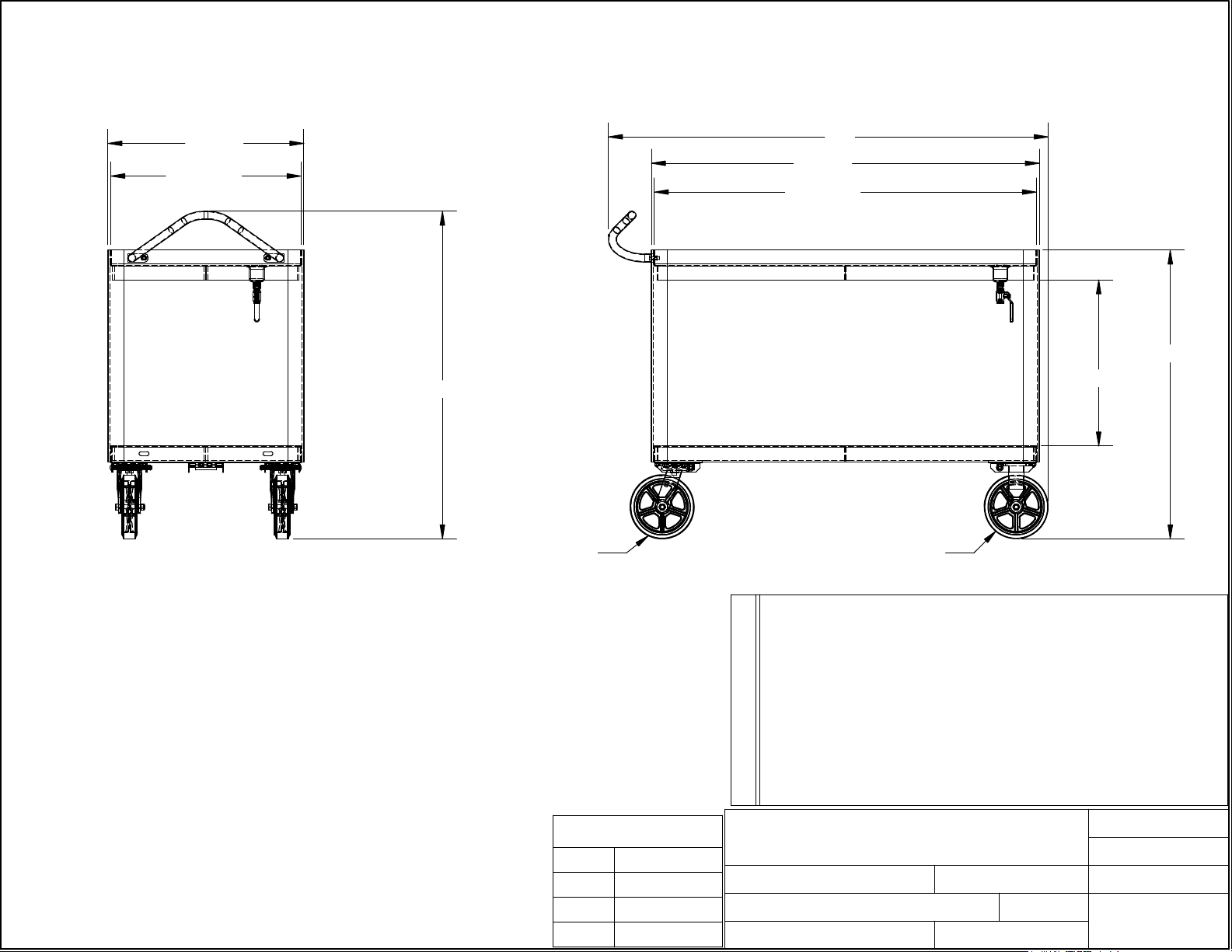

ERGO DRAIN CART - DH-MR2-2448-D
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
24 1/2"
23 13/16"
41"
Ø8"X2" SWIVEL Ø8"X2" RIGID
SPECIAL FEATURESSTANDARD FEATURES
MODEL NUMBER IS DH-MR2-2448-D
MAXIMUM CART CAPACITY IS 2,400 LBS.
MAXIMUM SHELF CAPACITY IS 2,000 LBS.
NOT TO EXCEED MAXIMUM CAPACITY OF THE CART
OVERALL WIDTH IS : 24 1/2"
USABLE WIDTH IS : 23 13/16"
OVERALL LENGTH IS : 55"
USABLE LENGTH IS : 47 13/16"
OVERALL HEIGHT IS : 41"
SHELF CLEARANCE : 20 3/4"
2 RIGID 8'' X 2'' MOLDED-ON-RUBBER CASTERS
2 SWIVEL 8'' X 2'' MOLDED-ON-RUBBER CASTERS
STEEL CONSTRUCTION
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
55"
48 1/2"
47 13/16"
20 3/4"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
DLS
X
DATE:
08/03/12
SCALE: 1:14
:
X
QUOTE #
X
SALES:
FILE NAME:
16-007-334
36 1/8"
X
