APPROX WEIGHT: 226.23 lbs.

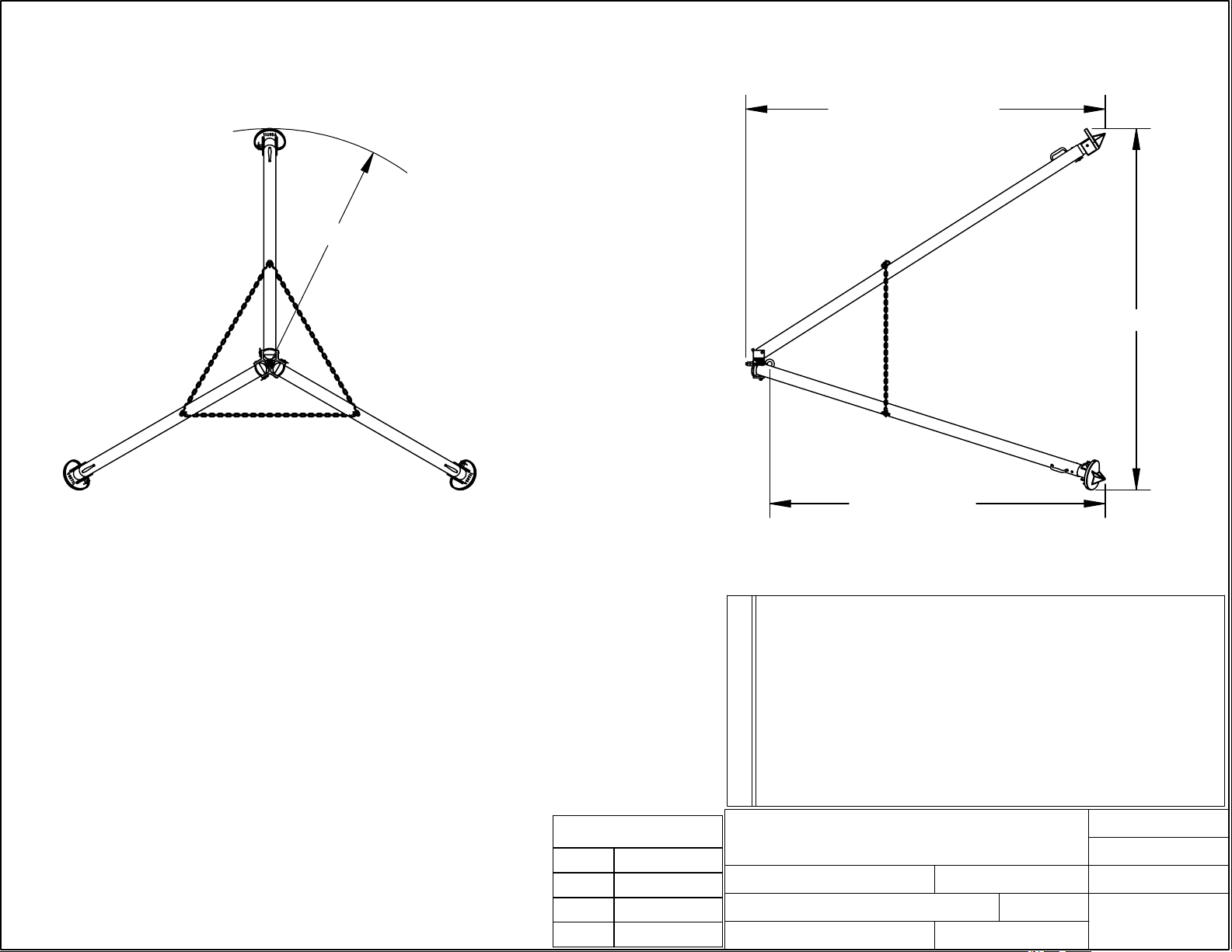

ADJUSTABLE STEEL TRIPOD HOIST STAND - TRI-SA
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
R73 5/8"
112 3/8"
105"
-165 3/4"
EYELET
HEIGHT
- 173 1/8"
113"
STANDARD FEATURES
MODEL NUMBER: TRI-SA
CAPACITY: 2,000 LBS.
OVERALL HEIGHT: RANGE
112 3/8"
MAXIMUM BASE RADIUS: 73 5/8"
MAXIMUM EYELET HEIGHT: 165 3/4"
MINIMUM EYELET HEIGHT: 105"
UNIT IS ADJUSTABLE
SPECIAL FEATURES
NONE
- 173 1/8"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
TJM
X
DATE:
09/01/09
SCALE: 1:35
:
X
QUOTE #
X
SALES:
X
FILE NAME:
28-007-054
