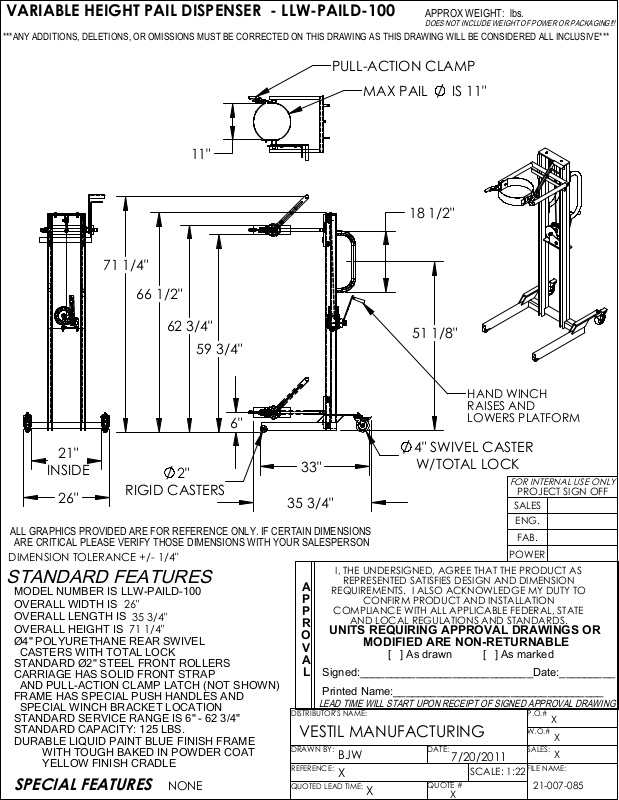

VARIABLE HEIGHT PAIL DISPENSER - LLW-PAILD-100
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
APPROX WEIGHT: lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
PULL-ACTION CLAMP
71 1/4"
66 1/2"
11"
62 3/4"
59 3/4"
MAX PAIL
18 1/2"
51 1/8"
IS 11"
6"
21"
INSIDE
26"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DIMENSION TOLERANCE +/- 1/4"
RIGID CASTERS
2"
STANDARD FEATURES
MODEL NUMBER IS LLW-PAILD-100
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
Ø4" POLYURETHANE REAR SWIVEL
CASTERS WITH TOTAL LOCK
STANDARD Ø2" STEEL FRONT ROLLERS
CARRIAGE HAS SOLID FRONT STRAP
AND PULL-ACTION CLAMP LATCH (NOT SHOWN)
FRAME HAS SPECIAL PUSH HANDLES AND
SPECIAL WINCH BRACKET LOCATION
STANDARD SERVICE RANGE IS 6" - 62 3/4"
STANDARD CAPACITY: 125 LBS.
DURABLE LIQUID PAINT BLUE FINISH FRAME
WITH TOUGH BAKED IN POWDER COAT
YELLOW FINISH CRADLE
SPECIAL FEATURES
26"
35 3/4"
71 1/4"
NONE
33"
35 3/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
A
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
P
P
R
O
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
V
A
L
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
BJW
X
HAND WINCH
RAISES AND
LOWERS PLATFORM
4" SWIVEL CASTER
W/TOTAL LOCK
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
CONFIRM PRODUCT AND INSTALLATION
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
P.O.#
X
W.O.#
X
DATE:
7/20/2011
SCALE: 1:22
:
X
QUOTE #
X
SALES:
X
FILE NAME:
21-007-085
