APPROX WEIGHT: 1.32 lbs.

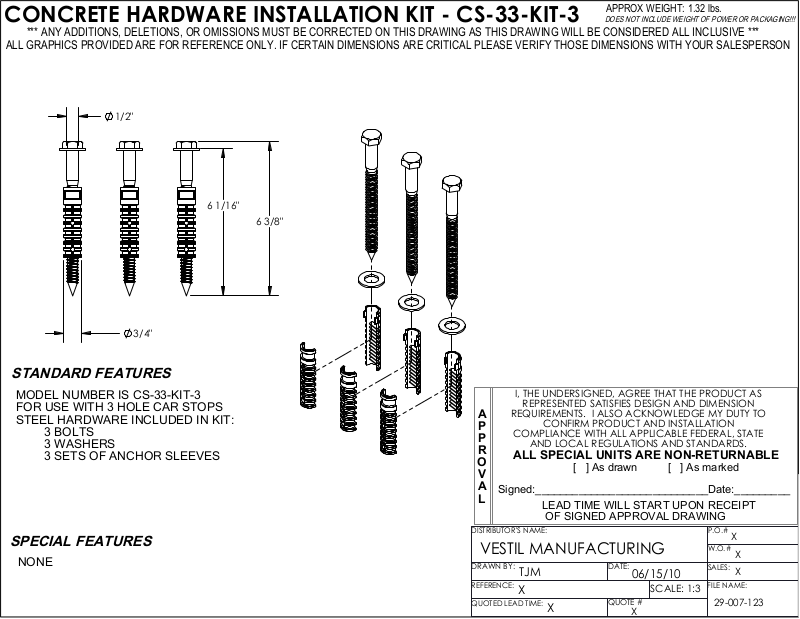

CONCRETE HARDWARE INSTALLATION KIT
- CS-33-KIT-3
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
1/2"
6 1/16"
6 3/8"
3/4"
STANDARD FEATURES
MODEL NUMBER IS CS-33-KIT-3
FOR USE WITH 3 HOLE CAR STOPS
STEEL HARDWARE INCLUDED IN KIT:
3 BOLTS
3 WASHERS
3 SETS OF ANCHOR SLEEVES
SPECIAL FEATURES
NONE
DIMENSION TOLERANCE ± 1/4"
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
AGREE THAT
THE PRODUCT AS
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
TJM
X
:
X
DATE:
06/15/10
QUOTE #
X
SCALE: 1:3
P.O.#
W.O.#
SALES:
FILE NAME:
29-007-123
X
X
