Page 1
APPROX WEIGHT: 134.29 lbs.

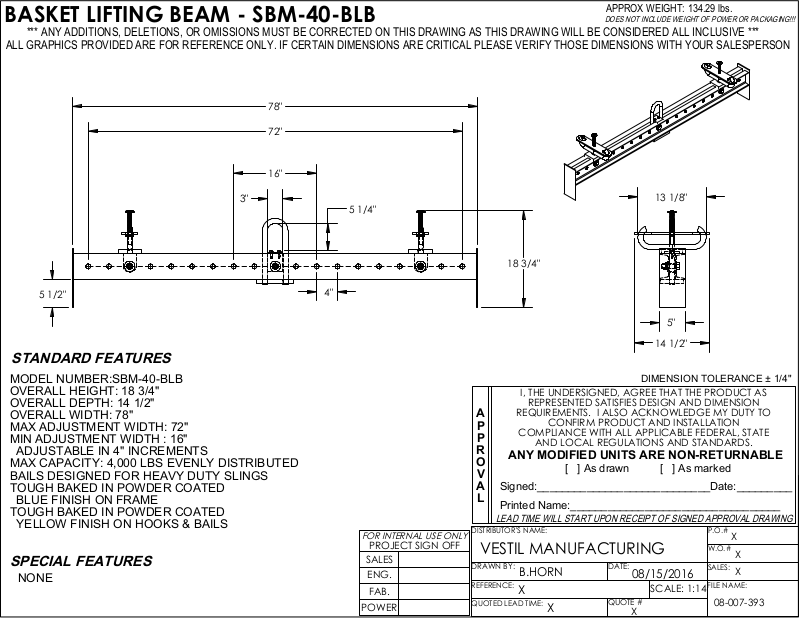

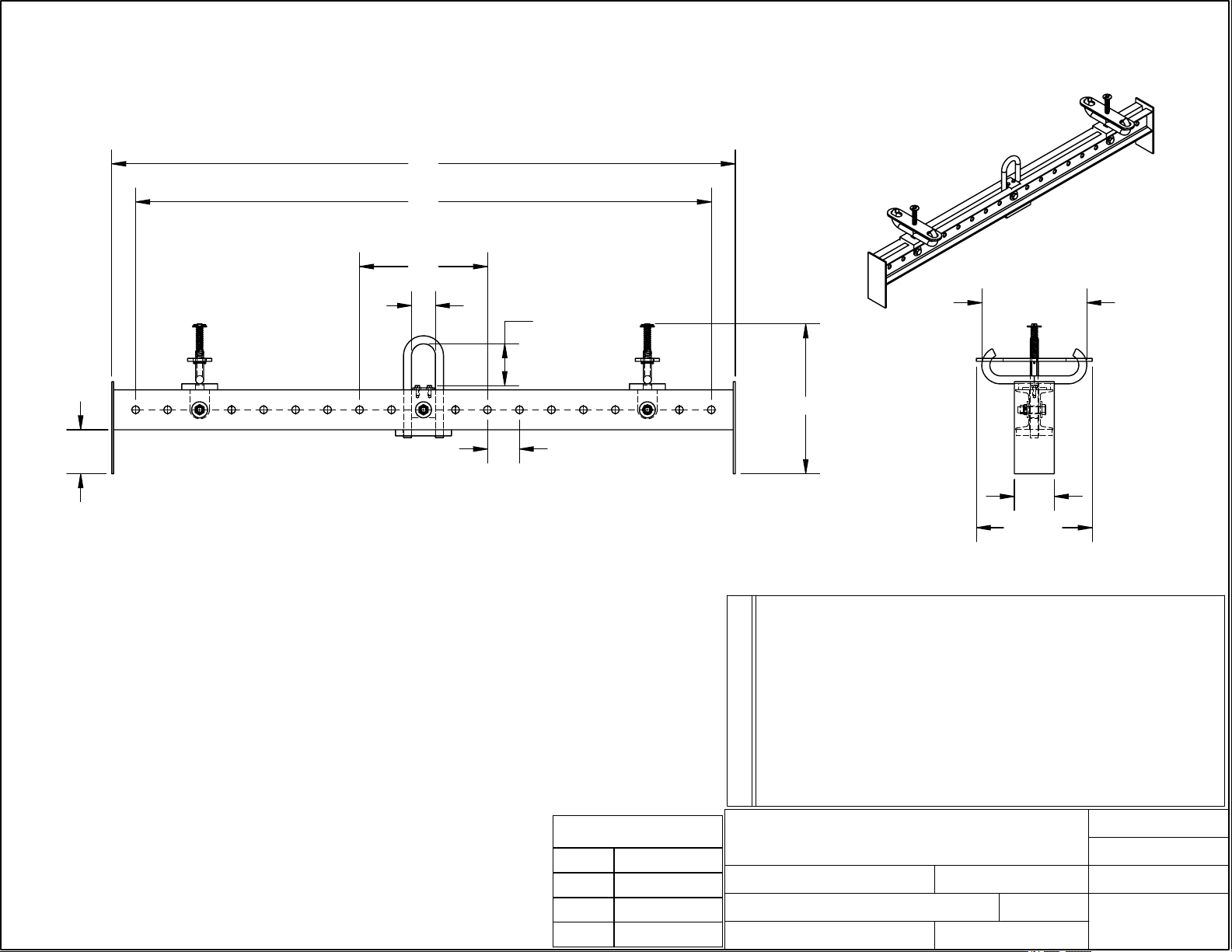

BASKET LIFTING BEAM - SBM-40-BLB
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
78"
72"
16"
3"
5 1/2"
STANDARD FEATURES
MODEL NUMBER:SBM-40-BLB
OVERALL HEIGHT: 18 3/4"
OVERALL DEPTH: 14 1/2"
OVERALL WIDTH: 78"
MAX ADJUSTMENT WIDTH: 72"
MIN ADJUSTMENT WIDTH : 16"
ADJUSTABLE IN 4" INCREMENTS
MAX CAPACITY: 4,000 LBS EVENLY DISTRIBUTED
BAILS DESIGNED FOR HEAVY DUTY SLINGS
TOUGH BAKED IN POWDER COATED
BLUE FINISH ON FRAME
TOUGH BAKED IN POWDER COATED
YELLOW FINISH ON HOOKS & BAILS
SPECIAL FEATURES
NONE
4"
5 1/4"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
13 1/8"
18 3/4"
5"
14 1/2"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
B.HORN
X
:
X
DATE:
08/15/2016
SCALE: 1:14
QUOTE #
X
SALES:
X
FILE NAME:
08-007-393
