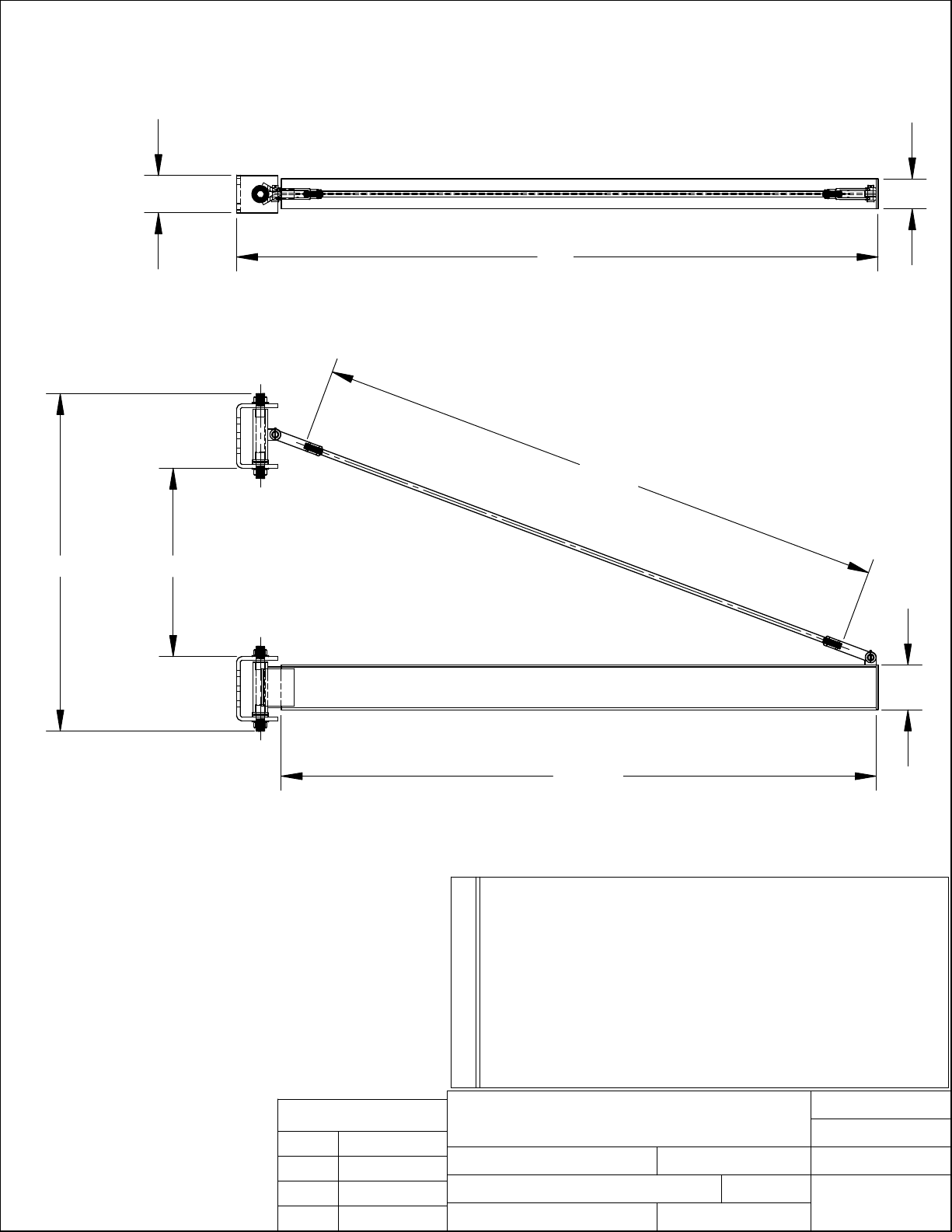

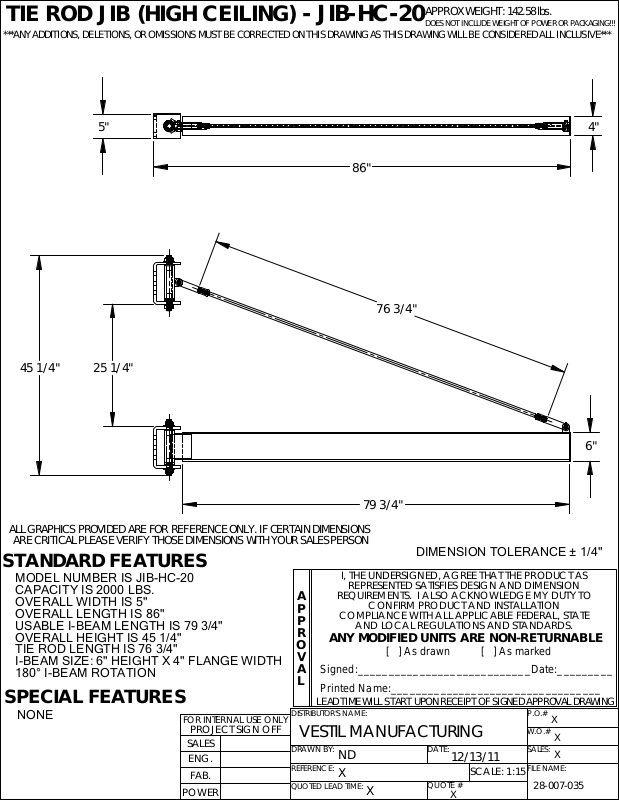

TIE ROD JIB (HIGH CEILING) - JIB-HC-20
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
APPROX WEIGHT: 142.58 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
45 1/4"
5"
25 1/4"
4"
86"
76 3/4"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
STANDARD FEATURES
MODEL NUMBER IS JIB-HC-20
CAPACITY IS 2000 LBS.
OVERALL WIDTH IS 5"
OVERALL LENGTH IS 86"
USABLE I-BEAM LENGTH IS 79 3/4"
OVERALL HEIGHT IS 45 1/4"
TIE ROD LENGTH IS 76 3/4"
I-BEAM SIZE: 6" HEIGHT X 4" FLANGE WIDTH
180° I-BEAM ROTATION
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
ANY MODIFIED UNITS ARE NON-RETURNABLE
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
ND
X
79 3/4"
DIMENSION TOLERANCE ± 1/4"
CONFIRM PRODUCT AND INSTALLATION
AND LOCAL REGULATIONS AND STANDARDS.
[ ] As drawn [ ] As marked
P.O.#
X
W.O.#
X
DATE:
12/13/11
SCALE: 1:15
X
QUOTE #
X
SALES:
X
FILE NAME:
28-007-035
