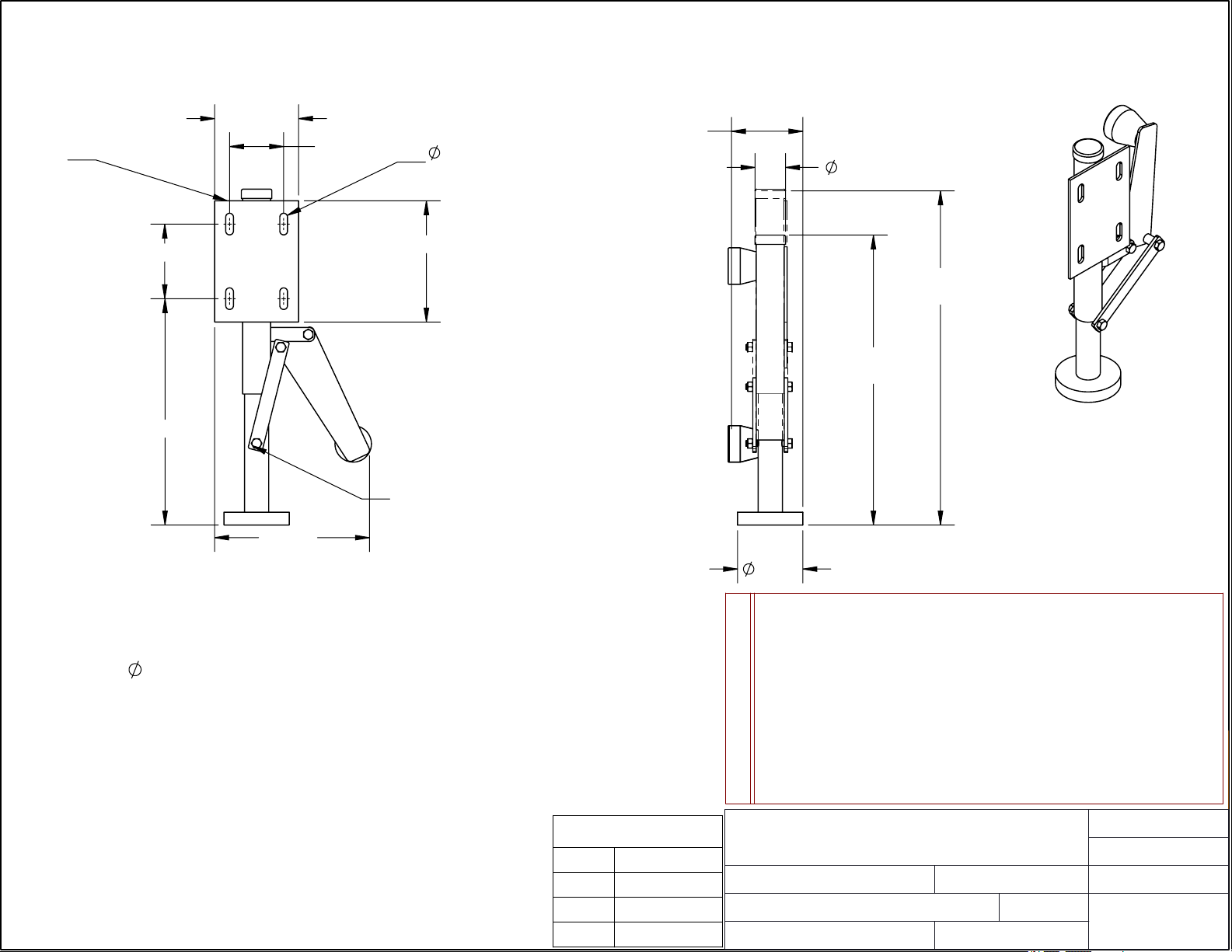

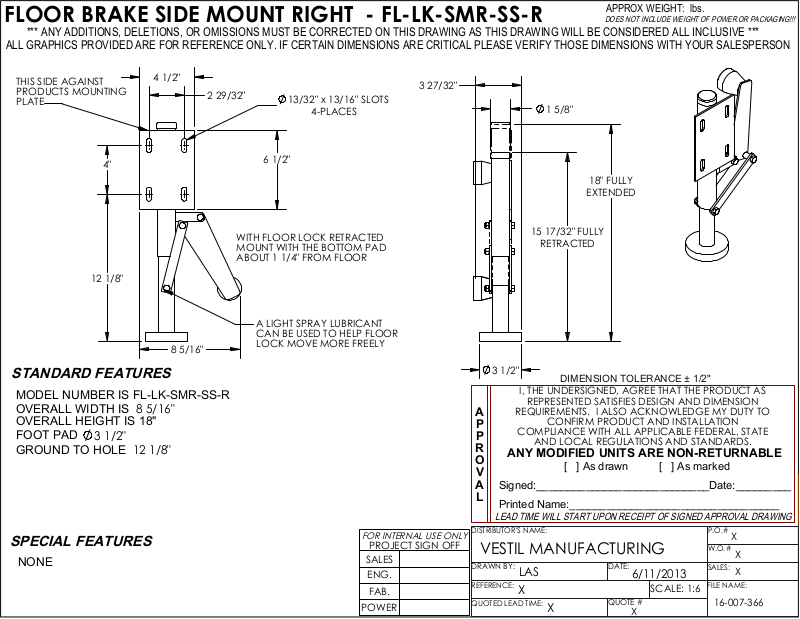

FLOOR BRAKE SIDE MOUNT RIGHT - FL-LK-SMR-SS-R
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
THIS SIDE AGAINST
PRODUCTS MOUNTING
PLATE
4"
12 1/8"
4 1/2"
2 29/32"
8 5/16"
STANDARD FEATURES
MODEL NUMBER IS FL-LK-SMR-SS-R
OVERALL WIDTH IS
8 5/16"
OVERALL HEIGHT IS 18"
FOOT PAD
GROUND TO HOLE
3 1/2"
12 1/8"
SPECIAL FEATURES
NONE
13/32" x 13/16" SLOTS
4-PLACES
6 1/2"
WITH FLOOR LOCK RETRACTED
MOUNT WITH THE BOTTOM PAD
ABOUT 1 1/4" FROM FLOOR
A LIGHT SPRAY LUBRICANT
CAN BE USED TO HELP FLOOR
LOCK MOVE MORE FREELY
