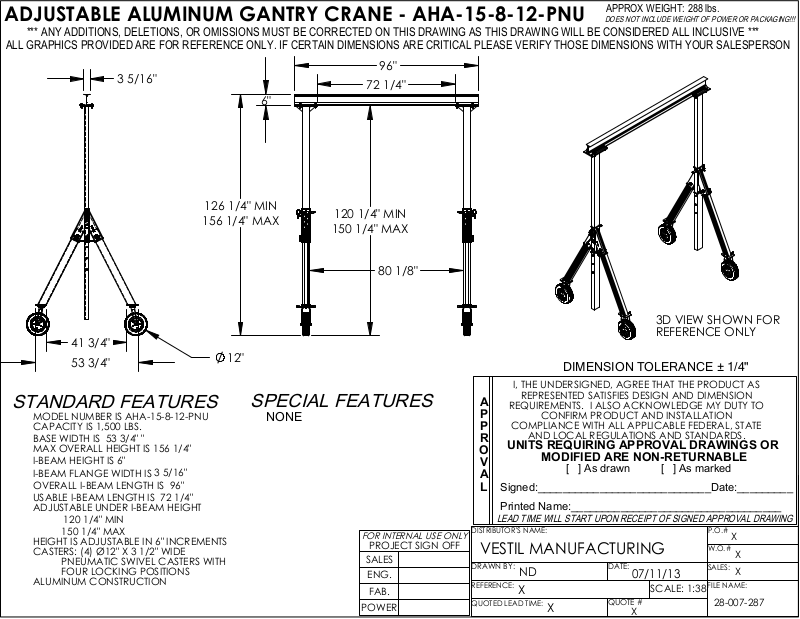

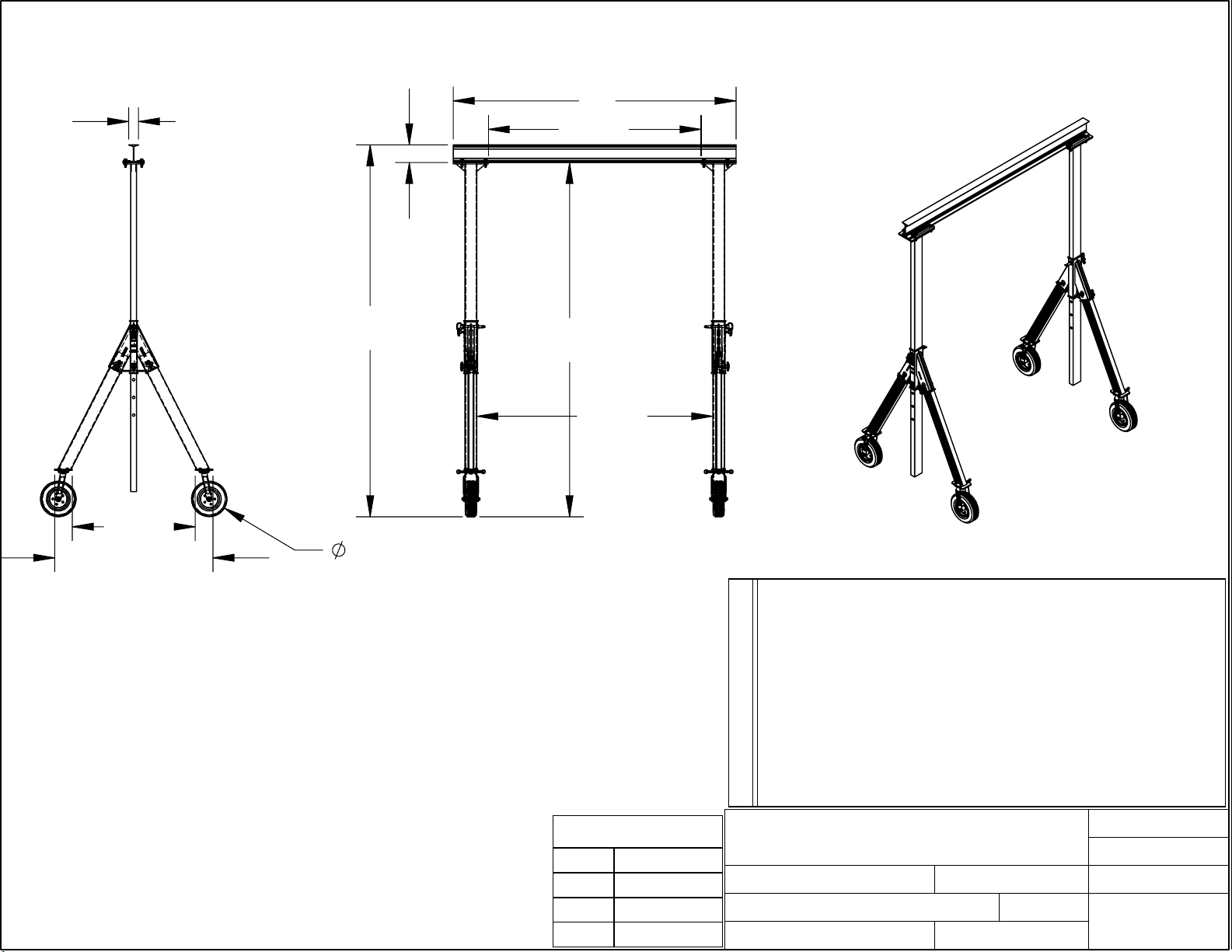

ADJUSTABLE ALUMINUM GANTRY CRANE - AHA-15-8-12-PNU
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
96"
APPROX WEIGHT: 288 lbs.
3 5/16"
72 1/4"
6"
126 1/4" MIN
156 1/4" MAX
41 3/4"
53 3/4"
STANDARD FEATURES
MODEL NUMBER IS AHA-15-8-12-PNU
CAPACITY IS 1,500 LBS.
BASE WIDTH IS
MAX OVERALL HEIGHT IS 156 1/4"
I-BEAM HEIGHT IS
I-BEAM FLANGE WIDTH IS
OVERALL I-BEAM LENGTH IS
USABLE I-BEAM LENGTH IS
ADJUSTABLE UNDER I-BEAM HEIGHT
120 1/4" MIN
150 1/4" MAX
HEIGHT IS ADJUSTABLE IN 6" INCREMENTS
CASTERS: (4) Ø12" X 3 1/2" WIDE
PNEUMATIC SWIVEL CASTERS WITH
FOUR LOCKING POSITIONS
ALUMINUM CONSTRUCTION
53 3/4"
6"
"
3 5/16"
96"
72 1/4"
120 1/4" MIN
150 1/4" MAX
80 1/8"
12"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
3D VIEW SHOWN FOR
REFERENCE ONLY
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
ND
X
DATE:
07/11/13
SCALE: 1:38
:
X
QUOTE #
X
SALES:
X
FILE NAME:
28-007-287
