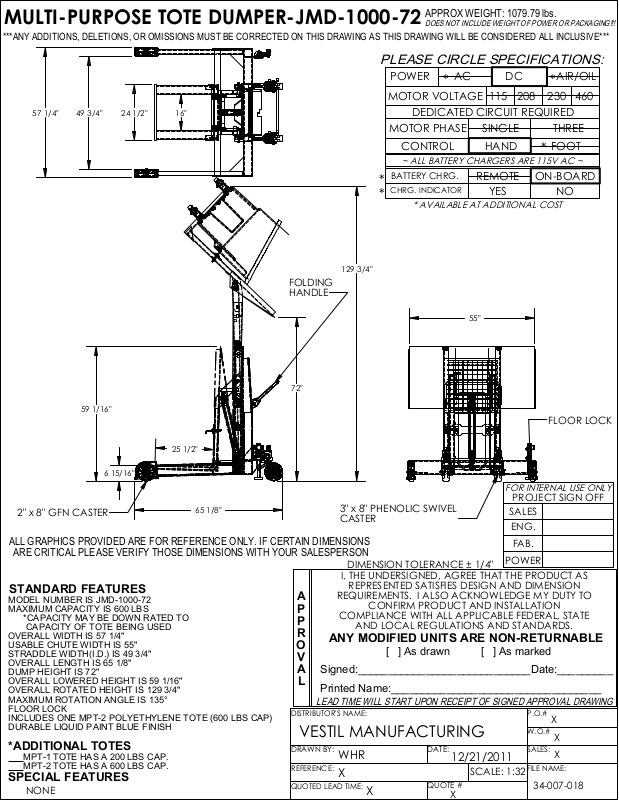

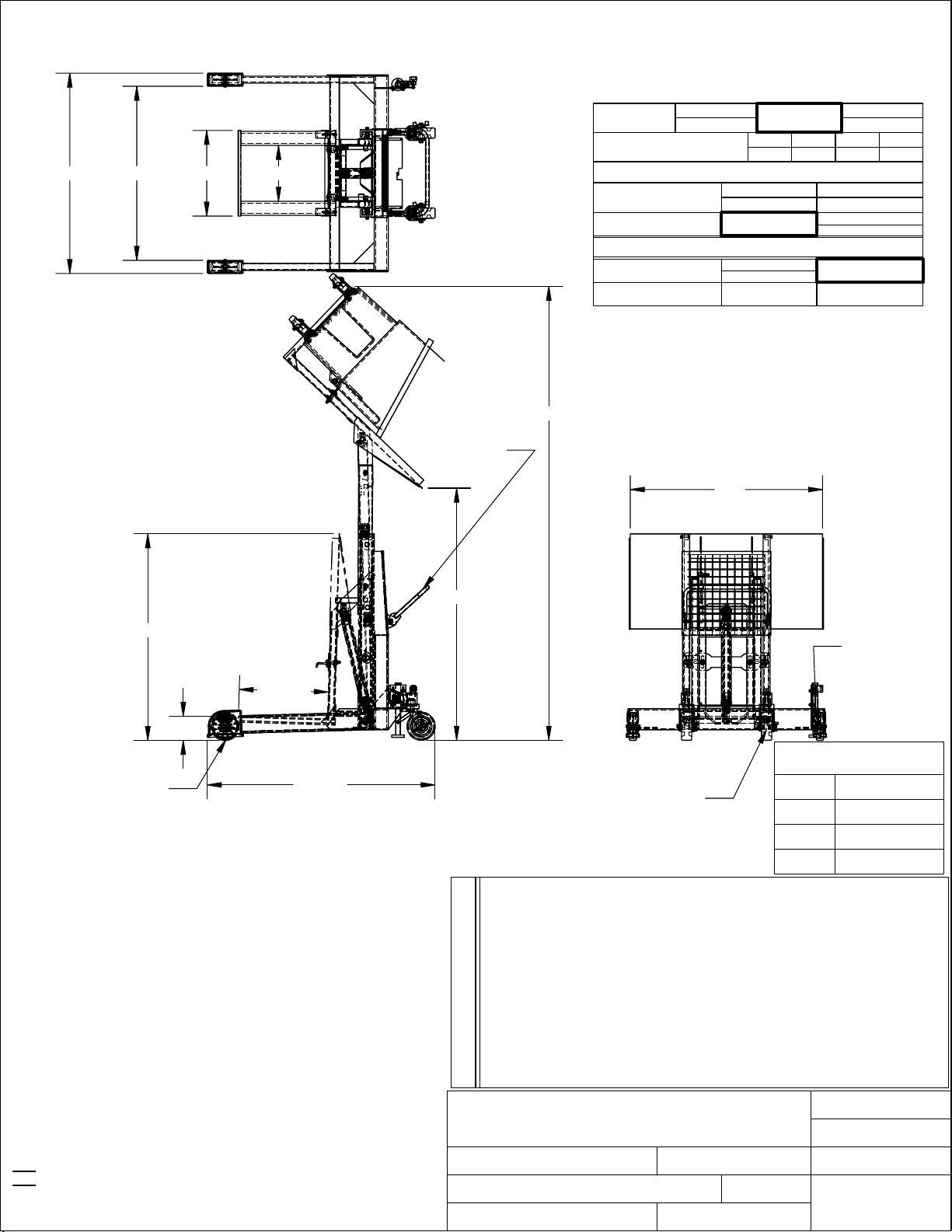

MULTI-PURPOSE TOTE DUMPER-JMD-1000-72
APPROX WEIGHT: 1079.79 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
PLEASE CIRCLE SPECIFICATIONS:
57 1/4" 49 3/4" 24 1/2"
16"
POWER AC DC AIR/OIL
MOTOR VOLTAGE 115 208 230 460
DEDICATED CIRCUIT REQUIRED
MOTOR PHASE SINGLE THREE
* *
59 1/16"
FOLDING
HANDLE
72"
129 3/4"
CONTROL HAND FOOT
~ ALL BATTERY CHARGERS ARE 115V AC ~
BATTERY CHRG.
*
CHRG. INDICATOR
*
* AVAILABLE AT ADDITIONAL COST
REMOTE ON-BOARD
YES NO
55"
*
>
FLOOR LOCK
25 1/2"
6 15/16"
2" x 8" GFN CASTER
65 1/8"
3" x 8" PHENOLIC SWIVEL
CASTER
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
STANDARD FEATURES
MODEL NUMBER IS JMD-1000-72
MAXIMUM CAPACITY IS 600 LBS
*CAPACITY MAY BE DOWN RATED TO
CAPACITY OF TOTE BEING USED
OVERALL WIDTH IS 57 1/4"
USABLE CHUTE WIDTH IS 55"
STRADDLE WIDTH(I.D.) IS 49 3/4"
OVERALL LENGTH IS 65 1/8"
DUMP HEIGHT IS 72"
OVERALL LOWERED HEIGHT IS 59 1/16"
OVERALL ROTATED HEIGHT IS 129 3/4"
MAXIMUM ROTATION ANGLE IS 135°
FLOOR LOCK
INCLUDES ONE MPT-2 POLYETHYLENE TOTE (600 LBS CAP)
DURABLE LIQUID PAINT BLUE FINISH
*ADDITIONAL TOTES
MPT-1 TOTE HAS A 200 LBS CAP.
MPT-2 TOTE HAS A 600 LBS CAP.
SPECIAL FEATURES
NONE
A
P
P
R
O
V
A
L
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
WHR
X
:
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
CONFIRM PRODUCT AND INSTALLATION
P.O.#
W.O.#
DATE:
SALES:
12/21/2011
SCALE: 1:32
X
QUOTE #
X
FILE NAME:
34-007-018
