APPROX WEIGHT: 97.74 lbs.

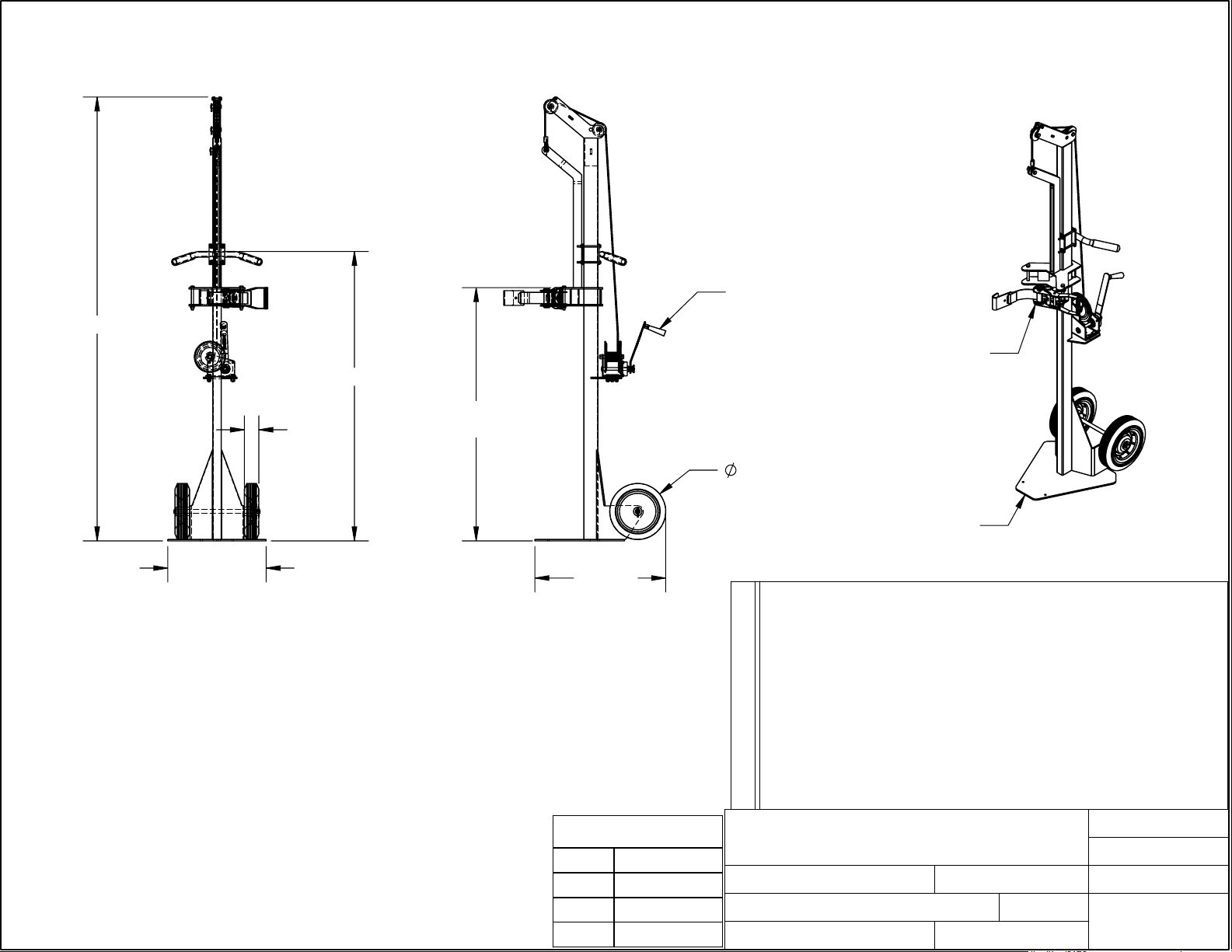

PORTABLE CYLINDER LIFTER - CYL-LT-1-HR
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
HAND WINCH
79 5/16"
RATCHET ASSEMBLY
51 3/4"
49 1/8" RAISED
2 1/2"
36 7/8" LOWERED
17 5/8"
STANDARD FEATURES
MODEL NUMBER IS CYL-LT-1-HR
MAXIMUM CAPACITY IS 300 LBS.
MAXIMUM CYLINDER DIAMETER IS Ø11 1/2"
OVERALL WIDTH IS 17 5/8"
OVERALL DEPTH IS 23 3/8"
OVERALL HEIGHT IS 79 5/16"
HARD RUBBER TIRE SIZE IS Ø10" X 2 1/2"
ADJUSTABLE STRAP RAISED HEIGHT IS 49 1/8"
ADJUSTABLE STRAP LOWERED HEIGHT 36 7/8"
HAND WINCH OPERATION
TOUGH BAKED IN POWDER COATED YELLOW FINISH
SPECIAL FEATURES
NONE
23 3/8"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
10"
NOSE PLATE SIZE IS
17 5/8" X 1
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
A
P
P
R
O
V
A
L
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
6"
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
J.RIDLEY
X
:
X
DATE:
05/21/09
QUOTE #
X
DIMENSION TOLERANCE ± 1/4"
P.O.#
X
W.O.#
X
SALES:
X
SCALE: 1:20
FILE NAME:
16-007-194
