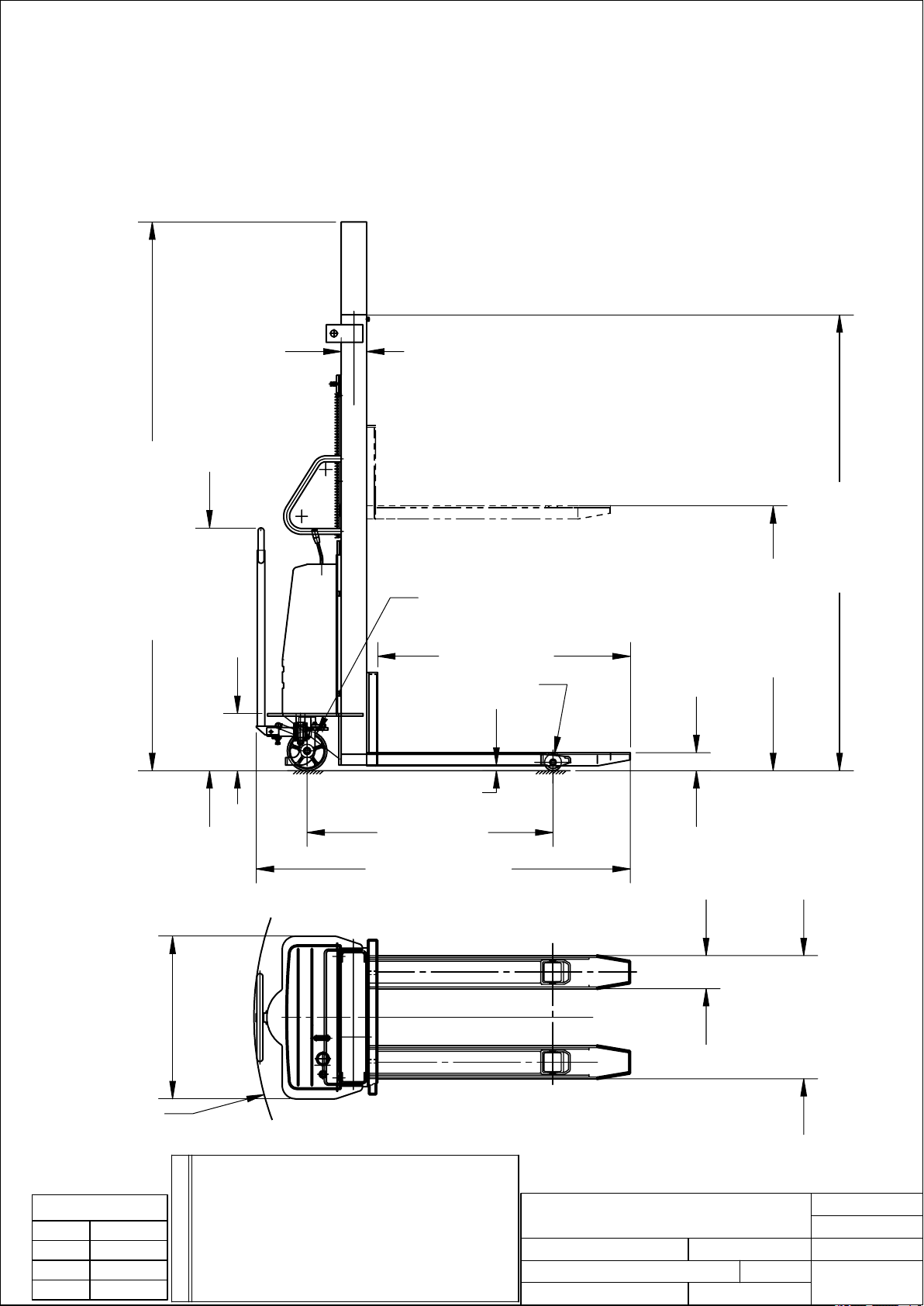

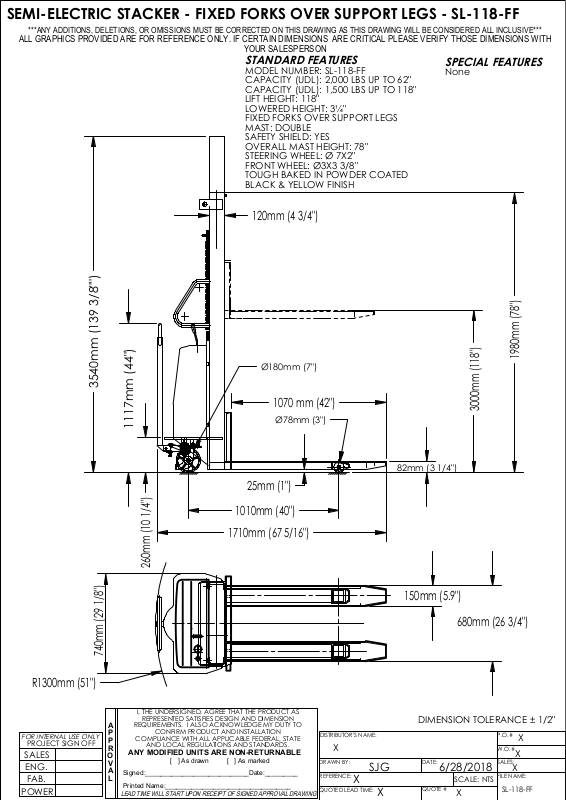

SEMI-ELECTRIC STACKER - FIXED FORKS OVER SUPPORT LEGS - SL-118-FF
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH
YOUR SALESPERSON
STANDARD FEATURES
MODEL NUMBER: SL-118-FF
CAPACITY (UDL): 2,000 LBS UP TO 62"
CAPACITY (UDL): 1,500 LBS UP TO 118"
LIFT HEIGHT: 118"
LOWERED HEIGHT: 3¼"
FIXED FORKS OVER SUPPORT LEGS
MAST: DOUBLE
SAFETY SHIELD: YES
OVERALL MAST HEIGHT: 78"
STEERING WHEEL: Ø 7X2"
FRONT WHEEL: Ø3X3 3/8"
TOUGH BAKED IN POWDER COATED
BLACK & YELLOW FINISH
120
mm (4 3/4")
SPECIAL FEATURES
None
3540mm (139 3/8"")
1117mm (44")
mm (10 1/4")
260
mm (29 1/8")
740
Ø180mm (7")
1070 mm (42")
Ø78mm (3")
25
mm (1")
1010
mm (40")
1710
mm (67 5/16")
82mm (3 1/4")
150
mm (5.9")
1980mm (78")
mm (118")
3000
680mm (26 3/4")
R
1300
mm (51")
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
A
P
P
R
O
V
A
Signed:____________________________Date:_________
L
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
DISTRIBUTOR'S NAME:
X
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
SJG
X
DIMENSION TOLERANCE ± 1/2"
P.O.#
X
W.O.#
DATE:
6/28/2018
:
X
QUOTE #
SCALE: NTS
X
X
SALES:
X
FILE NAME:
SL-118-FF
